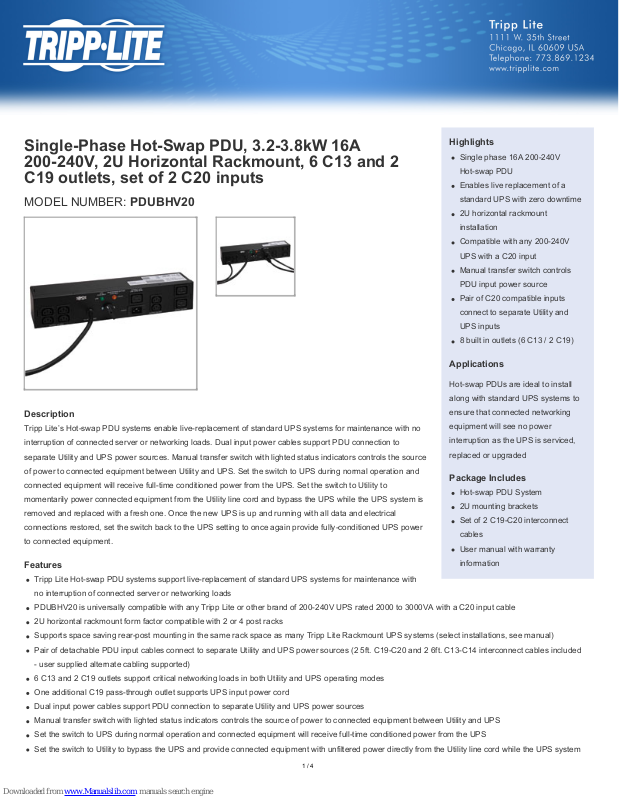

Page 1

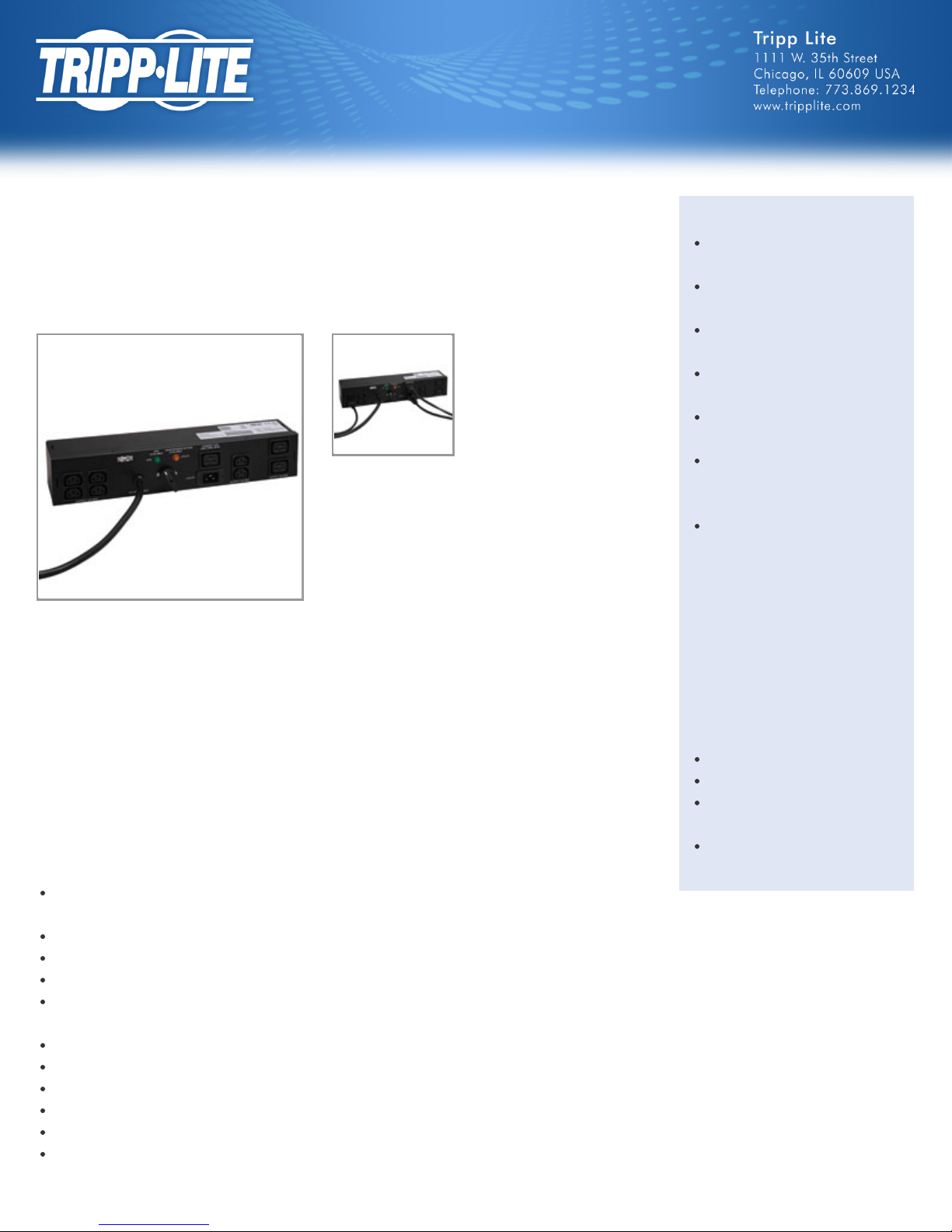

Single-Phase Hot-Swap PDU, 3.2-3.8kW 16A
200-240V, 2U Horizontal Rackmount, 6 C13 and 2
C19 outlets, set of 2 C20 inputs
MODEL NUMBER: PDUBHV20
Description
Tripp Lite’s Hot-swap PDU systems enable live-replacement of standard UPS systems for maintenance with no
interruption of connected server or networking loads. Dual input power cables support PDU connection to
separate Utility and UPS power sources. Manual transfer switch with lighted status indicators controls the source
of power to connected equipment between Utility and UPS. Set the switch to UPS during normal operation and
connected equipment will receive full-time conditioned power from the UPS. Set the switch to Utility to
momentarily power connected equipment from the Utility line cord and bypass the UPS while the UPS system is
removed and replaced with a fresh one. Once the new UPS is up and running with all data and electrical
connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS power
to connected equipment.
Features
Tripp Lite Hot-swap PDU systems support live-replacement of standard UPS systems for maintenance with
no interruption of connected server or networking loads
PDUBHV20 is universally compatible with any Tripp Lite or other brand of 200-240V UPS rated 2000 to 3000VA with a C20 input cable
2U horizontal rackmount form factor compatible with 2 or 4 post racks
Supports space saving rear-post mounting in the same rack space as many Tripp Lite Rackmount UPS systems (select installations, see manual)
Pair of detachable PDU input cables connect to separate Utility and UPS power sources (2 5ft. C19-C20 and 2 6ft. C13-C14 interconnect cables included
- user supplied alternate cabling supported)
6 C13 and 2 C19 outlets support critical networking loads in both Utility and UPS operating modes
One additional C19 pass-through outlet supports UPS input power cord
Dual input power cables support PDU connection to separate Utility and UPS power sources
Manual transfer switch with lighted status indicators controls the source of power to connected equipment between Utility and UPS
Set the switch to UPS during normal operation and connected equipment will receive full-time conditioned power from the UPS
Set the switch to Utility to bypass the UPS and provide connected equipment with unfiltered power directly from the Utility line cord while the UPS system
Highlights
Single phase 16A 200-240V
Hot-swap PDU
Enables live replacement of a
standard UPS with zero downtime
2U horizontal rackmount
installation
Compatible with any 200-240V
UPS with a C20 input
Manual transfer switch controls
PDU input power source
Pair of C20 compatible inputs
connect to separate Utility and
UPS inputs
8 built in outlets (6 C13 / 2 C19)
Applications
Hot-swap PDUs are ideal to install
along with standard UPS systems to
ensure that connected networking
equipment will see no power
interruption as the UPS is serviced,
replaced or upgraded
Package Includes
Hot-swap PDU System
2U mounting brackets
Set of 2 C19-C20 interconnect
cables
User manual with warranty
information
1 / 4
Page 2
is removed and replaced with a fresh one
Once the new UPS is up and running with all connection s restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS
power to connected equipment
TAA Compliant Version Available - Order Tripp Lite PDUBHV20TAA
Specifications
OVERVIEW
PDU Type Hot-Swap
OUTPUT
Output Watt Capacity (watts) 3680
Output Capacity Details
3.3kW (208V input), 3.5kW (220V input), 3.7kW (230V input), 3.8kW (240V input), 3.2kW (200V input); 20A
maximum (Agency de-rated to 16A continuous)
Frequency compatibility 50 / 60 Hz
Output nominal voltage 200-240V nominal, single phase
Outlet quantity / type
6 C13 and 2 C19 outlets support critical connected loads; 1 designated pass-through C19 outlet supports C20 input
plug from UPS
Outlet Type C13, C19
INPUT
PDU Input Voltage 200; 208; 220; 230; 240
Maximum Input Amps (A) 16
Input connection type
UTILITY & UPS inputs are available from separately labelled C20 inlets, compatible with included C19-C20
interconnect cables or with compatible user-supplied cabling
PDU Plug Type IEC-320 C20
Input cord length (ft.) 6
Input cord length (m) 1.83
Phase Single-Phase
LEDS ALARMS & SWITCHES
Switches
Manual 2 position transfer switch offers fast switching between UPS and Utility operating modes in less than 6
milliseconds
Front panel LEDs Lighted indicators confirm UPS and Utility switch position and operating mode
PHYSICAL
Shipping Dimensions (HWD/in) 9.84 x 22.75 x 9.44
Shipping Dimensions (HWD/cm) 25 x 57.8 x 24
Shipping weight (lbs) 11
2 / 4
Page 3
Shipping weight (kg) 5
Unit Dimensions (HWD/in) 3.42 x 17.32 x 3.03
Unit Dimensions (HWD/cm) 8.7 x 44 x 7.7
Unit weight (lbs) 7.7
Unit weight (kg) 3.5
Material of construction Steel
Style Rackmount
Form factors supported 2U rackmount in 2 or 4 post racks
PDU Form Factor Horizontal (1U, 2U, etc)
ENVIRONMENTAL
Relative Humidity 0-95% non condensing
CERTIFICATIONS
TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUBHV20TAA
Certifications Tested to UL60950 (USA), CSA (Canada), CE (IEC60950)
WARRANTY
Product Warranty Period (Worldwide) 2-year limited warranty
Related Items
Optional Products
Model Number Description Qty.
P004-002-13LA AC Power Extension Cable - C13 Left Angle to C14 - 2' 1
P004-002-13RA AC Power Extension Cable - C13 Right Angle to C14 - 2 ft. 1
P036-002-20LA 2-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C20 Left Angle) 1
P036-002-20RA 2-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C20 Right Angle) 1
P005-12N 1-ft. (12 in.) Heavy-Duty 14AWG Power Cord (IEC-320-C13 to IEC-320-C14) 1
P005-18N 1.5-ft. (18 in.) Heavy-Duty 14AWG Power Cord (IEC-320-C13 to IEC-320-C14) 1
P005-002 2-ft. Heavy-Duty 14AWG Power cord ( IEC-320-C13 to IEC-320-C14) 1
P004-002-5 5-Pack of 2-ft. 18AWG Power cord (IEC-320-C14 to IEC-320-C13) 1
P004-004 4-ft. 18AWG Power cord (IEC-320-C14 to IEC-320-C13) 1
P004-004-BL 4-ft. 18 AWG Power Cord (IEC-320-C14 to IEC-320-C13) with Blue Connectors 1
P004-004-GN 4-ft. 18 AWG Power Cord (IEC-320-C14 to IEC-320-C13) with Green Connectors 1
P004-004-RD 4-ft. 18 AWG Power Cord (IEC-320-C14 to IEC-320-C13) with Red Connectors 1
3 / 4
Page 4
P004-004-YW 4-ft. 18 AWG Power Cord (IEC-320-C14 to IEC-320-C13) with Yellow Connectors 1
P004-006 6-ft. 18AWG Power cord (IEC-320-C14 to IEC-320-C13) 1
P004-006-2C13 6-ft. AC Power Extension Splitter Cable ( C14 to 2 x C13 ) 1
P005-006 6-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to IEC-320-C14) 1
P005-006-BL 6-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to IEC-320-C14) Blue Connectors 1
P005-006-GN 6-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to IEC-320-C14) Green Connectors 1
P005-006-RD 6-ft. Heavy-Duty 14AWG Power Cord (IEC-320-C13 to IEC-320-C14) with Red Connectors 1
P005-006-YW 6-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to IEC-320-C14) Yellow Connectors 1
P004-010 10-ft. 18AWG Power cord (IEC-320-C14 to IEC-320-C13) 1
P005-010 10-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to IEC-320-C14) 1
P047-002 2-ft. 14AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C14) 1
P047-004 4-ft. 14AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C14) 1
P047-006 6-ft. 14AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C14) 1
P047-010 10-ft. 14AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C14) 1
P036-002 2-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C20) 1
P036-006 6-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to IEC-320-C20) 1
P036-006-2C19 6-ft. AC Power Splitter Cable ( C20 to 2 x C19 ) 1
P040-010 10 ft. 12AWG Heavy Duty Power Cord (IEC-320-C19 to NEMA L6-20P) 1
P045-010 10-ft. 12AWG Heavy-Duty Power cord (IEC-320-C19 to NEMA L5-20P) 1
P049-010 10-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to NEMA 5-20P) 1
P050-008 8-ft. Power cord (IEC-320-C19 to CEE 7/7 SCHUKO) 1
P052-008 8-ft. Power cord (IEC-320-C19 to BS1363 UK Plug) 1
P070-010 10-ft. IEC309 to C19 Power Cord 1
P040-006 6 ft. 12AWG Heavy Duty Power Cord (IEC-320-C19 to NEMA L6-20P) 1
P040-014 14 ft. 12AWG Heavy Duty Power Cord (IEC-320-C19 to NEMA L6-20P) 1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at:
http://www.tripplite.com/sku/PDUBHV20.
© 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
