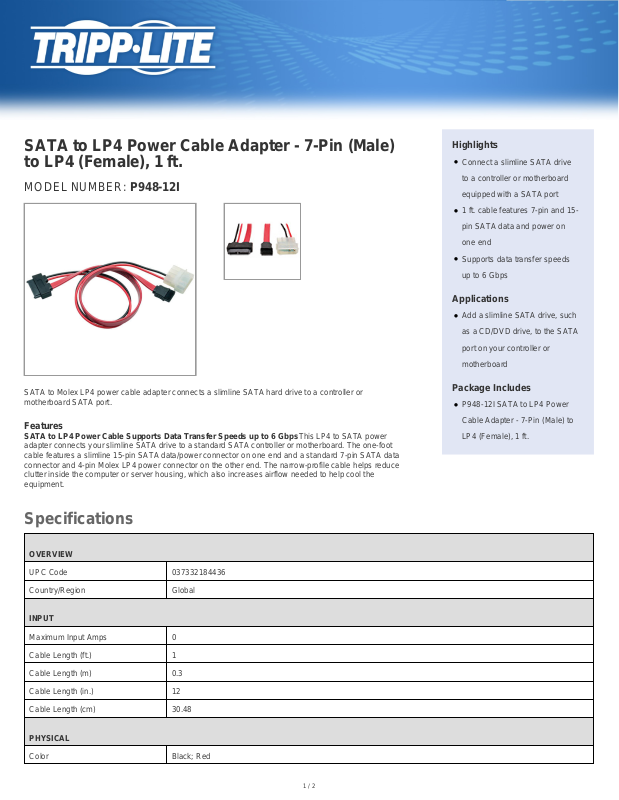

Tripp-Lite P948-12I Data Sheet

SATA to LP4 Power Cable Adapter - 7-Pin (Male)
to LP4 (Female), 1 ft.

MODEL NUMBER: P948-12I

Highlights

●

Connect a slimline SATA drive
to a controller or motherboard
equipped with a SATA port

●

1 ft. cable features 7-pin and 15­pin SATA data and power on
one end

●

Supports data transfer speeds
up to 6 Gbps

Applications

●

Add a slimline SATA drive, such
as a CD/DVD drive, to the SATA
port on your controller or
motherboard

SATA to Molex LP4 power cable adapter connects a slimline SATA hard drive to a controller or
motherboard SATA port.

Features

SATA to LP4 Power Cable Supports Data Transfer Speeds up to 6 GbpsThis LP4 to SATA power

adapter connects your slimline SATA drive to a standard SATA controller or motherboard. The one-foot
cable features a slimline 15-pin SATA data/power connector on one end and a standard 7-pin SATA data
connector and 4-pin Molex LP4 power connector on the other end. The narrow-profile cable helps reduce
clutter inside the computer or server housing, which also increases airflow needed to help cool the
equipment.

Specifications

OVERVIEW

UPC Code 037332184436
Country/Region Global

INPUT

Maximum Input Amps 0
Cable Length (ft.) 1
Cable Length (m) 0.3

Package Includes

●

P948-12I SATA to LP4 Power
Cable Adapter - 7-Pin (Male) to
LP4 (Female), 1 ft.

Cable Length (in.) 12
Cable Length (cm) 30.48

PHYSICAL

Color Black; Red

1 / 2

Number of Conductors 0
Power Cord Jacket Type Null
Shipping Dimensions (hwd / cm) 22.86 x 17.78 x 1.27
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (kg) 0.03
Shipping Weight (lbs.) 0.06
Wire Gauge (OD - mm²) 0

CONNECTIONS

Side A - Connector 1 LP4 (FEMALE)
Side B - Connector 1 7 PIN SATA (MALE)

FEATURES & SPECIFICATIONS

Technology SATA/eSATA

SPECIAL FEATURES

High Voltage No
Locking Plug No

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
