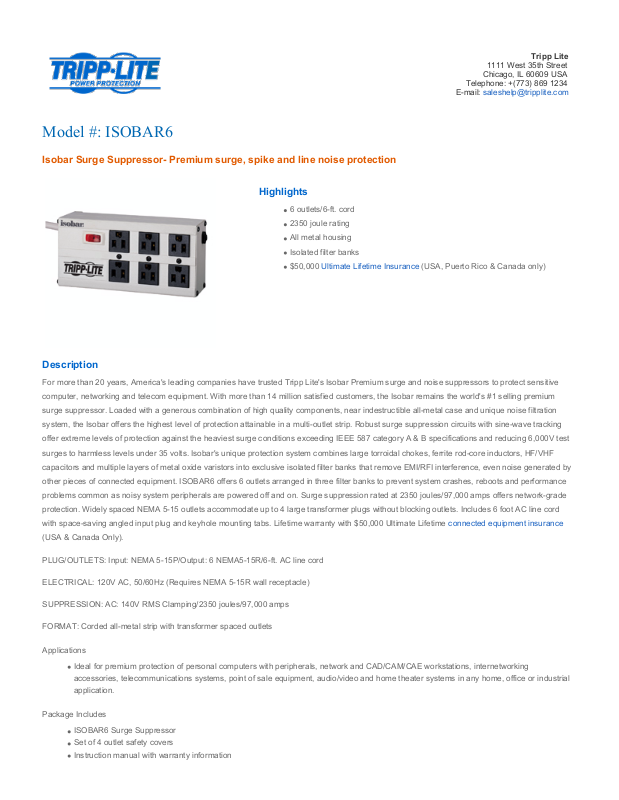

Tripp Lite ISOBAR6 User Manual

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +[phone]

E-mail: [e-mail]

Model #: ISOBAR6

Isobar Surge Suppressor- Premium surge, spike and line noise protection

Highlights

6 outlets/6-ft. cord

2350 joule rating

All metal housing

Isolated filter banks

$50,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)

Description

For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise suppressors to protect sensitive

computer, networking and telecom equipment. With more than 14 million satisfied customers, the Isobar remains the world's #1 selling premium

surge suppressor. Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration

system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking

offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test

surges to harmless levels under 35 volts. Isobar's unique protection system combines large torroidal chokes, ferrite rod-core inductors, HF/VHF

capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by

other pieces of connected equipment. ISOBAR6 offers 6 outlets arranged in three filter banks to prevent system crashes, reboots and performance

problems common as noisy system peripherals are powered off and on. Surge suppression rated at 2350 joules/97,000 amps offers network-grade

protection. Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Includes 6 foot AC line cord

with space-saving angled input plug and keyhole mounting tabs. Lifetime warranty with $50,000 Ultimate Lifetime connected equipment insurance

(USA & Canada Only).

PLUG/OUTLETS: Input: NEMA 5-15P/Output: 6 NEMA5-15R/6-ft. AC line cord

ELECTRICAL: 120V AC, 50/60Hz (Requires NEMA 5-15R wall receptacle)

SUPPRESSION: AC: 140V RMS Clamping/2350 joules/97,000 amps

FORMAT: Corded all-metal strip with transformer spaced outlets

Applications

Ideal for premium protection of personal computers with peripherals, network and CAD/CAM/CAE workstations, internetworking
accessories, telecommunications systems, point of sale equipment, audio/video and home theater systems in any home, office or industrial
application.

Package Includes

ISOBAR6 Surge Suppressor
Set of 4 outlet safety covers
Instruction manual with warranty information

Features

Tripp Lite's ISOBAR is the world's #1 selling premium suppressor series with more than 14 million satisfied customers and a safety-tested
history of 20+ years
Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions, exceeding IEEE category A&B
specifications and reducing 6,000V test surges to harmless levels less than 35 volts
Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal
oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment
6 outlets arranged in three filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are
powered off and on
Network grade surge suppression rated at 2350 joules/97,000 amps
Widely spaced outlets accommodate up to 4 large transformer plugs without blocking outlets
Lighted power switch confirms power on/off status
6 foot AC line cord with space-saving angled input plug
Keyhole mounting tabs allow permanent installation
120VAC, 50/60Hz electrical compatibility
$50,000 Ultimate Lifetime Insurance (USA & Canada Only)
Lifetime product warranty
UL1449 listed - surge suppression (330V let-through), UL1283 listed - EMI protection, UL1363 listed - power tap, cUL approved to Canadian
standards

Specifications

OVERVIEW

Intended Application Home/Office, Computer Networks

SYSTEM OVERVIEW

Voltage compatibility 120 VAC

Frequency compatibility 50/60 Hz

OUTPUT

Output volt amp
capacity (amps)

12

Output watts 1440

Outlet quantity / type 6 NEMA 5-15R

Transformer
accommodation

Supports up to 4 large transformer plug accessories without covering remaining outlets

INPUT

Input connection type NEMA 5-15P input plug

Input cord length (ft.) 6 ft.

Input cord length (m) 1.8

Recommended
Electrical Service

120V (110-125V)

LEDS ALARMS & SWITCHES

Switches Two position red illuminated on/off power switch

SURGE / NOISE SUPPRESSION

Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression

AC suppression joule
rating

2350 joules

Clamping voltage (RMS) 140V

AC suppression
response time

NM = 0 ns. CM =

AC suppression surge
current rating

97,000 amps (36,000 NM / 61,000 CM)
