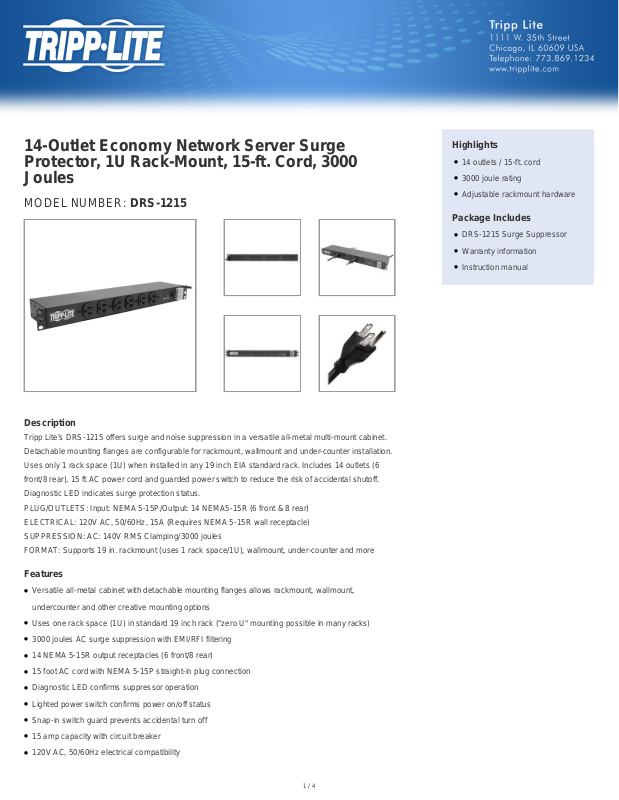

Tripp Lite DRS-1215 Datasheet

14-Outlet Economy Network Server Surge
Protector, 1U Rack-Mount, 15-ft. Cord, 3000
Joules

MODEL NUMBER: DRS-1215

Description

Tripp Lite's DRS-1215 offers surge and noise suppression in a versatile all-metal multi-mount cabinet.
Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation.
Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Includes 14 outlets (6
front/8 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff.
Diagnostic LED indicates surge protection status.
PLUG/OUTLETS: Input: NEMA 5-15P/Output: 14 NEMA5-15R (6 front & 8 rear)
ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)
SUPPRESSION: AC: 140V RMS Clamping/3000 joules
FORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

Highlights

●

14 outlets / 15-ft. cord

●

3000 joule rating

●

Adjustable rackmount hardware

Package Includes

●

DRS-1215 Surge Suppressor

●

Warranty information

●

Instruction manual

Features

●

Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount,
undercounter and other creative mounting options

●

Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)

●

3000 joules AC surge suppression with EMI/RFI filtering

●

14 NEMA 5-15R output receptacles (6 front/8 rear)

●

15 foot AC cord with NEMA 5-15P straight-in plug connection

●

Diagnostic LED confirms suppressor operation

●

Lighted power switch confirms power on/off status

●

Snap-in switch guard prevents accidental turn off

●

15 amp capacity with circuit breaker

●

120V AC, 50/60Hz electrical compatibility

1 / 4

Specifications

OVERVIEW

UPC Code 037332100245

OUTPUT

Frequency Compatibility 50 / 60 Hz
Output (Watts) 1800
Output Receptacles (14) 5-15R
Circuit Breaker (amps) 15

INPUT

Nominal Input Voltage(s) Supported 120V AC
Recommended Electrical Service 120V (110-125V)
Voltage Compatibility (VAC) 120
Maximum Surge Amps 120000
Input Plug Type NEMA 5-15P
Input Cord Length (ft.) 15
Right-Angle Plug No
Input Cord Length (m) 4.57
Integrated Cord Clip No

USER INTERFACE, ALERTS & CONTROLS

Diagnostic LED(s) Yes
Switches Power switch controls power to all outlets
Diagnostic LED Details Green - Protection Present
Locking Switch Cover Transparent locking switch cover prevents accidental shutoff

SURGE / NOISE SUPPRESSION

AC Suppression Joule Rating 3000
AC Suppression Response Time < 1 ns
Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping Voltage (RMS) 140
Safe Thermal Fusing Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
UL1449 Let Through Rating 330V
