Owner’s Manual
4-Port HDMI Multi-Viewer Switch
Model: B119-4X1-MV
Este manual esta disponible en español en la página de
Tripp Lite: www.tripplite.com/support
Ce manuel est disponible en français sur le site Web de
Tripp Lite : www.tripplite.com/support
Русскоязычная версия настоящего руководства
представлена на веб-сайте компании Tripp Lite по адресу:
www.tripplite.com/support
PROTECT YOUR INVESTMENT!
Register your product for quicker service
and ultimate peace of mind.
You could also win an ISOBAR6ULTRA
surge protector—a $100 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
18-03-031-9337FE-EN.indd 1 3/20/2018 4:26:57 PM
Copyright © 2018 Tripp Lite. All rights reserved.
1
Product Features
• Simultaneously monitor and seamlessly switch between four devices in
real-time
• Toggle between display modes via front panel pushbutton or remote
control
• Supports viewing in Quad, Dual and Full Screen display modes
• Switch audio independently of video from connected HDMI sources
• Supports high definition video resolutions up to 1080p @60 Hz
• Plug and Play – No software or drivers required
Package Includes
• 4-Port HDMI Multi-Viewer Switch
• External Power Supply*
(Input: 100-240V, 50/60 Hz, 0.6A; Output: 12V 2A)
• Mounting Hardware
• Remote Control
• Owner’s Manual
*Includes NEMA 1-15P (North America), CEE 7/16 Schuko (Europe), BS 1363 (UK)
and AS/NZS 3112 (Australia) plug adapters.
Optional Accessories
• P568-Series High-Speed HDMI Cables
18-03-031-9337FE-EN.indd 2 3/20/2018 4:26:57 PM
2
Standard Installation
HD Camera
DVD
1. Make sure all devices being connected are turned off.
2. Connect the first HDMI source to the port labeled “HDMI 1”.
Note: When connecting the source to the switch, make sure the HDMI cable does
not exceed 16 ft. (5 m).
3. Repeat Step 2 to connect additional HDMI sources to the remaining
ports.
4. Connect the HDMI display to the port labeled “Output”.
Note: When connecting the switch to the display, ensure the HDMI cable does not
exceed 16 ft. (5 m).
5. Connect the external power supply to the switch and plug it into a
Tripp Lite Surge Protector, Power Distribution Unit (PDU), or
Uninterruptible Power Supply (UPS). When the switch is receiving power,
the red Power LED and blue Source LED will illuminate.
Note: Source LEDs will not illuminate until the sources are receiving power.
6. Turn on the power to the connected devices. The video image should
display on the connected monitor/TV.
18-03-031-9337FE-EN.indd 3 3/20/2018 4:26:57 PM
PC
Camera
HDMI Display
HDMI Cable
3

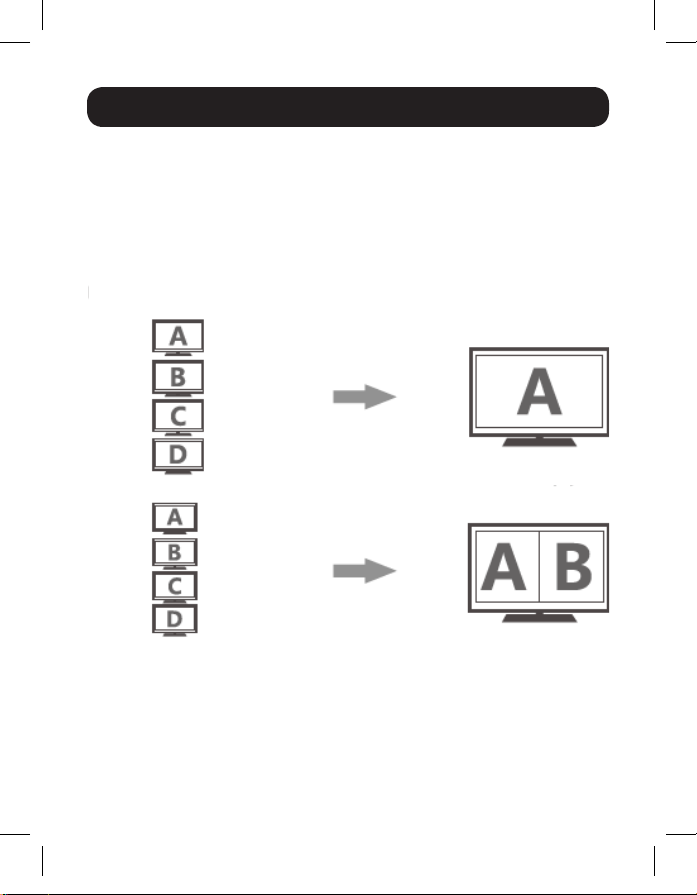

Display Modes
Press the “MODE” pushbutton to switch between Full Screen, Dual and
Quad display modes (depicted below). Pressing the “AUDIO” pushbutton will
switch the audio output independent of the video. The included remote can
also be used to switch between each of the three display modes as well as
the audio output.
Note: Sound cannot play simultaneously from all sources. A music note symbol “♪”
identifies the audio output source.
Full Screen Mode:
INPUT 1
INPUT 2
INPUT 3
Dual Mode:
Note: Dual mode only supports A/B and C/D combinations.
18-03-031-9337FE-EN.indd 4 3/20/2018 4:26:58 PM
INPUT 4
HDMI Display
INPUT 1
INPUT 2
INPUT 3
INPUT 4
HDMI Display
4
Display Modes
Quad Mode:
Mode (1):
INPUT 1
INPUT 2
INPUT 3
INPUT 4
Mode (2):
INPUT 1
INPUT 2
INPUT 3
INPUT 4
HDMI Display
Mode (3):
18-03-031-9337FE-EN.indd 5 3/20/2018 4:26:58 PM
INPUT 1
INPUT 2
INPUT 3
INPUT 4
HDMI Display
HDMI Display
5
Specifications
Input Port 4 x HDMI
Output Port 1 x HDMI
HDMI Signal HDMI 1.3, HDCP 1.2
Audio Support PCM (Pulse Code Modulation)
Display Modes Quad mode, Dual mode and Full Screen mode
Supported Resolutions 480i @60 Hz; 480 @60 Hz; 576i @50 Hz;
Storage Temperature -4~140 °F (-20~60 °C)
Operating Temperature 32~104 °F (0~40 °C)
Power Supply DC 12V / 2A
Power Consumption <10W
Size 5.85 x 4.07 x 0.84 in.
Weight 0.75 lb. (340 g)
Color Black
576p @50 Hz; 720p @50/60 Hz;
1080i @50/60 Hz; 1080p @50/60 Hz
(148.5 x 103.4 x 21.3 mm)
18-03-031-9337FE-EN.indd 6 3/20/2018 4:26:58 PM
6
Troubleshooting
If you are unable to get an acceptable image after following the installation
instructions above, try the troubleshooting tips below.
1. Is the external power supply included with the product connected
and plugged into a working power source?
For the product to function properly, it must be connected to and
receiving power from the external power supply.
2. Was the power to the connected devices (sources) turned off prior
to installation?
If not, please restart them.
3. What type of cabling are you using?
Inferior cabling can result in poor performance, so it is important that you
use cables that can support the video resolution you are trying to obtain.
It is highly recommended you use Tripp Lite’s P568-Series High Speed
HDMI cables, as they have been tested to work with the B119-Series
Matrix Switch products.
4. Test your cables to ensure they are working properly.
For example, connect your HDMI cables between a source and monitor
that you know works to see if the cable is properly functioning.
5. What length HDMI cable are you using?
The cable connecting an HDMI source to the switch must be no longer
than 16 ft. (5 m) in length. The cable connecting the switch to a display
must be no longer than 16 ft. (5 m) in length.
6. Is the switch located in an area that exposes it to higher
temperatures?
If the product is overheated, it will not function properly.
18-03-031-9337FE-EN.indd 7 3/20/2018 4:26:58 PM
7
Warranty and Product Registration
2-Year Limited Warranty
TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of
two (2) years from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited
to repairing or replacing (at its sole option) any such defective products. To obtain service under
this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or
an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized
TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief
description of the problem encountered and proof of date and place of purchase. This warranty does
not apply to equipment which has been damaged by accident, negligence or misapplication or has
been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some
states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s)
or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any
costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software,
loss of data, costs of substitutes, claims by third parties, or otherwise.
WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing
regulations, when customers buy new electrical and electronic equipment from Tripp Lite they
are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending
on the country)
• Send the new equipment back for recycling when this ultimately becomes waste
WARNING
Use of this equipment in life support applications where failure of this equipment can reasonably
be expected to cause the failure of the life support equipment or to significantly affect its safety or
effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Product specifications are subject to change
without notice.
