Trion Air Boss KES SERIES User Manual

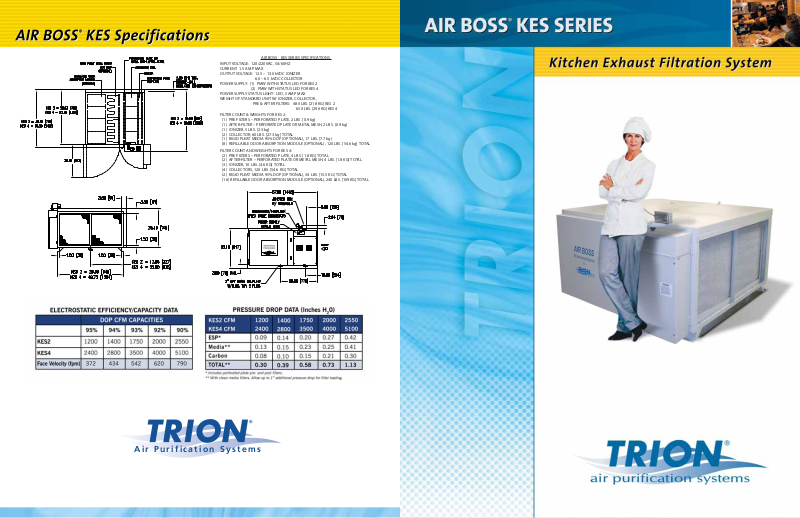

AIR BOSS®KES SERIES SPECIFICATIONS
INPUT VOLTAGE: 120/220VAC, 50/60HZ
CURRENT: 1.5 AMP MAX
OUTPUT VOLTAGE: 12.5 – 13.0 kVDC IONIZER
6.0 – 6.5 kVDC COLLECTOR
POWER SUPPLY: (1) PMW WITH STATUS LED FOR KES 2
(2) PMW WITH STATUS LED FOR KES 4
POWER SUPPLY STATUS LIGHT: LED, 5 AMP MAX
WEIGHT OF STANDARD UNIT W/ IONIZER, COLLECTOR,
PRE & AFTER FILTERS: 480 LBS. [218 KG] KES 2
650 LBS. [296 KG] KES 4
FILTER COUNT & WEIGHTS FOR KES 2:
(1) PRE FILTERS – PERFORATED PLATE, 2 LBS. [0.9 kg]
(1) AFTER-FILTER – PERFORATED PLATE OR METAL MESH, 2 LBS. [0.9 kg]
(1) IONIZER, 5 LBS. [2.3 kg]
(2) COLLECTOR, 60 LBS. [27.3 kg] TOTAL
(1) RIGID PLEAT MEDIA 95% DOP (OPTIONAL), 17 LBS. [7.7 kg}
(8) REFILLABLE ODOR ABSORPTION MODULE (OPTIONAL), 120 LBS. [54.6 kg] TOTAL
FILTER COUNT AND WEIGHTS FOR KES 4:
(2) PRE FILTERS – PERFORATED PLATE, 4 LBS. [1.8 KG] TOTAL
(2) AFTER-FILTER – PERFORATED PLATE OR METAL MESH, 4 LBS. [1.8 KG] TOTAL
(3) IONIZER, 10 LBS.
[4.6 KG]
TOTAL
(4) COLLECTORS, 120 LBS. [54.6 KG] TOTAL
(2) RIGID PLEAT MEDIA 95% DOP (OPTIONAL), 34 LBS. [15.5 KG} TOTAL
(16) REFILLABLE ODOR ABSORPTION MODULE (OPTIONAL), 240 LBS. [109 KG] TOTAL
Air Purification Systems
www.trioninc.com 1-800-884-0002
Trion:The First Name in Air Purification Systems
More than 50 years ago, Trion created the first air cleaner for
the U.S. Navy submarine fleet. Since then, commercial and
industrial businesses have depended on Trion’s trusted and proven
technologies. Trion is a division of Fedders Corporation
(NYSE: FJC), a leading global manufacturer and marketer of air
treatment products.
Air Boss® KES Series, the Right Solution
Kitchen exhaust contains grease, smoke and odors, which
can be filtered properly to help meet EPA, state and local
air quality standards. With the Trion KES system, you’ll be
on good terms with both city inspectors and your commercial and residential neighbors.
The KES is a multi-stage, self-contained filtration unit that
ensures maximum effectiveness through the use of:
1. An electrostatic precipitator
2. A 95% DOP media filter
3. Carbon modules for odor control
Applications
The KES is perfect for commercial and institutional
kitchens in:
• Restaurants
• Food Courts
• Hospitals
• Schools
• Sport & Entertainment Complexes
Air Boss® KES Series Can Help You Achieve:
• High-efficiency at low, constant pressure drop
• Compliance with EPA, state and local air quality
laws and regulations
• Cleaner, fresher kitchen exhaust that fosters “goodwill”
with commercial and residential neighbors and with
federal, state and local government agencies.
Electrostatic Section (1st Stage)
High efficiency two-stage
collection components
Optional UL 762 Fan Package
Junction Box for
Single Point Wiring
Double-wall Cabinet,
Fire Insulated
Optional
Adsorber Section (3rd Stage)
Activated carbon modules for
gaseous odor adsorption
Optional
Media Section (2nd Stage)
95% DOP filter to help
extend the life of the
adsorption media
Optional
Fire Suppression System
(Not Shown)
Air Boss® KES Series System Components
Qualified to UL Specification YYXS-YYXS
7
Hood and Duct Accessories
How Electrostatic Precipitators Work
As air enters the filter, the particles pass through a high
intensity electrical field that imparts an electrical charge to
the particles, which range in size from 0.01 micron to 10
microns. The charged particles pass through a series of
alternately charged collector plates. Particles are repelled
by plates with the same polarity and attracted to plates with
opposite polarity — similar to how a powerful magnet works.
Dirty Air
Pre-Filter
Ionizer
Collector
Clean Air
