OWNER’S MANUAL

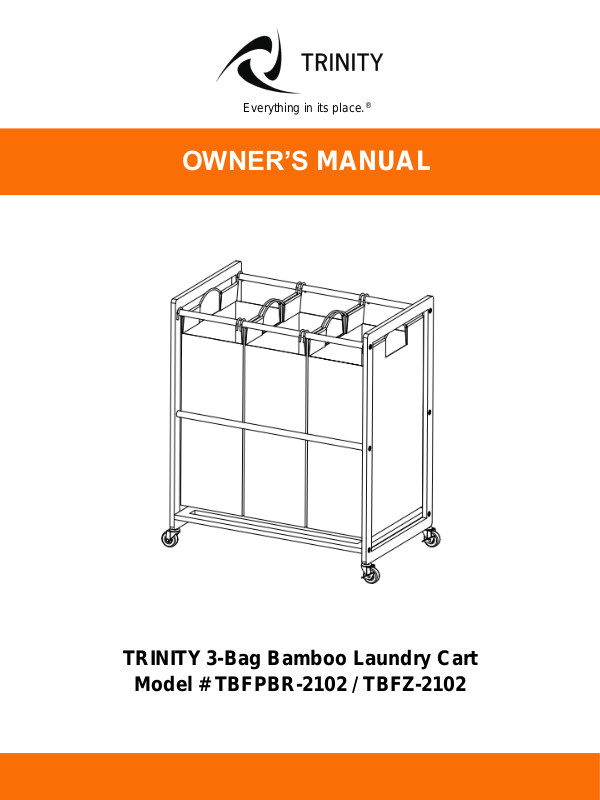

TRINITY 3-Bag Bamboo Laundry Cart

Model # TBFPBR-2102 / TBFZ-2102

Everything in its place.

Page 2

Page 3

Your TRINITY Laundry Cart should include the following parts. Please inspect box contents to ensure you have received all components.

If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or [email protected]. Parts can also be requested online via our “Contact Us” section at www.trinityii.com.

All tools required for assembly are included.

PARTS LIST

BAMBOO FRAME (2)

BAMBOO SHELF (1)

POLE (4)

SCREW (12)

E F

LAUNDRY BAG (3)

LAUNDRY BAG

HANDLE (6)

LOCKING

CASTER (2)

NON-LOCKING

CASTER (2)

HEX KEY (1)CASTER

WRENCH (1)

Page 4

ASSEMBLY INSTRUCTIONS

STEP 1

Lay the BAMBOO FRAME (A) on its side

with the TRINITY logo facing out. Attach

the BOTTOM SHELF (B) to the BAMBOO FRAME (A) using SCREWS (H) and the HEX KEY (J).

Then attach POLES (C) to the BAMBOO FRAME (A), using SCREWS (H) and the HEX KEY (J).

B (1) H (6)C (4) J (1)A (1)

STEP 2

H (6) J (1)A (1)

Repeat instructions in Step 1 to attach the second BAMBOO FRAME (A) with the TRINITY logo facing out.

Page 5

ASSEMBLY INSTRUCTIONS

STEP 3

STEP 4

D (6) E (3)

Screw CASTERS (F+G) into the nuts at the bottom of the BAMBOO FRAMES (A). Turn clockwise to screw in place. Make sure the LOCKING CASTERS (F) are on the same side.

Use the provided CASTER WRENCH (I) to tighten the CASTERS (F+G) completely. Failure to do as instructed could result in the caster stem breaking.

F (2) G (2) I (1)

Stand the unit upright. Insert the LAUNDRY BAG HANDLE (D) through the loops at the top of the LAUNDRY BAG (E). Repeat for remaining (5) LAUNDRY BAG HANDLES (D).

Hang the LAUNDRY BAGS (D+E) on the POLES (C) as shown in the diagram.

Page 6

SERVICE PARTS LIST – TBFPBR-2102 / TBFZ-2102

Part Number Description Part Number Description

1) PBR-05-013-1675 Handle - Bronze 7) XXX-97-002-0001 Wrench

2) ZSV-05-013-1675 Handle - Chrome 8) ZSV-99-009-2008 Non-locking Caster

3) XWH-24-002-0814 Laundry Bag 9) LNA-03-018-2617 Bamboo Shelf

4) ZBK-01-002-0618 Screw 10) XXX-97-001-0001 Hex Key

5) LNA-14-007-1730 Bamboo Frame 11) PBR-13-007-2600 Pole - Bronze

6) ZSV-99-010-2008 Locking Caster 12) ZSV-13-007-2600 Pole - Chrome

TRINITY Customer Service provides the following replacement parts:

Page 7

WARNINGS

CARE AND MAINTENANCE

1. Read and understand all instructions. Failure to follow all instructions may result

in injury and/or damage.

2. Use the provided caster wrench to tighten casters completely. Failure to do as

instructed could result in the caster stem breaking thereby causing the laundry cart to collapse.

3. The warnings, cautions, and instructions discussed in this manual cannot

cover all possible conditions or situations that may occur. The user must

always be aware of their environment and ensure that they use the product in a safe and responsible manner.

4. Do NOT modify the product in any way. Unauthorized modification may impair the

function and/or safety of the product, and may affect the life of the product.

5. Check for damaged parts. Before using this product, carefully check that all parts

are in good condition, and that the product will operate properly and perform its intended function. Check for damaged parts and any other conditions that may affect the operation of this product. Replace damaged or worn parts, and never use this product with a damaged part.

6. Do NOT overload the product.

7. Do NOT stand on the bottom shelf.

• Laundry Bags are made of 100% cotton, and are fully washable.

• Machine wash warm

• Tumble dry low

• Do not bleach

• Laundry bag handles MUST be removed before washing.

• Bamboo can be maintained with mineral oil for best results.

• Avoid harsh, abrasive cleaners, and other corrosive chemicals.

Weight capacity per bag 15 lb

Total weight capacity of sorter 40 lb

Page 8

Page 9

Thank you for purchasing a TRINITY 3-Bag Bamboo Laundry Cart. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to [email protected]. Include a copy of your original receipt with your submission.

First Name: Last Name: Address: City: State: Zip Code: Email Address: Phone: Product Model #: Purchase Date: / / Location of Purchase:

Please rate the importance of each feature (1=least important; 10=most important) Quality Price Size/Capacity Appearance Other

How did you hear about our product?

Magazine Ad Catalog Salesperson Word of Mouth Internet Store Display Other

Marital Status: Single Married Household Income: Below $50,000 $50,000-$150,000 $150,000+ Education: High School College Graduate School Primary Residence: Own Rent Comments/Suggestions:

PRODUCT REGISTRATION

Page 10

Page 11

1 YEAR LIMITED WARRANTY

TRINITY 3-Bag Bamboo Laundry Cart

Model # TBFZ-2102 / TBFPBR-2102

Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”)

of the TRINITY 3-Bag Bamboo Laundry Cart (“Product”) that each Product shall be free from defects

in workmanship and materials for a period of 1 year from the date of original purchase. Trinity’s

obligation under this warranty shall be limited to repair or replacement of, or adequate compensation for the Product which shall not be greater than the amount of the purchase price of the Product, at the option of Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must be returned to Trinity.

This warranty excludes normal wear and tear of the Product and its parts or components, and

damage arising from any of the following: negligent use or misuse of the Product, use contrary to

this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall

not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty.

Except as set forth herein, and to the extent of applicable there are no warranties on this Product either express or implied, and Trinity disclaims all warranties including, but not limited to, any implied warranties of merchantability, infringement or fitness for a particular purpose. No warranty or guarantee given by any person, firm, or corporation with respect to this product shall be binding on Trinity.

If your Product is defective or otherwise requires service or parts, please call TRINITY Customer Service toll-free at (800) 985-5506, between 8:00 a.m. and 5:00 p.m., PST. Please tell us which model you purchased, the date of the purchase, and the problem with your Product. A copy of your original purchase receipt must accompany your service request.

LIMITATION OF REMEDIES AND LIABILITY

Trinity (and its employees, officers, members, managers, affiliates an assigns) shall not be liable for any incidental, consequential, special, indirect, remote, special or punitive damages for breach of

any warranty, express or implied, including, but not limited to, lost profits, lost savings, loss of

anticipated benefits and attorneys’ fees, which arise out of the purchase, use or inability to use the

Product, whether arising out of contract, negligence, strict tort, product liability, or any other legal theory on which a claim is based. As noted above, to the extent damages are allowed by our express warranty or by applicable law, those damages may not exceed the purchase price paid for the Product. Without limiting the foregoing Purchaser assumes all risk and liability for loss, damage

or injury to Purchaser and Purchaser’s property and to others and their property arising out of the

use, misuse, or inability to use this Product. This limited warranty shall not extend to anyone other than the original purchaser of this product, is nontransferable and states your exclusive remedy.

Some states do not allow the exclusion or limitation of incidental, consequential, special, or punitive damages, so the above limitation or exclusion may not apply to you. The above warranty gives you specific legal rights, and you may have other rights which vary from state to state.

Page 12

TRINITY Customer Service

TEL: 800.985.5506

FAX: 310.347.4134

EMAIL: [email protected]

Monday through Friday

8:00 AM – 5:00 PM (PST)

www.trinityii.com

QUESTIONS? NEED PARTS?

WE ARE HERE TO HELP!

Please feel free to contact us. There are no questions too

small, or any problems too big. We’re committed to

providing our customers with the highest level of service.
