Page 1
STEP 2
B (4)
C (8)

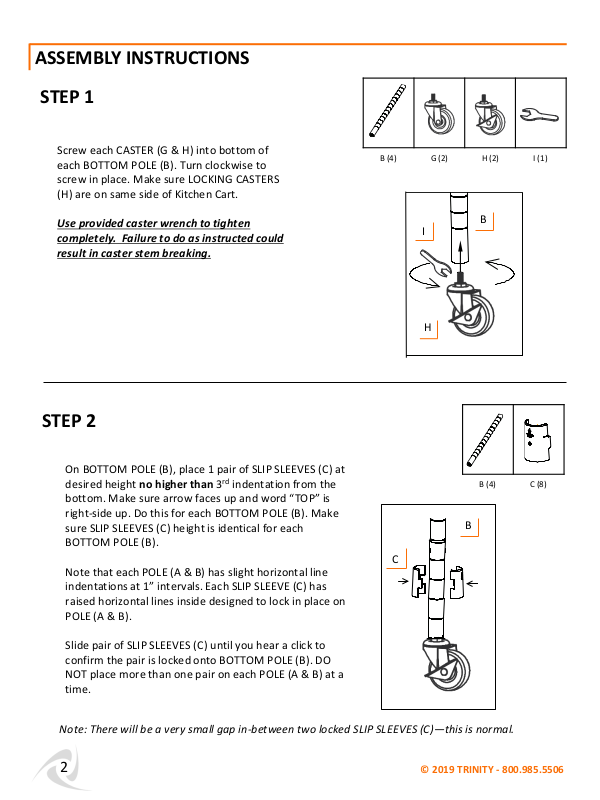

ASSEMBLY INSTRUCTIONS
STEP 1
B
C
© 2019 TRINITY - 800.985.5506
2
H (2)
I (1)
G (2)
B (4)
B

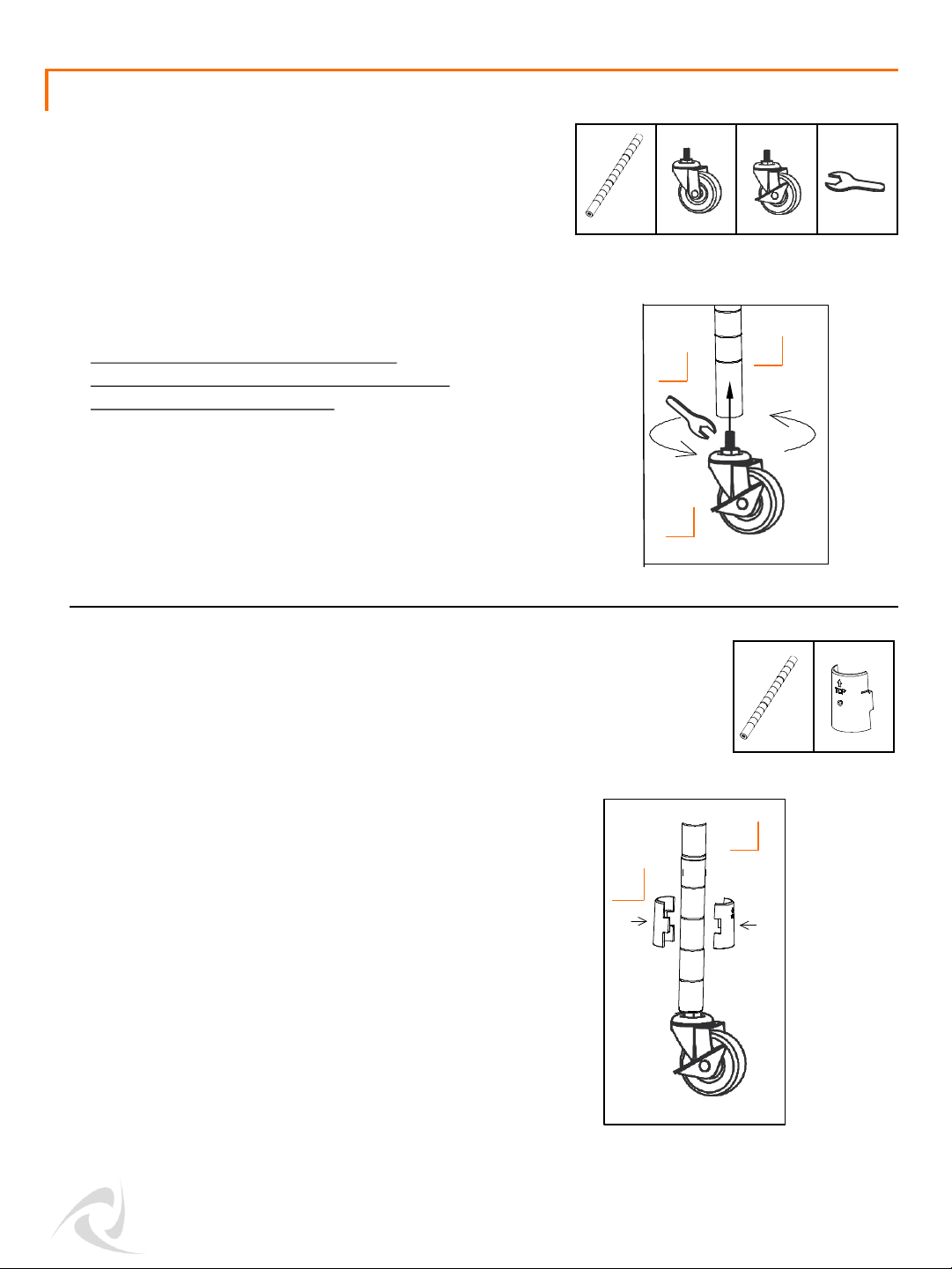

Screw each CASTER (G & H) into bottom of
each BOTTOM POLE (B). Turn clockwise to
screw in place. Make sure LOCKING CASTERS
(H) are on same side of Kitchen Cart.
Use provided caster wrench to tighten
completely. Failure to do as instructed could
result in caster stem breaking.
On BOTTOM POLE (B), place 1 pair of SLIP SLEEVES (C) at
desired height no higher than 3rdindentation from the
bottom. Make sure arrow faces up and word “TOP” is
right-side up. Do this for each BOTTOM POLE (B). Make
sure SLIP SLEEVES (C) height is identical for each
BOTTOM POLE (B).
Note that each POLE (A & B) has slight horizontal line
indentations at 1” intervals. Each SLIP SLEEVE (C) has
raised horizontal lines inside designed to lock in place on
POLE (A & B).
Slide pair of SLIP SLEEVES (C) until you hear a click to
confirm the pair is locked onto BOTTOM POLE (B). DO
NOT place more than one pair on each POLE (A & B) at a
time.
Note: There will be a very small gap in-between two locked SLIP SLEEVES (C)—this is normal.
I
H
Page 2
STEP 4
ASSEMBLY INSTRUCTIONS
STEP 3
D (1)
D
B
A
B
© 2019 TRINITY - 800.985.5506
3
D
A (4)

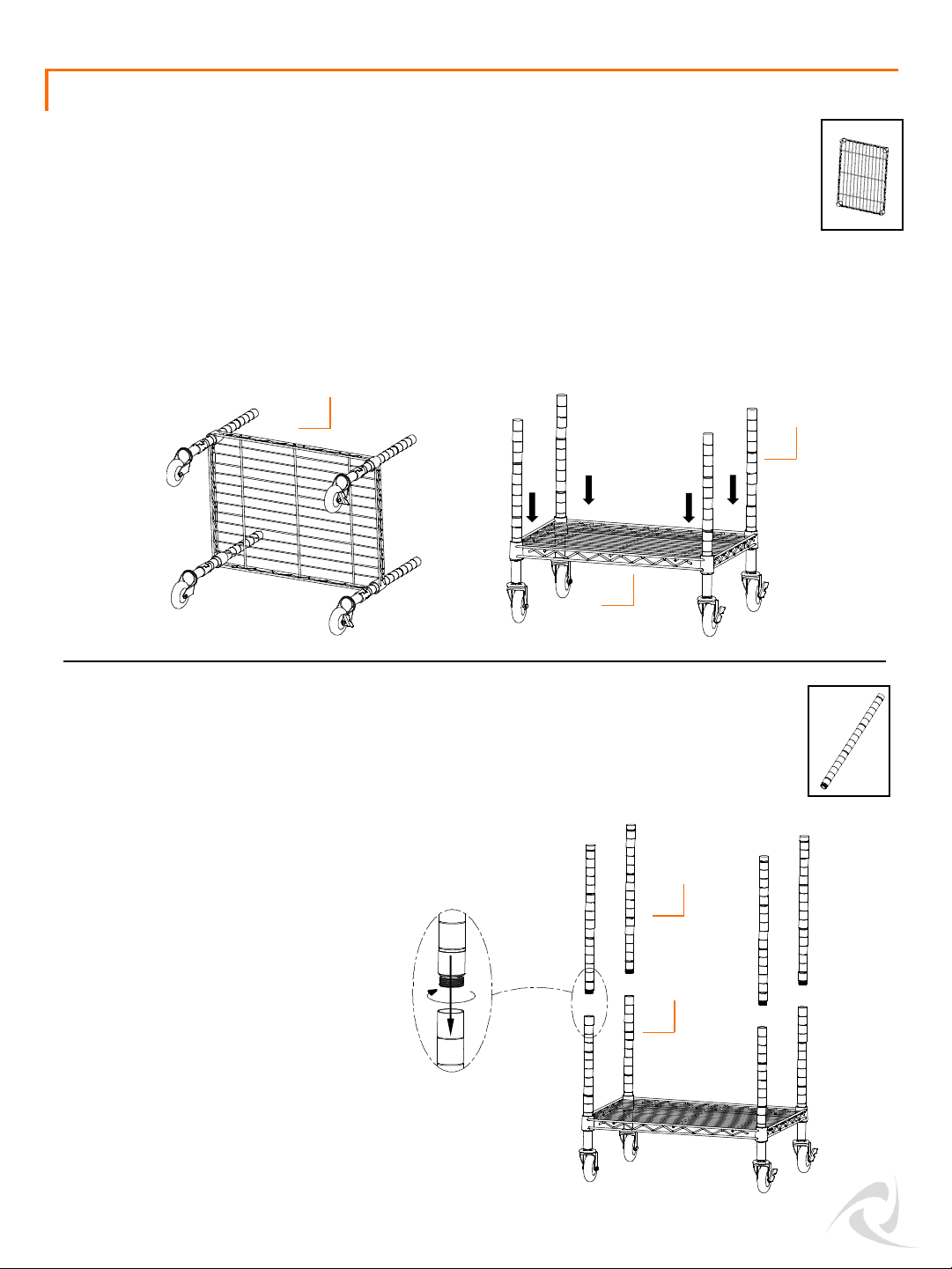

Place SHELF (D) on its side and slide each BOTTOM POLE (B) through each corner cylinder of
SHELF (D). Make sure corner cylinders are positioned over SLIP SLEEVES (C).
Slowly stand unit upright.
Note:
Level side of SHELF (D) is TOP side (TRINITY logo on the corner cylinders should be right-side up).
Use a rubber mallet, if needed, to secure SHELF (D).
Screw TOP POLES (A) into BOTTOM
POLES (B) in clockwise direction.
Note:
The top of each TOP POLE (A) is
indicated by a BLACK END CAP.
Pole Connectors are pre-installed in
bottom of TOP POLES (A).
Page 3
© 2019 TRINITY - 800.985.5506
4
ASSEMBLY INSTRUCTIONS
STEP 5
E (1)
E
F
A
A

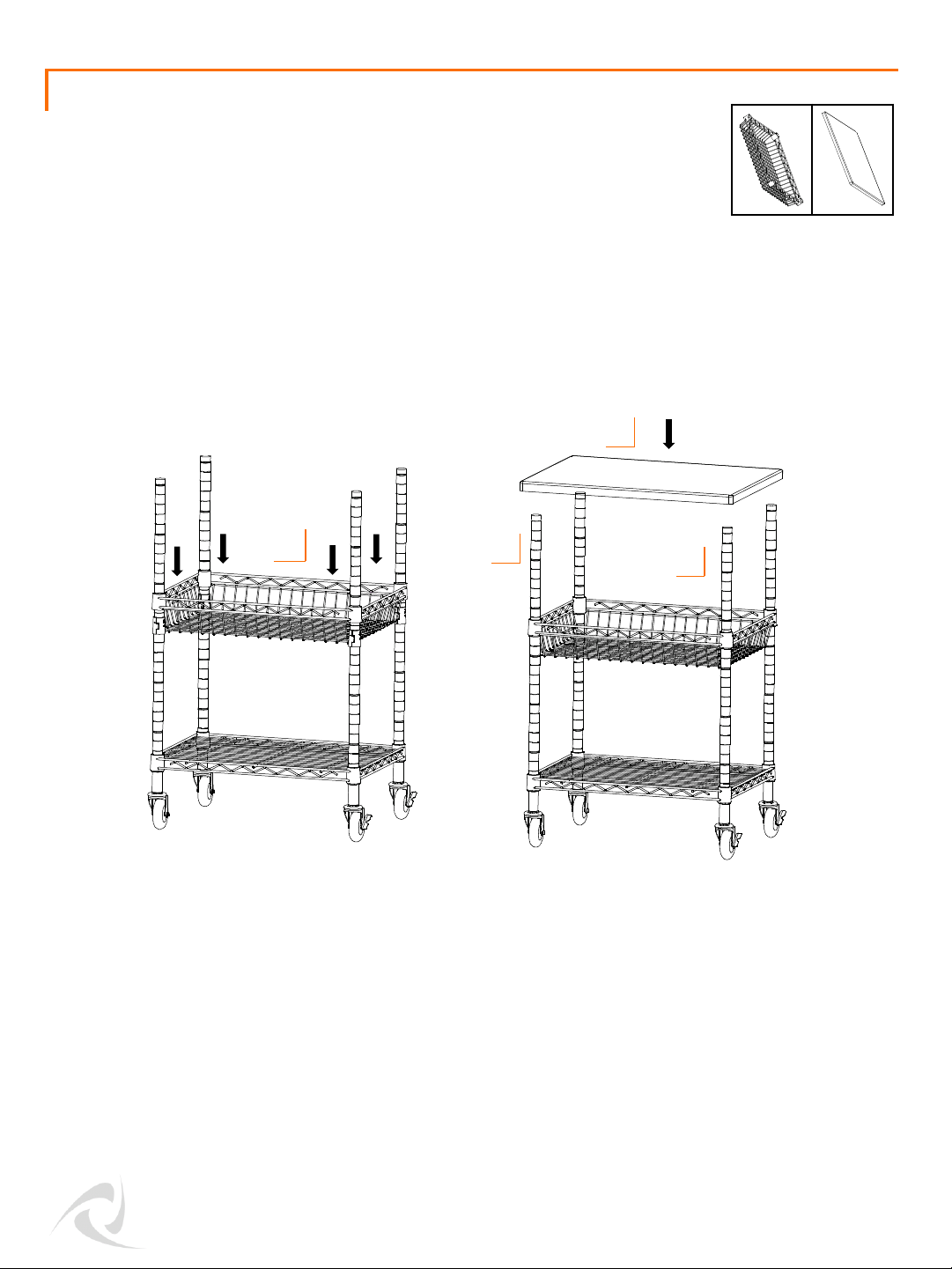

Repeat STEP 2 & 3 to assemble BASKET (E). Make sure SLIP SLEEVES (C)
height is identical.
Place BAMBOO CUTTING BOARD (F) on top of TOP POLES (A). Make sure
top of each TOP POLE (A) is inside each corner pocket of BAMBOO
CUTTING BOARD (F).
Note:
Use a rubber mallet, if needed, to secure BASKET (E).
F (1)
