Page 1

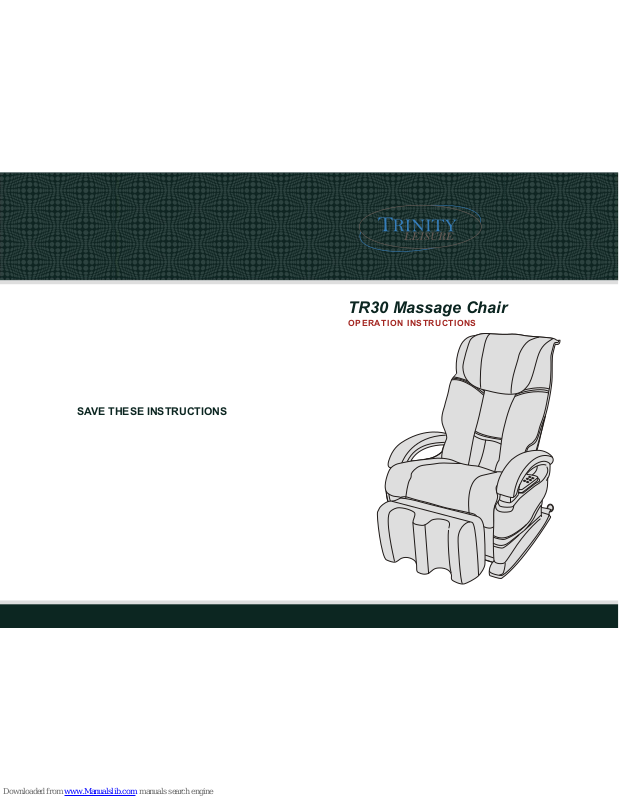

OPERATION INSTRUCTIONS
TR30 Massage Chair
SAVE THESE INSTRUCTIONS
Page 2
02
04
05
06
08
01
Thanks for purchasing this product. Please read this manual instruction
carefully in order to know how to use this product correctly before operation.
Please pay more attention to some important safety warning and keep this
manual book properly for future use. Note: Our Company reserves the right
to revise the design and description of this product without any further notice.
Please refer to the actual color of this product.
Safety and maintenance
Name and function of components
Function
Method of usage
Product specification
CONTENTS
Page 3
0302
1. Important safety warning.
Don t allow children to touch moveable part of this product.
Please use well-grounding power supply suited to this product.
Please pull out the plug after use or before cleaning to avoid
injury or damage to the product.
Please operate this product according to this manual
instruction.
Don t use accessories which are not recommended.
Don t use this product outdoors.
Please read this manual instruction carefully before operation.
Any other usage that is not listed in this manual instruction is
forbidden.
15 minutes of usage each time is recommended.
Please don t use it if the leather is broken or damaged.
Please don t use it if the cover or leather is damaged.
Please don t use it if the radiator hole is covered or blocked.
Please don t drop anything into this product.
Please don t fall asleep while using this product.
Please don t use it if drunk or feel unwell.
Please don t use it within one hour after having meal.
Please don t make the massage function too strong for
avoiding injury.
2. Environment for usage.
Please don t use it under high temperature and moist environment such as
bathroom.
Please don t use it immediately while the environmental temperature
changes sharply.
Please don t use it under heavy-dusty or caustic environment.
Please don t use it where there is not enough space or not good ventilation.
3. People who are not suitable to use this product.
People who are suffering from osteoporosis are not suitable to use this product.
People who are suffering from heart disease or carrying electronic medical
equipment such as heart pacemaker are not suitable to use this product.
People who are suffering from fever are not suitable to use this product.
Pregnant women or women that are in menses period are not suitable to use
this product.
People who got injured or skin disease are not suitable to use this product.
Children under twelve or people who are not able to operate this product are
not suitable to use this product.
People who are told by doctor to have rest or people who feel unwell are not
suitable to use this product.
People whose bodies are wet are forbidden to use this product.
4. Safety.
Check the voltage if it is suitable to the specification of this product.
Don t use wet hand to pull the plug.
Don t make water spatter to this product to avoid electric shock or cause
damage to this product.
Don t damage the wires or change the circuit of this product.
Don t use wet cloth to clean the electric parts such as switch and plug.
Be away from this product under power cut state to avoid injury if the power
comeback suddenly.
Stop using this product while it works abnormal, and please consult local agent
immediately.
Stop using this product if you feel unwell, and please consult health care
doctor.
5. Maintenance.
This product should be maintained by certain appointed agents, users are
prohibited to disassemble or maintain by themselves.
Please don t forget to cut the power after usage.
Don t use this product if the socket looses.
If this product will be left unused for long, please curl up the wires and reserve
this product in dry and dustless environment.
Don t reserve this product under high temperature or near fire and avoid
longtime direct sunshine.
Please clean this product by dry cloth. Don t use thinner, benzene or alcohol.
The mechanical components of this product are specially designed and
made, it is not necessary to be specially maintained.
Don t use edged res to thrust this product.
Don t roll or pull this product above uneven ground, it should be lifted before
moving.
Please use it intermittently; don t make this product work continuously for long.
6. Solution of ordinary malfunctions.
It is nature movement voice if the motor sounds while in usage.
If the controller can t work normally, please check the plug and socket if they
are connected strongly and make sure the switch is turned on.
If the rated working time is over, the product will automatically activate the
power-off button; If this product works continuously for long, the temperature
protector will make the product automatically power-off, it should be used again
after half an hour s rest.
Safety and maintenance Safety and maintenance
Page 4
0504
1
2
3
4
5
6
7
8
9
10
11
12
13
Name and function of components
Function
1.Head pad
2.Armrest
3.Seat cushion
4.Calf support
5.Back cushion
6.Back cover
7.Control box
8.Ventilator
9.Power button
10.Fuse block
11.Wire
12.Plug
13.Caster
Function
Designed with a four-wheel driven muted massage mechanism which
can move up and down in the backrest.
Designed with four emulational massage functions of kneading,
flapping, vibration and tapping.
Designed with three levels of speed.
Designed with three automatic massage choices for the neck and
shoulder, the whole upper body and the back and waist area.
Turn off the back stretch function, the massage hands can be moved
up and down to massage any position of the vertebra.
Designed with vibration function for the buttocks with three levels of
speed.
Designed with tapping massage function for the thigh area with seven
automatically changed modes and three levels of speed.
Designed with kneading massage function for the calf rest with three
levels of speed from slow to fast.
The calf rest can be power-lifted and reclined together with the
backrest.
Restoring the massage hands after turning off the machine.
Page 5
0706
Method of usage Method of usage
MASSAGE OF THE UPPER BODY
1.automatic massage of the upper body
NECK-SHOULDER: to start automatic massage of the upper body around your
neck and shoulder.
BACK-WAIST: to start automatic massage of the upper body around your back
and waist.
UPPER BODY: to start automatic overall upper body massage.
2.manual massage of the upper body
KNEAD: to start kneading.
FLAP: to start flapping.
BACK STRETCHING: to move the massage device vertically to and fro
stretching your upper body.
SPEED: for speed selection :slow, medium, fast.
UPWARD: when the back stretching button is switched off, press the
upward buttonto move the massage device upward which stops
when you release the button.
DOWNWARD: when the back stretching button is switched off, press the
downward button to move the massage device downward which
stops when you release the button.
MASSAGE OF THE LOWER BODY
3.buttocks vibrating
BUTTOCKS: to start buttocks vibrating.
INTENSITY: for intensity selection: soft, medium, and strong.
4.thigh knocking
THIGH: to start thigh knocking.
INTENSITY: for intensity selection: soft, medium, and strong.
5. calf kneading
CALF: to start calf kneading.
SPEED: for speed selection: slow, medium, fast.
THE ASCENDING AND DESCENDING OF THE BACK AND CALF SUPPORT
6.the ascending and descending of the calf support
ASCENDING: press this button to move the calf support upward slowly with the
indicator on; release this button to stop the calf support, with the
indicator out. When the calf support reaches its highest position, the
upward indicator shines.
DESCENDING: press this button to move the calf support downward slowly, with
the indicator on; release this button to stop the calf support, with the
indicator out. When the calf
support reaches its lowest
position, the downward
indicator shines.
7.the ascending and descending of the
back
ASCENDING: press this button to
move the back upward slowly
with the indicator on; release
this button to stop the back,
with the indicator out. When
the back reaches its highest
position, the upward
indicator shines.
DESCENDING: press this button to
move the back downward
slowly, with the indicator on;
release this button to stop the
back, with the indicator out.
When the back reaches its
lowest position, the
downward indicator shines.
Page 6
2. Open and pucker the backrest before operating.
Pull the backrest up until it touches the backrest pucker lock and sounds
KATA , then the backrest is locked. The backrest can be puckered to its
original state by treading the lock down.
3. Method to remove and use the pillow and backrest cushion.
It can reduce the strength by using the pillow when massaging neck &
shoulder, you can choose to use it (recommended) or not up to your
demands. The backrest cushion and the backrest are connected by slide
fastener,(1). The pillow and backrest cushion are connected by slide
fastener. (2).
Warning: It is forbidden to use the product if the backrest cushion is lifted to
avoid causing injury to you.
1 2
08
Name: Massage chair
Input Voltage: 110-120V~ 60Hz
220-240V~ 50Hz/60Hz
Input power:200W
Safety structure:Type
Product specification
Method of usage
