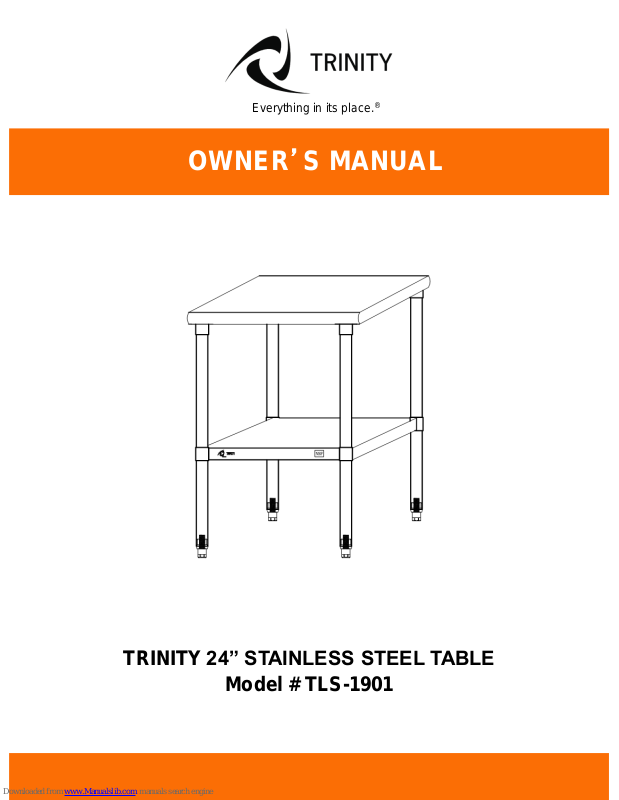

Trinity TLS-1901 Owner's Manual

OWNER’S MANUAL

TRINITY 24” STAINLESS STEEL TABLE

Model # TLS-1901

Everything in its place.

®

1

Your TRINITY 24” Stainless Steel Table should include the following parts. Please inspect box contents to ensure you have received all components.

If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or [email protected]. Parts can also be requested online via our “Contact Us” section at www.trinityii.com.

PARTS LIST

TABLE TOP (1)

A

SHELF (1)

B C

HEX KEY (1)

D E

LEG (4)

Feet Levelers come pre-installed

HEX SCREW (8)

F

SCREW CAP (8)

2

ASSEMBLY INSTRUCTIONS

Slide the SHELF (B) over each LEG (C) to the desired height. Using the provided HEX KEY (F), tighten the HEX SCREW (D) into the SHELF (B).

Turn the HEX KEY (F) as far clockwise as possible, take out the HEX KEY (F), reposition, reinsert, and turn as far clockwise as possible again until the HEX SCREW (D) is securely in place. Place the SCREW CAP (E) over each HEX SCREW (D).

Lay the TABLE TOP (A) upside-down on a smooth flat surface. Insert LEGS (C) into the round slots on the bottom of the TABLE TOP (A). Make sure LEGS (C) are fully inserted into the TABLE TOP (A).

You will insert and tighten the HEX SCREWS (D) in Step 3.

STEP 1

STEP 2

A (1) C (4)

E (4) F (1)

D (4)

C

A

B (1)

B

D

E

3

ASSEMBLY INSTRUCTIONS

Use the HEX KEY (F) to tighten the HEX SCREW (D) for each LEG (C) into the TABLE TOP (A).

Turn the HEX KEY (F) as far clockwise as possible, take out the HEX KEY (F), reposition, reinsert, and turn as far clockwise as possible again until the HEX SCREW (D) is securely in place. Place the SCREW CAP (E) over each HEX SCREW (D).

Turn the Table right-side up and adjust Feet Levelers until the Table is stable and level.

STEP 3

E (4) F (1)

D (4)

D

E

4

SERVICE PARTS LIST – TLS-1901

Part Number Description Part Number Description

1) XBS-06-007-2424 Table Top 5) XXX-97-001-0001 Hex Key

2) XBS-03-012-2017 Shelf 6) XBK-23-005-0914 Screw Cap

3) XGL-04-010-3200 Leg 7) ZSV-01-015-0812 Hex Screw

4) XSV-98-004-3283 Feet Leveler

TRINITY Customer Service provides the following replacement parts:

3

5

4

7

2

6

1

5

WARNINGS

1. Read and understand all instructions. Failure to follow all instructions may result

in injury and/or damage.

2. The warnings, cautions, and instructions discussed in this manual cannot

cover all possible conditions or situations that may occur. The user must

always be aware of their environment and ensure that they use the product in a safe and responsible manner.

3. Do NOT modify the product in any way. Unauthorized modification may impair the

function and/or safety of the product, and may affect the life of the product.

4. Check for damaged parts. Before using this product, carefully check that all parts

are in good condition, and that the product will operate properly and perform its intended function. Check for damaged parts and any other conditions that may affect the operation of this product. Replace damaged or worn parts, and never use this product with a damaged part.

5. Do NOT overload the product.

6. Table must be used with at least one shelf installed for stability. Additional shelf

can be added and is available on trinityii.com.

CARE AND MAINTENANCE

• Avoid harsh, abrasive cleaners, and other corrosive chemicals.

• Do not use scouring pad for cleaning.

• Keep dry and avoid damp environments.

• Use a quality stainless steel cleaner and follow instructions that come with the

cleaner. Wipe ALONG the grain (NOT against).

Weight capacity per shelf 100 lb (evenly distributed) Total weight capacity on feet levelers 200 lb (evenly distributed)

6

7

Thank you for purchasing a TRINITY 24” Stainless Steel Table. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to [email protected]. Include a copy of your original receipt with your submission.

First Name: Last Name: Address: City: State: Zip Code: Email Address: Phone: Product Model #: TLS-1901 Purchase Date: / / Location of Purchase:

Please rate the importance of each feature (1=least important; 10=most important) Quality Price Size/Capacity Appearance Other

How did you hear about our product?

Magazine Ad Catalog Salesperson Word of Mouth Internet Store Display Other

Marital Status: Single Married

Household Income: Below $50,000 $50,000-$150,000 $150,000+ Education: High School College Graduate School Primary Residence: Own Rent Comments/Suggestions:

PRODUCT REGISTRATION

8

9

1 YEAR LIMITED WARRANTY

TRINITY 24” Stainless Steel Table

Model # TLS-1901

Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”)

of the TRINITY 24” Stainless Steel Table (“Product”) that each Product shall be free from defects in

workmanship and materials for a period of 1 year from the date of original purchase. Trinity’s

obligation under this warranty shall be limited to repair or replacement of, or adequate compensation for the Product which shall not be greater than the amount of the purchase price of the Product, at the option of Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must be returned to Trinity.

This warranty excludes normal wear and tear of the Product and its parts or components, and

damage arising from any of the following: negligent use or misuse of the Product, use contrary to

this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall

not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty.

Except as set forth herein, and to the extent of applicable there are no warranties on this Product either express or implied, and Trinity disclaims all warranties including, but not limited to, any implied warranties of merchantability, infringement or fitness for a particular purpose. No warranty or guarantee given by any person, firm, or corporation with respect to this product shall be binding

on Trinity.

If your Product is defective or otherwise requires service or parts, please call TRINITY Customer Service toll-free at (800) 985-5506, between 8:00 a.m. and 5:00 p.m., PST. Please tell us which model you purchased, the date of the purchase, and the problem with your Product. A copy of your original purchase receipt must accompany your service request.

LIMITATION OF REMEDIES AND LIABILITY

Trinity (and its employees, officers, members, managers, affiliates an assigns) shall not be liable for

any incidental, consequential, special, indirect, remote, special or punitive damages for breach of

any warranty, express or implied, including, but not limited to, lost profits, lost savings, loss of

anticipated benefits and attorneys’ fees, which arise out of the purchase, use or inability to use the

Product, whether arising out of contract, negligence, strict tort, product liability, or any other legal theory on which a claim is based. As noted above, to the extent damages are allowed by our express warranty or by applicable law, those damages may not exceed the purchase price paid for the Product. Without limiting the foregoing Purchaser assumes all risk and liability for loss, damage

or injury to Purchaser and Purchaser’s property and to others and their property arising out of the

use, misuse, or inability to use this Product. This limited warranty shall not extend to anyone other than the original purchaser of this product, is nontransferable and states your exclusive remedy.

Some states do not allow the exclusion or limitation of incidental, consequential, special, or punitive damages, so the above limitation or exclusion may not apply to you. The above warranty gives you specific legal rights, and you may have other rights which vary from state to state.
