Page 1

OWNER’S MANUAL

TRINITY MOBILE CLOSET ORGANIZER

Model # TBFZ-2702 / TBFPBR-2702

Everything in its place.

Page 2

Page 3

Your TRINITY Mobile Closet Organizer should include the following parts. Please inspect box contents to ensure you have received all components.

If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or [email protected]. Parts can also be requested online at www.trinityii.com (Help & More, Contact Us).

PARTS LIST

MEDIUM SHELF (1)

SMALL SHELF (2)

TOP POLE (6)

End Cap and Pole Connector

are pre-installed

SIDEBAR

W/ HOOKS (1)

SLIP SLEEVE (50) + (4) extra

BOTTOM POLE (6)

MIDDLE POLE (6)

Pole Connector is

pre-installed

HANGING ROD (2)

HANGING BRACKET

& SCREW (4)

CASTER

(2) locking, (4) non-locking

LARGE SHELF (2)

Page 4

ASSEMBLY INSTRUCTIONS

For easiest assembly, do not attach the TOP (D), MIDDLE (E) and BOTTOM (F) POLES until instructed. Once connected, these will be the posts for the Organizer.

Note that each POLE (D+E+F) has slight horizontal

line indentations at 1” intervals. Each SLIP SLEEVE

(J) has raised horizontal lines inside designed to

lock them in place on the POLE (D+E+F).

On all (6) BOTTOM POLES (F) place 1 pair of SLIP SLEEVES (J) at the lowest position, position closest to the CASTERS (K). Please make sure the arrow

faces up and that the word “TOP” is right side up.

Slide the pair of SLIP SLEEVES (J) until you hear a click to confirm the pair is locked onto the BOTTOM POLE (F). DO NOT place more than one pair on each POLE (F) at a time.

Screw each CASTER (K) into the bottom of each BOTTOM POLE (F). Turn clockwise to screw in place.

Tighten the CASTER (K) completely using the included Caster Wrench. Failure to do as instructed could result in the caster stem breaking.

STEP 1

STEP 2

F (6) K (6)

J (12)

* Note: There will be a very small gap in-between the SLIP SLEEVES (J)—this is normal.

Page 5

ASSEMBLY INSTRUCTIONS

Place the LARGE SHELF (A) on its side and slide the (6) BOTTOM POLES (F) through the holes in the LARGE SHELF (A). Make sure that the LARGE SHELF (A) corner cylinders are positioned over the SLIP SLEEVES (J).

Stand the unit upright.

*Note: The level side of the LARGE SHELF (A) is the TOP side (the TRINITY logo on the corner cylinders should be right-side up.)

**Use a rubber mallet, if needed, to secure the

LARGE SHELF (A).

STEP 3

A (1)

***For convenience, place BOTTOM POLES (F) with Locking Casters on the long side of the shelf if the organizer will be pushed against a wall OR if the organizer is frequently rolled around like a cart, place BOTTOM POLES (F) with Locking Casters on the side being pushed or pulled.

Screw the MIDDLE POLES (E) into the BOTTOM POLES (F).

STEP 4

E (6)

Page 6

ASSEMBLY INSTRUCTIONS

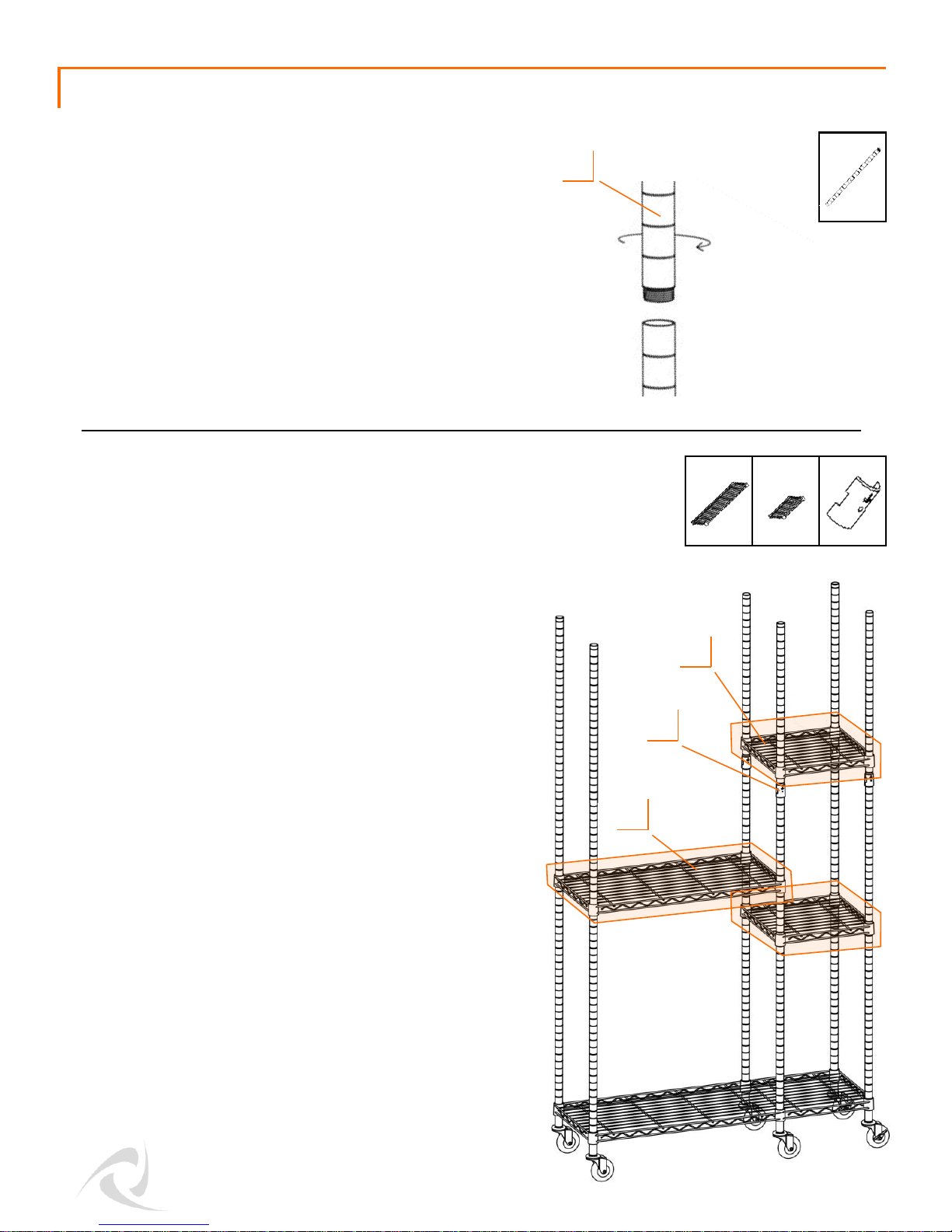

Screw the TOP POLES (D) into the MIDDLE POLES (E).

STEP 5

D (6)

Decide the position of MEDIUM SHELF (B) and SMALL SHELVES (C) that will best fit your needs.

Starting with the lowest desired SHELF position, Place 1 pair of SLIP SLEEVES (J) on each of the (4) POLES for that SHELF. Please make sure the

arrow faces up and that the word “TOP” is right side

up. Make sure that the heights are identical for each POLE.

Repeat Step 6 to install the next lowest SHELF as desired.

If you are installing the MEDIUM SHELF (B) above the SMALL SHELF (C), please make sure that you place the SLIP SLEEVES (J) at least 4 indentations above the SMALL SHELF (C) so that the HANGING BAR (G+H) can fit properly.

*Use a rubber mallet, if needed, to secure the

SHELVES (A+B+C).

STEP 6

J (24)B (1) C (2)

Page 7

ASSEMBLY INSTRUCTIONS

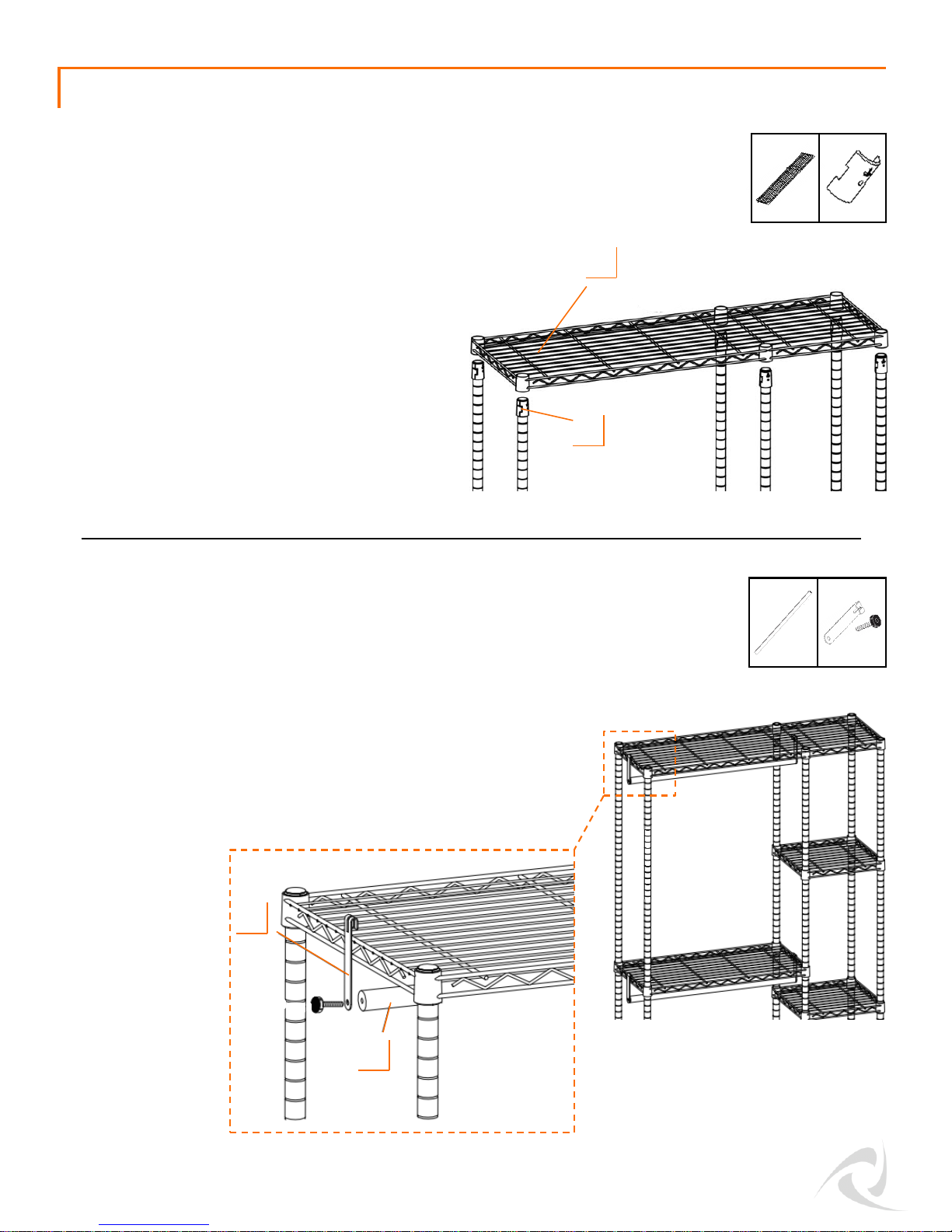

Place 1 pair of SLIP SLEEVES (J) at the top of each POLE. Please make sure the arrow

faces up and that the word “TOP” is right

side up. Lower LARGE SHELF (A) over the POLES

so that the corner cylinders of the LARGE SHELF (A) are positioned over the SLIP SLEEVES (J).

*Use a rubber mallet, if needed, to secure the SHELVES (A+B+C).

STEP 7

A (1) J (12)

Hang the HANGING BRACKET (H) on both ends of the MEDIUM SHELF (B) and the LARGE SHELF (A) as shown.

Fasten HANGING SCREW (H) through HANGING BRACKET (H) to HANGING ROD (G). Do this for both HANGING RODS (G).

STEP 8

H (4)

G (2)

Page 8

ASSEMBLY INSTRUCTIONS

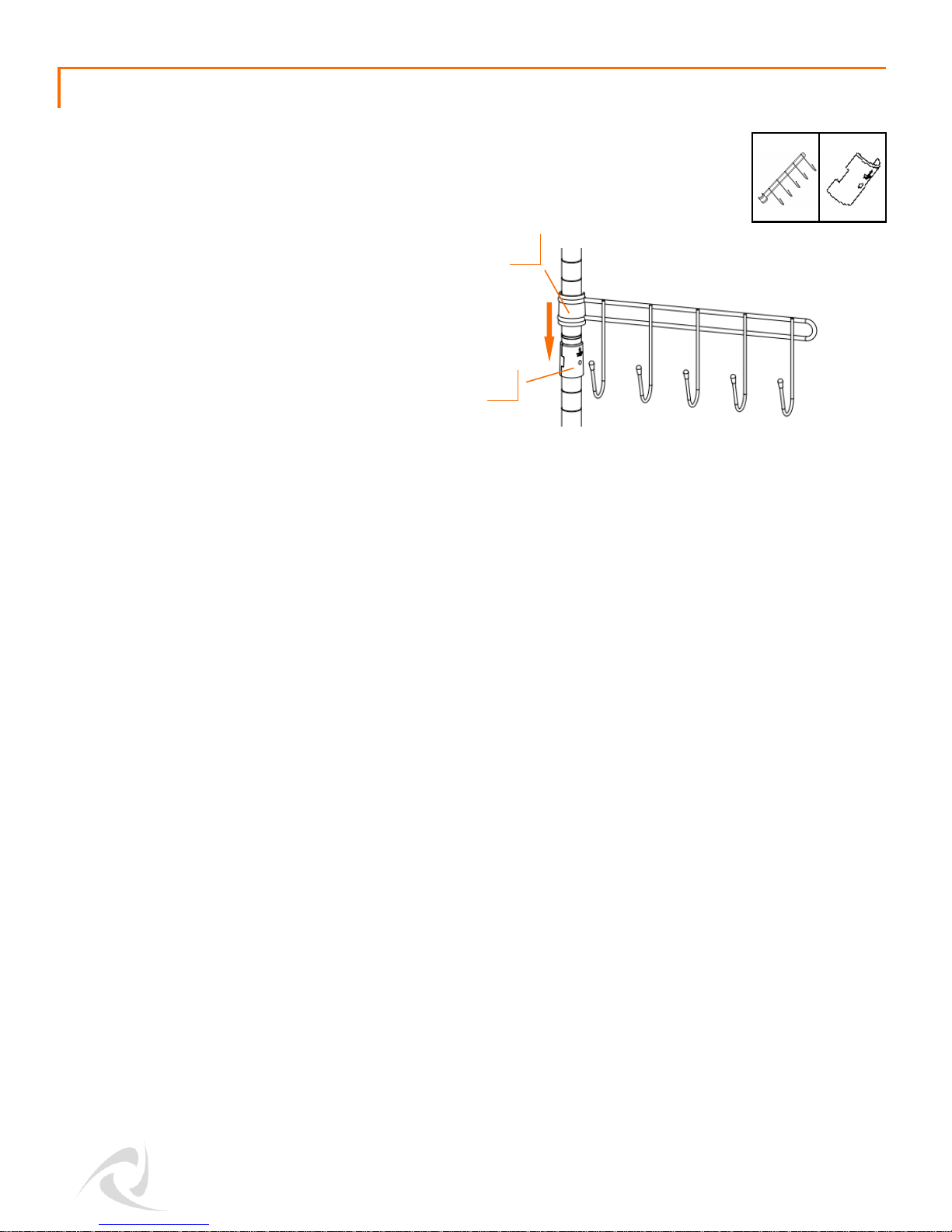

Locate the desired position and place a pair SLIP SLEEVES (J) onto the pole.

Slide the SIDEBAR W/ HOOKS (I) down, over the SLIP SLEEVES (J).

STEP 9

J (2)I (1)

Page 9

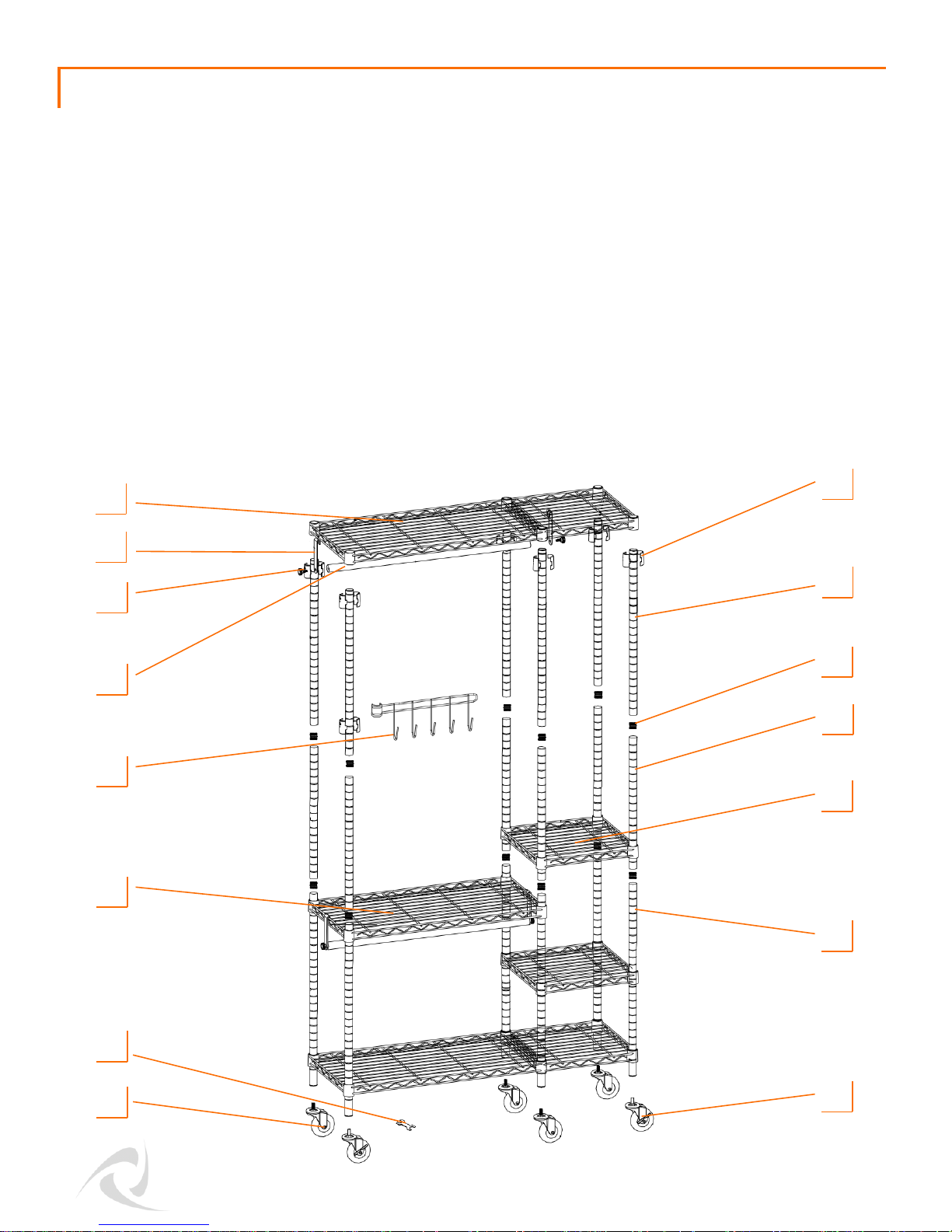

SERVICE PARTS LIST – TBFPBR-2702 Bronze Color

Part Number Description 8) Part Number Description

1) XBK-01-012-2543 Slip Sleeve 9) XXX-97-002-0001 Wrench

2) PBR-04-006-2475 Top Pole 10) PBR-03-007-2814 Medium Shelf

3) ZSV-01-013-2523 Pole Connector 11) PBR-02-007-0004 Sidebar w/ Hooks

4) PBR-04-007-2500 Middle Pole 12) PBR-13-006-2800 Hanging Rod

5) PBR-03-007-1414 Small Shelf 13) XBK-01-024-0627 Hanger Screw

6) PBR-04-008-2425 Bottom Pole 14) PBR-02-010-0001 Hanger

7) ZSV-99-008-3010 Locking Caster 15) PBR-03-007-4114 Large Shelf

8) ZSV-99-007-3010 Non-locking Caster

TRINITY Customer Service provides the following replacement parts:

Page 10

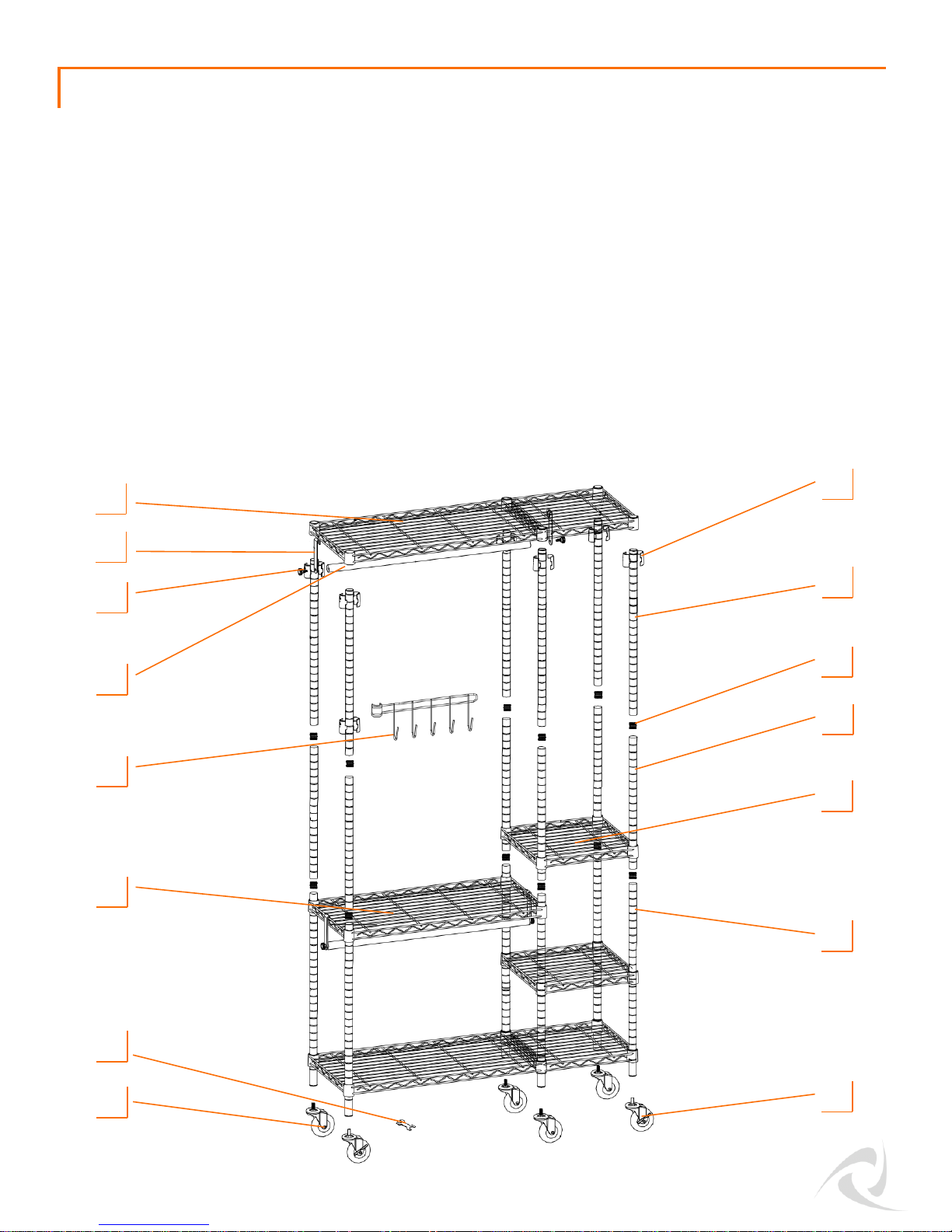

SERVICE PARTS LIST – TBFZ-2702 Chrome Color

TRINITY Customer Service provides the following replacement parts:

Part Number Description Part Number Description

1) XBK-01-011-2543 Slip Sleeve 9) XXX-97-002-0001 Wrench

2) ZSV-04-006-2475 Top Pole 10) ZSV-03-007-2814 Medium Shelf

3) ZSV-01-013-2523 Pole Connector 11) ZSV-02-007-0004 Sidebar w/ Hooks

4) ZSV-04-007-2500 Middle Pole 12) ZSV-13-006-2800 Hanging Rod

5) ZSV-03-007-1414 Small Shelf 13) XBK-01-024-0627 Hanger Screw

6) ZSV-04-008-2425 Bottom Pole 13) ZSV-02-010-0001 Hanger

7) ZSV-99-008-3010 Locking Caster 14) ZSV-03-007-4114 Large Shelf

8) ZSV-99-007-3010 Non-locking Caster

Page 11

WARNINGS

1. Read and understand all instructions. Failure to follow all instructions may result

in injury and/or damage.

2. Use the provided caster wrench to tighten casters completely. Failure to do as

instructed could result in the caster stem breaking thereby causing the shelving rack

to collapse.

3. The warnings, cautions, and instructions discussed in this manual cannot

cover all possible conditions or situations that may occur. The user must

always be aware of their environment and ensure that they use the product in a safe and responsible manner.

4. Do NOT modify the product in any way. Unauthorized modification may impair the

function and/or safety of the product, and may affect the life of the product.

5. Check for damaged parts. Before using this product, carefully check that all parts

are in good condition, and that the product will operate properly and perform its

intended function. Check for damaged parts and any other conditions that may affect the operation of this product. Replace damaged or worn parts, and never use this product with a damaged part.

6. Do NOT overload the product.

CARE AND MAINTENANCE

• Avoid harsh, abrasive cleaners, and other corrosive chemicals.

Weight capacity per small shelf 25 lb Weight capacity per medium shelf 40 lb Weight capacity per large shelf 60 lb Weight capacity per hanging rod 40 lb Weight capacity per side bar 10 lb Total weight capacity per organizer 300 lb

Page 12

Page 13

Thank you for purchasing a TRINITY Mobile Closet Organizer. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to [email protected]. Include a copy of your original receipt with your submission.

First Name: Last Name: Address: City: State: Zip Code: Email Address: Phone: Product Model #: Purchase Date: / / Location of Purchase:

Please rate the importance of each feature (1=least important; 10=most important) Quality Price Size/Capacity Appearance Other

How did you hear about our product?

Magazine Ad Catalog Salesperson Word of Mouth Internet Store Display Other

Marital Status: Single Married Household Income: Below $50,000 $50,000-$150,000 $150,000+ Education: High School College Graduate School Primary Residence: Own Rent Comments/Suggestions:

PRODUCT REGISTRATION

Page 14

Page 15

1 YEAR LIMITED WARRANTY

TRINITY Mobile Closet Organizer

Model # TBFZ-2702 / TBFPBR-2702

Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY Mobile Closet Organizer (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase. Trinity’s

obligation under this warranty shall be limited to repair or replacement of, or adequate compensation for the Product which shall not be greater than the amount of the purchase price of the Product, at the option of Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must be returned to Trinity.

This warranty excludes normal wear and tear of the Product and its parts or components, and damage arising from any of the following: negligent use or misuse of the Product, use contrary to

this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall

not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty.

Except as set forth herein, and to the extent of applicable there are no warranties on this Product either express or implied, and Trinity disclaims all warranties including, but not limited to, any implied warranties of merchantability, infringement or fitness for a particular purpose. No warranty or guarantee given by any person, firm, or corporation with respect to this product shall be binding on Trinity.

If your Product is defective or otherwise requires service or parts, please call TRINITY Customer

Service toll-free at (800) 985-5506, between 8:00 a.m. and 5:00 p.m., PST. Please tell us which

model you purchased, the date of the purchase, and the problem with your Product. A copy of your original purchase receipt must accompany your service request.

LIMITATION OF REMEDIES AND LIABILITY

Trinity (and its employees, officers, members, managers, affiliates an assigns) shall not be liable for any incidental, consequential, special, indirect, remote, special or punitive damages for breach of any warranty, express or implied, including, but not limited to, lost profits, lost savings, loss of

anticipated benefits and attorneys’ fees, which arise out of the purchase, use or inability to use the

Product, whether arising out of contract, negligence, strict tort, product liability, or any other legal

theory on which a claim is based. As noted above, to the extent damages are allowed by our

express warranty or by applicable law, those damages may not exceed the purchase price paid for the Product. Without limiting the foregoing Purchaser assumes all risk and liability for loss, damage

or injury to Purchaser and Purchaser’s property and to others and their property arising out of the

use, misuse, or inability to use this Product. This limited warranty shall not extend to anyone other than the original purchaser of this product, is nontransferable and states your exclusive remedy.

Some states do not allow the exclusion or limitation of incidental, consequential, special, or punitive damages, so the above limitation or exclusion may not apply to you. The above warranty gives you specific legal rights, and you may have other rights which vary from state to state.

Page 16

TRINITY Customer Service

TEL: 800.985.5506

FAX: 310.347.4134

EMAIL: [email protected]

Monday through Friday

8:00 AM – 5:00 PM (PST)

www.trinityii.com

QUESTIONS? NEED PARTS?

WE ARE HERE TO HELP!

Please feel free to contact us. There are no questions too

small, or any problems too big. We’re committed to

providing our customers with the highest level of service.
