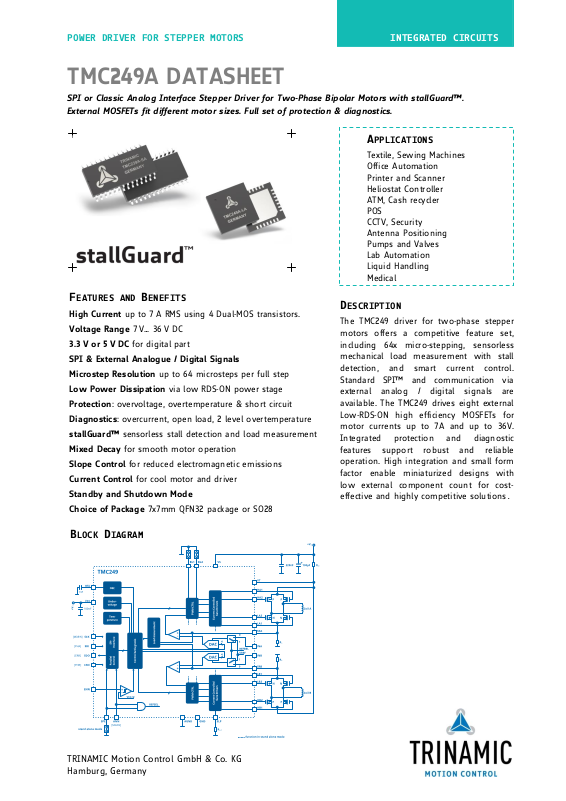

TMC249A DATASHEET

BLOCK DIAGRAM

FEATURES AND BENEFITS

High Current up to 7 A RMS using 4 Dual-MOS transistors.
Voltage Range 7 V… 36 V DC

3.3 V or 5 V DC for digital part

SPI & External Analogue / Digital Signals

Microstep Resolution up to 64 microsteps per full step

Low Power Dissipation via low RDS-ON power stage

Protection: overvoltage, overtemperature & short circuit

Diagnostics: overcurrent, open load, 2 level overtemperature

stallGuard™ sensorless stall detection and load measurement

Mixed Decay for smooth motor operation

Slope Control for reduced electromagnetic emissions

Current Control for cool motor and driver

Standby and Shutdown Mode

Choice of Package 7x7mm QFN32 package or SO28

APPLICATIONS

Textile, Sewing Machines
Office Automation
Printer and Scanner
Heliostat Controller
ATM, Cash recycler
POS
CCTV, Security
Antenna Positioning
Pumps and Valves
Lab Automation
Liquid Handling
Medical

DESCRIPTION

The TMC249 driver for two-phase stepper
motors offers a competitive feature set,
including 64x micro-stepping, sensorless
mechanical load measurement with stall
detection, and smart current control.

Standard SPI™ and communication via

external analog / digital signals are
available. The TMC249 drives eight external
Low-RDS-ON high efficiency MOSFETs for
motor currents up to 7A and up to 36V.
Integrated protection and diagnostic
features support robust and reliable
operation. High integration and small form
factor enable miniaturized designs with
low external component count for cost­effective and highly competitive solutions.

SPI or Classic Analog Interface Stepper Driver for Two-Phase Bipolar Motors with stallGuard™.
External MOSFETs fit different motor sizes. Full set of protection & diagnostics.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 2

www.trinamic.com

APPLICATION EXAMPLES: HIGH POWER – SMALL SIZE

The TMC249 scores with its high power density and a versatility that covers a wide spectrum of
applications and motor sizes, all while keeping costs down.

µC

SPI

SPI

TMC429

Motion

Controller

High level

interface

COMPACT DESIGN FOR UP TO 3 MOTORS USING SPI INTERFACE

OFFLOAD THE MOTION CONTROL FUNCTION TO TRINAMICS TMC429. GET A COMPETITIVE DESIGN FOR MULTIPLE MOTORS!

By offloading the motion-control function to the TMC429, up to three motors can be operated reliably with very little

demand for service from the microcontroller.

TMC249

MOSFET

Driver

Stage

M

Motor 1

TMC249

MOSFET

Driver

Stage

M

Motor 2

TMC249

MOSFET

Driver
Stage

M

Motor 3

µC

TMC249

MOSFET

Driver

Stage

High lev el

interface

Analog

Inputs

A/B

Polarity

A/B

Error

M

MINIATURIZED DESIGN FOR STANDALONE MODE

REPLACE BIPOLAR DRIVER BY A MODERN CMOS DRIVER. USE NEW HARDWARE AND KEEP YOUR SOFTWARE INVEST!

The TMC249 is controlled by analog current control signals and digital phase signals. Especially for lower speeds

inimitable smoothness will be achieved with TRINAMICs low noise chopper.

APPLICATION EXAMPLES

MINIATURIZED DESIGN WITH SIMPLE DIGITAL DRIVER CONTROL

BENEFIT FROM A LARGE CURRENT CONTROL RANGE VIA ANALOG INPUTS!

The TMC249 is controlled via SPI bus. The microcontroller initializes the chip and writes control parameters, mode

bits, and values for coil currents in the driver chip. Analog A/B inputs allow for a large current control range.

µC

TMC249

MOSFET

Driver

Stage

High level

interface

SPI

Analog

Inputs

A/B

M

ORDER CODES

Order code

Order code

Description

Size

TMC249A-LA

00-0063

7 A stepper driver for external MOSFETs, QFN32

7 x 7 mm2

TMC249A-SA

00-0015

7 A stepper driver for external MOSFETs, SO28

10 x 18 mm2

TMC429+24X-EVAL
EVALUATION & DEVELOPMENT PLATFORM

This evaluation board is a development platform for
applications based on the TMC249. The board features USB
interface for communication with control software running
on a PC. External power MOSFETs support drive currents up
to 3.5A at 24 V. The control software provides a user­friendly GUI for setting control parameters and visualizing
the dynamic response of the motor.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 3

www.trinamic.com

TABLE OF CONTENTS

1 KEY CONCEPTS 4

1.1 ADVANCED FEATURES 5

1.2 CONTROL INTERFACES 5

2 PIN ASSIGNMENTS 6

2.1 PACKAGE OUTLINE 6

2.2 SIGNAL DESCRIPTIONS 6

3 STALLGUARD - STALL DETECTION

AND REFERENCE SEARCH 7

3.1 STALLGUARD MEASUREMENT 7

3.2 IMPLEMENTING SENSORLESS STALL DETECTION
9

4 SPI INTERFACE 10

4.1 BUS SIGNALS 10

4.2 MOTOR COIL CURRENT SETTING VIA SPI 11

4.3 BASE CURRENT CONTROL MODE VIA INA /
INB IN SPI MODE 11

4.4 CONTROLLING POWER DOWN VIA THE SPI
INTERFACE 13

4.5 OPEN LOAD DETECTION 13

4.6 STANDBY AND SHUTDOWN MODE 13

4.7 POWER SAVING 13

4.8 BUS TIMING 14

4.9 USING THE SPI INTERFACE WITH ONE OR
MULTIPLE DEVICES 14

4.10 SPI FILTER 14

5 CLASSICAL NON-SPI CONTROL MODE

(STANDALONE MODE) 15

5.1 PIN FUNCTIONS IN STANDALONE MODE 15

5.2 INPUT SIGNALS FOR MICROSTEP CONTROL IN
STANDALONE MODE 15

6 CURRENT SETTING 16

6.1 SENSE RESISTOR FOR CURRENT SETTING 16

6.2 RESISTOR R

SH

FOR HIGH SIDE OVERCURRENT

DETECTION 16

7 CHOPPER OPERATION 18

7.1 MIXED DECAY MODE 18

7.2 CHOPPER FREQUENCY 19

7.3 VOLTAGE PWM MODE FOR LOW NOISE
CHOPPER 20

7.4 ADAPTING THE SINE WAVE FOR SMOOTH
MOTOR OPERATION 22

7.5 BLANK TIME 23

8 SLOPE CONTROL 24
9 PROTECTION FUNCTIONS 25

9.1 OVERCURRENT PROTECTION AND DIAGNOSTIC
25

9.2 OVER TEMPERATURE PROTECTION AND
DIAGNOSTIC 25

9.3 OVERVOLTAGE PROTECTION AND ENN PIN
BEHAVIOR 26

10 MICROSTEP RESOLUTION 27
11 MOSFET EXAMPLES 28
12 USING ADDITIONAL POWER

DRIVERS 29

13 LAYOUT CONSIDERATIONS 30

13.1 GROUNDING 30

13.2 FILTERING CAPACITORS 30

13.3 PULL-UP RESISTORS ON UNUSED INPUTS 31

13.4 POWER SUPPLY SEQUENCING
CONSIDERATIONS 31

13.5 LAYOUT EXAMPLE 32

14 APPLICATION NOTE: EXTENDING THE

MICROSTEP RESOLUTION 33

15 ABSOLUTE MAXIMUM RATINGS 34
16 ELECTRICAL CHARACTERISTICS 35

16.1 OPERATIONAL RANGE 35

16.2 DC SPECIFICATIONS 35

16.3 AC SPECIFICATIONS 37

16.4 THERMAL PROTECTION 37

17 PACKAGE MECHANICAL DATA 38

17.1 SO28 DIMENSIONS 38

17.2 QFN32 DIMENSIONS 38

17.3 38

17.4 PACKAGE CODE 38

18 DISCLAIMER 39
19 ESD SENSITIVE DEVICE 39
20 TABLE OF FIGURES 40
21 REVISION HISTORY 41
22 REFERENCES 41

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 4

www.trinamic.com

1 Key Concepts

R

S

Coil A

+V

M

R

S

Coil B

100µF220nF

NN

N N

PP

P P

TMC249

HA1

HA2

LA2

LA1

LB1

LB2

HB2

HB1

SRB

SRA

VT

VS

4

DAC

4

DAC

INA

INB

VREF

REFSEL

PWM

-CTRL

ANNSPE

1

0

0

1

Current Controlled

Gate Drivers

Current Controlled

Gate Drivers

SLP

R

SLP

PWM

-CTRL

OSC

Control & Diagnosis

Parallel

Control

SPI-

Interface

REFSEL

GNDAGND

Under-

voltage

Tem-

perature

OSC

VCC

680p

100nF

+V

CC

SCK

SDI

SDO

CSN

BL2BL1

[MDBN]

[PHA]

[ERR]

[PHB]

stand alone mo de

[MDAN]

[...]: function i n stand alon e mode

ENN

VCC/2

Load

mesure

-

ment

R

SH

Figure 1.1 TMC249 block diagram

The TMC249 is a dual full bridge driver IC for bipolar stepper motor control applications. The chip is
realized in a HVCMOS technology and directly drives eight external Low-RDS-ON high efficiency
MOSFETs. A 4A driver can be realized in the size of a stamp.

The TMC249 motor driver implements advanced features which are characteristic to TRINAMIC
products. These features contribute toward precision, energy efficiency, reliability, smooth motion, and
cooler operation in stepper motor applications.

In addition to these performance enhancements, TRINAMIC motor drivers also offer safeguards to
detect and protect against short circuit, overtemperature, overvoltage, and undervoltage conditions for
enhancing safety and recovery from equipment malfunctions.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 5

www.trinamic.com

1.1 Advanced Features

stallGuard™

The TMC249 offers sensorless load measurement and stall detection.
Its ability to predict an overload makes the TMC249 an optimum
choice for drives, where a high reliability is desired.
Further, the integrated stallGuard™ feature makes the TMC249 a
good choice for applications, where a reference point is needed,
but where a switch is not desired.

Current Control

Current control serves a cool driver and motor. Internal DACs allow
microstepping as well as smart current control. Its low power
dissipation makes the TMC249 an optimum choice for drives, where
a high reliability is desired.

Microstepping via SPI

Easy to use digital control of microstepping. After choosing the
desired microstep resolution the microcontroller sends digital
values for each microstep current via SPI. DACs and comparators
convert these digital values to analog signals for coil currents. This
way, every microstep is initialized and controlled by the
microcontroller. The TMC249 serves for the execution.

Mixed Decay

Mixed decay can be used for smoother operation.

Low Noise Chopper

The TMC249 allows implementing a low noise voltage PWM
chopper by two microcontroller PWM outputs using its simple
standalone mode. This way, a motor can be moved very smoothly
at high microstep resolution without any noise.

Slope Control

Slope control reduces electromagnetic emissions.

Oscillator and Clock Selector

Oscillator and clock selector provide the system clock from the on­chip oscillator or an external source.

1.2 Control Interfaces

There are two control interfaces from the motion controller to the motor driver: the SPI serial
interface and the classical analog interface.

1.2.1 SPI Interface

The SPI interface is used to write control information to the chip and read back status information.
This interface must be used to initialize parameters and modes necessary to enable driving the motor.
This interface may also be used for directly setting the currents flowing through the motor coils. The
motor can be controlled through the SPI interface alone.

The SPI interface is a bit-serial interface synchronous to a bus clock. For every bit sent from the bus
master to the bus slave, another bit is sent simultaneously from the slave to the master.
Communication between an SPI master and the TMC249 slave always consists of sending one 12-bit
command word and receiving one 12-bit status word.

The SPI command rate typically corresponds to the microstep rate at low velocities. At high velocities,
the rate may be limited by CPU bandwidth to 10,000 to 100,000 commands per second, so the
application may need to change to fullstep resolution.

1.2.2 Classical Non-SPI Control Mode (Standalone Mode)

The driver can be controlled by analog current control signals and digital phase signals.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 6

www.trinamic.com

2 Pin Assignments

2.1 Package Outline

TMC249 / 249A SO28

1
2
3
4
5
6
7

28
27
26
25
24
23
22

17

SDO

SDI

LA2 HA1

INB

HA2

SRA

LA1

AGND

ANN

SLP
INA

16

BL2

SCK

15

LB1

8

9
10
11
12
13
14

SRB

CSN

HB1

BL1

OSC

LB2

20

GND

19

VS

18

VT

21

VCC

HB2

ENN

SPE

Figure 2.1 TMC249 pin assignments

2.2 Signal Descriptions

Pin

Pin SO28

PIN QFN

Function

AGND

25 1 Analog ground (reference for SRA, SRB, OSC, SLP, INA, INB, SLP)

INA

23

30

Analog current control phase A

INB

26

29

Analog current control phase B

GND

20

26, 27

Digital and power GND

OSC

4 9 Oscillator capacitor or external clock input for chopper

HA1

27

3

Outputs for high side P-channel transistors.

HA2

28 4 HB1

16

22

HB2

15

21

LA1 1 6

Outputs for low side N-channel transistors

LA2 2 7

LB1

14

19

LB2

13

18

SRA

3

8

Bridge A / B current sense resistor input
SRB

12

17

SDO

5

10

Data output of SPI interface (tri-state)

SDI 6 11

Data input of SPI interface

SCK 7 12

Serial clock input of SPI interface

CSN

8

13

Chip select input of SPI interface

SPE

10

15

Enable SPI mode (high active). Tie to GND for non-SPI applications

SLP

24

32

Slope control resistor. Tie to GND for fastest slope

ENN

9

14

Device enable (low active) and overvoltage shutdown input

ANN

26 2 Enable analog current control via INA and INB (low active)

BL1

11

16

Digital blank time select
BL2

17

23

VS

19

25

Motor supply voltage

VCC

21

28

3.0… 5.5V supply voltage for analog and logic circuits

VT

18

24

Short to GND detection comparator – connect to VS if not used

Note:
The exposed die attach pad should be
connected to a GND plane or can be left open.

AGND

ANN

HA1
HA2

-

SRA

INB

VS

ENN

CSN

SDI

SCK

SRB

LB2

LB1

-

HB2

HB1

BL2

VT

BL1

Top view

LA1
LA2

32 31 30 29 28 27 26 25

9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8

TMC 249-LA

SPE

SDO

OSC

GND

GND

VCC

INA

-

SLP

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 7

www.trinamic.com

3 stallGuard - Stall Detection and Reference Search

stallGuard provides a sensorless measurement of the load on the motor. The load detection is based
on the motors back EMF of the coils. Thus, the stallGuard feature allows a digital read out of the
mechanical load on the motor via the serial interface.

stallGuard is important for:

- finding a reference point

- stall detection

- predicting an overload and assuring high reliability

stallGuard is typically used for the noiseless reference search with a mechanical reference position.
The quality of the result depends on three constraints from the stepper motor and its application:

- efficiency of a stepper motor in terms of mechanical power vs. power dissipation

- difference in mechanical load between free running and stall on barrier

- velocity of the stepper motor

3.1 stallGuard Measurement

The stallGuard measurement value changes linearly over a wide range of load, velocity, and current
settings. At maximum motor load, the value goes to zero or near to zero. This corresponds to a load
angle of 90° between the magnetic field of the coils and magnets in the rotor. This also is the most
energy-efficient point of operation for the motor.

The load detection level depends on several factors:

Motor velocity

A higher velocity leads to a higher readout value.

Motor resonance

Motor resonances cause a high dynamic load on the motor, and thus
measurement may give unsatisfactory results.

Motor acceleration

Acceleration phases also produce dynamic load on the motor.

Mixed decay setting

For load measurement mixed decay has to be off for some time before the
zero crossing of the coil current. If mixed decay is used, and the mixed
decay period is extended towards the zero crossing, the load indicator value
decreases.

Attention:

- To get a readout value, drive the motor using sine commutation and mixed decay switched off.

- The load measurement is available as a three bit load indicator during normal motion of the

motor.

- A higher mechanical load on the motor results in a lower readout value.

- The value is updated once per fullstep.

STALLGUARD VALUES

Bits

Description

Value Range

LD2
LD1
LD0

(unsigned 3 bit)

0

Highest mechanical load on motor, stall may occur.

1, 2

High mechanical load on motor.

3… 7

Less load on motor. A value in this range should be
achieved in a suitable velocity range under no-load
conditions, in order to get stable stall detection.
7: 100% stallGuard signal – lowest motor load.

0… 7

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 8

www.trinamic.com

The stallGuard signal sensitivity curves show the reaction of the TMC249 to the stallGuard signal taken
from measuring the motor. A certain stray occurs within the TMC249, but the resulting curve is
monotonously. Typically, the curve for a certain device has a certain offset. For high values above 2,
the percentage of the stray is relatively low, so that a motor reaching these values allows safe stall
detection.

11 19 350 95 48 70 100

000

001

010

011

100

101

110

111

LD2,1,0 code (bit 9, bit 10, bit 11)

stallGuard signal [% maximum]

Load-Measurement sensing Transfer Curve

(typical and stray)

5 12 190 28 40 61 89

000

001

010

011

100

101

110

111

LD2,1,0 code (bit 9, bit 10, bit 11)

stallGuard signal [% maximum]

Load-Measurement sensing Transfer Curve (minimum values)

18 25 330 43 56 80 111

000

001

010

011

100

101

110

111

LD2,1,0 code (bit 9, bit 10, bit 11)

stallGuard signal [% maximum]

Load-Measurement sensing Transfer Curve (maximum values)

5 18

12 25

19 33

28

43

40 56

61 80

89

111

Figure 3.1 stallGuard signal sensitivity curves

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 9

www.trinamic.com

3.2 Implementing Sensorless Stall Detection

The sensorless stall detection typically is used, to detect the reference point without the usage of a
switch or photo interrupter. Therefore the actuator is driven to a mechanical stop, e.g. one end point
in a spindle type actuator. As soon as the stop is hit, the motor stalls. Without stall detection, this
would give an audible humming noise and vibrations, which could damage mechanics.

TO GET RELIABLE STALL DETECTION, PROCEED AS FOLLOWS:

1. Choose a motor velocity for reference movement. Use a medium velocity which is far enough

from mechanical resonance frequencies. In some applications even the start and/or stop
frequency may be used. So, the motor can stop within one fullstep if a stall is detected.

2. Use a sine stepping pattern and switch off mixed decay (at least 1… 3 microsteps before zero

crossing of the sine wave current in the related coil).

3. Monitor the load indicator during movement. It should show a stable readout value in the

range 3… 7 (L

MOVE

). If the readout is high (>5), the mixed decay portion may be increased.

4. Choose a threshold value L

STALL

between 0 and L

MOVE

- 1. Monitor the load indicator during the

reference search movement (homing) as the desired velocity is reached.

5. Readout is required at least once per fullstep. If the readout value at one fullstep is below or

equal to L

STALL

, stop the motor.

6. If the motor stops during normal movement without hitting the mechanical stop, decrease

L

STALL

. If the stall condition is not detected at once, when the motor stalls, increase L

STALL

.

Attention:

- At maximum motor load, the value goes to zero or near to zero.

- Do not read out the value within one chopper period plus 8 microseconds after toggling one

of the phase polarities!

v_max

t

v(t)

a_max

acceleration constant velocity stall

min

max

t

load

indicator

stall detected!

stall threshold

vibration

acceleration
jerk

L

MOVE

L

STALL

Figure 3.2 Implementing stallGuard

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 10

www.trinamic.com

4 SPI Interface

The TMC249 requires setting current absolute values and polarity for each microstep through the SPI
interface to drive the motor in SPI mode. The SPI interface also allows reading back status values and
bits.

4.1 Bus Signals

The SPI bus on the TMC249 has five signals:

SCK bus clock input
SDI serial data input
SDO serial data output
CSN chip select input (active low)
ENN enable input has to be active (low) in order to use SPI

The slave is enabled for an SPI transaction by a low on the chip select input CSN. Bit transfer is
synchronous to the bus clock SCK, with the slave latching the data from SDI on the rising edge of SCK
and driving data to SDO following the falling edge. The most significant bit is sent first. A minimum
of 12 SCK clock cycles is required for a bus transaction with the TMC249.

If more than 12 clocks are driven, the additional bits shifted into SDI are shifted out on SDO after a
12-clock delay through an internal shift register. This can be used for daisy chaining multiple chips.

CSN must be low during the whole bus transaction. When CSN goes high, the contents of the internal
shift register are latched into the internal control register and recognized as a command from the
master to the slave. If more than 12 bits are sent, only the last 12 bits received before the rising edge
of CSN are recognized as the command.

The SPI data word sets the current and polarity for both coils. By applying consecutive values,
describing a sine and a cosine wave, the motor can be driven in microsteps. Every microstep is
initiated by its own telegram. Please refer to the description of the analog mode for details on the
waveforms required. The SPI interface timing is described in the timing section.

We recommend the TMC429 to automatically generate the microstepping sequence and motor ramps
for up to three motors.

SERIAL DATA WORD TRANSMITTED TO TMC249

MSB TRANSMITTED FIRST

Bit

Name

Function

Remark

11

MDA

Mixed decay enable phase A

1 = mixed decay

10

CA3

Current bridge A.3

MSB

9

CA2

Current bridge A.2

8

CA1

Current bridge A.1

7

CA0

Current bridge A.0

LSB

6

PHA

Polarity bridge A

0 = current flow from OA1 to OA2

5

MDB

Mixed decay enable phase B

1 = mixed decay

4

CB3

Current bridge B.3

MSB

3

CB2

Current bridge B.2

2

CB1

Current bridge B.1

1

CB0

Current bridge B.0

LSB

0

PHB

Polarity bridge B

0 = current flow from OB1 to OB2

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 11

www.trinamic.com

SERIAL DATA WORD TRANSMITTED FROM TMC249

MSB TRANSMITTED FIRST

Bit

Name

Function

Remark

11

LD2

Load indicator bit 2

MSB

10

LD1

Load indicator bit 1

9

LD0

Load indicator bit 0

LSB

8 1 Always 1

7

OT

Overtemperature

1 = Chip off due to overtemperature

6

OTPW

Temperature prewarning

1 = Prewarning temperature exceeded

5

UV

Driver undervoltage

1 = Undervoltage on VS

4

OCHS

Overcurrent high side

3 PWM cycles with overcurrent within 63 PWM
cycles

3

OLB

Open load bridge B

No PWM switch off for 14 oscillator cycles

2

OLA

Open load bridge A

No PWM switch off for 14 oscillator cycles

1

OCB

Overcurrent bridge B low side

3 PWM cycles with overcurrent within 63 PWM
cycles

0

OCA

Overcurrent bridge A low side

3 PWM cycles with overcurrent within 63 PWM
cycles

4.2 Motor Coil Current Setting via SPI

Current Setting
CA3..0 / CB3..0

Percentage of
Current

TYPICAL TRIP VOLTAGE OF THE CURRENT SENSE COMPARATOR

- INTERNAL REFERENCE OR ANALOG INPUT VOLTAGE OF 2V IS USED -

0000

0%

0 V (bridge continuously in slow decay condition)

0001

6.7%

23 mV

0010

13.3%

45 mV

...

...

1110

93.3%

317 mV

1111

100%

340 mV

4.3 Base Current Control Mode via INA / INB in SPI Mode

In SPI mode the IC can use an external reference voltage for each DAC. This allows the adaptation to
different motors.

Note:

- This Base Current Control Mode is enabled by tying pin ANN to GND.

- A 2.0 V input voltage V

IN

gives full scale current of 100%.

- The range for V

IN

is 0… 3V. Min. 1 V recommended for best microstepping.

- The typical trip voltage of the current sense comparator is determined by the input voltage

VIN and the DAC current setting (see table above).

Note:

- The current values correspond to a standard 4 Bit DAC, where 100% = 15/16.

- The content of all registers is cleared to 0 on power-on reset or disable via the ENN pin,

bringing the IC to a low power standby mode.

- All SPI inputs have Schmitt-Trigger function.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 12

www.trinamic.com

t

0.5x340mV

340mV

1.5x340mV

-0.5x340mV

-340mV

-1.5x340mV

Voltage VIN for reference

2V

1V

3V

2V

Typical trip voltage of the current sense comparator

Figure 4.1 Relation between VIN and trip voltage of current sense comparator

IN CASE A VARIABLE INPUT VOLTAGE V

IN

IS USED THE TYPICAL TRIP VOLTAGE IS CALCULATED:

V

TRIP,A

= 0.17 V

INA

 percentage SPI current setting A

V

TRIP,B

= 0.17 V

INB

 percentage SPI current setting B

GENERATING INPUT VOLTAGE V

IN

A maximum of 3.0V VIN is possible. Multiply the percentage of base current setting and the DAC table
to get the overall coil current. It is advised to operate at a high base current setting, to reduce the
effects of noise voltages. This feature allows a high resolution setting of the required motor current
using an external DAC or PWM-DAC (see schematic for examples).

47K

100nF

AGND

INA

INB

ANN

µC­PWM

using PWM signal

100K

µC-Port .2

8 level via R2R-DAC

51K51K51K

100K

100K

µC-Port .1

µC-Port .0

R1

2 level control

R2

µC-Port

+V

CC

10nF

Figure 4.2 External DAC and PWM-DAC

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 13

www.trinamic.com

4.4 Controlling Power Down via the SPI Interface

Standard

function

11

MxA10CA39CA2

6

PhA

- 0 -

Control

word

function

- -

Bit

Enable standby mode and clear
error flags

8

CA17CA0

5

MxB4CB33CB2

0

PhB

2

CB11CB0

000 0 00 0

Programming current value 0000 for both coils at a time clears the overcurrent flags and switches the
TMC249 into a low current standby mode with coils switched off.

4.5 Open Load Detection

Open load is signaled if there are more than 14 oscillator cycles without PWM switch off.
During overcurrent, undervoltage, or overtemperature conditions, the open load flags become active.

Open load detection is not possible while the coil current is set to 0000. In this condition the chopper
is off and the open load flag is read as inactive (0).

The open load flags not only signal an open load condition, but also a torque loss of the motor,
especially at high motor velocities. To detect only an interruption of the connection to the motor, it is
advised to evaluate the flags during stand still or during low velocities only (e.g. for the first or last
steps of a movement).

4.6 Standby and Shutdown Mode

The TMC249 offers two possibilities for reducing power consumption under special conditions: the
standby mode and the shutdown mode.

STANDBY MODE

- The circuit can be put into a low power standby mode by the user.

- The circuit automatically goes to standby on Vcc undervoltage conditions.

- The standby mode is available via the interface in SPI-mode and via the ENN pin in non-SPI

mode.

Before entering standby mode, the TMC249 switches off all power transistors and holds their gates
in a disable condition using high ohmic resistors. In standby mode the oscillator becomes
disabled and the oscillator pin is held at a low state.

SHUTDOWN MODE

- The shutdown mode is used for a further reduction of the supply current.

- The shutdown mode can be entered in SPI-mode by pulling the ENN pin high.

- In shutdown mode additionally all internal reference voltages become switched off and the

SPI circuit is held in reset.

4.7 Power Saving

The possibility to control the output current can dramatically save energy, reduce heat generation and
increase precision by reducing thermal stress on the motor and attached mechanical components. Just
reduce motor current during stand still: A slight reduction of the coil currents to 70% of the current of
the last step halves power consumption!

In typical applications a 50% current reduction during stand still is reasonable.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 14

www.trinamic.com

4.8 Bus Timing

The SPI interface operates completely asynchronous. It is clocked by SCK and CSN, only. Figure 4.3
shows the timing parameters of an SPI bus transaction, and the table below specifies their values.

CSN

SCK

SDI

SDO

t

CC

t

CC

t

CL

t

CH

bit11 bit10 bit0

bit11 bit10 bit0

t

DO

t

ZC

t

DU

t

DH

t

CH

Figure 4.3 SPI Timing

PROPAGATION TIMES

(3.0 V  VCC  5.5 V, -40°C  Tj  150°C; VIH = 2.8V, VIL = 0.5V; tr, tf = 10ns; CL = 50pF,
unless otherwise specified)

SPI Interface Timing

AC-Characteristics

clock period is t

CLK

Parameter

Symbol

Conditions

Min

Typ

Max

Unit

SCK frequency

f

SCK

ENN = 0

DC 8

MHz

SCK stable before and after CSN change

t1 50

ns

Width of SCK high pulse

tCH 100

ns

Width of SCK low pulse

tCL 100

ns

SDI setup time

tDU 40

ns

SDI hold time

tDH 50

ns

SDO delay time

tD

CL = 50pF

40

100

ns

CSN high to SDO high impedance

tZC

*)

50

ns

ENN to SCK setup time

tES 30

µs

CSN high to LA / HA / LB / HB output
polarity change delay

tPD

**) 3

t

OSC

+ 4

µs

Load indicator valid after LA / HA / LB /
HB output polarity change

tLD 5 7

µs

*) SDO is tri-stated whenever ENN is inactive (high) or CSN is inactive (high).
**) Whenever the PHA / PHB polarity is changed, the chopper is restarted for that phase. Tthe chopper does not switch on,
when the SRA resp. SRB comparator threshold is exceeded upon the start of a chopper period.

4.9 Using the SPI Interface with One or Multiple Devices

The SPI interface allows either cascading of multiple devices, giving a longer shift register, or working
with a separate chip select signal for each device, paralleling all other lines. Even when there is only
one device attached to a CPU, the CPU can communicate with it using a 16 bit transmission. In this
case, the upper 4 bits are dummy bits.

4.10 SPI Filter

To prevent spikes from changing the SPI settings, SPI data words are only accepted, if their length is
at least 12 bit.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 15

www.trinamic.com

5 Classical Non-SPI Control Mode (Standalone Mode)

The driver can be controlled by analog current control signals and digital phase signals.

Proceed as follows:

- Tie pin SPE to GND for enabling non-SPI mode. In non-SPI mode the SPI interface is disabled

and the SPI input pins have alternate functions.

- The internal DACs are forced to 1111.

5.1 Pin Functions in Standalone Mode

Pin

Standalone mode name

Function in standalone mode

SPE

(GND)

Tie to GND to enable standalone mode

ANN

MDAN

Enable mixed decay for bridge A (low = enable)

SCK

MDBN

Enable mixed decay for bridge B (low = enable)

SDI

PHA

Polarity bridge A (low = current flow from output OA1 to OA2)

CSN

PHB

Polarity bridge B (low = current flow from output OB1 to OB2)

SDO

ERR

Error output (high = overcurrent on any bridge, or over
temperature). In this mode, the pin is never tri-stated.

ENN

ENN

Standby mode (high active), high causes a low power mode of the
device. Setting this pin high also resets all error conditions.

INA,
INB

INA,
INB

Current control for bridge A, resp. bridge B. Refer to AGND. The
sense resistor trip voltage is 0.34V when the input voltage is 2.0V.
Maximum input voltage is 3.0V.

5.2 Input Signals for Microstep Control in Standalone Mode

Attention:
When transferring these waves to SPI operation, note that the mixed decay bits are inverted when
compared to standalone mode.

90° 180° 270° 360°

INA

INB

PHA

(SDI)

PHB

(CSN)

MDAN

(ANN)

MDBN

(SCK)

Use dotted line to improve
performance at medium velocities

Figure 5.1 Analog control for standalone mode

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 16

www.trinamic.com

6 Current Setting

6.1 Sense Resistor for Current Setting

Choose an appropriate sense resistor RS for setting the desired motor current.

Mode of operation

Maximum motor current

Operation in fullstep mode

The maximum motor current is specified by the manufacturer.

Operation in microstep mode

Multiply the value for fullstep mode by 1.41 for the maximum
current I

max

.

EXAMPLE FOR TYPICAL APPLICATION

R

SENSE

= 0.34V / I

max

POSSIBLE SENSE RESISTOR SETTINGS

RS

I

max

0.47

723mA

0.33

1030mA

0.22

1545mA

0.15

2267mA

0.10

3400mA

6.2 Resistor R

SH

for High Side Overcurrent Detection

The TMC249 detects an overcurrent to ground, when the voltage between VS (supply voltage) and VT
(threshold voltage) exceeds 150mV. The high side overcurrent detection resistor should be chosen in a
way that 100mV voltage drop are not exceeded between VS and VT, when both coils draw the
maximum current. In a microstep application, this is the case when sine and cosine wave have their
highest sum, i.e. at 45 degrees. This corresponds to 1.41 times the maximum current setting for one
coil. In a fullstep application this is adequate to the double coil current.

IN A MICROSTEP APPLICATION:

RSH = 0.1V / (1.41  I

max

)

IN A FULLSTEP APPLICATION:

RSH = 0.1V / (2  I

max

)

RSH: High side overcurrent detection resistor
I

max

: Maximum coil current

If higher resistance values should be used, a voltage divider in the range of 10 to 100 can be used
for VT. This might also be desired to limit the peak short to GND current, as described in the
following chapter.

A careful PCB layout is required for the sense resistor traces and for the RSH traces.

Basic information:

- The maximum motor current is reached, when the coil current setting is programmed to

1111.

- This results in a current sense trip voltage of 0.34V if the internal reference or a reference

voltage of 2V is used. (Refer to chapter 4.3 for more information about current setting in
SPI mode.)

- The current sense resistor of bridge A, B is calculated as:

R

SENSE

= V

TRIP

/ I

max

R

SENSE

Current sense resistor of bridge A, B

V

TRIP

Programmed trip voltage of the current sense comparators

I

max

Desired maximum coil current

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 17

www.trinamic.com

6.2.1 Making the Circuit Short Circuit Proof

In most applications, a short circuit does not describe only one special condition. It typically involves
inductive, resistive and capacitive components. Worst events are unclamped switching events, because
huge voltages can build up in inductive components and result in a high energy spark going into the
driver, which can destroy the power transistors.

Note:
Never disconnect the motor during operation as this can destroy the power transistors!

An absolute protection against random short circuit conditions is not given, but pre-cautions can be
taken to improve robustness of the circuit:

In a short condition, the current can become very high before it is interrupted by the short detection,
due to the blanking during switching and internal delays. The high-side transistors allow a high
current flowing for the selected blank time. The lower the external inductivity, the faster the current
climbs. If inductive components are involved in the short, the same current will shoot through the
low-side resistor and cause a high negative voltage spike at the sense resistor. Both, the high current

and the voltage spikes are dangerous for the driver.

PROCEED AS FOLLOWS, IF SHORT CIRCUITS ARE EXPECTED:

1. Protect SRA/SRB inputs using a series resistance.

2. Increase R

SH

(high side overcurrent detection resistor) to limit the maximum transistor current.

Use the same value as for the sense resistors.

3. Set the blank time as short as possible.

The second point effectively limits the short circuit current, because the upper driver transistor with
fixed ON gate voltage of 6V forms a constant current source together with its internal resistance and
the high side overcurrent detection resistor RSH.

A positive side effect is that only one type of low resistive resistor is required.
The drawback is that power dissipation increases.

+VM

GND

R

SB

R

SA

C

VM

VS

VT

100R

100R

SRA

SRB

GND

100nF

internal

R

DIV

values for reference
Microstep: 27R
Fullstep: 18R

INA/INB
up to3V
18R
12R

RSH=RSA=R

SB

R

DIV

100R

R

SH

Figure 6.1 Schematic with RSH=RSA=RSB

Example:
A 0.33 Ohms sense resistor allows for

roughly 1 A motor coil current.
A high side short detection resistor of

0.33 Ohms limits maximum high side
transistor current to typically 4A
during a short circuit condition. The
schematic shows the modifications to
be done.

The effectiveness of the steps
described above should be tested in
the given application!

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 18

www.trinamic.com

7 Chopper Operation

The currents through both motor coils are controlled using a chopper. The TMC249 uses a quiet fixed
frequency chopper. Both coils are chopped with a phase shift of 180 degrees. The Chopper cycles
through three phases: on, fast decay, and slow decay.

R

SENSE

I

COIL

On Phase:
current flows in
direction of target
current

R

SENSE

I

COIL

Fast Decay Phase:
current flows in
opposite direction
of target current

R

SENSE

I

COIL

Slow Decay Phase:
current re-circulation

+V

M

+V

M

+V

M

Figure 7.1 Chopper phases

Fast decay switches off both upper transistors, while enabling the lower transistor opposite to the
selected polarity. Slow decay always enables both lower side transistors.

When the polarity is changed on one bridge, the PWM cycle on that bridge becomes restarted at
once.

7.1 Mixed Decay Mode

The mixed decay option is realized as a self stabilizing system, by shortening the fast decay phase, if
the ON phase becomes longer.

It is advised to enable the mixed decay for each phase during the second half of each microstepping
half-wave, when the current is meant to decrease. This leads to less motor resonance, especially at
medium velocities.

MIXED DECAY IN APPLICATIONS WITH HIGH RESOLUTION OR LOW INDUCTIVITY MOTORS
In applications requiring high resolution, or using low inductivity motors, the mixed decay mode can
also be enabled continuously to reduce the minimum motor current which can be achieved.

USING MIXED DECAY CONTINUOUSLY OR WITH HIGH INDUCTIVITY MOTORS AT LOW SUPPLY VOLTAGE

If mixed decay mode is continuously on or high inductivity motors are used at low supply voltage, it
is advised to raise the chopper frequency to minimum 36 kHz, because the half chopper frequency
could become audible.

With low velocities or during standstill mixed decay should be switched off.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 19

www.trinamic.com

oscillator clock

resp. external clock

actual current phase A

target current phase A

mixed decay disabled mixed decay enabled

on slow decay on

fast decay

slow decay

Figure 7.2 Chopper cycle

7.2 Chopper Frequency

The PWM oscillator frequency can be set by an external capacitor. The internal oscillator uses a 28k
resistor to charge / discharge the external capacitor to a trip voltage of 2/3 Vcc respectively 1/3 Vcc. It
can be overdriven using an external CMOS level square wave signal. Do not set the frequency higher
than 100 kHz and do not leave the OSC terminal open! The two bridges are chopped with a phase
shift of 180 degrees at the positive and at the negative edge of the clock signal.

The PWM oscillator frequency is calculated as: 











󰇟󰇠

f

OSC

: PWM oscillator frequency

C

OSC

: Oscillator capacitor in nF

OSCILLATOR FREQUENCIES

f

OSC

typ.

C

OSC

16.7kHz

1.5nF

20.8kHz

1.2nF

25.0kHz

1.0nF

30.5kHz

820pF

36.8kHz

680pF

44.6kHz

560pF

An unnecessary high frequency leads to high switching losses in the power transistors and in the
motor.
For most applications a chopper frequency slightly above audible range is sufficient. When audible
noise occurs in an application, especially with mixed decay continuously enabled, the chopper
frequency should be two times the audible range.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 20

www.trinamic.com

7.3 Voltage PWM Mode for Low Noise Chopper

The TMC249 uses a cycle-by-cycle based chopper system, because it brings the best performance over
a wide range of velocities. It regulates the current by terminating each chopper cycle as soon as the
target current has been reached. This direct current regulation provides good dampening of motor
resonance, low motor power loss and automatic adaptation to the specific motor. On the other hand,
chopper stability requires good decoupling between both motor coils and it needs a precise layout of
the high current paths. Instabilities caused by magnetic coupling in the motor or by coupling of the
coil current regulators due to electric coupling can lead to chopper noise and fine vibrations. Under
normal conditions, these will not do any harm. In applications, where the motor moves very slowly

or where precise standstill with low mass on the motor axis is required, a voltage PWM chopper is a
good choice.

The low noise feed forward chopper principle uses a voltage PWM controlled driving rather than
current controlled driving. This is possible, because the stepper motor has a certain coil resistance.
This resistance converts an externally applied voltage to current. As long as the motor velocity is low,
back EMF caused by the motor rotation does not need to be taken into account.

At increasing velocities, the motors back EMF has an increasing influence and influences coil current.
This can be compensated by increasing the driver voltage with increasing velocity. Effects like motor
temperature dependency of the coil resistance should be taken into account, in case the motor
operates in an increased temperature range. The described compensation principle can be realized in
a completely feed-forward way, based on the motor data, or by measuring the effective current and
adding a regulation loop.

The chopper principle described generates a certain motor voltage by toggling each motor phase with
a certain PWM frequency. Therefore the motor full bridges either switch on the motor current in one
direction or in the opposite direction.

This way, the duty cycle of toggling the coil polarity produces a certain effective voltage on the coils:

- A 50 percent duty cycle gives a mean current of zero.

- A higher or lower duty cycle gives a positive or negative current.

- A high PWM resolution will bring a high microstep resolution.

t

I

effective coil current

coil voltage PWM
50% dutycylce

+VM

-VM

+VM

-VM
coil voltage PWM

coil voltage PWM

+VM

-VM

Figure 7.3 Voltage PWM generates motor current

7.3.1 Calculating the PWM for Low Noise Chopper

A microcontroller or an FPGA can be used for generating the two PWMs required to drive the motor.
For a 256 microstep resolution a PWM resolution of 9 to 10 bit is required. Assuming a target chopper

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 21

www.trinamic.com

frequency of roughly 20 kHz, a base clock frequency of 20 MHz (=210 x 20 kHz) is required to yield a 10
bit PWM. A 16 MHz clock frequency will allow realizing a 9 bit PWM with 31 kHz, or a resolution of 800
PWM steps with 20 kHz. This is a feasible value for most standard 8 bit or better microcontrollers.

Basically, one motor coil is driven with a PWM, which duty cycle is modulated using a sine wave. The
other coil with a cosine modulated PWM. Assuming, that the system supply voltage would exactly
match the motor voltage required for nominal current, the PWM duty cycle will be altered between
100% for maximum positive current and 0% for maximum negative current. As this is not a typical
constellation, the PWM modulation required to match the motor needs to be calculated.

The PWM modulation is calculated as:

  







󰇛 



󰇜

PWMAmpl PWM amplitude required to reach the nominal motor current. Half of this amplitude is

applied in positive direction (additional to 50% duty cycle), and half of it is applied in
negative direction (subtracted from 50% duty cycle)

I

COILpeak

Nominal peak coil current of the motor, i.e. I

COILRMS

* 1.41

R

COIL

Resistance of the motor coil
VM Motor driver supply voltage (may be measured in the application)
V

BEMF

Velocity dependent back EMF voltage of the motor. It is measured in V/rad/s.

At standstill V

BEMF

is zero and can be ignored for low RPM.

For higher velocities, multiply it by the angular velocity of the motor.

EXAMPLE

A 1A RMS motor with 6.5Ohm coil resistance is to be operated from a 12V supply at low velocity.

  



󰇛  󰇜

 

Therefore, the duty cycle needs to be modulated between 0.5 + 0.76/2 = 88% for the positive sine wave
peak and 0.5 - 0.76/2 = 12% for the negative sine wave peak.

7.3.2 Hardware Setup for Low Noise Chopper

The TMC249 provides a standalone mode, which allows direct control of coil polarity using a digital
signal. Further, the coil current can be controlled using an analog voltage in the range 0 V… 3 V.
As current control is done by PWM duty cycle, the integrated PWM based analog current control of the
IC is not used. Therefore, in principle it would be possible to work without sense resistors.

We recommend using the analog current limit as a safety feature. Further it can be used for allowing
a fallback to classical fullstepping at higher velocity (in order to also allow faster movements):
During voltage PWM mode the analog current control can be used to limit the motor current in case
of an error. Therefore, the current limit must be set at least 20% to 30% higher than the desired
maximum motor current for PWM operation (peak current value plus additional ripple). The mixed
decay mode must be switched off (MDAN=MDBN=VCC), because it would interfere with voltage PWM
operation. Both motor coil limits can be set to the same analog current limiting value: for a safety
limit and for a change to fullstepping.
In fullstepping switching to a lower value may be desired in order to match motor RMS current.

The processor controlled PWM uses the polarity inputs (PHA, PHB) for both coils to control motor
PWM.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 22

www.trinamic.com

INA

INB

SPE

+VCC

R1

R2

µC-PWM (sine modulated)

PHA

PHB

µC-PWM (cosine modulated)

TMC248

R3

µC port pin (switch current
limit for fullstepping)

Figure 7.4 Controlling the driver with two PWMs in standalone mode

7.4 Adapting the Sine Wave for Smooth Motor Operation

The optimization of the sine wave is possible for the mixed decay mode and for the voltage PWM
mode. After reaching the target current in each chopper cycle, both, the slow decay and the fast decay
cycle reduce the current by some amount. Especially the fast decay cycle has a larger impact. Thus,
the medium coil current always is a bit lower than the target current. This leads to a flat line in the
current shape flowing through the motor. It can be corrected, by applying an offset to the sine shape.
In mixed decay operation via SPI, an offset of 1 does the job for most motors.

t

I

Target current

Coil current

t

I

Target current

Coil current

Coil current does not have optimum shape Target current corrected for optimum shape of coil current

Figure 7.5 Adapting sine wave for smooth motor operation

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 23

www.trinamic.com

7.5 Blank Time

The TMC249 uses a digital blanking pulse for the current chopper comparators. This prevents current
spikes, which can occur during switching action due to capacitive loading, from terminating the
chopper cycle.

The lowest possible blanking time gives the best results for microstepping. A long blank time leads to
a long minimum turn-on time, thus giving an increased lower limit for the current.

Please remark, that the blank time should cover both, switch-off time of the lower side transistors
and turn-on time of the upper side transistors plus some time for the current to settle. Thus the
complete switching duration should never exceed 1.5µs. With slow external power stages it will
become necessary to add additional RC-filtering for the sense resistor inputs.

The TMC249 allows adapting the blank time to the load conditions and to the selected slope in four
steps:

BLANK TIME SETTINGS

BL2

BL1

Typical blank time

Remarks

GND

GND

0.6 µs

Very short. Will require good filtering on SRA and SRB.

GND

VCC

0.9 µs

Works well in good low inductivity layouts.

VCC

GND

1.2 µs

Default for most applications.

VCC

VCC

1.5 µs

May be used with slow bridges or high sense resistor trace
inductivity.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 24

www.trinamic.com

8 Slope Control

The output-voltage slope of the full bridge is controlled by a constant current gate charge / discharge
of the MOSFETs. The charge / discharge current for the MOSFETs can be controlled by an external
resistor: a reference current is generated by internally pulling the SLP-Pin to 1.25V via an integrated

4.7K resistor. This current is used to generate the current for switching on and off the power
transistors.

The gate-driver output current can be set in a range of 2… 25 mA by an external resistor:





󰇟󰇠 







󰇟󰇠

 

R

SLP

: Slope control resistor

I

OUT

: Controlled output current of the low-side MOSFET driver

The SLP-pin can directly be connected to AGND for the fastest output-voltage slope (respectively
maximum output current).

Please note, that there is a tradeoff between reduced electromagnetic emissions (slow slope) and
high efficiency because of low dynamic losses (fast slope). Typical slope times range between 100ns
and 500ns. Slope times below 100ns are not recommended, because they superimpose additional
stress on the power transistors while bringing only very slight improvement in power dissipation.

For applications where electromagnetic emission is very critical, it might be necessary to add
additional LC (or capacitor only) filtering on the motor connections. For these applications emission is
lower, if only slow decay operation is used.

0

5

10

15

20

25

-I

HDOFF

/

+/-I

LD

R

SLP

[KOhm]

10520 20 50 100

I

HDON

Figure 8.1 R

SLP

versus IDH

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 25

www.trinamic.com

9 Protection Functions

9.1 Overcurrent Protection and Diagnostic

9.1.1 Low Side Overcurrent

The TMC249 uses the current sense resistors on the low side to detect an overcurrent. If a voltage
above 0.61 V is detected, the PWM cycle is terminated at once and all transistors of the bridge are
switched off for the rest of the PWM cycle. The error counter is increased by one. If the error counter
reaches 3, the bridge remains switched off for 63 PWM cycles and the error flag is read as active.

CLEARING ERROR FLAG AND COUNTER

The user can clear the error condition in advance by clearing the error flag.
The error counter is cleared, whenever there are more than 63 PWM cycles without overcurrent. There
is one error counter for each of the low side bridges, and one for the high side.

Note:
The overcurrent detection is inactive during the blank pulse time for each bridge, to suppress spikes
which can occur during switching.

9.1.2 Short to Ground and Overcurrent Detection

The high side comparator detects a short to GND or an overcurrent, whenever the voltage between VS
and VT becomes higher than 0.15 V at any time (except for the blank time period which is logically
ORed for both bridges). If the voltage between VS and VT becomes higher than 0.15 V all transistors
become switched off for the rest of the PWM cycle, because the bridge with the failure is unknown.

In high side overcurrent conditions the user can determine which bridge sees the overcurrent, by
selectively switching on only one of the bridges with each polarity (therefore the other bridge should
remain programmed to 0000).

CLEARING ERROR FLAGS

The overcurrent flags can be cleared by disabling and re-enabling the chip either via the ENN pin or
by sending a telegram with both current control words set to 0000.

9.2 Over Temperature Protection and Diagnostic

The circuit switches off all output power transistors during an over temperature condition. The over
temperature flag should be monitored to detect this condition. The circuit resumes operation after
cool down below the temperature threshold. However, operation near the over temperature threshold
should be avoided, if a high lifetime is desired.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 26

www.trinamic.com

9.3 Overvoltage Protection and ENN Pin Behavior

Many suitable power MOSFETs are 30 V types. The TMC249 allows protecting the MOSFETs up to 40 V
supply voltage while they are switched off. During disable conditions the circuit switches off all
output power transistors and goes into a low current shutdown mode. All register contents are
cleared to 0, and all status flags are cleared.

The circuit in this condition can stand a higher voltage. The voltage is not limited by the maximum
power MOSFET voltage any more.

The enable pin ENN provides a fixed threshold of ½ VCC to allow a simple overvoltage protection up
to 40V using an external voltage divider (see schematic).

ENN

R2

µC-Port (opt.)
low=Enable,
high=Disable

R1

+V

M

For switch off at 26 - 29V:
at VCC=5V: R1=100K; R2=10K
at VCC=3.3V: R1=160K; R2=10K

Figure 9.1 Overvoltage protection

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 27

www.trinamic.com

10 Microstep Resolution

After choosing the desired microstep resolution the microcontroller sends digital values for each
microstep current via SPI. The following example shows how to initialize microsteps via SPI.

SINE WAVE TABLE

- The sine wave table below is used for 4-bit microstepping.

- The absolute values are left-shifted by one bit.

- Bit 0 is the sign bit (phase direction bit).

- Bit 5 is the mixed decay bit. It is set when the absolute value is falling.

FUNCTION

The function in the example below generates the microsteps. The values are read from the sine wave
table and output to the TMC249 (via SPI interface.) Call this function with the ccw parameter set to 1
(to step in negative direction) or with ccw set to 0 (to step in positive direction). The function can be
called in a timer interrupt, too.

SENDING VALUES VIA SPI

Set the CS line of the TMC249 low and send out the value of io by SPI (MSB first). Thereafter, set the
CS line high again.

EXAMPLE FOR GENERATING MICROSTEPS USING THE TMC249

UCHAR sinus_tab[64]={0x00, 0x02, 0x06, 0x08, 0x0c, 0x0e, 0x10, 0x14,
0x16, 0x18, 0x18, 0x1a, 0x1c, 0x1c, 0x1e, 0x1e,
0x3e, 0x3e, 0x3e, 0x3c, 0x3c, 0x3a, 0x38, 0x38,
0x36, 0x34, 0x30, 0x2e, 0x2c, 0x28, 0x26, 0x22,
0x01, 0x03, 0x07, 0x09, 0x0d, 0x0f, 0x11, 0x15,
0x17, 0x19, 0x19, 0x1b, 0x1d, 0x1d, 0x1f, 0x1f,
0x3f, 0x3f, 0x3f, 0x3d, 0x3d, 0x3b, 0x39, 0x39,
0x37, 0x35, 0x31, 0x2f, 0x2d, 0x29, 0x27, 0x23};

volatile UCHAR PhaseCount=0;

void step(char ccw)
{
UINT MixedDecayXOR=0, io;

if(!ccw)
{
PhaseCount++;
}
else
{ //The "Mixed Decay" bits must be reversed when running in CCW
direction
PhaseCount--;
MixedDecayXOR=0x820;
}

io=((sinus_tab[PhaseCount & 63]<<6 | sinus_tab[(PhaseCount+16) &
63]) ^ MixedDecayXOR);
}

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 28

www.trinamic.com

11 MOSFET Examples

Selection of power transistors for the TMC249 depends on required current, voltage and thermal
conditions. Driving large transistors directly with the TMC249 is limited by the gate capacity of these
transistors. If the total gate charge is too high, slope time increases and leads to a higher switching
power dissipation. A total gate charge of maximum 25nC per transistor pair (N gate charge + P gate
charge) is recommended (at 25nC, tie pin SLP to GND to get an acceptable slope). The table below
shows a choice of transistors which can be driven directly by the TMC249. The maximum application
current mainly is a function of cooling and environment temperature. RDSon is read at the nominal
drive voltage of 6V and 25°C, the gate charge is the 4.5V value available in most datasheets.
All of these transistor types are mainly cooled via their drain connections. In order to provide
sufficient cooling, the transistors should be directly connected to massive traces on the PCB which are
widened near the transistor package, providing a copper area of some square cm. The heat then is
dissipated vertically through the PCB to a massive power or ground plane, which shall cover most of
the PCB area in order to use the whole PCB for cooling. As an example, the minimum PCB size
required to reach the given current for the SI7501, is about 42mm * 42mm, yielding in a heat up of
the transistor packages of about 85°C above ambient temperature. With a 100mm * 100mm PCB, this
reduced to 70°C above ambient temperature, so that safe operation is possible up to 60°C ambient
temperature at maximum current (transistor package at 130°C).

Transistor
Type

Manu­facturer

Voltage

VDS

Max. RMS

Current (*)

Package

R

DSon

N (5V)

R

DSon

P (6V)

QG N

(note)

QG P

(note)

Unit V

A

mΩ

mΩ

nC

nC

AOD4186
AOD4185

A&O

40

7

DPAK..

15
15 9 19 (1)

FDD8647L
FDD4243

Fairchild

40

6

DPAK

13
45

12
18

QM4302D

UBIQ

40

5

TO252-4L

15

35

11

12

QM4803D

UBIQ

40

4

TO252-4L

28

45 6 9

FDD8424H

Fairchild

40

4

DPAK-4L

25

45 9 14

AOD609

A&O

40

4

TO252-4L

31

45 5 9 (1)

AP4543GEH

APEC

40

4

TO252-4L

32

50 8 13 (1)

AP4543GMT

APEC

40

3.5

PMPAK5x6

32

50 8 13 (1)

AO4618

A&O

40

2.8

SO8

21

22 3 8 (1)

SI4599DY

Vishay

40

2.5

SO8

36

45 5 12 (1)

AP4543GEM

APEC

40

2.5

SO8

38

55 8 12 (1)

FDS8960C

Fairchild

35

3

SO8

25

60 6 6

AP9934AGM

APEC

35

2

SO8 (Fullbridge)

70

75 6 6 (1)

BSZ050N03
BSZ180P03

Infineon

30

6

S3O8

6

18

13
15

AP4509AGH

APEC

30

7

TO252-4L

16

32

15 (2)

17 (1)

AO4616

A&O

30

2.8

SO8

24

25 9 16

FDS8958B

Fairchild

30

2.8

SO8

29

50 4 7 (1)

SI7501

Vishay

30

3

PPAK1212

35

50 5 11 (1)

AON7611

A&O

30

2.8

DFN3x3

53

40 2 5 (1)

AP4503BGM

APEC

30

2.5

SO8

35

40 6 12 (1)

SI4532ADY

Vishay

30

2.3

SO8

50

80 5 7

AP2852GO

APEC

30

2.2

TSSOP-8

48

65 8 9 (1)

AP9930AGM

APEC

30

2

SO8 (Fullbridge)

60

80

6 (2)

6

CTLDM303N
CTLDM304P

Central

30

2 (3)

M832DS

33
64

5
6

AP2530AGY

APEC

30

1 (1.5)

SOT26

135

200

2.5

2.8

* The maximum motor current applicable in a given design depends upon PCB size and layout,
because all of these transistors are mainly cooled through the PCB. The data given implies
adequate cooling measures in the design, especially for higher current designs. The maximum
RMS current rating takes into account package power dissipation, on resistances, and gate
charges. For duty cycle limited operation, 1.5 times or more current is possible (value in
brackets).

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 29

www.trinamic.com

Notes:

(1) These P-channel transistors have a high drain to gate charge, which may introduce destructive

current impulses into the HA/HB outputs by forcing them above the power supply level, especially
when the miller capacitance (QGD) of the low side MOSFET is lower and thus it switches more
quickly. As a thumb rule, the criteria is Q

GDHS

/ Q

GSHS

* Q

GDHS

/ Q

GDLS

> 2 (assuming slopes >100ns).
To ensure reliability, connect a 500mA or 1A Schottky diode to both HA and HB outputs against
VS to protect them. Types like MSS1P3, ZHCS1000, SS14 or BAR43 can be used.

(2) These N-channel transistors have a high drain to gate charge, which may introduce destructive

current impulses into the LA/LB outputs by forcing them below the ground level, especially when
the miller capacitance (QGD) of the high side MOSFET is lower and thus it switches more quickly.
As a thumb rule, the criteria is Q

GDLS

/ Q

GSLS

* Q

GDLS

/ Q

GDHS

> 2 (assuming slopes >100ns).
To ensure reliability, connect a 500mA or 1A Schottky diode to both LA and LB outputs against
GND to protect them against negative spikes. Types like MSS1P3, ZHCS1000, SS14 or BAR43 can be
used.

12 Using Additional Power Drivers

For higher voltage and higher output current it is possible to add external MOSFET gate drivers. Both,
dedicated transistor drivers are suitable, as well as a circuit based on standard HCMOS drivers. It is
important to understand the function of dedicated gate drivers for N-channel transistors: Since the
chopping also can be stopped in open load conditions, the gate drive circuit for the upper transistors
should allow for continuous ON conditions. In the schematic below this is satisfied by attaching a
weak additional charge pump oscillator and pumping the VS up to the high voltage supply. Do not
enable the TMC249, before the gate driver capacitors are charged to an appropriate voltage. A current
sensing comparator in the VM line pulling down the VT pin by some 100mV on overcurrent can be
added, if required. Since the TMC249 in this application cannot sense switch-off of the transistor gates
to ensure break-before-make operation, the break before-make-delays have to be set by capacitive
loading of its transistor drive outputs. The capacitors CdHS and CdLS are charged / discharged with
the nominal gate current. The opposite output is not enabled, before the switching-off output has
been discharged to 0.5V. To calculate the timing, refer to the required logic levels of the attached
power driver. For CdHS and CdLS 470pF give about 100ns. The circuit does not show decoupling
capacitors and further details.

High current, high
voltage MOS, e.g.
SI4450

R

S

Coil

NN

HA1

LA1

SRA

VT

TMC249/

TMC239

VS

small signal P­MOS, e.g. BSS84

+12V

LS­Driver

+VMe.g. 50V

HS-Driver

1µF

C

DHS

470p

C

DLS

470p

2n2

C-Pump
20kHz
ICM7555

to other
bridges

100R

4.7nF
opt.

22K

N N

IR2101

12V

390R

390R

1K

SLP

10K

Set HS and LS
current to 10mA

1K

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 30

www.trinamic.com

13 Layout Considerations

For optimal operation of the circuit a careful board layout is important, because of the combination of
high current chopper operation coupled with high accuracy threshold comparators.

13.1 Grounding

Please pay special attention to massive grounding. Depending on the required motor current, a single
massive ground plane provides the best solution. The schematic highlights the high current paths
which shall be routed separately, in case a GND plane cannot be realized, so that the chopper current
does not flow through the system’s GND interconnections. Tie the pins AGND and GND and the die
attach pad to the GND plane.

13.2 Filtering Capacitors

Use enough filtering capacitors located near to the boards power supply input and small ceramic
capacitors near to the power supply connections of the TMC249. Use low inductance sense resistors,
or add a ceramic capacitor in parallel to each resistor to avoid high voltage spikes.

In many applications it is beneficial to introduce additional RC-filtering into the SRA / SRB line (see
Figure 13.1) to prevent spikes from triggering the short circuit protection or the chopper comparator.
Alternatively, a 470nF ceramic capacitor can be placed across the sense resistors.

If you want to take advantage of the thermal protection and diagnostics, ensure, that the power
transistors are very close to the package and that there is a good thermal contact between the
TMC249 and the external transistors.

Note:
Long or thin traces to the sense resistors may add substantial resistance and thus reduce the output
current. Further, resulting inductivity will lead to poor chopper behavior.
This is valid for the high side shunt resistor, too. Place the optional shunt resistor voltage divider
near the TMC249. This avoids voltage drop in the VCC plane and adds up to the measured voltage.

+VM

GND

GND-

Plane

Bridge A Bridge B

C

VM

100R

optional

voltage divider

VS

VT

TMC248

100R

100R

2.2 -

4.7nF

SRA

SRB

optional filter

AGND

GND

100nF

R

SH

R

DIV

R

SA

R

SB

Figure 13.1 Grounding TMC249

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 31

www.trinamic.com

13.3 Pull-up Resistors on Unused Inputs

The digital inputs all have integrated pull-up resistors, except for the ENN input, which is in fact an
analog input. Thus, there are no external pull-up resistors required for unused digital inputs which are
meant to be positive.

13.4 Power Supply Sequencing Considerations

Upon power up, the driver initializes and switches off the bridge power transistors. The Vcc supply
voltage has to be at least 1.0 V and the Vs supply voltage has to be at least 5.0 V. This is a pre-

condition for the internal startup logic to work properly.

When Vs goes up with Vcc at 0 V, a medium current temporary cross conduction of the power stage
can result at supply voltages between 2.4 V and 4.8 V. In this voltage range, the upper transistors
conduct, while the gates of the lower transistors are floating. While this typically does no harm to the

driver, it may hinder the power supply from coming up properly, depending on the power supply
start up behavior.

THERE ARE TWO POSSIBILITIES TO PREVENT THIS:

- Add resistors from the LA and LB outputs to GND in the range of 1M keeping the low side

N-channel MOSFETs gates at GND.

- Alternatively, either use a dual voltage power supply, or use a local regulator, generating the

5 V or 3.3 V Vcc voltages.

Attention
Some switching regulators do not start before the input voltage has reached 5V. Therefore it is
recommended to use a standard linear regulator like 7805 or LM317 series or a low drop regulator or
a switching regulator like the LM2595, starting at relatively low input voltages.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 32

www.trinamic.com

13.5 Layout Example

Schematic

1- Top Layer (assembly side)

2- Inner Layer (GND)

The layout example is based on
a schematic using the TMC34NP
or SI7501 MOSFETs and TMC248
(identical to TMC249A-LA,
smaller package). The short to
GND detection uses a voltage
divider to allow simple
adaptation of the triggering
current. RC filtering is included
for SRA and SRB for best
performance.

3- Inner Layer (supply VS)

4- Bottom Layer

Assembly

Figure 13.2 Layout example

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 33

www.trinamic.com

14 Application Note: Extending the Microstep

Resolution

For some applications it might be desired to have a higher microstep resolution, while keeping the
advantages of control via the serial interface. The following schematic shows a solution, which adds
two LSBs by selectively pulling up the SRA / SRB pin by a small voltage difference. Please remark, that
the lower two bits are inverted in the depicted circuit. A full-scale sense voltage of 340mV is
assumed. The circuit still takes advantage of completely switching off of the coils when the internal
DAC bits are set to “0000”. This results in the following comparator trip voltages:

Current setting
(MSB first)

Trip voltage

0000xx

0 V

000111

5.8 mV

000110

11.5 mV

000101

17.3 mV

000100

23 mV

...

111101

334.2 mV

111100

340 mV

SPI bit

15

14

13

12

11

10 9 8

DAC bit

/B1

/B0

/A1

/A0

MDA

A5

A4

A3

SPI bit

7 6 5 4 3 2 1 0 DAC bit

A2

PHA

MDB

B5

B4

B3

B2

PHB

R

S

SRA

TMC236 /

TMC239

110R

4.7nF
opt.

74HC595

C1

Q0
Q1
Q2
Q3
Q4
Q5
Q6
Q7

Q7'

/MR

C2

/OE

SCK

SDI

SDO

CSN

+V

CC

DS1D

100K

/CS

SDI

SCK

SDO

Free for
second
TMC239

47K 47K

47K

/DACA.0
/DACA.1
/DACB.0
/DACB.1

Vcc = 5V

1/2 74HC74

C

DQ

Note: Use a 74HC4094
instead of the HC595 to get
rid of the HC74 and inverter

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 34

www.trinamic.com

15 Absolute Maximum Ratings

The maximum ratings may not be exceeded under any circumstances. Operating the circuit at or near
more than one maximum rating at a time for extended periods shall be avoided by application
design.

Parameter

Symbol

Min

Max

Unit

Supply voltage

V

S

-0.5

36

V

Supply max. 20000s

VSM 40

V

Logic supply voltage

VCC

-0.5

6.0

V

Gate driver peak current (1)

IOP 50

mA

Gate driver continuous current

IOC 5

mA

Logic input voltage

VI

-0.3

VCC+0.3V

V

Analog input voltage

VIA

-0.3

VCC+0.3V

V

Maximum current to / from digital pins
and analog inputs

IIO +/-10

mA

Short-to-ground detector input voltage

VVT

VS-1V

VS+0.3V

V

Junction temperature

TJ

-40

150*1

°C

Storage temperature

T

STG

-55

150

°C

*1 Internally limited

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 35

www.trinamic.com

16 Electrical Characteristics

16.1 Operational Range

Parameter

Symbol

Min

Max

Unit

Ambient temperature industrial*1

TAI

-25

125

°C

Ambient temperature automotive

TAA

-40

125

°C

Junction temperature

TJ

-40

140

°C

Bridge supply voltage (taking into account an increase of up to
2V due to energy fed back from motor)

VS 7 34

V

Logic supply voltage

VCC

3.0

5.5

V

Chopper clock frequency

f

CLK

100

kHz

Slope control resistor

R

SLP

0 470

K

*1 The circuit can be operated up to 140°C, but output power derates.

16.2 DC Specifications

DC characteristics contain the spread of values guaranteed within the specified supply voltage and
temperature range unless otherwise specified. Typical values represent the average value of all parts.

Logic supply voltage: V

CC

= 3.0 V… 5.5 V, Junction temperature: TJ = -40 °C … 140 °C,

Bridge supply voltage: V

S

= 7 V… 34 V (unless otherwise specified)

Parameter

Symbol

Conditions

Min

Typ

Max

Unit

Gate drive current
low side switch ON

I

LDON

VLD < 4V

10 15 25 mA

Gate drive current
low side switch OFF

I

LDOFF5

VLD > 3V
VCC = 5V

-15

-25

-35

mA

Gate drive current
low side switch OFF

I

LDOFF3

VLD > 3V
VCC = 3.3V

-10

-15

-20

mA

Gate drive current
low side switch ON

I

LDON

VS > 8V, R

SLP

= 0K

VLD < 4V

15

25

40

mA

Gate drive current
low side switch OFF

I

LDOFF

VS > 8V, R

SLP

= 0K

VLD > 4V

-15

-25

-40

mA

Gate drive current
high side switch ON

I

HDON

VS > 8V, R

SLP

= 0K

VS - VHD < 4V

-15

-25

-40

mA

Gate drive current
high side switch OFF

I

HDOFF

VS > 8V, R

SLP

= 0K

VS - VHD > 4V

15

30

40

mA

Deviation of Current Setting with
Respect to Characterization Curve

I

SET

Deviation from
standard value,
10k<R

SLP

<75k

70

100

130

%

Gate drive voltage high side ON

V

GH1

VS > 8V
relative to VS

-5.1

-6.0

-8.0

V

Gate drive voltage low side ON

V

GL1

VS > 8V

5.1

6.0

8.0

V

Gate drive voltage high side OFF

V

GH0

relative to VS

0 -0.5

V

Gate drive voltage low side OFF

V

GL0

0 0.5

V

Gate driver clamping voltage

V

GCL

-IH / IL = 20mA

12

16

20

V

Gate driver inverse clamping
voltage

V

GCLI

-IH / IL = -20mA

-0.8 V

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 36

www.trinamic.com

Parameter

Symbol

Conditions

Min

Typ

Max

Unit

VCC undervoltage

V

CCUV

2.5

2.7

2.9

V

VCC voltage o.k.

V

CCOK

2.7

2.9

3.0

V

VCC supply current

ICC

f

osc

= 25 kHz

0.85

1.35

mA

VCC supply current standby

I

CCSTB

0.45

0.75

mA

VCC supply current shutdown

I

CCSD

ENN = 1

37

70

µA

VS undervoltage

V

SUV

5.5

5.9

6.2

V

VS voltage o.k.

V

CCOK

6.1

6.4

6.7

V

VS supply current with maximum
current setting (static state)

I

SSM

VS = 14V,

R

SLP

= 0K

6

mA

VS supply current shutdown or
standby

I

SSD

VS = 14V

28

50

µA

High input voltage
(SDI, SCK, CSN, BL1, BL2, SPE, ANN)

VIH 2.2

VCC +

0.3 V

V

Low input voltage
(SDI, SCK, CSN, BL1, BL2, SPE, ANN)

VIL -0.3 0.7

V

Input voltage hysteresis
(SDI, SCK, CSN, BL1, BL2, SPE, ANN)

V

IHYS

100

300

500

mV

High output voltage
(output SDO)

VOH

-IOH = 1mA

VCC –

0.6

VCC –

0.2

VCC

V

Low output voltage
(output SDO)

VOL

IOL = 1mA

0

0.1

0.4

V

Low input current
(SDI, SCK, CSN, BL1, BL2, SPE, ANN)

-I

ISL

VI = 0
VCC = 3.3V
VCC = 5.0V

2
10
25

70

µA
µA
µA

High input voltage threshold
(input ENN)

V

ENNH

1/2 VCC

Input voltage hysteresis
(input ENN)

V

EHYS

0.1

V

ENNH

High input voltage threshold
(input OSC)

V

OSCH

tbd

2/3 VCC

tbd

V

Low input voltage threshold
(input OSC)

V

OSCL

tbd

1/3 VCC

tbd

V

VT threshold voltage
(referenced to VS)

V

VTD

-130

-155

-180

mV

SRA / SRB voltage at DAC = 1111

V

TRIP

internal ref. or
2V at INA / INB

315

350

385

mV

SRA / SRB overcurrent detection
threshold

V

SRS

570

615

660

mV

SRA / SRB comparator offset
voltage (Standard device)

V

SROFFS1

-10 0 10

mV

SRA / SRB comparator offset
voltage (Selected device)

V

SROFFS2

-6 0 6

mV

INA / INB input resistance

R

INAB

Vin  3 V

175

264

360

k

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 37

www.trinamic.com

16.3 AC Specifications

AC characteristics contain the spread of values guaranteed within the specified supply voltage and
temperature range unless otherwise specified. Typical characteristics represent the average value of all
parts.
Logic supply voltage: V

CC

= 3.3 V, Bridge supply voltage: VS = 14.0 V,

Ambient temperature: T

A

= 27 °C, External MOSFET gate charge = 3.2 nC

Parameter

Symbol

Conditions

Min

Typ

Max

Unit

Oscillator frequency
using internal oscillator

f

OSC

C

OSC

= 1nF 1%

20

25 31

kHz

Effective Blank time

TBL

BL1, BL2 = VCC

1.35

1.5

1.65

µs

Minimum PWM on-time

T

ONMIN

BL1, BL2 = GND

0.7 µs

16.4 Thermal Protection

Parameter

Symbol

Conditions

Min

Typ

Max

Unit

Thermal shutdown

T

JOT

145

155

165

°C

T

JOT

hysteresis

T

JOTHYS

15 °C

Prewarning temperature

T

JWT

135

145

155

°C

T

JWT

hysteresis

T

JWTHYS

15 °C

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 38

www.trinamic.com

17 Package Mechanical Data

17.1 SO28 Dimensions

REF

MIN

MAX

A

10

10.65

B

17.7

18.1

C

7.4

7.6

D

1.4

E

2.65

F

0.25

G

0.1

0.3

H

0.36

0.49

I

0.4

1.1

K

1.27

All dimensions are in mm.

17.2 QFN32 Dimensions

REF

MIN

NOM

MAX

A

0.80

0.90

1.00

A1

0.00

0.02

0.05

A3 0.20

L1

0.03

0.15

D 7.0

E

7.0

D2

5.00

5.15

5.25

E2

5.00

5.15

5.25

L

0.45

0.55

0.65

b

0.25

0.30

0.35

e 0.65

17.3

Attention: Drawings not to scale.
All dimensions are in mm.

Figure 17.1 Dimensional drawing

17.4 Package Code

Device

Package

Temperature range

Code/ Marking

TMC249A-LA

QFN32 (RoHS)

-50… +125°C

TMC249A-LA

TMC249A-SA

SO28 (RoHS)

-50… +125°C

TMC249A-SA

-C-

A3

A1

SIDE VIEW

PLANE

A

ccc C

0.08 CNX

SEATING

D

D/2

INDEX AREA

E

aaa C

aaa C

TOP VIEW

2x

2x

(D/2 xE/2)

E/2

-B-

-A-

NXL

e

NXb

D2/2

D2

E2/2

2

1

E2

bbb C A B

ddd C

-B-

-A-

N N-1

BTM VIEW

6

5

(D/2 xE/2)

INDEX AREA

SEE

DETAIL B

SEE

DETAIL B

BOTTOM VIEW WITH TYPE C ID

N-1

1

2

N

RADIUS

Datum A or B

DETAIL B

Terminal Tip

e

e/2

L1

I

E

F

C

A

K

H

B

D

G

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 39

www.trinamic.com

18 Disclaimer

TRINAMIC Motion Control GmbH & Co. KG does not authorize or warrant any of its products for use in
life support systems, without the specific written consent of TRINAMIC Motion Control GmbH & Co.
KG. Life support systems are equipment intended to support or sustain life, and whose failure to
perform, when properly used in accordance with instructions provided, can be reasonably expected to
result in personal injury or death.

Information given in this data sheet is believed to be accurate and reliable. However no responsibility
is assumed for the consequences of its use nor for any infringement of patents or other rights of
third parties which may result from its use.

Specifications are subject to change without notice.

All trademarks used are property of their respective owners.

19 ESD Sensitive Device

The TMC249 is an ESD-sensitive CMOS device and sensitive to electrostatic discharge. Take special care
to use adequate grounding of personnel and machines in manual handling. After soldering the
devices to the board, ESD requirements are more relaxed. Failure to do so can result in defects or
decreased reliability.

Note: In a modern SMD manufacturing process, ESD voltages well below 100V are standard. A major
source for ESD is hot-plugging the motor during operation. As the power MOSFETs are discrete
devices, the device in fact is very rugged concerning any ESD event on the motor outputs. All other
connections are typically protected due to external circuitry on the PCB.

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 40

www.trinamic.com

20 Table of Figures

Figure 1.1 TMC249 block diagram .................................................................................................................................... 4

Figure 2.1 TMC249 pin assignments ................................................................................................................................ 6

Figure 3.1 stallGuard signal sensitivity curves ............................................................................................................. 8

Figure 3.2 Implementing stallGuard ............................................................................................................................... 9

Figure 4.1 Relation between VIN and trip voltage of current sense comparator ............................................. 12

Figure 4.2 External DAC and PWM-DAC ........................................................................................................................ 12

Figure 4.3 SPI Timing ........................................................................................................................................................ 14

Figure 5.1 Analog control for standalone mode ....................................................................................................... 15

Figure 6.1 Schematic with RSH=RSA=RSB ........................................................................................................................... 17

Figure 7.1 Chopper phases .............................................................................................................................................. 18

Figure 7.2 Chopper cycle .................................................................................................................................................. 19

Figure 7.3 Voltage PWM generates motor current ................................................................................................... 20

Figure 7.4 Controlling the driver with two PWMs in standalone mode ............................................................ 22

Figure 7.5 Adapting sine wave for smooth motor operation ............................................................................... 22

Figure 8.1 R

SLP

versus IDH ................................................................................................................................................... 24

Figure 9.1 Overvoltage protection ................................................................................................................................. 26

Figure 12.1 Grounding TMC249 ....................................................................................................................................... 30

Figure 12.2 Layout example ............................................................................................................................................. 32

Figure 15.1 Dimensional drawing .................................................................................................................................. 38

TMC249A DATASHEET (Rev. 2.20 / 2019-AUG-21) 41

www.trinamic.com

21 Revision History

Version

Date

Author

BD = Bernhard Dwersteg
SD – Sonja Dwersteg

Description

0.90

BD

Datasheet based on TMC249 datasheet V2.1, removed
higher voltage and 64 microstep application notes,
increased SPI frequency limit to 8MHz

1.0

2012-JUN-22

SD

- New design.

- Further information about stallGuard and low noise

chopper.

- Layout example added.

1.01

2013-MAR-26

BD

MOSFET list updated, updated criteria for necessity of gate
driver output protection diodes

2.20

2019-AUG-21

BD

Re-Targeted Datasheet to TMC249

22 References

Please refer to our web page http://www.trinamic.com.
