TRINAMIC QSH5718 Technical data

QMOT Motor QSH5718
Manual
57mm QMOT motor family
Trinamic Motion Control GmbH & Co. KG
D – 20357 Hamburg, Germany
Phone +49-40-51 48 06 – 0 FAX: +49-40-51 48 06 – 60
http://www.trinamic.com
INFO@TRINAMIC.COM
QSH5718 Manual (V1.12 / May 10th, 2006) 2
Table of Contents
1 Features ........................................................................................................................................... 3
2 Life support policy ............................................................................................................................ 4
3 Mechanical Dimensions ................................................................................................................... 5
3.1 Leadwire Configuration ............................................................................................................. 5
3.2 Dimensions ............................................................................................................................... 5
4 Torque figures .................................................................................................................................. 6
4.1 Motor QSH5718-41-30-047 ...................................................................................................... 6
4.2 Motor QSH5718-55-30-098 ...................................................................................................... 6
4.3 Motor QSH5718-79-30-163 ...................................................................................................... 7
5 Considerations for Operation ........................................................................................................... 8
5.1 Choosing the best fitting Motor for an Application .................................................................... 8
5.2 Motor Current Setting................................................................................................................ 8
5.3 Motor Driver Supply Voltage .....................................................................................................9
5.4 Choosing the Commutation Scheme ...................................................................................... 10
5.4.1 Fullstepping........................................................................................................................ 10
6 Revision History ............................................................................................................................. 11
6.1 Documentation Revision ......................................................................................................... 11
List of Figures
Figure 1: Leadwire configuration ............................................................................................................. 5
Figure 2: Dimensions (all values in mm, hx describes drilling tolerance) ............................................... 5
List of Tables
Table 1: Motor technical data .................................................................................................................. 3
Table 2: Leadwire configuration .............................................................................................................. 5
Table 3: Motor current settings................................................................................................................ 8
Table 4: Driver supply voltage considerations......................................................................................... 9
Table 5: Comparing microstepping and fullstepping ............................................................................. 10
Table 6: Documentation Revisions........................................................................................................ 11
Copyright © 2006, TRINAMIC Motion Control GmbH & Co. KG
QSH5718 Manual (V1.12 / May 10th, 2006) 3
1 Features
These two phase hybrid stepper motors are optimized for microstepping and give a good fit to the TRINAMIC family of motor controllers and drivers. They are also used in the 57mm PANdrive family.
Main characteristics:
NEMA 23 mounting configuration
flange max. 57.2mm * 57.2mm
6.35mm axis diameter, 20.6mm axis length
step angle: 1.8˚
optimized for microstep operation
optimum fit for TMC239 / TMC249 based driver circuits
up to 84V operating voltage
4 wire connection
neodymium magnets for maximum torque
CE approved
QSH5718 Specifications
Rated Phase Current I Phase Resistance at 20°C R
Parameter Units
RMS_RATED
COIL
A 3.0 3.0 3.0
0.6 0.8 0.8
-41-30-047 -55-30-098 -79-30-163
Phase Inductance (typ.) mH 1.5 2.1 3.2
Holding Torque (typ.)
Detent Torque Ncm 2.1 3.0 3.0 Rotor Inertia g cm
Ncm 47 98 163 oz in 66 138 230
2
77 209 335 Weight (Mass) Kg 0.50 0.70 1.0 Insulation Class B (130°C) B (130°C) B (130°C) Connection Wires 4 4 4 Max applicable Voltage V 84 84 84 Step angle Accuracy % 5 5 5 Flange Size (max.) mm 57.2 57.2 57.2 Motor Length (max.) L
mm 41.0 55.0 78.5
MAX
Axis Diameter mm 6.35 6.35 6.35 Axis Length (typ.) mm 20.6 20.6 20.6 Maximum Axial Axis Load N 90 90 90 Maximum Radial Axis Load (8 mm from front flange)
N 110 110 110
Related Trinamic PANdrive type PD1-xxx-57 PD2-xxx-57 PD3-xxx-57
Table 1: Motor technical data
Copyright © 2006, TRINAMIC Motion Control GmbH & Co. KG
QSH5718 Manual (V1.12 / May 10th, 2006) 4
2 Life support policy
TRINAMIC Motion Control GmbH & Co. KG does not authorize or warrant any of its products for use in life support systems, without the specific written consent of TRINAMIC Motion Control GmbH & Co. KG.
Life support systems are equipment intended to support or sustain life, and whose failure to perform, when properly used in accordance with instructions provided, can be reasonably expected to result in personal injury or death.
© TRINAMIC Motion Control GmbH & Co. KG 2005
Information given in this data sheet is believed to be accurate and reliable. However no responsibility is assumed for the consequences of its use nor for any infringement of patents or other rights of third parties, which may result form its use.
Specifications subject to change without notice.
Copyright © 2006, TRINAMIC Motion Control GmbH & Co. KG
QSH5718 Manual (V1.12 / May 10th, 2006) 5
3 Mechanical Dimensions
3.1 Leadwire Configuration
Cable type 1 Cable type 2 Coil Function
Black Red A Motor coil A pin 1 Orange Red-White A Motor coil A pin 2 Yellow Brown B Motor coil B pin 1 Red Brown-White B Motor coil B pin 2
Table 2: Leadwire configuration
Figure 1: Leadwire configuration
3.2 Dimensions
black or red
orange or red-white
A
M
B
yellow or
brown
red or
brown-white
Figure 2: Dimensions (all values in mm, hx describes drilling tolerance)
Copyright © 2006, TRINAMIC Motion Control GmbH & Co. KG
QSH5718 Manual (V1.12 / May 10th, 2006) 6
4 Torque figures
The torque figures detail motor torque characteristics for fullstep operation in order to allow simple comparison. The motors were positioned on rubber. The diagrams are based on discrete measurement points of pull-out torque (torque needed to stop rotating motor). For fullstep operation there are always a number of resonance points (with less torque) which are not depicted. These will be minimized by microstep operation in most applications.

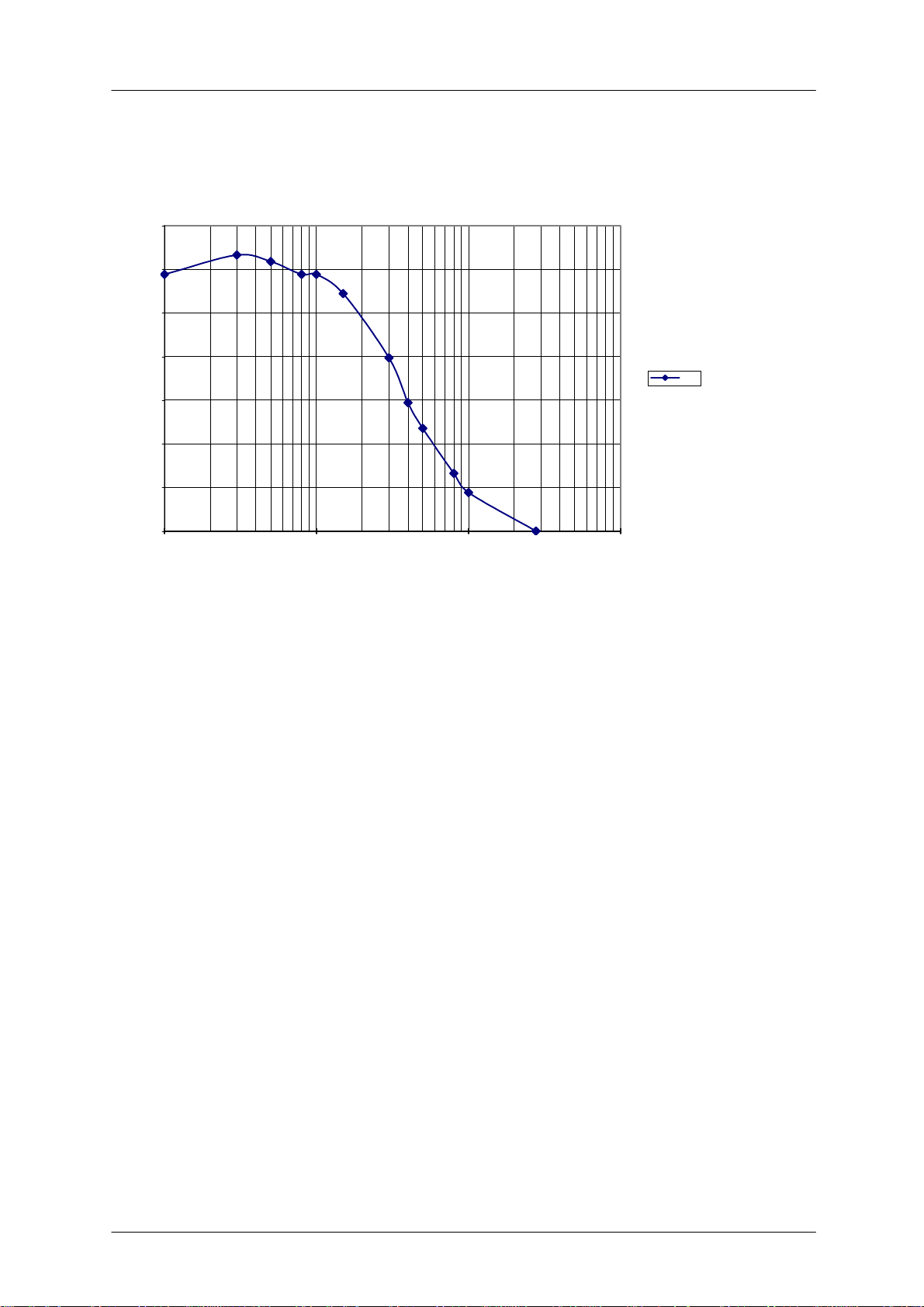

4.1 Motor QSH5718-41-30-047
Conditions: Bipolar chopper drive, 3A coil current, fullstep operation
QSH5718-41-30-047
45
40
35
30
25
N cm
20
15
10
5
0
100 1000 10000 100000
steps / s
4.2 Motor QSH5718-55-30-098
Conditions: Bipolar chopper drive, 3A coil current, fullstep operation
QSH5718-55-30-098
90
80
70
48V
24V
60
50
N cm
40
30
20
10
0
100 1000 10000 100000
steps / s
48V
24V
Copyright © 2006, TRINAMIC Motion Control GmbH & Co. KG
QSH5718 Manual (V1.12 / May 10th, 2006) 7
4.3 Motor QSH5718-79-30-163
Conditions: Bipolar chopper drive, 3A coil current, fullstep operation
QSH5718-79-30-163
140
120
100
80
N cm
60
40
20
48V
0
100 1000 10000 100000
steps / s
Copyright © 2006, TRINAMIC Motion Control GmbH & Co. KG
QSH5718 Manual (V1.12 / May 10th, 2006) 8
5 Considerations for Operation
The following chapters try to help you to correctly set the key operation parameters in order to get a stable system.
5.1 Choosing the best fitting Motor for an Application
For an optimum solution it is important to fit the motor to the application and to choose the best mode of operation. The key parameters are desired motor torque and velocity. While the motor holding torque describes the torque at stand-still, and gives a good indication for comparing different motors, it is not the key parameter for the best fitting motor. The required torque is a result of static load on the motor, dynamic loads which occur during acceleration / deceleration and loads due to friction. In most applications the load at maximum desired motor velocity is most critical, because of the reduction of motor torque at higher velocity. While the required velocity generally is well known, the required torque often is only roughly known. Generally, a longer motor and a motor with a larger diameter delivers a higher torque. But, using the same driver voltage for the motor, the larger motor earlier looses torque when increasing motor velocity. This means, that for a high torque at a high motor velocity, the smaller motor might be the better fitting solution. Please refer to the torque vs. velocity diagram to determine the best fitting motor, which delivers enough torque at all desired velocities.
Hints:
Q: How to determine the maximum torque required by your application? A: Just try a motor which should roughly fit. Take into consideration worst case conditions, i.e.
minimum driver supply voltage and minimum driver current, maximum or minimum environment temperature (whichever is worse) and maximum friction of mechanics. Now, consider that you want to be on the safe side, and add some 10 percent safety margin to take into account for unknown degradation of mechanics and motor.
5.2 Motor Current Setting
Basically, the motor torque is proportional to the motor current, as long as the current stays at a reasonable level. At the same time, the power consumption of the motor (and driver) is proportional to the square of the motor current. Optimally, the motor should be chosen to bring the required performance at the rated motor current. For a short time, the motor current may be raised above this level in order to get increased torque, but care has to be taken in order not to exceed the maximum coil temperature of 130°C respectively a continuous motor operation temperature of 90°C.
Percentage of
rated current
150% 150% 225% 125% 125% 156%
100% 100%
85% 85% 72% 75% 75% 56%
50% 50% 25%
38% 38% 14% 25% 25% 6%
0%
Percentage of
motor torque
see detent
torque
Percentage of static
motor power dissipation
100%
= 2 * I
RMS_RATED
0%
* R
COIL
Comment
Limit operation to a few seconds Operation possible for a limited time Normal operation
Normal operation Normal operation Reduced microstep exactness due
to torque reducing in the magnitude of detent torque
-“-
-“­Motor might loose position if the
application’s friction is too low
Table 3: Motor current settings
Copyright © 2006, TRINAMIC Motion Control GmbH & Co. KG
QSH5718 Manual (V1.12 / May 10th, 2006) 9
Hints:
Q: How to choose the optimum current setting? A1: Generally, you choose the motor in order to give the desired performance at nominal current.
For short time operation, you might want to increase the motor current to get a higher torque than specified for the motor. In a hot environment, you might want to work with a reduced motor current in order to reduce motor self heating. The Trinamic drivers allow setting the motor current for up to three conditions:
- Stand still (choose a low current)
- Nominal operation (nominal current)
- High acceleration (if increased torque is required: You may choose a current above the nominal
setting, but be aware, that the mean power dissipation shall not exceed the motors nominal rating)
A2: If you reach the velocity limit, it might be a good idea to reduce the motor current, in order to
avoid resonances occurring. Please see the hints on choosing the driver voltage.
Q: What about energy saving – how to choose standby current? A1: Most applications do not need much torque during motor stand-still. You should always reduce
motor current during stand still. This reduces power dissipation and heat generation. Depending on your application, you typically at least can half power dissipation. There are several aspects why this is possible: In stand still, motor torque is higher than at any other velocity. Thus, you do not need the full current even with a static load! Your application might need no torque at all, but you might need to keep the exact microstep position: Try how low you can go in your application. If the microstep position exactness does not matter for the time of stand still, you might even reduce the motor current to zero, provided that there is no static load on the motor and enough friction in order to avoid complete position loss.
5.3 Motor Driver Supply Voltage
The driver supply voltage in many applications can not be chosen freely, because other components have a fixed supply voltage of e.g. 24V DC. If you have to possibility to choose the driver supply voltage, please refer to the driver data sheet, and consider that a higher voltage means a higher torque at higher velocity. The motor torque diagrams are measured for a given supply voltage. You typically can scale the velocity axis (steps / sec) proportionally to the supply voltage to adapt the curve, e.g. if the curve is measured for 48V and you consider operation at 24V, half all values on the x-Axis to get an idea of the motor performance.
For a chopper driver, consider the following corner values for the driver supply voltage (motor voltage). The table is based on the nominal motor voltage, which normally just has a theoretical background in order to determine the resistive loss in the motor.
Comment on the nominal motor voltage: U
COIL_NOM
(Please refer to motor technical data table.)
Parameter Value Comment
Minimum driver supply voltage Optimum driver supply voltage
Maximum rated driver supply voltage
2 * U
COIL_NOM
4 * U and 22 * U 25 * U
COIL_NOM
Very limited motor velocity. Only slow movement without
torque reduction. Chopper noise might become audible.
COIL_NOM
Choose the best fitting voltage in this range using the motor torque curve and the driver data. You can scale the torque
COIL_NOM
curve proportionally to the actual driver supply voltage.
When exceeding this value, the magnetic switching losses in
the motor reach a relevant magnitude and the motor might get too hot at nominal current. Thus there is no benefit in further raising the voltage.
= I
RMS_RATED
* R
COIL
Table 4: Driver supply voltage considerations
Copyright © 2006, TRINAMIC Motion Control GmbH & Co. KG
QSH5718 Manual (V1.12 / May 10th, 2006) 10
Hints:
Q: How to determine if the given driver voltage is sufficient? A1: Just listen to the motor at different velocities. Does the “sound” of the motor get raucous or
harsh when exceeding some velocity? Then the motor gets into a resonance area. The reason is, that the motor back-EMF voltage reaches the supply voltage. Thus, the driver can not bring the full current into the motor any more. This is typically a sign, that the motor velocity should not be further increased, because resonances and reduced current affect motor torque.
A2: Measure the motor coil current at maximum desired velocity.
For microstepping: If the waveform is still basically sinusoidal, the motor driver supply voltage is sufficient. For Fullstepping: If the motor current still reaches a constant plateau, the driver voltage is sufficient. If you determine, that the voltage is not sufficient, you could either increase the voltage or reduce the current (and thus torque).
5.4 Choosing the Commutation Scheme
While the motor performance curves are depicted for fullstepping, most modern drivers provide a microstepping scheme. Microstepping uses a discrete sine and a cosine wave to drive both coils of the motor, and gives a very smooth motor behaviour as well as an increased position resolution. The amplitude of the waves is 1.41 times the nominal motor current, while the RMS values equals the nominal motor current. The stepper motor does not make loud steps any more – it turns smoothly! Therefore, 16 microsteps or more are recommended for a smooth operation and the avoidance of resonances. To operate the motor at fullstepping, some considerations should be taken into account.
Driver Scheme Resolution Velocity range Torque Comments
Fullstepping 200 steps per
rotation
Microstepping 200 * (number
of microsteps)
per rotation Mixed: Micro­stepping and full­stepping for high velocities
200 * (number
of microsteps)
per rotation
Low to very high. Skip resonance areas in low to me­dium velocity range. Low to high. Reduced torque at very
Low to very high. Full torque At high velocities,
Full torque if dampener used, otherwise reduced torque in resonance area
high velocity
Audible noise especially at low velocities
Low noise, smooth motor behaviour
there is no audible difference for full­stepping
Table 5: Comparing microstepping and fullstepping
Microstepping gives the best performance for most applications and can be considered as state-of-the art. However, fullstepping allows some ten percent higher motor velocities, when compared to microstepping. A combination of microstepping at low and medium velocities and fullstepping at high velocities gives best performance at all velocities and is most universal. Most Trinamic driver modules support all three modes.
5.4.1 Fullstepping
When operating the motor in fullstep, resonances may occur. The resonance frequencies depend on the motor load. When the motor gets into a resonance area, it even might not turn any more! Thus you should avoid resonance frequencies.
Hints:
Q: How to avoid motor resonance in fullstep operation? A1: Do not operate the motor at resonance velocities for extended periods of time. Use a reasonably
high acceleration in order to accelerate to a resonance-free velocity. This avoids the build-up of resonances. When resonances occur at very high velocities, try reducing the current setting.
A2: A resonance dampener might be required, if the resonance frequencies can not be skipped.
Copyright © 2006, TRINAMIC Motion Control GmbH & Co. KG
QSH5718 Manual (V1.12 / May 10th, 2006) 11
6 Revision History
6.1 Documentation Revision
Version Comment Description
1.00 Initial Release
1.01 Minor change New cable coloring scheme
1.1 Torque figures Added missing torque figures
1.11 Axis Load Added Axial / Radial load
1.12 Additions
Table 6: Documentation Revisions
Copyright © 2006, TRINAMIC Motion Control GmbH & Co. KG
