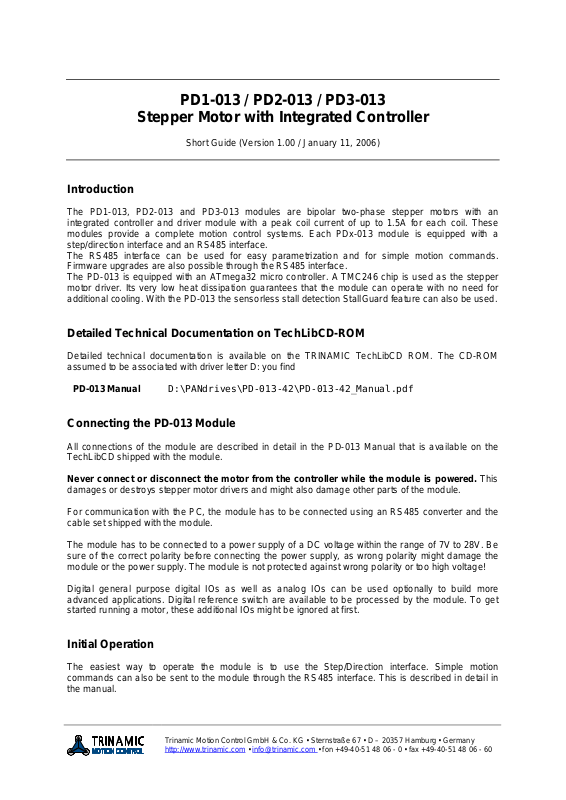

Trinamic PD1-013, PD2-013, PD3-013 Short Guide

PD1-013 / PD2-013 / PD3-013
Stepper Motor with Integrated Controller
Short Guide (Version 1.00 / January 11, 2006)
Introduction
Detailed Technical Documentation on TechLibCD-ROM
Detailed technical documentation is available on the TRINAMIC TechLibCD ROM. The CD-ROM assumed to be associated with driver letter D: you find
PD-013 Manual D:\PANdrives\PD-013-42\PD-013-42_Manual.pdf
Connecting the PD-013 Module
All connections of the module are described in detail in the PD-013 Manual that is available on the TechLibCD shipped with the module.
Never connect or disconnect the motor from the controller while the module is powered. This damages or destroys stepper motor drivers and might also damage other parts of the module.
For communication with the PC, the module has to be connected using an RS485 converter and the cable set shipped with the module.
The module has to be connected to a power supply of a DC voltage within the range of 7V to 28V. Be sure of the correct polarity before connecting the power supply, as wrong polarity might damage the module or the power supply. The module is not protected against wrong polarity or too high voltage!
Digital general purpose digital IOs as well as analog IOs can be used optionally to build more advanced applications. Digital reference switch are available to be processed by the module. To get started running a motor, these additional IOs might be ignored at first.
Initial Operation
The easiest way to operate the module is to use the Step/Direction interface. Simple motion commands can also be sent to the module through the RS485 interface. This is described in detail in the manual.
Trinamic Motion Control GmbH & Co. KG • Sternstraße 67 • D – 20357 Hamburg • Germany
http://www.trinamic.cominfo@trinamic.com • fon +49-40-51 48 06 - 0 • fax +49-40-51 48 06 - 60
PD-110 Short Guide (v. 1.00 / January 11, 2006) page 2 of 2
Technical Data
DC Supply Voltage Range 7V ... 28V Supported Motor Type bipolar, two-phase stepper motor Maximum Peak Coil Current 1.5A (adjustable by software in 255 steps) Interfaces
Operating Temperature Range 0°C ... 70°C Dimensions 42 mm x 42 mm
RS232 (default 9600 bps, max. 115200 bps) one general purpose output (5V, max. 20mA) one general purpose input (TTL level), usable as digital or as analog input (max. 5V) two stop switch inputs for every motor (TTL level)
ESD Sensitive Module
The TMCM-310 module is intended to be integrated as a part of a system with a housing. Running it without housing, one has to take into account that the module is a ESD (electrostatic discharge) sensitive unit and one has to avoid ESD voltages above 1000V according to HBM (Human Body Model, model of electrostatic discharge via human body). The module withstands at least 1000V HBM.
Environmental Protection Hint
Depollute the unit at the end of its life cycle according to existing law.
Life Support Policy
TRINAMIC Motion Control GmbH & Co. KG does not authorize or warrant any of its products for use in life support systems, without the specific written consent of TRINAMIC Motion Control GmbH & Co. KG. Life support systems are equipment intended to support or sustain life, and whose failure to perform, when properly used in accordance with instructions provided, can be reasonably expected to result in personal injury or death.
© TRINAMIC Motion Control GmbH & Co. KG 2006
Information given in this data sheet is believed to be accurate and reliable. However no responsibility is assumed for the consequences of its use nor for any infringement of patents or other rights of third parties, which may result form its use.
Specifications are subject to change without notice.
Copyright © 2006, TRINAMIC Motion Control GmbH & Co. KG. All Rights Reserved.
