QUICK START GUIDE

APRICOT MS SERIES QUICK START GUIDE

For your own safety

Read through the Safety & Regulatory Notices section at the start of the Owner’s Handbook before using the computer for the first time.

T C A P

M O C

Page 3

QUICK START GUIDE

Using the Welcome Mat

Connecting up your computer

Keyboard

Connecting items

Mains

cable

AC outlet

Apricot

M S

SERIES

O w n e r’

s H a n d

b o o k

Now follow the QUICK START GUIDE in the Owner's Handbook.

r ta S

including

Q G

Monitor power cord

Microphone

Mouse

Modem

1010110101

Separately powered speakers

Remember, this speaker set has its own power supply cable.

AC outlet

APRICOT MULTIMEDIA PCsAPRICOT MULTIMEDIA PCs

Monitor

The monitor signal cable must be connected

properly before you switch on, or it may result

Signal cable

in poor display or no picture at all.

Optional Subwoofer with separately powered speakers

AC outlet

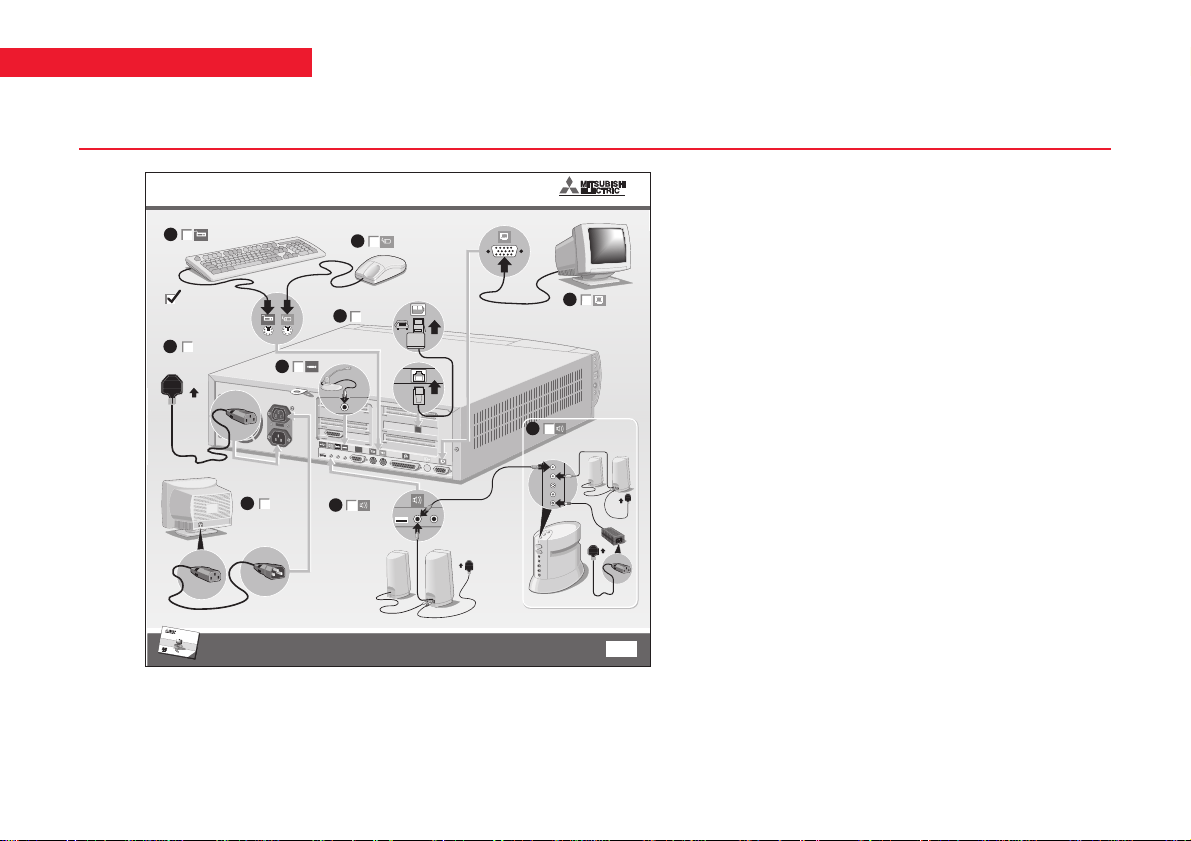

Use the Welcome Mat to help you unpack and connect the components of your new personal computer. The recommended order is:

1. Keyboard

2. Mouse

3. Monitor signal cable

4. Stereo speakers (and optional sub-woofer)

5. Modem cable

6. Microphone (optional)

AC outlet

7. Monitor power cord

8. System unit power cord

Once your computer is connected, switch on the power at the wall socket. The Power Mode light next to the POWER button (the large, round button on the front of the computer) should glow red to show that the computer is ready to start.

Page 4

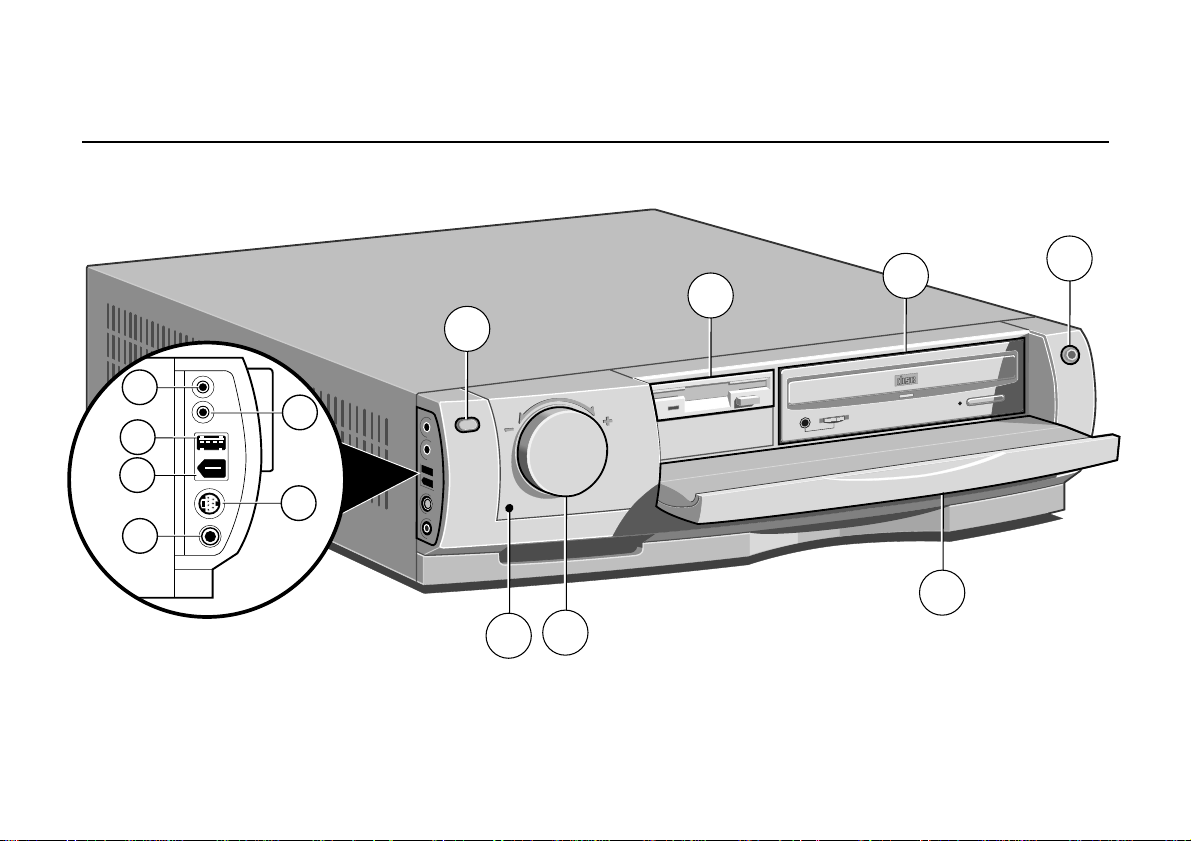

The Power button

Power Button

Power Mode

Light

QUICK START GUIDE

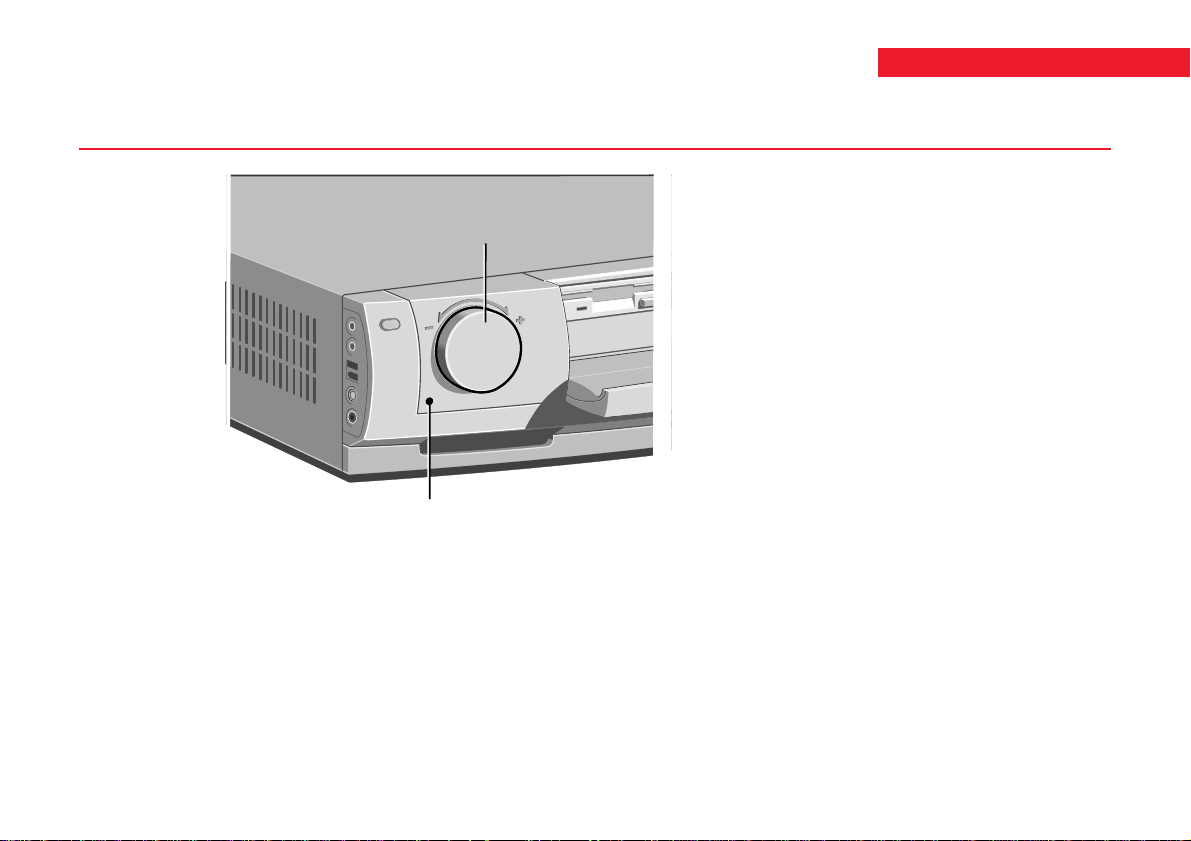

The POWER button is the large, round button on the front of the computer.

♦ Press the POWER button to turn on the computer,

to put it to sleep, and to wake it up.

♦ Turn the POWER button to change the volume of

sound through the computer’s speakers.

The colour of Power Mode light shows whether the computer is in Off [red], On or Standby [green] or Suspend [yellow] mode.

The monitor has its own power button or switch; see the monitor’s User Guide to find out where it is.

Page 5

QUICK START GUIDE

Starting the computer

♦ Press the POWER button to turn on the computer. ♦ Turn on the monitor as described in its User Guide.

The colour of the Power Mode light turns from red to green to show that the computer is now working.

Suspending the computer

Once Windows has started, you can give the POWER button a brief press to suspend the computer when you aren’t using it. Alternatively, you can click the Start button in the Windows taskbar, then click Suspend.

To wake up the computer, you have to press the POWER button again – just moving the mouse or using the keyboard won’t work.

While the computer is suspended its processor stops, its hard disk stops spinning and the monitor goes blank, but none of your files are lost.

In Suspend mode the Power Mode light is yellow.

Note

Future versions of Windows will allow you to redefine the POWER button so that when you press it the operating system shuts down and the PC goes directly into Off mode.

Automatic power saving

During periods of inactivity the computer automatically reduces the power consumption of idle components. For example, the monitor screen may go blank. This powerreduced state is known as Standby mode (the Power Mode light stays green). If the inactivity is prolonged the computer goes into full Suspend mode (the Power Mode light is yellow).

While in Standby mode you can move the mouse or press any keyboard key to resume working. Once the computer goes into Suspend mode only the POWER button can wake it.

You can adjust automatic power saving with the Power Management program, which is provided as part of the Easy Manager software collection.

Page 6

QUICK START GUIDE

Shutting down the computer

To shut down the computer safely, do the following:

1. Wait until all the activity indicators on the front bezel show ‘not busy’.

2. Turn off any attached peripherals, except for the monitor and other peripherals that are designed to be kept on permanently.

3. Click the Start button in the Windows taskbar, then click Shut Down. Select Shutdown the computer and click Yes.

The Power Mode light goes from green to red.

Note that you do not have to press the POWER button if Windows is running.

You don’t have to turn off the monitor

Because the monitor gets its power from the computer, once you turn the monitor on you should never need to turn it off, except to move or open up the computer.

Emergency shut down

In exceptional circumstances, you can shut down your PC without shutting down Windows first. To do this, press and hold down the POWER button for at least four seconds.

The computer also shuts itself down if you press the POWER button in MS-DOS or before Windows starts.

Make sure it is an emergency!

In an emergency shut down, you may lose any recent changes made to the files you are currently working on. The Microsoft ScanDisk program will run automatically when the computer next starts, to check for disk errors.

Energy Star

The aim of these various power modes is to cut your electricity bill and conserve resources. Energy Star is an internationally recognised standard for such energyefficient computer systems.

Your computer will always meet the Energy Star standard in Suspend mode, when the Power Mode light is yellow.

Page 7

QUICK START GUIDE

Registering Windows 95

Your computer has the Microsoft Windows 95 operating system already in place or pre-installed, so that it is ready for you when you turn on the computer.

The first time you turn on the computer you must tell Windows 95 your name (and the name of the company for which you work, if applicable) and agree to the legal terms and conditions of the Windows 95 Licence Agreement.

Windows 95 then spends a few minutes analysing your computer and configuring itself to take full advantage of your computer’s components. Windows 95 also offers you the opportunity to install a printer. However, you do not have to install a printer at this time if you don’t want to.

You only register once

All of this only happens the first time you turn on your computer. After that Windows 95 starts normally, except that you may be reminded if you haven’t made any back-up diskettes yet.

Page 8

Electronic Fingerprinting

QUICK START GUIDE

Electronic Fingerprinting allows you to ‘brand’ your computer by storing personal information in its permanent memory. If you include your name, address and phone number this will aid the police if your computer is stolen.

The Apricot Electronic Fingerprinting program appears every time you start Windows 95 until you have branded the computer. If you don’t brand your computer promptly, someone else might do it before you!

After you have entered your details you are prompted to set a branding password. This password will be requested if you ever need to run the Electronic Fingerprinting program again to change the branding information (for example, if you change address).

Optionally, for extra security, you can decide that this same password is requested every time the computer is turned on, or every time the mains power supply is interrupted.

If you forget your branding password, you can use a special fall-back password instead. The fall-back password is a 12-digit number that is unique to your computer. It is displayed only once, the first time you set a branding password.

Click the Help button in Electronic Fingerprinting for more information.

Be careful

Do not turn off the computer while using the Electronic Fingerprinting program. It might corrupt your computer’s memory.

Write down the fall-back password

The fall-back password is displayed only once. You must make a note of the password immediately, because you will never see it again. There is a page at the end of this manual where you can write it down.

Page 9

QUICK START GUIDE

Increasing the resolution and colours displayed by your monitor

At first, Windows 95 is configured for a standard monitor setting (640 by 480 pixels in a maximum of 256 different colours) so that Windows 95 is sure to display correctly whatever monitor you have.

However, Mitsubishi Electric’s Apricot monitors can do much better than this standard setting. You should therefore change the display setting to get the best performance from your system.

1. Right-click with the mouse while pointing at the background of the Windows 95 desktop, then select Properties from the pop-up menu.

2. Click the Settings tab of the Display Properties dialog.

3. You can now select the Display Area (resolution) and Colour Palette (number of colours). We suggest at least 800 by 600 pixels in 256 colours.

Tips

You may have to specify the make and model of your monitor before you can increase the resolution. In this case, click the Advanced Properties button on the Settings tab.

You can get an even better display by upgrading your computer’s video memory from 2 to 4 Mbytes. Ask your Mitsubishi Electric PC supplier for details.

Page 10

Infotrade Internet - The Internet service from Mitsubishi Electric

QUICK START GUIDE

By connecting your computer to the phone network, you can use your computer as an answerphone and fax machine. You can also access the Internet, and in particular the World Wide Web (WWW).

To get you started, we have provided the Infotrade Internet service (this offer applies only in the United Kingdom). Infotrade is a subsidiary of Mitsubishi Electric, the makers of your Apricot PC.

Details of the Infotrade Internet offer are given on the promotional leaflet that came with your computer.

Infotrade also offers a variety of personal finance services. These services are entirely optional and separate from the Internet service. To find out more, double-click the Infotrade Internet Help icon on the Windows 95 desktop.

Hint

Although we recommend the Infotrade Internet service, and have made it very easy for Apricot PC users to subscribe to it, there are other possibilities. On the Windows 95 desktop is an icon for The Microsoft Network, which is the on-line service provided by Microsoft itself. And in the On-line Services folder (also on the desktop) you will find setup programs for other on-line service providers.

Page 11

QUICK START GUIDE

Setting up Infotrade Internet and Fax

If you decide to take advantage of the Infotrade Internet offer, you will need the Infotrade Internet leaflet that came with your computer.

Hint

You should run Infotrade Internet and Fax Setup even if you don’t want to subscribe to Infotrade Internet, as it also sets up the Microsoft Fax service.

1. Double-click the Infotrade Internet and Fax Setup icon on the Windows desktop.

2. Follow the instructions on the screen, together with the information provided on the Infotrade Internet leaflet. When the setup is complete, you are prompted to restart your computer.

Once your computer has restarted, you are ready to connect to the Internet and register your new account with Infotrade.

3. Make sure the modem cable is connected from the back of the computer to your phone socket.

4. Double-click on The Internet icon on the Windows desktop to start Microsoft’s Internet Explorer.

5. Follow the instructions on the screen to register with Infotrade.

Once you’ve finished the registration process, you can either exit from Internet Explorer, or go on to explore or “surf” the World-Wide Web.

In the future

You only have to register once, but whenever you use Internet Explorer subsequently, you have to log on to the Internet with your Infotrade user name and your Infotrade password.

Page 12

Easy Manager

QUICK START GUIDE

Easy Manager is a collection of software from Mitsubishi Electric, designed to make life easier for new computer users.

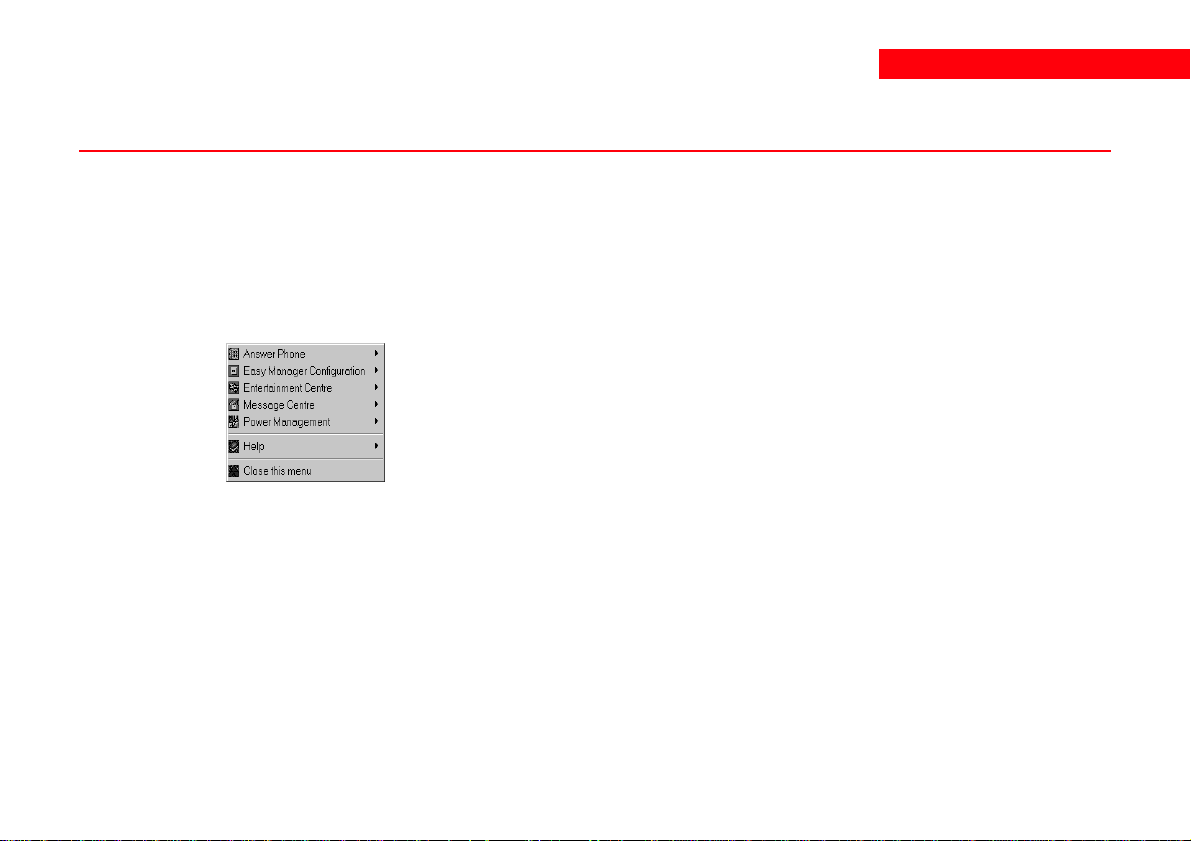

In the Windows taskbar is a Mitsubishi Electric symbol. If you click it a pop-up menu appears listing all the elements of Easy Manager.

Use the Help option to learn how to use the Easy Manager software.

Answerphone answers your incoming telephone calls automatically. Calls may be either voice messages (voice mail) or fax messages.

Easy Manager Configuration allows you to say which parts of the Easy Manager collection you want to use.

Entertainment Centre offers easy access to a range of games, reference and productivity programs, some of which may be pre-installed on your computer’s hard disk or supplied on CD.

Message Centre is the place where incoming electronic mail (e-mail), voice and fax messages are available for you to review, and where you can create and send your own outgoing e-mail and fax messages. You can also set up short “reminders” for yourself, family members, and friends who use your computer.

Power Management allows you to program the automatic power saving features of your computer.

Page 13

QUICK START GUIDE

The Remote Control

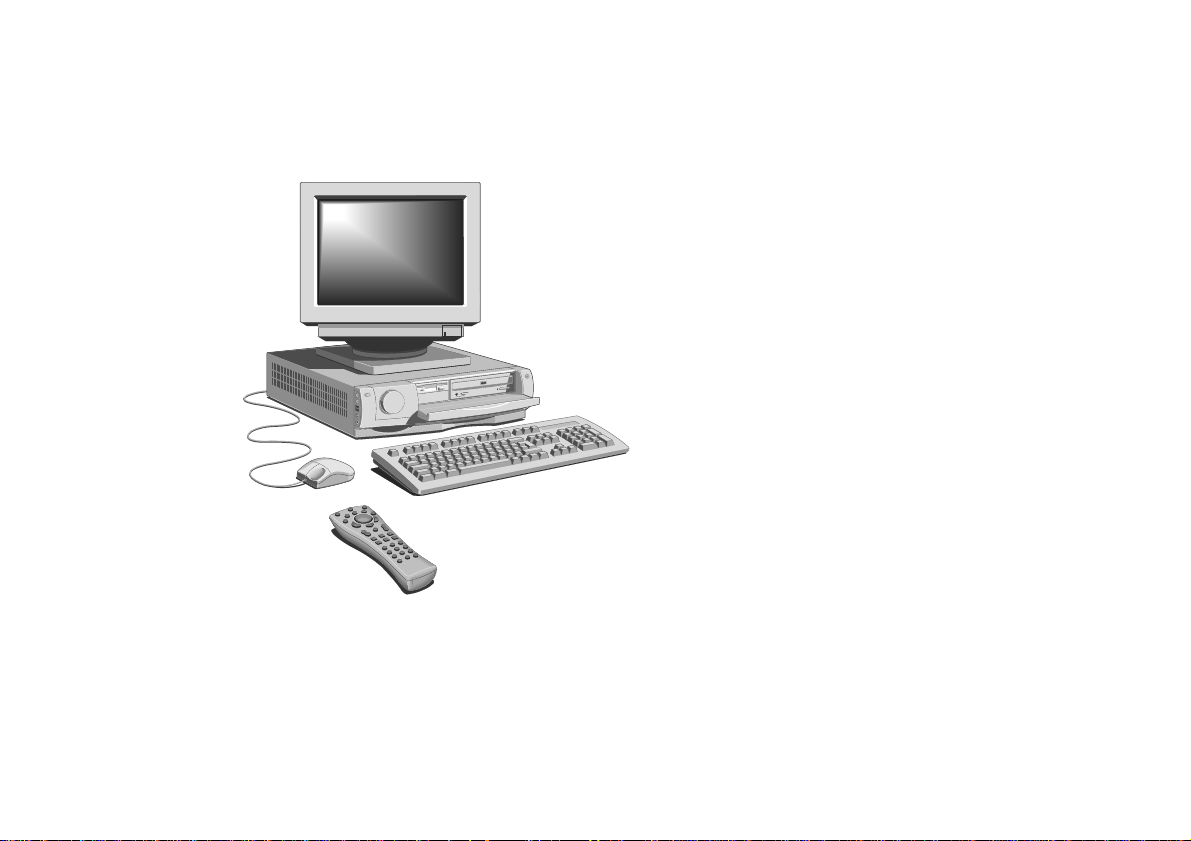

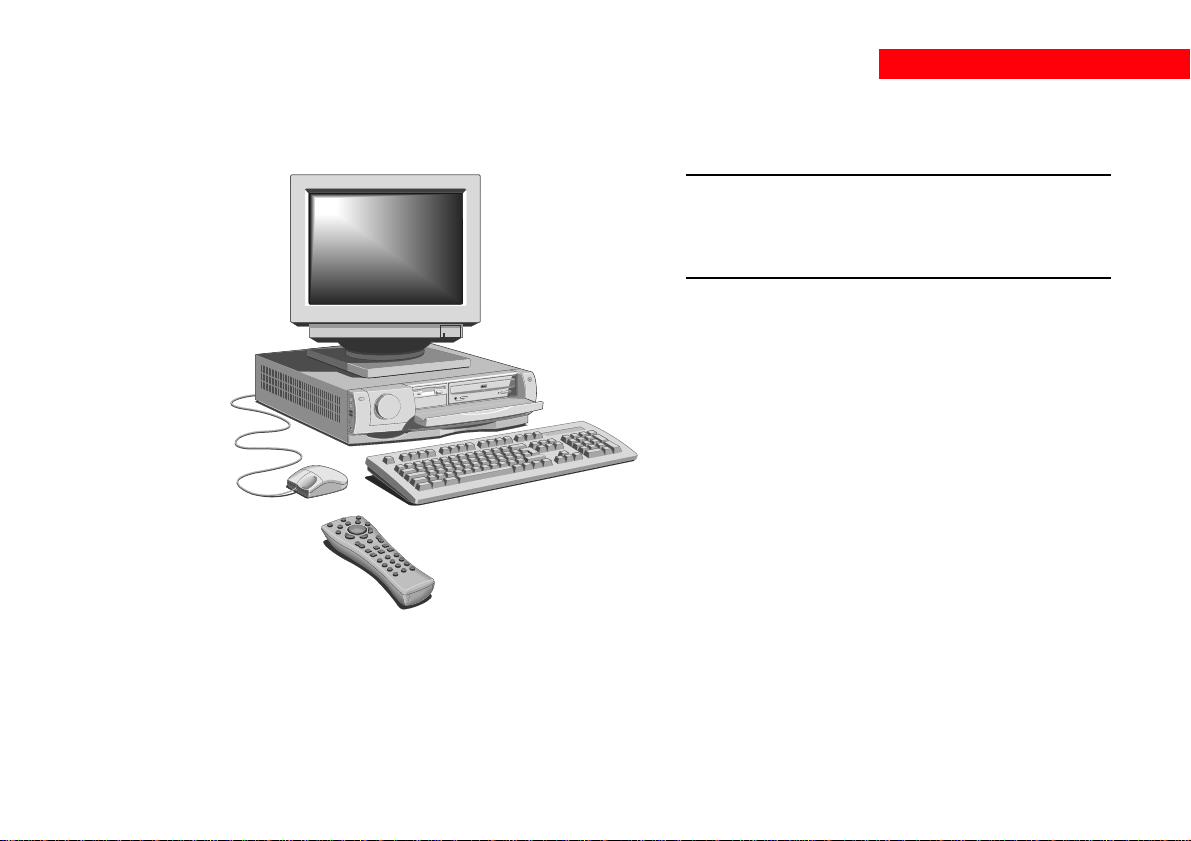

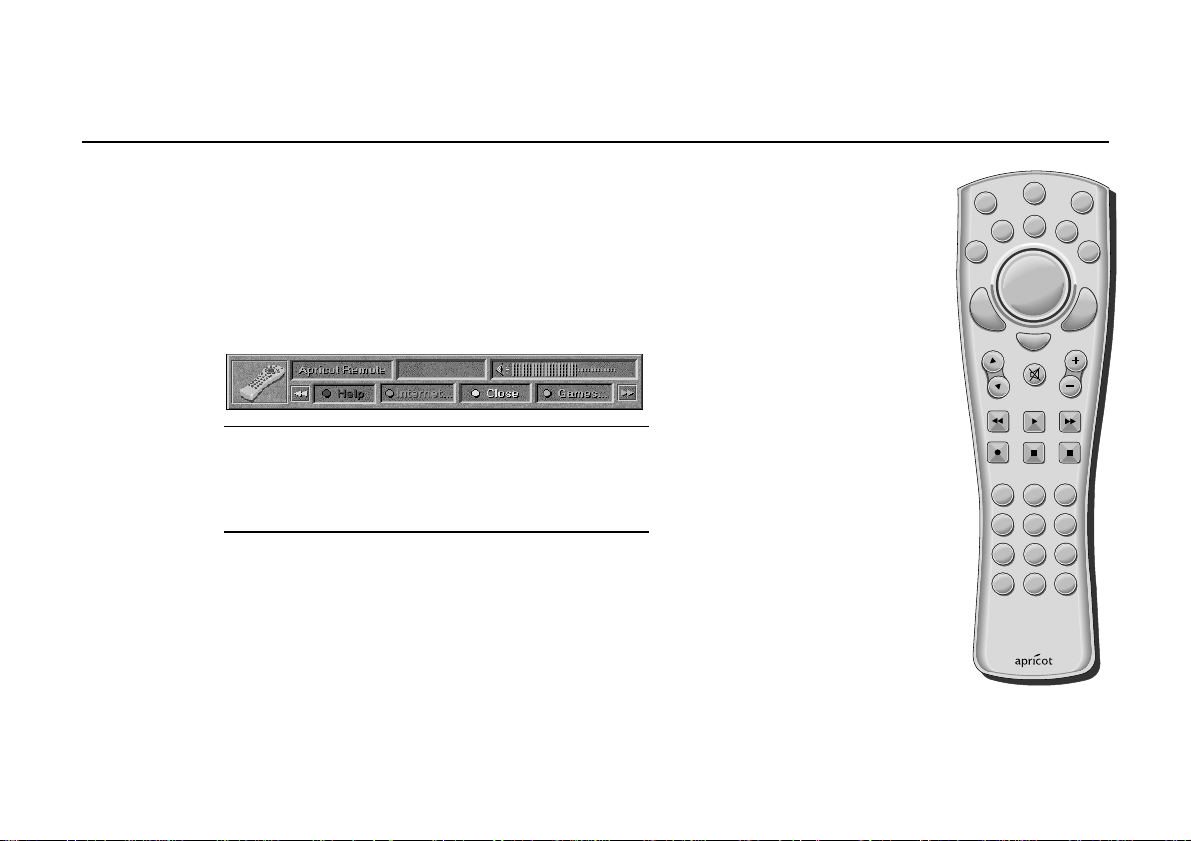

The optional infra-red remote control makes your computer easier to use.

It works with all Easy Manager programs, and also with the audio CD Player and Microsoft Internet Explorer.

The remote will only work with TV tuner cards that are approved by Mitsubishi Electric PC Division.

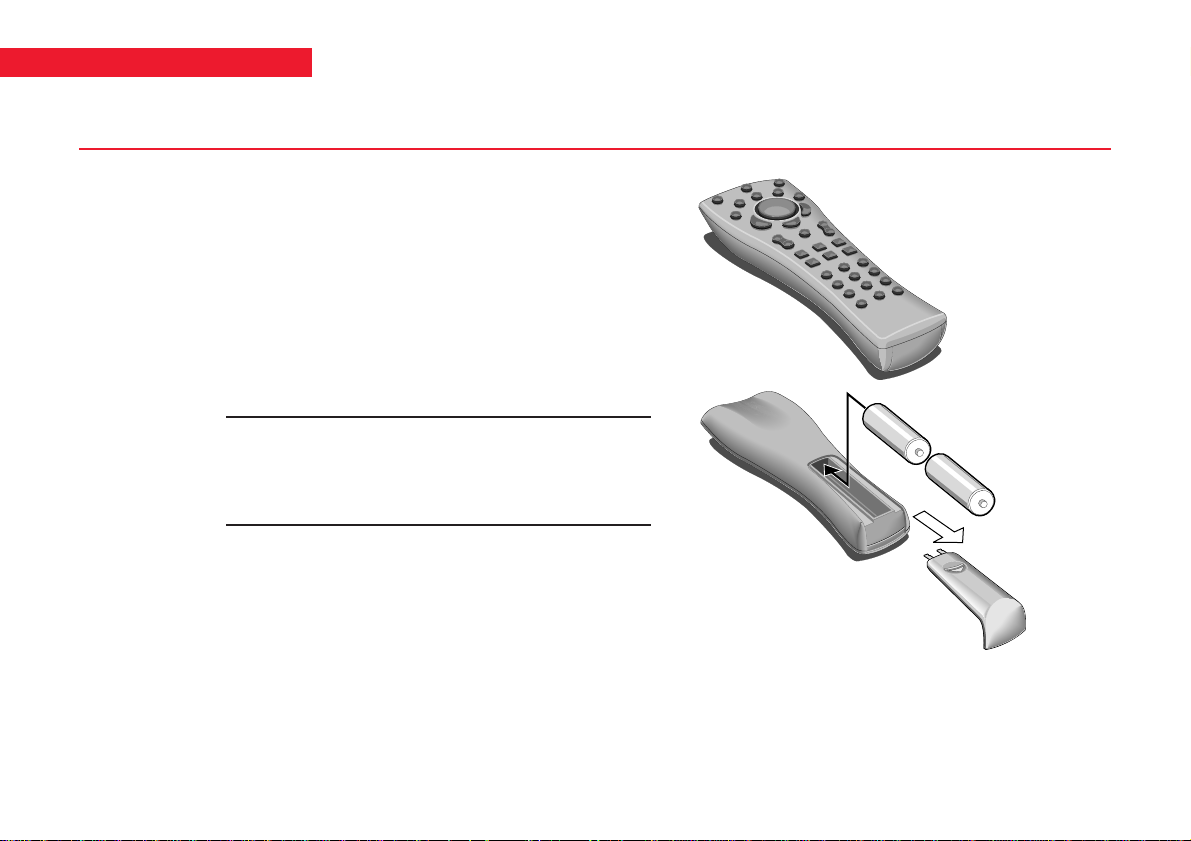

The remote control operates on two AA batteries, which are provided. Insert the batteries as shown on the right.

Hint

To find out more about the remote control, click on the Mitsubishi Electric symbol in the Windows taskbar, then click Help.

Page 14

APRICOT MS SERIES OWNER’S HANDBOOK

COMPACT

ESKTOP

(MW) E

DITION

Page 15

Microsoft, MS-DOS, and Windows are registered trademarks of Microsoft Corporation in the US and other countries.

FireWire and the FIREWIRE logo are trademarks of Apple Computer, Inc., registered in the US and other countries.

Other trademarks mentioned within this document and not listed above are the properties of their respective owners.

Information contained in this document is subject to change without notice and does not represent a commitment on the part of Apricot Computers Limited. Any software described in this manual is furnished under a license agreement. The software may be used or copied only in accordance with the terms of this agreement. It is against the law to copy any disk supplied for any purpose other than the purchaser’s personal use.

No part of this manual may be reproduced or transmitted in any form or by any means electronic or mechanical including photocopying and recording, for any purpose, without the express written permission of the publishers.

Published by: Apricot Computers Limited 3500 Parkside Birmingham Business Park Birmingham, England B37 7YS

http://www.apricot.co.uk

Printed in the United Kingdom

Page 16

Safety and Regulatory Notices

SAFETY & REGULATORY NOTICES

Electrical

The computer uses a safety ground and must be earthed.

The system unit AC power cord is its ‘disconnect device’. Ensure that the system unit is positioned close to the AC power outlet and that the plug is easily accessible.

The power cord packed with the computer complies with the safety standards applicable in the country in which it is first sold. Use only this power cord. Do not substitute a power cord from any other equipment.

To prevent fire and electric shock, do not expose any part of the computer to rain or moisture. Turn off the computer and unplug all power cords before moving or cleaning the system unit, or removing the system unit top cover.

Battery

This product contains a lithium battery.

Do not use a metal or other conductive implement to remove the battery. If a short-circuit is made between its positive and negative terminals the battery may explode.

Replace a discharged battery with one of the same type; another type may explode or ignite. Follow the instructions contained in the Owner’s Handbook to replace the battery.

Dispose of a discharged battery promptly and in accordance with the battery manufacturer’s recommended instructions. Do not recharge, disassemble or incinerate the discharged battery. Keep away from children.

Laser products

Any CD-ROM drive fitted in this system is classified as a CLASS 1 LASER PRODUCT according to IEC825 Radiation Safety of Laser Products (Equipment Classification: Requirements and User's Guide). The CLASS 1 LASER PRODUCT label is located on the underside of the system unit.

The CD-ROM drive contains a laser system which is harmful to the eyes if exposed. Do not attempt to disassemble the CD-ROM drive; if a fault occurs, call an authorised maintainer.

Use the CD-ROM drive only as described in this manual. Failure to do so may result in exposure to hazardous radiation.

Ergonomic

When positioning the system unit, monitor and keyboard, take into account any local or national regulations relating to ergonomic requirements.

Page 17

SAFETY & REGULATORY NOTICES

Anti-static precautions

Static electricity can cause permanent damage to electronic components. You should be aware of this risk, and take precautions against the discharge of static electricity into the computer.

Anyone can generate static electricity by moving on a chair, brushing against desks or walls, or simply walking across an ordinary carpet. Items handed from one person to another, or being wrapped or unwrapped, can acquire a static charge. Air conditioning systems can also result in ambient static. Clothing made of synthetic fibres is particularly likely to generate static electricity; this static electricity is often completely unnoticed by the wearer, but can be sufficient to cripple or impair an electronic component.

The computer is at risk from static discharge while the top cover is off. This is because the electronic components of the motherboard are exposed. Memory modules, expansion cards and replacement processors are other examples of electrostatic sensitive devices (ESSDs).

All work that involves removing the cover must be done in an area completely free of static electricity. We recommend using a Special Handling Area (SHA) as defined by EN 100015-1: 1992. This means that working surfaces, floor coverings and chairs must be connected to a common earth reference point, and you should wear an earthed wrist strap and anti-static clothing. It is also a good idea to use an ionizer or humidifier to remove static from the air.

When installing any upgrade, be sure you understand what the installation procedure involves before you start. This will enable

you to plan your work, and so minimise the amount of time that sensitive components are exposed.

Do not remove the system unit cover, nor the anti-static bag or wrapping of any upgrade, until you need to.

Handle static-sensitive items with extreme care. Hold expansion cards and add-on components only by their edges, avoiding their electrical contacts. Never touch the components or electrical contacts on the motherboard or on expansion cards. In general, do not handle static-sensitive items unnecessarily.

Keep all conductive material, and food and drink, away from your work area and the open computer.

Thermalcote bonding compound

The thermal bonding compound used between the system processor and its heat sink can cause skin irritation and stain clothing. Avoid prolonged or repeated contact with skin. Wash thoroughly with soap and water after handling. Avoid contact with eyes and inhalation of fumes. Do not ingest.

Page 18

SAFETY & REGULATORY NOTICES

Transporting

Use common sense when handling the computer; hard disks in particular can be damaged if the computer is dropped or handled roughly. As a precaution, back up the contents of the hard disks to tape or diskettes before moving the computer.

Don’t try to move the computer while it is plugged into the AC power supply or with any other cables, including network cables, still attached.

When lifting and carrying the computer, grip the metal underside of the system unit. Never attempt to lift the system unit with a monitor on top.

If you need to transport the computer any great distance, use the original packing materials.

Maintenance

Do not use sprays, solvents or abrasives that might damage the system unit surface. Do not use cleaning fluids or sprays near air vents, ports, or the diskette and CD-ROM drives.

Occasionally wipe the system unit with a soft, slightly damp, lintfree cloth.

Occasionally wipe over the air vents on the rear and sides of the system unit. Dust and fluff can block the vents and limit the airflow.

Occasionally clean the diskette and CD-ROM drives using a proprietary head cleaner.

Occasionally wipe the monitor with a soft, slightly damp, lint-free cloth. It is best to use anti-static glass cleaner on the monitor screen, but do not spray glass cleaner directly onto the screen; it could run down inside the case and damage the circuitry.

III

Page 19

SAFETY & REGULATORY NOTICES

125V

250V

Power Connection

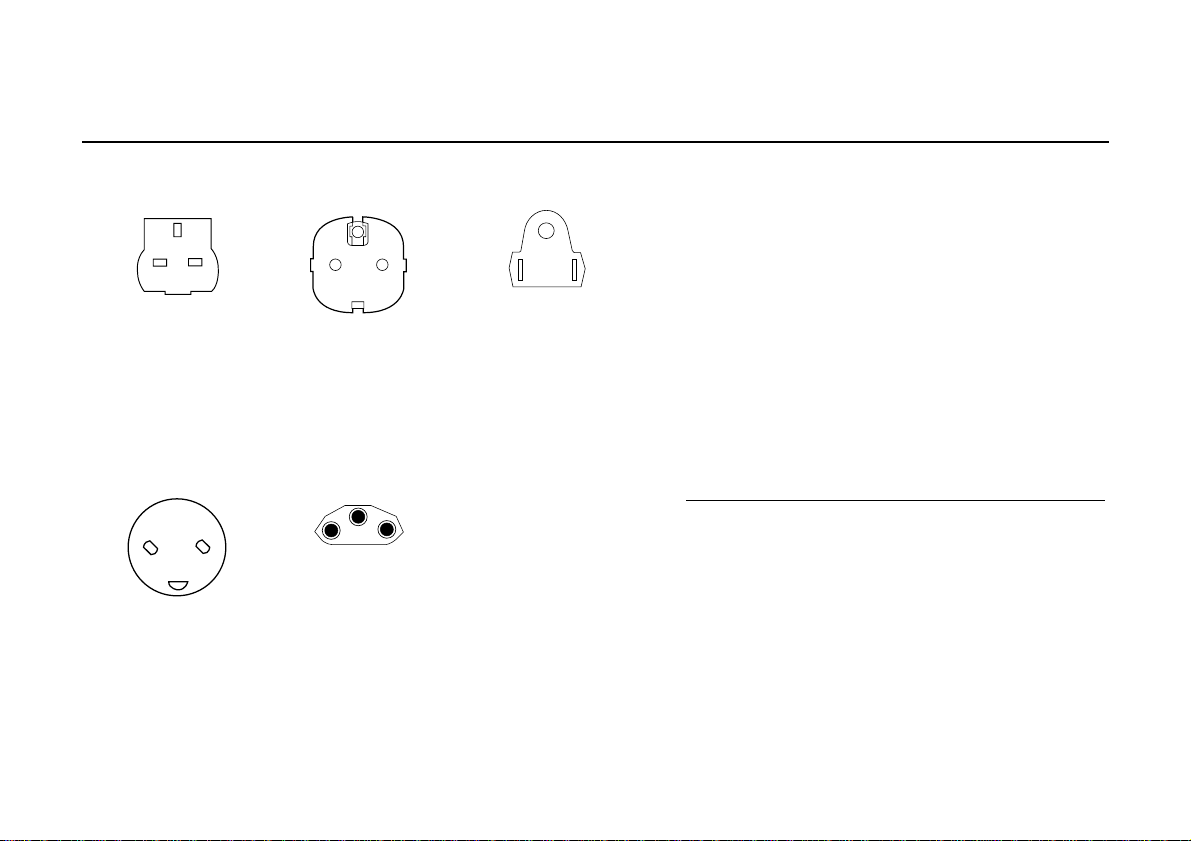

Typical AC plugs

250V

BS1363A SHUCO NEMA 5-15P

U. K. Austria Belgium Taiwan

Finland France Thailand

Italy Germany Japan

Sweden Norway USA

Holland Canada

250V

SRAF 1962/DB16/87 ASE 1011

Denmark Switzerland

Checking the AC power supply

When this product is delivered, it is ready for the commercial AC power supply generally available in the country in which it is first sold. It has been set for the correct voltage range, and is supplied with an AC power cord and plug which comply with the relevant safety standards. Before using the product in a country other than that in which it was originally sold, you must check the voltage and frequency of that country’s AC power supply, and the type of power cord required there. Check the power rating labels on the rear of the computer’s system unit and its monitor to ensure that they are compatible with the AC power supply.

The computer can function within two alternative AC power supply ranges, according to the position of the voltage selection switch on the rear of the system unit:

Switch setting AC power supply (voltage and frequency)

115 100 - 120 volt AC, 50 - 60 Hz

230 200 - 240 volt AC, 50 - 60 Hz

The voltage setting of the monitor must always be the same as the voltage setting of the system unit. See the User Guide that accompanies the monitor or consult your supplier to find out how to change the voltage setting.

It is imperative that the computer is set to the correct voltage range before use. If not, the machine may be irreparably damaged.

Page 20

SAFETY & REGULATORY NOTICES

Standards

Connecting to the AC power supply

Important

Any peripheral equipment that requires an AC power cord must be earthed.

Use the following guidance to connect the components together. It is important that you take each step in the order indicated.

1. Before connecting any components, ensure that the AC power supply is switched off or disconnected, and that the system unit, the monitor, and any peripherals are turned off.

2. Connect the components’ signal cables to their respective ports on the system unit: keyboard, mouse, monitor, audio (where appropriate) and any other peripherals. Where appropriate, connect the computer to the network.

Safety

This product complies with the International safety standard IEC950 and the European safety standard EN60950 which will, when applicable, include the national deviations for the country in which it is first sold.

3. Connect the components’ power cords: monitor to system unit, and system unit and any other peripherals to nearby, grounded AC power outlets. Then switch on or connect the AC power supply.

4. Turn on the system unit first, then the monitor, then other peripherals.

Power Cable Connections - UK ONLY

This equipment is supplied with an AC power cord that has a nonremovable moulded plug.

Always replace the fuse with one of the same type and rating which is BSI or ASTA approved to BS1362. Always refit the fuse cover, never use the plug with the fuse cover omitted.

Electro-magnetic Compatibility (EMC)

This product complies with the following European EMC standards:

Emissions EN50022 Class B

Immunity EN50082-1

This product also complies with the following International EMC standard:

VCCI Level 1 (Japan)

Page 21

SAFETY & REGULATORY NOTICES

Legalities

Notes

All interconnecting cables (for example, microphone, headphones or external speakers) and communication cables should be less than 2 metres in length.

This equipment complies with the relevant clauses of the following European Directives (and all subsequent amendments):

Low Voltage Directive 73/23/EEC

EMC Directive 89/336/EEC

Telecommunications Directive 91/263/EEC

CE Marking Directive 93/68/EEC

Important

This system complies with the CE Marking Directive and its strict legal requirements. Use only parts tested and approved by Mitsubishi Electric PC Division. Failure to do so may result in invalidating both the compliance and your warranty. All expansion cards, drives and peripherals must carry the CE mark to ensure continued compliance.

If cable extensions are used, ensure adequate earth connections are provided and screened cables are used.

If the system unit top cover, or any other metal part, is removed and then replaced, all parts must be correctly re-assembled and all screws tightened.

Page 22

OWNER’S HANDBOOK

1 Welcome

Pictorial guide to the system unit.......................... 1/2

The Remote Control ............................................ 1/8

General advice...................................................... 1/9

2 Diskettes and CDs

Diskette drive....................................................... 2/1

CD-ROM drive ................................................... 2/3

3 Multimedia

4 Expansion Cards

Configuring the card ............................................ 4/2

Installing the card................................................. 4/5

Reserving ISA legacy resources.............................. 4/7

Telling Windows about the new hardware............ 4/8

5 Motherboard Features & Upgrades

Motherboard jumper settings ................................5/3

Motherboard resource assignments........................5/5

Adding more memory ...........................................5/8

Adding more video memory................................5/11

Upgrading the processor......................................5/12

Replacing the configuration battery.....................5/16

6 Hard Disk Upgrades

Configuring the drive............................................6/2

Installing the drive.................................................6/3

Partitioning and formatting the drive ....................6/5

7 BIOS Setup & POST

BIOS Setup...........................................................7/2

Power-on self-test..................................................7/4

Contents i

Page 23

OWNER’S HANDBOOK

8 Troubleshooting

Problems when starting ........................................ 8/2

Common problems .............................................. 8/4

Equipment Log

ii Contents

Page 24

1 WELCOME

OWNER’S HANDBOOK

This first chapter gives you a quick tour of your new Apricot MS Series Personal Computer. It lists the special features of the computer and has pictorial guides to help you identify the various parts.

If you want to get started working with your Apricot PC straight away, unpack and assemble it as shown on the accompanying Welcome Mat, then read the Quick Start Guide at the front of this manual.

After unpacking your computer, keep all the cartons, boxes and packaging materials; you will need them again if you have to transport the computer elsewhere.

Use the page at the end of this manual to make a note of the manufacturer’s data recorded on the various components (product codes, serial numbers, etc.). A service engineer may need this information if the computer develops a fault.

For your own safety

Read the Safety & Regulatory Notices section at the start of this manual before using the computer for the first time.

Standard features

♦ Pentium MMX processor ♦ At least 16 Mbytes of main memory ♦ 512 Kbyte memory cache ♦ ATI 3D Rage Pro video system ♦ At least 2 Mbytes of video memory ♦ CD-ROM drive ♦ Sound Blaster Pro-compatible audio system ♦ Stereo, line-in and line-out audio sockets ♦ MIDI/Joystick port ♦ Two USB ports ♦ Serial and ECP Parallel ports ♦ Stereo speakers (and optional sub-woofer) ♦ Easy Manager software

Enhanced features (factory options)

♦ FireWire, S-Video and Composite Video ports ♦ Wavetable audio enhancement ♦ SPDIF digital audio port ♦ Infra-red remote control

Welcome 1/1

Page 25

OWNER’S HANDBOOK

COMPACT

Pictorial guide to the system unit

1/2 Welcome

Page 26

OWNER’S HANDBOOK

Key

1 Power Mode light

OWER

button

2P 3 Front bezel door

button (and light)

ESSAGE

4M 5 CD-ROM 6 Diskette drive 7 Infra-red sensor 8 Line In socket

9 Headphones socket 10 Universal Serial Bus (USB) port 11 FireWire port (factory option) 12 S-Video In port (factory option) 13 Composite Video In port (factory option)

button to turn the computer on, put

Press the P

OWER

it to sleep or wake it up.

Turn the P

button to increase or decrease the

OWER

volume of sound through the speakers.

The Power Mode light changes colour to show the current state of the computer.

♦ Off. [red] Your computer is turned off, but is

still connected to the AC power supply.

♦ Suspend. [yellow] Your computer is “sleeping”

to conserve electricity. Briefly pressing the

button wakes it up again.

OWER

♦ On or Standby. [green] Your computer is awake

and working, but may reduce power during idle moments (Standby mode). Move the mouse or press any keyboard key to activate it again.

See the Quick Start Guide for more information.

The light on the M

button flashes when the

ESSAGE

Message Centre program (part of the Easy Manager collection) has one or more unread e-mails, faxes or reminders for you. Either read the messages or press the button to extinguish the light.

Welcome 1/3

Page 27

OWNER’S HANDBOOK

1/4 Welcome

10101

Page 28

OWNER’S HANDBOOK

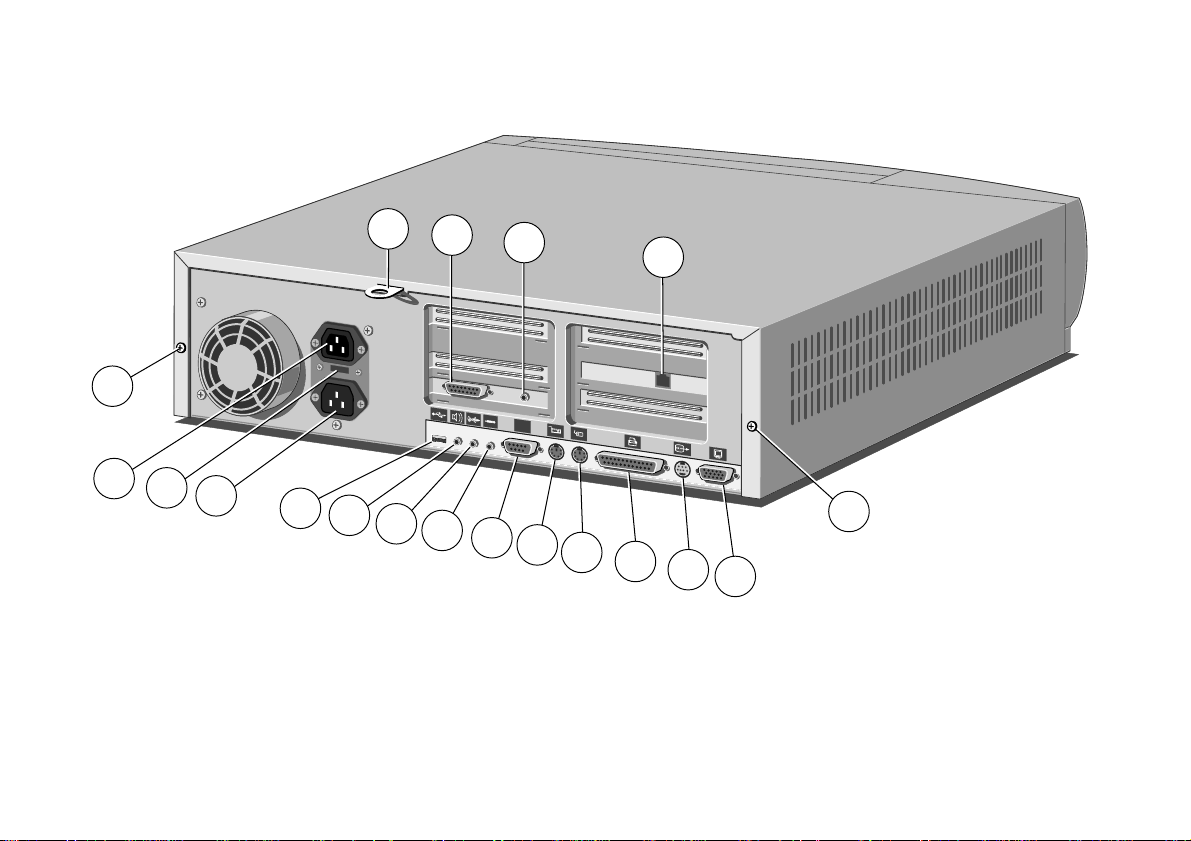

Key

1 Casing screws for the top cover

2 AC power outlet for monitor

3 Voltage selection switch

4 AC power inlet from AC supply

5 Universal Serial Bus (USB) port

6 Speaker socket

7 Line Out socket

8 Microphone socket

9 Serial port 10 Keyboard port 11 Mouse port 12 Parallel (printer) port 13 TV Out port (factory option) 14 Monitor port 15 Modem port 16 SPDIF digital audio output (factory option) 17 MIDI/Joystick port 18 Security loop for cable or padlock

For more information about the various audio, video, and multimedia options, see the Multimedia chapter.

Welcome 1/5

Page 29

OWNER’S HANDBOOK

2 3

8 7

1/6 Welcome

Page 30

OWNER’S HANDBOOK

Key

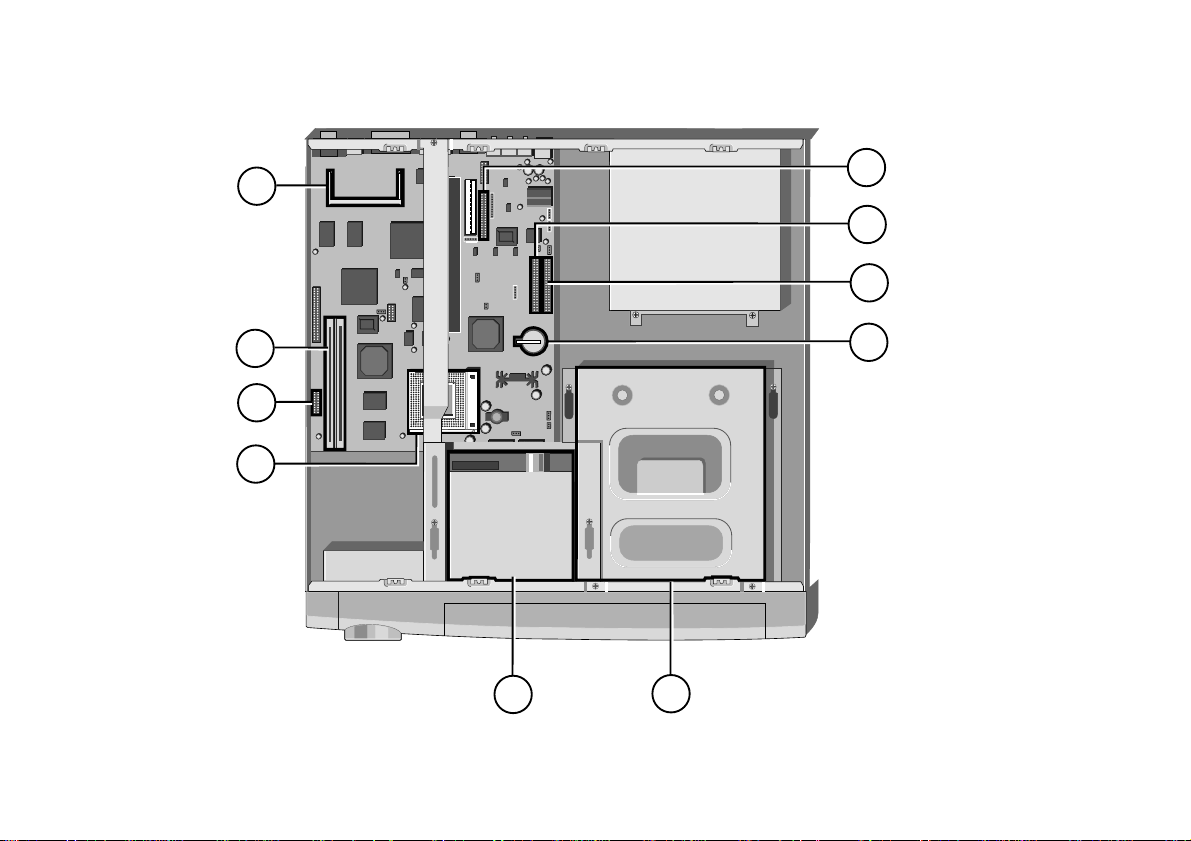

1 Video memory upgrade socket

2 DIMM sockets for system memory upgrades

3 Main jumper block

4 Processor socket; Zero Insertion Force (ZIF)

“Socket 7”-type 5 Diskette drive 6 Drive assembly for CD-ROM and HDDs 7 CMOS battery 8 Primary E-IDE interface connector for hard

disk drives 9 Secondary E-IDE interface connector for the

CD-ROM drive

10 1.44 Mbyte diskette drive connector

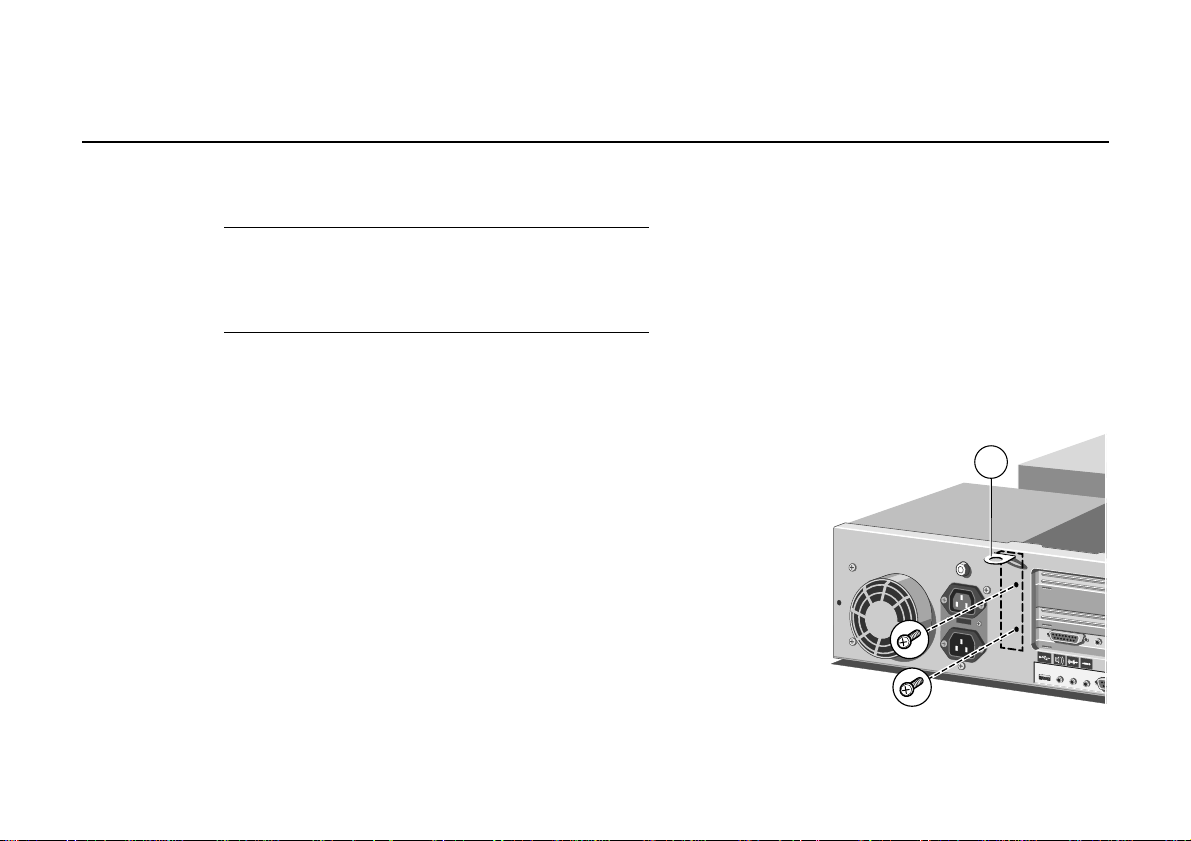

To remove the system unit cover

1. Shut down the computer and turn off the monitor.

2. If your AC power outlets have switches, set them to their off positions.

3. Unplug all power cords from the rear of the system unit.

4. Unfasten the two casing screws.

5. Slide the top cover rearwards slightly, then lift it off.

Refitting is the reverse of removal. Take effective antistatic precautions while the top cover is off, as explained in the Safety & Regulatory Notices at the start of this manual.

See the chapter on Motherboard Features & Upgrades for more information about the motherboard.

Welcome 1/7

Page 31

OWNER’S HANDBOOK

The Remote Control

The optional infra-red remote control incorporates a two-button mouse pad, a numeric keypad and several other specialist buttons.

The M window (see below) which tells you which program the remote is currently controlling, and allows you to change this if necessary.

Hint

To find out more about the remote control, click on the Mitsubishi Electric symbol in the Windows taskbar, then click Help.

ENU

button displays the Remote Status

CD starts the CD program.

TANDBY

puts the computer into (or wakes it up from) an energy-saving mode.

ESSAGE

starts the Message Centre program.

OK and C

ANCEL

accept and

decline changes.

TV starts the TV/Teletext program (works only with TV tuner cards approved by Mitsubishi Electric PC Division).

closes the current

XIT

program.

switches between the

ASK

programs currently running on your PC.

T TEXT

REVEAL

ENLARGE HOLD

VOL

START

1/8 Welcome

Page 32

General advice

OWNER’S HANDBOOK

This computer is designed to be used in a normal home or office environment. Here are a few hints for choosing a suitable site:

♦ Place the system unit flat on a sturdy, level

surface, free from vibration.

♦ Site the computer away from moisture, direct

sunlight, and extremes of heat and cold. Avoid situations in which the surrounding temperature or humidity may change rapidly. When the computer is in use, the temperature should be between 10 and 35

C and humidity between

20% and 80% (with no condensation).

♦ When positioning the system unit, monitor and

keyboard, take into account any local or national regulations relating to ergonomic requirements. For example, you should ensure that little or no light is reflected off the monitor screen as glare, and that the keyboard is placed in a comfortable position for typing.

♦ Give the computer plenty of room so that air

can circulate on all sides. Air is drawn into the system unit through vents at the front and on the left-hand side, and expelled through the vent on the back. Ensure that these vents are never obstructed.

Do not allow any cables, particularly power cords, to trail across the floor where people walking past can snag them.

Warning

The computer uses the system unit AC power cord as its ‘disconnect device’. Ensure that the system unit is positioned close to the AC power outlet, and that the plug is easily accessible.

To prevent fire and electric shock, do not expose any part of the system unit to rain or moisture.

Welcome 1/9

Page 33

OWNER’S HANDBOOK

Backing-up the pre-installed software

Apricot PCs arrive with a pre-installed copy of Windows 95. Additional software may be preinstalled at the factory or by your Mitsubishi Electric PC supplier.

We strongly recommend that you copy or ‘back-up’ any pre-installed software soon after setting up the system. This is particularly important for systems that are supplied without installation diskettes for the software on the hard disk. A back up copy will safeguard the pre-installed software against loss if the hard disk fails or if you accidentally overwrite or delete files.

♦ The Microsoft Create System Disks utility

allows you to create installation diskettes from disk images pre-installed on the hard disk.

♦ To back up other pre-installed software (and

your own files) use the Backup tool. Click the

Start button in the Windows taskbar, then Programs, Accessories, System Tools and Backup.

In general, any copy you make of pre-installed software must be used only as a back-up copy, in case the pre-installed version is lost. You are not allowed to use installation diskettes created from disk images to install the software onto another computer.

1/10 Welcome

Page 34

2 DISKETTES and CDs

COMPACT

Diskette drive

OWNER’S HANDBOOK

Your Apricot PC is fitted with a 1.44 Mbyte diskette drive. This accepts either 1.44 Mbyte (HD) or 720 Kbyte (DD) diskettes.

Each diskette has a rigid plastic cover, with a metal shutter that guards the disk surface. Never touch the exposed surface under the shutter – you could deform the disk or leave a fingerprint that might make the diskette difficult to read.

Keep diskettes away from dust, moisture, magnetic objects, and equipment that generates magnetic fields. Also, avoid extremes of temperature and exposure to direct sunlight. Otherwise, data recorded on the diskette may become corrupted.

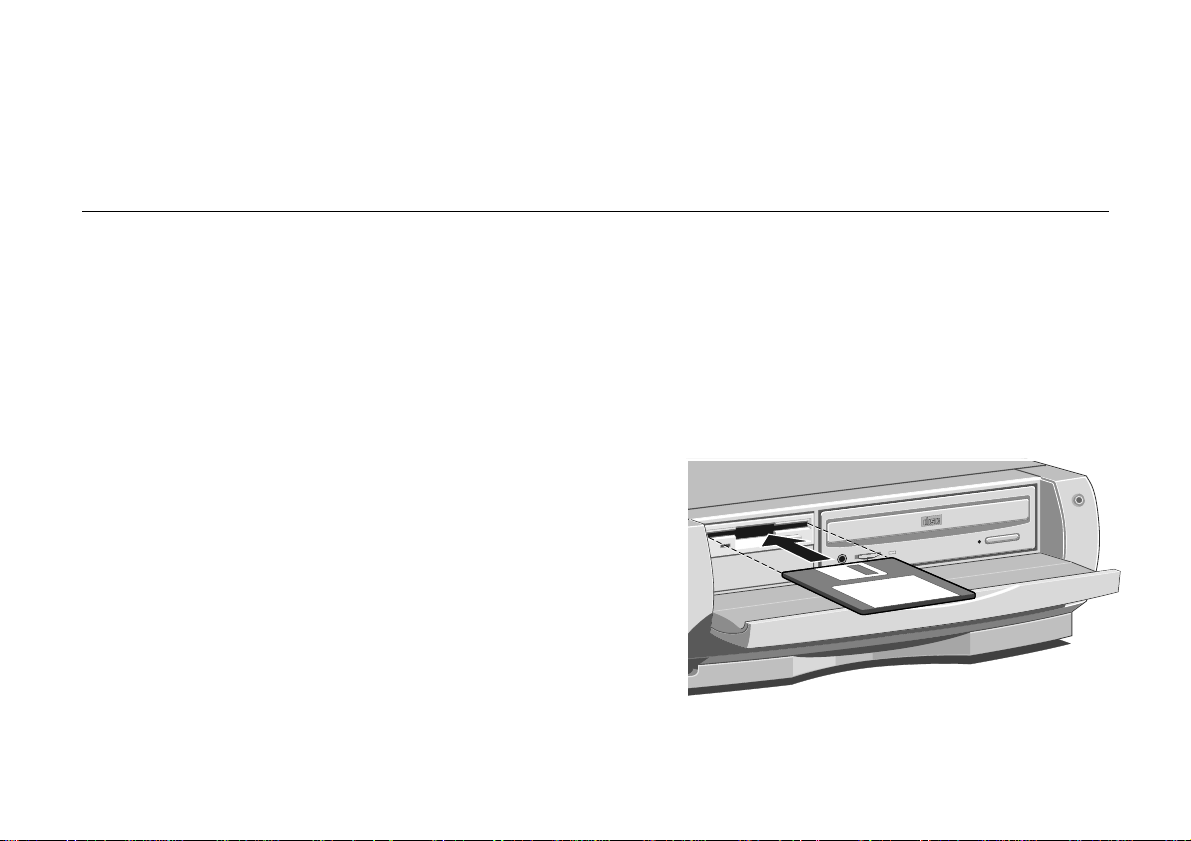

Inserting a diskette

1. Insert the diskette with the metal shutter foremost, and with the label side facing upwards.

2. Push the diskette all the way in until it ‘clicks’

button pops out

into place. The drive’s

EJECT

slightly. The drive flap stays open, leaving the diskette just visible.

Diskettes & CDs 2/1

Page 35

OWNER’S HANDBOOK

Ejecting a diskette

♦ Wait until the drive’s activity indicator is unlit,

then press the

EJECT

button.

If a diskette becomes stuck in the drive, perhaps because its label has peeled back, do not attempt to remove it with tweezers or any similar implement; you risk damaging the drive. Call an authorised maintainer.

Write-protecting a diskette

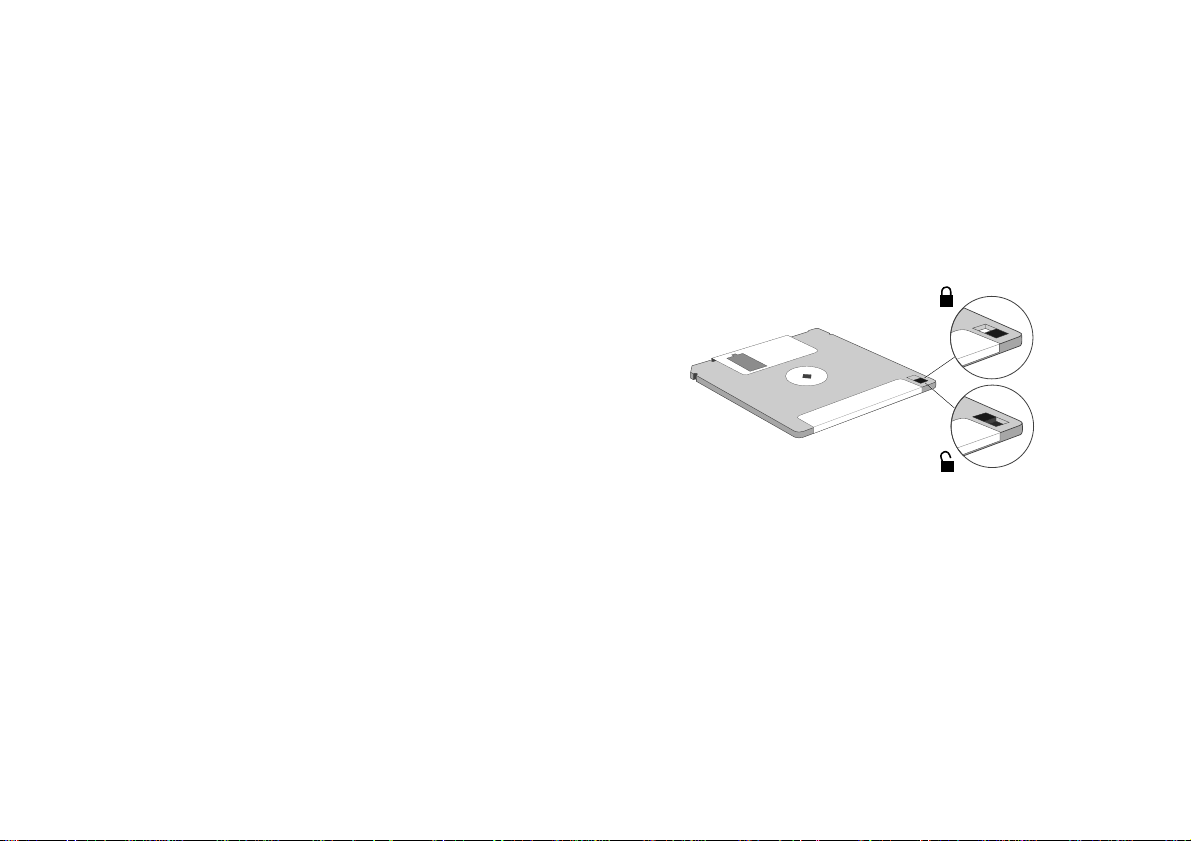

♦ A diskette can be write-protected by sliding a

tab towards the edge of the diskette to expose the small hole beneath it (see illustration). Note that the location of the tab depends on the type of diskette.

You can read, copy or print the files on a writeprotected diskette, but you cannot create, rename or delete any files.

2/2 Diskettes & CDs

Page 36

CD-ROM drive

COMPACT

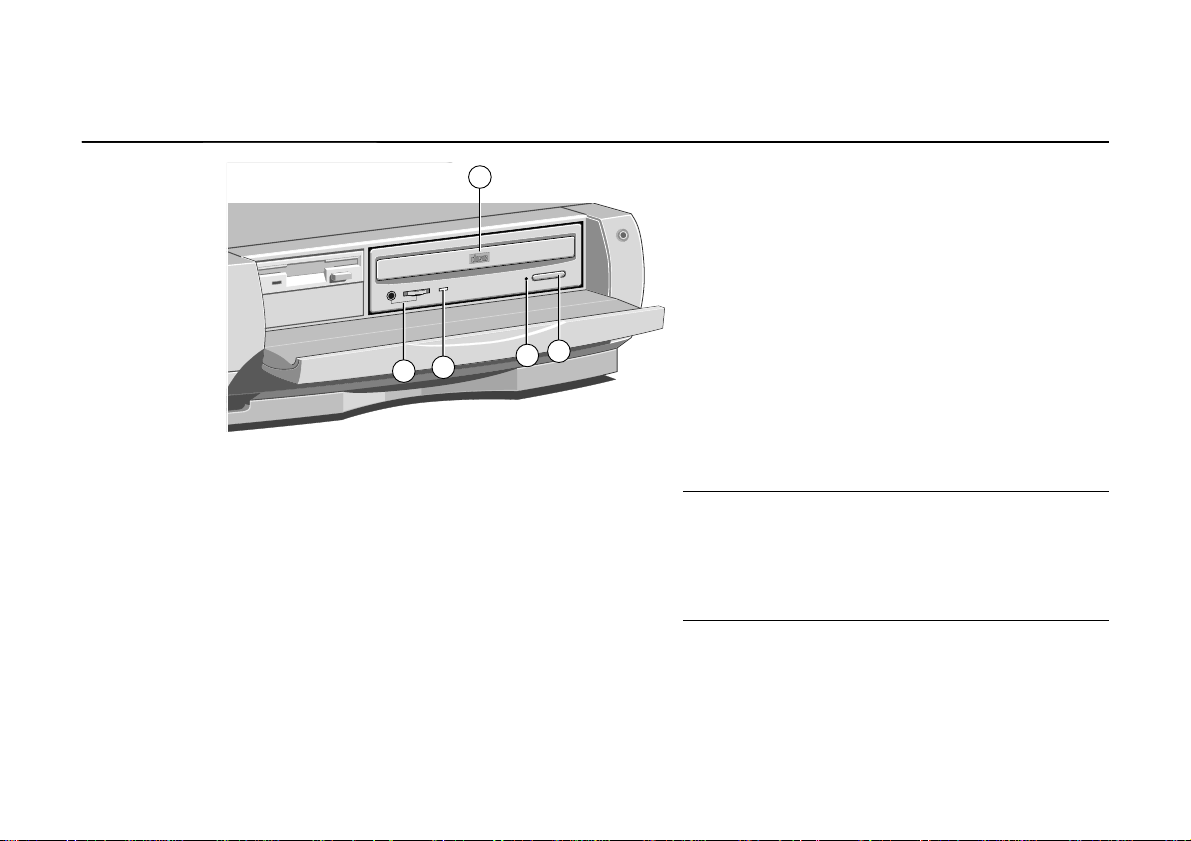

1 CD-ROM disc drawer (platter) . 2 Headphone jack & volume control. 3 Activity indicator (amber = busy). 4 CD emergency eject hole.

button (doesn’t work while PC is

JECT

turned off).

OWNER’S HANDBOOK

The CD-ROM drive can retrieve multimedia data from CD-ROM discs and multi-session Photo-CD discs. It can also play normal music CDs (the drive has its own headphone jack and associated volume control).

Keep CDs well away from dust and moisture, and avoid touching the surface of the CD. Avoid extremes of temperature and exposure to direct sunlight as these may cause the disc to warp.

Do not attempt to move the computer while a CD is in the drive, especially if the CD is being played at the time.

Warning

The laser beam inside the CD-ROM drive is harmful to the eyes if looked at directly. Do not attempt to disassemble the CD-ROM drive. If a fault occurs, call an authorised maintainer.

Diskettes & CDs 2/3

Page 37

OWNER’S HANDBOOK

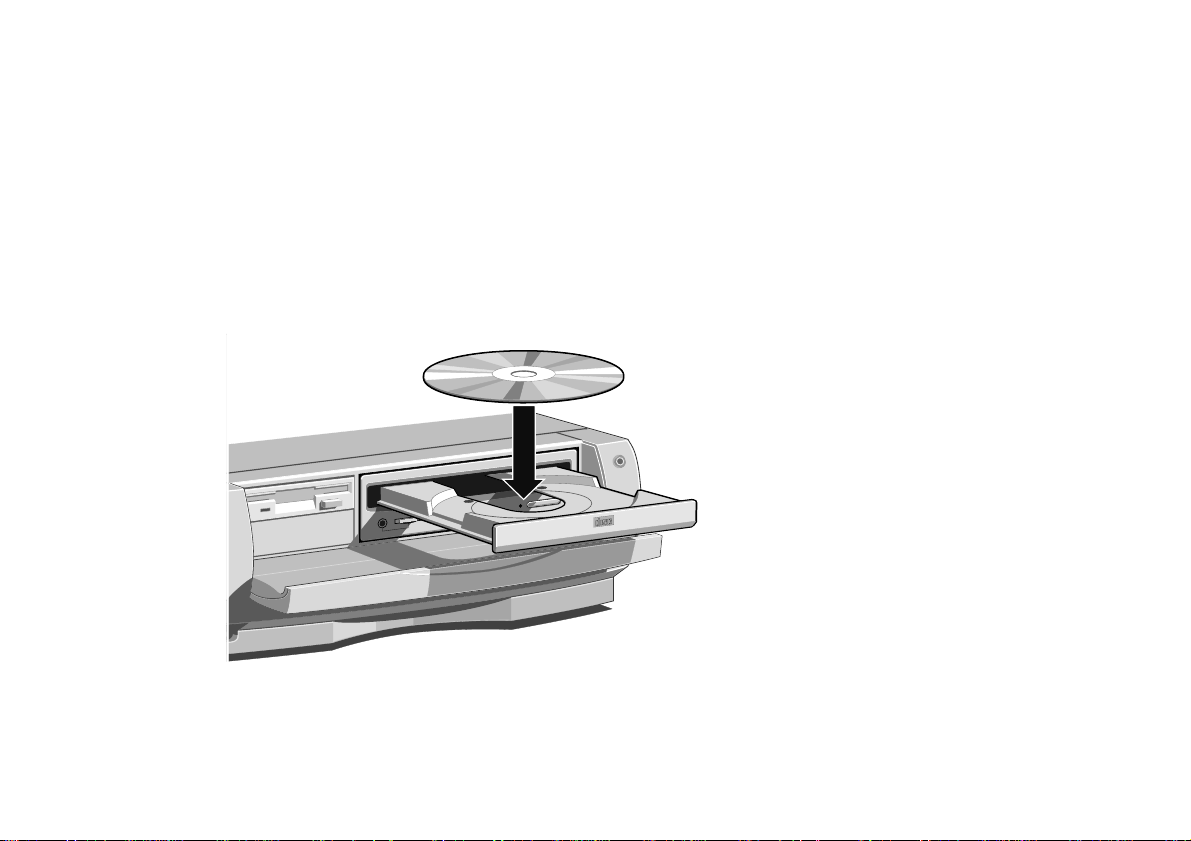

Inserting a compact disc

1. Press the

button on the front of drive.

EJECT

2. Place the CD centrally, printed side up, on the platter.

3. Push the

button again, or gently push the

EJECT

front of the platter to draw it back into the drive.

COMPACT

Ejecting a compact disc

♦ Ensure that the drive’s activity indicator is not

showing ‘busy’, then press the

EJECT

button.

To eject the platter manually (for example, during a power failure) you must first ensure that the computer is completely off (the Power Mode light must be unlit). Insert a thin metal rod, such as an unwound paper clip, into the emergency eject hole. Push carefully and firmly.

2/4 Diskettes & CDs

Page 38

3 MULTIMEDIA

OWNER’S HANDBOOK

Your Apricot MS Series computer has sophisticated on-board video and audio systems and a range of ports and sockets for multimedia applications (some available only on enhanced models). With the appropriate software and peripherals, the computer can be used for:

♦ 3-D computer games ♦ Video conferencing ♦ Animated graphics production and editing ♦ Digital audio editing and MIDI sequencing ♦ Digital video editing (requires a fast second hard

disk)

Ports and sockets are located on the front bezel and on the motherboard at the rear of the system unit. Some optional ports are located in the sixth (fake) expansion card slot. See the Welcome chapter if you need help identifying these ports and sockets.

Technical summary

The video system is ATI Technologies’ 3D Rage Pro. This accelerates 3-D and motion video, supports Windows Direct3D, and assists DVD/MPEG-2 video decoding. In some models the 3D Rage Pro is augmented by an ATI ImpacTV part providing TV output. The video system can be enhanced by fitting an approved MPEG-2 or TV tuner expansion card and interfacing it through the VESA Feature Connector & ATI Media Channel (VFC/AMC).

The audio system is a Crystal Semiconductors part which is compatible with Sound Blaster Pro. Depending on the model, it may be enhanced by Sound Retrieval System (SRS) 3-D sound technology and a General MIDI wavetable music synthesiser.

Multimedia 3/1

Page 39

OWNER’S HANDBOOK

Front Headphones Out Audio Analog

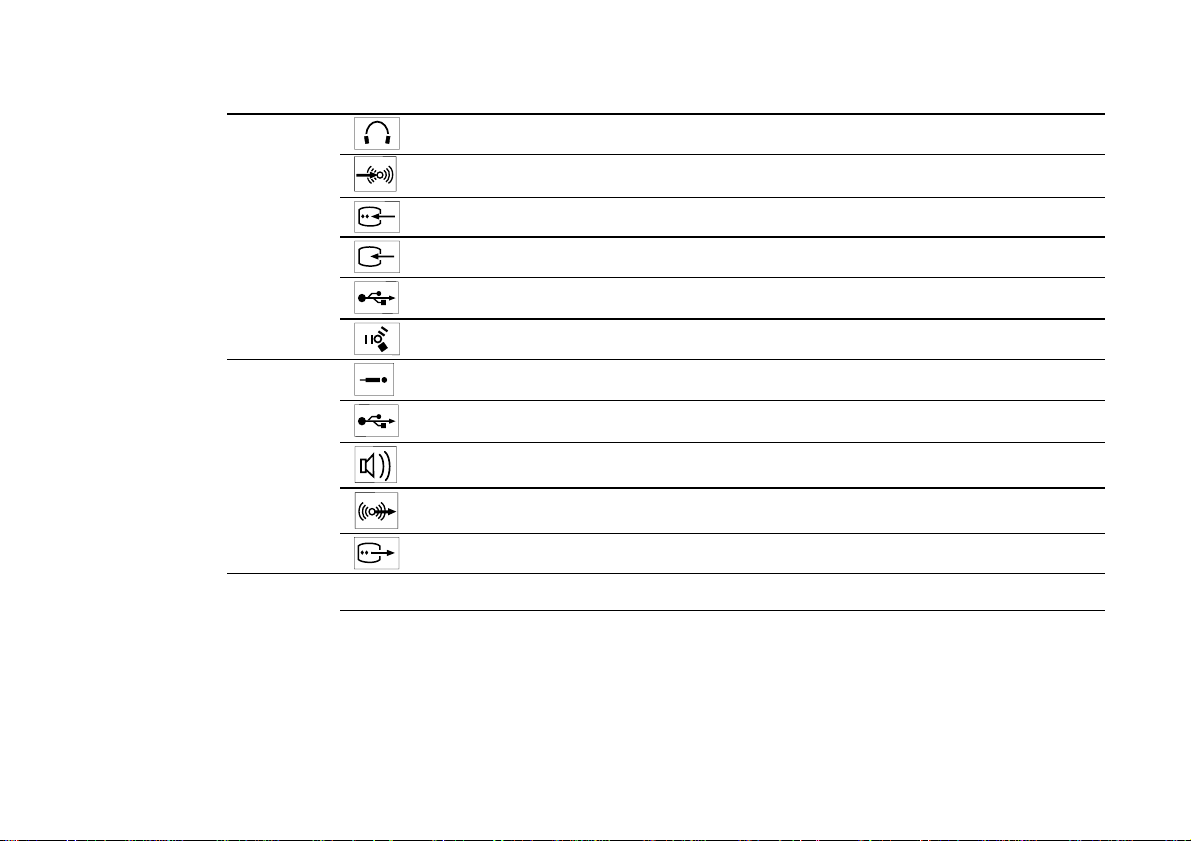

Rear Microphone In Audio Analog

Slot 6 MIDI In/Out Multimedia Digital

Line In In Audio Analog

S-Video In Video Analog

Composite Video In Video Analog

Universal Serial Bus In/Out Multimedia Digital

FireWire (IEEE 1394) In/Out Multimedia Digital

Universal Serial Bus In/Out Multimedia Digital

Speakers Out Audio Analog

Line Out Out Audio Analog

TV Out (S-Video) Out Video Analog

SPDIF Out Audio Digital

3/2 Multimedia

Page 40

OWNER’S HANDBOOK

Headphones

Although this stereo audio socket is intended for headphones it could also be used for output to a personal cassette recorder. When you plug something into this socket, the external speakers are automatically muted.

Microphone

This mono audio socket provides phantom power for electret-type microphones.

Speakers

Use this socket to connect the external stereo speakers. These speakers may also be used together with the optional DeepSound sub-woofer.

Line In and Line Out

These stereo audio line sockets are intended for connecting your PC to analog audio/video equipment such as camcorders, VCRs, hi-fi components and televisions. The front Line In socket could also be used as an alternative to the

rear Microphone socket, or for input from a personal cassette or CD player.

S-Video and Composite Video

These front panel inputs allow you to connect your PC to analog video equipment such as cameras, camcorders and VCRs. The S-Video input is for Hi8 or S-VHS devices in which the luminance (brightness) and chrominance (colour) signals are separated for higher fidelity. The Composite Video input is for VHS or Video8 equipment.

TV Out (S-Video)

This port is suitable for analog video equipment such as VCRs and televisions. (The corresponding audio signal, if any, is available by the rear Line Out socket.)

SPDIF

SPDIF (Sony/Philips Digital Interface) is the consumer version of the AES/EBU digital audio interface standard used for the professional recording and mastering of media such as CDs and DAT tapes.

Multimedia 3/3

Page 41

OWNER’S HANDBOOK

MIDI

The Musical Instrument Digital Interface is a standard way of connecting musical instruments, synthesisers, computers and other devices. More than merely digitised sound, MIDI encoding provides a complete musical description of a composition and its performance. To connect your computer to other MIDI devices, you’ll need a port adapter to provide separate MIDI In and MIDI Out ports. A MIDI adapter can be obtained from most good music equipment stores. A MIDI sequencer program is required to record, save and edit MIDI files.

Universal Serial Bus

The USB is a new way of connecting peripherals to your computer. It has several advantages over existing serial and parallel ports. If necessary, several USB devices can be “daisy-chained” together. USB devices are “hot-pluggable”; that is, they can be plugged in and disconnected without turning off the computer. The USB can supply DC power to certain devices, so that they do not need an independent power supply. It is also quite fast,

operating at 12 megabits per second, which is appropriate for a wide range of applications including video conferencing cameras. The Apricot MS Series has one USB port on the front bezel and another on the rear of the system unit.

FireWire

FireWire (more formally, IEEE 1394) is a new way of connecting devices such as Digital Video (DV) camcorders, VCRs and DVD players to your PC. It can also be used for colour printers, film scanners, or indeed any device that requires the very fast transfer of digital information. Like USB, FireWire devices are hot-pluggable and can be daisy-chained together. However, FireWire is much faster than USB – up to 400 megabits per second. Apricot MS Series computers equipped with FireWire have one port on the front bezel and one or two ports at the back, provided by an expansion card.

3/4 Multimedia

Page 42

4 EXPANSION CARDS

OWNER’S HANDBOOK

PCI (half length)

Multimedia ports

PCI (full length)

ISA (full length)

ISA (half length)

This diagram shows the layout of the five expansion slots in your PC (as viewed from the rear). Slot 2 is usually occupied by a factory-fitted modem. The sixth “slot” is reserved for multimedia ports.

Important

Expansion cards (also known as expansion boards, controllers or adapters) are small self-contained circuit boards which extend the capabilities of the computer. For example, an MPEG-2 or TV tuner card could enhance the on-board video system.

Your computer can accept two basic types of expansion card:

ISA

♦ ♦

or Industry Standard Architecture cards

PCI

or Peripheral Component Interconnect

cards

You don’t need to understand what these terms mean, but before adding a card to your computer you will need to know whether it is ISA or PCI and possibly its physical dimensions.

Expansion Cards 4/1

Page 43

OWNER’S HANDBOOK

Configuring the card

Part of the installation procedure for an expansion card involves setting up or “configuring” the card so it will work correctly in the computer.

Most modern PCI cards employ a feature called “Plug and Play” (PnP). This allows Windows 95 – and other PnP-aware operating systems – to configure the card automatically the first time you turn on the computer after installing the card.

However, many ISA cards (and some PCI cards) require manual configuration. If manual configuration is required, you will probably need to specify at least two of the following:

♦ Interrupt request level (IRQ) ♦ Direct memory access (DMA) channel ♦ Base input/output (I/O) port address ♦ Base memory address

The important thing to understand is that the settings of the card you are installing must not conflict with the settings used by other cards already in the computer or by components on the computer’s motherboard.

The documentation accompanying the card should tell you whether the card supports Plug and Play, or if not, how to configure it. Remember to check any diskettes supplied with the card for README or other help files.

Some cards require you to move jumpers or set switches on the card to configure them. This is best done before installing the card in the computer. Other cards can be configured by running a configuration program after installing the card. Some cards use a mixture of both methods.

Cards often come with pre-configured or default settings. It is best to rely on these settings as much as possible, and change them only if they conflict with other devices.

4/2 Expansion Cards

Page 44

OWNER’S HANDBOOK

ISA Interrupt request level (IRQ)

The “interrupt request level” or “IRQ” is the means by which the expansion card sends a signal to get the attention of, or interrupt, the processor. Your PC has interrupt levels numbered IRQ0 to IRQ15, many of which are needed for components on the computer’s motherboard. There are two ways round this.

♦ Many motherboard components are Plug and

Play (PnP) devices. If you use BIOS Setup or Windows Control Panel to exclude or reserve an interrupt that is usually assigned to one of these devices, an alternative interrupt will be assigned through Plug and Play and the original interrupt can instead be used by the expansion card.

♦ You can disable some motherboard components

either by means of the BIOS Setup utility or else by changing jumper settings on the motherboard. This frees the resources used by those components.

See the BIOS Setup & POST chapter for more information about BIOS Setup. See the Motherboard Features & Upgrades chapter for more information about jumper settings and the usual assignment of interrupts to motherboard components.

Direct memory access (DMA) channel

Some hardware devices can use a “DMA channel” to access system memory without directly burdening the processor. Your PC has DMA channels numbered DMA0 to DMA7. As with interrupts, you can use vacant channels or re-assign existing ones.

See the Motherboard Features & Upgrades chapter for more information about the usual assignment of DMA channels.

Base input/output (I/O) port address

I/O ports are used by the processor to communicate with hardware devices. Each port appears to the processor as an address low down in its address space. Some expansion cards are also controlled by I/O ports. The “base I/O port address” specifies where the card’s ports begin.

Expansion Cards 4/3

Page 45

OWNER’S HANDBOOK

Base memory address

Some expansion cards are fitted with memory of their own, usually read-only memory (ROM) containing functional extensions to the computer’s BIOS (basic input/output system) ROM. Some cards also have random-access memory (RAM).

In order that this memory can be recognised by the system processor, it must be mapped somewhere within the computer’s own address space. By setting the “base memory address” you specify where the card’s memory begins within the address space. Typically, an expansion card’s memory must be mapped onto the addresses between C8000h and DFFFFh – an area known as the upper memory block or UMB. You can exclude or reserve UMB regions with the BIOS Setup utility.

The card’s documentation should list its possible base memory addresses. You may also need to know how much memory the card has, so that you can leave the right gap between this card’s base address and the next.

More about memory addresses

Memory addresses are always written in base 16 or “hexadecimal” notation. Unlike the ten digits of the decimal system (0-9), hexadecimal uses sixteen digits (0-9 and A-F, where A=10, B=11, C=12 and so on up to F=15).

Hexadecimal numbers are denoted either by the suffix “h” or by the prefix “0x”. The final digit of a fivedigit memory address is often omitted, so C8000h may be written as C800h.

Because amounts of memory are usually stated as kilobytes (Kbytes) rather than in hexadecimal notation, the following conversion table may be helpful:

4 Kbytes = 1000h 32 Kbytes = 8000h

8 Kbytes = 2000h 64 Kbytes = 10000h

16 Kbytes = 4000h 128 Kbytes = 20000h

4/4 Expansion Cards

Page 46

Installing the card

OWNER’S HANDBOOK

Read all these instructions through before attempting to install any expansion card.

Warning

Never carry out any work inside the computer with AC power applied. Always shut down the computer and unplug all power cords before removing the top cover.

The only tool required is a small cross-head screwdriver.

1. Turn off the computer and unplug all power cords.

2. Take suitable anti-static precautions and remove the system unit cover. For more information see “Anti-static precautions” in the Safety & Regulatory Notices at the start of this manual.

3. Decide in which of the available slots you wish to install the card, according to its type and size. In general it is easiest, where possible, to start with the lowest slot and work upwards.

4a. If the chosen slot is on the left-hand side of the

system unit (when viewed from the front) remove its blanking plate by removing the securing screw. Keep the screw; it will be needed later to secure the card.

4b. If the chosen slot is on the right-hand side of the

system unit (nearer the power supply) remove the plate with the security loop – labelled (A) in the illustration below – then remove the slot’s blanking plate.

Expansion Cards 4/5

Page 47

OWNER’S HANDBOOK

5. If the card you are installing is configured by the

6. When installing a card that uses the VFC/AMC

means of jumpers or switches, check that it is correctly configured before proceeding.

video feature connector on the motherboard, it is best to plug the video feature cable into the motherboard before you install the card; otherwise, the card may get in the way of the connector. See the Motherboard Features & Upgrades chapter to locate the VFC/AMC connector.

Caution

Be careful how you use the AMC connector. Some pins carry +5 V power which could damage the expansion card if it is incorrectly attached.

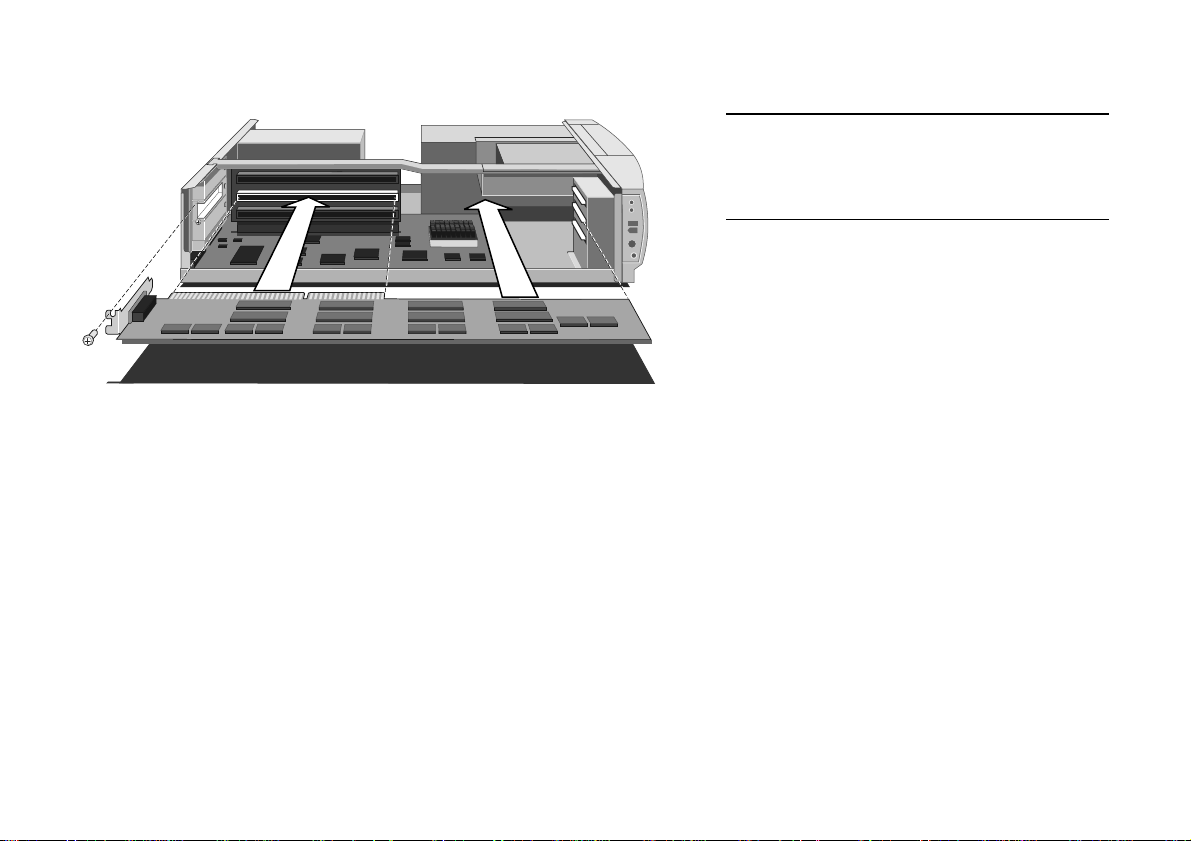

7. Position the expansion card alongside the slot in which you wish to install it. Align the rear of the card with the slot in the rear of the system unit, and, if the card is full length, align the front of the card with the card guide.

8. Slide the card into the slot ensuring that the card edge connector engages correctly with the socket on the riser board. Do not use excessive force.

9. Secure the card by replacing the screw or the security loop panel that you removed in Step 4.

10. Connect any necessary signal cables to the card.

11. Ensure no other cables or connectors have become dislodged, then replace the system unit cover.

4/6 Expansion Cards

Page 48

Reserving ISA legacy resources

OWNER’S HANDBOOK

If the computer does not automatically detect the new expansion card the first time you turn it on, start the BIOS Setup utility, go to the Advanced menu and change the Reset Configuration Data item to “Yes”.

If you have just installed an ISA card, you may also want to reserve or exclude the legacy resources (that is, the interrupts and UMB regions) used by the card. This is necessary so that any Plug and Play components can be configured automatically and won’t try to use the same settings. See the BIOS Setup & POST chapter for more information.

Alternatively, you can use the Windows Control Panel to change the resource settings used by devices:

1. Click the Start button in the taskbar, then Settings, then Control Panel.

2. Double-click on System, then click the Device Manager tab of the System Properties dialog.

3. Select the device whose resources you want to change, then click Properties.

4. Click the Resources tab of the device’s Properties dialog.

If your device does not have a Resources tab,

either you cannot change its resources or it isn't using any resource settings.

5. Click the resource you want to change, uncheck the Use Automatic Settings box, then click Change Setting.

Tip

In some cases, you may see a Set Configuration Manually button on the Resources tab. You may have to

click this button before you can change resource settings.

Expansion Cards 4/7

Page 49

OWNER’S HANDBOOK

Telling Windows about the new hardware

Windows 95 and Windows NT 4.x (or later) should automatically detect and configure cards that support “Plug and Play”. In other cases you may have to tell Windows that you have installed new hardware, as follows:

1. Click the Start button in the taskbar, then Settings, then Control Panel.

2. Double-click on Add New Hardware.

3. Follow the instructions in the Add New Hardware Wizard.

4/8 Expansion Cards

Page 50

OWNER’S HANDBOOK

5 MOTHERBOARD FEATURES AND UPGRADES

This chapter describes the features of the computer motherboard and gives step-by-step instructions for adding more system or video memory, upgrading the processor, and replacing the configuration battery. Details of all relevant motherboard connectors and jumper settings are included.

The Welcome chapter tells you how to remove the system unit cover. See the section on “Anti-static precautions” in the Safety & Regulatory Notices at the beginning of this manual for advice on how to avoid damaging your computer with static electricity.

Warning

Never carry out any work inside the computer with AC power applied. Always shut down the computer and unplug all power cords before removing the top cover.

Do not change jumper settings unnecessarily

Do not alter any jumpers or switch settings other than those identified in this chapter, unless told to by your Mitsubishi Electric PC supplier or an authorised maintainer. Otherwise, you may damage the system processor, the motherboard, or both.

Note

After you have upgraded your computer, it may not at first recognise the new configuration. Start the BIOS Setup utility, go to the Advanced menu and change the Reset Configuration Data item to “Yes”, then restart the computer.

Motherboard Features & Upgrades 5/1

Page 51

OWNER’S HANDBOOK

J50

J10

23242526

2122

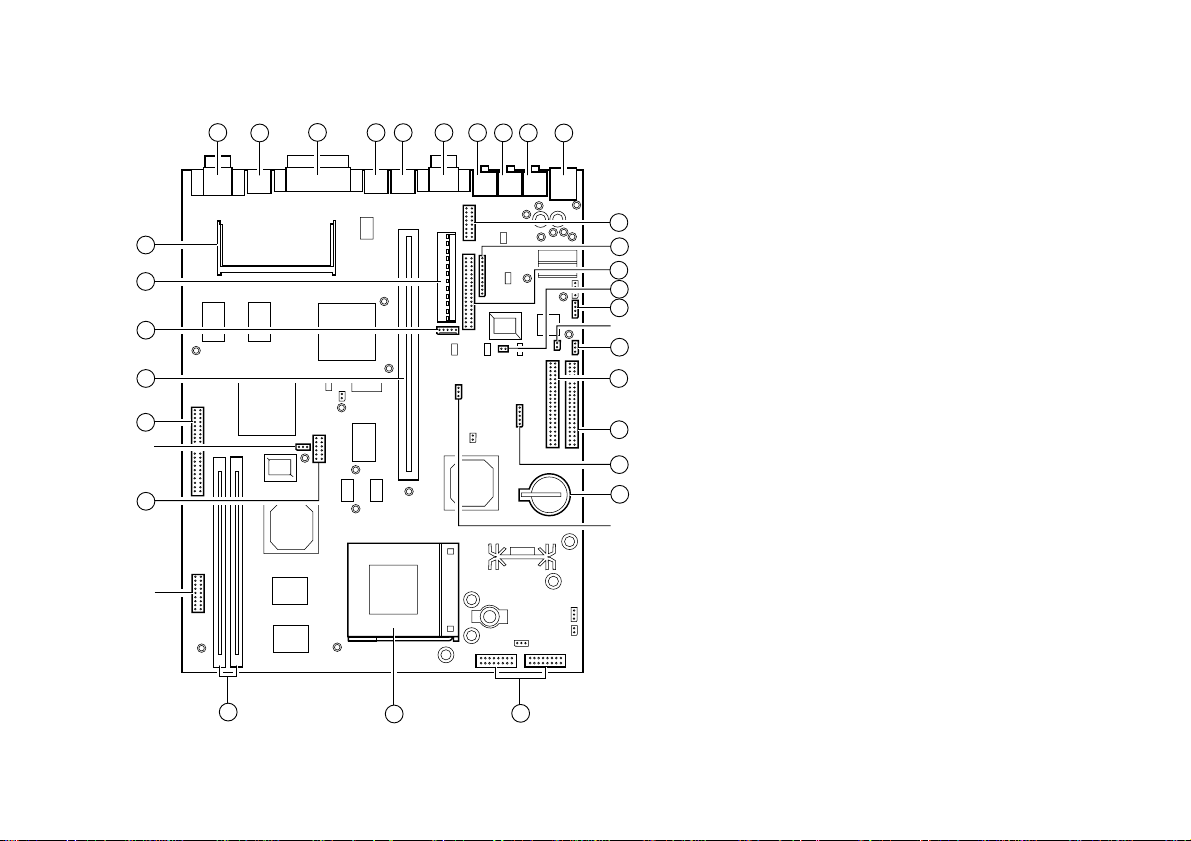

1 Video memory upgrade socket 2 Motherboard power connector 3 PSU logic connector 4 Riser board connector 5 VFC/AMC video feature connector

16 15

J80

6 TV tuner/MPEG-2 card connector 7 DIMM sockets 8 Processor ZIF socket

9 Front panel connectors 10 CMOS battery 11 Front panel USB internal connector 12 Primary E-IDE connector 13 Secondary E-IDE connector 14 “Wake on Call” modem connector 15 CD audio connector

11 10

J81

16 SPDIF internal connector 17 1.44 Mbyte diskette drive connector 18 Speakerphone modem audio connector 19 Joystick/MIDI internal connector 20 Universal Serial Bus (USB) port 21 Speaker socket 22 Line Out socket 23 Microphone socket 24 Serial port 25 Keyboard port 26 Mouse port 27 Parallel (printer) port 28 TV Out (S-Video) port (factory option) 29 Monitor port

5/2 Motherboard Features & Upgrades

Page 52

Motherboard jumper settings

OWNER’S HANDBOOK

There are only a few jumpers on the motherboard that you may need to alter. All others are set at the factory and should not be changed.

On the motherboard, pin 1 of each jumper block is indicated by a small triangular marking.

Do not change jumper settings unnecessarily

Processor bus speed (J10)

After upgrading your processor, but before turning on the system, you need to change some jumper settings in jumper block J10 to match the speed (in megahertz) of the new processor.

166 200 233 Megahertz

Motherboard Features & Upgrades 5/3

Page 53

OWNER’S HANDBOOK

On-board video disabling (J50)

If you install a video adapter expansion card, the computer should automatically detect this and disable the on-board video adapter. If for some reason this does not happen, and you experience problems with a newly-fitted card, you can manually disable the onboard video adapter by moving the jumper in block J50 to pins 2-3.

Audio disabling (J80)

The on-board audio codec can be disabled by moving the jumpers on jumper block J80 to pins 2-3. Disabling the audio system frees the interrupts and DMA channels used by that system (normally IRQ5, IRQ11, DMA0 and DMA1).

5/4 Motherboard Features & Upgrades

Page 54

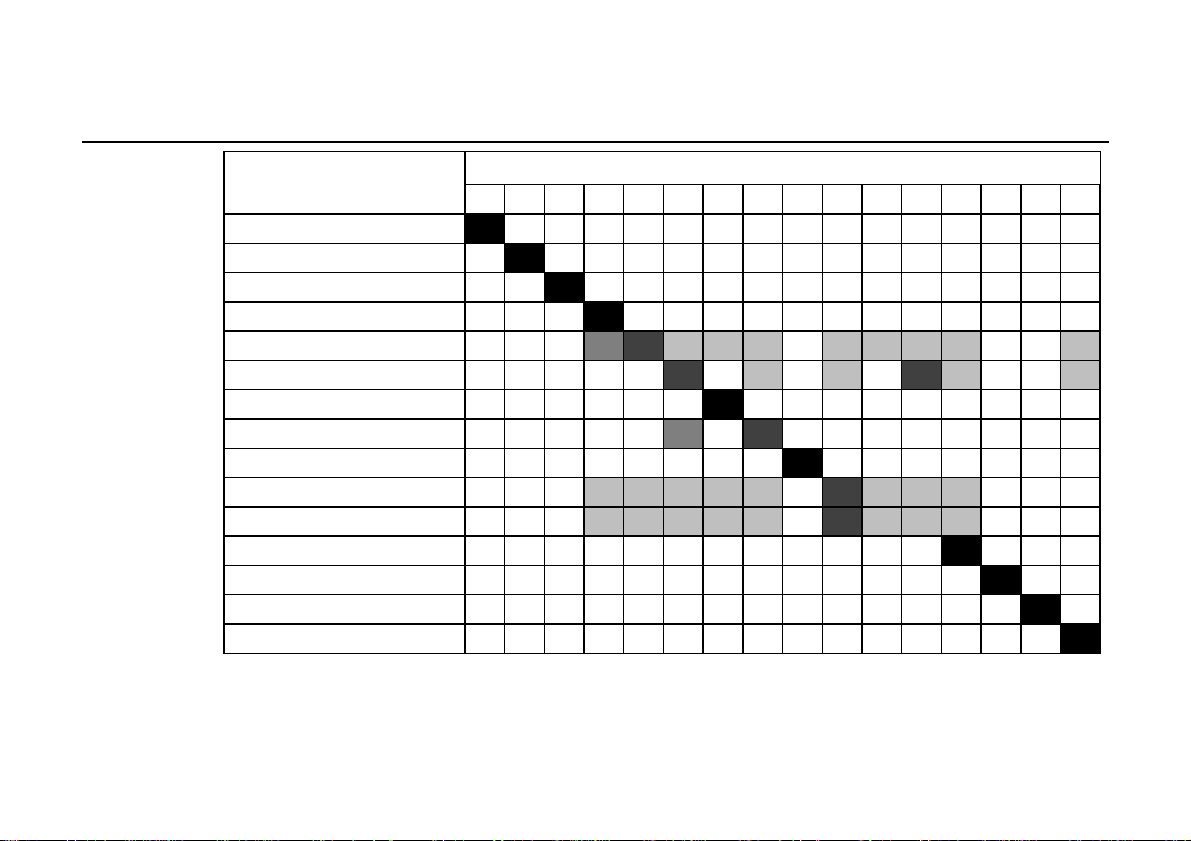

Motherboard IRQs, DMA channels and I/O port addresses

Components Interrupts (IRQs)

0123456789101112131415

System timer

Keyboard controller

PIC daisy chain

Infra-red remote control BS

Serial port 1 BS

Audio JS

Diskette controller BS

Parallel port (usually sharable) BS

Real time clock

On-board video (sharable) JS

USB (sharable) BS

Mouse

Co-processor

Primary E-IDE BS

Secondary E-IDE BS

OWNER’S HANDBOOK

Refer to next page for an explanation of this table.

Motherboard Features & Upgrades 5/5

Page 55

OWNER’S HANDBOOK

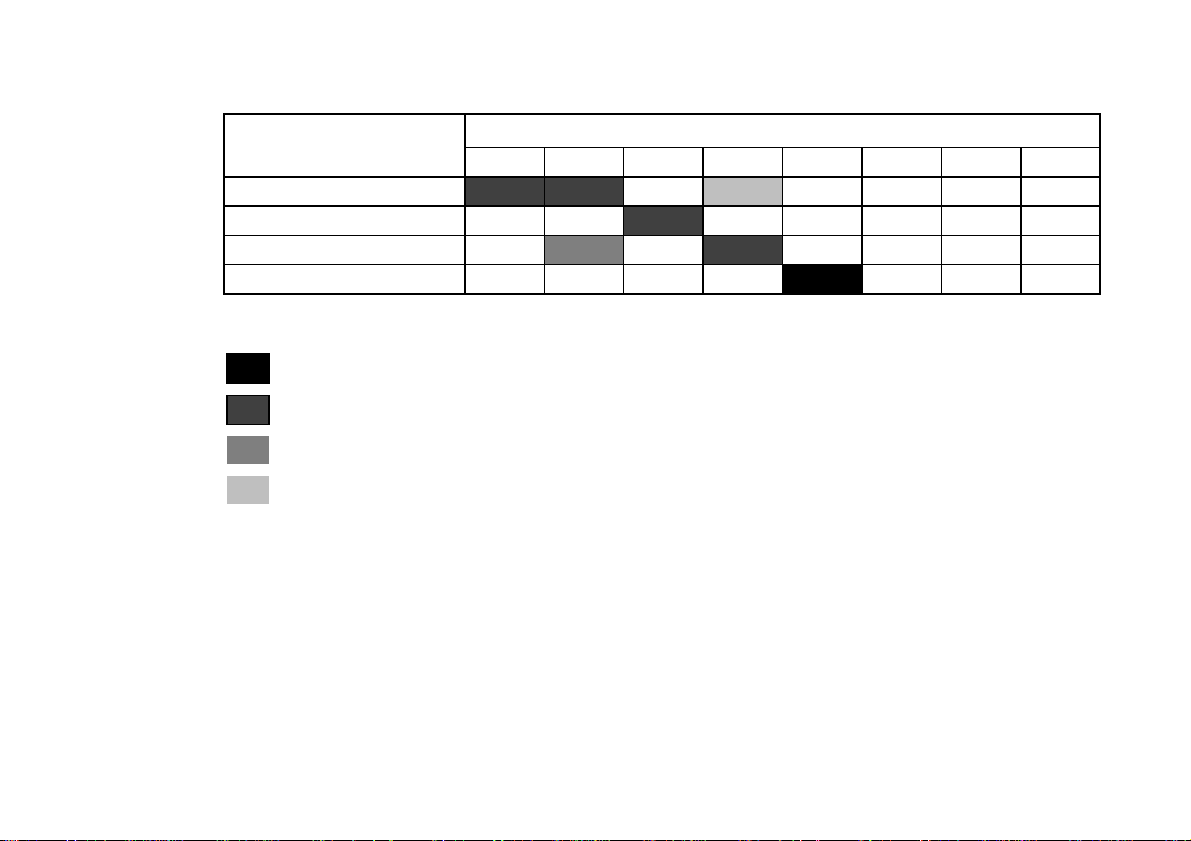

Components DMA channels

Audio JS

Diskette controller BS

Parallel port (in ECP mode) BS

DMAC daisy chain

Key

01234567

Fixed assignment

Usual assignment

Alternative assignment by BIOS Setup

Alternative assignment by Plug-and-Play

5/6 Motherboard Features & Upgrades

= Can be disabled by BIOS Setup

= Can be disabled by changing a motherboard jumper setting

Page 56

Base Input/Output (I/O) port addresses

The following table lists addresses used by components on the motherboard. Any ports between 100h and 3FFh that are not listed may be used by an expansion card.

Assigned I/O ports

000h-00Fh 0A0h-0A1h 278h-27Bh

020h-021h 0B2h-0B3h 2F8h-2FFh

040h-043h 0C0h-0DEh 330h-331h

048h-04Bh 0F0h 376h-37Fh

060h-061h 15Ch-15Dh 388h-38Bh

064h 170h-177h 3BCh-3BFh

070h-071h 1F0h-1F7h 3E8h-3FFh

076h-07Eh 200h-207h CF8h-CFFh

080h-08Fh 220h-22Fh

OWNER’S HANDBOOK

Motherboard Features & Upgrades 5/7

Page 57

OWNER’S HANDBOOK

Adding more memory

You can give your PC more memory by adding or replacing memory modules called “DIMMs”.

The motherboard’s two DIMM sockets accept DIMMs of up to 128 Mbytes in any combination (giving a maximum memory capacity of 256 Mbytes).

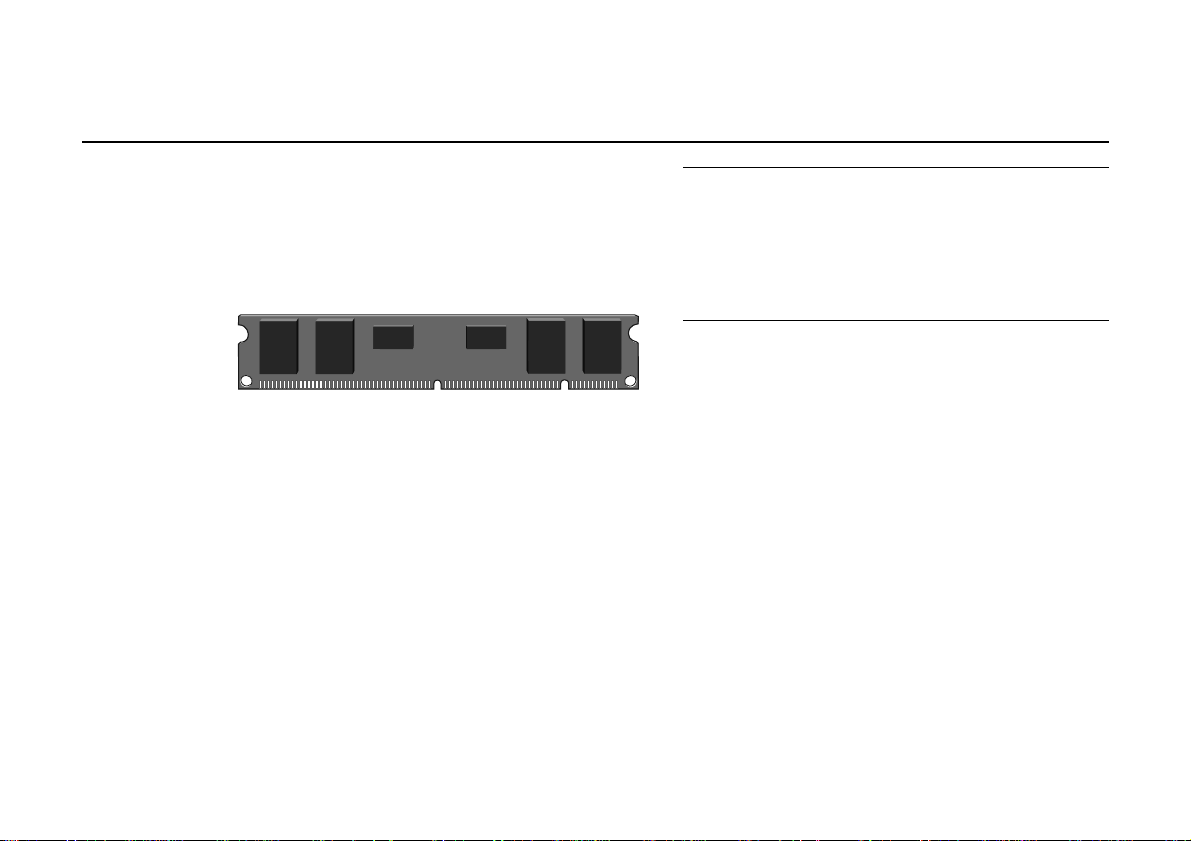

This is a DIMM (Dual In-line Memory Module).

Technical note

The DIMMs you use must have the following specification: gold contacts, 3.3V, 64-bit, unbuffered, SDRAM-type with Serial Presence Detect (SPD) and a CAS latency of 2 at 66 MHz. If you use any other type of DIMM you risk damaging the motherboard.

Before you begin

1. Turn off the computer and unplug all power cords.

2. Take suitable anti-static precautions and remove the system unit cover. For more information see the section on “Anti-static precautions” in the Safety & Regulatory Notices at the start of this manual.

3. Remove any expansion cards that impede access to the DIMM sockets.

5/8 Motherboard Features & Upgrades

Page 58

If you have this type of socket, press the tabs on both of the socket’s end clips at the same time. This releases the DIMM and lifts it partly out of the socket.

If you have this type of socket, carefully ease apart the clips at each end to free the DIMM. The DIMM can then be tilted forward and lifted out of the socket.

OWNER’S HANDBOOK

Removing a DIMM

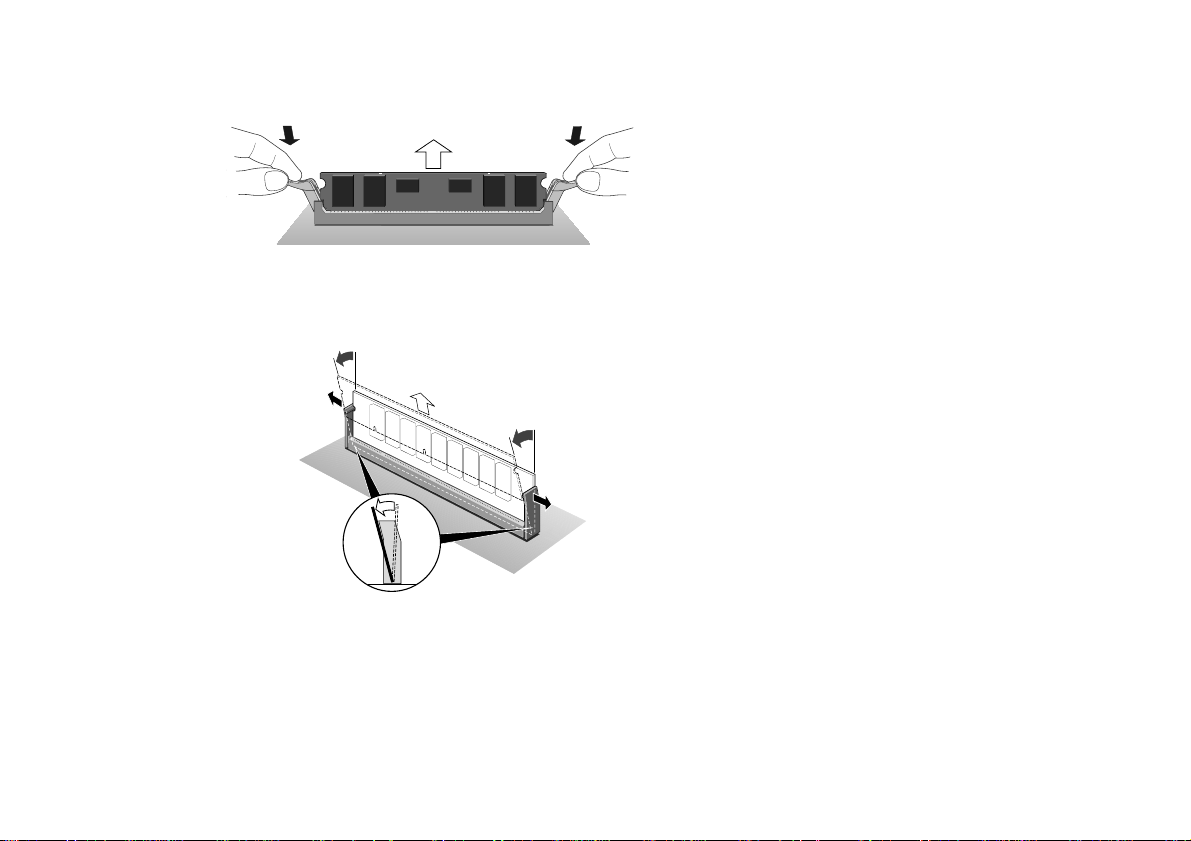

If you need to start by removing a DIMM, follow the diagrams on the left, depending on what type of socket you have.

Hold the DIMM by its ends and avoid touching the metal contacts. Place the DIMM in suitable antistatic packaging.

Motherboard Features & Upgrades 5/9

Page 59

OWNER’S HANDBOOK

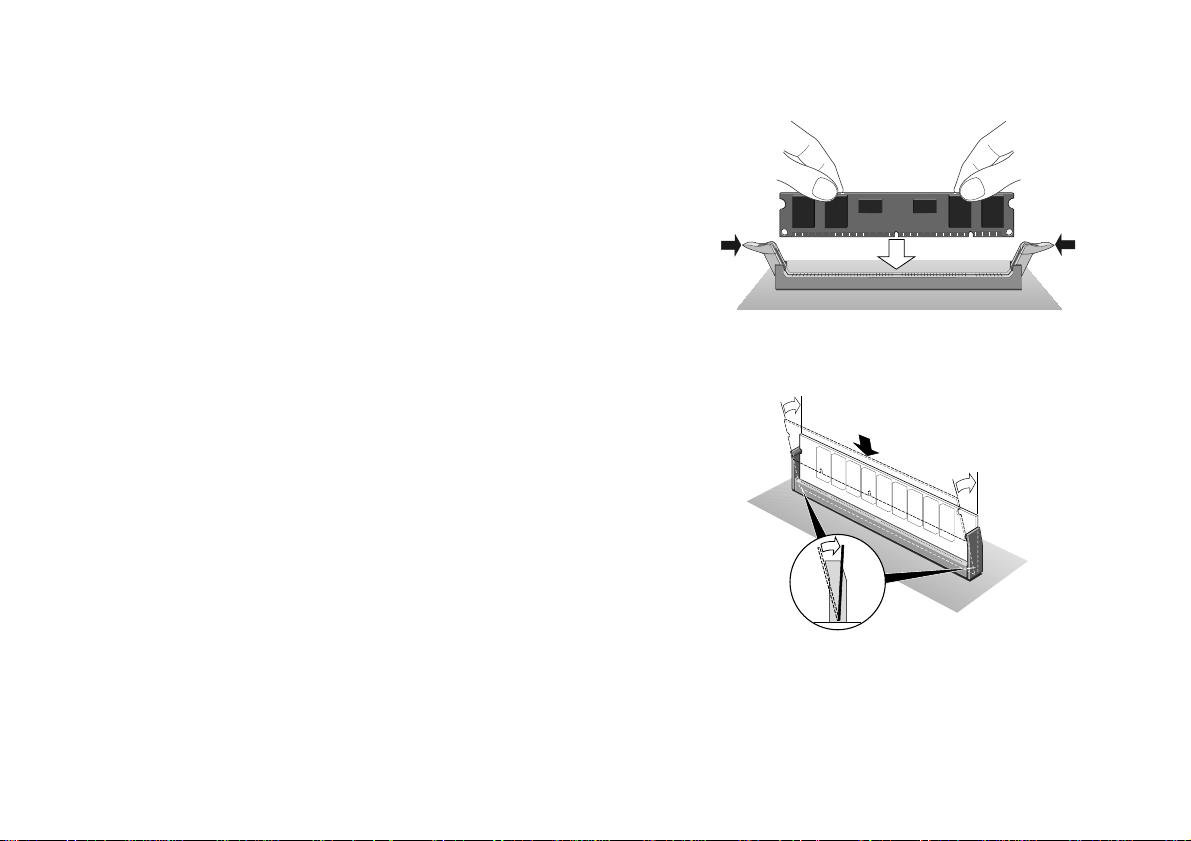

Inserting a DIMM

When you take the DIMM out of its anti-static packaging, hold it by its ends and avoid touching the metal contacts.

Follow the diagrams on the right to insert the DIMM, depending on what type of socket you have.

In either case, there are asymmetrical indents along the connector edge that prevent the DIMM being fitted into the socket the wrong way round.

Do not use excessive force. If the module will not fit easily, remove it and start again.

When you have finished, replace any expansion cards you needed to remove, then refit the system unit cover.

If the computer does not automatically detect the new memory the first time you turn it on, start the BIOS Setup utility, go to the Advanced menu and change the Reset Configuration Data item to “Yes”, then restart the computer.

If an error message appears, check that the DIMMs are of the correct type and are seated correctly in their sockets.

If you have this type of socket, the DIMM is inserted vertically and held in place by the clips at each end.

If you have this type of socket, the DIMM is inserted at a slight angle then leant back in the socket until it clips into place.

5/10 Motherboard Features & Upgrades

Page 60

Adding more video memory

OWNER’S HANDBOOK

Video memory is memory reserved for use by the onboard video controller. More video memory can provide more colours or higher resolutions to an extent determined by the capabilities of your monitor.

If your computer has 2 Mbyte of video memory, you can upgrade it to the maximum of 4 Mbytes by adding a SODIMM (Small Outline DIMM) module.

1. Turn off the computer and unplug all power cords.

2. Take suitable anti-static precautions and remove the system unit cover. For more information see the “Anti-static precautions” section in the Safety & Regulatory Notices at the start of this manual.

3. Remove any expansion cards that impede access to the video memory upgrade socket (see the diagram at the start of this chapter).

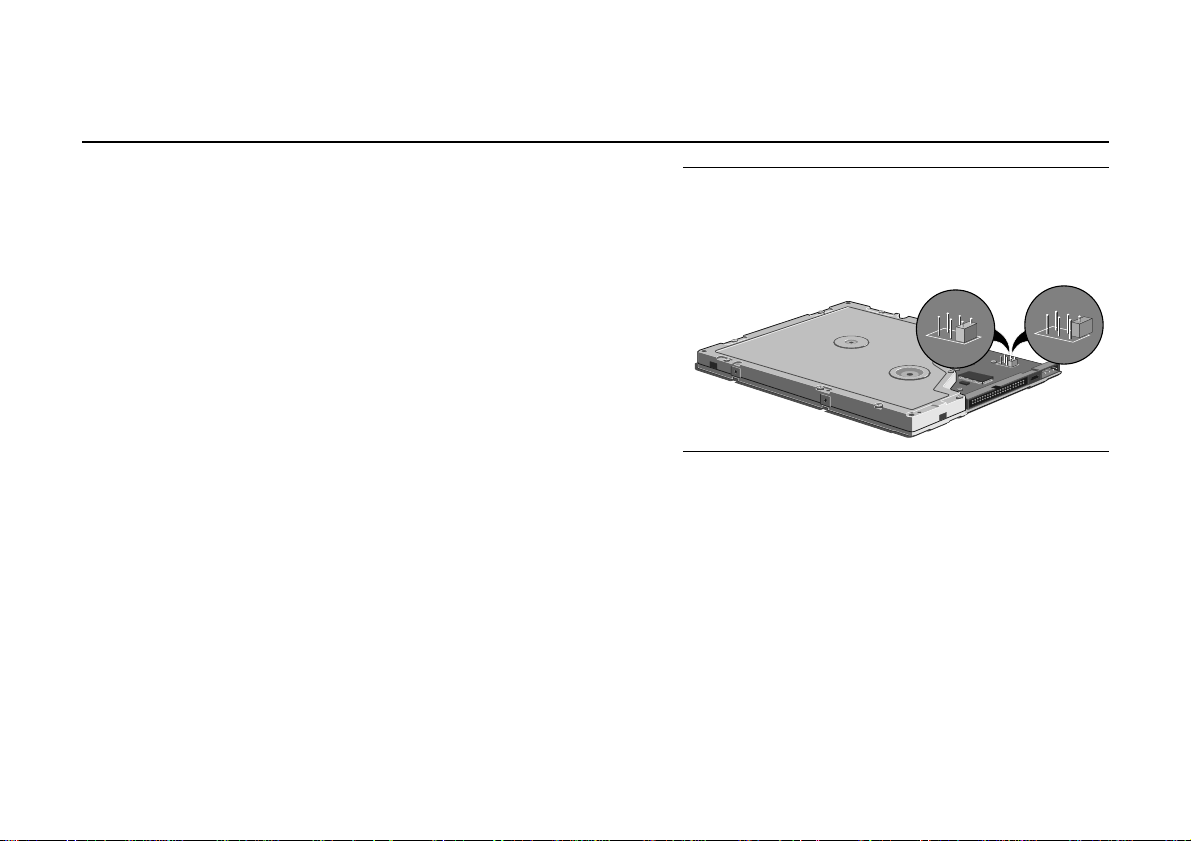

4. Unpack the upgrade kit. Hold the SODIMM chip by its edges and be careful not to touch the metal pins.

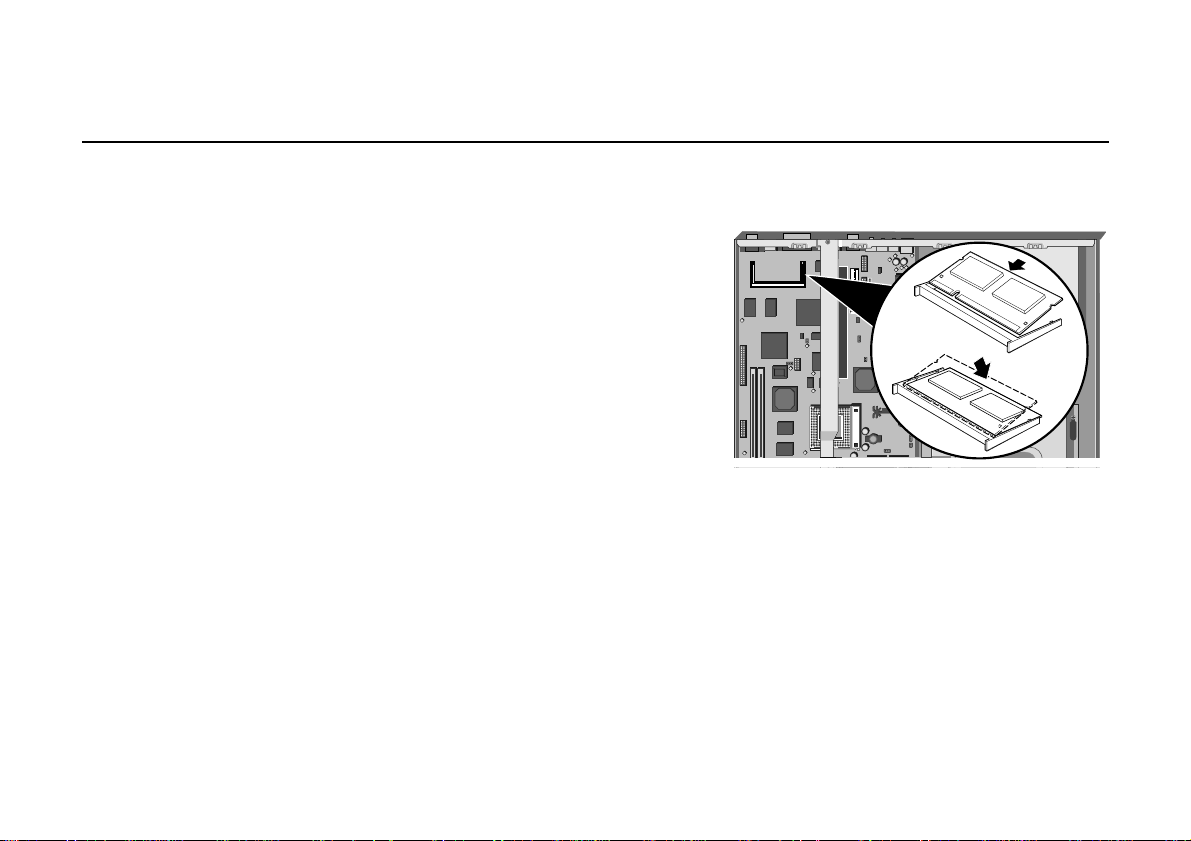

5. Insert the SODIMM into the socket as shown below.

6. Replace any expansion cards you removed earlier and refit the system unit cover.

You can then reconfigure your operating system to use the expanded capabilities of the video controller.

Motherboard Features & Upgrades 5/11

Page 61

OWNER’S HANDBOOK

Upgrading the processor

The ZIF (zero insertion force) “Socket 7” processor socket on the motherboard is designed to accept a variety of Pentium/MMX processors. You may wish to upgrade your processor by replacing it with one of higher performance.

Read the instructions carefully before starting work.

1. Turn off the computer and unplug all power cords.

3. Remove any expansion cards that impede access to the processor.

4. If the system was in use immediately before starting this procedure, the processor will be hot; wait at least 15 minutes for it to cool down.

Be careful!

The processor, its fan-sink (combined fan and heat sink), and some of its neighbouring components can get very hot. You may burn your fingers if you attempt to remove the processor before it has cooled down.

5/12 Motherboard Features & Upgrades

Page 62

OWNER’S HANDBOOK

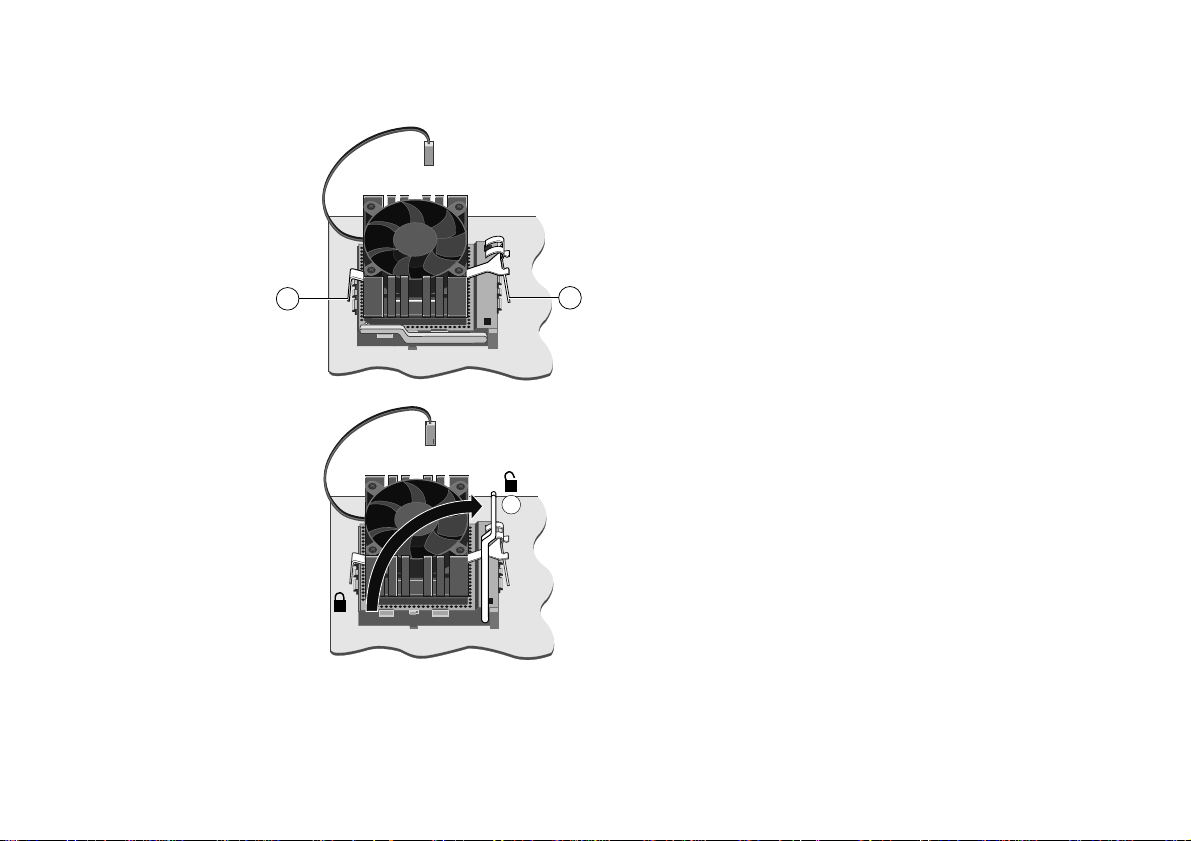

5. Unplug the power cable of the processor’s fansink from the motherboard. Note where the cable plugs in because you will need to re-attach it later.

6. Press down on the fan-sink’s retention clip to release it (A) then unhook the clip from the

other side of the ZIF socket (B).

7. Release the lever (C) from the side of the ZIF socket and raise it to the upright position, at right-angles to the motherboard.

There may be a little stiffness at the beginning

and end of the lever’s movement; be careful not to use excessive force.

system unit and place it on an anti-static surface. Hold the processor by its edges and avoid touching any of the metal pins.

9. Separate the fan-sink from the processor by twisting the fan-sink from side to side to loosen the grip of the thermal bonding compound,

8. Lift the processor (with fan-sink) clear of the

then slide the fan-sink off to one side of the processor.

Motherboard Features & Upgrades 5/13

Page 63

OWNER’S HANDBOOK

10. Ensure that the securing lever on the ZIF socket

11. Take the upgrade processor out of its anti-static

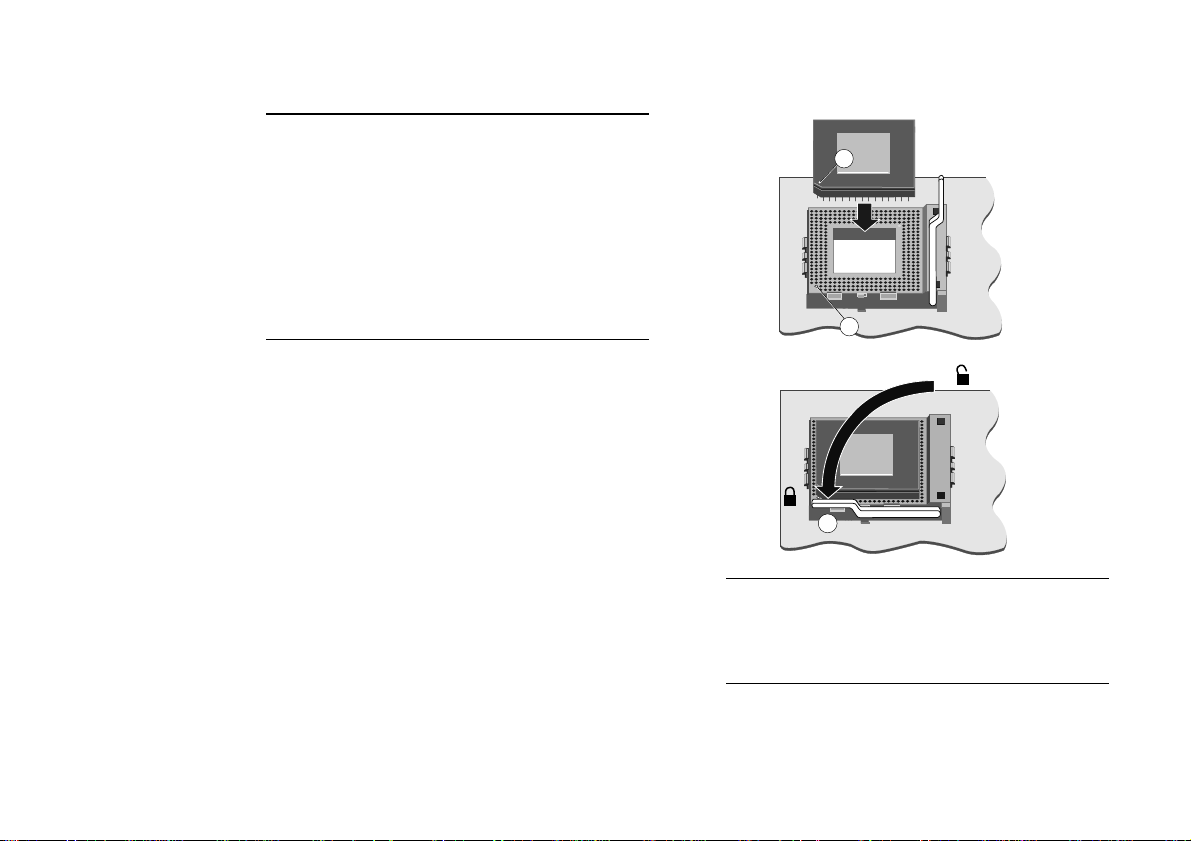

The upgrade processor (A) and the ZIF socket

12. Place the processor in the socket, making sure

Warning

When you remove the fan-sink there will be a residual deposit of thermal bonding compound on the bottom of the fan-sink and the top of the processor. This compound can cause skin irritation and stain clothing. Avoid prolonged or repeated contact with skin. Wash your hands thoroughly with soap and water after handling. Avoid contact with eyes and inhalation of fumes. Do not ingest.

is still in the upright position.

packaging. Hold the processor by its edges and avoid touching the metal pins.

(B) are keyed to ensure that the processor is installed in the correct orientation. The pin pattern is totally different at one corner. The processor will only fit into the socket one way.

that it is correctly aligned and that you do not bend or otherwise damage the pins.

Caution

If the processor is misaligned it will not go into the socket, and any attempt to force it will damage the processor, the socket or both.

5/14 Motherboard Features & Upgrades

Page 64

OWNER’S HANDBOOK

15. Reconnect the fan-sink’s power cable to the motherboard.

Caution

If the fan-sink power cable is not reconnected properly, the processor may run slowly or not at all, and there is a risk that it may overheat and be permanently damaged.

16. Adjust the processor bus speed selection jumpers in block J10 as described at the start of this chapter.

When you have finished, replace any expansion cards you needed to remove, then refit the system unit

13. Lower the securing lever (C) to the locked position. Apply just enough pressure to overcome the resistance offered by the lever.

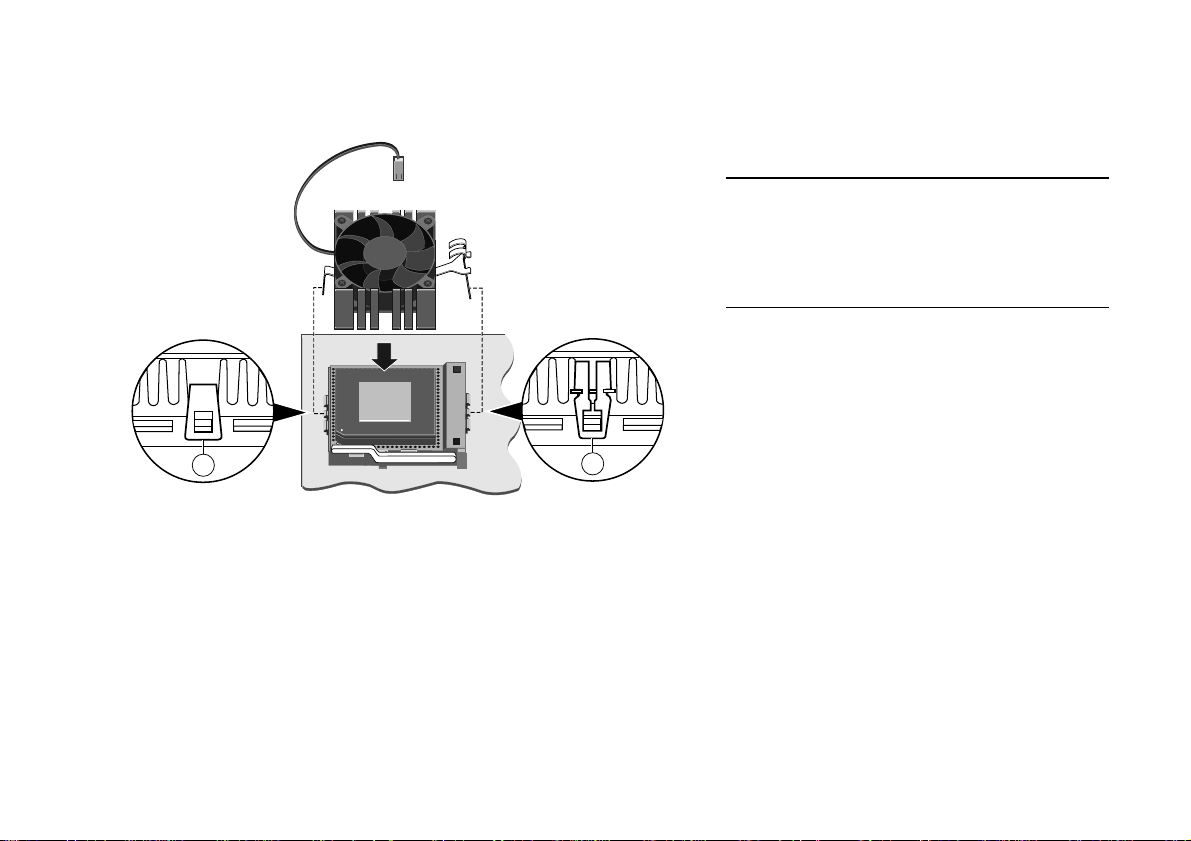

14. Put the fan-sink on top of the new processor,

cover.

If the computer does not automatically detect the new processor the first time you turn it on, start the BIOS Setup utility, go to the Advanced menu and change the Reset Configuration Data item to “Yes”, then restart the computer.

and refasten the fan-sink’s retention clip to the front (D) and back (E) of the socket.

Motherboard Features & Upgrades 5/15

Page 65

OWNER’S HANDBOOK

Replacing the configuration battery

The computer keeps a record of its current hardware configuration in a CMOS memory chip which is sustained by a small battery. This battery has a life of up to 5 years. If you find that you have to reconfigure the computer every time you turn it on, the battery is probably failing and needs to be replaced.

The battery is a 3 volt lithium type (CR2032 or equivalent) typically used in calculators and other small, battery-powered electronic items.

To replace the battery

1. Turn off the computer and unplug all power cords.

3. Remove any expansion cards that impede access to the battery holder.

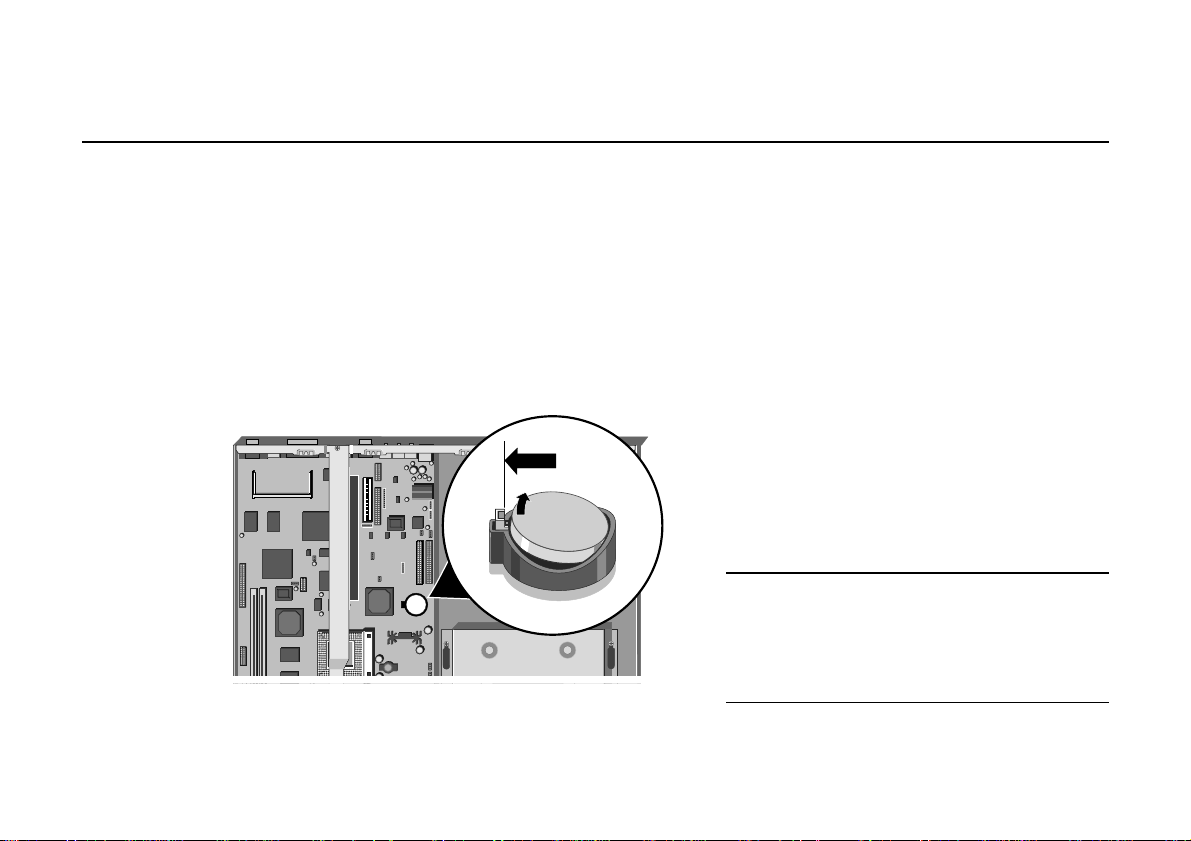

4. Using a non-conductive implement, release the latch that holds the battery in place. The battery will pop up allowing you to lift it out of the holder.

Danger!

You must not use a metal or other conductive implement to remove the battery. If a short-circuit is accidentally made between the battery’s positive and negative terminals, the battery may explode.

5/16 Motherboard Features & Upgrades

Page 66

5. Check that the replacement battery looks the same as the battery you have removed.

6. Taking care not to touch the top or bottom surface of the battery, pick up the replacement with the positive (+) terminal upwards. Press the battery into the holder using a non-conductive implement.

7. Replace any expansion cards you removed earlier and refit the system unit cover.

8. Dispose of the discharged battery in accordance with the battery manufacturer’s instructions.

The next time you turn on the computer you will have to run the BIOS Setup utility to reset the hardware configuration.

OWNER’S HANDBOOK

Motherboard Features & Upgrades 5/17

Page 67

6 HARD DISK UPGRADES

OWNER’S HANDBOOK

This chapter describes how to add a second hard disk to your computer.

Warning

Never carry out any work inside the computer with AC power applied. Always shut down the computer and unplug all power cords before removing the top cover.

Important

Note

Hard Disk Upgrades 6/1

Page 68

OWNER’S HANDBOOK

MASTER

SLAVE

Configuring the drive

Your computer can accommodate two E-IDE hard disk drives, known as the master and slave drives. The first drive, which contains the operating system, is always configured as the master. The second drive must be configured as the slave.

Hard disk drives are normally configured as master or slave by using jumpers on the drive itself. Configuration details vary from drive to drive. Most drives are supplied with documentation describing how to configure the drive. If you are uncertain about configuring the drive consult your supplier.

Example

The example 5.25-inch drive shown below is configured as master or slave by the position of a jumper on the rear of the drive.

6/2 Hard Disk Upgrades

Page 69

Installing the drive

A A

OWNER’S HANDBOOK

1. Turn off the computer and unplug all power cords.

2. If there is a diskette in the diskette drive, remove it.

3. Take suitable anti-static precautions and remove the system unit cover. For more information see “Anti-static precautions” in the Safety & Regulatory Notices at the start of this manual.

4. Disconnect the power and signal (ribbon) cables from the rear of the diskette drive. Take careful note of how they are fitted.

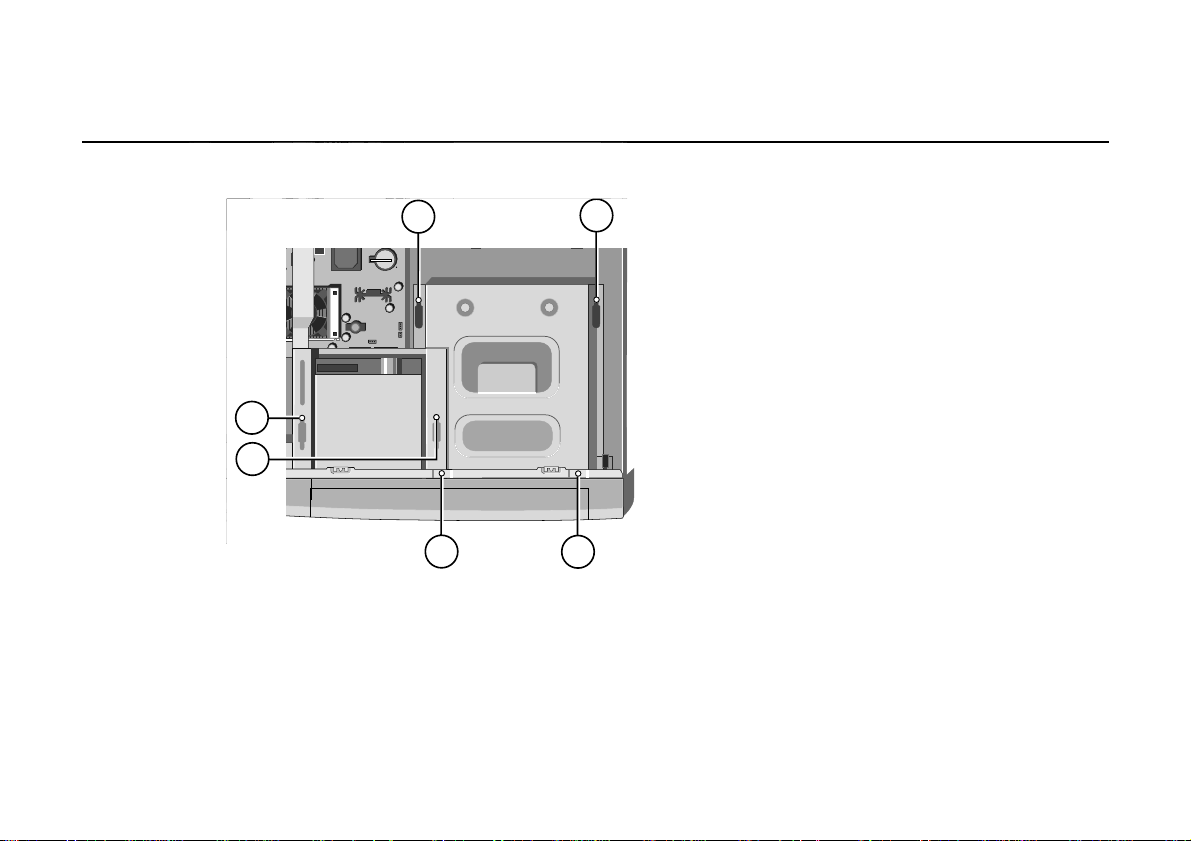

5. Loosen the two screws labelled (A) in the diagram. Slide the diskette drive assembly towards the rear of the system and lift it out.

6. Disconnect the power, signal and CD audio cables from the rear of the CD-ROM drive. Disconnect the power and signal cables from the rear of the existing (master) hard disk drive (HDD). Take careful note of how and where they are fitted.

Hard Disk Upgrades 6/3

Page 70

OWNER’S HANDBOOK

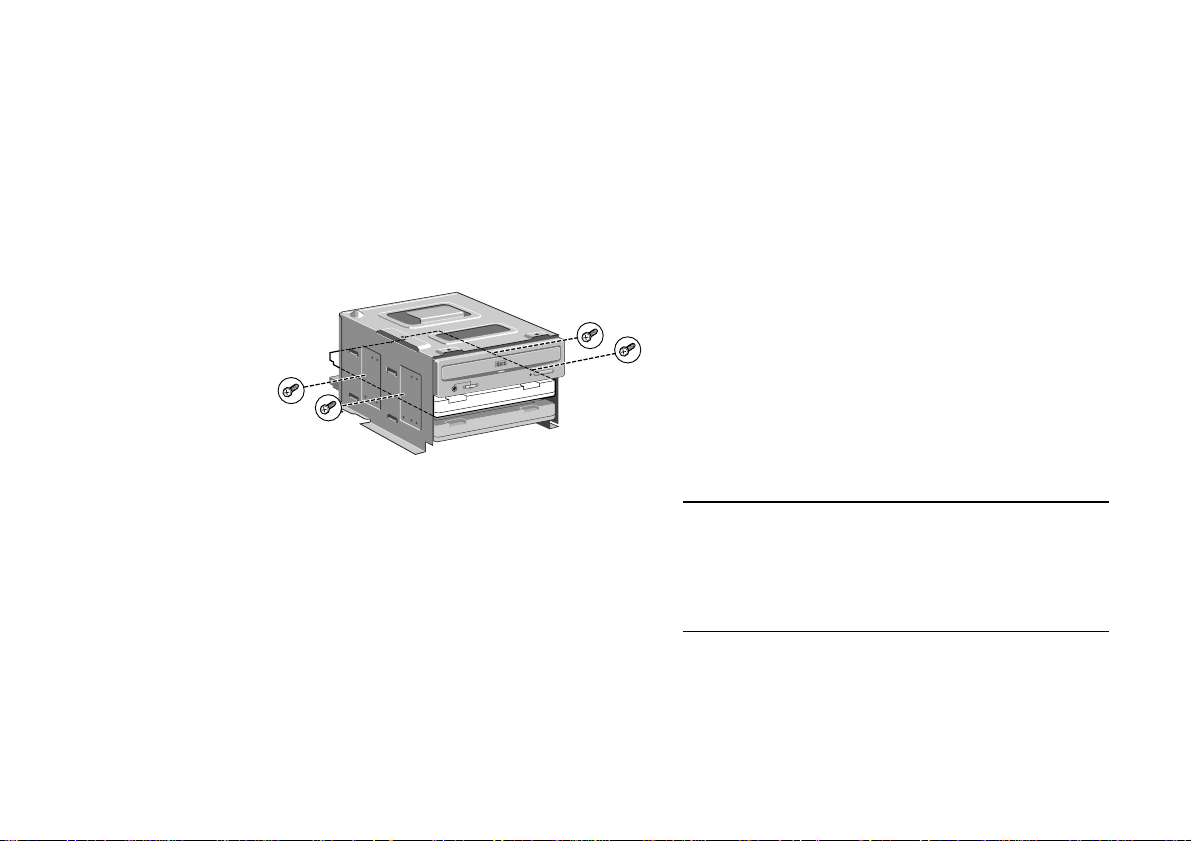

7. Loosen the four screws labelled (B) in the diagram. Slide the drive assembly towards the rear of the system and lift it out.

8. Fit the new (slave) hard drive into the drive assembly using the special screws provided (see below). Try not to touch any drive’s electronics.

COMPACT

B A

9. Put the drive assembly back into the system unit and tighten the (B) screws to secure it to the chassis.

10. Re-attach the HDD signal cable to the master and slave drives. (Note that the HDD signal cable has two connectors on it; one for the master drive and one for the slave drive.)

11. Attach a spare power cable to the slave drive, and another to the master drive. (It does not matter greatly which of the available power cables you choose.)

12. Re-attach the CD-ROM power, signal and CD audio cables.

13. Put the diskette drive assembly back into the system unit and tighten the (A) screws to secure it. Re-attach the diskette drive power and signal cables.

14. Check to ensure that no other cables or connections have become dislodged or trapped during the work, then replace the system unit cover.

Do you have a 3.5-inch drive?

Apricot MS Series computers usually use 5.25-inch hard disk drives. If you have a 3.5-inch drive you will need a special adapter plate to mount it in the drive assembly. Ask your Mitsubishi Electric PC supplier for details.

6/4 Hard Disk Upgrades

Page 71

Partitioning and formatting the drive

OWNER’S HANDBOOK

If the computer does not automatically detect the new drive the first time you turn it on, start the BIOS Setup utility, go to the Advanced menu and change the Reset Configuration Data item to “Yes”, then restart the computer.

The new drive will initially be blank. Before you can use the drive, you must partition and format it.

With Windows 95, you use the MS-DOS Fdisk program to create partitions on the disk. The Fdisk program can be run in an MS-DOS window within Windows. Type Help Fdisk at the MS-DOS command prompt to find out more. After using Fdisk, you are prompted to restart the computer. Once back in Windows, you can format the partitions by opening the My Computer folder, selecting the new Drive icon and choosing the Format command from the File menu.

Caution

When you run Fdisk, it assumes that you want to work with the first, or master, drive (it says the

fixed disk drive

slave drive, choose

drive

(option 5) from the main menu.

is 1). To switch attention to the

Select next fixed disk

Current

Hard Disk Upgrades 6/5

Page 72

7 BIOS SETUP & POST

OWNER’S HANDBOOK

BIOS (pronounced “bye-oss”) stands for ‘basic input/output system’. The BIOS mediates between the computer’s hardware – the processor, memory, and so on – and its software – the operating system and your programs. The BIOS program is kept in permanent, read-only memory or ROM (although if necessary it can be upgraded by an authorised maintainer).

BIOS Setup is a helpful utility that forms part of the BIOS program. It allows you to view and alter the computer’s hardware configuration. It is also used to configure various security and power-saving options. Configuring the computer is necessary to ensure that the software you use can recognise and exploit the hardware’s capabilities.

The current configuration is kept in a special area of memory, called CMOS memory, and maintained by a battery so that the configuration is preserved even while the computer is switched off.

Your computer arrives already configured, but may need to be configured again after you add or remove add-on options such as memory modules or expansion cards.

Whenever the computer is turned on, the BIOS power-on self-test (POST) routine tests various hardware components, including memory, and compares the actual configuration of the computer with that recorded in permanent (CMOS) memory.

A configuration discrepancy could arise if you have just installed or removed a hardware option (for example, if you have added or replaced memory). In this case you may be diverted directly into the BIOS Setup utility.

BIOS Setup & POST 7/1

Page 73

OWNER’S HANDBOOK

BIOS Setup

Starting BIOS Setup

To start the BIOS Setup utility:

1. Turn on or restart your computer.

2. Wait until the Mitsubishi Electric logo appears on the screen.

3. Press the F2 key.

4. If you have previously defined a Supervisor password, you are prompted for it before BIOS Setup starts.

If BIOS Setup starts on its own

BIOS Setup might start on its own for three reasons:

♦ The power-on self-test (POST) detects a

configuration error or fault. This may be signalled by one or more POST error messages. If a persistent fault is indicated, make a note of any error messages and the current configuration settings before calling an authorised maintainer.

♦ The CMOS battery may be running down. This

may cause spurious POST error messages. If this happens every time you turn on the computer, you may have to change the battery (see the Motherboard Features & Upgrades chapter).

♦ The computer’s configuration may have

changed, for example by the addition of more system memory or an expansion card. In this case you may have to define the new configuration.

7/2 BIOS Setup & POST

Page 74

OWNER’S HANDBOOK

Press To

1 or

ALT-H

View a general help topic. Press

ESC

close the help window.

ESC

LEFT

DOWN

(+) or F6 or

PLUS

(-) or F5. Select the previous value for the current

MINUS

arrow Select a different menu.

RIGHT

arrow Select fields on the current menu.

SPACEBAR

Exit the current menu.

Select the next value for the current field.

field.

ENTER

Execute a command or enter a submenu.

HOME

END

Move the cursor to the top or bottom of the current menu.

PAGE UP

PAGE DOWN

Move the cursor to the next or previous page of the current menu.

9 Restore the default settings for all menus.

10 Save the changes you’ve made and exit

from BIOS Setup.

Control keys

Use the keys listed in the legend bar at the bottom of the BIOS Setup screen to make your selections or exit the current menu.

Sub-menus are marked by a sub-menu, use the arrow the sub-menu you want, then press

pointer. To display a

keys to move the cursor to

ENTER

Changeable fields are enclosed in square brackets. To select an item, use the arrow to the field you want. Then use the

(–) keys to select a value for that field.

MINUS

keys to move the cursor

(+) and

PLUS

Caution

The default BIOS settings may not be appropriate for your particular system. Make a note of the current

9 or using the Load Setup

settings before pressing

Defaults command of the Exit menu.

BIOS Setup & POST 7/3

Page 75

OWNER’S HANDBOOK

Getting help in BIOS Setup

You can at any time get general help about the control keys by pressing the

The help window on the right-hand side of each menu displays help text for the currently-selected field. It changes as you move the cursor from one field to another.

Power-on self-test

Recoverable POST errors

Whenever a recoverable (non-terminal) error occurs during POST, the BIOS displays an error message describing the problem (the most usual are described below). After some messages, you may be prompted to Press <F1> to resume, <F2> to enter Setup or just Press <F2> to enter Setup.

In general, you should respond to these errors as follows:

♦ Shut down the computer, wait 20 to 30

seconds, and then turn it on again to see if the problem is still reported.

1 key.

Reserving ISA legacy resources

To reserve interrupts and upper memory block (UMB) regions for ISA expansion cards, go to the Advanced menu, select PCI Configuration, then select PCI/PNP ISA IRQ Resource Exclusion or PCI/PNP ISA UMB Region Exclusion as required.

♦ Check that all external cables are securely

connected.

♦ Try running the BIOS Setup utility to

reconfigure the system. If the computer won’t start after you make changes in BIOS Setup, try restoring the original values.

♦ Open up the system unit and check that all

internal signal and power cables are securely connected.

♦ If the problem persists, contact your supplier or

authorised maintainer.

7/4 BIOS Setup & POST

Page 76

OWNER’S HANDBOOK

Diskette drive A error

Drive A: is present but fails the POST diskette tests. Check that the drive is defined correctly in BIOS Setup. If necessary, open the system unit and check that the drive’s signal (ribbon) cable is connected.

System/Extended/Shadow RAM failed at offset: xxxx Failing bits: yyyy

System, extended or shadow memory is not working, or not configured properly, at offset xxxx. The hexadecimal number yyyy is a map of the bits at the address which failed the memory test. Each “1” in the map represents a failed bit.

Fixed disk X failure or Fixed disk controller failure

A fixed (hard) disk drive is not working or not configured properly. Check that the drive is defined correctly in BIOS Setup. If necessary, open the system unit and check that the drive’s signal (ribbon) cable is connected.

Incorrect drive A type - run SETUP

The diskette drive is not correctly specified in BIOS Setup.

Invalid NVRAM media type

Problem with NVRAM (non-volatile randomaccess memory).

Keyboard error [nn] or Keyboard controller error

There is a problem with the keyboard or (less likely) the standard I/O controller on the motherboard. If POST discovers a stuck key it displays its scan code.

Operating system not found

An operating system cannot be located either on a system diskette or on a hard disk. Start BIOS Setup and check that the diskette and/or hard disk drives are specified correctly.

Parity check 1 xxxx or Parity check 2 xxxx

Parity error found on the system (1) or I/O (2) bus. The BIOS attempts to locate and display the address xxxx. If it cannot locate the address, it displays “????”.

BIOS Setup & POST 7/5

Page 77

OWNER’S HANDBOOK

Previous boot incomplete - default configuration used

The previous POST did not complete successfully. POST loads default values and offers to start BIOS Setup. If the failure was caused by incorrect values and they are not corrected, the next boot will likely fail too.

Real-time clock error

A service engineer may need to replace your motherboard.

System battery is dead - replace and run Setup

Replace the configuration battery as instructed in the Motherboard Features & Upgrades chapter, then use BIOS Setup to reconfigure the system.

System cache error - cache disabled

The RAM cache failed POST and BIOS disabled it.

System CMOS checksum bad - run Setup

System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS. Run BIOS Setup and reconfigure the system either by getting the default values or by making your own selections.

System timer error

A service engineer may need to replace your motherboard.

7/6 BIOS Setup & POST

Page 78

OWNER’S HANDBOOK

Code Beeps Test which failed

16 1-2-2-3 BIOS ROM checksum

20 1-3-1-1 DRAM refresh.

22 1-3-1-3 8742 keyboard controller

2C xxxx 1-3-4-1 RAM failure on address line xxxx.

2E xxxx 1-3-4-3 RAM failure on data bits xxxx of low byte of

memory bus.

30 xxxx 1-4-1-1 RAM failure on data bits xxxx of high byte of

memory bus.

46 2-1-2-3 Check ROM copyright notice

58 2-2-3-1 Test for unexpected interrupts

98 1-2 Video configuration failure, or option ROM

checksum failure. (One long, two short beeps.)

Terminal POST errors and beep codes

There are several POST routines that shut down the computer if they fail. If possible, the BIOS displays a two-digit hexadecimal code and/or sounds a sequence of beeps to identify the point at which POST failed. The most usual errors are listed in the table on the left.

The BIOS also issues one long tone followed by two short tones if the video system is faulty or if an external ROM module (including video ROM) fails.

Turn off the computer for 30 seconds and then try again. If the fault persists, make a note of the error code (if any) and call your supplier or authorised maintainer.

BIOS Setup & POST 7/7

Page 79

8 TROUBLESHOOTING

OWNER’S HANDBOOK

This chapter offers advice if you suspect a fault with your computer. It is concerned mainly with problems caused by the computer itself; problems more often arise from other sources such as your operating system or application software.

It must also be remembered that it can be very easy to leave off or dislodge cables inside the computer when fitting expansion cards, or upgrading the motherboard, or indeed anything that requires temporary removal of the system cover.

If you are apprehensive

Make a note of any of the symptoms, error codes, displayed messages and so on, then turn off the computer and unplug all power cords before consulting your supplier or maintenance provider.

If something goes wrong …

♦ Read this chapter. ♦ Review the rest of this manual to make sure you

are operating the computer correctly.

♦ Read the on-line Help. (For help with Easy

Manager, click the Mitsubishi Electric symbol in the Windows taskbar, then click Help.)

♦ Consult your Mitsubishi Electric PC supplier or

authorised maintainer.

Troubleshooting 8/1

Page 80

OWNER’S HANDBOOK

Problems when starting

If you suspect a blown fuse

In the United Kingdom, and some other countries, AC plugs contain fuses. If the fuse in the system’s unit AC plug blows when you turn on the computer, this may be caused by an AC power surge, but is more often a symptom of problems with the computer or its peripherals. Follow these steps:

1. Turn off the computer and unplug all power cords.

2. Unplug all peripherals.

3. Try to discover the cause of the fault. If none is apparent, replace the blown fuse with one of the same rating, reconnect the system unit power cord and try to turn it on again.

4. If the replacement fuse blows, call your supplier or maintenance provider.

If the replacement fuse does not blow, reconnect

a peripheral and turn it on. Repeat this step for each peripheral in turn.

Power-on self-test (POST)

Whenever the computer is turned on, the BIOS POST routine tests various hardware components, including memory, and compares the actual configuration of the computer with that recorded in CMOS memory.

If POST detects a hardware fault, one or more POST error codes or messages may be displayed. See the BIOS Setup & POST chapter for more information and advice.

Failure to boot

On completion of POST, the computer attempts to boot from a system diskette or bootable hard disk partition. The table below lists some of the messages that might appear during the boot sequence.

Non-system disk or disk error

The diskette drive contains a non-system diskette. Either remove it, or replace it with a

system diskette, and press

8/2 Troubleshooting

Page 81

OWNER’S HANDBOOK

Diskette read failure

The diskette is either not formatted or defective. Either remove it, or replace it with a system

diskette, and press

No boot sector on fixed disk

The hard disk has no active, bootable partition or is not formatted. If you are still using the original master hard disk drive supplied with your computer, this is a serious problem requiring the attention of a service engineer. If you have just replaced the master drive with an unformatted one, you must insert a system

1, and format the new hard disk

diskette, press

as described in your operating system manuals.

Fixed disk read failure

The hard disk may be defective. Press retry. Make sure the drive is correctly specified in the BIOS Setup utility. If the problem persists, insert a system diskette, press backup the data held on the defective hard disk and try reformatting it.

No boot device available

This may indicate a fault in the diskette or hard disk drive, or perhaps a damaged system diskette.

1 to retry, using another system diskette,

Press if possible. Make sure that a boot device is correctly specified with the BIOS Setup utility. If the problem persists contact your supplier or authorised maintainer.

1 to

Troubleshooting 8/3

Page 82

OWNER’S HANDBOOK

Common problems

If you encounter a problem with the computer the following sections suggest checks to make before you alert your supplier, authorised maintainer or support organisation. The checks listed cover the causes of common problems.

Connections

Check that all power and signal cables are securely connected to the correct port on the computer.

The keyboard and mouse are particularly easy to connect into the wrong port. Although the connectors are identical, the keyboard will not work if plugged into the mouse port, and vice versa.

Power

Check that the AC power supply is switched on, and that the fuse in the AC plug (if any) has not blown. If the system still does not seem to be getting power, obtain another power cord from your supplier.

Monitor

If there is no display check that the compuuter is not in an energy-saving mode (see the Welcome chapter), that the monitor is turned on, and the brightness and contrast controls are not too low.

If you have fitted a new video controller expansion card and subsequently encounter problems try disabling the on-board video controller by removing a jumper from the motherboard. See the Motherboard Features & Upgrades chapter for more information.

Mouse

If the screen cursor moves jerkily, the ball inside the mouse may require cleaning. Open the base of the mouse can clean the ball in water mixed with a small amount of mild detergent. Clean any grease and dust from the rollers inside the mouse with a cotton swab moistened with a solvent cleaner.

8/4 Troubleshooting

Page 83

OWNER’S HANDBOOK

Keyboard

If the keyboard response is poor, something may be trapped under the keys. Turn the keyboard upside down and shake it; do not probe between the keys as this may cause further damage.

If you spill something on the keyboard and it stops working:

♦ If the liquid is viscous, unplug the keyboard and

call your supplier or an authorised maintainer.

♦ If the liquid is thin and clear, try unplugging the

keyboard, turning it upside down to let the liquid drain out, and drying it for at least 24 hours at room temperature. If the keyboard still won’t work, call your supplier or an authorised maintainer.

Expansion cards

If an expansion card does not work, check that all internal cables are securely connected, that the card is configured correctly, that its use of system resources does not conflict another card or motherboard component, and that legacy resources (if it is an ISA card) are properly declared in the BIOS Setup utility. Check also that the software which drives or uses the card is correctly configured.

System BIOS

Use the BIOS Setup utility to ensure that the settings are correct. If the settings appear to have altered, there may be a fault with the CMOS battery which may need to be replaced (see the Motherboard Features & Upgrades chapter for instructions).

Troubleshooting 8/5

Page 84

OWNER’S HANDBOOK

Diskette drive

If you have problems accessing a diskette, check that it is inserted correctly, that it has been correctly formatted, that it is not write-protected, and that the diskette drive controller is enabled. Some application software also may not allow you to read or write to diskettes during certain other operations, or until you are about to exit the program.

CD-ROM drive

If you have problems accessing a CD, check that you have allowed a few seconds for the disk to spin up to full speed, that the disk is the correct way up in the drive (printed side upwards) and that it is a data CD. Remember that with a conventional CD-ROM drive you cannot write to a CD.

Hard disk drives

If you encounter problems accessing a hard disk drive, use the BIOS Setup utility to check that the drive is correctly specified, and that the drive’s controller is enabled. Check also that the disk has been correctly formatted, and that the permissions assigned by the operating system allow the intended access.

Overheating

If the system processor starts to overheat, it will automatically slow down or stop altogether. The computer is designed to operate in room temperatures between 10 and 35

C. If the room temperature is within these limits, turn off the computer, unplug all power cords and check that the power lead of the processor’s fan-sink (combined fan and heat sink) is properly connected to the motherboard. See the Motherboard Features & Upgrades chapter for help in identifying the right motherboard connector.

8/6 Troubleshooting

Page 85

EQUIPMENT LOG

Use this equipment log to record pertinent information about your PC.

In particular, you must record the 12-digit fall-back password of the Electronic Fingerprinting security feature (see the Quick Start Guide for more information).

Record the password in the space provided below, then store this page (or the whole manual) in a safe place.

Fall-back password:

Manufacturer’s data

You should record the model codes and serial numbers of the system components. You can update this with information about any expansion cards fitted.

Model Serial number

System unit

Monitor

Keyboard

Mouse

Page 86

Speakers

Sub-woofer

Expansion cards

Manufacturer Description Serial number

Model Serial number

Page 87

http://www.mitsubishi-computers.com

MITSUBISHI ELECTRIC PC DIVISION

Apricot Computers Limited 3500 Parkside Birmingham Business Park Birmingham B37 7YS United Kingdom

Tel +44 (0) 121 717 7171 Fax +44 (0) 121 717 7799

MITSUBISHI ELECTRIC PC DIVISION

Apricot Computers Limited Niederlassung Deutschland Gothaer Strasse 27 40880 Ratingen Germany

Tel +49 (0) 2102 4556 Fax +49 (0) 2102 455700

Trimond PCL5200, Mustang User Guide

QUICK START GUIDE

Using the Welcome Mat

The Power button

Registering Windows 95

Electronic Fingerprinting

Increasing the resolution and colours displayed by your monitor

Setting up Infotrade Internet and Fax

Easy Manager

The Remote Control

Safety and Regulatory Notices

Power Connection

Standards

Legalities

CONTENTS

1 WELCOME

Pictorial guide to the system unit

The Remote Control

General advice

2 DISKETTES and CDs

Diskette drive

CD-ROM drive

3 MULTIMEDIA

4 EXPANSION CARDS

Configuring the card

Installing the card

Reserving ISA legacy resources

Telling Windows about the new hardware

5 MOTHERBOARD FEATURES AND UPGRADES

Motherboard jumper settings

Motherboard IRQs, DMA channels and I/O port addresses

Adding more memory

Adding more video memory

Upgrading the processor

Replacing the configuration battery

6 HARD DISK UPGRADES

Configuring the drive

Installing the drive

Partitioning and formatting the drive

7 BIOS SETUP & POST

BIOS Setup

Power-on self-test

8 TROUBLESHOOTING

Problems when starting

Common problems

EQUIPMENT LOG
