Trimble SNRx10 Service Manual

Download

Page 1

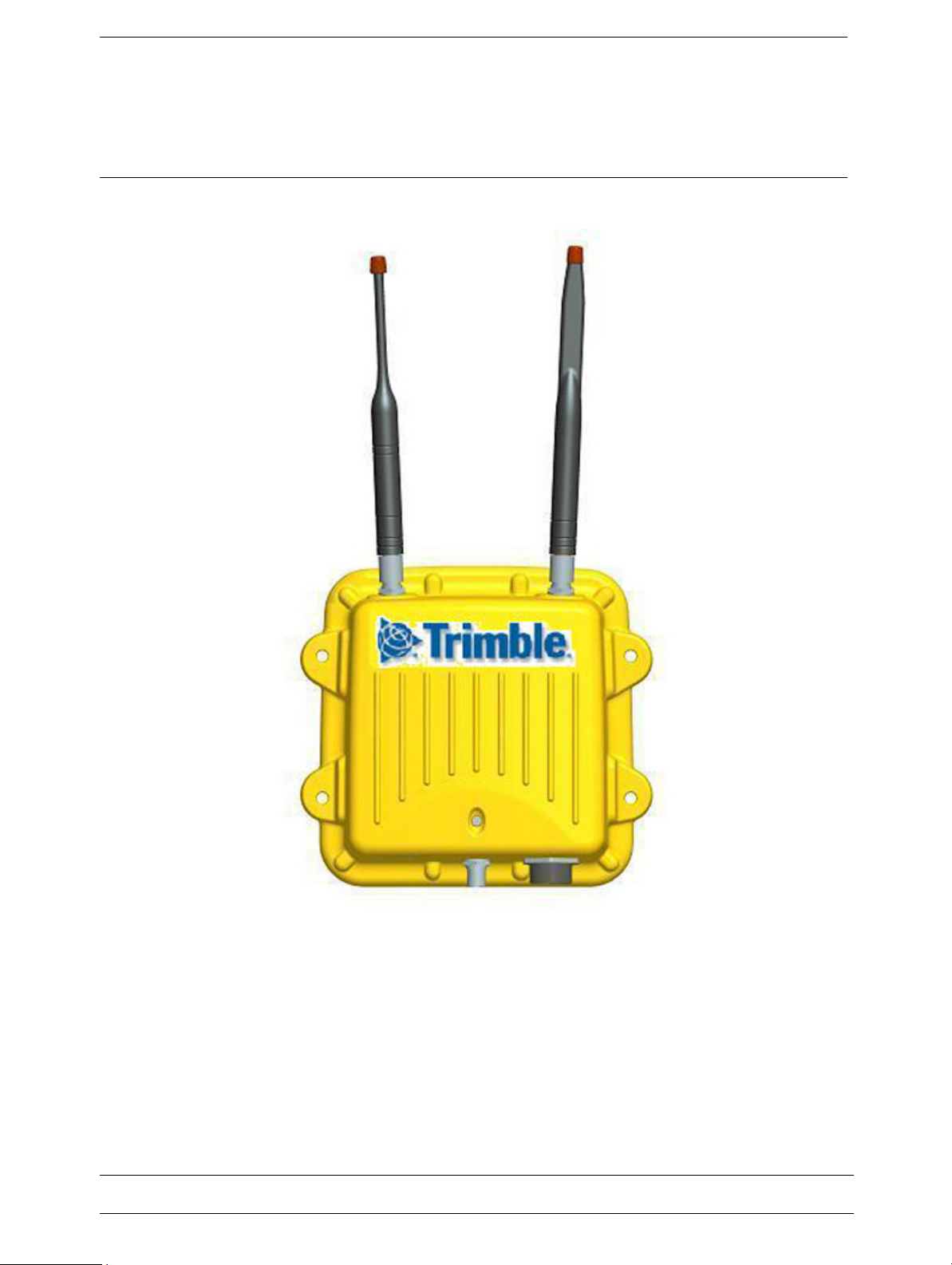

SNRx10

Radio Modem

Service Manual

June 2009 P/N 59646-SVC, Revision B

Page 2

Release Notice

This is the April 2009 release version 1 of the SNRx10 Radio Modem Series Service Manual, part number

59646-SVC. It applies to the Trimble S Series total station.

The following limited warranties give you specific legal rights. You may have others, which vary from state/jurisdiction to state/jurisdiction.

Contacting Trimble Support

If you cannot find the information you need in this service manual or in the Trimble Service Provider Reference Manual (P/N 022480-068), submit an inquiry to Trimble Support.

1. Go to www.trimble.com.

2. Click

Support at the top of the screen.

3. Scroll to the bottom of the page that appears, and click the

submit an inquiry link.

4. Complete the Request Technical Support form that appears.

5. Click the

Send button.

© 2004 - 2009, Trimble Navigation Limited. All rights reserved SiteNet, Compact Measurement Record, Autolock, Tracklight, Trimble and the Globe & Triangle logo are trademarks of Trimble Navigation Limited, registered in the United States Patent and Trademark Office and other countries.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Magdrive is a trademark.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Trimble Navigation Limited is under license.

All other trademarks are the property of their respective owners.

Disclaimer

Trimble Navigation Limited reserves the right to alter the specification of this product and/or the content of this service manual without advance notification.

The following limited warranties give you specific legal rights. You may have others, which vary from state/jurisdiction to state/jurisdiction.

Hardware Limited Warranty

Trimble Navigation Limited warrants that this hardware product (the “Product”) will perform substantially in accordance with published specifications and be substantially free of defects in material and workmanship for a period of one (1) year starting from the date of delivery. The warranty set forth in this paragraph shall not apply to software products.

Software License, Limited Warranty

This Trimble software product, whether provided as a stand-alone computer software product, built into hardware circuitry as firmware, embedded in flash memory, or stored on magnetic or other media, (the “Software”) is licensed and not sold, and its use is governed by the terms of the relevant End User License Agreement (“EULA”) included with the Software. In the absence of a separate EULA included with the Software providing different limited warranty terms, exclusions and limitations, the following terms and conditions shall apply. Trimble warrants that this Trimble Software product will substantially conform to Trimble’s applicable published specifications for the Software for a period of ninety (90) days, starting from the date of delivery.

Warranty Remedies

RIMBLE'S SOLE LIABILITY AND YOUR EXCLUSIVE REMEDY UNDER THE WARRANTIES SET FORTH ABOVE SHALL BE, AT TRIMBLE’S OPTION, TO REPAIR OR REPLACE ANY PRODUCT OR SOFTWARE THAT FAILS TO CONFORM TO SUCH WARRANTY ("NONCONFORMING

RODUCT") OR REFUND THE PURCHASE PRICE PAID BY YOU FOR ANY SUCH NONCONFORMING PRODUCT, UPON YOUR RETURN OF ANY NONCONFORMING

RODUCT TO TRIMBLE IN ACCORDANCE WITH

TRIMBLE’S STANDARD RETURN MATERIAL

AUTHORIZATION PROCEDURES.

Warranty Exclusions and Disclaimer

These warranties shall be applied only in the event and to the extent that (i) the Products and Software are properly and correctly installed, configured, interfaced, maintained, stored, and operated in accordance with Trimble's relevant operator's manual and specifications, and; (ii) the Products and Software are not modified or misused. The preceding warranties shall not apply to, and Trimble shall not be responsible for defects or performance problems resulting from (i) the combination or utilization of the Product or Software with hardware or software products, information, data, systems, interfaces or devices not made, supplied or specified by Trimble; (ii) the operation of the Product or Software under any specification other than, or in addition to, Trimble's standard specifications for its products; (iii) the unauthorized, installation, modification, or use of the Product or Software; (iv) damage caused by accident, lightning or other electrical discharge, fresh or salt water immersion or spray; or (v) normal wear and tear on consumable parts (e.g., batteries). Trimble does not warrant or guarantee the results obtained through the use of the Product.

THE WARRANTIES ABOVE STATE TRIMBLE'S ENTIRE LIABILITY, AND YOUR EXCLUSIVE REMEDIES, RELATING TO PERFORMANCE OF THE PRODUCTS AND SOFTWARE. EXCEPT AS OTHERWISE EXPRESSLY PROVIDED HEREIN, THE

P/N 59646-SVC, Revision B June 2009

Page 3

IS” AND WITHOUT EXPRESS OR IMPLIED WARRANTY OF ANY KIND BY EITHER TRIMBLE NAVIGATION LIMITED OR ANYONE WHO HAS BEEN INVOLVED IN ITS CREATION, PRODUCTION, INSTALLATION, OR DISTRIBUTION INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NONINFRINGEMENT. THE STATED EXPRESS WARRANTIES ARE IN LIEU OF ALL OBLIGATIONS OR LIABILITIES ON THE PART OF TRIMBLE ARISING OUT OF, OR IN CONNECTION WITH, ANY PRODUCTS OR SOFTWARE. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON DURATION OR THE EXCLUSION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

TRIMBLE NAVIGATION LIMITED IS NOT RESPONSIBLE FOR THE OPERATION OR FAILURE OF OPERATION OF GPS SATELLITES OR THE AVAILABILITY OF GPS SATELLITE SIGNALS.

Limitation of Liability

TRIMBLE’S ENTIRE LIABILITY UNDER ANY PROVISION HEREIN SHALL BE LIMITED TO THE AMOUNT PAID BY YOU FOR THE PRODUCT OR SOFTWARE LICENSE. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL TRIMBLE OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER UNDER ANY CIRCUMSTANCE OR LEGAL THEORY RELATING IN ANY WAY TO THE PRODUCTS, SOFTWARE AND ACCOMPANYING DOCUMENTATION AND MATERIALS,

(

INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS), REGARDLESS WHETHER TRIMBLE HAS BEEN ADVISED OF THE POSSIBILITY OF ANY SUCH LOSS AND REGARDLESS OF THE COURSE OF DEALING WHICH DEVELOPS OR HAS DEVELOPED BETWEEN YOU AND TRIMBLE. BECAUSE SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

NOTE: THE ABOVE LIMITED WARRANTY PROVISIONS MAY NOT APPLY TO PRODUCTS OR SOFTWARE PURCHASED IN THE EUROPEAN UNION. PLEASE CONTACT YOUR TRIMBLE DEALER FOR APPLICABLE WARRANTY INFORMATION.

Notices

USA

Class B Statement – Notice to Users. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and

the receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

Changes and modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission rules.The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC ID: HSW- 2410M

Europe

This product has been tested and found to comply with the requirements for a Class B device pursuant to European Council Directive 89/336/EEC on EMC, thereby satisfying the requirements for CE Marking and sale within the European Economic Area (EEA). Contains Infineon radio module ROK 104001. These requirements are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential or commercial environment.

Devices marked with Part Numbers 58050010, 58010001 and 58021007 is intended to be used in all European Community member states, except France.

Devices marked with Part Numbers 58052010, 58012001 and 58022007 is intended to be used only in France.

June 2009 P/N 59646-SVC, Revision B

Page 4

The compliance to the applicable requirements is detailed in the official Declaration of Conformity document, which is filed at Trimble.

Australia and New Zealand

This product conforms with the regulatory requirements of the Australian Communications Authority (ACA) EMC framework, thus satisfying the requirements for C-Tick Marking and sale within Australia and New Zealand.

Canada

This Class B digital apparatus complies with Canadian ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada.

This device has been designed to operate with an antenna having a maximum gain of 2.0 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Taiwan – Battery Recycling Requirements

The product contains a removable Lithium-ion battery. Taiwanese regulations require that waste batteries are recycled. Notice to Our European Union Customers

For product recycling instructions and more information, please go to www.trimble.com/ev.shtml.

Recycling in Europe: To recycle Trimble WEEE (Waste Electrical and Electronic Equipment, products that run on electrical power.), Call +31 497 53 24 30, and ask for the "WEEE Associate". Or, mail a request for recycling instructions to: Trimble Europe BV c/o Menlo Worldwide Logistics Meerheide 45 5521 DZ Ersel

Declaration od Conformity

To view the Declaration of Conformity for this product:

Go to the Partners website at

N 324

1. http://partners.trimble.com

2. In the panel on the left, click Construction.

3. Go to Info By Subject/Technical Support/ Documentation/Declaration of Conformity.

4. Select the relevant file. It is in Adobe Portable Document Format (PDF).

Alternatively, view the Declaration of Conformity in the front of the relevant user guide.

P/N 59646-SVC, Revision B June 2009

Page 5

Table of Contents

1 General Information and Safety . . . . . . . . . . . . . . . . . . . . . . . . . 1

Assumptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Updating this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Related documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Deciding what is serviceable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Removing and replacing parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Possible loss of warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrostatic Discharge (ESD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Setting up an ESD-protected workstation . . . . . . . . . . . . . . . . . . . . . . 4

The RoHS initiative . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

What RoHS means to Trimble . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

What RoHS means to Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3 Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Operational Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Different Radio Models Available . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Compatibility Table SNR910 Series . . . . . . . . . . . . . . . . . . . . . . . . . 16

Compatibility Table SNR410 Series . . . . . . . . . . . . . . . . . . . . . . . . . 16

Compatibility Table SNR2410 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Circuit Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

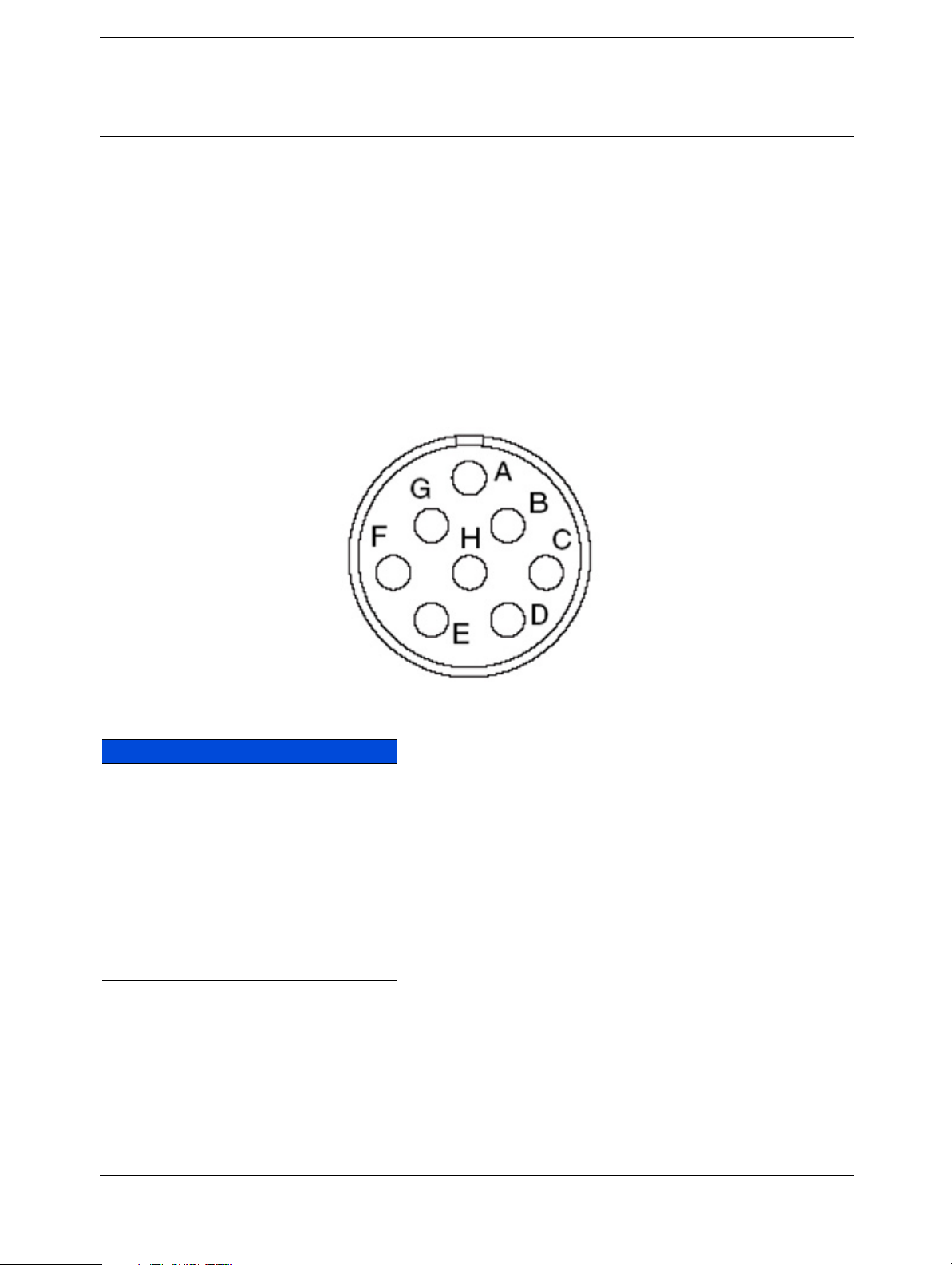

8-Pin Bendix Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Interfacing to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

GPS Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

General Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

LED Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

6 Maintenance and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Tools, Consumables and Service Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Disassembling the SNRx10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Remove the Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Remove the Power Supply Board . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Removing the Digital Board (Optional) . . . . . . . . . . . . . . . . . . . . . . . 35

Reassembling the SNRx10 radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

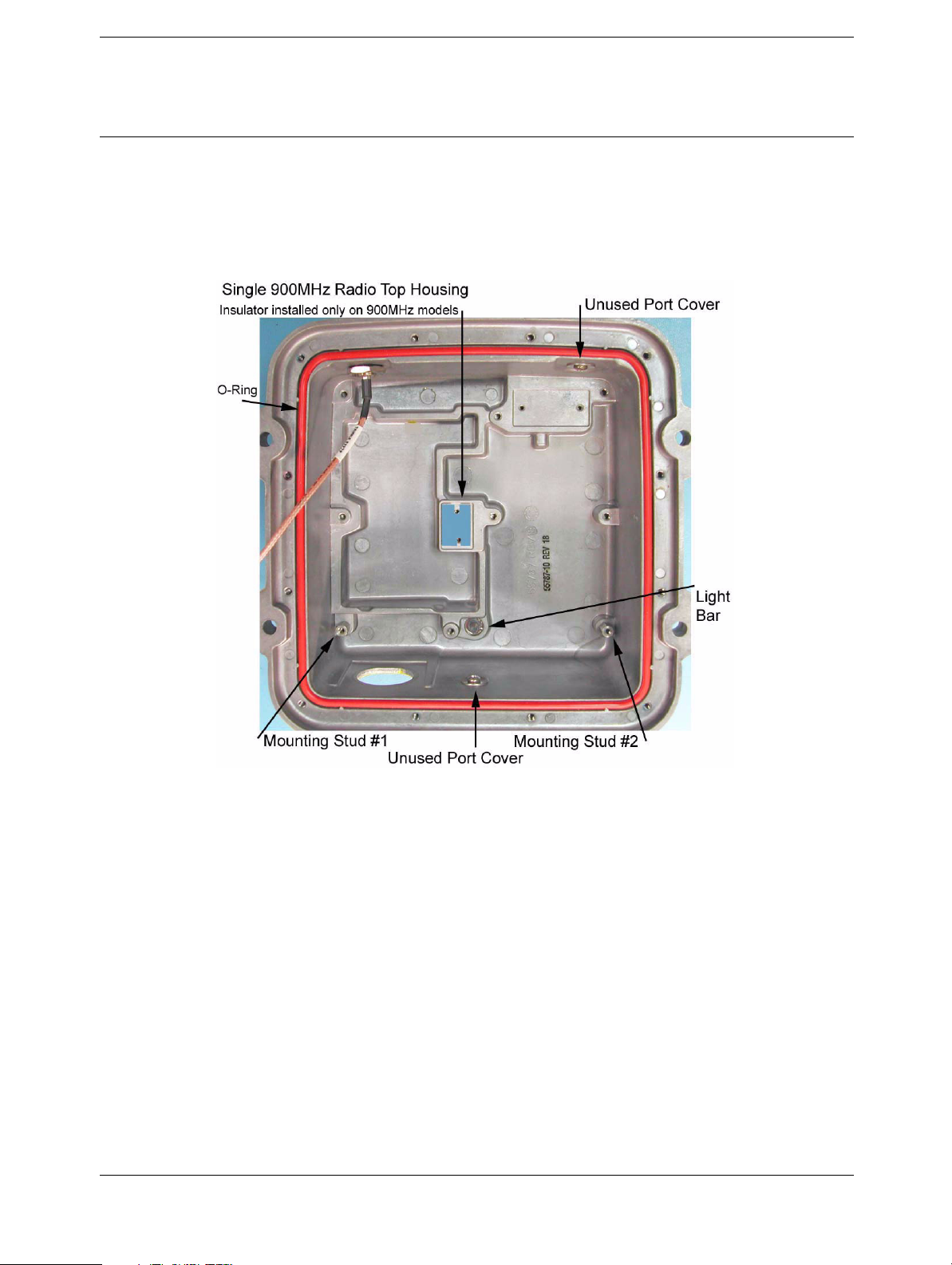

Housing Preparation Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

P/N 59646-SVC, Revision B SNRx10 Service Manual

Page 6

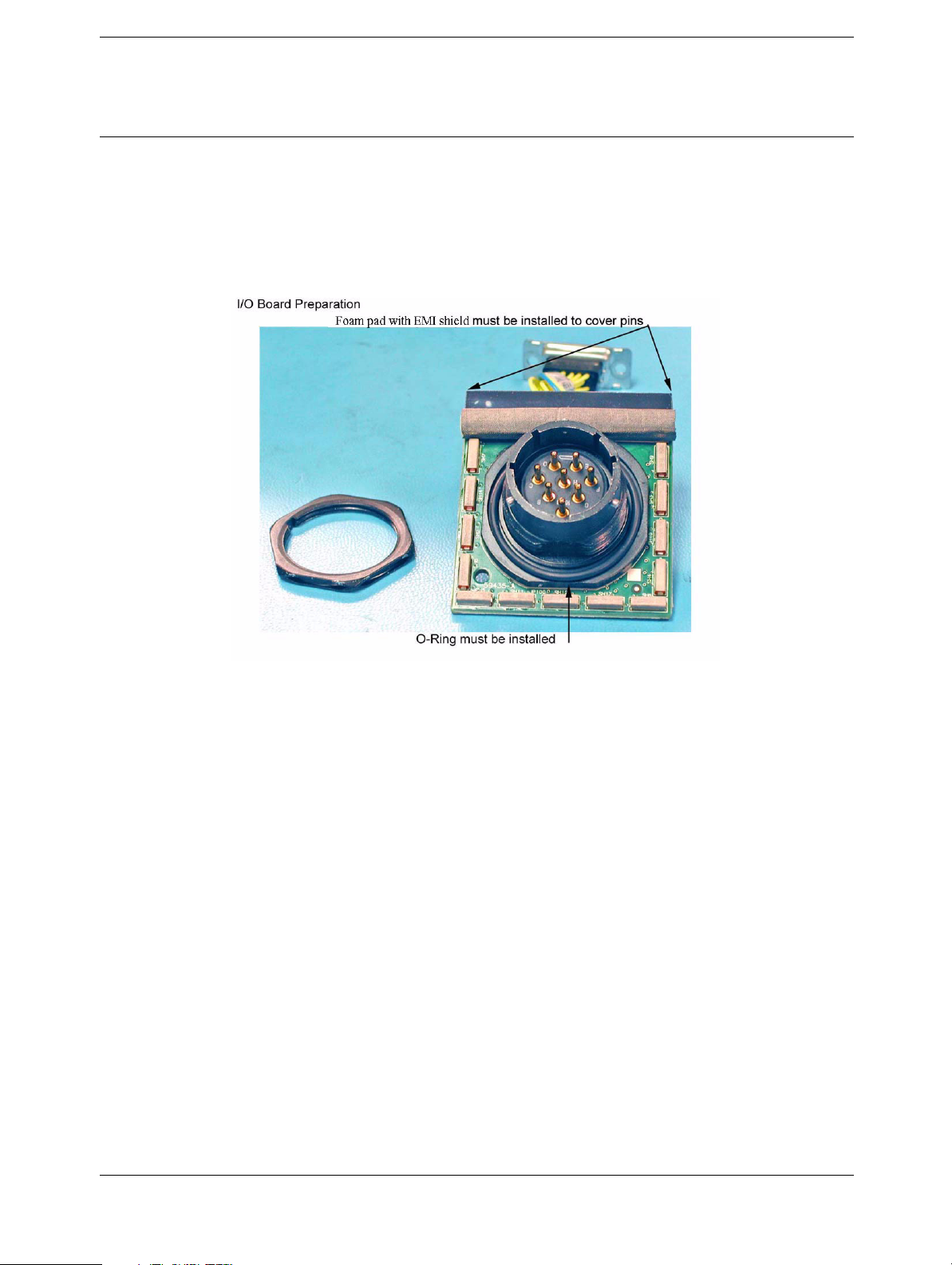

Installing the I/O Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

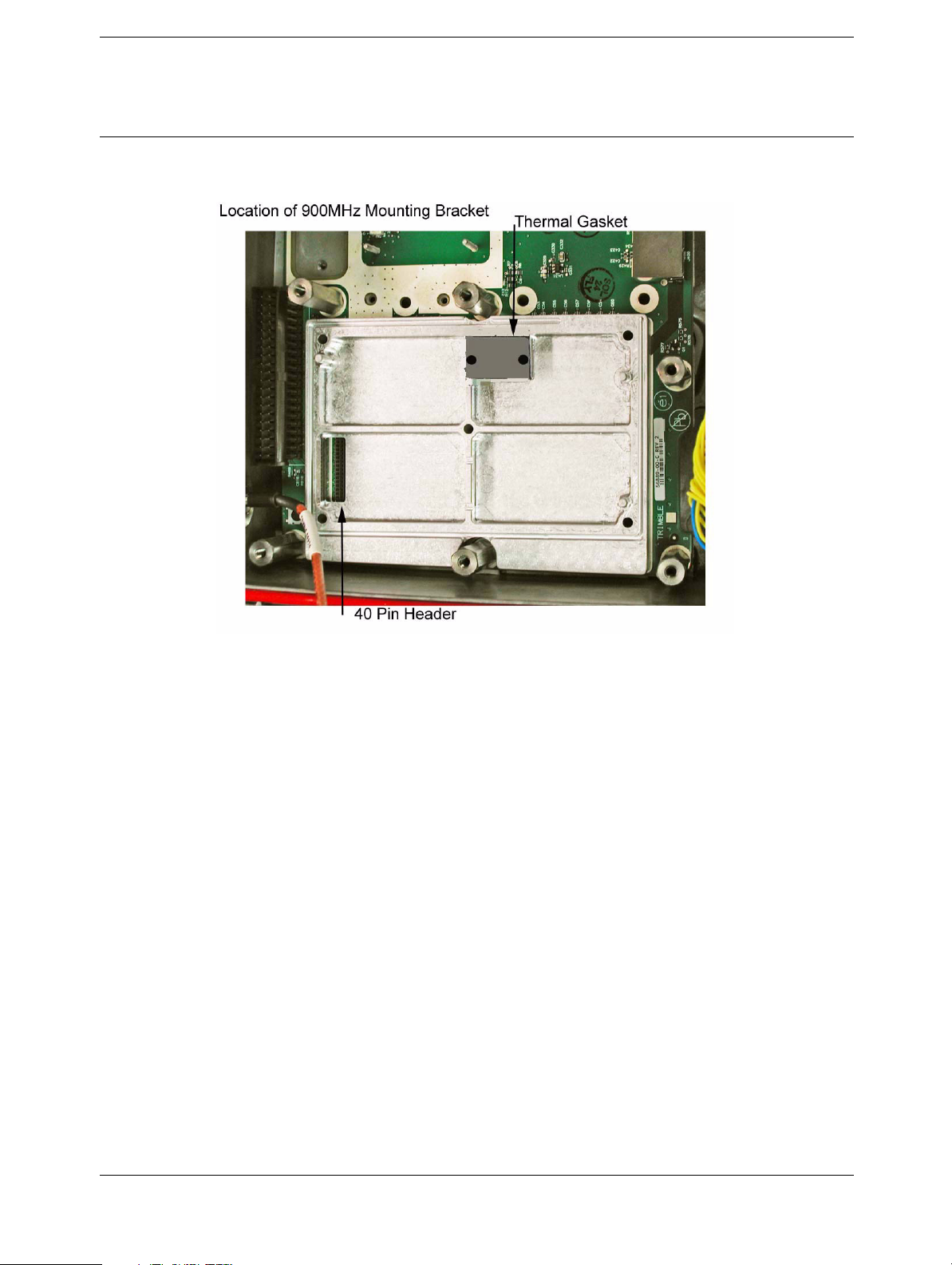

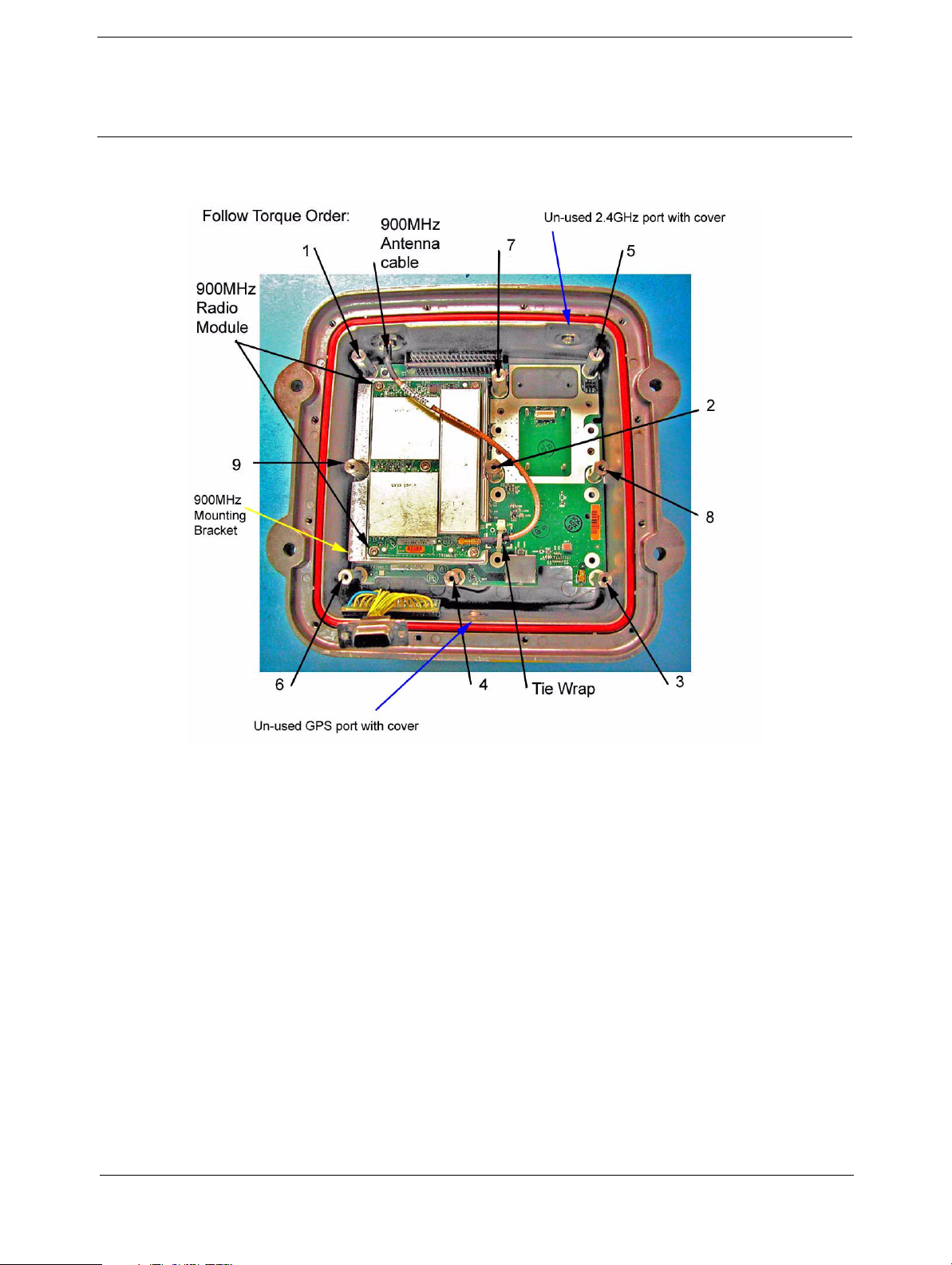

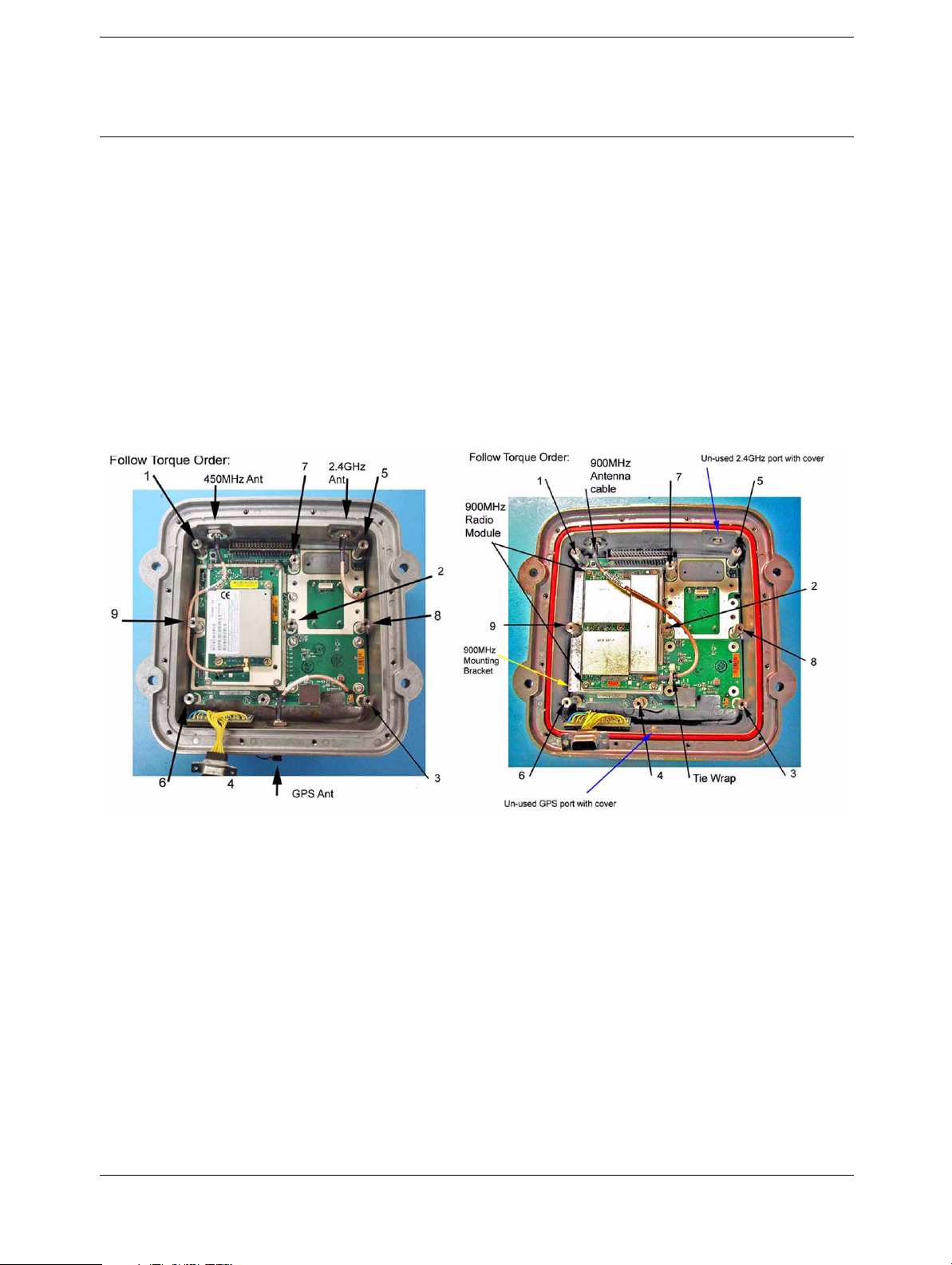

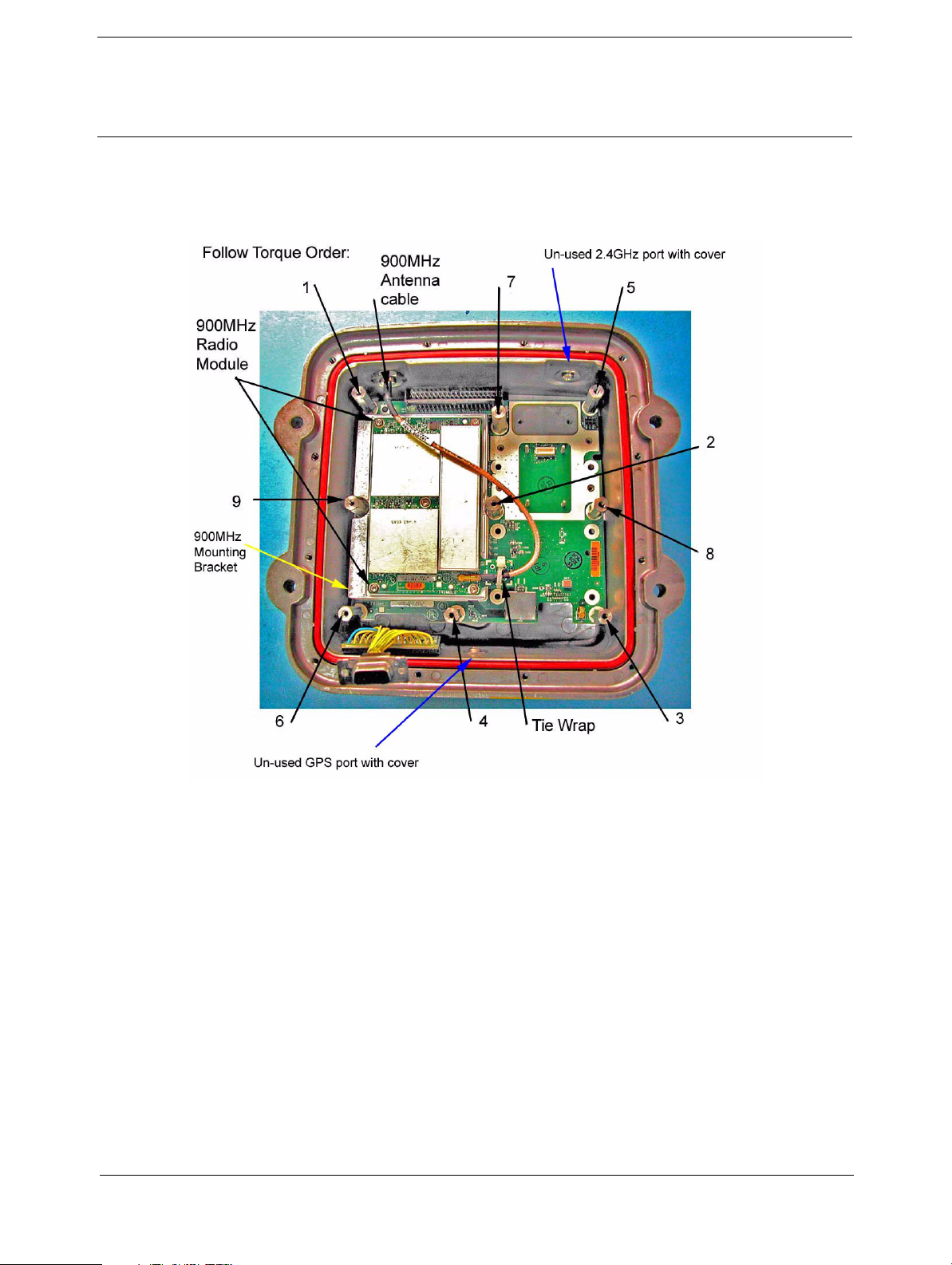

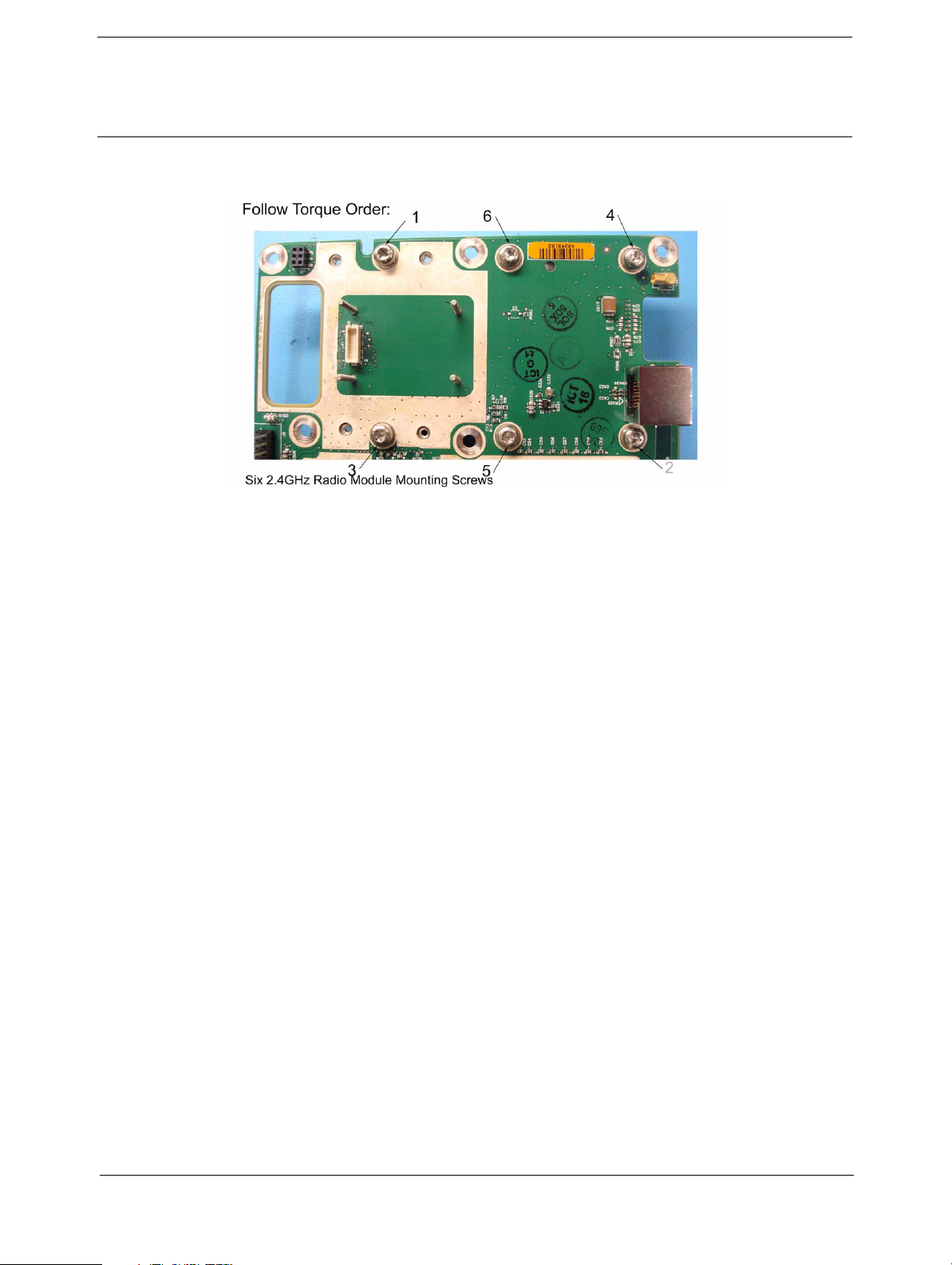

Installing the Radio Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Installing the Digital Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Installing the Power Supply Board . . . . . . . . . . . . . . . . . . . . . . . . . . 56

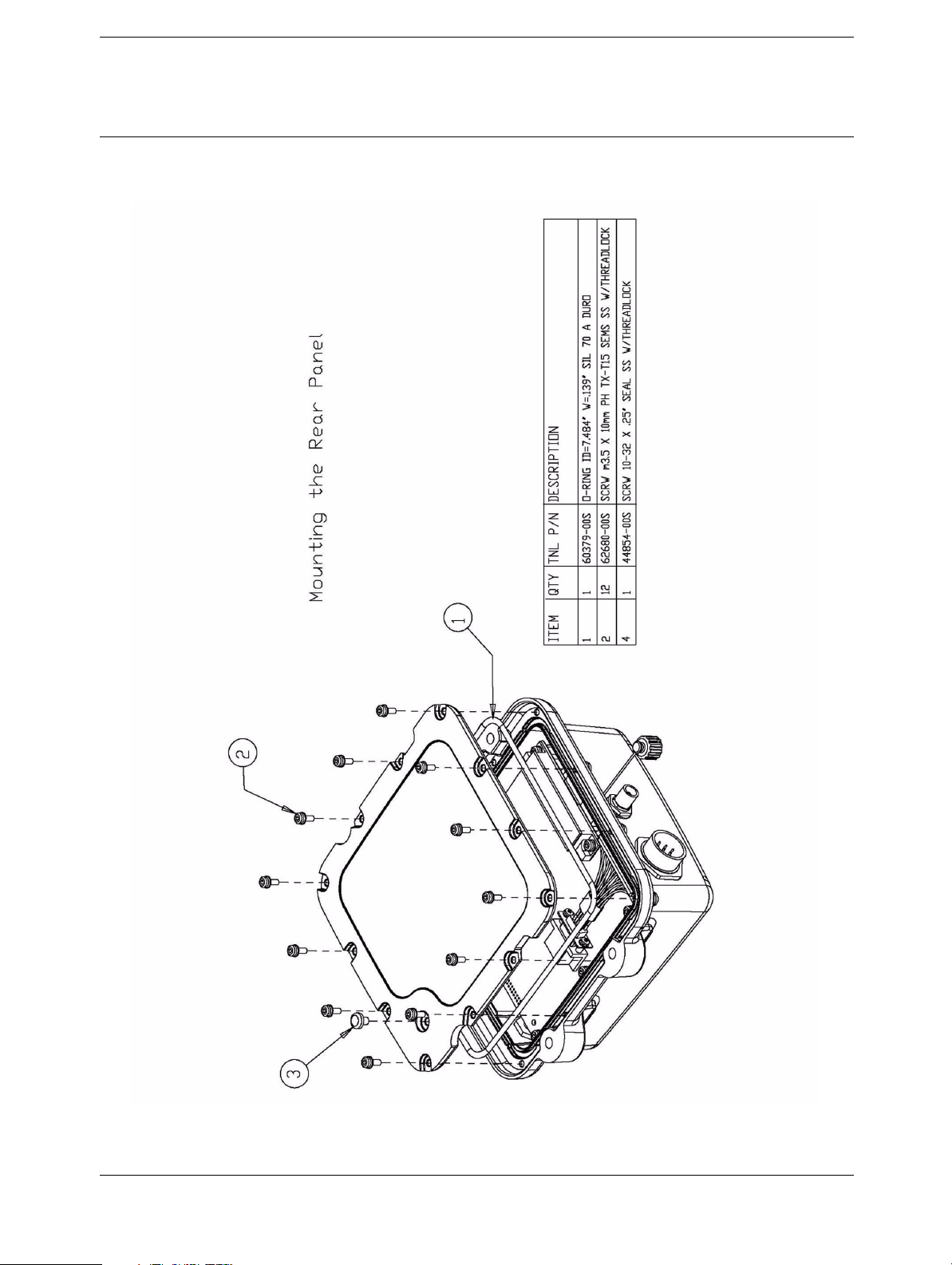

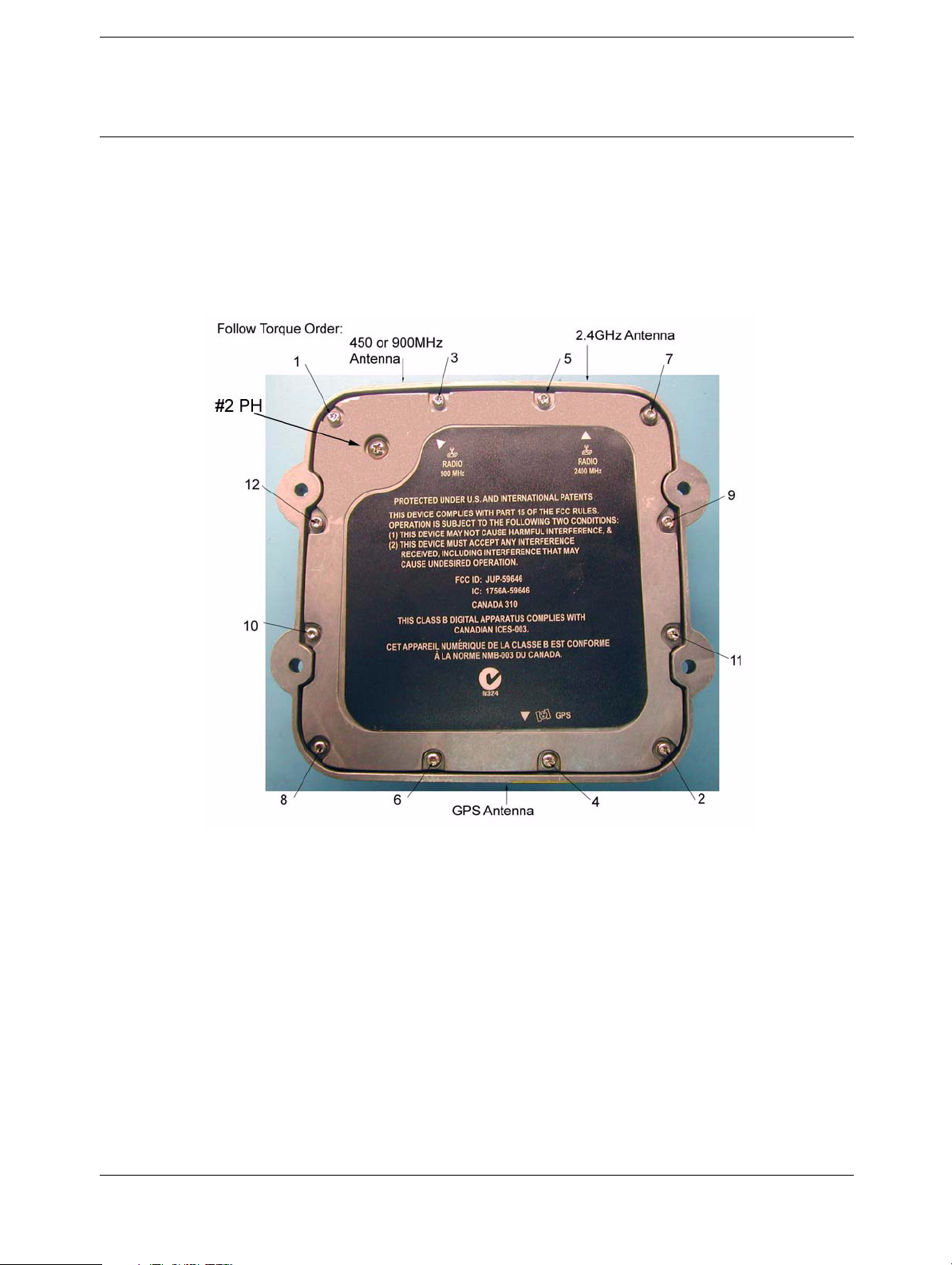

Mounting the Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Seal Integrity Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Table of Contents

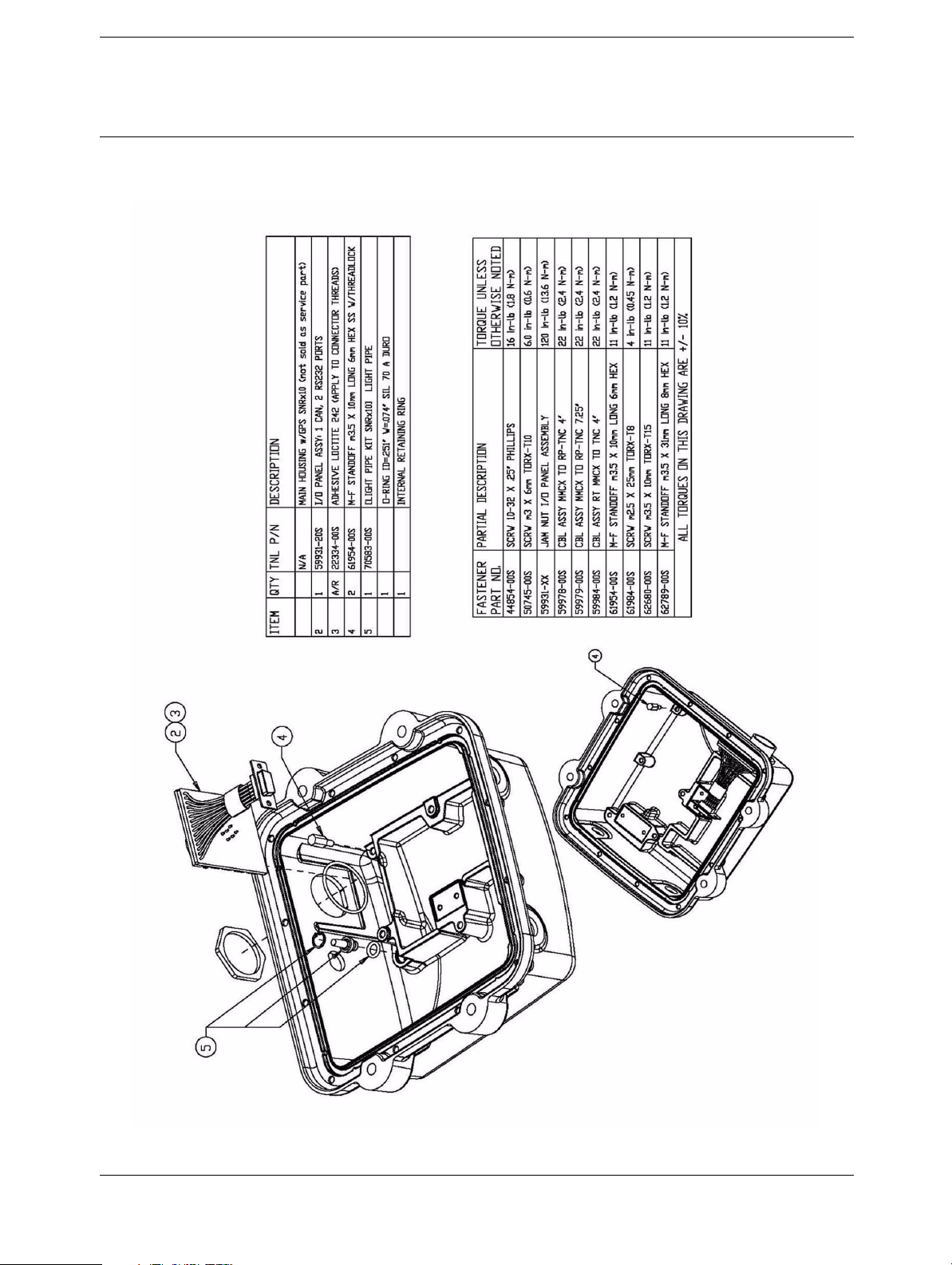

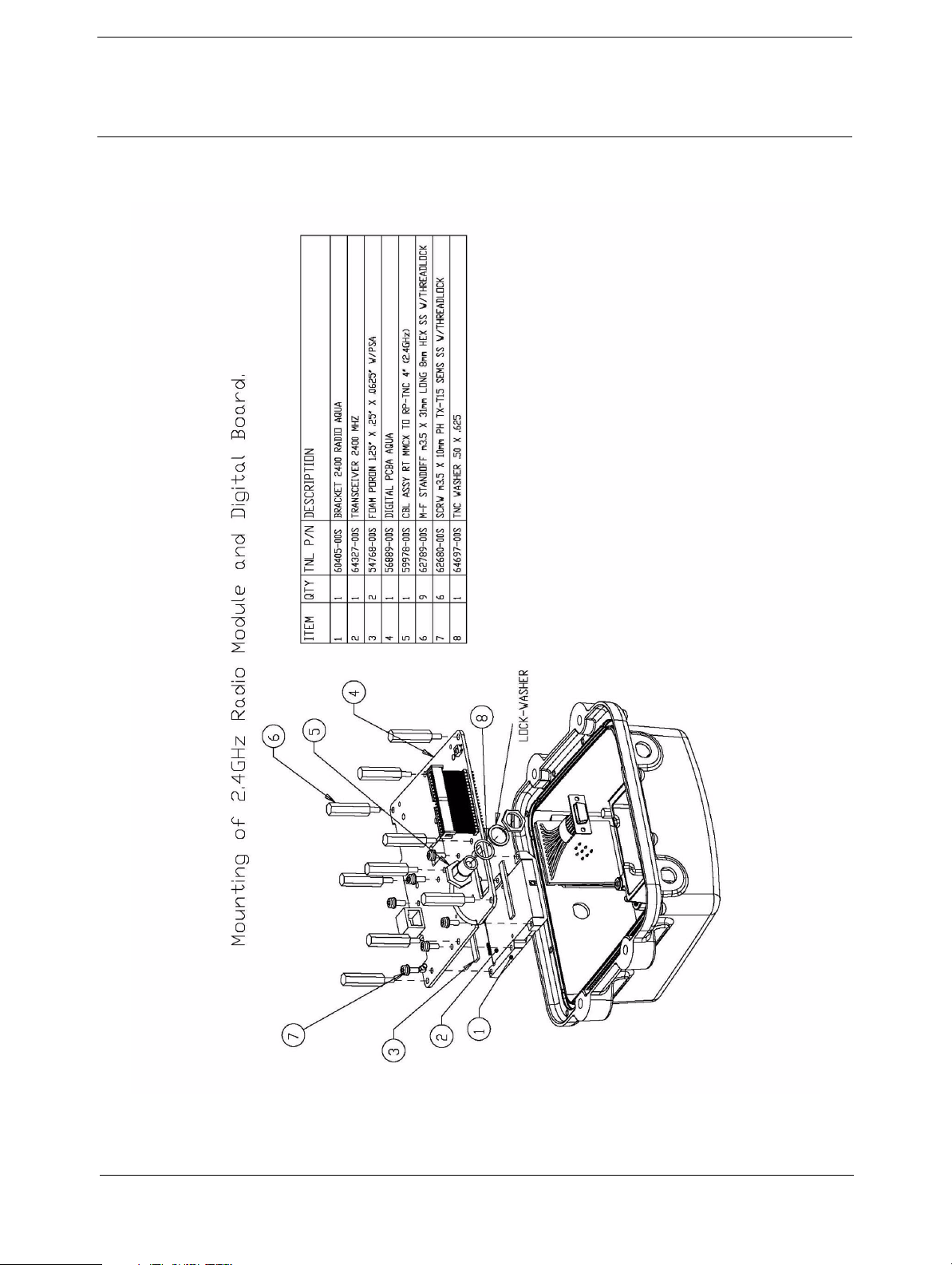

7 Assembly Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

8 Performance Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Test Cables and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Test Cables Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Test Equipment Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Test checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Physical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Seal Integrity Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Retrieve/Restore Radio Diagnostic Information . . . . . . . . . . . . . . . . . . . . . . . . . 75

Voltage and Current Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Preparing to Run the Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Running the Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

LED TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Serial Port Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

CAN Bus Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Switch Active Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Compare S/N and P/N to Housing Labels . . . . . . . . . . . . . . . . . . . . . . 80

GCS Test Box: Radio System Bench Test . . . . . . . . . . . . . . . . . . . . . . 81

Radio Throughput Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Radio Throughput Test: SNR2400 Base + SNR2410 Rover . . . . . . . . . . . . 83

9 Service Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Required Software and Test Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Software Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Test Cables Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

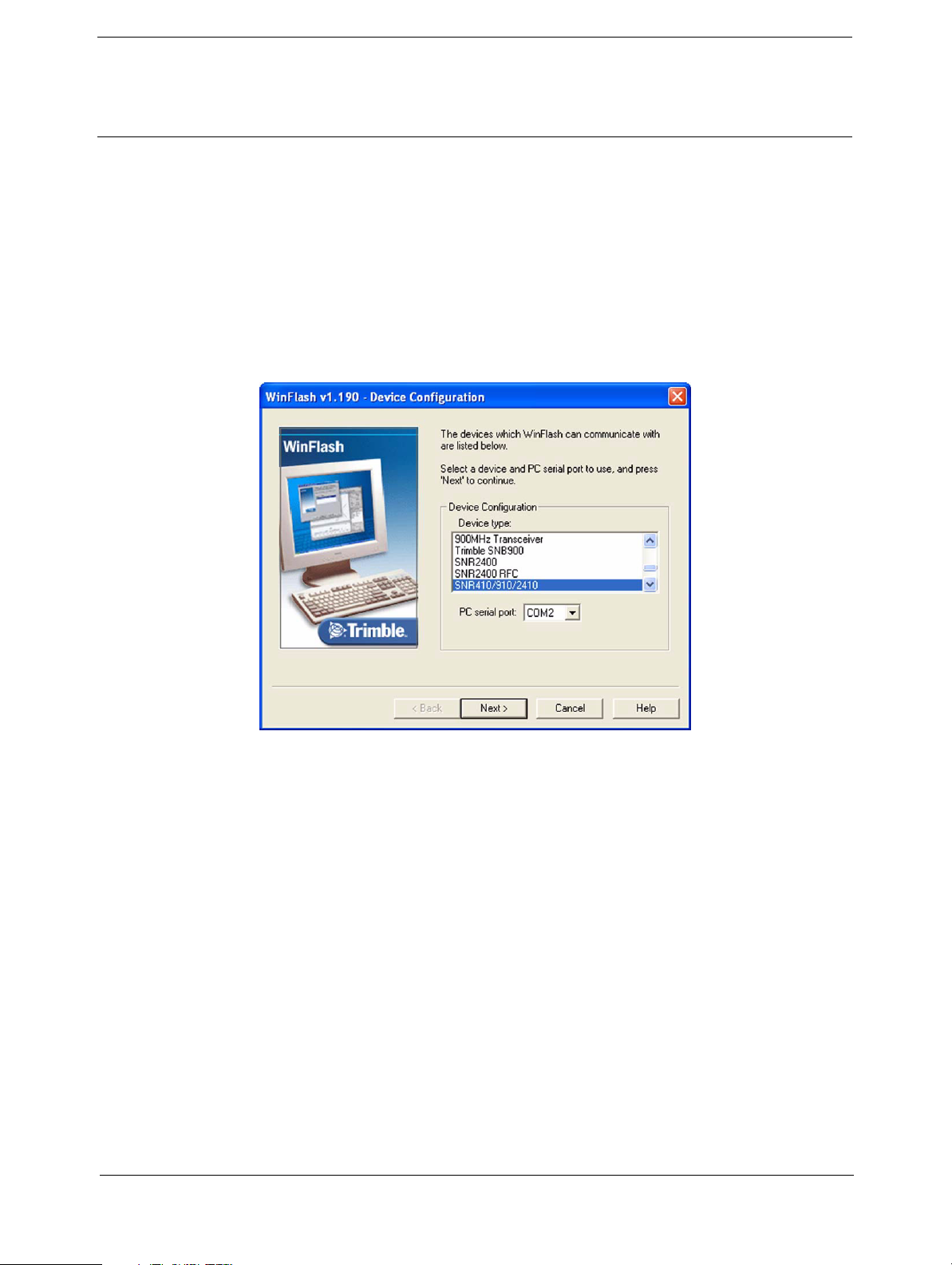

Using Winflash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

10Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Service parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Sales Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Consumable’s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

A Seal Integrity Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Additional Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Assembling the Trimble Seal Integrity Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Connecting the DMM to the test computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Hardware requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Installing the DMM506 software . . . . . . . . . . . . . . . . . . . . . . . . . . 110

SNRx10 Service Manual P/N 59646-SVC, Revision B

Page 7

Setting up communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Troubleshooting communication . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Testing vacuum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Acquisition screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Vacuum testing the Seal Integrity Test Kit . . . . . . . . . . . . . . . . . . . . . 113

Vacuum testing the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Testing pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Products and their seal integrity decay rates . . . . . . . . . . . . . . . . . . . . . . . . . . 121

B RoHS Service Bulletin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Restriction of hazardous substances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Description of issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

C Voltage Test Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Parts Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Building the Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Using the Voltage Test Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

D Extended Warranty/Checkout List . . . . . . . . . . . . . . . . . . . . . . . 133

Checkout List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Table of Contents

E Recommended Repair Times . . . . . . . . . . . . . . . . . . . . . . . . . . 135

P/N 59646-SVC, Revision B SNRx10 Service Manual

Page 8

Table of Contents

SNRx10 Service Manual P/N 59646-SVC, Revision B

Page 9

Manual Change Log

Manual version

Version Date Changes

B 6/10/2009 The manual part number in Rev A was wrong in some chapters,

changed all chapter footers to be 59646-SVC.

P/N 59646-SVC, Revision B Page 1 SNRx10 Service Manual

Page 10

SNRx10 Service Manual Page 2 P/N 59646-SVC, Revision B

Page 11

Chapter 1

General Information and Safety

1 General Information and Safety

Q Assumptions

Q Related documentation

Q Deciding what is serviceable

Q Removing and replacing parts

Q Possible loss of warranty

Q Warnings and Cautions

Q Electrostatic Discharge (ESD)

Q The RoHS initiative

This service manual is a reference guide for service personnel at authorized Trimble Service Center’s. It provides the information that you need in order to correctly service, maintain, and repair version

1.0 of the Trimble Manuals for the SNRx10.

SNRx10 ™ Radio Modem products. This manual supersedes all earlier Service

P/N 59646-SVC, Revision B Page 1 SNRx10

Service Manual

Page 12

Chapter 1

General Information and Safety

Assumptions

This service manual assumes that you have attended the Trimble service training course for the SNRx10. It also assumes that you have appropriate knowledge and understanding of:

• mechanical design, electronic theory, and general service procedures

• basic electronic test equipment such as volt-ohmmeters, oscilloscopes, generators, and power supplies

• the operating system and software for the computer system that you use

Updating this manual

Photographs, illustrations, specifications, and other details in this service manual were up to date when the manual was released in February 2009. Any changes that may be needed will be issued as supplementary or replacement pages, a Service Bulletin, other service information, or as a revised volume of the manual.

Tip – To keep a printed manual up to date, print any updates that you receive and insert them at the relevant point in the manual.

Deciding what is serviceable

Assembly drawings in this service manual show the relationship between all assemblies that are considered serviceable. Serviceable assemblies are defined as assemblies that can be repaired at Trimble Service Center level. The following factors determine whether an assembly is serviceable:

• The tools required to complete the repair.

• The time it takes to complete the work.

Service Manual

P/N 59646-SVC, Revision BPage 2SNRx10

Page 13

Chapter 1

General Information and Safety

Removing and replacing parts

Note – The torque specifications, adhesives, and procedures specified in this service manual are

essential to the proper operation of the SNRx10.

To disassemble and reassemble the what it is:

1. Consult the diagrams in Chapter 7, Assembly Drawings

2. Carefully follow the procedures described in Chapter 6, Maintenance and Repair. Apply the exact adhesives as specified, and torque only to the values indicated.

If you need to replace a part, see Chapter 10, Replacement Parts List.

Possible loss of warranty

If a Trimble product is not serviced properly, or if it is repaired by someone other than an authorized technician, the manufacturer’s warranty on the product can become void. To prevent loss of warranty coverage always comply exactly with the instructions in this service manual.

For Warranty terms and the Declaration of Conformity, please see the front of this service manual.

Warnings and Cautions

Note – An absence of specific alerts does not mean that there are no safety risks involved.

Always follow the instructions that accompany a Warning or Caution. The information they provide is intended to minimize the risk of personal injury and/or damage to the equipment. In particular, observe safety instructions that are presented in the following formats:

Warning – A Warning alerts you to a likely risk of serious injury to your person and/or damage to the equipment. A warning identifies the nature of the risk and the extent of possible injury and/or damage. It also describes how to protect yourself and/or the equipment from this risk. Warnings that appear in the text are repeated at the front of the service manual

Caution – A Caution alerts you to a possible risk of damage to the equipment and/or loss of data. A Caution describes how to protect the equipment and/or data from this risk

P/N 59646-SVC, Revision B Page 3 SNRx10

Service Manual

Page 14

Chapter 1

General Information and Safety

Electrostatic Discharge (ESD)

Note – For detailed information about ESD, refer to the Trimble Service Provider Reference Manual

(P/N 022480-068).

The SNRx10 is constructed in an ESD-protected environment. Most of the semiconductor devices in the instrument are susceptible to ESD damage.

ESD is generated in many ways.

For example, it can be the result of simple contact, the separation of materials, or the normal motion of people working with the device. Depending on the magnitude of the charge, device substrates can be punctured or destroyed by contact with, or by mere proximity to, a static charge. The result can be immediate destruction, early failure of the device, or degradation of device performance.

To prevent static damage or destruction:

• Take adequate precautions when you handle or service equipment that contains staticsensitive devices.

• Only attempt to service the circuitry in a static-sensitive device if you are thoroughly familiar with industry-accepted techniques for handling such devices.

• Always take adequate measures to prevent the buildup of static charge on work surfaces and on persons handling the radio.

Setting up an ESD-protected workstation

1. Unroll the ESD field service workstation kit and place it, pocket side up, on the workbench.

Service Manual

P/N 59646-SVC, Revision BPage 4SNRx10

Page 15

Chapter 1

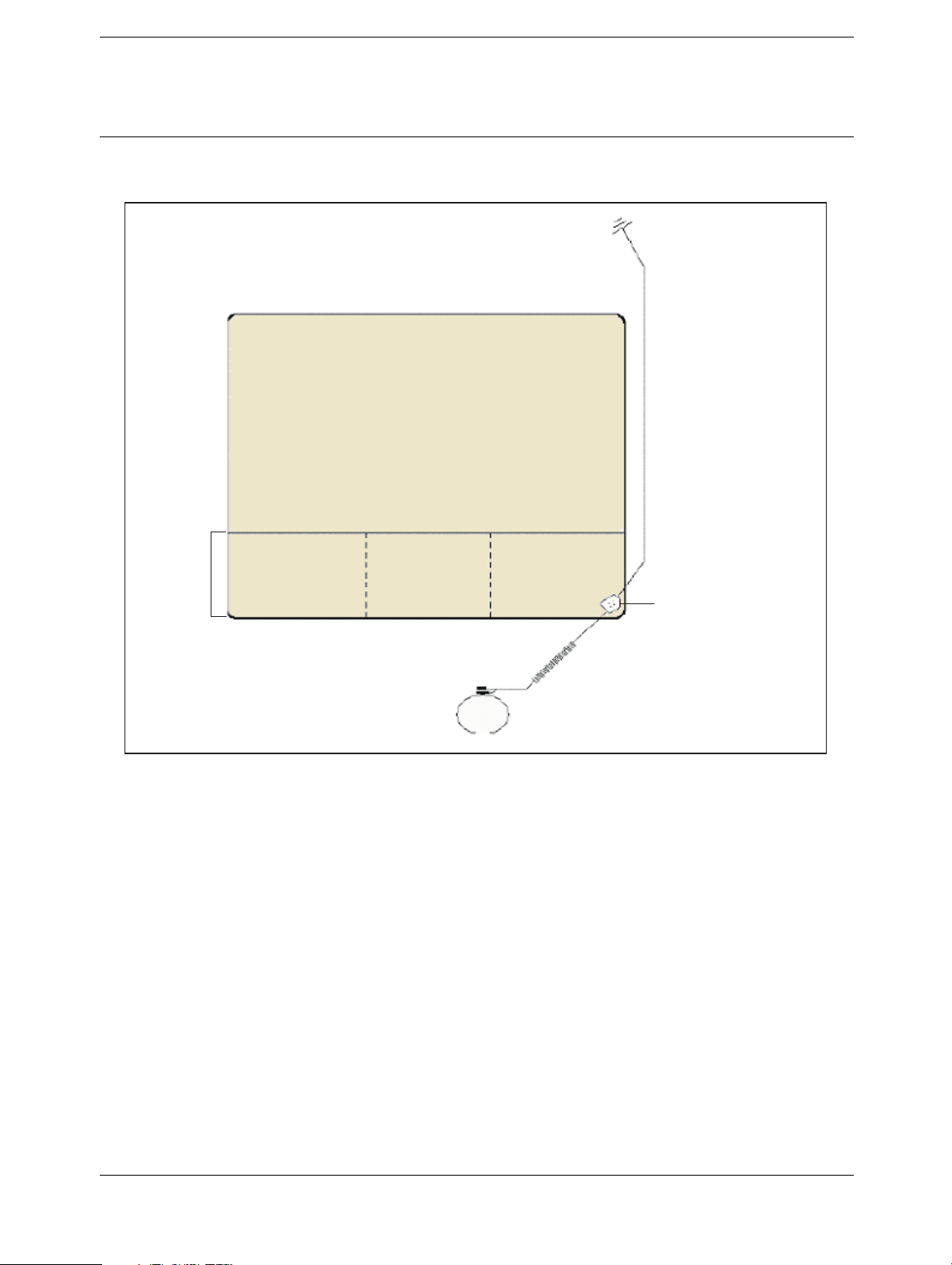

Fig. 1-1 ESD workstation setup

General Information and Safety

Electrical earth ground connection

Mat grounding cable

Dissipative mat

Pockets

Snap-on common point ground connection

Wrist strap cable

Wrist strap

2. Remove the mat grounding cable from the mat pocket.

3. Snap the end of the mat grounding cable onto the common point ground connection on the mat.

4. Connect the other end of the cable to an electrical earth ground, such as a third wire utility ground, a cold water pipe, or a ground rod.

5. Use the common point ground connection to plug the wrist strap cable into the mat grounding cable.

Note – Put on the wrist strap. The wrist strap must fit snugly. To adjust it, unclasp the buckle latch,

adjust the size, and re-clasp the latch.

It is now safe to handle components and printed circuit assemblies on the mat.

Note – Always repackage all ESD-sensitive components before you disconnect the wrist strap.

P/N 59646-SVC, Revision B Page 5 SNRx10

Service Manual

Page 16

Chapter 1

General Information and Safety

The RoHS initiative

In July 2006, the European Union restricted the hazardous material content within new products being sold. Primarily this was an effort to reduce lead within products. Many parts within electronic devices contain lead, such as solder on PC boards and lead inside IC's. After the RoHS implementation, manufacturers were required to use alternate materials and soldering methods. Products that were sold before the July 2006 date, have been grand-fathered in, and are not subject to RoHS. Service parts specifically for these products containing lead are permitted as well. Only newly created products intended for sale after the July 2006 date are subject to RoHS.

What RoHS means to Trimble

Trimble has made the commitment to create all new GPS products as lead free and certified RoHS compliant. This includes older products which have been selling prior to RoHS. You will start to see many of the older products converted into RoHS compliant versions. Even though these are older products and it is not required, it is an extremely worthwhile endeavour.

What RoHS means to Service

There are several very complex issues around the RoHS initiative. The Service Provider must understand and follow these rules:

• Only lead free solder may be used on RoHS compliant products. Most GPS Service Providers have been using Silver solder for several years (AG/SN). Make sure you ONLY use Silver solder for ANY GPS products.

• Parts meant for non RoHS products must NOT be used on RoHS products. Use only those parts shown in the part list for a specific product.

• Parts meant for a RoHS product may not be compatible with a non RoHS product. Use only those parts shown in the part list for a specific product. If the part works in both products, the part list will state that.

• Radio doors, radio boards, and Bluetooth pass type approval. Some parts may not be used in other products due to non compliance with Country regulations. Use only those parts shown in the part list for a specific product.

• Within the part lists, the general rule to identify whether a product is RoHS compliant or not is to look at the short name. For instance, NetRS and R8GNSS are non-compliant receivers. NetRS and R8GNSSR are RoHS compliant (shown by the last letter R).

• It is highly recommended that Service Providers have separate inventory location for lead and lead free parts. This might mean a different cabinet or shelf. It is also highly recommended to have RoHS labels available to attach to the individual part. Green dots are a good solution and will help to quickly identify RoHS compliant parts.

• RoHS service parts will be a phase in process for non RoHS products. Use the original part defined for the non RoHS product first. Once these parts are consumed, the new RoHS part

boards pose special problems as they must also

Service Manual

P/N 59646-SVC, Revision BPage 6SNRx10

Page 17

Chapter 1

will phase in as long as it is FULLY backwards compatible. The old part numbers will then be inactivated. Please, ALWAYS refer to the latest part list.

• RoHS compliant PC boards may be identified by the

• In mid 2007, China will launch its own RoHS initiative. The products that have been certified as RoHS compliant will comply with specific country regulations.

• Service parts are defined as:

– SPR (Service Part Red) which is allowed in the EU to service an existing product

– SPG (Service Part Green) which conforms to RoHS.

– Those parts used within a product to repair or upgrade a unit’s performance. External

cables, accessories, and so on are not considered service parts.

The SNRx10 Radio Modem was designed to be RoHS compliant. The service parts list is located in

Sales Parts, page 105.

General Information and Safety

PB symbol.

P/N 59646-SVC, Revision B Page 7 SNRx10

Service Manual

Page 18

Chapter 1

General Information and Safety

Service Manual

P/N 59646-SVC, Revision BPage 8SNRx10

Page 19

Chapter 2

2 Specifications

This Chapter has been intentionally left blank.

Specifications

P/N 59646-SVC, Revision B Page 9 SNRx10

Service Manual

Page 20

Chapter 2

Specifications

Service Manual

P/N 59646-SVC, Revision BPage 10SNRx10

Page 21

Chapter 3

3 Theory of Operation

Q Operational Overview

Q Mechanical

Q Electrical

Operational Overview

The SNRx10 radio modem series completes the system component modernization of the GCS900 Grade Control System. It is designed to be backward compatible with SNR900, SNR2400 and SN450 radios. It is compatible with both the V6.xx and V10.xx GCS900 Operating Systems found on the Display Controller within the customers system. This radio series uses the traditional 8-Pin Bendix connector which plugs into the existing radio cable in the wiring harness. The radio communicates in the system harness via the CAN bus protocol.

The SNRx10 radio modem series is designed so both the 900MHz and 450MhZ models can receive CMR packets from a nearby Base. The 2.4GHz radio is used for communication with our Advanced Tracking Sensor products.

Theory of Operation

P/N 59646-SVC, Revision B Page 11 SNRx10

Service Manual

Page 22

Chapter 3

Theory of Operation

Different Radio Models Available

Due to the demand for different UHF radio requirements within different countries, Trimble has designed the SNRx10 radio modem series to be available with either one single radio frequency band or with a dual radio band option, all within the same housing

At the time of this release, the following models are available:

Note – Country Codes on the SNR series are set when the final part number of the unit is set during

manufacturing. Since this is a receive (RX) only product the country code on the SNR does not need to be matched to the country code of the Base. The SNR is designed to accept incoming signal from any country code. Therefor you cannot change the country code in the field and there is simply no reason to do so.

SNR2410 - Single 2.4GHz radio

Note – There is NO upgrade path to add a 450MHz or 900MHz radio after time of purchase.

Customer must order a dual band radio at time of purchase.

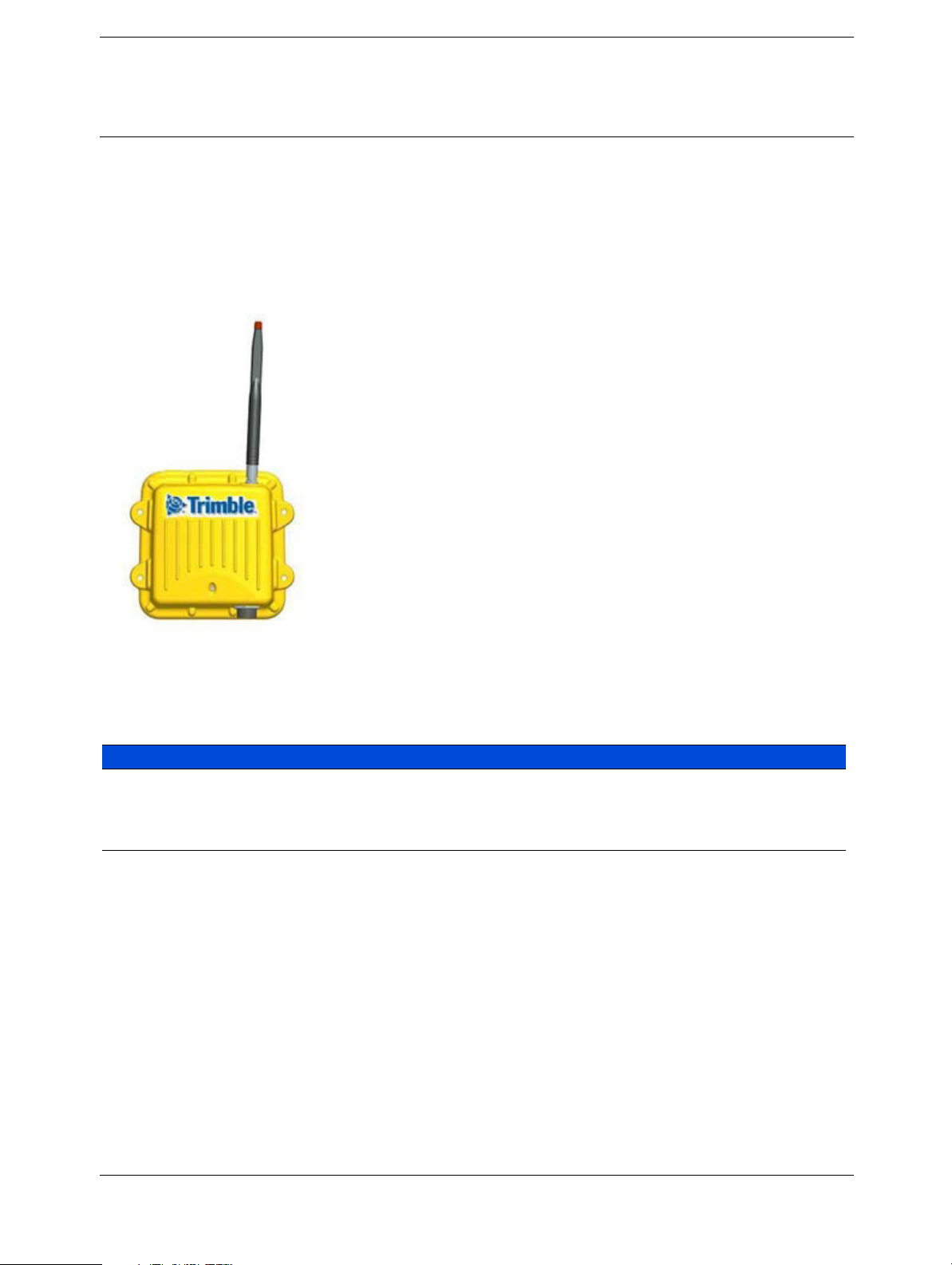

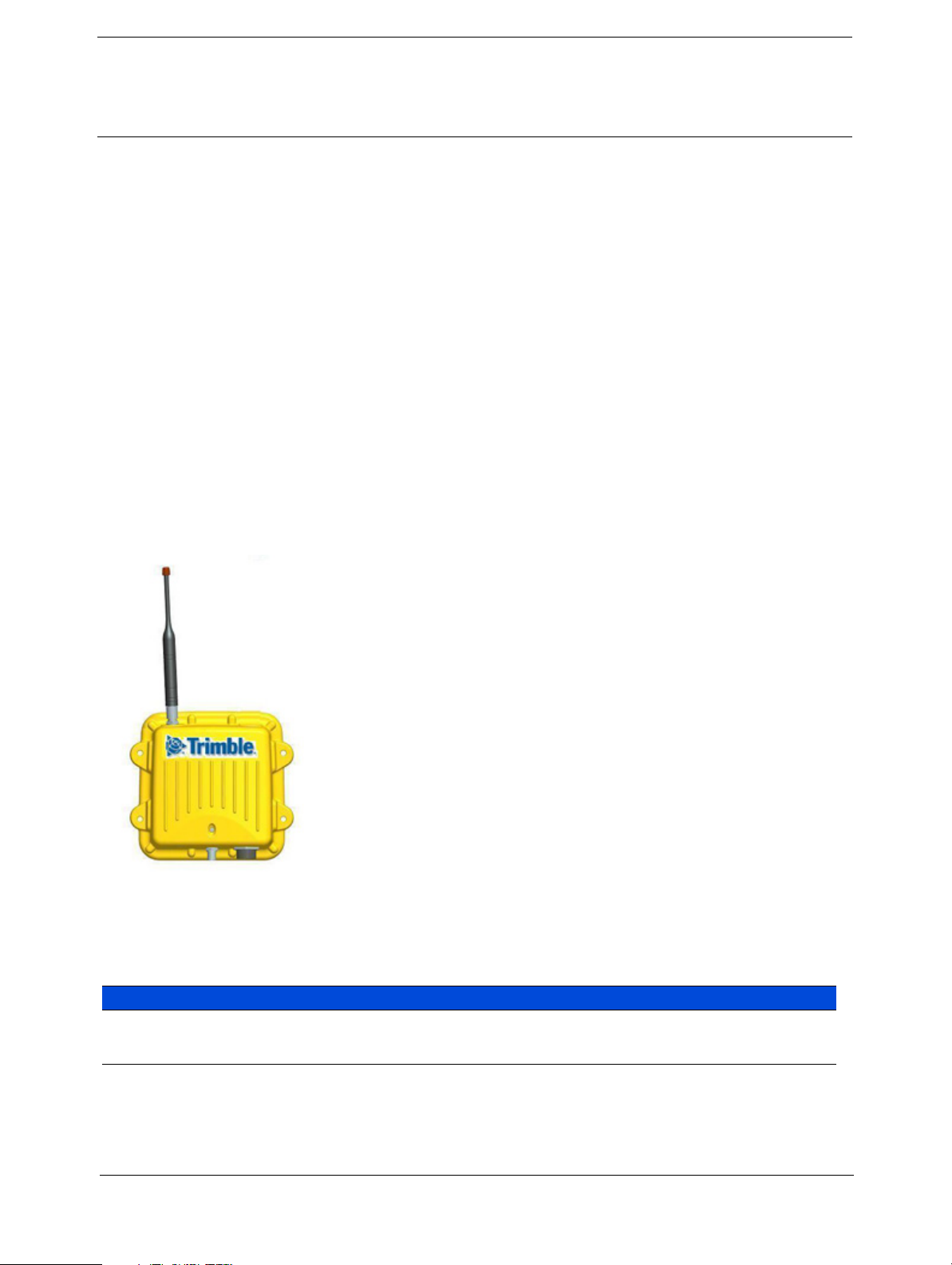

Fig. 3-1 2.4GHz Radio Only

Kit Level P/N P/N on Radio Description

82410-10 63130-10 SNR2410, 2.4GHz,World-wide Except France

82410-24 63130-24 SNR2410, 2.4GHz, France Only

P/N 59646-SVC, Revision BPage 12SNRx10

Service Manual

Page 23

Chapter 3

SNR910 - Single 900MHz Radio

Note – There is NO upgrade path to add a 2.4GHz radio to single band 900MHz model after purchase.

Customer must buy the dual 900MHz/2.4GHz model at time of purchase. For dual band versions see SNR910 and 2.4GHz - Dual Band, page 14

Fig. 3-2 900MHz Radio Only

Theory of Operation

Kit Level P/N P/N on Radio Description

80910-10 63128-10 SNR910 900MHZ Only, US/Canada

80910-20 63128-20 SNR910, 900MHZ Only, Australia/New Zealand

80910-30 63128-30 SNR910, 900MHZ Only, Australia Only

P/N 59646-SVC, Revision B Page 13 SNRx10

Service Manual

Page 24

Chapter 3

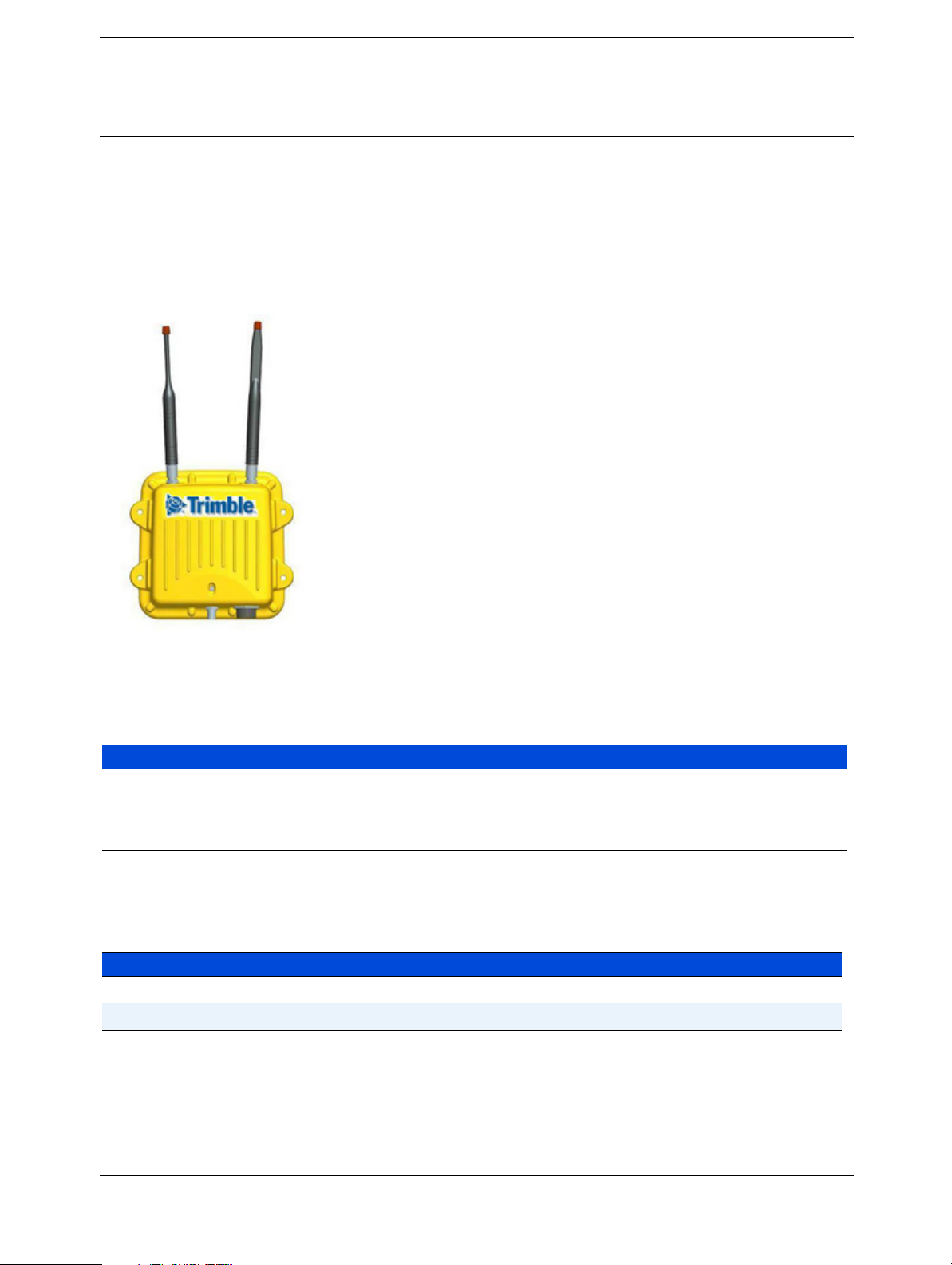

SNR910 and 2.4GHz - Dual Band

Note – Unlike the 450MHz series radios the 900MHz radio series does not come with the 2.4GHz

radio preloaded so it can be turned on by an option code later. The customer must order a 900MHz/

2.4GHz dual band radio at time of purchase.

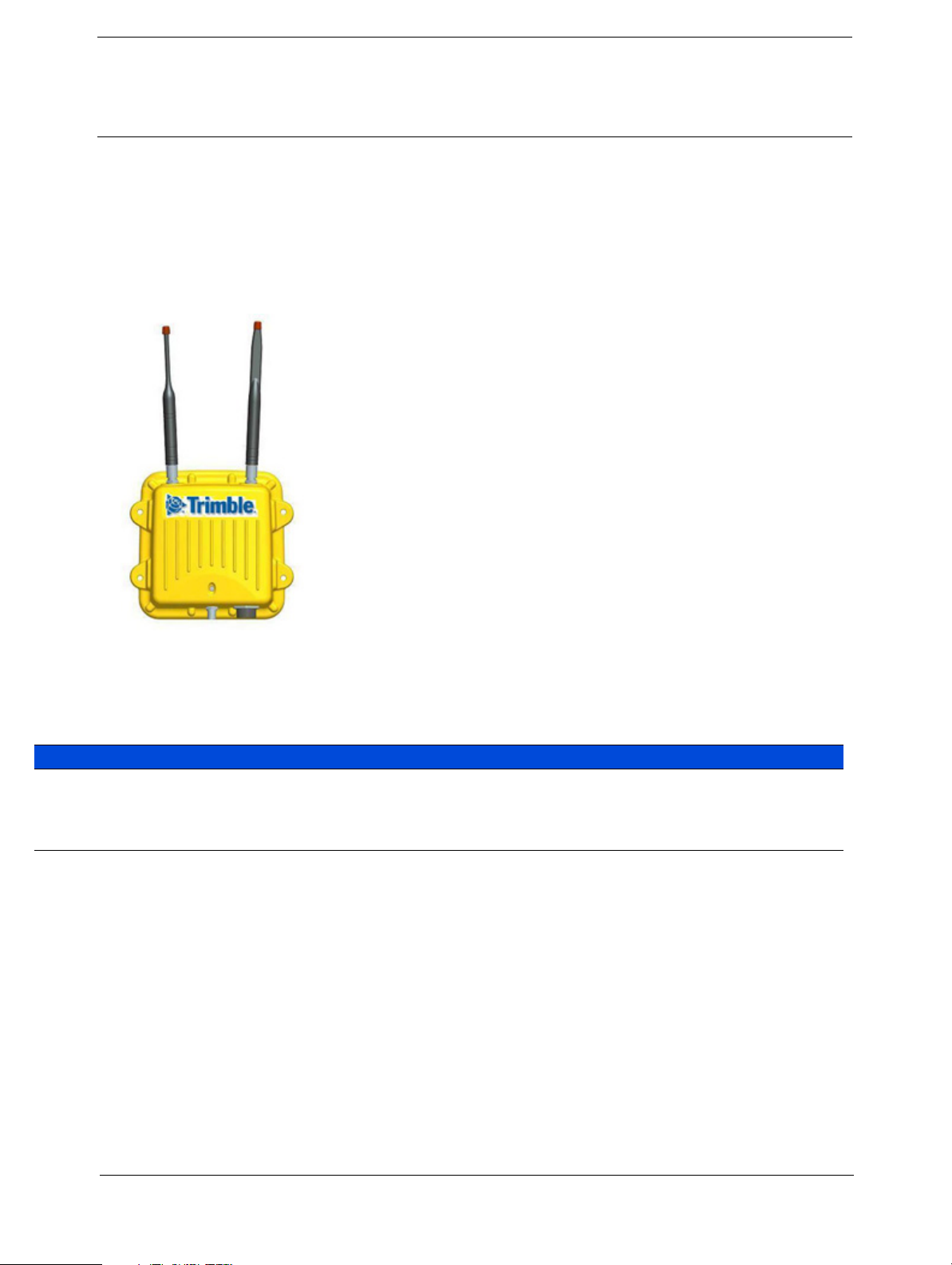

Fig. 3-3 900MHz and 2.4GHz Dual Band Radio

Theory of Operation

Kit Level P/N P/N on Radio Description

80910-10-24 63129-10-24 SNR910 Dual, 900MHz and 2.4GHz, US/Canada

80910-20-24 63129-20-24 SNR910 Dual, 900MHz and 2.4GHz, Australia/New Zealand

80910-30-24 63129-30-24 SNR910 Dual, 900MHz and 2.4GHz, Australia Only

P/N 59646-SVC, Revision BPage 14SNRx10

Service Manual

Page 25

Chapter 3

SNR410, 430, 450 - Upgradeable to Dual Band 2.4GHz

Note – The SNR410 series has the 2.4GHz capability built into the radio’s to begin with. The option

to include the 2.4GHz radio can be ordered at time of purchase or turned on later by an upgrade option code.

Fig. 3-4 450MHz Series and 2.4GHz Dual Band Radio

Theory of Operation

Kit Level P/N Part Number on Radiio Description

80410-62-24 63127-62-24 SNR410, 410-430MHz and 2.4GHz

80410-64-24 63127-64-24 SNR410, 430-450MHz and 2.4GHz,

80410-66-24 63127-66-24 SNR410, 450-470MHz and 2.4GHz

SNR410 - 2.4GHz Upgrade Options

Upgrade P/N Description

80410-24 2.4GHz - Option Activation at Time of Purchase

UPG80410-24 2.4GHz Upgrade- Activate Option After Purchase

P/N 59646-SVC, Revision B Page 15 SNRx10

Service Manual

Page 26

Chapter 3

Theory of Operation

Compatibility Table SNR910 Series

Product SNR910 Only, 80910-XX SNR910 & 2.4GHZ,

80910-XX-24

GCS900 v10.xx YES YES

GCS900 v6.xx YES YES

Sitevison GPS YES, GPS ONLY YES, 900 MHz ONLY

BladePro 3D YES, GPS ONLY YES, 900MHz ONLY

Two-way Data YES YES

Trimble SPSx30 UTS NO YES, 2.4GHz

Trimble ATS600 with internal 2.4GHz NO YES, 2.4GHz

Trimble ATS600 with external SNB900 NO NO

Compatibility Table SNR410 Series

Product SNR410 Only,

80410-XX-24

GCS900 v10.xx YES YES

GCS900 v6.xx YES YES

Sitevison GPS YES, GPS ONLY YES, 450MHz ONLY

BladePro 3D YES, GPS ONLY YES, 450MHz ONLY

Two-way Data NO NO

Trimble SPSx30 UTS NO YES, 2.4GHz

Trimble ATS600 with internal 2.4GHz NO YES, 2.4GHz

SNR410 & 2.4GHZ,

80410-XX-24

Service Manual

P/N 59646-SVC, Revision BPage 16SNRx10

Page 27

Chapter 3

Compatibility Table SNR2410

Product SNR2410, 82410-XX

GCS900 v10.xx YES

GCS900 v6.xx YES

Sitevison GPS NO

BladePro 3D NO

Two-way Data NO

Trimble SPSx30 UTS YES

Trimble ATS600 with internal 2.4GHz YES

Trimble SPS881 with internal 2.4GHz YES

Theory of Operation

P/N 59646-SVC, Revision B Page 17 SNRx10

Service Manual

Page 28

Chapter 3

Theory of Operation

Mechanical

Mechanically the SNRx10 radio modem series is designed to meet the high vibration requirements of the Machine Control and Construction industries. It’s rugged housing was designed to accommodate up to two different radio modules. The series can be ordered with just a single 2.4GHz, 900MHz or 450MHz radio module or the 2.4GHz radio module can be paired with either the 900MHz or one of three 450MHz radio modules. The 450 series 63127-xx-24 comes equipped with an inactivated 2.4GHz radio module pre-installed. The customer can either order a dual radio and have it activated at time of purchase or pay an upgrade fee and have the option code for the 2.4GHz radio enabled later. Without the option being turned on the radio acts as a single 450MHz series radio. The 450MHz and 900MHz radios are mutually exclusive and cannot be combined into the same housing.

The 900MHz and 2.4GHz radios use the same whip antenna while the 450MHz series uses two different whip antennas. The 2.4GHz radio module is always installed on the left side of the radio (when viewed from the front) and either the 900MHz or a 450MHz radio module will be mounted internally on the right side, as shown here:

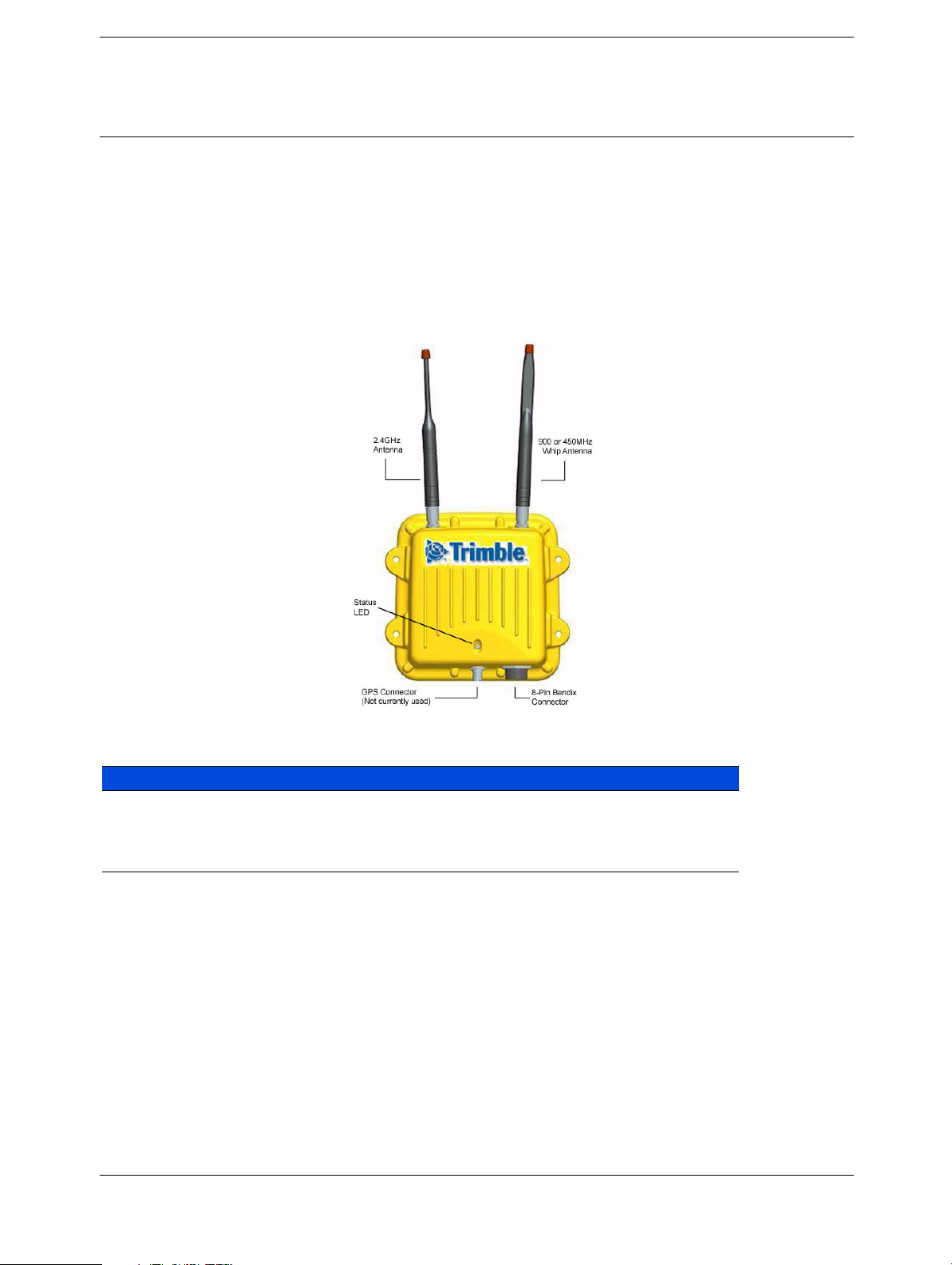

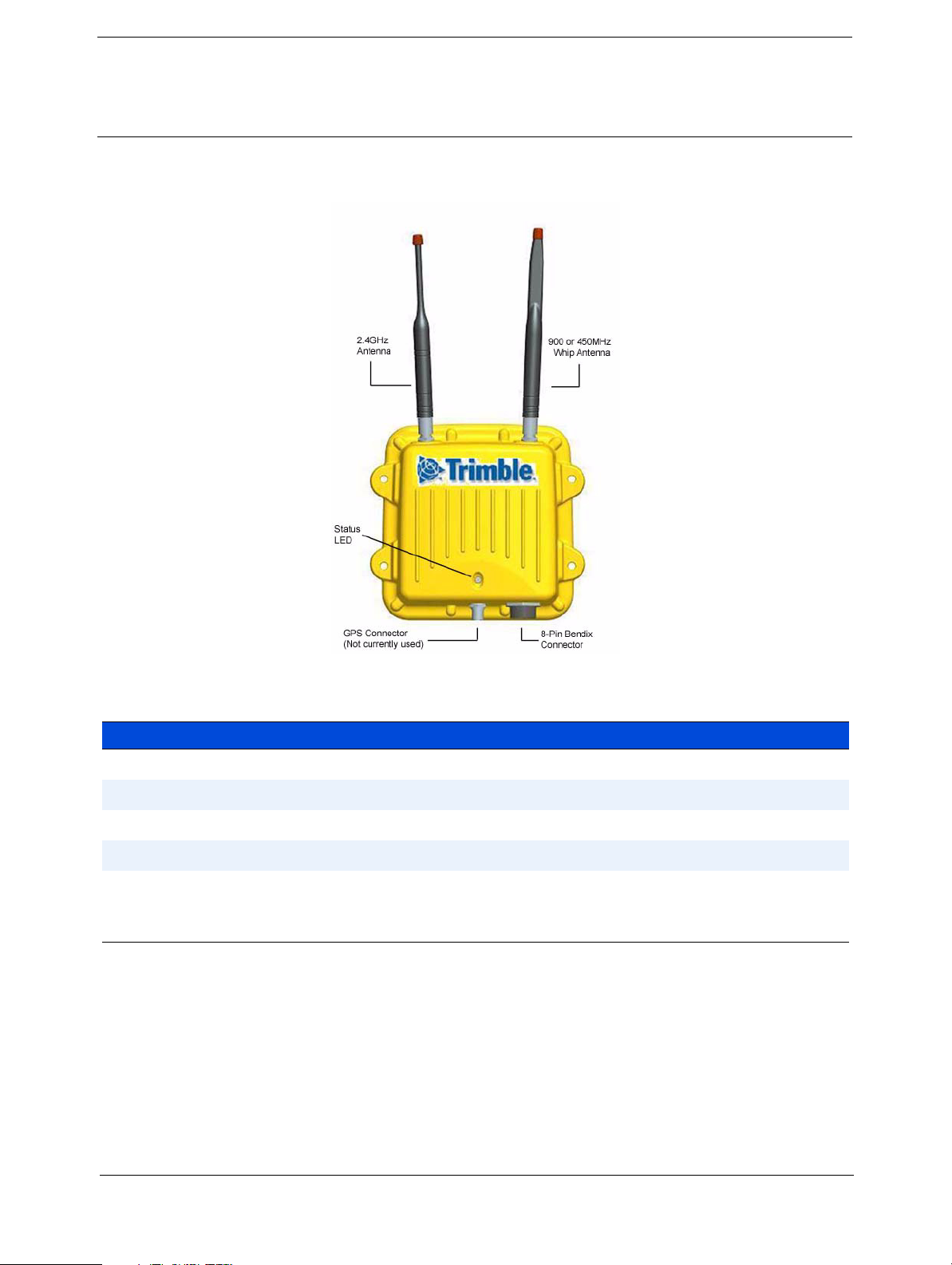

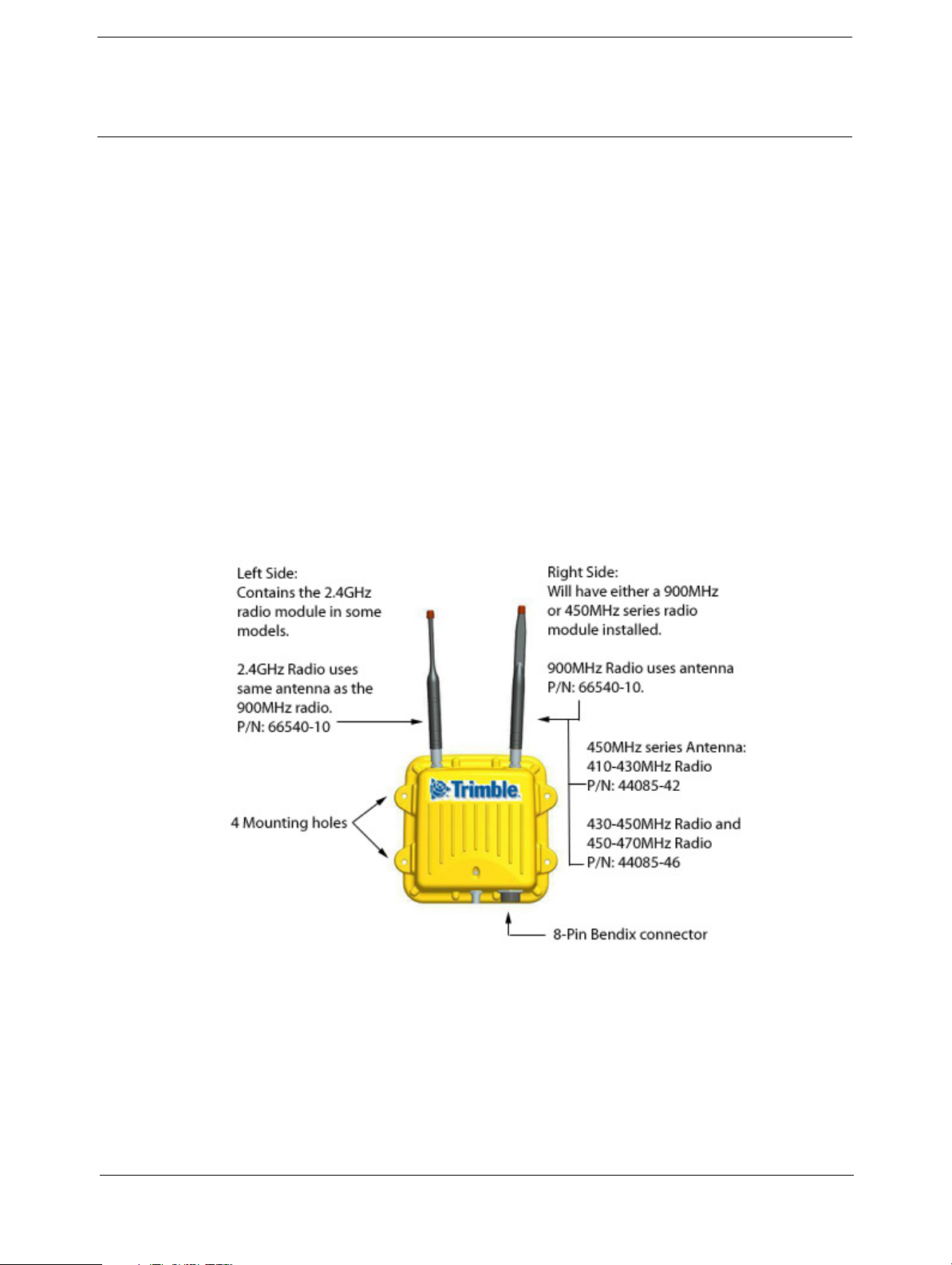

Fig. 3-5 Front view of a Dual SNRx10 series radio showing whip antenna location

Note – The connector jack on the radio for the 900MHz models use a standard TNC jack, the

450MHzmodel series uses a reverse polarity TNC connector. This means the center conductor pin is male.

P/N 59646-SVC, Revision BPage 18SNRx10

Service Manual

Page 29

Chapter 3

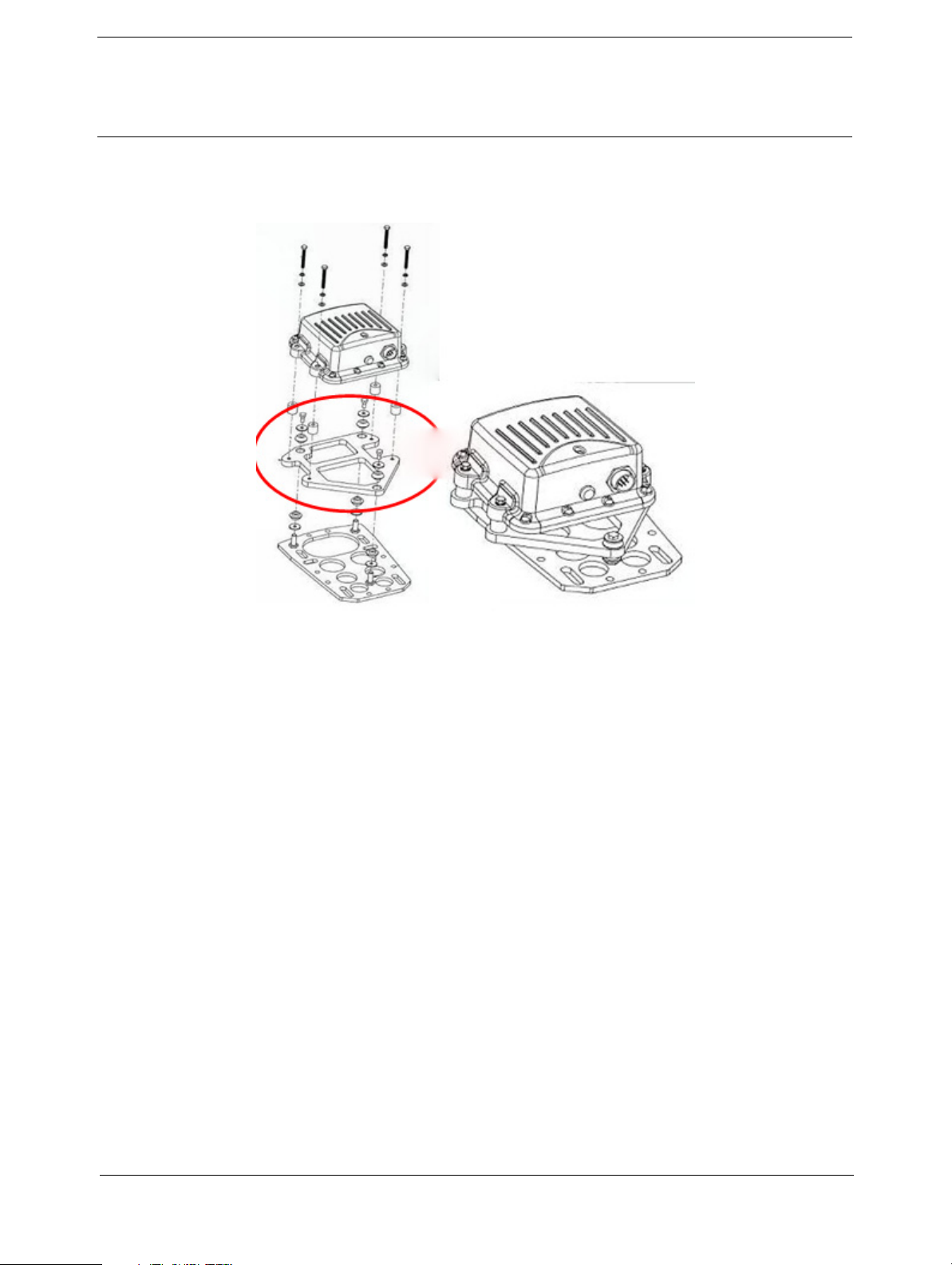

The SNRx10 comes with a newly designed mounting bracket kit for new GCS900 installations. An adaptor plate to mount the radio on previous GCS900 installations that use the universal machine radio mounting bracket is also available

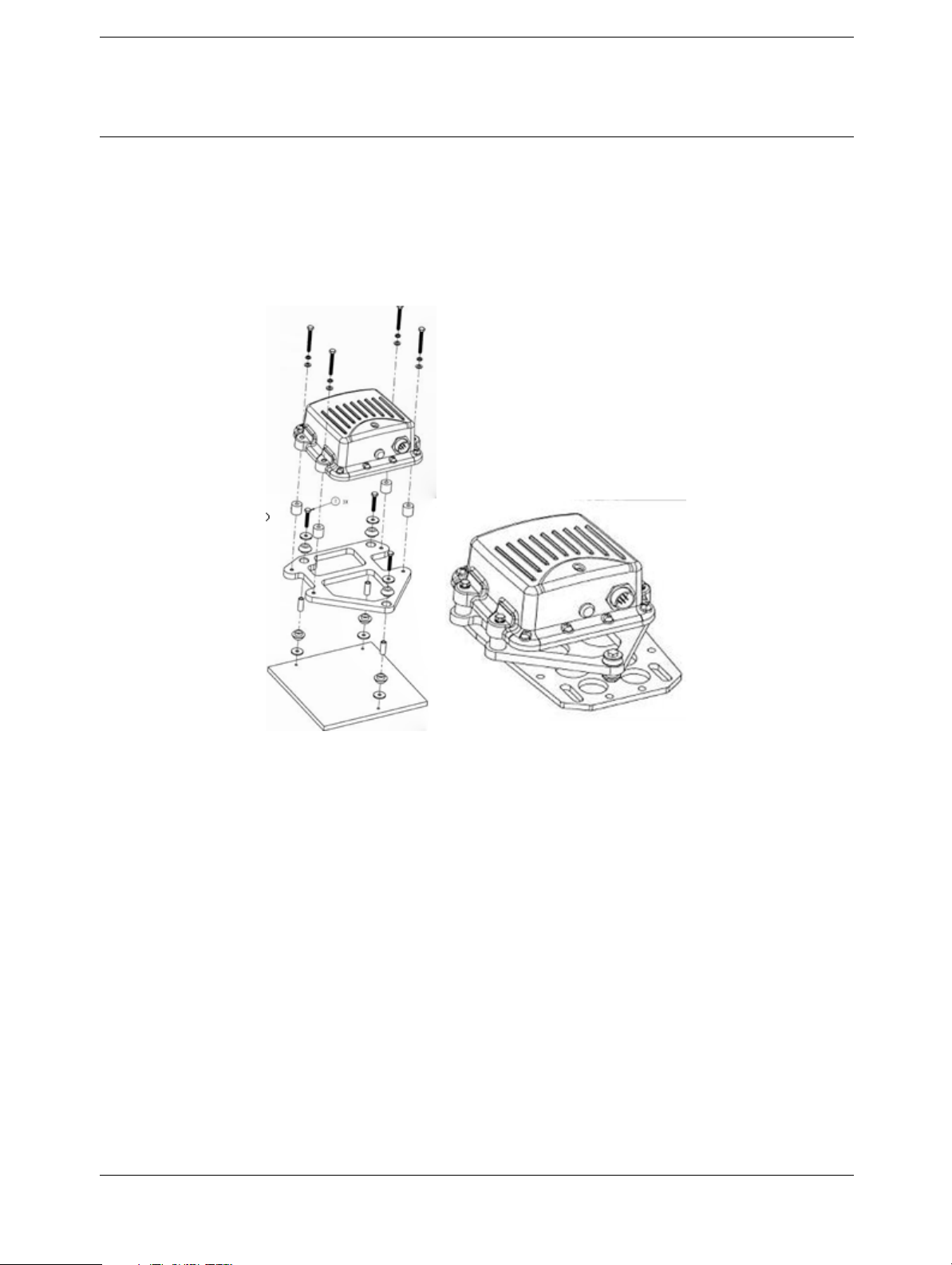

Fig. 3-6 New Style mounting bracket kit (P/N 64333-00) includes a new style mounting bracket that gets screwed directly into the surface of the machine or onto a custom mounting bracket.

Theory of Operation

P/N 59646-SVC, Revision B Page 19 SNRx10

Service Manual

Page 30

Chapter 3

Fig. 3-7 The Universal machine radio mounting bracket used on previous GCS900 systems is augmented with the new style mounting bracket to attach the SNRx10 radio to existing installations.

Theory of Operation

Service Manual

P/N 59646-SVC, Revision BPage 20SNRx10

Page 31

Chapter 3

Theory of Operation

Electrical

Circuit Boards

Digital Board P/N 56889-00S:

The digital processor board assembly contains the memory that stores all of the programmed information, including firmware, Electronic Serial Number (ESN) and configuration options. The board also controls the flow of all I/O data that runs through the I/O panel assembly. Radio frequency settings, modem parameters and defaults are all held in non-volatile memory. The 2.4GHz radio modules plug directly into the digital board. The 4xxMHz series radio module use a mounting bracket and adaptor board to interface to the digital board. The 900MHz radio module board just uses a special mounting bracket so it can be aligned properly to plug into the digital board. The power supply board plugs into the digital board by a 40 pin tower adaptor.

Radio Modem Boards

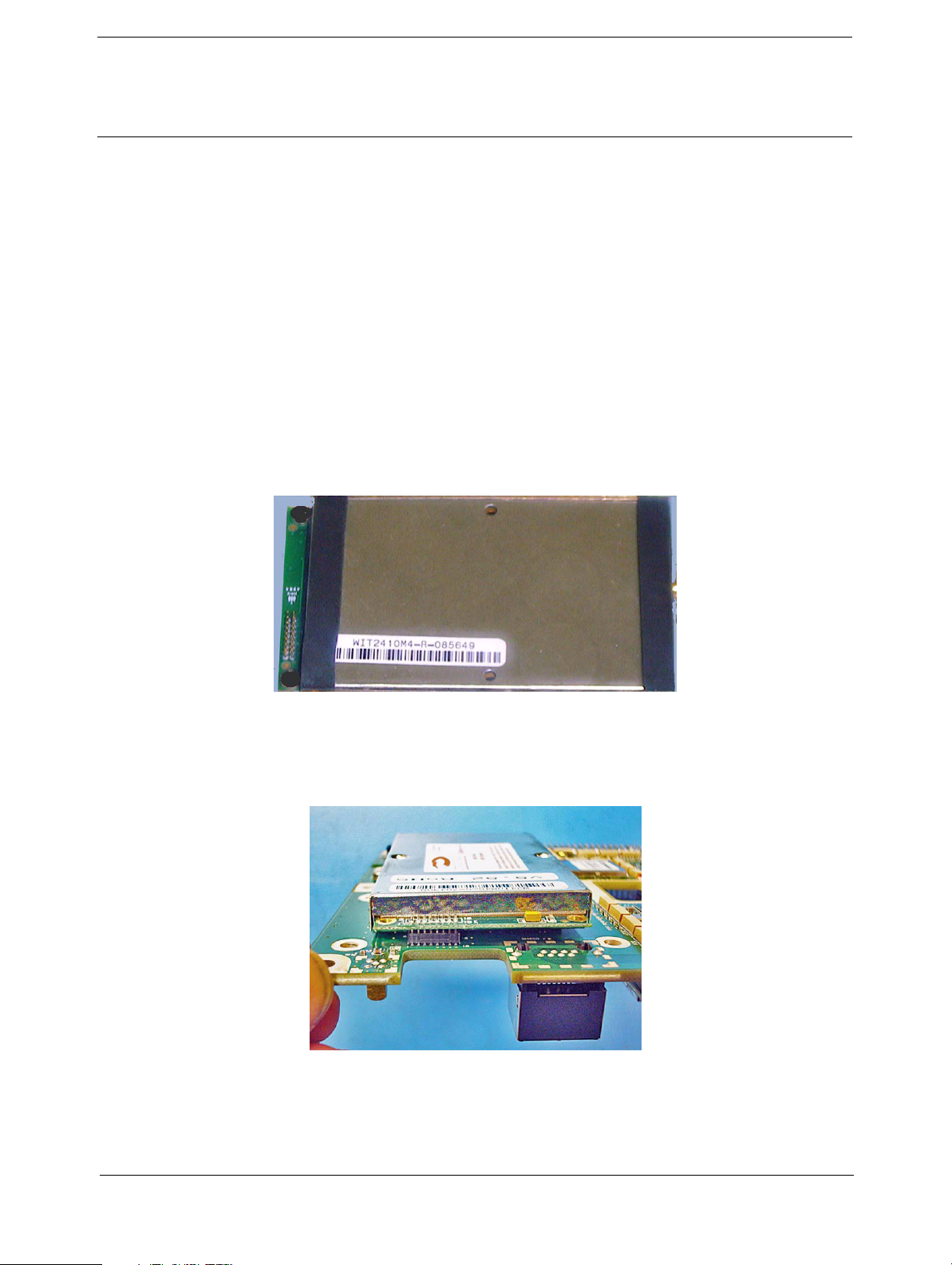

The 900MHz radio module (P/N 53195-01)Sis designed and manufactured by Trimble Navigation. The 2.4GHz radio module (P/N 64327-00S) and the 4xxMHz series (P/N’s 60384 -62S, -64S, -66S) radio modules are each designed exclusively for Trimble by separate OEM manufactures. The 4xxMHz radio modules are mounted on a carrier board (P/N 58585-00S) that interfaces to the digital board. These reliable field proven radio modules have been used in previous Trimble designs such as the SNR2400 and the SPSx5x radio series products.

I/O Panel Assembly P/N 59931-00S

The I/O panel board assembly is designed as a means to firmly mount the 8-Pin Bendix connector to the top housing and provides built in PTC overvoltage protection and EMI noise suppression on the data input/output lines from the digital board. GCS900 main system harness power is routed between the ignition switch and enters the power supply board through the I/O panel assembly.

Power Supply Board 58480-00S

The power supply board generates multiple DC voltage outputs of 1.5V, 2.5V, 3.3V and 5.0V to the various circuits on the PC boards found inside the SNRx10 . The power supply board does have overvoltage protection.

P/N 59646-SVC, Revision B Page 21 SNRx10

Service Manual

Page 32

Chapter 3

Theory of Operation

Service Manual

P/N 59646-SVC, Revision BPage 22SNRx10

Page 33

Chapter 4

4 Interfaces

Q 8-Pin Bendix Connector

Q Interfacing to a Computer

Q Antennas

Q GPS Connector

8-Pin Bendix Connector

Fig. 4-1 8-Pin Bendix Connector Pinout Diagram:

Interfaces

Pinout Table:

Pin Function

APower

B GND

C RS232 TXD2

D RS232 RXD2

E CAN High

F RS232 TXD3

G RS232 RXD3

E CAN Low

P/N 59646-SVC, Revision B Page 23 SNRx10

Service Manual

Page 34

Chapter 4

Interfaces

Interfacing to a Computer

One or more of the following cables are needed in order to be able to interface Winflash to the test computer: These are the same cables called out in Test Cables Needed, page 71 and Test Cables

Needed, page 89

Available Interface Cables:

• 40942-03 (QTY 1):

– With 62546 Power Supply, 60W, 18V, 3.4A, 100-240VAC

– and with 51695 Power Cable for the above charger

Note – This cable is also needed to run a radio throughput and is recommended over older

cables that serve the same purpose. USE the DB9 connector marked I/O when interfacing with Winflash.

• 40282-01 (QTY 1): Cable - Radio, 1ft., 0 shell 7-pin LM(F) to 8-pin BD(F) can be used with one of the following:

– 59044 (QTY 1): Cable - 1.5m, DB9(F) Y to 0S/7-pin LM(M) w/Power Jack (RoHS,

backward compatible with 32345).

Cable - Radio, 3ft., 8-pin BD(F) to TA3(M)/DB9(F)/DB9(F).

– OR 32345 (QTY 1): Cable - 1.5m, DB9(F) Y to 0S/7-pin LM(M) w/Power Jack (non-

RoHS, obsolete).

– 38483 (QTY 1): Power - AC Power Module, Mains to TA-3. This is the AC adaptor for

both 40942-03, 59044 and 32345. Newer version is 62546 with 51695

Note – Many service providers will already have these cables from the Sitenet series radio

repair setup. This series of cable will work with the SNRx10 for Winflash purposes only but cannot be used during the performance verification throughput test. This is why 40942-03 is recommended instead.

Note – The test computer must have 2 available serial COM parts and Windows 2000

operating system as a minimum,

Service Manual

P/N 59646-SVC, Revision BPage 24SNRx10

Page 35

Chapter 4

Interfaces

Antennas

SNRx10 radio modem products use 3 different antennas as listed below.

Note – The 900MHz and 2.4GHz radios use the same antenna P/N 66540-10. The SNR410 uses P/N

44085-42 and both the SNR430 and SNR450 use antenna P/N 44085-46.

Fig. 4-2 Front view of the connectors found on an SNRx10 radio modem.

Antenna Part Numbers:

Part number Description

66540-10 ANT 900/2400 MHZ RP TNC WATER RESISTANT

44085-42 ANT PORTABL 6' WHIP 395-445MHZ

44085-46 ANT PORTABL 6' WHIP 425-475MHZ

P/N 59646-SVC, Revision B Page 25 SNRx10

Service Manual

Page 36

Chapter 4

GPS Connector

Note – Although the GPS antenna connector can be found on some models, it is not actually used at

this time. Please do not hook any equipment up to this connector since the firmware inside the SNRx10 may not process GPS information.

Interfaces

Service Manual

P/N 59646-SVC, Revision BPage 26SNRx10

Page 37

Chapter 5

5 Troubleshooting

Q General Troubleshooting

Q LED Status Indicators

Q Troubleshooting Chart

General Troubleshooting

Always check the most obvious basic system level problems before investigating more complex troubleshooting issues. Some tests should be performed by the customer or dealer within the customers system before returning the radio in for repair:

1. Is the radio power cable plugged into the SNRx10 and the system ignition turned on?

2. Use a voltage meter to check that between 12VDC to 24VDC is coming out of Pins A and B of the 8-Pin Bendix connector on the radio power cable of the customers construction equipment. If there is no voltage could a system fuse be blown?

3. Check that the following radio settings are correct between the Base radio and the SNRx10:

– Network Channel between Base and Rover are the same.

Troubleshooting

– Baud Rate, Stop Bit and parity are the same.

– Radio Protocol is the same.

– The active radio setting on the SNRx10 matches the radio frequency of the Base. For

instance if you are interfacing a 2.4GHz radio but on your dual frequency SNRx10 the active radio setting has been left set at for 900MHz radio the interface won’t work until you change the active radio to be 2.4GHz.

LED Status Indicators

The SNRx10 has an LED on the front side of its housing that is used as a status indicator as shown below:

P/N 59646-SVC, Revision B Page 27 SNRx10

Service Manual

Page 38

Chapter 5

Fig. 5-1 Note the status LED in the lower front of the radio

Troubleshooting

Led Status Table:

LED Pattern Diagnostic Description

Off System power is off or the unit is not powering up.

On Solid Power is available but the radio is not synchronized

Irregular Flashing Power is available, the radio is synchronized but losing data

Steady Flashing (1Hz) Power is available, the radio is synchronized and receiving data

Slow steady Flashing SNRx10 may be in monitor mode. See if communication with Winflash can

be established, if so, run radio diagnostics if possible and/or reload the firmware.

The LED startup sequence provides a diagnostic tool for the operator to determine if the application is running. If the LEDs do not turn on, this indicates that the application has failed to start. The sequence is:

1. All LEDs turn on briefly.

2. All LEDs turn off.

3. LEDs begin normal operation.

Service Manual

P/N 59646-SVC, Revision BPage 28SNRx10

Page 39

Chapter 5

Troubleshooting

Troubleshooting Chart

Problem Possible Solution(s):

All Radio’s All Radio’s

No power, dark power LED No power source or machine control system ignition not turned on.

Unplugged or damaged system radio cable at the SNRx10 end, where the radio cable plugs into the main harness, or anywhere in between.

Blown system fuse in machine control equipment.

Damaged or broken pins on 8-Pin Bendix Connector.

Damaged I/O Connector board or burnt out LED on board, swap I/O connector board.

Damaged power supply board inside the SNRx10, swap board.

LED has slow steady flashing and SNRx10 is not detected by the CB430.

LED solid but not flashing or has irregular flashing

2.4GHz Specific: Models: All 63130-xx, 63129-xx-24 and 63127-6x-24

LED solid but not flashing or has irregular flashing

Wont’ interface to ATS Total Station

Wont interface to SPSx30 UTS Total Station

SNRx10 may be in monitor mode. See if communication with Winflash can be established, if so, run radio diagnostics if possible and/or reload the firmware.

If reloading firmware doesn’t fix this then swap digital board if needed.

In Winflash\Radio Configuration: Check that the network channel number of the Base and Rover are matching.

Make sure the external antenna is not damaged or obstructed in anyway.

Radios could be operating in very high noise environment creating poor reception.

In Winflash\Radio Configuration: Make sure the network channel is the same for both the Base and Rover.

Make sure ATS is selected in Winflash\Change Radio Protocol setup screen.

Make sure SPSx30 is selected in Winflash\Change Radio Protocol setup screen.

Make sure the external antenna is P/N 66540-10 and that it is not damaged or obstructed in any way.

4xxMHz Specific: Models: All 63127-6x-24

P/N 59646-SVC, Revision B Page 29 SNRx10

Service Manual

Page 40

Chapter 5

Problem Possible Solution(s):

LED solid but not flashing or has irregular flashing

900MHz Specific: Models: All 63128-xx and 63129-xx-24

LED solid but not flashing or has irregular flashing

In Winflash\Radio Configuration: Check that the radio frequency channel table of the Base and Rover are matching.

Under Winflash\radio configuration: Check that the current frequency is set the same on both the Base and Rover.

When setting SNR410 models, the 4xxMHz radio protocol in Winflash has only one selection: TC/Lip (KEA). The Base must be set to this protocol before the inter-radio interface will work.

Make sure the external antenna is the correct part number for the frequency of the radio: 44085-42 for SNR410 models, 44085-46 for SNR430 and SNR450 models and that the antenna is not damaged.

In Winflash\Radio Configuration: Make sure the network channel is the same for both the Base and Rover

Make sure the external antenna is P/N 66540-10 and that it is not damaged or obstructed in any way.

Troubleshooting

Service Manual

P/N 59646-SVC, Revision BPage 30SNRx10

Page 41

Chapter 6

Maintenance and Repair

6 Maintenance and Repair

Q Tools, Consumables and Service Kits

Q Disassembling the SNRx10

Q Reassembling the SNRx10 radio

Q Seal Integrity Test

Tools, Consumables and Service Kits

This section lists the hand tools, service kits and consumables needed to repair the

Tools:

Item Description

2 1/4” female torque driver externally adjustable, 10 to 50 inch-pounds (113 to 565 Ncm),

9 .038 Ring spreading pliers (optional, not needed for every repair)

1/4” female torque driver externally adjustable, 2 to 12 inch-pounds (23 to 136 Ncm), Mountz EMT12, P/N 020440 or equivalent.

MountzEMT50, P/N 020452 or equivalent.

#8 Torx bit 2.75", Mountz 120338 or equivalent

#10 Torx bit 3.5", Mountz 120870 or equivalent

#15 Torx bit 3.5", Mountz 120352 or equivalent

5/16” socket 3”, Mountz 128103 or equivalent (or 6mm socket)

5/8" socket, 1/4” drive

1 5/16” Crowfoot wrench socket (for fastening the 8 pin Bendix connector)

Consumables:

P/N Description

22334-00S Loctite 242

46566-00S Loctite 277

31345-00S Loctite 425

1603-0090S Silicone Grease-High Vacuum

Local Source Tie Wrap

Service Kits:

P/N Description

48848-00S Trimble Seal Integrity Test

65306-00S Trimble Radio Throughput Test

P/N 59646-SVC, Revision B Page 31 SNRx10

Service Manual

Page 42

Chapter 6

Torque Value Matrix:

P/N Description Torque Value

61954-00S STANDOFF M-F M3.5X10 LONG 6mm HEX SS PATCH

5PK (use 6mm or 5/16” socket)

59931-20S ASSY AQUA I/O PANEL NUT, (use 1 5/16” Socket) 120 in-lb +/- 10%

62680-00S SCRW M3.5X10MM PH TX-T15 SEMS SS W/NYLON

PATCH PK10, (use T15 Torx bit)

62789-00S SCRW M3.5X10MM PH TX-T15 SEMS SS W/NYLON

PATCH PK10, (use T15 Torx bit)

59984-00S CBL ASSY RT MMCX TO TNC 4" (GPS RF cable), (use 5/8”

Socket)

59979-00S CBL ASSY SEALED BLKHD RP-TNC TO MMCX 7.25"

(900MHz RF Cable), (use 5/8” Socket)

59978-00S RT MMCX TO RP-TNC 4" (2.4GHz RF Cable), (use 5/8”

Socket)

58633-00S CBL ASSY TNC MMCX 6.5 IN. 5PK (4xxMHz RF cable),

(use 5/8” Socket)

In 5858500S Kit

44854-00S SCRW10-32X1/4 SEAL NYLK PK50 (Use Phillips Head bit) 16 in-lb +/- 10%

In 6711100S Kit

STANDOFF CUSTOM 6MM HEX, M-F, (use 6mm or 5/16”

socket)

SCRW M2.5X5mm PH TX T8 SS PATCH QTY 4, (use T8 Torx bit)

SCRW M2.5X10 PH TX T8 SS PATCH QTY 4, (use T8 Torx bit)

SCR 6-32X0.25 PHH PNH PK 50, (Use Phillips Head bit) 11 in-lb +/- 10%

Maintenance and Repair

11 in-lb +/- 10% (124 N-cm)

(246.5 N-cm)

11 in-lb +/- 10% (124 N-cm), 16 in-lb (180.76 N-cm) for rear panel screws

11 in-lb +/- 10% (124 N-cm)

22 in-lb +/- 10% (248.57 N-cm)

8 in-lb +/- 10% (90.39 N-cm)

(180.76 N-cm)

(124 N-cm)

Service Manual

Caution – All screws come with a Nylock patch on the threads to ensure that they do not back

out after being installed.

• When re-using screws and studs we recommend removing old Nylock residue with

• Due to mechanical settling and to ensure no screw/fastener is accidently missed during

Acetone and then applying Loctite as needed when mentioned in the assembly instructions below.

reassembly, this manual states to perform a second round of tightening as one of the steps in each stage of reassembly.

P/N 59646-SVC, Revision BPage 32SNRx10

Page 43

Chapter 6

Maintenance and Repair

Disassembling the SNRx10

Note – If the mounting bracket is still attached to the radio please remove it before proceeding

Remove the Rear Panel

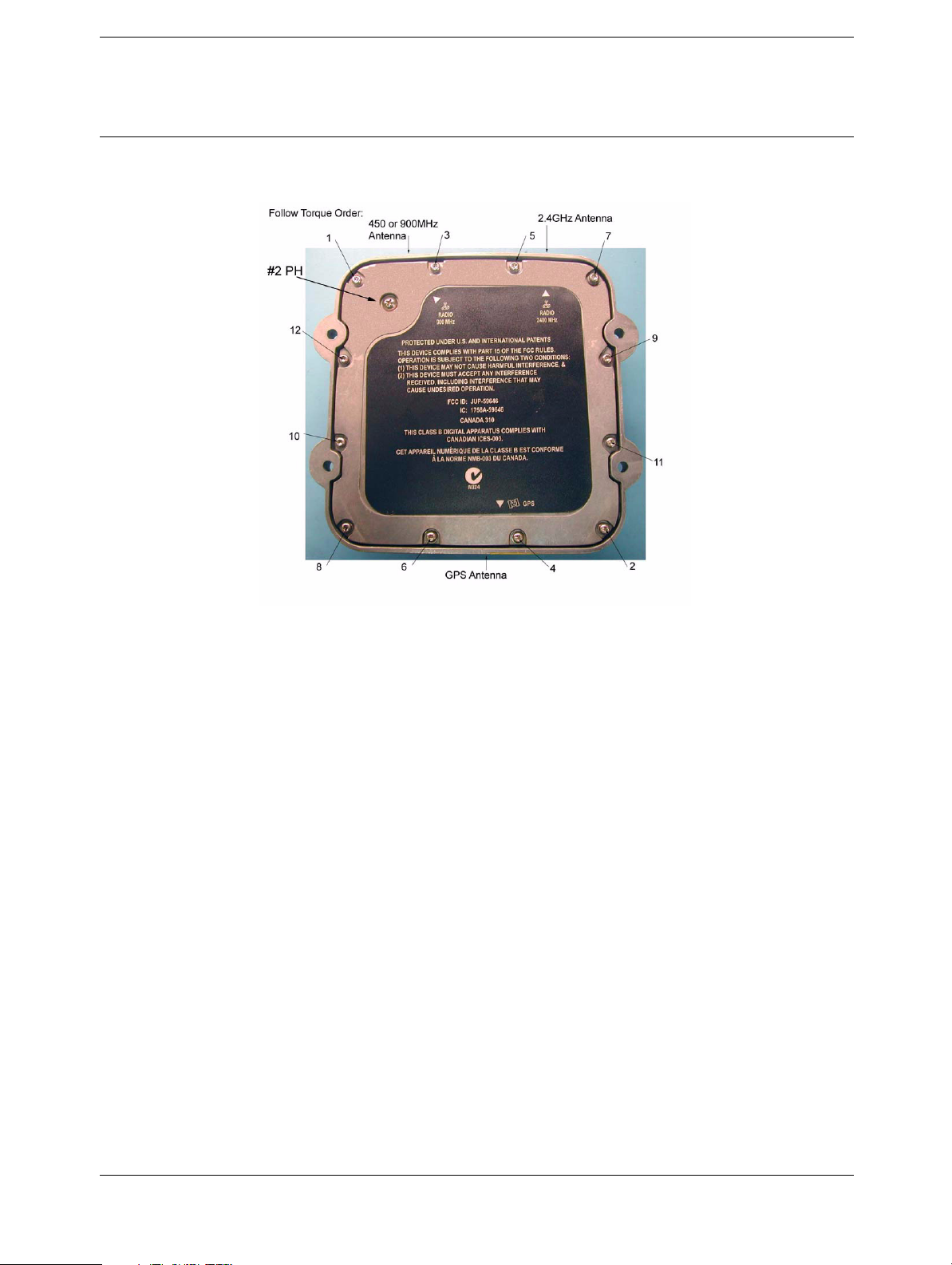

Fig. 6-1 Rear view of SNRx10

1. Using a T15 torx driver, remove the 12 rear case screws by turning them counter-clockwise.

2. Lift the rear panel from the housing and set it aside.

Remove the Power Supply Board

1. Remove the Rear Panel, page 33

2. Using a T10 torx driver, turn the two screws counter-clockwise to remove them and then unplug the DB15 connector from the power supply board.

P/N 59646-SVC, Revision B Page 33 SNRx10

Service Manual

Page 44

Chapter 6

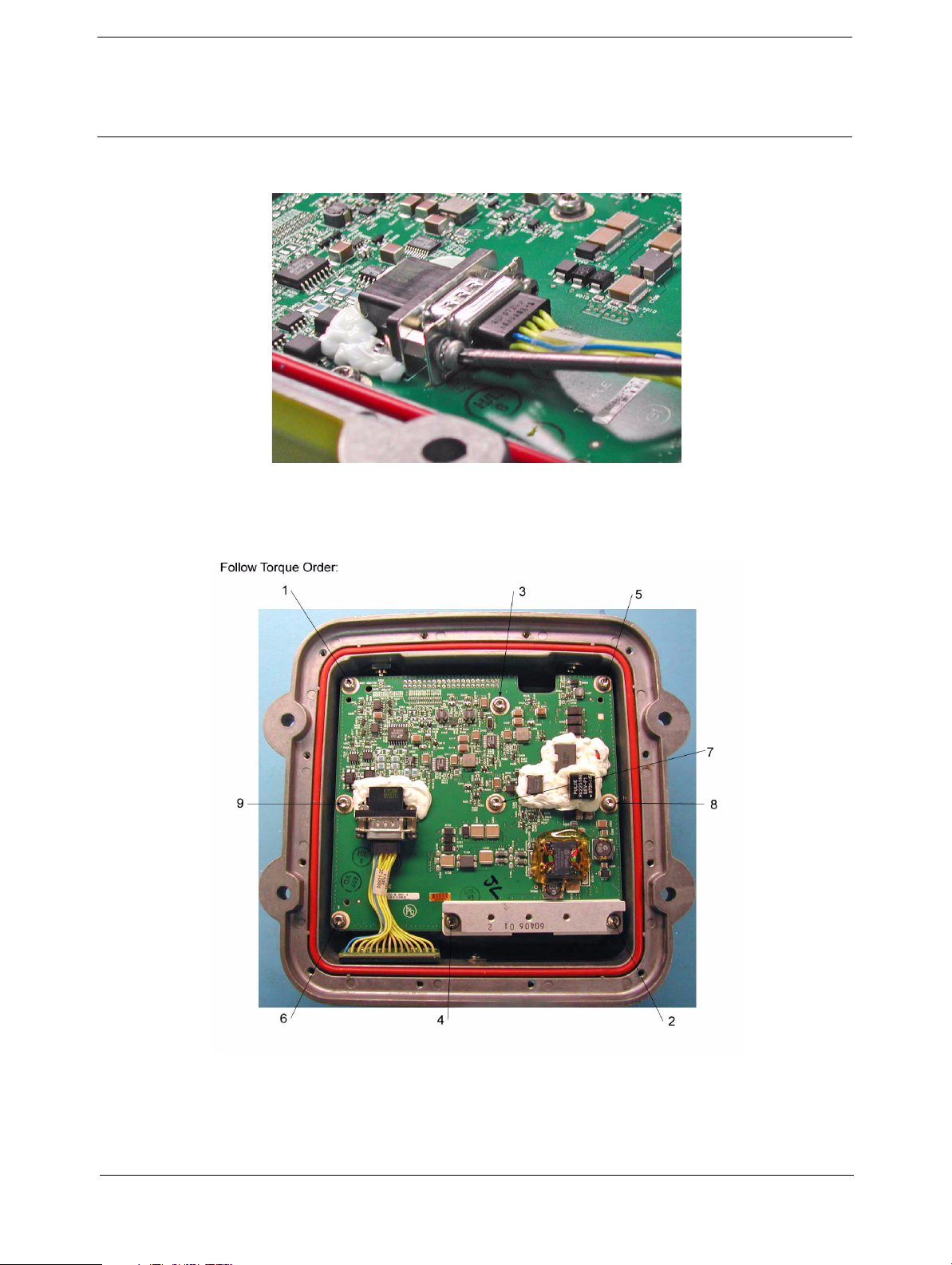

Fig. 6-2 Remove the DB15 connector from the power supply board

3. Using a T15 torque driver, turn each of the 9 power supply mounting screws counterclockwise to remove them.

Fig. 6-3 Remove the 9 screws from the power supply board, See Caution on next page:

Maintenance and Repair

Service Manual

P/N 59646-SVC, Revision BPage 34SNRx10

Page 45

Chapter 6

Caution – If you notice that the mounting studs underneath the power supply board are unfastening from the top housing rather then just the 9 screws themselves then do the following:

• Keep the power supply board from bowing (flexing) by slowly loosening each of the 9 screws

a little bit at a time

• Keep the power supply board from bowing as you do this. Otherwise the surface mount

components could become damaged and the entire board will have to be swapped with a new one.

4. Grab the power supply board on each side with your fingers and slowly rock it back and forth while pulling upward to unplug it from the 40 pin connector.

Maintenance and Repair

Removing the Digital Board (Optional)

The digital board is designed to work with all three different radio frequency modules: 900MHz, 4xx MHz and the 2.4 GHz series. Depending on the part number of the product being repaired, one or more of these radio modules will be mounted to the digital board. The 2.4GHz radio module is installed on the bottom side of the digital board before the digital board is mounted into the top housing. The digital board will have a different disassembly procedure depending on whether the 900MHz or the 450MHz series radio module is installed.

Removing the digital board from a 900MHz or 900MHz/2.4GHz combo radio

Fig. 6-4 Digital Board with 900MHz radio module.

P/N 59646-SVC, Revision B Page 35 SNRx10

Service Manual

Page 46

Chapter 6

Maintenance and Repair

1. Remove the Rear Panel, page 33

2. Remove the Power Supply Board, page 33

3. On models that contain a GPS antenna input connector at the bottom of the radio near the 8pin Bendix connector, unplug the MMCX connector at J2 on the digital board.

Note – The GPS antenna jack will prevent you from removing the digital board from the top

housing so it must be removed when unmounting the digital board

4. Use a 5/8” socket driver to turn the TNC RF connector mounting nut counter-clockwise and remove it along with the lock washer and dust cover from the top housing.

5. On models that contain a 2.4 GHz radio module, use a 5/8” socket driver to turn the TNC RF connector mounting nut counter-clockwise and remove it along with the lock washer and flat washer from the top housing.

Service Manual

P/N 59646-SVC, Revision BPage 36SNRx10

Page 47

Chapter 6

Note – The 2.4GHz antenna jack will get in the way and prevent you from removing the

digital board if it is not unmounted now.

6. Cut the tie wrap from the 900MHz radio modules RF cable and then unplug the RF cable from the radio module.

7. Remove the long rectangular RF cover from the 900MHz radio module to expose two additional mounting screws.

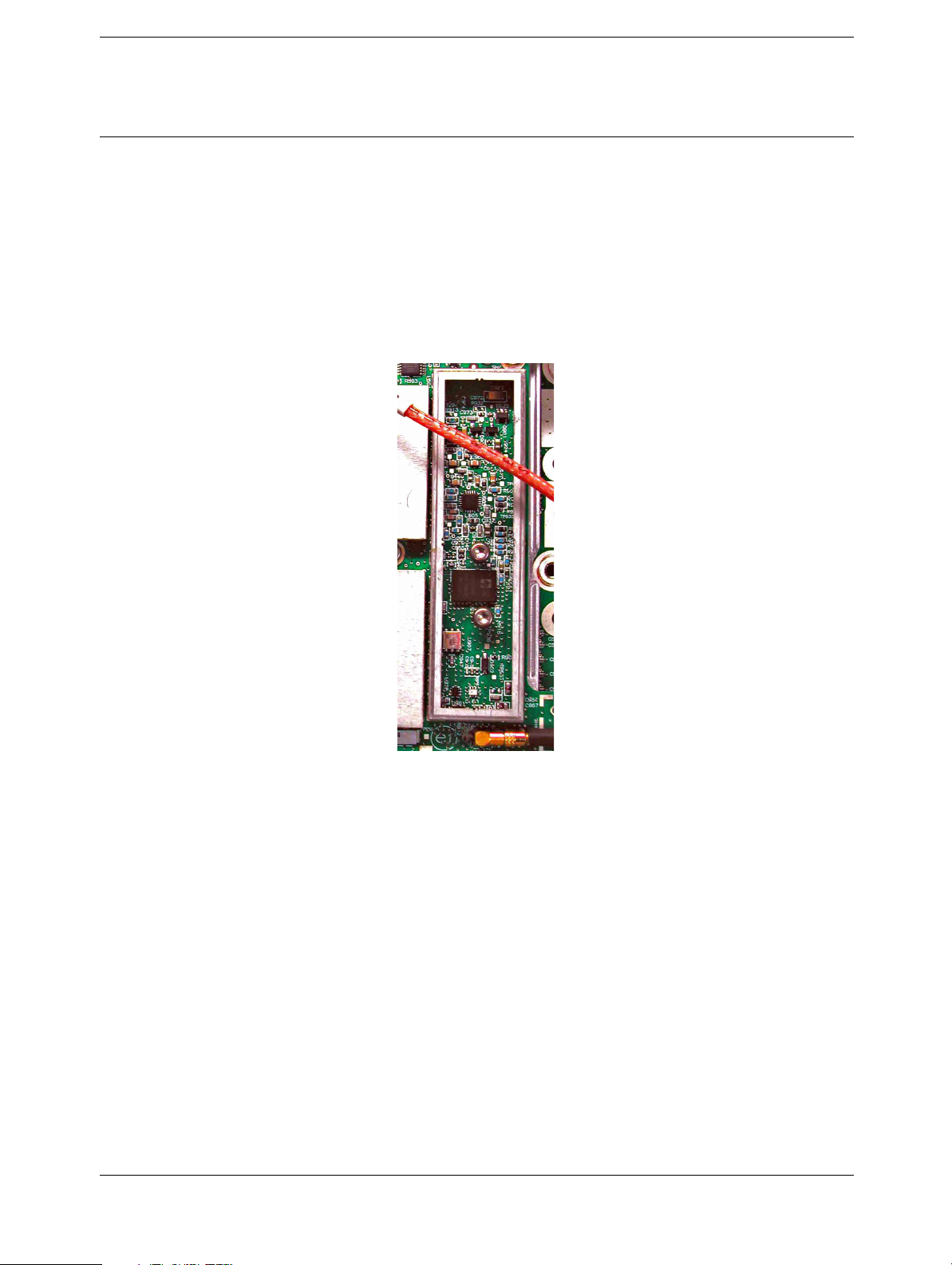

Fig. 6-5 Remove rectangular RF cover to expose hidden screw.

Maintenance and Repair

8. Using a T8 Torx bit, turn the two screws found inside the RF cover counter-clockwise to remove them. These screws keep the digital board assembly mounted to the top housing.

Note – Depending on whether you need to remove just the digital board, just the 900MHz

radio module or both the digital board and radio module, choose one or more of the following steps:

• If you are only removing the digital board and not removing the 900MHz radio module

you do not need to remove the 7 remaining mounting screw since they mount the radio module itself. Proceed to step 9.

• If you only need to remove the 900MHZ radio module skip step 9 and go to Removing the

900MHz Radio Module:, page 40

9. Using a 5/16” socket driver turn each of the 9 mounting studs counter-clockwise and remove each one from the top housing. SeeFigure 6-4, page35

10. Pull the digital board out of the housing.

P/N 59646-SVC, Revision B Page 37 SNRx10

Service Manual

Page 48

Chapter 6

Removing the Digital Board from a 450MHz/2.4GHz Combination Radio

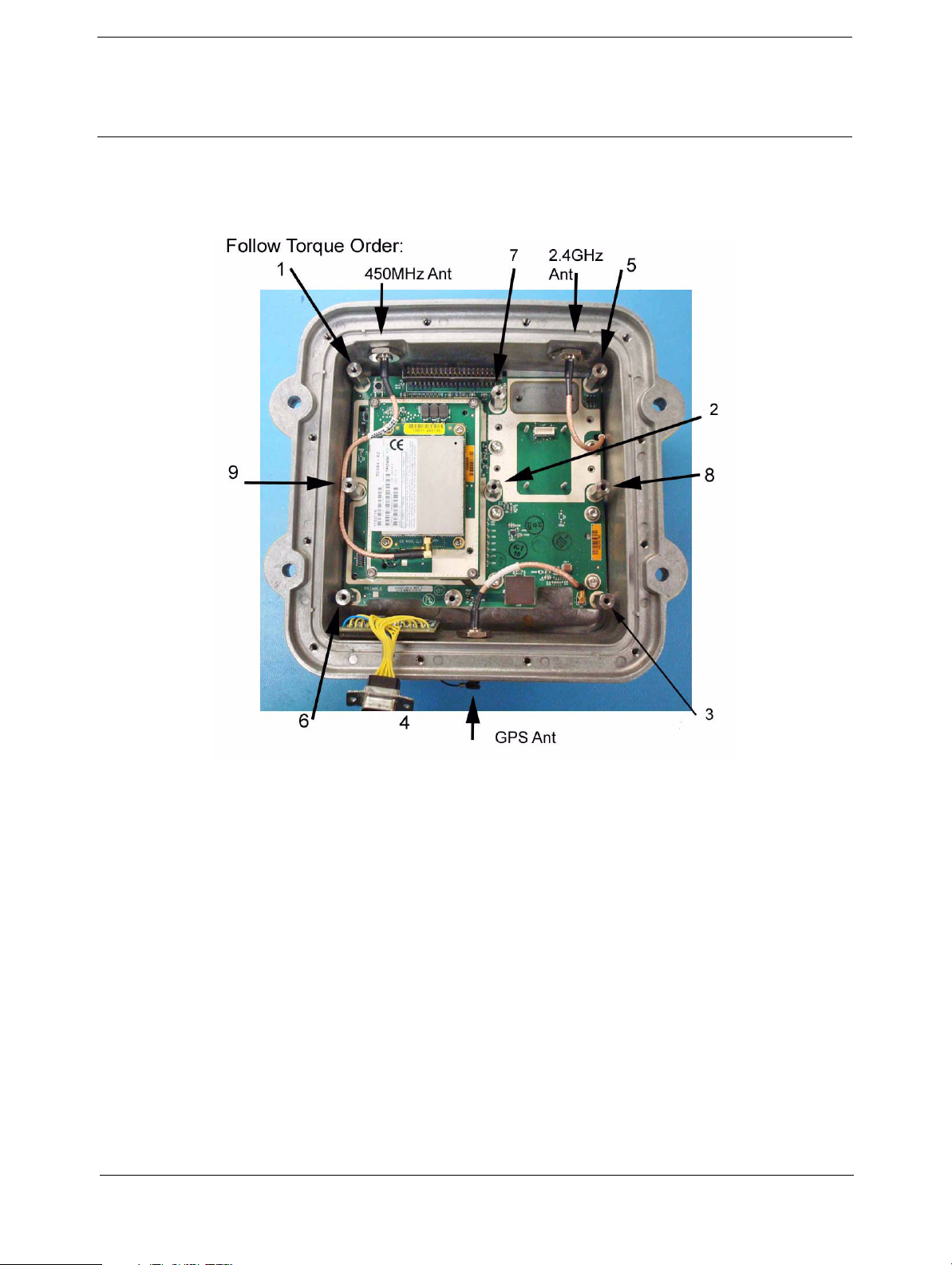

Fig. 6-6 Digital Board with 450MHz and 2.4GHz radio modules.

Maintenance and Repair

1. Remove the Rear Panel, page 33

2. Remove the Power Supply Board, page 33

3. On models that contain a GPS antenna input connector at the bottom of the radio near the 8pin Bendix connector, unplug the MMCX connector at J2 on the digital board.

Note – The GPS antenna jack will prevent you from removing the digital board from the top

housing so it must be removed when unmounting the digital board

4. Use a 5/8” socket driver to turn the TNC RF connector mounting nut counter-clockwise and remove it along with the lock washer and dust cover from the top housing.

Note – The 2.4GHz antenna jack will get in the way and prevent you from removing the

digital board if it is not unmounted now.

Service Manual

P/N 59646-SVC, Revision BPage 38SNRx10

Page 49

Chapter 6

Note – Depending on whether you need to remove just the digital board, just the 450MHz

series radio module or both the digital board and the radio module, choose one or more of the following steps:

• If you are only removing the digital board and not removing a 450MHz series radio

module you do not need to remove the 4 screws around the outside edge of the 450MHz series radio module since they mount the radio module itself to the digital board. Proceed

to Step 6.

• If you only need to remove a 450MHZ series radio module skip step 6 and go to Removing

the 450MHz series Radio Board and Radio Module, page 40

6. Using a 5/16” socket driver turn each of the 9 mounting studs counter-clockwise and remove each one from the top housing. See Figure 6-6, page38

7. Pull the digital board out of the housing.

Removing the Digital Board from a single 2.4GHz Model Radio

Depending on the model being repaired, select one of the following steps:

1. Remove the Rear Panel, page 33

2. Remove the Power Supply Board, page 33

Maintenance and Repair

3. Refer to Figure 6-6, page38 but note that the 450MHz radio module and antenna jack will not be mounted in a single 2.4GHz model radio.

4. On models that contain a GPS antenna input connector at the bottom of the radio near the 8pin Bendix connector, unplug the MMCX connector at J2 on the digital board.

Note – The GPS antenna jack will prevent you from removing the digital board from the top

housing so it must be removed when unmounting the digital board

5. Use a 5/8” socket driver to turn the TNC RF connector mounting nut counter-clockwise and remove it along with the lock washer and dust cover from the top housing.

6. On models that contain a 2.4 GHz radio module, use a 5/8” socket driver to turn the TNC RF connector mounting nut counter-clockwise and remove it along with the lock washer and flat washer from the top housing.

Note – The 2.4GHz antenna jack will get in the way and prevent you from removing the

digital board if it is not unmounted now.

7. Using a 5/16” socket driver turn each of the 9 mounting studs counter-clockwise and remove each one from the top housing.

8. Pull the digital board out of the housing.

P/N 59646-SVC, Revision B Page 39 SNRx10

Service Manual

Page 50

Chapter 6

Removing the Radio Modules

Removing the 900MHz Radio Module:

1. Remove the Rear Panel, page 33

2. Remove the Power Supply Board, page 33

3. Removing the digital board from a 900MHz or 900MHz/2.4GHz combo radio, page 35

4. Using a T8 torque bit, turn screws 3 through 5 counterclockwise and remove them from the housing. Screws 1 and 2 should have been removed in a previous step, if they are still there then remove them now.

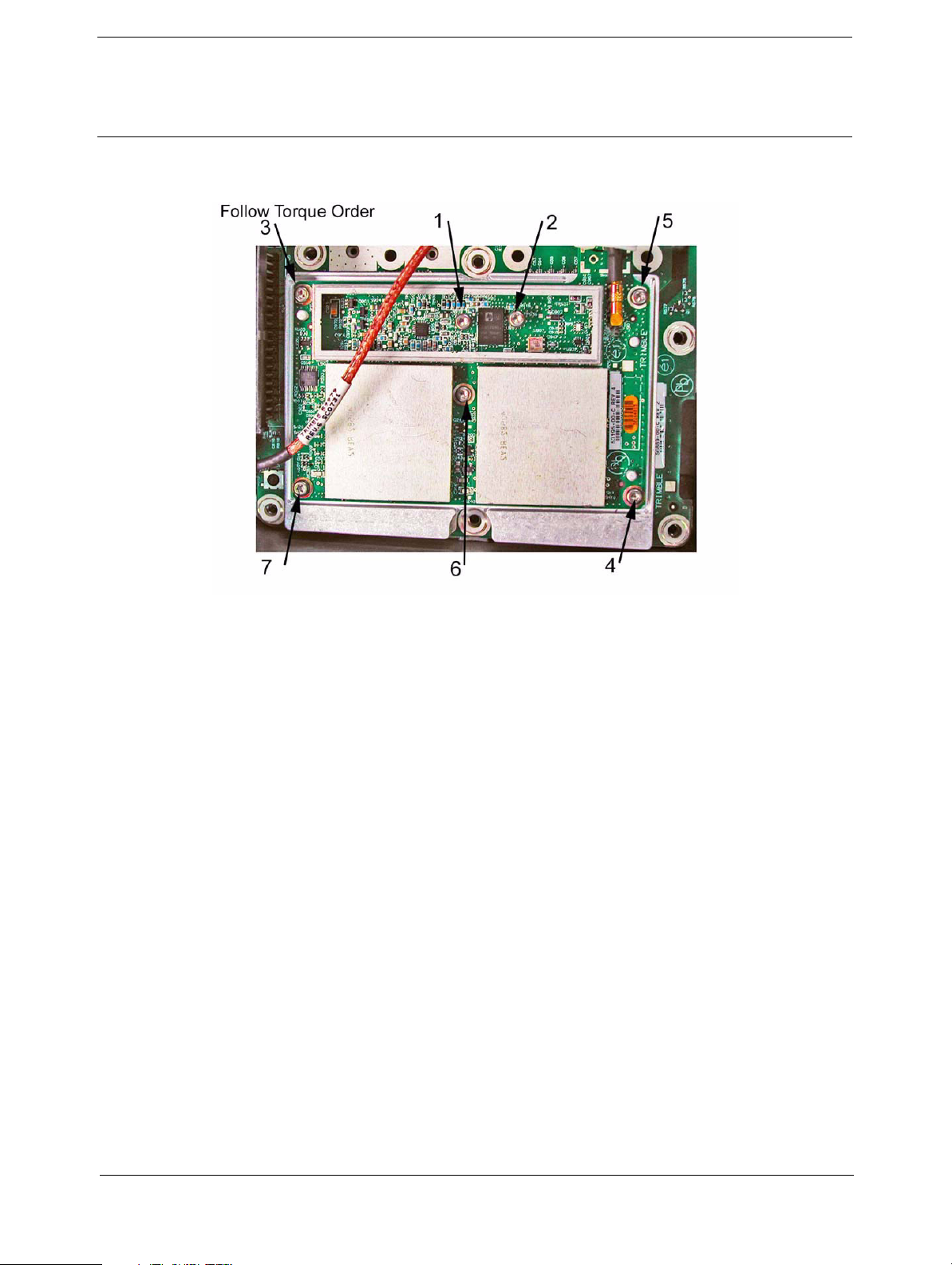

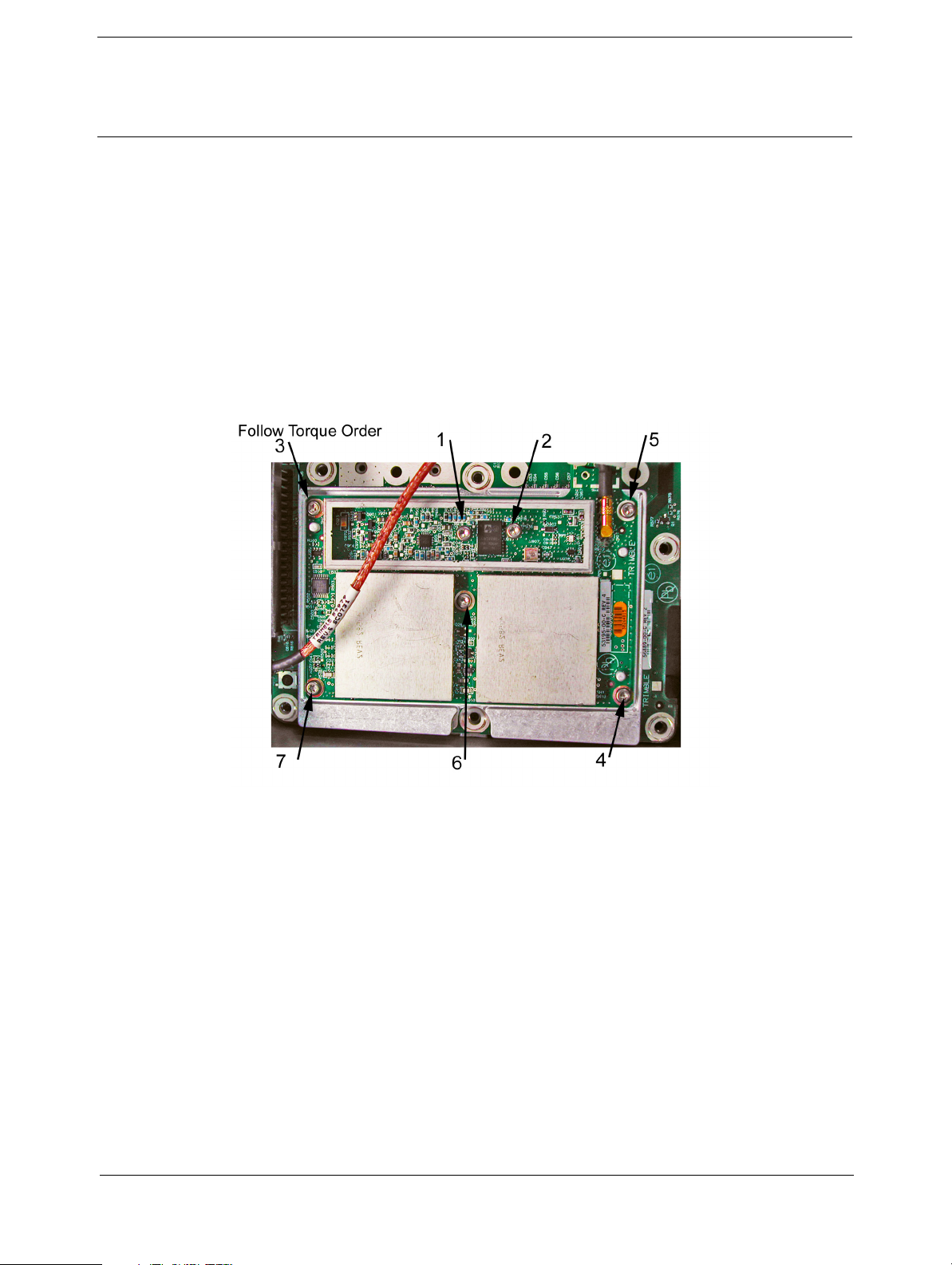

Fig. 6-7 Unfasten these 7 screws to remove the 900MHz radio board.

Maintenance and Repair

Removing the 450MHz series Radio Board and Radio Module

1. Perform steps 1 through 5 as shown in section Removing the Digital Board from a 450MHz/

2.4GHz Combination Radio, page 38

Service Manual

P/N 59646-SVC, Revision BPage 40SNRx10

Page 51

Chapter 6

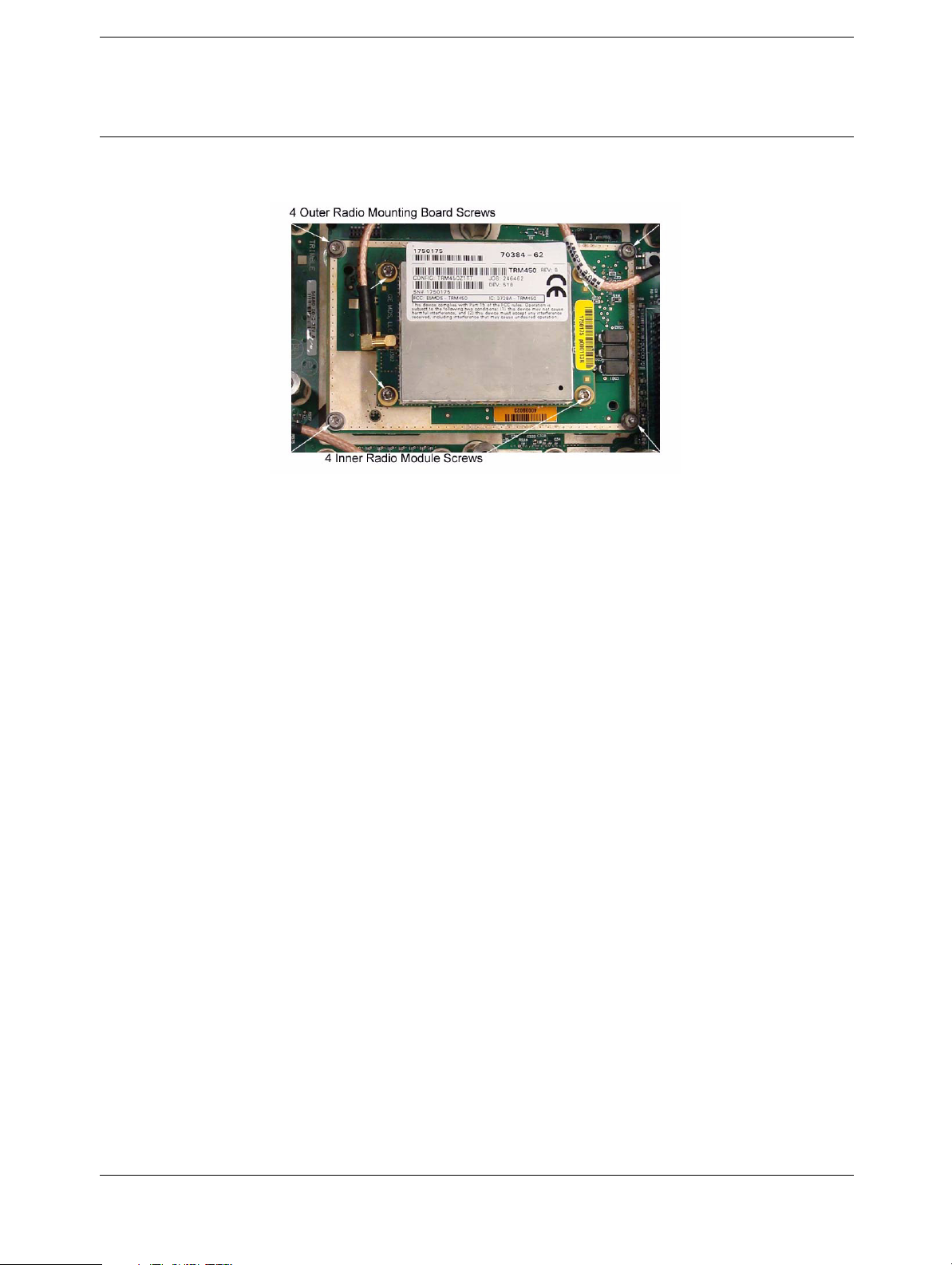

Fig. 6-8 View of 450MHz series mounting board and radio module.

2. To remove the radio module mounting board along with the radio module itself:

2.1. Locate the 4 corner screws found at each outer corner of the radio module mounting

board.

2.2. Using a T8 Torque bit, turn each of the 4 mounting screws counterclockwise and remove

them from the digital board up through the mounting board.

2.3. Pull the radio module mounting board gently upward to remove as you unplug it from

the digital board

Maintenance and Repair

3. To remove just the radio module itself:

3.1. Locate the 4 inner corner screws found at each corner of the radio module itself.

3.2. Using a T8 Torque bit, turn each of the 4 mounting screws counterclockwise and remove

them from the radio module mounting board.

3.3. Gently unplug the radio module to remove it.

3.4. Remove the four spacers found between the radio module and mounting board and save

them for use in the future.

Removing the 2.4GHz radio module

Regardless of whether the SPSx10 being repaired is a 450MHz/2.4GHz combination radio, a 900MHz/2.4GHz combination radio or a single standalone 2.4GHz radio, the digital board will have to be completely removed in order to unmount the 2.4GHz radio module.

1. Complete one of the following sections first, depending on the model being repaired:

– Removing the digital board from a 900MHz or 900MHz/2.4GHz combo radio, page 35

– Removing the Digital Board from a 450MHz/2.4GHz Combination Radio, page 38

– Removing the Digital Board from a single 2.4GHz Model Radio, page 39

P/N 59646-SVC, Revision B Page 41 SNRx10

Service Manual

Page 52

Chapter 6

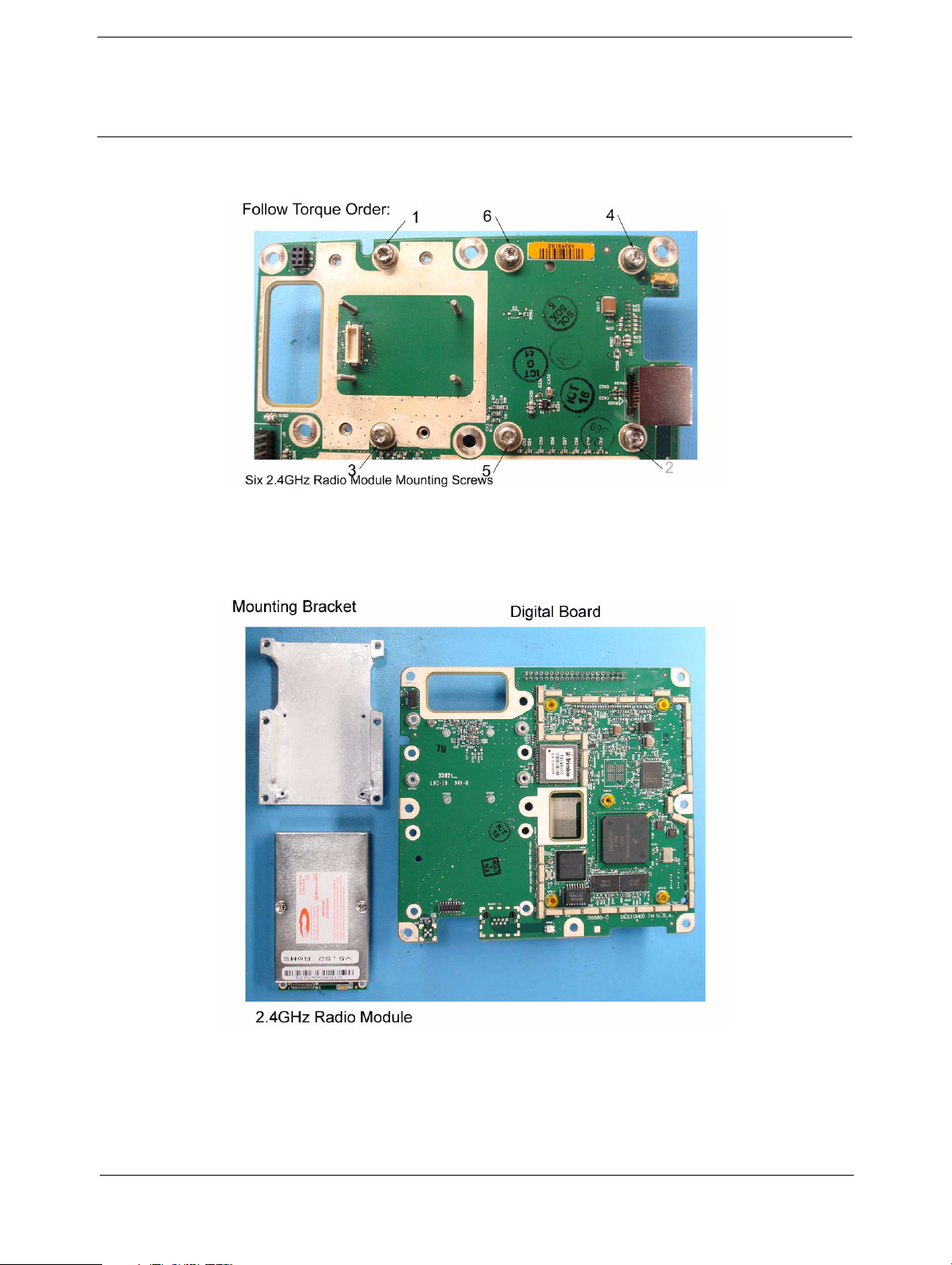

Fig. 6-9 2.4GHz radio module mounted on digital board

2. Using a T15 torx bit, turn each of the 6 mounting screws counterclockwise and remove them from the mounting bracket as shown inFigure 6-9, page42

Maintenance and Repair

Fig. 6-10 Digital board with 2.4GHz radio module and mounting bracket removed.

3. Turn over the digital board and pull the mounting bracket off of the radio module if it hasn’t already come off.

4. Gently unplug the 2.4GHz radio module from the digital board.

Service Manual

P/N 59646-SVC, Revision BPage 42SNRx10

Page 53

Chapter 6

Reassembling the SNRx10 radio

Housing Preparation Steps

Fig. 6-11 Top Housing for 900MHz radio.

Maintenance and Repair

The top housing itself is not offered as a service part. However there are some parts that should already be installed on a post-production units and double-checked before reassembling the radio. Especially if the UUT failed a pre-repair seal integrity test or some mounting studs backed out during disassembly. Make sure the following parts are already in place in the top housing and torqued to their proper specification:

Short mounting studs installed

The two short digital board mounting studs (P/N 61954-00S) should already be installed, See drawing:Top Housing Assembly, page 63as needed.

• If the studs are loose or reused, apply Loctite 425 (P/N 31345-00S) on each stud

• Using a 5/16” socket on a torque wrench set to 11 in-lb +/- 10% (124 N-cm), turn each stud clockwise until the torque wrench clicks.

• Wait a minute or so and perform a second round of torquing each stud.

P/N 59646-SVC, Revision B Page 43 SNRx10

Service Manual

Page 54

Chapter 6

Port Covers installed on unused TNC port holes

On models where there is no GPS antenna jack installed near the I/O panel and/or no 900MHz, 450MHz series or 2.4GHz radio installed, port covers should already be installed to cover the unused TNC port holes.

The port cover kit (67111-00S) makes 2 port covers and consists of the following parts:

• Hole plug-TNC QTY: 2

• O-ring for hole plug QTY: 2

• Flat washer QTY: 2

• Self tapping plastic screw QTY: 2

To reassemble the port cover or check its tightness perform the following steps:

1. Add Silicone Grease (P/N 1603-0090S) to the O-Ring as needed and make sure it is inserted into the groove on the TNC hole plug.

2. Align the hole plug with O-ring over the hole on the outer housing.

3. Place the flat washer over the hole on the inside of the housing and then insert/align the self tapping screw.

4. Using a torque wrench with a phillips head screwdriver bit set to 11 in-lb (124 N-cm), turn the screw clockwise until the torque wrench clicks.

– Wait moment and tighten the philips head screws a second time.

Maintenance and Repair

Light pipe is installed

On the outside of the top housing there is a clear plastic cover that allows the user to see the “radio status” LED. This plastic cover is really a plastic light-pipe that extends upward from the top housing to directly in front of the LED on the digital board so that it can transfer the LED light on the digital board for the end user to see. If this light-pipe becomes dirty, cracked or unmounted, then the customer may have troubles seeing the radio status light clearly. See drawing: Top Housing Assembly,

page 63as needed.

The light-pipe service kit (P/N 70583-00S) and contains the following parts:

• Light-pipe QTY: 1

• O-ring for light-pipe QTY: 1

• Retaining ring QTY:1

To remount the light-pipe within the bottom housing perform the following steps:

1. Make sure the O-ring is inserted onto the bottom of the light-pipe.

2. Push the light-pipe down into place on the top housing and then fasten the retaining ring over the top using.038 size ring spreading pliers.

Service Manual

P/N 59646-SVC, Revision BPage 44SNRx10

Page 55

Chapter 6

Installing the I/O Panel

Note – The I/O Panel must be installed before fastening the rest of the boards inside the top housing.

See drawing: Top Housing Assembly, page 63as needed.

Fig. 6-12 I/O Panel with tape and o-ring installed.

Maintenance and Repair

1. Make sure foam pad with EMI shield is covering the backside of the pins at the top of the I/ O Panel board (P/N 59931-20S). If it is damaged or missing place a new piece over the pins. This must already be installed on new service parts. If not reject/return the part.

2. Add Silicone Grease (P/N 1603-0090S) as needed to the O-ring and make sure the O-Ring (comes with Bendix connector) is installed in the slot around the perimeter of the 8-pin bendix connector.

3. Add Loctite 242 (P/N 22334-00S) to the outer threads of the Bendix connector.

4. Align the flat side of the 8-pin Bendix connector with the flat side of the hole in the top housing and insert it through the hole in the top housing.

5. Using a torque wrench set at 120 in-lb +/- 10% (246.5 N-cm) with a 1 5/16” crowfoot wrench socket attached, tighten the I/O Panel nut clockwise until the torque wrench clicks.

– Wait a moment and tighten the nut a second time.

P/N 59646-SVC, Revision B Page 45 SNRx10

Service Manual

Page 56

Chapter 6

Installing the Radio Modules

Refer to whichever radio module may needed to be installed depending on the model being repaired.

Installing the 2.4GHz radio module

Note – On all models with this radio installed, the 2.4GHZ radio module must always be installed

before the digital board is mounted into the top housing. See drawing: Mounting 2,4GHz Radio Module and Digital Board, page 64 as needed.

1. Housing Preparation Steps, page 43

2. Installing the I/O Panel, page 45

3. If missing, place the two foam strips (P/N 54768-00S) onto the bottom of the2.4GHz radio module (P/N 64327-00S).

Fig. 6-13 Foam strips installed on 2.4GHz radio module.

Maintenance and Repair

4. Plug the 2.4GHz radio module (P/N 64327-00S) onto the digital board.

Fig. 6-14 Plug the 2.4GHz radio module onto the digital board

5. Place the mounting bracket (P/N 60405-00S) over the radio module and turn the digital board over.

Service Manual

P/N 59646-SVC, Revision BPage 46SNRx10

Page 57

Chapter 6

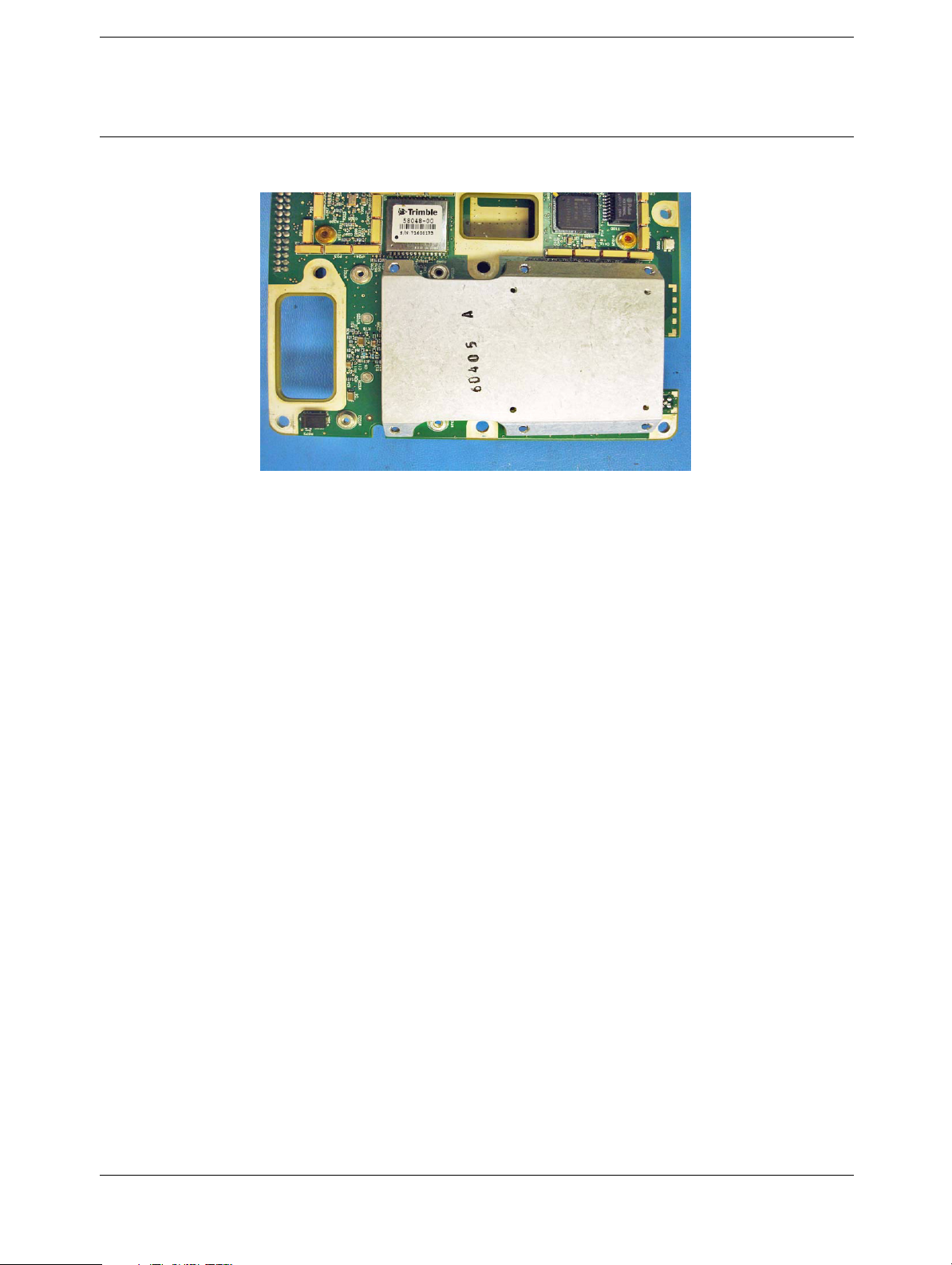

Fig. 6-15 Mounting bracket placed over radio module on digital board.

6. If the mounting screws (P/N 62680-00S are being reused apply Loctite 425 (P/N 31345-00S) to each of the 6 mounting screws.

7. Using a torque wrench set to 11 in-lb (124 N-cm) and a T15 torx bit, fasten each of the 6 screws by turning them clockwise until the torque wrench clicks in the order shown in

Figure 6-16, page48.

– Wait a minute and retorque all 6 screws a second time

Maintenance and Repair

P/N 59646-SVC, Revision B Page 47 SNRx10

Service Manual

Page 58

Chapter 6

Fig. 6-16 Torque order when attaching the mounting bracket to the digital board.

8. Plug the MMCX connector of the 2.4GHz RF antenna cable (P/N 59978-00S) into the MMCX jack on the 2.4GHz radio module

9. Push the TNC connector of the 2.4GHz RF antenna cable through the 2.4GHz radio antenna jack hole on the right side of the top housing (when viewing from the rear of the unit with the rear panel removed)

10. Slide the flat washer over the RF connector jack and hand tighten the 5/16” nut.

11. Using a 5/16” socket on a torque wrench set at 22 in-lb (248.5 N-cm) tighten the nut clockwise against the lock-washer, flat washer and housing

12. At this point before installing any additional radio modules, you must mount the digital board into the top housing first. If you have a single 2.4GHz radio then the mounted digital board and appropriate cables are shown in Figure 6-17, page49. If you have additional radio modules to mount proceed to Installing the Digital Board, page 54

Maintenance and Repair

Service Manual

P/N 59646-SVC, Revision BPage 48SNRx10

Page 59

Chapter 6

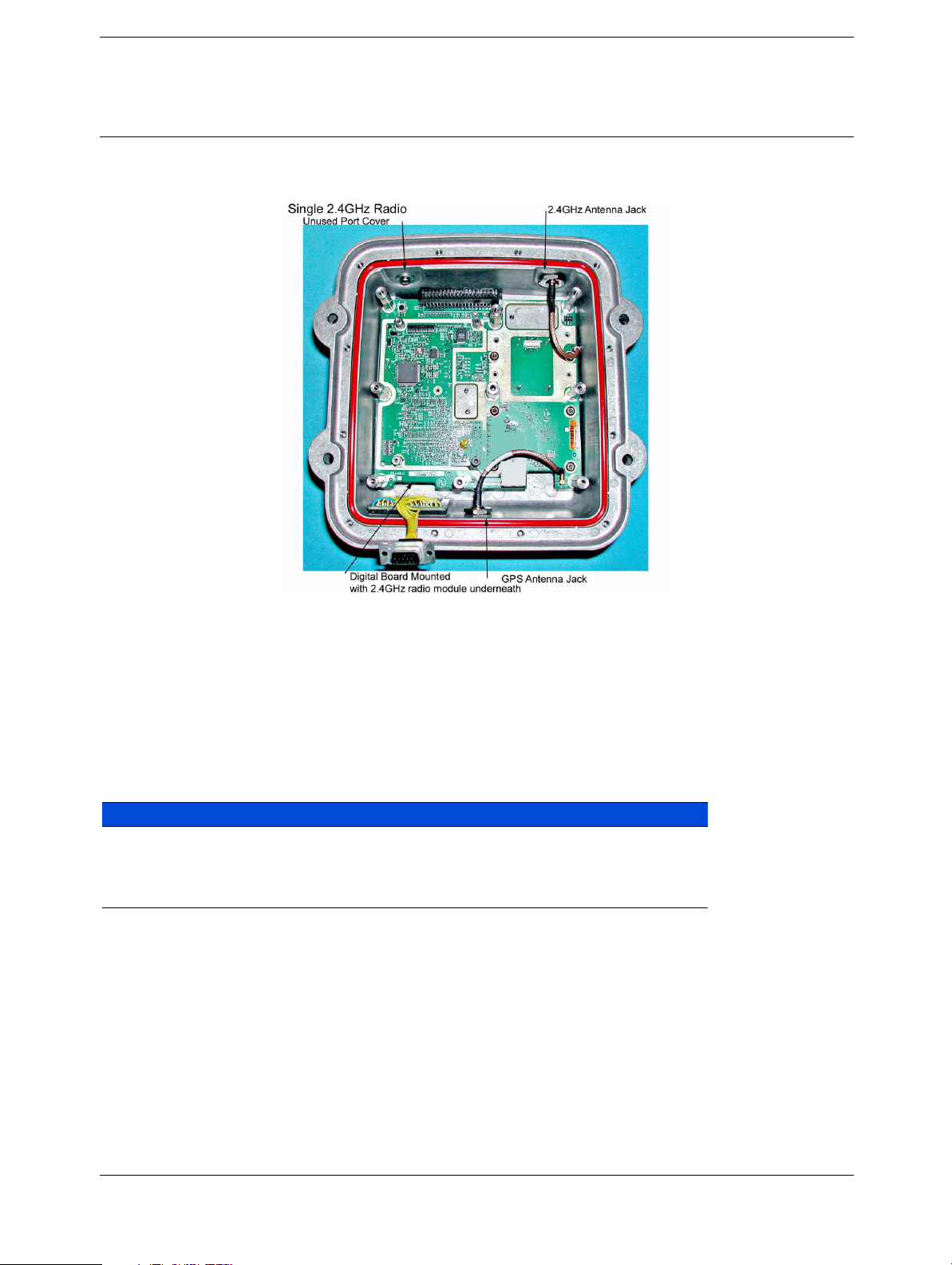

Fig. 6-17 Single 2.4GHz Radio with digital board completely mounted in top housing.

Maintenance and Repair

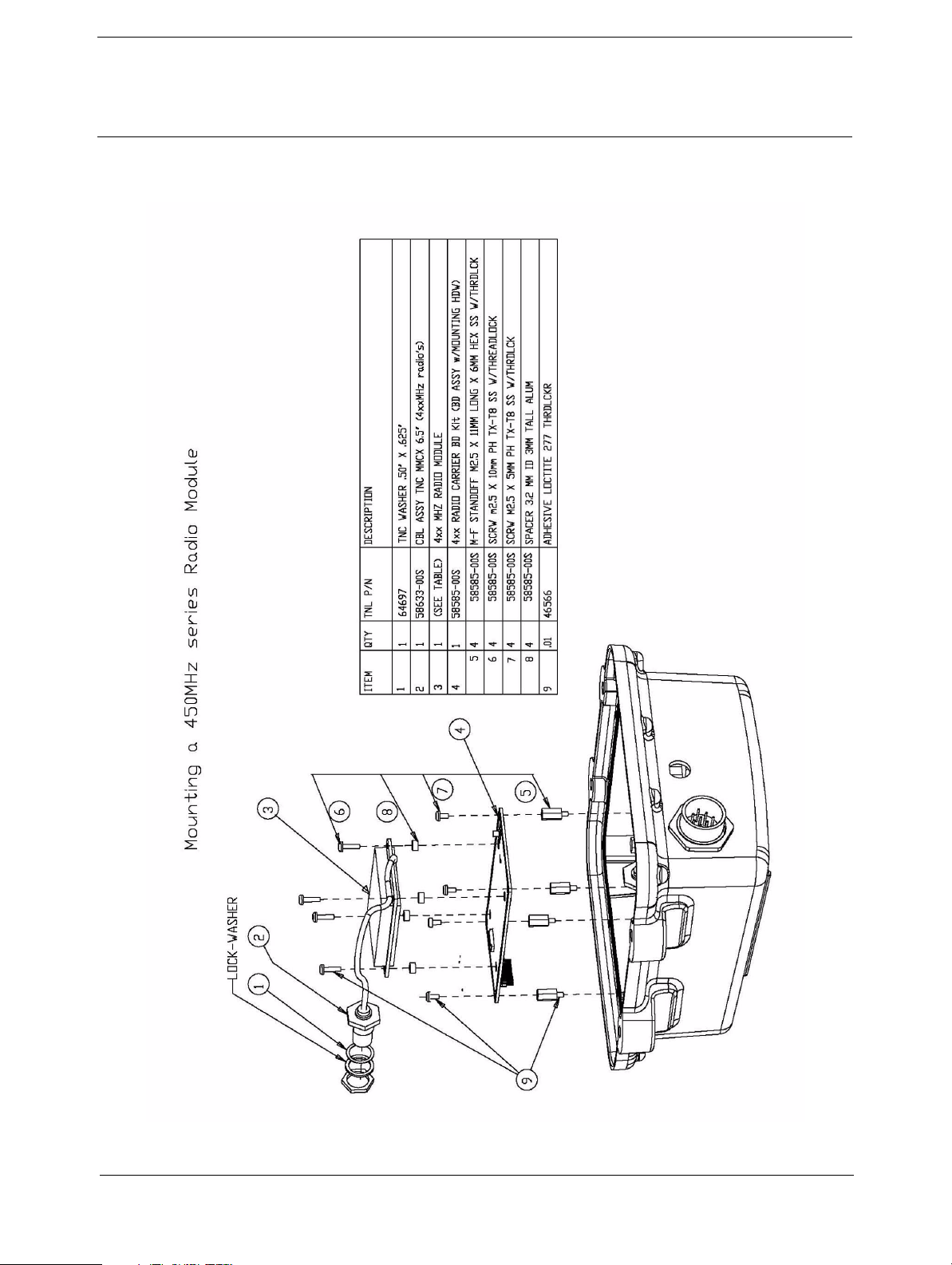

Installing a 450MHz series radio module

When swapping a radio module you must match the frequency of the radio module with the one that the customer originally purchased. As with previous Trimble radio products the product part number designates which frequency range is installed as follows:

Radio module part numbers

Description Radio Module P/N Product Series P/N

410-430MHz 70384-62S 63127-62-24

430-450MHz 70384-64S 63127-64-24

450-470MHz 70384-66S 63127-66-24

Note – The two ending digits of the radio module should match the two middle digits of the product

part number.

Although the radio modules are sold as separate service parts, all modules are mounted on a PC board that gets fastened to the digital board. The 4xx radio carrier board and hardware are sold in kit P/N 58585-00S and contains the following parts:

P/N 59646-SVC, Revision B Page 49 SNRx10

Service Manual

Page 60

Chapter 6

P/N 58585-00S 4xxMHz radio carrier board kit (with mounting hardware):

• 4xxMHz radio carrier PC board, QTY:1

• Screw M2.5X5mm PH, QTY: 4

• Standoff Custom 6MM HEX, QTY: 4

• Screw M2.5X10 PH, QTY: 4

• Spacer 3.2MM ID 3MM Tall, Alum, QTY: 4

• Adhesive Loctite 277, QTY: 1

See drawing Mounting the 4xxMHz radio module, page 66 as needed.

To mount the carrier board and radio module into the SNRx10 perform the following steps:

1. Housing Preparation Steps, page 43

2. Installing the I/O Panel, page 45

3. Installing the 2.4GHz radio module, page 46

4. Installing the Digital Board, page 54

5. If the four 6mm standoffs are not already installed on the digital board or are installed but loose, apply Loctite 277 (P/N46566-00S) to the threads of each one.

Maintenance and Repair

6. Using a 5/16” socket and a torque wrench set at 8-in lb (90.4 N-cm), in the order shown, turn each standoff clockwise until the torque wrench clicks. Tighten a second time.

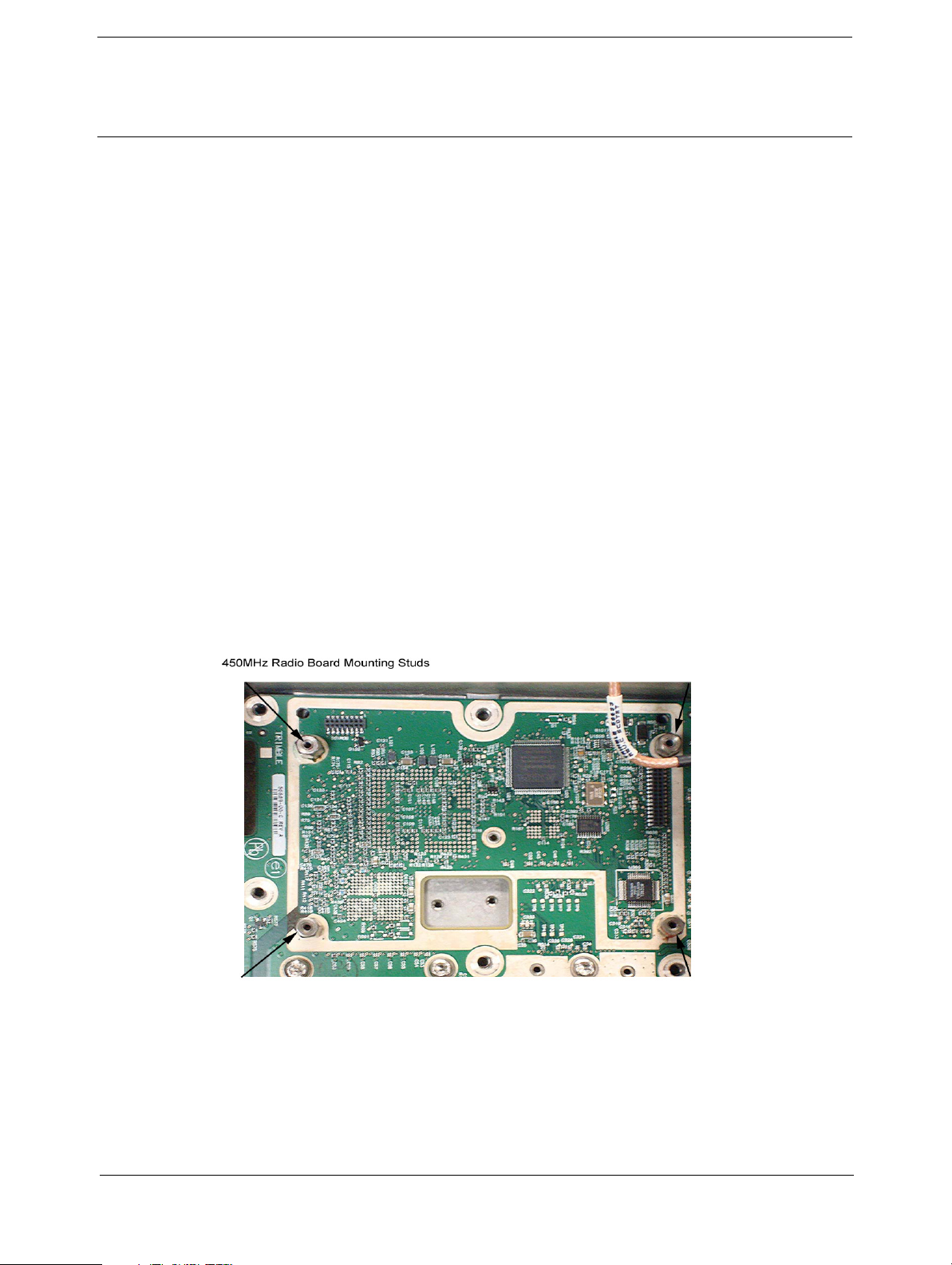

Fig. 6-18 Location of four radio board mounting standoffs on the digital board.

7. Gently plug the 4xxMHz carrier board (P/N58585-00S) onto the digital board and align the four corners with the standoffs.

8. Apply Loctite 277 (P/N46566-00S) onto each of the M2.5x5mm mounting screws.

9. Using a T8 torx bit set at 8-in lb (90.4 N-cm), fasten each of the M2.5x5mm corner screws by turning them clockwise until the torque wrench clicks. Tighten each screw a second time.

Service Manual

P/N 59646-SVC, Revision BPage 50SNRx10

Page 61

Chapter 6

Fig. 6-19 The 4xxMHz carrier board with radio module, both installed onto the digital board.

10. Place each of the four spacers (P/N 58007-00S) over the mounting holes in the 450MHz Carrier board.

11. Gently plug the 4xxMHz series radio module (select from Radio module part numbers,

page 49 onto the carrier board and be careful not to allow the spacer to move.

Maintenance and Repair

12. Add Loctite 277 (P/N 46566-00S) to each of the four M2.5x10mm radio module mounting screws.

13. Insert each screw through the mounting hole and spacer.

14. Using a T8 torx bit set to 8-in lb (90.4 N-cm), turn each screw clockwise until the torque wrench clicks.

15. Insert the MMCX connector of RF cable (P/N 58633-01S) into the 4xxMHz series radio module.

16. Insert the TNC connector end of the RF cable through the left side connector hole in the top housing (when viewing from rear of the unit with the rear panel removed), see Figure 6-6,

page38

Note – The 900MHz RF jack and the 450MHz series models both use the left TNC port hole

in the top housing as their RF antenna jack location (when viewed from the rear with the rear panel removed) and are mutually exclusive.

17. Slide the flat washer over the RF connector and hand tighten the 5/16” nut onto the jack.

18. Using a 5/8” socket on a torque wrench set at 22 in-lb (248.5 N-cm), tighten the nut clockwise against the flat washer and housing until the torque wrench clicks. Wait a minute and tight the nut a second time.

P/N 59646-SVC, Revision B Page 51 SNRx10

Service Manual

Page 62

Chapter 6

Installing the 900MHz radio module

Fig. 6-20 900MHz radio with radio module installed.

Maintenance and Repair

See drawing: Mounting the 900MHz radio module, page 65 as needed.

1. Housing Preparation Steps, page 43

2. Installing the I/O Panel, page 45

3. Installing the 2.4GHz radio module, page 46

4. Installing the Digital Board, page 54

5. Make sure the insulator/Thermal Pad (P/N60447-00S) is installed on the digital board. Replace it if it is torn or damaged. See Housing Preparation, Figure 6-11, page43

6. Place the mounting bracket (P/N 60403-00S) onto the digital board, while keeping the holes between the digital board and bracket aligned.

7. Make sure the thermal gasket (P/N 51462-00S) is installed onto the mounting bracket. If it is damaged or torn, replace it with a new one.

Service Manual

P/N 59646-SVC, Revision BPage 52SNRx10

Page 63

Chapter 6

Fig. 6-21 Location of 900MHz radio mounting bracket with thermal gasket installed.

Maintenance and Repair

8. Align the mounting holes and 40 pin connector on the 900MHz radio board and plug it into the digital board firmly.

9. Apply Loctite 425 (P/N 31345-00S) on the 7 M2.5 mounting screws (P/N 61984-00S).

P/N 59646-SVC, Revision B Page 53 SNRx10

Service Manual

Page 64

Chapter 6

Fig. 6-22

Maintenance and Repair

10. Using a T8 Torx bit and a torque wrench set at 4 in-lb (45.2 N-cm), tighten each screw clockwise, in the order shown in Figure 6-22. Then tighten each screw a second time.

11. Place the RF cover back onto the 900MHz radio board.

12. Plug the MMCX end of the 900MHz RF cable (P/N 59979-00S) into the 900MHz radio module and secure with a tie wrap.

13. Insert the TNC end of the 900MHz RF cable into the left port hole in the top housing (when viewed from the rear with the rear cover removed).

14. Slide the flat washer over the RF connector and hand tighten the 5/8” nut onto the jack.

15. Using a 5/8” socket on a torque wrench set at 22 in-lb (248.5 N-cm), tighten the nut clockwise against the flat washer and housing until the torque wrench clicks.

Installing the Digital Board

See drawing: Mounting 2,4GHz Radio Module and Digital Board, page 64 as needed.

1. Housing Preparation Steps, page 43

2. Installing the I/O Panel, page 45

3. Installing the 2.4GHz radio module, page 46

Service Manual

P/N 59646-SVC, Revision BPage 54SNRx10

Page 65

Chapter 6

Note – On 2.4GHz model radios, the 2.4GHz radio module must be mounted on the digital

board before mounting the digital board into the top housing.

4. Make sure the 2.4GHz RF antenna cable (P/N59978-00S) is installed as per steps 8 though 11 on page 48.

5. Align the mounting holes in the digital board with the holes in the top housing.

6. Apply Loctite 425 (P/N 31345-00S) to the 9 M3.5 standoffs (P/N 62789-00S).

7. Using a 8mm Hex bit and a torque wrench set at 11 in-lb (124.3 N-cm), tighten each screw clockwise, in the order shown.

Fig. 6-23 Show here: Digital board mounted with completed 450MHz/2.4HHz combination radio modules and a completed single 900MHz radio module top housing.

Maintenance and Repair

8. Plug the MMCX end of the GPS RF cable (P/N 59979-00S) into the MMCX jack located at.

9. Insert the TNC end of the GPS RF cable into the center port hole in the top housing.

10. Slid e the dust cap assembly (P/N 60521-00S) onto the TNC connector and then the flat washer and hand tighten the 5/8” nut onto the TNC connector.

11. Using a 5/8” socket on a torque wrench set at 22 in-lb (248.5 N-cm), tighten the nut clockwise against the flat washer and housing until the torque wrench clicks. Tighten a second time.

P/N 59646-SVC, Revision B Page 55 SNRx10

Service Manual

Page 66

Chapter 6

Maintenance and Repair

Installing the Power Supply Board

See drawing: Mounting the power supply board, page 68 as needed.

1. Housing Preparation Steps, page 43

2. Installing the I/O Panel, page 45

3. Installing the Radio Modules, page 46

4. Installing the Digital Board, page 54

Double-check heat sink

The power supply board (P/N58480-00S) comes with a heat spreader (P/N 66457-00S) and a thermal pad (P/N 60452-00S) mounted underneath it. Make sure there is no damage to these parts. If there appears to be heat damage there could be electrical problems on the power supply board itself and you should make sure the board has passed all voltage tests. If these parts seem damaged or are loose on the board replace or remount them as needed in the following manner:

1. Make sure the old adhesive from the thermal pad is removed and the surface of the board where the heat spreader and thermal pad mounts is clean.

2. Remove the self adhesive backing from the thermal pad (P/N60452-00S).

3. Align the thermal pad carefully with the mounting holes for the heat spreader and affix it to the top of the power supply board.

4. Align the heat spreader onto the top of the power supply board with its mounting holes.

5. Apply Loctite 425 (P/N 31345-00S) to each of the three M3.5 mounting screws (P/N 6268000S).

6. Using a T15 Torx bit and a torque wrench set at 11 in-lb (124.3 N-cm), turn each of the 3 mounting screws clockwise until the torque wrench clicks. Tighten a second time.

Mounting the power supply board

1. Plug the power supply boards (P/N 58480-00S) 42 pin connector onto the digital board connector and align the mounting holes of the board with the standoffs.

2. Apply Loctite 425 (P/N 31345-00S) onto the 9 M3.5 mounting screws (P/N 62680-00S).

3. Using a T15 Torx bit and a torque wrench set at 11 in-lb (124.3 N-cm), tighten each mounting screw clockwise in the order shown in Figure 6-24, page57.

– Wait a minute and tighten a second time.

Service Manual

P/N 59646-SVC, Revision BPage 56SNRx10

Page 67

Chapter 6

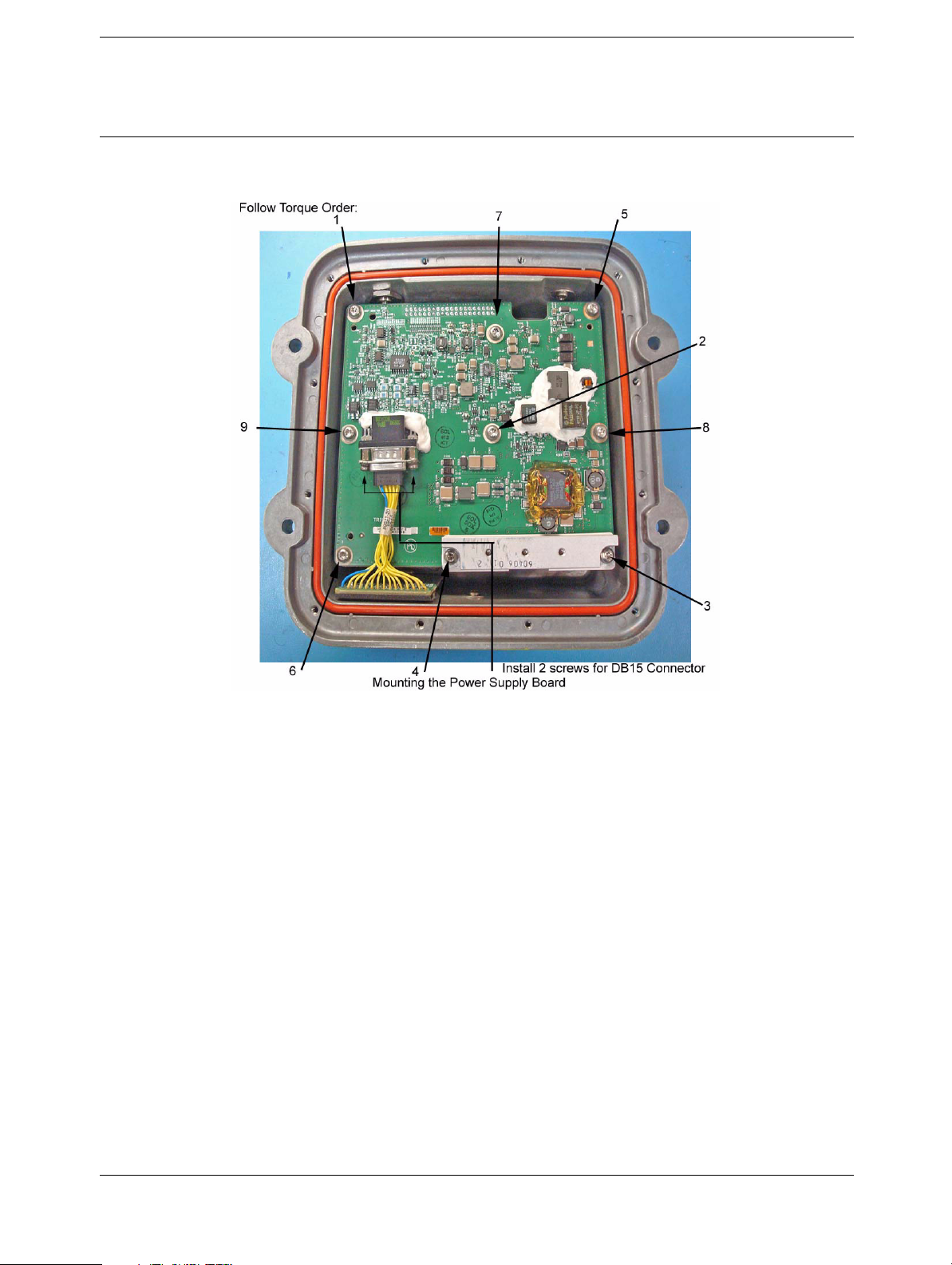

Fig. 6-24 Power Supply mounting screw torque sequence.

Maintenance and Repair

4. Plug the DB15 connector from the I/O panel into the power supply board.

5. Apply Loctite 425 (P/N 31345-00S) on the 2 M3 mounting screws (P/N 50745-00S).

6. Using a T10 Torx bit with a torque wrench set at 6 in-lbs (4.24 N-cm), turn both screws clockwise until the torque wrench clicks. Tighten a second time.

Mounting the Rear Panel

See drawing: Mounting the rear panel, page 69 as needed.

Check the Thermal Pad

There is a thermal pad (P/N 60541-00S) mounted/positioned on the rear panel to cover the heat spreader on the power supply to help dissipate heat. Visually check that the thermal pad is in place. If it is damaged, not sticking well or missing then install a new one using these steps:

1. Clean the area with a lint free wipe dipped in IPA.

2. Remove the backing on the Thermal pad, position carefully on the rear panel and stick in place as shown in Figure 6-25, page58

P/N 59646-SVC, Revision B Page 57 SNRx10

Service Manual

Page 68

Chapter 6

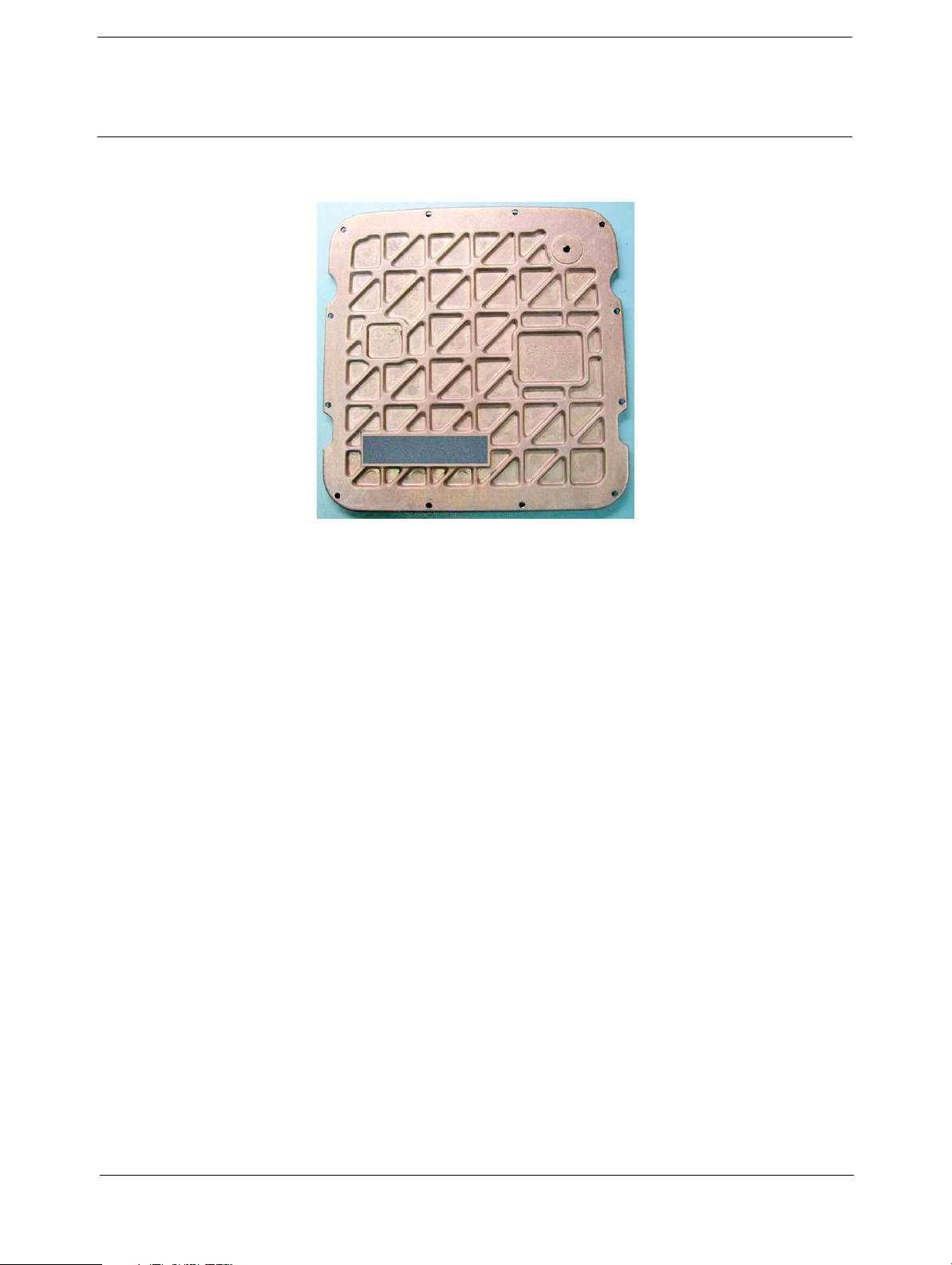

Fig. 6-25 Position of Thermal Pad (P/N 60451-00S

Mount the rear panel

Maintenance and Repair

1. Add Silicone Grease (P/N 1603-0090S) as needed and make sure O-ring (P/N 60379-00S) is placed in the channel found around the perimeter of top housing. See orange O-ring placement in Figure 6-24, page57

2. Make sure the serial number on the rear panel matches the serial number of the unit under repair; align the screw holes together as you place the rear panel (P/N 55788-01S) onto the top housing.

3. Apply Loctite 425 (P/N 31345-00S) on the 12 M3.5 mounting screws (P/N 62680-00S).

4. Using a #T15 torx bit with the torx driver set to 16 in-lb (180.78 N-cm), insert and tighten all 12 of the rear panel screws in the star pattern shown.

– Wait a minute or two and tighten a second time.

Service Manual

P/N 59646-SVC, Revision BPage 58SNRx10

Page 69

Chapter 6

Fig. 6-26 Rear Panel Torque Order

Maintenance and Repair

Seal Integrity Test

The Trimble Seal Integrity Test Kit (P/N 48848-00S) is used on nearly all serviceable Trimble products. This chapter presumes that you already have the test kit assembled and ready to use as per

Seal Integrity Test, page 107

1. Unscrew the #2 size Phillips head screw (P/N 44854-00S) from the rear panel of the SPSx10 Radio.

2. Screw the vacuum port adaptor into the rear panel.

3. Test the receiver using the seal integrity test instructions (P/N 48488-SVC).

4. If the receiver remains sealed at both +5 psi and -5 psi, each for 30 seconds or longer without losing more then 1.0 cc of air, it has passed this test.

5. Remove the vacuum port adaptor from the rear panel.

6. Using a #2 Phillips head screwdriver bit and a torque wrench set at 16 in-lb (180.78 N-cm), clockwise until the torque wrench clicks. Tighten a second time.

P/N 59646-SVC, Revision B Page 59 SNRx10

Service Manual

Page 70

Chapter 6

Maintenance and Repair

Service Manual

P/N 59646-SVC, Revision BPage 60SNRx10

Page 71

Chapter 7

7 Assembly Drawings

Q Drawings

This chapter contains assembly drawings of the SNRx10 radio modem products showing the part numbers of all the components that make up the unit.

Assembly Drawings

P/N 59646-SVC, Revision B Page 61 SNRx10

Service Manual

Page 72

Chapter 7

Drawings

Assembly Drawings

Service Manual

P/N 59646-SVC, Revision BPage 62SNRx10

Page 73

Chapter 7

Fig. 7-1 Top Housing Assembly

Assembly Drawings

P/N 59646-SVC, Revision B Page 63 SNRx10

Service Manual

Page 74

Chapter 7

Fig. 7-2 Mounting 2,4GHz Radio Module and Digital Board

Assembly Drawings

Service Manual

P/N 59646-SVC, Revision BPage 64SNRx10

Page 75

Chapter 7

Fig. 7-3 Mounting the 900MHz radio module

Assembly Drawings

P/N 59646-SVC, Revision B Page 65 SNRx10

Service Manual

Page 76

Chapter 7

Fig. 7-4 Mounting the 4xxMHz radio module

Assembly Drawings

Service Manual

P/N 59646-SVC, Revision BPage 66SNRx10

Page 77

Chapter 7

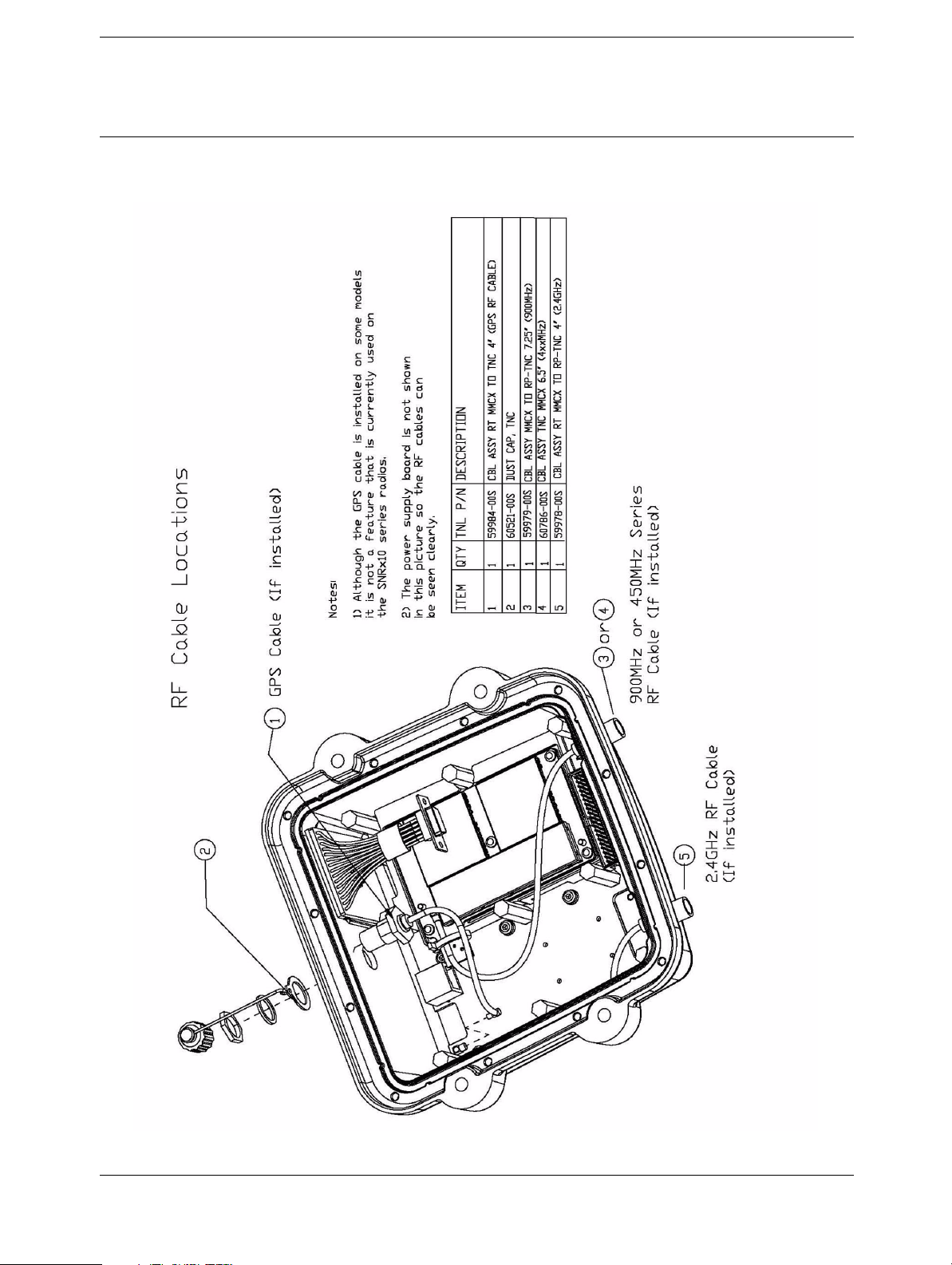

Fig. 7-5 Internal RF Cable Mounting Locations

Assembly Drawings

P/N 59646-SVC, Revision B Page 67 SNRx10

Service Manual

Page 78

Chapter 7

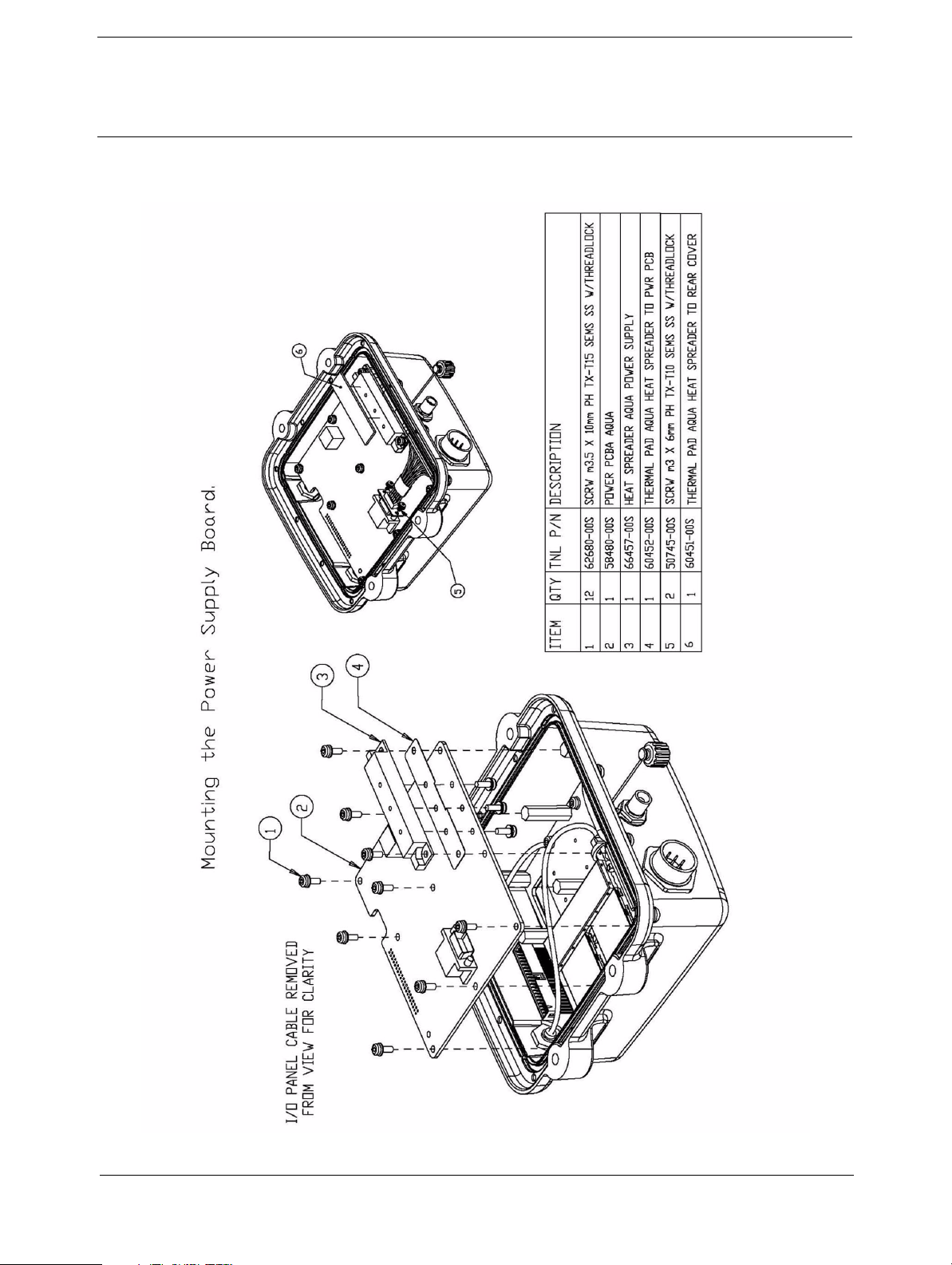

Fig. 7-6 Mounting the power supply board

Assembly Drawings

Service Manual

P/N 59646-SVC, Revision BPage 68SNRx10

Page 79

Chapter 7

Fig. 7-7 Mounting the rear panel

Assembly Drawings

P/N 59646-SVC, Revision B Page 69 SNRx10

Service Manual

Page 80

Chapter 7

Assembly Drawings

Service Manual

P/N 59646-SVC, Revision BPage 70SNRx10

Page 81

Chapter 8

Performance Verification

8 Performance Verification

Q Test Cables and Equipment

Q Test checklist

Q Physical Inspection

Q Seal Integrity Test

Q Retrieve/Restore Radio Diagnostic Information

Q Voltage and Current Tests

Test Cables and Equipment

A combination of test cables and equipment are needed for final performance verification of the SNRx10 radio modem.The following cable(s) are needed (these are the same cables mentioned in

Interfacing to a Computer, page 24 and Test Cables Needed, page 89:

Test Cables Needed

One or more of the following test cables are needed in order to be able to interface Winflash to the test computer: These are the same cables called out in Interfacing to a Computer, page 24 and Test

Cables Needed, page 89

• 40942-03 (QTY 1):

– With 62546 Power Supply, 60W, 18V, 3.4A, 100-240VAC

– and with 51695 Power Cable for the above charger

Note – This cable is also needed to run a radio throughput test and is recommended over

older cables that serve the same purpose. USE the DB9 connector marked I/O when interfacing with Winflash. Use the DB9 marked GPS when running a radio throughput test with CSG Test Suite.

• 40282-01 (QTY 1): Cable - Radio, 1ft., 0 shell 7-pin LM(F) to 8-pin BD(F) can be used with one of the following:

– 59044 (QTY 1): Cable - 1.5m, DB9(F) Y to 0S/7-pin LM(M) w/Power Jack (RoHS,

backward compatible with 32345)

– OR 32345 (QTY 1): Cable - 1.5m, DB9(F) Y to 0S/7-pin LM(M) w/Power Jack (non-

RoHS, obsolete)

– 38483 (QTY 1): Power - AC Power Module, Mains to TA-3. This is the AC adaptor for

both 40942-03, 59044 and 32345. Newer version is 62546 with 51695

Note – Many service providers will already have these cables from the Sitenet series radio

Cable - Radio, 3ft., 8-pin BD(F) to TA3(M)/DB9(F)/DB9(F)

P/N 59646-SVC, Revision B Page 71 SNRx10

Service Manual

Page 82

Chapter 8

Test Equipment Needed

The following test equipment is required, unless specified as optional:

Trimble P/N Test Equipment + QTY Description/Minimum Specifications

None Variable Power Supply 0 - 40VDC Out, 3A, Digital display for voltage and current

None Multimeter Mid priced with digital readout

0690-1003 GCS Test Box with

GCS900 cable set

65306-00S

(Optional)

Radio Throughput Test Model II, for service.

GCS System Level Testing for the work bench used to test single or dual GPS (MS980/990) system including radio.

Used to perform final performance test. Available around end of 2009.

Performance Verification

Service Manual

P/N 59646-SVC, Revision BPage 72SNRx10

Page 83

Chapter 8

Performance Verification

Test checklist

This test checklist is required to be used as:

• A pre-test to help determine what is wrong with SWO’s or RMA’s

• A final series of tests for performance verification of the UUT.

Test Comments Passed ?

Physical Inspection

Physical Inspection, page 74

Seal Integrity Test Seal

Integrity Test, page 74

Retrieve/Print Radio Diagnostic Information

Retrieve/Restore Radio Diagnostic Information, page 75

• The Bendix connector pins and threads aren’t damaged.

• TNC Antenna connectors center conductors and connector threads aren’t damaged.

• Nothing rattles or is loose inside.

• The housing is not damaged/cracked.

Pre-repair test. Always check to see if the seal integrity has been compromised before disassembly. If it fails check for moisture before powering up.

Before repairing the UUT, go to retrieve radio diagnostics in Winflash and print or save the customers current radio configuration for future reference.

Voltage/Current Tests

Voltage Input vs. Current Draw, page 76

Over/Under voltage Tests

Under voltage Test, page 77

Check LED Operation LED

TEST, page 77

Serial Port Interface Hook the SNRx10 COM port to Winflash and see if the interface works.

CAN Bus interface CAN

Bus Test, page 79

Switch Active Radio

Switch Active Radio, page 80

Check S/N and P/N to Housing Labels Compare

S/N and P/N to Housing Labels, page 80

Seal Integrity Test Seal

Integrity Test, page 74

• 12V DC in/ Current should be 470 mA +/- 15mA

• 24V DC in/ Current should be 260 mA +/- 15mA

• Over Voltage: 33.95V +/- 1.55V, UUT should power off.

• Turn voltage down toward 24VDC, UUT should power back on somewhere between 32.50VDCand 24VDC.

• Under Voltage: 8.75V +/- 50ma, UUT should power off.

Make sure the LED lights up and operates properly.

Plug SNRx10 into a GCS BOB or system harness and see if it is reported on the CB430 Diagnostic screen.

This test is for Combination radio models only.

This should be the same as the S/N and P/N programmed inside the UUT.

Post-repair Test: After re-assembling the UUT, perform a final seal integrity test.

P/N 59646-SVC, Revision B Page 73 SNRx10

Service Manual

Page 84

Chapter 8

Test Comments Passed ?

System Bench Test GCS

Test Box: Radio System Bench Test, page 81

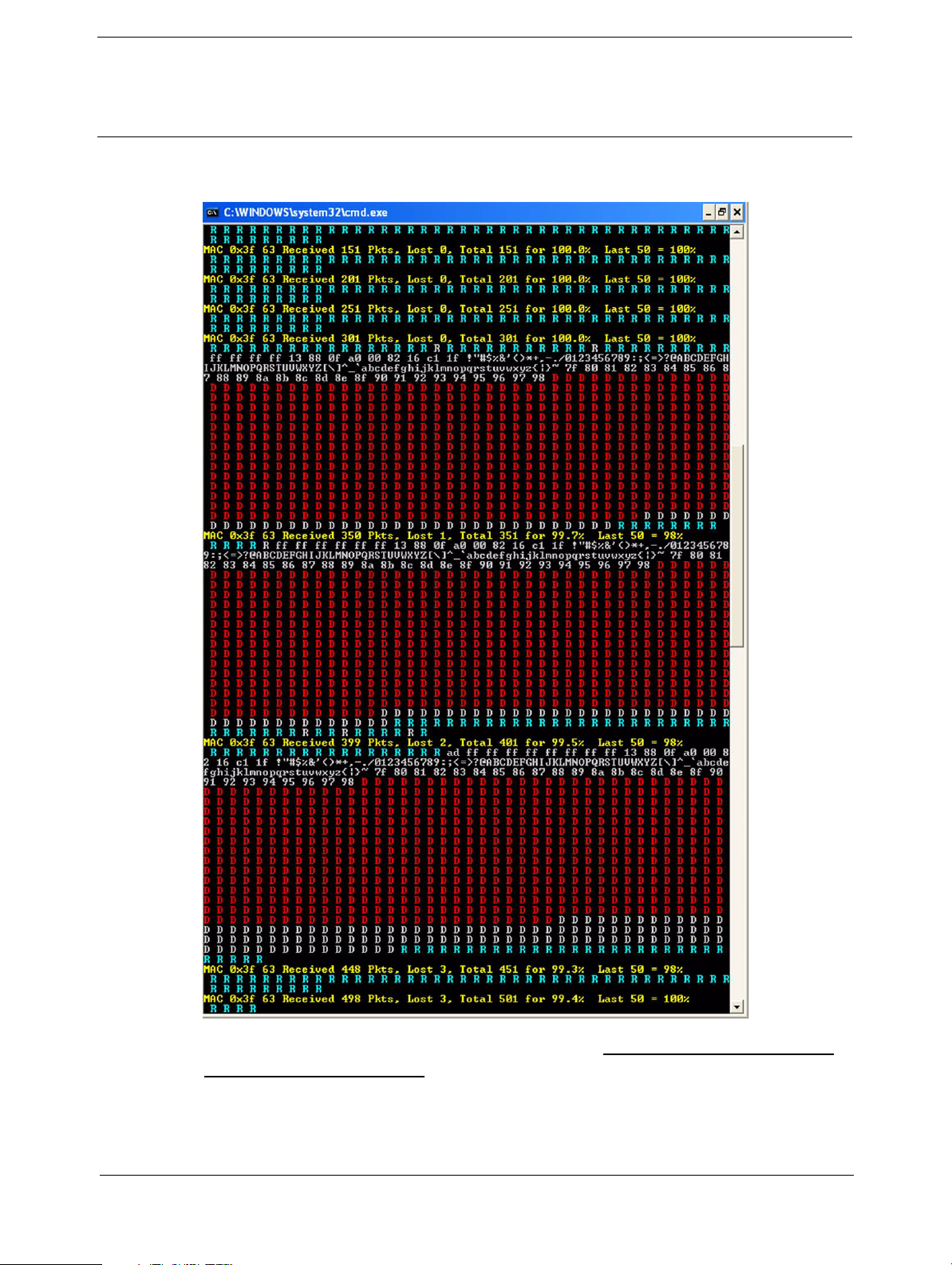

Radio Throughput Test

Radio Throughput Test, page 82

Restore Customer settings if necessary

See if unit will receive and process Base CMR’s when placed in GCS BOB or system harness.

• 2.4GHz (bench throughput test available now)

• 900MHz (bench throughput test available in future)

• 4xxMHz (bench throughput test available in future)

Use the diagnostic report as a reference to re-enter specific radio channels, settings or the enabling of the 2.4GHz radio on combination 4xxMhz/2.4GHz models.

Performance Verification

Physical Inspection

To perform a physical inspection check for the following things:

• Cracked top or bottom housing

• Damaged pins or threads on the Bendix connector.

• Damaged TNC connectors.

• Damaged, loose or missing TNC covers on single radio models.

• Cracked or missing LCD pipe window.

• Signs of water damage externally and/or internally, if so, do not power UUT up.

• Shake unit and listen for anything loose inside, if there is, do not power UUT up.

• Note whether there are missing or damaged S/N and/or P/N labels.

If the UUT passes all of the inspections above it has passed the physical inspection. If the UUT has not passed all of these tests make a note of which ones failed and repair them as needed when and if repairs are performed.

Seal Integrity Test

For a complete description on setting up the Seal Integrity Test, see Seal Integrity Test, page 107.This section assumes the kit itself is assembled and ready to use.

The Seal Integrity Test should be used as:

• Pre-Repair Qualification Test: This is a required test to see if the UUT is sealed properly before starting a repair. If a UUT fails a pre-repair test, it should be determined whether moisture could be inside and if it is then do not power the unit up.

• Post-Repair Qualification Test: A seal integrity test is always required as part of the final test procedure. Make sure the UUT passes this test and that any failures in the pre-repair seal integrity test have been fixed.

To perform a seal integrity test refer to Seal Integrity Test, page 59

As per the test, if the receiver remains sealed at both +5 psi and -5 psi each for 30 seconds or longer without losing more then 1.0 cc of air, it has passed this test.

Service Manual

P/N 59646-SVC, Revision BPage 74SNRx10

Page 85

Chapter 8

Performance Verification

Retrieve/Restore Radio Diagnostic Information

Before starting a repair it is best practice to save or print out the radio diagnostic information for the UUT so a permanent record of the original settings and channel frequency table are saved for future reference. Use the radio interface cable and Winflash as per section Retrieve Radio Diagnostics

Information, page 98, which is shown again here:

1. In Winflash, highlight Retrieve Radio Diagnostics Information and then hit Enter.

2. Click on Save or Print to print out the customers current configuration and save it as a reference. A print out will be sent to the default windows printer.

Voltage and Current Tests

Many service providers that currently repair the Sitenet series radio’s may have created this test cable already. If you need to assemble this cable order the above parts and then follow the instructions in

Voltage Test Cable, page 129.

Preparing to Run the Tests

To run voltage and current tests efficiently it is recommend that a variable power supply is used with the following minimum specifications:

• Min/Max Voltage Range: 0 - 40V DC or higher.

• Minimum Current: 3A or higher

• Digital Display for both voltage and current readings.

A radio voltage test/interface cable with a power input is also required to perform these tests. An 8Pin Bendix to Lemo adaptor along with one of the following radio cables (these are Sales parts, not Service parts) will need to modified for this test:

• 40282-01: Cable - Radio, 1ft., 0 shell 7-pin LM(F) to 8-pin BD(F)

• 59044: Cable - 1.5m, DB9(F) Y to 0S/7-pin LM(M) to Power Jack (RoHS Compliant)

• OR 32345: Cable - 1.5m, DB9(F) Y to 0S/7-pin LM(M) to Power Jack (no longer sold, the above part took its place but is backward compatible).

Once the test cable has been built prepare it for testing by doing the following:

• With the variable power supply turned off, plug the black banana jack into the ground terminal of the variable power supply.

• Plug the red banana jack into the positive terminal of the variable power supply.

• Attach adaptor 40282-01 to the modified test cable if hasn’t been plugged in yet.

• Without plugging in the test cable to the UUT, turn on the variable power supply and set the voltage to 12VDC. If the variable power supply has a current limit setting make sure it is set to 3A or higher.

• Now set the power supply to standby or turn the power off until you begin running tests. From this point forward as we describe the following tests, we will assume the power supply is set at 12V DC, 3A or higher and in standby mode at the beginning of each test unless specified otherwise.

P/N 59646-SVC, Revision B Page 75 SNRx10

Service Manual

Page 86

Chapter 8

Performance Verification

Running the Tests

Voltage Input vs. Current Draw

The purpose of this test is to measure the current draw of the UUT when it is powered up at standard GCS system voltages. If the current draw is within specification then the UUT has passed these tests. To perform these tests follow these steps:

Current Draw at 12VDC:

1. Plug the 8-Pin Bendix cable into the SNRx10.

2. Turn the power supply on. If the current jumps like there’s a short then shut the power supply off immediately. Otherwise proceed to the next step.

3. At 12VDC the current should be about 470ma +/- 15ma to pass this test

4. Place the power supply back to standby mode or shut it off.

Current Draw at 24VDC:

1. Turn the power supply on. If the current jumps like there’s a short then shut the power supply off immediately. Otherwise proceed to the next step.

2. At 24VDC the current should be about 260ma +/- 15ma to pass this test.

3. For easy transition to the next test keep the variable power supply “on” and at 24VDC and proceed to the next test.

Overvoltage Test

The purpose of this test is to ensure that the overvoltage protection circuit works on the SNRx10 and whether the UUT recovers after the overvoltage source is lowered down to within the normal input voltage range of 12-24VDC.

To test the overvoltage protection perform the following steps:

1. Turn the variable power supply voltage up to 32VDC. Slowly continue increasing the voltage and observe the following:

1.1. The overvoltage protection circuit should kick in somewhere between 32.40 and

35.5VDC.

1.2. Now slowly lower the variable power supply voltage back down toward 32VDC. The

overvoltage protection circuit should turn off and the unit should power up again somewhere between 32.4VDC and 24VDC. If the UUT’s overprotection circuit kicks

in within the specified voltage range above and recovers after the input voltage is lowered back within normal input voltage range then the UUT has passed this test.

1.3. If overvoltage protection never kicks in or the UUT shorts out then turn off the variable

powers supply immediately. The UUT has failed this test and the power supply board and/or front I/O panel should be troubleshot further.

Service Manual

P/N 59646-SVC, Revision BPage 76SNRx10

Page 87

Chapter 8

Under voltage Test

The under voltage test checks to see how low the voltage can get before the SNRx10 shuts down. The basic objective at that it shut down at a input voltage that is quite a bit lower then 12VDC, usually starting at 9.25VDC or lower. Perform the following steps:

1. Starting at 12VDC, slowly turn the variable power supply downward and observe the following:

1.1. The UTT shuts down at 9.25VDC or lower. Usually it shuts down at around 8.4VDC.

1.2. Once the UUT shuts down, turn the input voltage back up and observe that the UUT

powers up at approximately 8.70VDC +/- .50V. If the UUT powers down and then

powers up within this range then it has passed this test.

Performance Verification

LED TEST

The purpose of this test is to ensure that the status LED on the front side of the radio is working and not burn out. It’s simple to run this test:

1. Turn the variable power supply on to power up the UUT.

2. Make sure that the light pipe “lens” itself is not scuffed up or damaged, if it is, replaced the light pipe as per Light pipe is installed, page 44

3. If the unit is not drawing normal current at 12 or 24VDC and the LED is not lit, this could indicate a shorted power supply or other problem and the unit will require additional troubleshooting.

4. If the LED lights up and remains solid, and the unit is actually powered up, then the

UUT has passed this test.

The LED will not remain solid if specific data communications occur such as when the radio is receiving CMR packets. A more detailed documentation of different radio status, as specified by the LED is located in Below is the same table as noted in Led Status Table:, page 28.

P/N 59646-SVC, Revision B Page 77 SNRx10

Service Manual

Page 88

Chapter 8

Performance Verification

Serial Port Interface

The purpose of this test is to make sure that the RS232 serial port(s) are working on the UUT. The current SNRX10 radio modem series has two serial ports and one CAN buss port. The firmware itself identifies the serial ports as COM2 and COM3.

The test itself can be run using Hyperterminal as follows:

1. In Windows go to Start\All Programs\Accessories\Communications and click on Hyperterminal. In the “New Connection” window enter the name Serial Port Test select an Icon of your choice, click on Ok.

2. In the “Connect To” window use the drop down menu to select the COM port on your computer that you will be using for this test and click Ok.

3. In the “Properties” window make the following settings:

– Bits Per Second (Baud rate): 38400

– Data Bits: 8

– Parity: 1

– Stop Bits: 1

– When all settings are complete click OK. The Hyperterminal window will come up.

Note – At this point the radio data test cable 40942-03 must be used because it has two

separate serial port cables labelled I/O and GPS. These cables are hard-wired specifically to serial port 1 and serial port 2 of the SNRx10. As mentioned previously the SNRx10 firmware identifies the serial ports as COM2 and COM3.

4. To test COM2, plug in the DB9 marked I/O on test cable 40942-03 into the COM port of your computer. On your computer keyboard hit Cntrl and Break to send a query to the SNRx10. If COM2 is working it will report back information about the UUT and mention COM2. If this occurs then COM2 is working and has passed this test.

5. To test COM3, plug in the DB9 marked GPS on test cable 40942-03 into the COM port of your computer. On your computer keyboard hit Cntrl and Break to send a query to the SNRx10. If COM3 is working it will report back information about the UUT and mention COM3 directly behind the any previous information sent to Hyperterminal such as COM2 from the previous step. If this occurs then COM3 is working and has passed this test.

Service Manual

P/N 59646-SVC, Revision BPage 78SNRx10

Page 89

Chapter 8

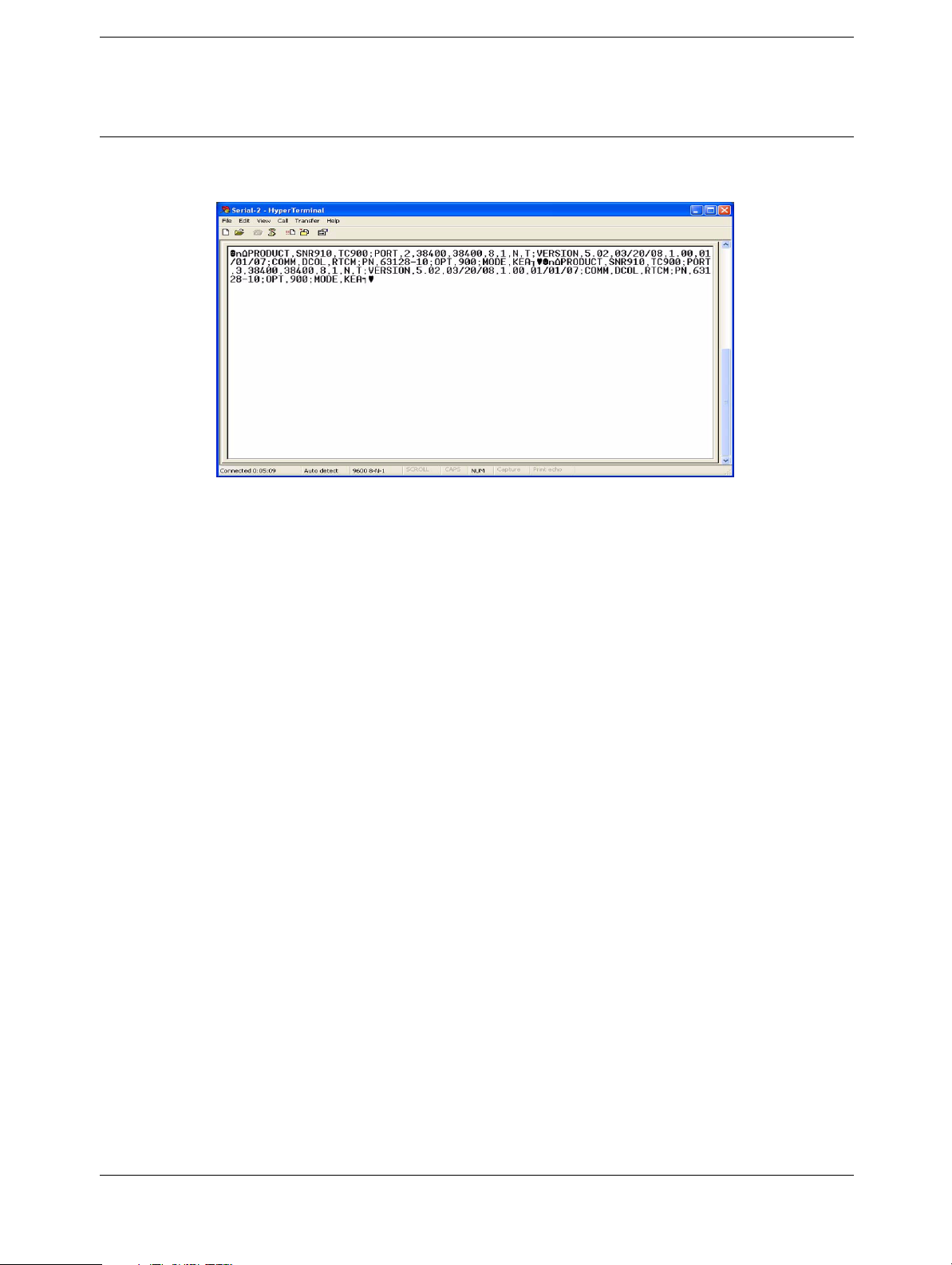

Fig. 8-1 Hyperterminal after Step 5 with both COM2 and COM3 reporting.

CAN Bus Test

Performance Verification

This test makes sure that the CAN Bus line between the digital board through the I/O port assembly is working properly. The only real way to test CAN at the system level is by using the GCS Test Box with GCS900 cable set: P/N 0690-1003 or by plugging the SNRx10 into a genuine GCS900 main system harness that has been proven to work properly.

The following steps assume that a GCS Test Box system with GCS900 cables is being used for this test:

1. Make sure the GCS Test Box is setup for a single or Dual MS980 or MS990 system including the rooftop SN radio cable that comes in the kit (P/N 0395-9470-150.

2. On the CB430, go to the Setup Menu\Configuration\Diagnostics screen.

3. If a sitenet or other Trimble radio is already plugged into the harness unplug it and then plug in the UUT. The SNRx10 radio should register as connected in the diagnostics screen as shown here:

P/N 59646-SVC, Revision B Page 79 SNRx10

Service Manual

Page 90

Chapter 8

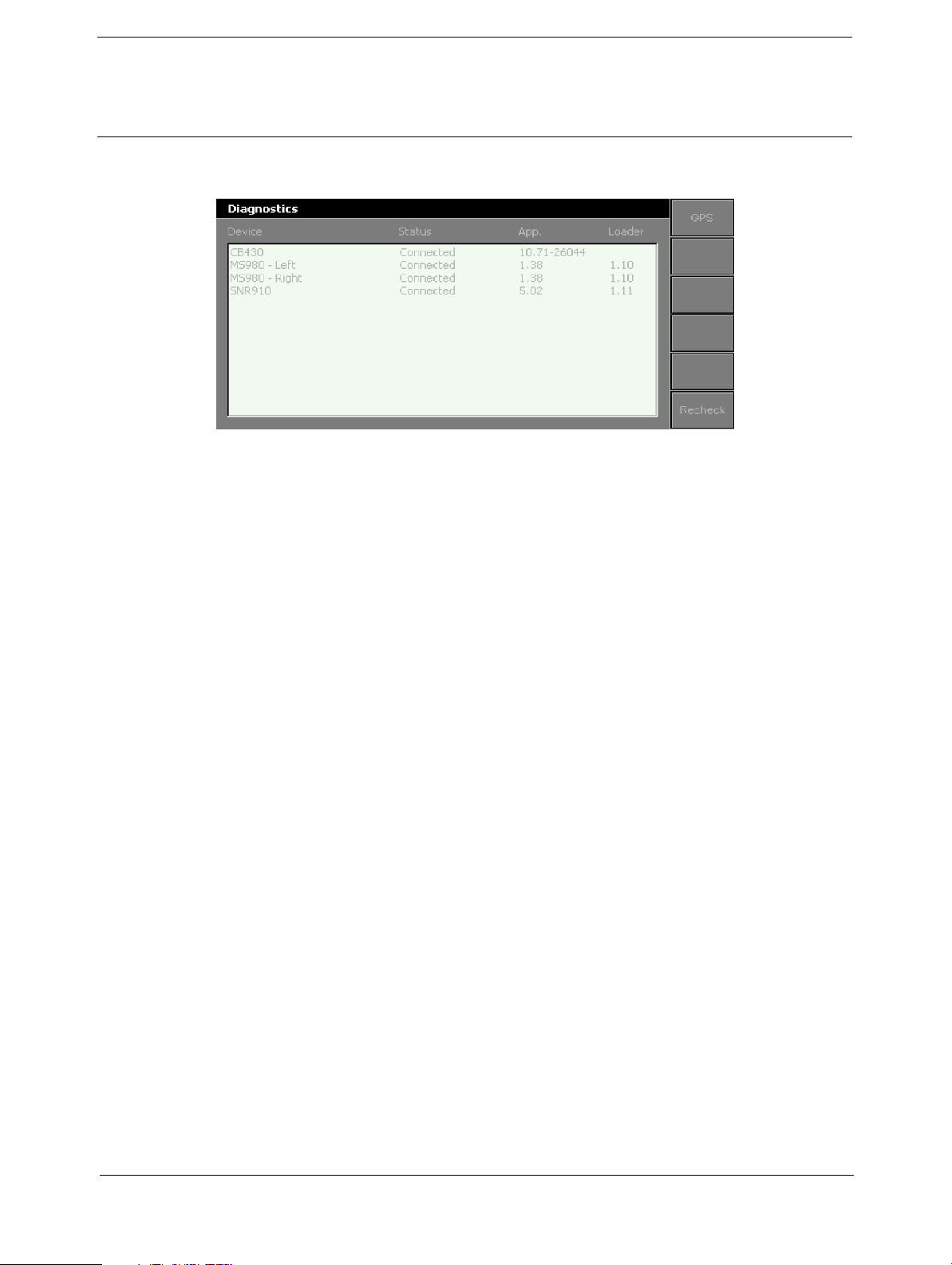

Fig. 8-2 Diagnostics Screen reporting an SNR910 as “connected’.

4. If the UUT reports as connected it proves that its CAN Bus is working.

Performance Verification

Switch Active Radio

This test is for combination radio models only. Skip this test if the UUT is only a single radio model. This test proves that both radio’s in a combination model are configured and can be

operational.

If the UUT is a 900MHz/2.4GHz or a 4xxMHz/2.4GHz model then perform the following steps to make sure each radio can be selected for use:

1. Use Winflash as per Change Active Radio, page 100, if you can successfully switch back and forth between the two radio’s then the UUT has passed this test.

1.1. If the 2.4GHz radio is not listed as a selection then it will need to be reactivated as per

Option Code to Activate 2.4GHz Radio, page 96

1.2. If the 900MHz or 450MHz radio does not appear as a selection then there may be a

problem with the radio model or overall part number configuration. Further troubleshooting is required.

2. When this test is complete set the active radio back to whichever one the customer had activated when the radio was received for repair as per the original diagnostic screen printout.

Compare S/N and P/N to Housing Labels

To be comprehensive during performance verification it is best practice to compare the part number (P/N) and serial number (S/N) programmed inside the UUT with the external labels listed on the outside of its housing to make sure that they match each other as well as the SWO or RMA that is

Service Manual

P/N 59646-SVC, Revision BPage 80SNRx10

Page 91

Chapter 8

being repaired. To do this simply use Winflash to run Diagnostics as per Retrieve Radio Diagnostics

Information, page 98 and check the following:

1. Check that the P/N matches the part number label on the housing and the SWO.

2. Check that the S/N matches the one on the housing and the SWO.

3. If all of these match then the UUT has passed this test.

– If the P/N or S/N does not match the housing determine if you programmed the unit

incorrectly. If the UUT does not match the SWO or RMA then did the paperwork get matched with the incorrect unit?

Performance Verification

GCS Test Box: Radio System Bench Test

A system bench test can only be performed by using the GCS Test Box with GCS900 cable set (P/N 0690-1003) or by plugging the SNRx10 into a genuine GCS900 main harness found on a construction vehicle that has been proven to work properly.

The following steps assume that a GCS Test Box system with GCS900 cables is set up as follows:

1. Set up the GCS Test Box with GCS900 cable set as per the GCS Test Box Instructions and Service Manual (P/N 0690-1010).

2. The test system should already have a working Sitenet or SNRx10 radio in it and be receiving CMR packets from a Base in the repair shop and this should be shown as an Amber Led Radio Light flashing at 1Hz on an MS990 or MS980 as outlined in Chapter 8, page - 127 - 128 of the MS990 service manual.(P/N 55760-SVC Rev A) and in Chapter 8, page114 - 116 of the MS980 service manual (P/N 47950-SVC, Rev B).

3. Match the network ID of the UUT to the network ID of the Base that is transmitting the CMR packets by using Winflash or the Machine Radio Configuration utility found under the Setup:Installation menu of the CB430.

4. Plug the UUT into the radio test cable coming from “Rooftop 1” or “Rooftop 2” on the GCS Test Box.

5. Observe on the MS990MS980 that the radio light begins flashing at 1Hz, if it does the UUT has passed this test.

Note – If a service provider does not have a Radio Throughput Test Kit Model II (P/N 65306-

00S) then this GCS Test Box System Test is the minimal required test that can be done in the repair shop at the workbench to verify that the radio can receive CMR packets.

P/N 59646-SVC, Revision B Page 81 SNRx10

Service Manual

Page 92

Chapter 8

Performance Verification

Radio Throughput Test

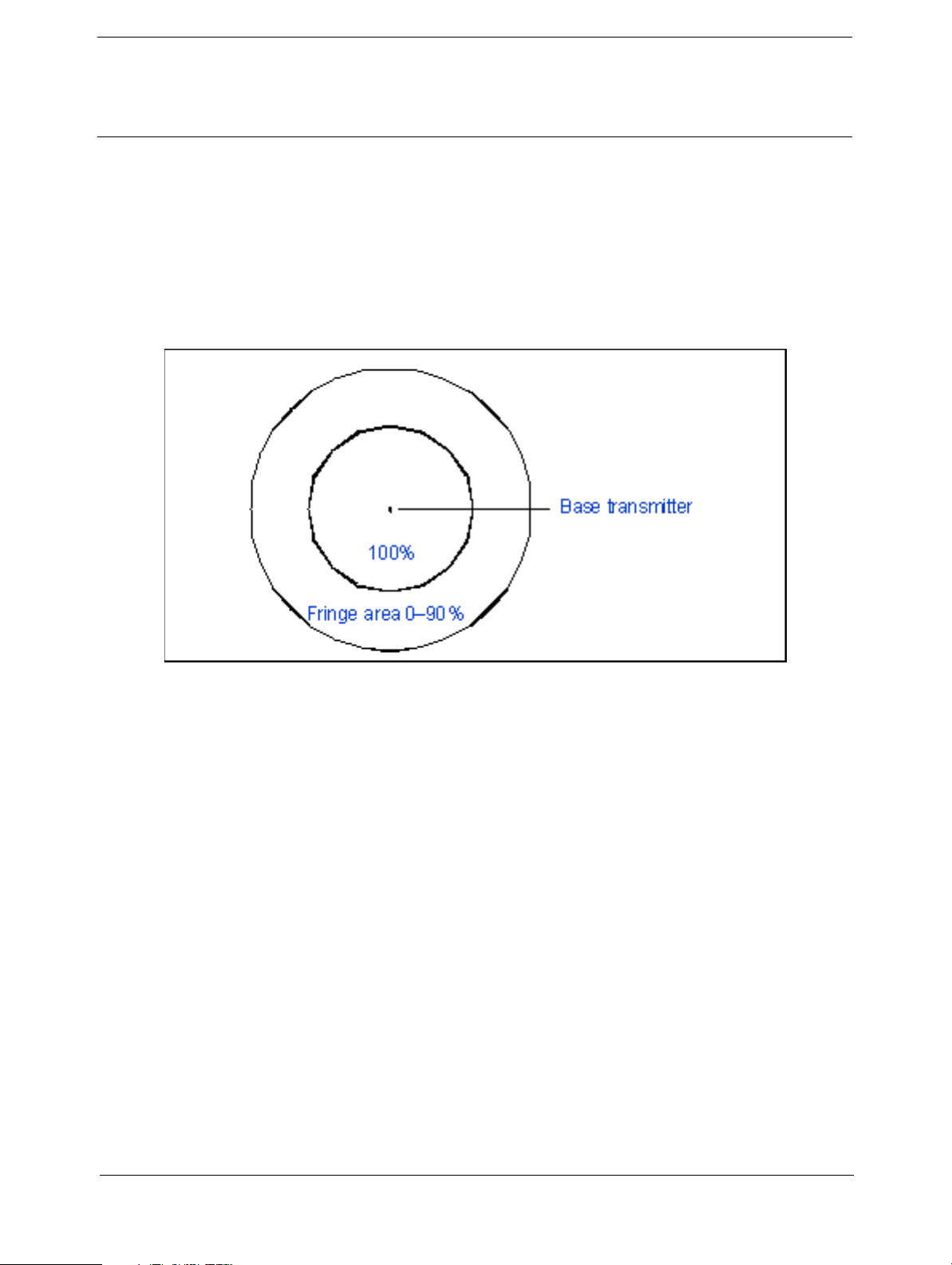

Trimble Service Technologies is developing a test kit called the Radio Throughput Test Kit Model II that can be used to measure the packet throughput performance of all current Trimble radio products at the test bench. By using a combination of fixed attenuators along with a variable one, the need to perform a baseline test out in the field by placing the UUT a certain distance away from the base so that it is in the “fringe area” of operation is replaced by using the attenuators to degrade the signal enough so that it duplicates as if the radio is physically placed in the “fringe area”.

Radio Throughput Test Kit Model II is still under development and will allow throughput testing of

2.4GHz, 900MHz and 4xxMHz Trimble radio products. The only radio throughput test available for SNRx10 radio-modem products at this time is for the 2.4GHz radio by using our previous Radio Throughput Test Kit (P/N 58829-00S) that was developed for testing the SNR2400 radio. This test kit can be setup to use the SNR2400 as a Base and an SNR2410 as a Rover.

Note – General recommendations: If you already have radio throughput test kit P/N 58829-00S then

go ahead and use it for a throughput test as noted below If you do not have this kit yet then we recommend that you follow the GCS Test Box system level test as perGCS Test Box: Radio System Bench Test, page 81and wait to purchase the Radio Throughput Test Kit, Model II. When this test kit comes out it will allow our radio service providers to test all three radio frequencies: 2.4GHz, 900MHz and 4xxMHz,instead of just 2.4GHz.

Service Manual

P/N 59646-SVC, Revision BPage 82SNRx10

Page 93

Chapter 8

Performance Verification

Radio Throughput Test: SNR2400 Base + SNR2410 Rover

The SNR2400 radio is designed to interface with an ATS advanced tracking sensor and does not use CMR™ packets for communication. Instead it is set to use ATS Interface protocol as the output. In addition to this, this was Trimble’s first generation 2.4GHz radio module and the internal command set is a bit different then our current 2.4GHz products. As a result, when using the SNR2400 as a Base it requires a different throughput test utility to run the performance verification test.

To run the throughput test the following test software must be installed on the test computer:

• Wit2410Test.exe ver. 0.74

• SNR_Base.bat

•SNR_Rover.bat

Setting up the SNR2400 as a Base

The following assembly instructions are for the SNR2400 Radio Throughput Test Kit only, P/N 58829-00S.

Note – You cannot use the original Wit2410Test.exe ver 0.73 and it’s associated batch files when

running a throughput test with the SNR2410. You must use v.074 and the new batch files it comes with.

1. Take one NMO to N adaptor and fasten it to the top of the SNR2400 and lightly tighten with pliers.

2. Tighten one 50dB attenuator, one 10dB attenuator and one 3dB attenuator onto the N side of the NMO to N adaptor on the SNR2400. A throughput test between an SNR2400 as a Base and a an SNR2410 as a Rover requires approximately 113dB of attenuation.

3. Tighten a TNC to N adaptor onto the N connector of the 50dB attenuator from Step 2.

4. Fasten one end of the RF Cable onto the TNC connector (from Step 3) on the SNR2400.

5. Plug the AC adaptor into a power source and then plug it into the power jack on the RF interface cable (40942-03).

6. Plug the DB9 cable marked GPS into COM1 on the test computer.

7. Plug the 8-Pin Bendix connector into the SNR2400 when you’re ready to start the test.

Setting up the SNRx2410 as a Rover (Customer’s UUT)

1. If this is a dual radio product you must first set up the 2.4GHz radio as the active radio using Winflash. Refer to section Change Active Radio, page 100

2. Use Winflash to change the Radio Protocol to ATS as per section Change Radio Protocol,

page 98

3. Tighten the second 50db attenuator onto the other end of the RF cable.

4. Screw the TNC to N Reverse Polarity adaptor into the 50dB attenuator

5. Fasten the TNC end of the adaptor onto the 2.4GHz TNC RF jack on the SNR2410.

P/N 59646-SVC, Revision B Page 83 SNRx10

Service Manual

Page 94

Chapter 8

6. Plug the AC adaptor into a power source and then plug it into the RF interface cable (40942-

03).

7. Plug the DB9 cable marked GPS into COM2 on the test computer.

8. Plug the 8-Pin Bendix connector into the radio when you’re ready to start the test.

Running the Throughput Test

Activating the Rover

Note – You must activate the batch files in the order shown here or it will lock up your computer.

1. Dial in 113 dB of attenuation on the variable attenuator.

2. Double-click on the SNR_Rover.bat file. Observe that the following takes place in the Rover DOS Window Figure 8-3:

– Opening COM2: The default serial port is set to COM2 in SNR_Rover.bat file.

Whichever COM port is set in the batch file should be reported here.

– Product ID String: The UUT should be identified as the SNR2410 here. If it is not the

Base may be plugged into COM2 instead of the Rover.

– Setup complete, running: This should be reported once communication is established.

Performance Verification

Service Manual

P/N 59646-SVC, Revision BPage 84SNRx10

Page 95

Chapter 8

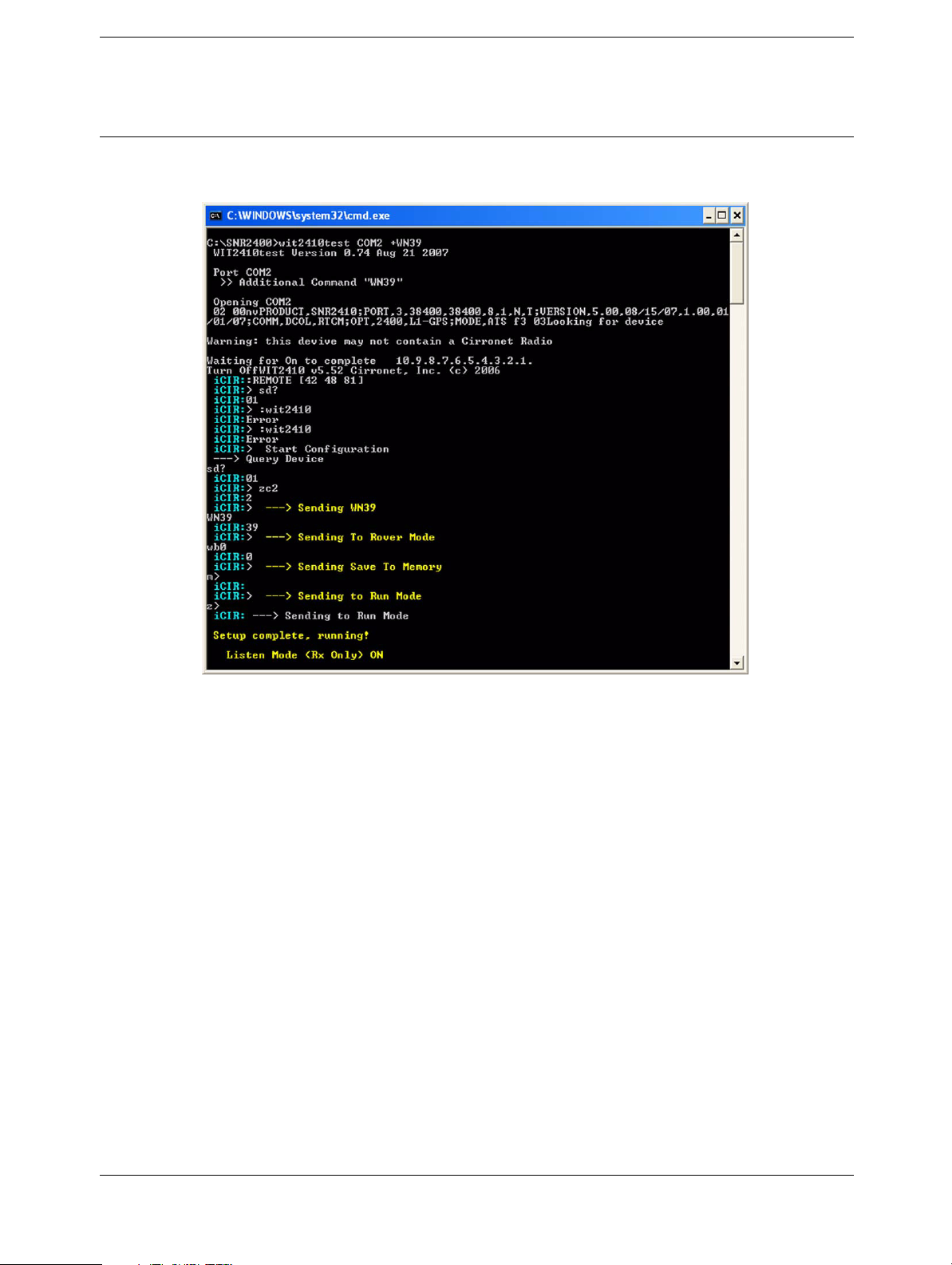

Fig. 8-3 Rover DOS Window.

Performance Verification

3. Press the “L” key on the computer keyboard, this places the UUT in “Listener” mode:

– Listen Mode (RX Only): ON: After pressing the “L” key, ON should be reported. If it

reports OFF then press the “L” key again until ON is reported.

Note – Placing the Rover in “Listener” mode is a new step compared to using the old

Wit2410Test.exe utility that was used with the SNR2400. You must perform this step or the test computer will LOCK UP.

P/N 59646-SVC, Revision B Page 85 SNRx10

Service Manual

Page 96

Chapter 8

Activating the Base:

1. Double-click on the SNR_Base.bat file. Observe that the following takes place in the Base DOS Window:

–

– Opening COM1: The default serial port is set to COM1 in the SNR_Base.bat file.

Whichever COM port is set in the batch file should be reported here.

– Product ID String: The SNR2400 should be identified as the product here. If it is not

the Rover may be plugged into COM1 instead of the Base.

– Setup complete, running: This should be reported once communication is established.

You will then see some symbols appear an the screen as packets are sent.

– Once the Base Window is activated, other then verifying packets are being sent, this

window is no longer really needed and can be minimized if desired.

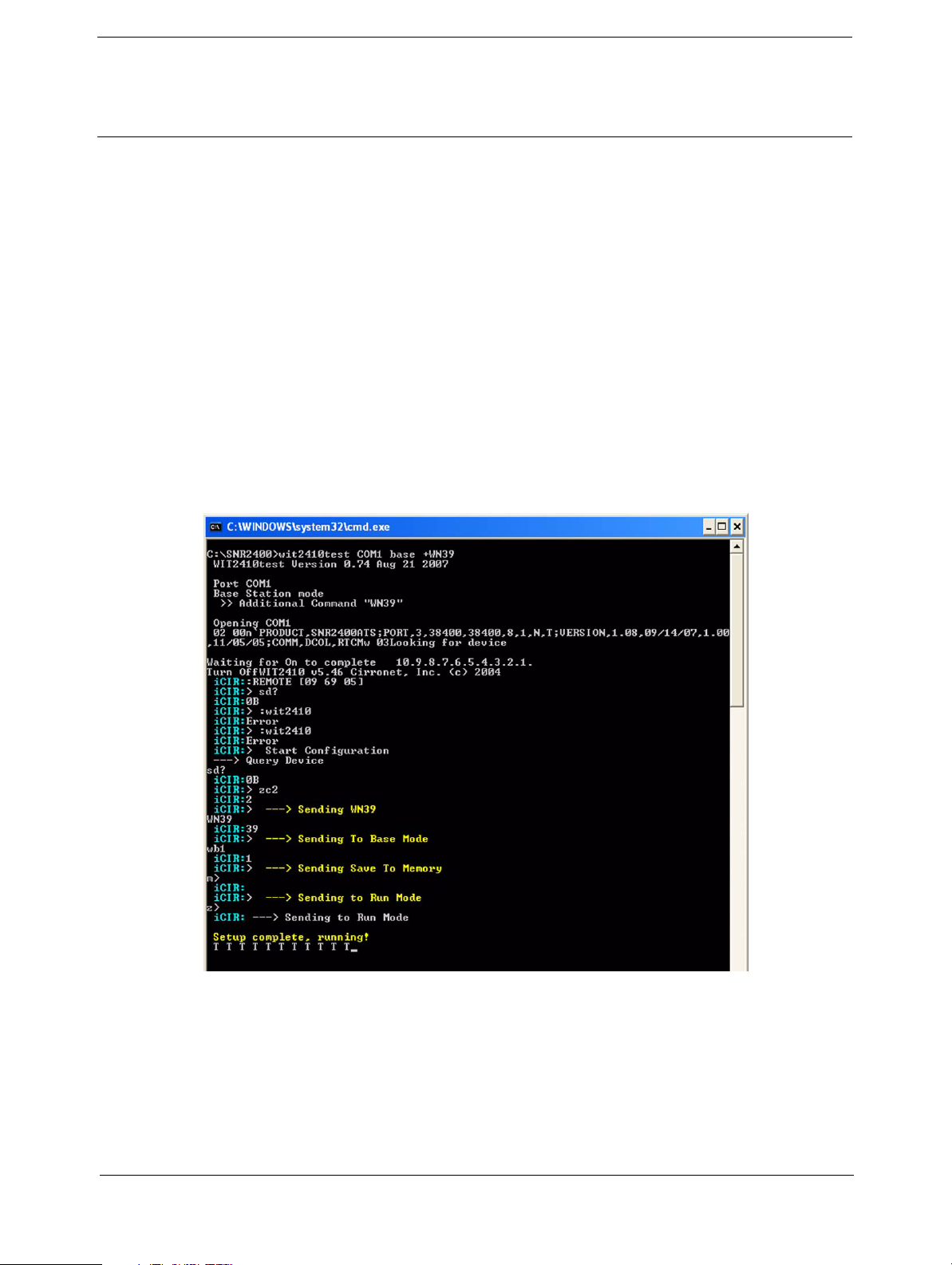

Fig. 8-4 Base DOS Window.

Performance Verification

Service Manual

P/N 59646-SVC, Revision BPage 86SNRx10

Page 97

Chapter 8

Analysing the test results

Return to the Rover DOS Window and perform the following steps, see Figure 8-5, page88:

1. Allow the UUT to continue its throughput test for 10 minutes are at least 500 packets.

2. Observe the following:

– When the Rover drops a packet red “D’s” will be reported in the Rover DOS Window.

This is normal.

– Received # Packets: The number of packets sent/received in intervals of 50.

– Lost #: This is the overall number of packets lost since the test was started. Each time a

packet is lost it is counted here.

– Total # for %: The total number of packets sent since the test began and the overall

percentage of throughput packets since the test began. This part of the test should read 95% or higher after running the test for 10 minutes or at least 500 packets.

– Last # = %: This section tells the percentage of last batch of 50packets that passed the

throughput test. This contributes to the overall percentage passed since the test began.

Note – Although the recommended attenuation setting is 113dB this may vary by up to +/-

2dB. If your bench setup consistently has red “D’s” and never passes at 95% or the Rover DOS Window always shuts down, you may need to dial in only 111 or 112 as the attenuation setting for your workbench since 2.4GHz radio products have a dramatic cutoff point when operating at the fringe. Try several known good units to arrive at your optimum attenuation setting. Once it is established you should not have to change it during testing anymore.

Performance Verification

P/N 59646-SVC, Revision B Page 87 SNRx10

Service Manual

Page 98

Chapter 8

Fig. 8-5 Rover DOS Window with 500 packets sent since the test began:

Performance Verification

3. After 10 minutes or 500 packets, if the Total 501 for % equals 90% or higher then the SNR2410 has passed this test.

Service Manual

P/N 59646-SVC, Revision BPage 88SNRx10

Page 99

Chapter 9

9 Service Software

Q Software Needed

Q Test Cables Needed

Q Using Winflash

Required Software and Test Cables

Software Needed

In order to service the SNRx10 radio modem properly the following software is needed:

• Winflash Supervisor: SNRx v1.41 with v5.02 firmware (or higher).

• Wit2410.exe with SNR_Base.bat, SNR_Rover.bat.

The latest service software for the SNRx10 can be found in the service downloads folder on Trimble Construction Partners under Grade Control Systems\Trimble Grade Control Systems\Grade Control System Components\SNR -On Machine Radios\Service.

Service Software

Test Cables Needed

One or more of the following cables are needed in order to be able to interface Winflash to the test computer: These are the same cables called out in Interfacing to a Computer, page 24 and Test Cables

Needed, page 71

• 40942-03 (QTY 1):

– With 62546 Power Supply, 60W, 18V, 3.4A, 100-240VAC

– and with 51695 Power Cable for the above charger

Note – This cable is also needed to run a radio throughput and is recommended over older

cables that serve the same purpose. USE the DB9 connector marked I/O when interfacing with Winflash.

• 40282-01 (QTY 1): Cable - Radio, 1ft., 0 shell 7-pin LM(F) to 8-pin BD(F) can be used with one of the following:

– 59044 (QTY 1): Cable - 1.5m, DB9(F) Y to 0S/7-pin LM(M) w/Power Jack (RoHS,

backward compatible with 32345)

– OR 32345 (QTY 1): Cable - 1.5m, DB9(F) Y to 0S/7-pin LM(M) w/Power Jack (non-

RoHS, obsolete)

– 38483 (QTY 1): Power - AC Power Module, Mains to TA-3. This is the AC adaptor for

both 40942-03, 59044 and 32345. Newer version is 62546 with 51695

Cable - Radio, 3ft., 8-pin BD(F) to TA3(M)/DB9(F)/DB9(F)

Note – Many service providers will already have these cables from the Sitenet series radio

P/N 59646-SVC, Revision B Page 89 SNRx10

Service Manual

Page 100

Chapter 9

Using Winflash

This section presumes that you already have Winflash installed on your computer. Please click on the SNRx Winflash self executable installation file to install Winflash if you haven’t done so already.

Activating Winflash

1. Double-click on the Winflash shortcut on your computer desktop.

2. On the Device Configuration screen highlight SNR410/910/2410. Figure 9-1

Fig. 9-1 Device Configuration Screen:

Service Software

3. Select the COM port that you are using to interface to the SNRx10 radio modem.

4. Click on Next. The main Winflash Operation Selection screen will now come up on the computer. Figure 9-2, page91

Service Manual

P/N 59646-SVC, Revision BPage 90SNRx10
