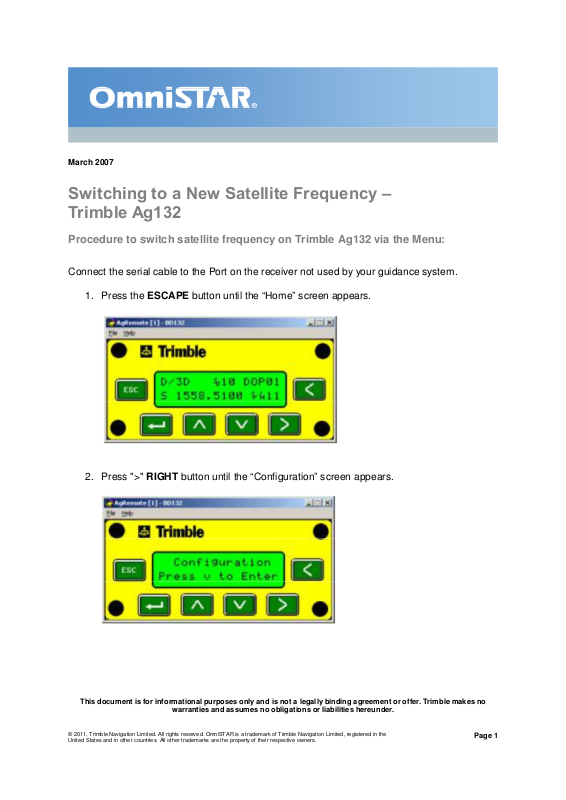

Trimble Ag132 Quick Start Manual

March 2007

Switching to a New Satellite Frequency –
Trimble Ag132

Procedure to switch satellite frequency on Trimble Ag132 via the Menu:

Connect the serial cable to the Port on the receiver not used by your guidance system.

1. Press the ESCAPE button until the “Home” screen appears.

2. Press ">" RIGHT button until the “Configuration” screen appears.

This document is for informational purposes only and is not a legally binding agreement or offer. Trimble makes no

warranties and assumes no obligations or liabilities hereunder.

© 2011, Trimble Navigation Limited. All rights reserved. OmniSTAR is a trademark of Trimble Navigation Limited, registered in the
United States and in other countries. All other trademarks are the property of their respective owners.

Page 1

3. Press the “V” DOWN button once, a screen similar to below appears.

4. Press the > RIGHT button until the “DGPS Config” screen.

5. Press the V DOWN button until the “Satellite Freq” appears.

OmniSTAR – Market Leader in Differential Corrections Page 2 www.omnistar.com

6. Press the > RIGHT button for the cursor to flash on the first digit.

7. Press the V DOWN and UP buttons to change the digits. Press the > RIGHT button to
move on to the next digit until the desired frequency is displayed eg. 1535.1850 MHz.

8. Press the ENTER button to lock in the new frequency. The cursor will disappear from
the screen.

OmniSTAR – Market Leader in Differential Corrections Page 3 www.omnistar.com

CHECK THE FREQUENCY ON YOUR RECIEVER IS ENTERED IN CORRECTLY

9. Press the ESC button until the “Home” screen appears.

OmniSTAR – Market Leader in Differential Corrections Page 4 www.omnistar.com
