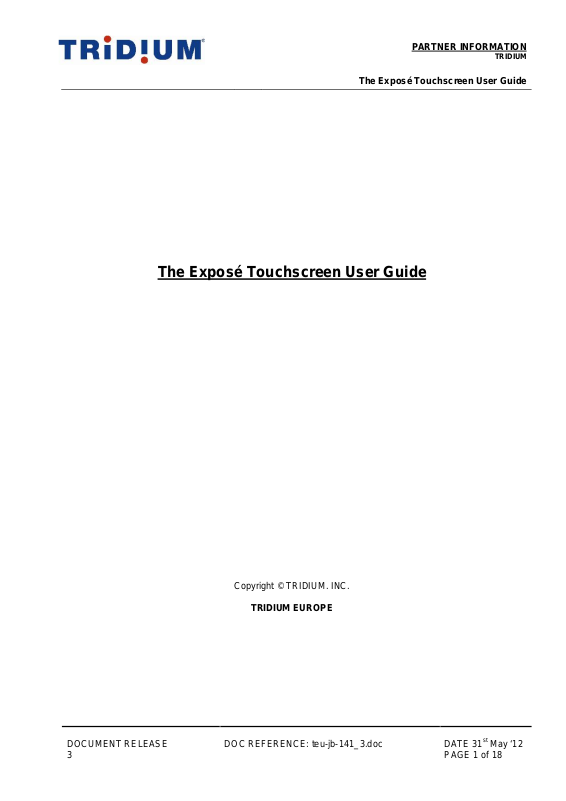

Tridium Expose DCT128 User Manual

Download

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 1 of 18

The Exposé Touchscreen User Guide

TRIDIUM EUROPE

Contents

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 2 of 18

Contents:

Contents:................................................................................................................2

Preface.................................................................................................................... 3

Exposé ID3000 FAQs....................................................................................4

Compatibility and Installation............................................................................... 5

Compatibility..................................................................................................5

License requirements.................................................................................... 5

Software installation......................................................................................5

Unpacking the touchscreen...........................................................................6

Mounting the Touchscreen............................................................................7

Limitations and known problems................................................................... 11

Quick Start.............................................................................................................. 12

Setup the touchscreen ..................................................................................12

Connect to target...........................................................................................17

Related documents................................................................................................ 18

Document Control ................................................................................................. 18

This is an 18 page document at A4

Preface

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 3 of 18

Preface

This is the User Guide for the DCT128 Exposé 8” colour touchscreen which has an 800 x 600 resolution and provides a cost-effective solution wherever a wall or panel mounted user interface is required. Exposé is based on a fanless Atom powered PC platform which has been specially configured by Tridium to enable easy set-up. The DCT128 uses a custom Linux OS running Firefox in kiosk mode; optimised for use with Niagara AX web-served graphical pages.

The DCT128 is equipped with a wired IP connection, and requires a 12Vdc supply (230V to 12V PSU is included). Exposé also includes Wi-Fi connectability, a camera and a speaker (these are currently not supported by NiagaraAX).

The front panel of Exposé is completely flat which makes it more visually attractive and easier to clean. It is IP64 compliant when used with the optional panel-mounting kit. The DCT120 can also be surface mounted on a wall, or flush-mounted using optional kits. These mounting options make Exposé suitable for a wide variety of uses in commercial and residential applications. The following main sections are in this document:

 “Compatibility and Installation”

Explains the touchscreen and JACE network architecture, software, licensing requirements, unpacking and mounting the touchscreen, limitations and known problems.

 “Quick Start”

Provides the procedure for setting up the touchscreen for Network, Target Station, Password, Time, Locale and Browser.

Preface

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 4 of 18

Exposé ID3000 FAQs

The following are frequently asked questions (FAQs) about the Exposé: Q: As well as the touchscreen and its power leads, the carton also contains some CD’s and a multi core

cable with a USB plug and other connectors. What do I do with these?

A: You do not need them. They are not used in this Tridium implementation. In addition, the Exposé

touchscreen has a built-in camera, a microphone, some speakers, two USB ports, an RS-232 port, an RS-232/422/485 port, an audio output and wireless networking capabilities for Bluetooth 2.0 and

802.11 b/g. These are also not used nor supported in this Tridium implementation.

Q: I want to use the browser of the touchscreen to access the internet. How can I do this? A: You should not try to do this. In this Tridium implementation, the browser in the Exposé touchscreen is

designed to automatically connect to a preconfigured JACE station. The browser is not enabled to do anything else.

Q: Do I need a NiagaraAX license to use the Exposé touchscreen? A: No. The Exposé touchscreen connects to a JACE station with a browser and no extra licenses are

required.

Q: Will the touchscreen support both Px and Hx media? A: Yes. Both formats of NiagaraAX graphics media are supported.

Q: I notice that there are two Ethernet connectors on the touchscreen. Can I use either of them? A: Yes, either one of the Ethernet connections can be used. However, the touchscreen does not support

the use of them both simultaneously.

Compatibility and

Installation

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 5 of 18

Compatibility and Installation

This section has the following main subsections:

 Compatibility  License requirements  Software installation  Unpacking the touchscreen  Mounting the touchscreen  Limitations and known problems

Compatibility

The touchscreen has the following compatibility criteria:

 NiagaraAX station compatibility  NiagaraAX network compatibility

NiagaraAX station compatibility

The touchscreen will function with all NiagaraAX stations that have web served graphics pages.

NiagaraAX network compatibility

The touchscreen has been designed to function as a browser which communicates with a target NiagaraAX station, typically running in a JACE controller. This is illustrated in Figure 1-1

License requirements

There are no license requirements needed to setup or operate the touchscreen

Software installation

The Exposé touchscreen is already installed with a Compact Flash memory card which allows it to operate in this Tridium implementation.

Ethernet IP Network

The touchscreen auto starts with its browser preset to browse a Target station

Figure 1-1The touchscreen architecture

JACE controller network

Target station

Compatibility and

Installation

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 6 of 18

Unpacking the touchscreen

To unpack the touchscreen, follow these steps:

Note: The Exposé touchscreen has a protective plastic cover stuck to the screen. Only remove the

plastic cover after the touchscreen has been properly installed. This ensures the screen is protected during the installation process.

To Unpack the touchscreen

Step 1 Use box cutters, a knife or a sharp pair of scissors to cut the seal on the top side of the external

box. Step 2 Open the external box. Step 3 Use box cutters, a knife or a sharp pair of scissors to cut the seal on the top side of the inner box. Step 4 Open the inner box. Step 5 Lift the touchscreen out of the inner box. Step 6 Remove both polystyrene ends, one from each side.

Note: The Exposé touchscreen is already installed with a Compact Flash memory card which allows it to

operate in this Tridium implementation. There are no user configurable settings inside the

touchscreen and therefore there is no need to remove the cover retaining screws.

Compatibility and

Installation

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 7 of 18

Mounting the Touchscreen

There are several methods of mounting the Exposé Touchscreen. These are listed in the following subsections:

 Panel mounting (Kit reference: DPM128)  Wall (surface) mounting (Kit reference: DWM128)  Wall (flush in-wall cage) mounting (Kit reference: DFM128)

Note: When mounting the touchscreen onto an arm, wall or panel, it is advisable to have more than one

person to help with the installation to make sure that the touchscreen does not fall and get damaged.

Panel Mounting (DPM128)

To mount the touchscreen on a panel, follow these steps:

To Panel mount the touchscreen

Step 1 Select the position on the panel for the touchscreen. Step 2 Cut a section from the panel that corresponds to the rear dimensions of the touchscreen. Take

care that the panel section that is cut out is smaller than the overall size of the frame but larger than

the rear part of the touchscreen body. Step 3 Slide the touchscreen through the hole until the frame is flush against the panel. Step 4 Insert the panel mounting clamps into the pre-formed holes along edges of the chassis, behind the

frame. Step 5 Tighten the screws that pass through the panel mounting clamps until the plastic caps, at the front

of all the screws are firmly secured to the panel. Figure 1-2

Figure 1-2: Tighten the panel mounting clamp screws

Compatibility and

Installation

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 8 of 18

Wall (surface) Mounting (DWM128)

To surface mount the touchscreen on a wall, follow these steps:

To Wall (surface) mount the touchscreen

Step 1 Select the location on the wall for the wall-mounting bracket. Step 2 Carefully mark the locations of the four screw holes in the bracket on the wall Step 3 Drill four pilot holes at the marked locations on the wall for the bracket retention screws Step 4 Align the wall-mounting bracket screw holes with the pilot holes Step 5 Secure the mounting-bracket to the wall by inserting the retention screws into the four pilot holes

and tightening them. Figure 1-3

Step 6 Insert the four monitor mounting screws provided in the wall-mounting kit into the four screw holes

on the rear touchscreen and tighten until the screw shank is secured against the rear touchscreen. Figure 1-4

Note: Please use the M4 screws provided in the wall mounting kit for the rear touchscreen. If you need to

replace any missing screws ensure that the thread depth is no greater than 4mm.

Step 7 Align the mounting screws on the touchscreen rear panel with the mounting holes on the bracket.

Figure 1-3: Wall-mounting Bracket

Figure 1-4: Chassis support screws

Compatibility and

Installation

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 9 of 18

Step 8 Carefully insert the screws through the holes and gently pull the touchscreen downwards until the

touchscreen rests securely in the slotted holes (Figure 1-4). Ensure that all four of the mounting

screws fit snugly into their respective slotted holes. Step 9 Secure the touchscreen by fastening the retention screw of the wall-mounting bracket (Figure 1-5)

Wall (flush in-wall cage) Mounting (DFM128)

To flush mount the touchscreen on a wall, follow these steps:

To Wall (flush in-wall cage) mount the touchscreen

Step 1 Select the position on the wall for the touchscreen. Step 2 Cut a section from the wall that corresponds to the rear dimensions of the wall-cage frame. Take

care that the wall section that is cut out is smaller than the overall size of the frame but larger than

the rear part of the wall-cage body. The wall-cage frame is illustrated in Figure 1-6

Figure 1-5: Secure the Touchscreen

Figure 1-6: The wall-cage frame

Wall fixing holes

Compatibility and

Installation

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 10 of 18

Step 3 Position the power adapter unit into its retaining bracket and attach the completed assembly to the

rear of the wall-cage frame using the screws provided in the kit. Figure 1-7

Note: Depending on the amount of free access behind the wall for cables, you may wish to invert the

power adapter retaining bracket assembly to allow the mains power lead connector more space for final assembly.

Step 4 Secure the wall-cage frame to the wall using the holes around the periphery of the frame. (Screw

fixings are not provided)

Step 5 Attach the touchscreen bracket using the four mounting screws provided in the kit into the four

screw holes on the rear touchscreen and tighten. Figure 1-8

Note: Please use the M4 screws provided in the wall mounting kit for the rear touchscreen. If you need to

replace any missing screws ensure that the thread depth is no greater than 4mm.

Step 6 Make the necessary electrical and communications connections to the touchscreen.

Figure 1-8: Touchscreen bracket

4 mounting screws

Figure 1-7: Attach the power adapter

Power adapter retaining bracket

Compatibility and

Installation

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 11 of 18

Step 7 Insert the Touchscreen with its bracket into the wall-cage frame. Align the bracket with the two

locating pins on the frame and screw the touchscreen bracket assembly onto the frame using the

four screws provided in the kit. Figure 1-9

Step 8 Finally carefully clip the escutcheon cover in place onto the frame. Figure 1-10

Limitations and known problems

Limitations

Here are a number of limitations in the Exposé touchscreen:

Wireless not supported

Wireless networking through either the built in Bluetooth 2.0 or 802.11 b/g is not currently supported by this Tridium installation.

Settings authentication persistent

You are challenged to authenticate with a password before gaining access to the setup menu. However this authentication persists until the touchscreen is next restarted. You should be aware of this when leaving the touchscreen for others.

Known problems

Here are known problems of the Exposé touchscreen:

Changing from DHCP to Static addressing

If you have been using a DHCP assigned address on the Exposé, and then change to a Static address *without* specifying a default gateway, the IP configuration for the screen becomes corrupted and the unit becomes unusable. Before making the change you must ensure that a gateway address has been included even if the address is not planned to be used and may be deleted after the first Static address is added. This problem is present in version 1.0 of the firmware.

Figure 1-9: Attach touchscreen assembly

4 retaining screws

Figure 1-10: Clip escutcheon onto the frame

Quick Start

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 12 of 18

Quick Start

This section provides a collection of procedures to use the Exposé touchscreen. These are the main quick start subsections:

 Setup the touchscreen  Connecting to the target

Setup the touchscreen

You must set up the touchscreen before it can be used. This involves the following main steps:

 Connect communications  Connect power  Enter Exposé Setup  Enter the Setup Wizard

 Setup the Network  Setup the Target  Setup the Password  Setup the Browser Settings  Setup the Time and Locale

 Learn Modules  Calibrate touchscreen  Set Volume

To setup the touchscreen

Step 1 Connect the IP communications network to either of the RJ45 connectors Step 2 Connect power to the touchscreen. When power is connected, the touchscreen will automatically

start. You should wait until it has booted up until the start screen is displayed. This is shown in Figure 2-1

Step 3 Touch the ‘cogs’ to gain access to setup

Note: The start screen will display for only 5 seconds before the touchscreen then attempts to connect to

the target station. To gain access to setup you must touch the ‘cogs’ within these 5 seconds.

Figure 2-1: The start screen

Quick Start

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 13 of 18

Step 4 Touch the ‘Setup Wizard’ to access the main setup options. This is shown in Figure 2-2

Step 5 You will be invited to authenticate access to the setup wizard menu. Use the keyboard to enter the

password. This is shown in Figure 2-3 and 2-4

Note: The default password is niagara You are recommended to change this password as part of the

setup procedure

Figure 2-2: Exposé setup

Figure 2-3: Setup wizard login

Figure 2-4: Setup wizard menu

Quick Start

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 14 of 18

Step 6 Touch the Network option to setup the Network. When you have completed this setup you should

save your changes and then go back to the previous screen. This is shown in Figure 2-5

Step 7 Touch the Set Target option to setup the Target station. When you have completed this setup you

should save your changes and go back to the previous screen. This is shown in Figure 2-6

Step 8 Touch the Set Password option to setup a new password. When you have completed this setup

you should save your changes and go back to the previous screen. This is shown in Figure 2-7

Figure 2-5: Network setup

Back to previous screen

Save changes

Figure 2-6: Target setup

Figure 2-7: Password setup

Quick Start

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 15 of 18

Step 9 Touch the Browser Settings option to setup options on the browser operation. When you have

completed these settings you should save your changes and go back to the previous screen. This is shown in Figure 2-8

Step 10Touch the Time and Locale option to setup your local time and locale. When you have completed

these settings you should save your changes and go back to the previous screen. This is shown in Figure 2-9

Figure 2-8: Browser settings

Figure 2-9: Time and Locale settings

Quick Start

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 16 of 18

Step 11Touch the Learn Modules option to force the touchscreen to reload the java modules from the

target station. You can return without invoking this option but if you save, then the modules will be reloaded the next time the browser is started. This is shown in Figure 2-10

Step 11You have now completed the Setup Wizard and you should go back to the previous screen. Step 12Touch the Calibrate option to calibrate the touch screen. Step 13Increase or Decrease the Volume controls to your requirement.

Note: The internal speaker beeps during a reboot start up but there are no sound options in the browser Note: The DIAGNOSTICS option is included to give a system summary and access to a number of trace

logs. These are not described in this document.

Step 13Finally, you have completed the touchscreen setup. Touch the ‘close’ button to exit the setup and

automatically start the browser. This is shown in Figure 2-11

Figure 2-10: Learn modules

Figure 2-11: Close Setup

Close button

Quick Start

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 17 of 18

Connect to target

When setup is closed, the touchscreen will automatically connect to the target station. The next screen to be shown will be the authentication (if required) of the JACE station.

End

PARTNER INFORMATION

TRIDIUM

The Exposé Touchscreen User Guide

DOCUMENT RELEASE

DOC REFERENCE: teu-jb-141_3.doc

DATE 31stMay ‘12

PAGE 18 of 18

Tridium Expose DCT128 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
