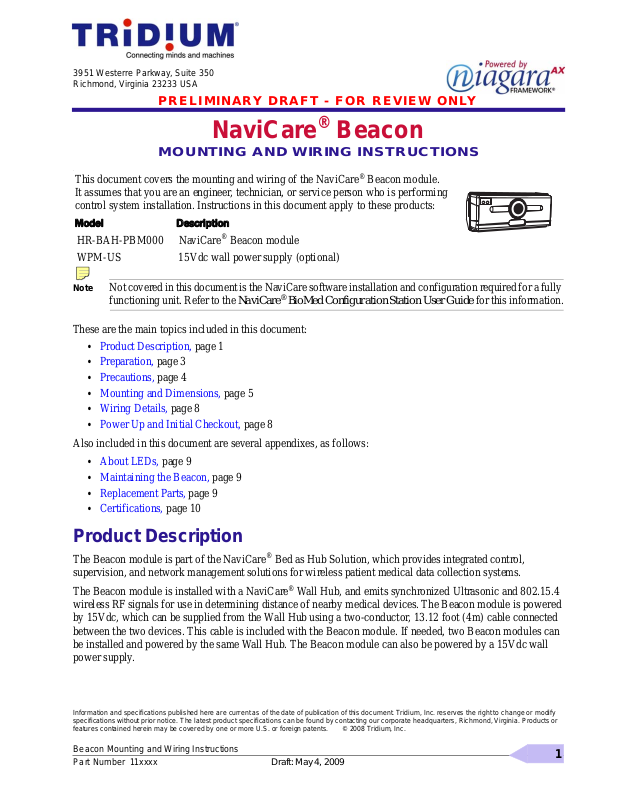

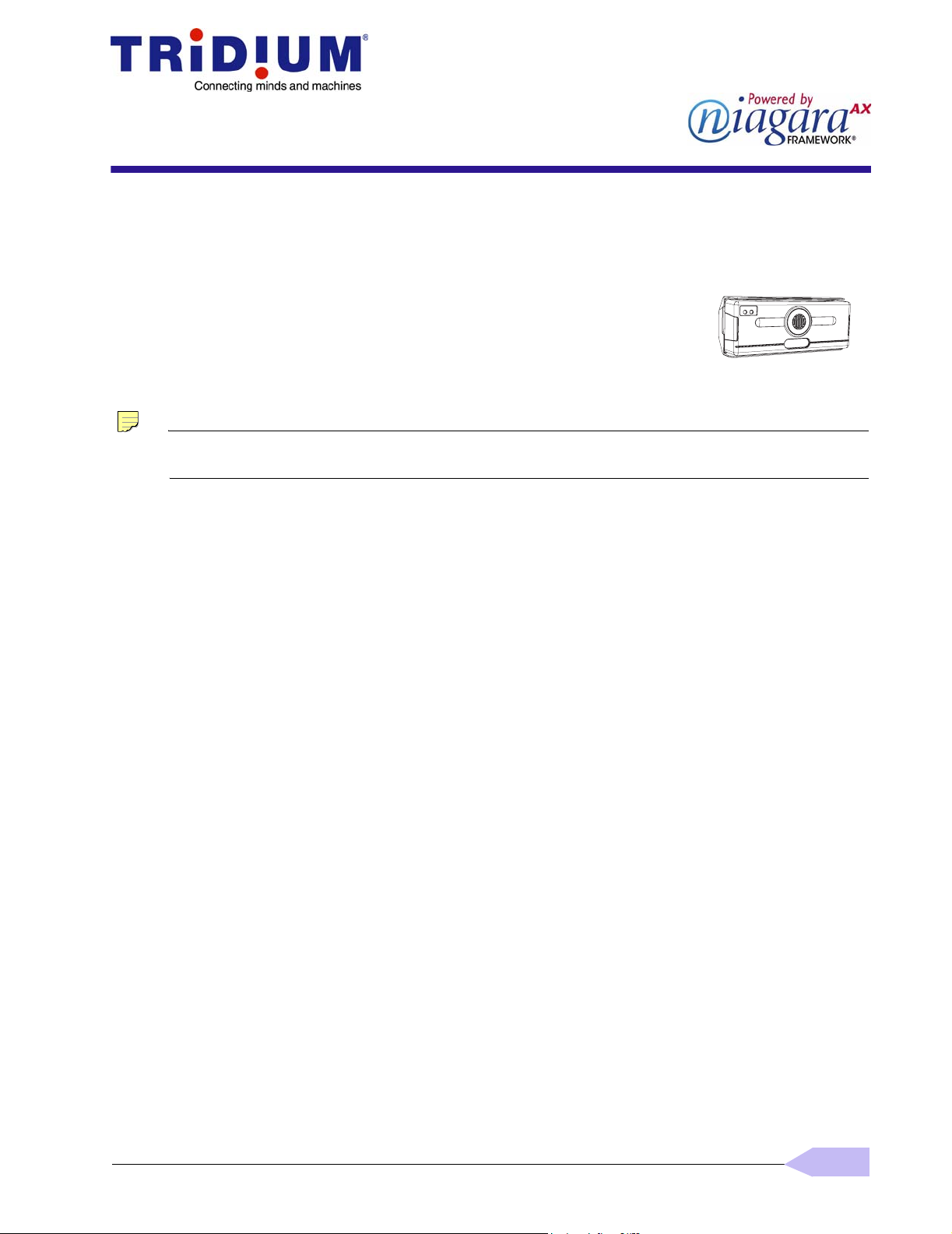

NaviCare® Beacon
MOUNTING AND WIRING INSTRUCTIONS
:
This document covers the mounting and wiring of the NaviCare
It assumes that you are an engineer, technician, or service person who is performing
control system installation. Instructions in this document apply to these products:
Model Description
HR-BAH-PBM000 NaviCare
®
Beacon module
WPM-US 15Vdc wall power supply (optional)
®
Beacon module.
Note
Not covered in this document is the NaviCare software installation and configuration required for a fully
functioning unit. Refer to the
NaviCare® BioMed Configuration S tation User Guide
for this information.
These are the main topics included in this document:
• Product Description, page 1
• Preparation, page 3
• Precautions, page 4
• Mounting and Dimensions, page 5
• Wiring Details, page 8
• Power Up and Initial Checkout, page 8
Also included in this document are several appendixes, as follows:
• About LEDs, page 9
• Maintaining the Beacon, page 9
• Replacement Parts, page 9
• Certifications, page 10
Product Description
The Beacon module is part of the NaviCare® Bed as Hub Solution, which provides integrated control,
supervision, and network management solutions for wireless patient medical data collection systems.
®
The Beacon module is installed with a NaviCare
wireless RF signals for use in determining distance of nearby medical devices. The Beacon module is powered
by 15Vdc, which can be supplied from the Wall Hub using a two-conductor, 13.12 foot (4m) cable connected
between the two devices. This cable is included with the Beacon module. If needed, two Beacon modules can
be installed and powered by the same Wall Hub. The Beacon module can also be powered by a 15Vdc wall
power supply.
Wall Hub, and emits synchronized Ultrasonic and 802.15.4
Information and specifications published here are current as of the date of publication of this document. Tridium, Inc. reserves the right to change or modify
specifications without prior notice. The latest product specifications can be found by contacting our corporate headquarters, Richmond, Virginia. Products or
features contained herein may be covered by one or more U.S. or foreign patent s. © 2008 Tridium, Inc.
Beacon Mounting and Wiring Instructions
Part Number 11xxxx Draft: May 4, 2009
1
Product Description
Packaging and Features
PRELIMINARY DRAFT - FOR REVIEW ONLY
Packaging and Features
The Beacon module features a snap-together plastic housing and is attached to the wall or ceiling with a mounting
bracket that allows mounting in one of three positions. The Beacon features a 40KHz ultrasonic transmitter as
well as Jennic 801.15.4 wireless RF communications, and is powered by 15Vdc from the Wall Hub or from an
optional 15Vdc wall power supply.

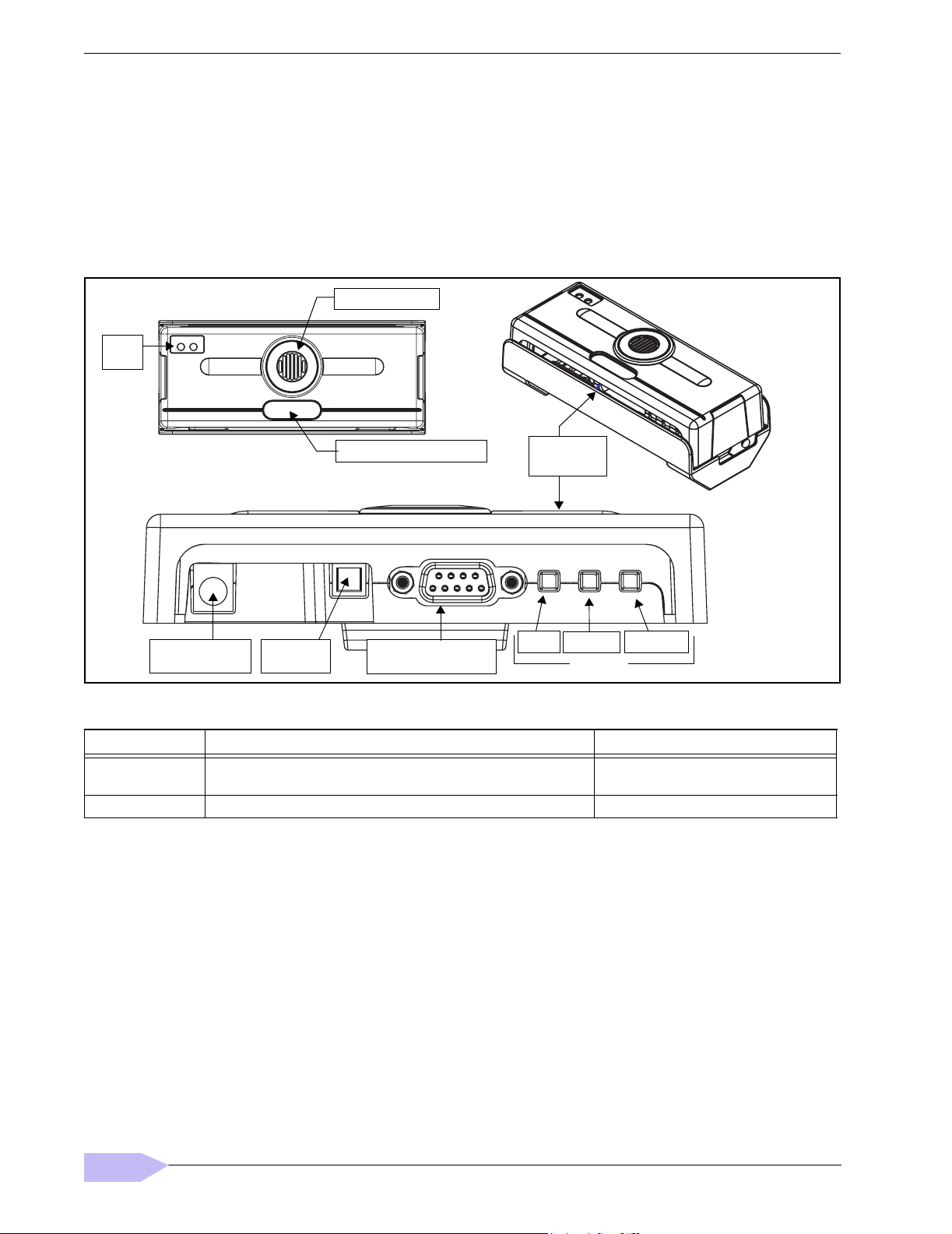

Figure 1 Beacon module features, connectors, and buttons.
Beacon in bracket (FRONT)
Status
LED
15Vdc from Wall
Power Supply
Table 1 Beacon and Beacon features and options.
15Vdc from
Wall Hub
Ultrasonic Signal
Hill Rom Logo (not shown)
Serial Communications
(setup only)
Connectors
and Switches
Reset
Program
Switches
Model Description Ports / Notes
HR-BAH-PBM000 Beaconing device with Ultrasonic transmitter and Jennic
802.15.4 wireless RF communications.
WPM-US 15Vdc wall power supply (optional)
1 - RS-232 Serial, DB-9 male (used for
Beacon in bracket
(angle showing
bottom)
Beacon Bottom
(removed from
bracket)
Configure
configuration only)
Technical Specifications
Platform
• Jennic 802.15.4 wireless
• 40KHz ultrasonic transmitter
• Standard RS-232 port
Physical
• Plastic snap-together enclosure and mounting bracket. Can be mounted in one of three positions:
perpendicular to mounting surface and 45 degrees off-axis either direction.
• Dimensions: 5.10” (129.5mm) wide x 2.18" (55.2mm) high x 1.79" (45.4mm) deep.
• Weight: Net 4 oz. (114 g)
Environment
• Operating temperature range: 32°F to 122°F (0°C to 50°C).
2
Draft: May 4, 2009 Part Number 11xxxx
Beacon Mounting and Wiring Instructions
Preparation
Equipment Ratings
PRELIMINARY DRAFT - FOR REVIEW ONLY
• Relative humidity range: 5% to 80%, non-condensing.
• Storage temperature range: -4°F to 122°F (-20°C to 50°C).
Equipment Ratings
Electrical
• Input voltage range: 10Vdc to 16Vdc
• Current consumption: 50mA maximum
Preparation
Unpack the Beacon and inspect the package contents for damaged or missing components. If damaged, notify
the appropriate carrier at once and return any damaged components for immediate repair or replacement. See
“Returning a Defective Unit” on page 10.
• Included in this Package
• Material and Tools Required
Included in this Package
Included in the package you should find the following items:
• a Beacon module.
• a two-conductor Beacon power cable, 13.12 ft. (4m), for connection from the Wall Hub to the Beacon
module.
• a hardware bag containing the following items:
–
Mounting screws and wall anchors.
• These Beacon Mounting and Wiring Instructions, Part Number 11xxxx
Material and Tools Required
The following supplies and tools are typically required for installation:
• Suitable tools and fasteners for mounting unit to wall, as well as routing external wiring to knockouts in
unit, including wiring clamps.
• Small flat-blade screwdriver: used for removing Beacon module from mounting bracket.
Note This product is intended for indoor use only . The unit should not be exposed to ambient conditions
outside of the range of 32ºF (0ºC ) to 122ºF (50ºC), or relative humidity outside the range of 5% to
90%, non-condensing. Refer to the “Environment” section for further details on mechanical and
storage specifications.
Related Documentation
For more information on configuring and using the Beacon module, consult the following documents:
• NaviCare
• NaviCare
Beacon Mounting and Wiring Instructions
Part Number 11xxxx Draft: May 4, 2009
®
Wall Hub Mounting and Wiring Instructions
®
BioMed Configuration Station User Guide
3
Precautions
Safety Precautions
PRELIMINARY DRAFT - FOR REVIEW ONLY
Precautions
This document uses the following warning and caution conventions:
Caution Cautions remind the reader to be careful. They alert readers to situations where there is a chance
that the reader might perform an action that cannot be undone, might receive unexpected results, o r
might lose data. Cautions contain an explanation of why the action is potentially problematic.
Warning Warnings alert the r eader to proceed with extreme care. They alert readers to situations where there
is a chance that the reader might do something that can result in personal injury or equipment
damage. Warnings contain an explanation of why the action is potentially dangerous.
Safety Precautions
The following items are warnings of a general nature relating to the installation and start-up of the Beacon
module. Be sure to heed these warnings to prevent personal injury or equipment damage.
Warning • A 15Vdc circuit powers the Beacon. Disconnect po wer before installation or servicing to prevent
electrical shock or equipment damage.
• Make all connections in accordance with national and local electrical codes. Use copper
conductors only.
• To reduce the risk of fire or electrical shock, install in a controlled environment relatively free
of contaminants.
• This device is only intended for use as a monitoring and control device. To prevent data loss or
equipment damage, do not use it for any other purpose.
• The Beacon contains no user serviceable parts. Do not disassemble the Beacon module.
Static Discharge Precautions
Static charges produce voltages high enough to damage electronic components. The microprocessors and
associated circuitry within a Beacon module are sensitive to static discharge. Follow these precautions when
installing, servicing, or operating the system:
Caution • Work in a static-free area.
• Discharge any static electricity you may have accumulated. Discharge static electricity by
touching a known, securely grounded object.
•
Do not handle printed circuit boards (PCBs) without proper protection against static discharge.
Use a wrist strap when handling PCBs. The wrist strap clamp must be secured to earth ground.
4
Draft: May 4, 2009 Part Number 11xxxx
Beacon Mounting and Wiring Instructions
Mounting and Dimensions
Remove Beacon module from mounting bracket
PRELIMINARY DRAFT - FOR REVIEW ONLY
Mounting and Dimensions
The Beacon module is designed for wall or ceiling mounting. Dimensions are provided in Figure 2 below.
Note Locate the Beacon within the reach of the power cable that attaches between the Wall Hub and Beacon,
or within reach of the optional wall power supply. See Figure 5 on page 7 for an example diagram.

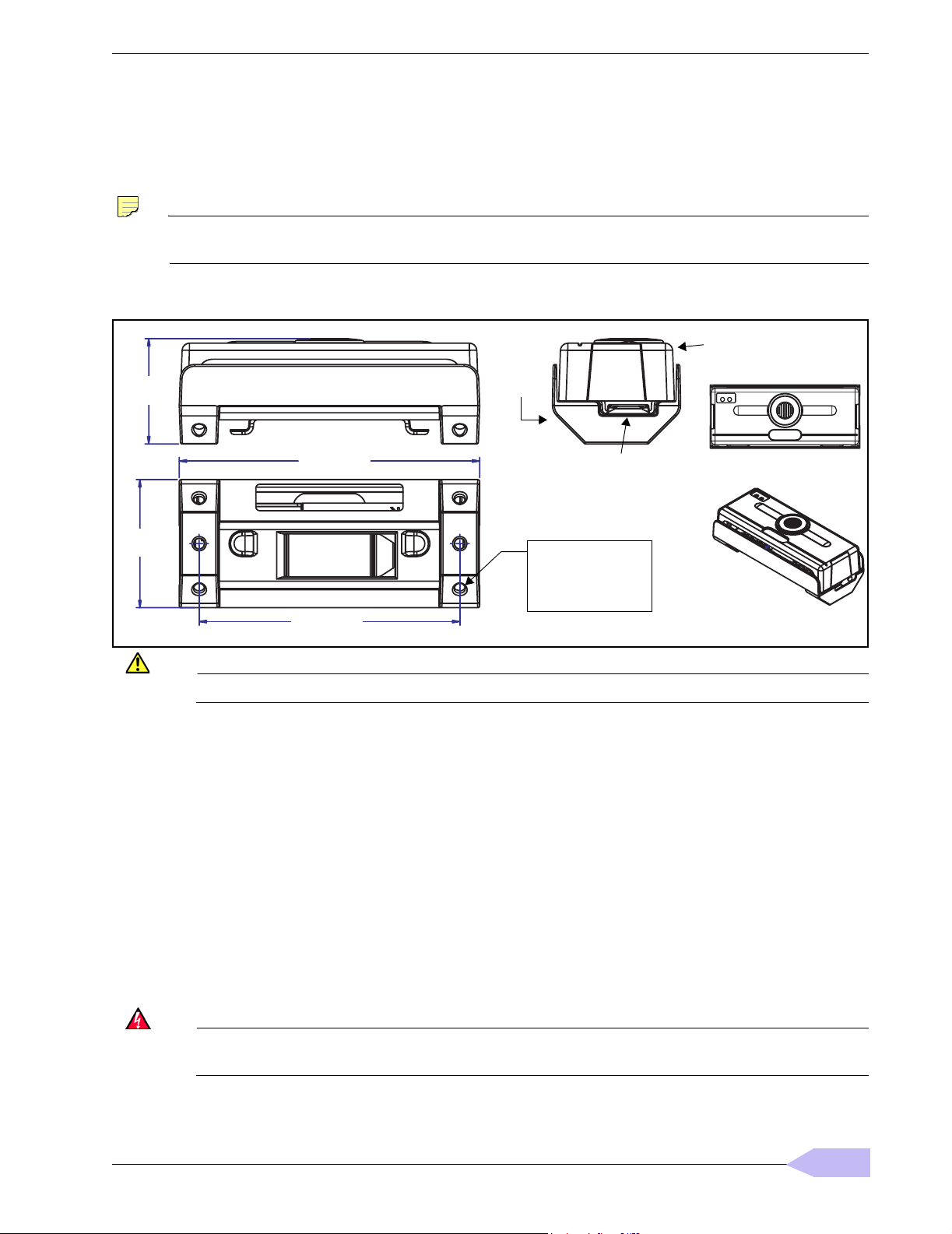

Figure 2 Beacon module dimensions in inches and (mm).
Beacon
1.79"
(45.4)
5.10" (129.5)
2.18"
(55.2)
4.42" (112.4)
Caution Ultrasonic transmitter on front of Beacon must have unobstructed view of room.
Bracket
Beacon
Bracket
Interlock
Mounting Holes
(2 Per Direction)
Maximum Screw Size
(2) is #8 or M4.
Mounting the Beacon requires removal of the Beacon module from the Beacon mounting bracket. After the
mounting bracket is securely mounted, and the Beacon power cabl e is connected, the Beacon module is inserted
back into the mounting bracket.
For more details on mounting tasks, see the following subsections:
• “Remove Beacon module from mounting bracket,” page 5
• “Fasten the Beacon mounting bracket to the wall or ceiling,” page 6
• “Connect Beacon power cable,” page 7
Remove Beacon module from mounting bracket
You must remove the Beacon module from the mounting bracket before mounting. The Beacon mo du le is
secured to the mounting bracket by a locking tab.
Warning A 15Vdc circuit powers the Beacon. Disconnect power before installation or servicing to prevent
electrical shock or equipment damage.
Beacon Mounting and Wiring Instructions
Part Number 11xxxx Draft: May 4, 2009
5
Fasten the Beacon mounting bracket to the wall or ceiling
PRELIMINARY DRAFT - FOR REVIEW ONLY
Figure 3 Removing Beacon module from mounting bracket.
1. Insert small
flat-blade
screwdriver
into slot.
2. Gently press
locking tab
toward the
Beacon module.
Procedure 1 Removing the Beacon module from mounting bracket.
Mounting and Dimensions
3. Slide Beacon module
to the right and
remove from bracket.
Step 1
Step 2
Step 3
Step 4
Note T o replace the Beacon module, insert into the right side of bracket and slide left until tab lock engages.
If the unit is powered, first remove power.
Insert flat-blade screwdriver in the right-side slot between Beacon module an d mounting bracket.
Gently press locking tab forward toward the Beacon module.
Remove Beacon module from bracket by sliding module to the right.
Fasten the Beacon mounting bracket to the wall or ceiling
After removing Beacon module from mounting bracket, mount the bracket to the wall or ceiling using two
fasteners. There are three pairs of mounting holes on the mounting bracket, allowing the Beacon to be positioned
in one of three angles. The Beacon can be mounted perpendicular to the mounting surface, or can be mounted
45 degrees off-axis either direction. See Figure 2 on page 5 for mounting dimensions.

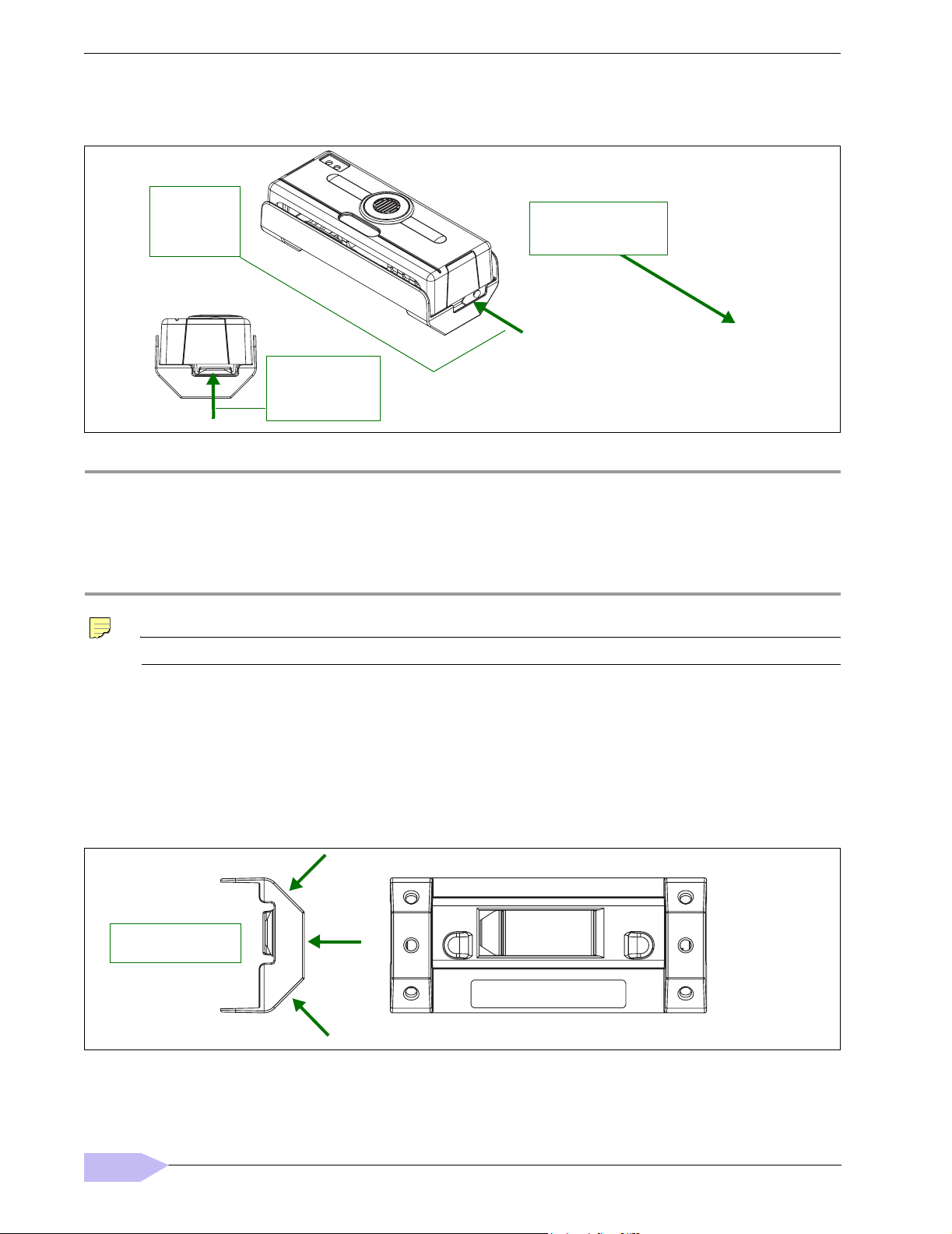

Figure 4 Mounting bracket options.
Top
Beacon can mount in
one of three positions.
Wiring access hole
Bottom
After securing the bracket to the wall or ceiling, wire power from W all Hub to back of Beacon mounting bracket.
See the next section “Connect Beacon power cable.”
6
Draft: May 4, 2009 Part Number 11xxxx
Beacon Mounting and Wiring Instructions
Mounting and Dimensions
Connect Beacon power cable
PRELIMINARY DRAFT - FOR REVIEW ONLY
Connect Beacon power cable
After mounting the bracket, but before re-installing the Beacon module, install Beacon power cable from Wall
Hub (or optional wall power supply) to Beacon mounting bracket.
Warning • Input voltage is 15Vdc. Disconnect AC power to the Wall Hub (or optional wall power supply)
before installation to prevent electrical shock or equipment damage.
• Beacon can be powered by 15Vdc from either the Wall Hub or the optional wall power supply
(not both). Do not connect 15Vdc from both devices.

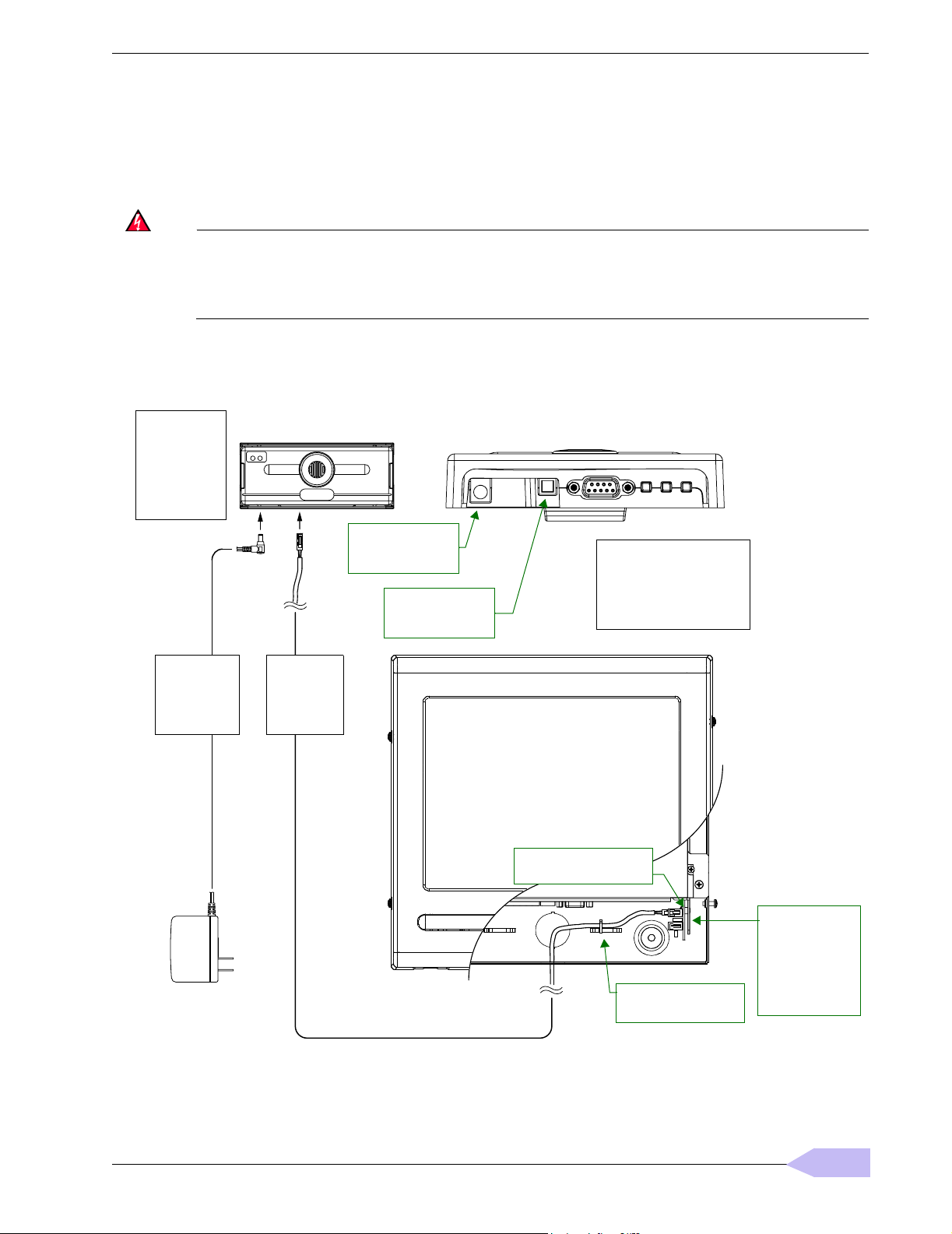

Figure 5 Wiring Beacon power cable from Wall Hub to Beacon module.
NOTE:
Ultrasonic
transmitter on
front of Beacon
must have
unobstructed
view of room.
2-conductor
Wall Power
Supply Cable
5.91 feet
(1.8m)
Beacon module
Connect power
cable from wall
power supply here.
2-conductor
Beacon
Power Cable
13.12 feet
(4m)
Connect Beacon
power cable from
Wall Hub here.
NOTE:
Beacon can be powered
either by Wall Hub or by
Wall Power Supply.
Do not connect both.
Wall Hub
Power Distribution
Board inside Wall Hub
15Vdc Wall
Power Supply
(optional)
Beacon Mounting and Wiring Instructions
Part Number 11xxxx Draft: May 4, 2009
Secure Beacon power
cable using cable tie.
Two 15Vdc output
connectors for
Beacon power
cables.
Connect Beacon
power cable to
either one.
7
Communications Wiring
PRELIMINARY DRAFT - FOR REVIEW ONLY
Procedure 2 Wiring power cable to Beacon mounting bracket.
Wiring Details
Step 1
Step 2
Turn off power to Wall Hub (or optional 15Vdc wall power supply).
If Beacon is powered by Wall Hub, connect one end of Beacon power cable to W all Hub 15Vdc power
output connector on Wall hub power distribution board. Secure with a cable tie inside Wall Hub (see
bottom of Figure 5).
Step 3
Feed other end of Beacon power cable (or wall power supply cable) through wiring access hole at
bottom of Beacon bracket (see Figure 4 on page 6).
Step 4
Step 5
Connect Beacon power cable (or wall power supply cable) to Beacon power jack (see Figure 5 ).
Insert Beacon module into right side of mounting bracket and slide module to the left until tab lock
engages.
Step 6
Verify connections.
Wiring Details
See Figure 1 on page 2 to locate connectors and other components on the Beacon module.
Communications Wiring
The Beacon uses an RS-232 DB9 serial port located on the bottom of the module for configuration only. Refer
to the NaviCare
communications and configure the Beacon module.
®
BioMed Configuration Station User Guide for instructions on how to connect serial
Power Wiring
The Beacon is powered by the Wall Hub’s 15Vdc power supply or by the optional 15Vdc wall power supply.
The acceptable range for DC input is from 10Vdc to 16Vdc.
Note The W all Hub has an On/Off switch located on the power distribution board, near the two connectors to
power Beacon modules. This switch
must be ON for the Wall Hub to operate—it does not switch
power to Beacon modules. To remove 15Vdc power to only a Beacon, you can unplug the Beacon power
cable from the connector on the Wall Hub’s power distribution board (see Figure 5 on page 7).
Power Up and Initial Checkout
Following all mounting and wiring, perform the following:
Procedure 3 Initial power up and checkout
Step 1
Step 2
Apply power to the Beacon by energizing the circuit powering the Wall Hub (or optional wall power
supply).
Verify that the green Status LED on the Beacon module illuminates.
8
Draft: May 4, 2009 Part Number 11xxxx
Beacon Mounting and Wiring Instructions
About LEDs
Cleaning
PRELIMINARY DRAFT - FOR REVIEW ONLY
About LEDs
The Beacon provides a single Status LED which is located on the upper left corner of the front of the module.
The status LED should remain lit whenever the Beacon is powered, or else blinking during a communications
burst. If the status LED does not light while power is applied, contact System Engineering for technical support.
Maintaining the Beacon
This section provides information on the following topics:
• Cleaning
• Replacement Parts
• Returning a Defective Unit
Cleaning
Special care must be taken when cleaning a Beacon module to prevent damage to the unit.
Caution Follow these instructions to avoid damage to the Beacon module:
• Do not spray any cleaning solution directly onto the component. Doing so can cause excess
solution to leak into and damage the component. Spray the cleaner only to lightly dampen a
cloth and use the cloth to clean the component.
• Do not use harsh cleaners, solvents, or detergents. Doing so may damage the component.
• Use a soft lint-free cloth to clean the enclosures of all components.
• Spray a mild household disinfectant cleaner on the cloth to help remove stubborn soil and
stains.
• In the unlikely event that a Beacon module or cable is contaminated internally by liquids or
fluids, do not attempt to clean the component. Contact your Tridium representative for
replacement parts.
Replacement Parts
There are no user serviceable or replacement parts in the Beacon. Do not disassemble the Beacon module. A
new unit is the only replacement option.
New Replacement Unit
T o replace an entire unit, order and install a new Beacon. If the faulty Beacon is still in warranty , you can receive
credit by returning it to Tridium. Be sure to contact Tridium for a return authorization (RA) number before
shipping an item for return credit. See “Returning a Defective Unit,” page 10, for more details.
Note Before ordering a new Beacon, it is strongly recommended that you contact your normal technical
support resource to eliminate the possibility of a software issue or mis-configuration problem.
Beacon Mounting and Wiring Instructions
Part Number 11xxxx Draft: May 4, 2009
9
Returning a Defective Unit
Federal Communications Commission (FCC)
PRELIMINARY DRAFT - FOR REVIEW ONLY
Returning a Defective Unit
Note If the defective unit is under warranty, please follow return instructions provided in this section.
If the unit is out of warranty, please discard any replaced part.
• Do not return an out-of-warranty Beacon or Beacon to Tridium.
For proper credit on an in-warranty unit, ship the defective unit or part to Tridium within 30 days.
Prior to returning the item, contact one of the following Tridium offices to obtain a return authorization (RA)
number and other instructions. Please provide:
• Product model • Serial number • Nature of the defect • Purchase order number to secure RMA
United States
Phone: 804-254-7086, ext. 11 Email for RMA:
rma@tridium.com
Return to:
Tridium, Inc.
2256 Dabney Road, Suite C
Richmond, VA 23230
Attn: Return Department RA# ____________
Certifications
Federal Communications Commission (FCC)
Changes or modifications not expressly approved by Tridium, Inc. could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
This device complies with Part 18 of the FCC Rules. This device may interfere with other devices using an
ultrasonic transmitter. If this occurs, re-orient or relocate the device to correct the interference.
Responsible Party:
Tridium, Inc.
3951 Westerre Parkway, Suite 350
Richmond, Virginia 23233
United States of America
Phone: 804-747-4771
10
Beacon Mounting and Wiring Instructions
Draft: May 4, 2009 Part Number 11xxxx
Loading...
