Page 1
A/T/8-3. (01.)1312552
REFRIGERATOR
OPERATING & INSTALLATION
INSTRUCTIONS
TB 59 L
Page 2
2
This instruction book contains safety precautions, information on use and helpful hints and tips.
To ensure you use this appliance effectively and safely, please read this instruction book carefully
before installing or using this appliance and retain for future reference.
The symbols below help you to find things more easily:
Safety precautions
Warnings and Safety information
Hints, useful information
Environmental information
Page 3
3
IMPOR
IMPORTT
ANT S
ANT S
AFET
AFET
Y INS
Y INS
TR
TR
UCTIONS
UCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all
before installing or using this appliance. Your safety is of paramount importance. If you are unsure
about any of the meanings or these warnings contact the Customer Care Department.
Prior to installation
Check the appliance for transport damage. Under
no circumstances should a damaged appliance be
installed. In the event of damage please contact
your retailer.
Installation
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Ensure that the appliance does not stand on the
electrical supply cable. If the supply cable is
damaged, it must be replaced by a cable available
from your local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall, but leaving the required
distance for ventilation, as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
Do not allow children to tamper with the controls or
play with the product.
There is a risk of suffocation! Keep packaging
material away from children!
During Use
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs. It is
not intended for commercial or industrial use.
Maintenance and Cleaning
Before cleaning, always switch off the appliance
and disconnect from the electrical supply.
When unplugging always pull the plug from the
mains socket, do not pull on the cable.
Servicing
This product should be serviced by an
authorised engineer and only genuine spare
parts should be used.
Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local
Service Force Centre.
At the end of the Appliance Life
When disposing of your appliance use an
authorised disposal site.
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
The Appliance and the Environment
This appliance does not contain gasses which
could damage the ozone layer.
Avoid damaging the cooling unit.
The packaging used on this appliance marked with
the symbol is recyclable.
Keep this instruction book for future
reference and ensure it is passed on to any
new owner.
Page 4
4
CONTENT
CONTENTSS
Instructions for the User
Guide to use the instruction book 2
Important Safety Instructions 3
Instructions for the User 5
General Information 5
Description of the Appliance, main parts 5
Using the Appliance 6
Before Use 6
To Start the Appliance 6
Thermostat Control 6
Hints for storage 6
Storage Shelves 7
Hints and Tips 7
Food Storage 7
Energy Saving Advice 7
Maintenance and Cleaning 7
Internal cleaning 7
External cleaning 8
Changing the Light Bulb 8
Defrosting Your Appliance 8
When the appliance is not in use 8
Something not Working 9
Service and Spare Parts 10
Customer Care 10
Guarantee Conditions 11
Instructions for the Installer
Technical specifications 14
Installing the Appliance 14
Transportation, Unpacking 14
Cleaning 14

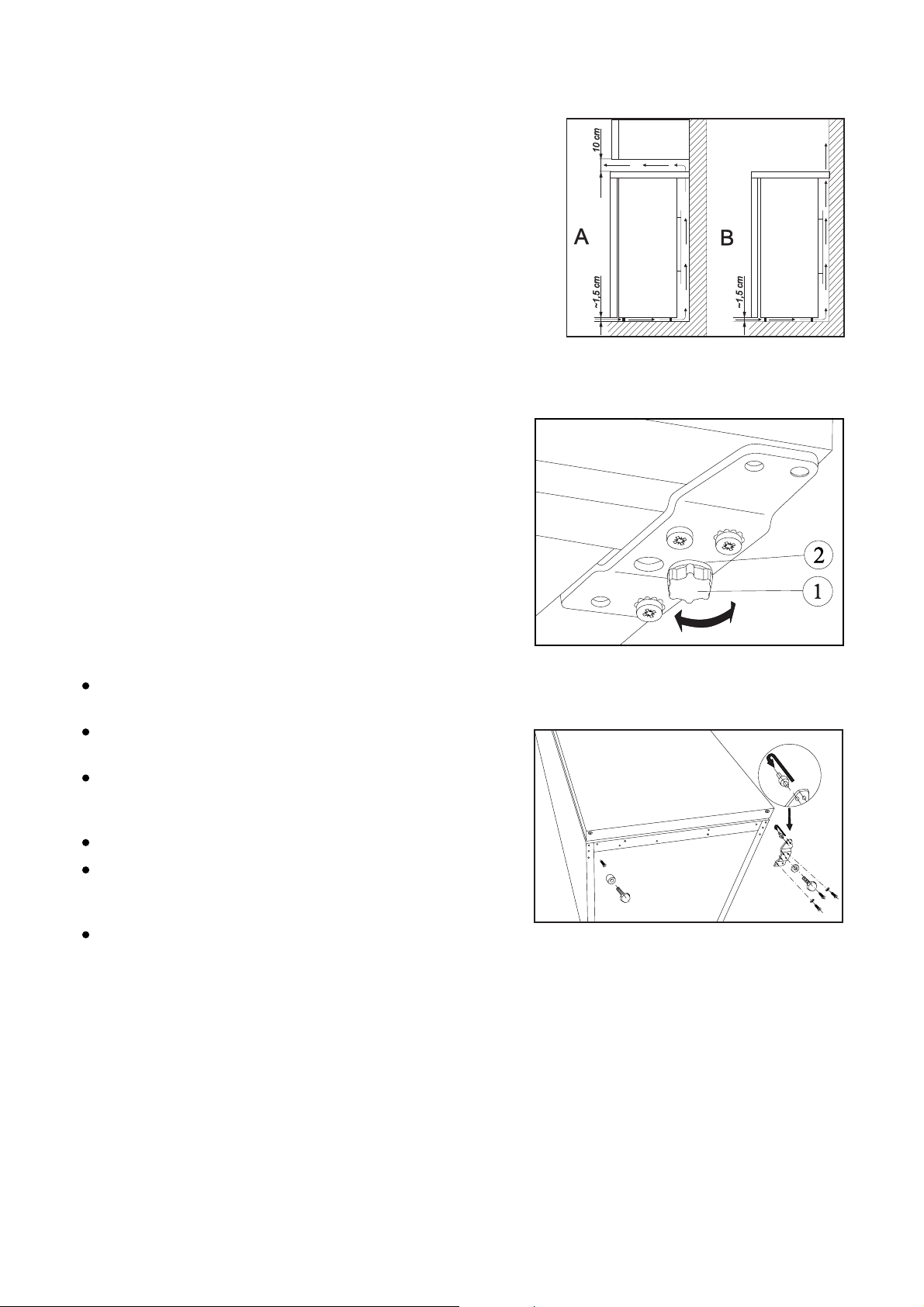

Location 14
Ventilation Requirements 15
Levelling 15
Door Reversal 15
Electrical Connection 17
Storage Chart 18
Page 5
5
INS
INS
TR
TR
UCTIONS F
UCTIONS F
OR THE USER
OR THE USER
General information
This appliance is designed for the refrigeration of food
in a domestic home.
To ensure correct operation, the appliance should
be located where the ambient temperature is
between 16-32 °C.
Description of the appliance, main parts
1. Wire shelf
2. Defrost water drain
3. Glass shelf
4. Salad drawer
5. Rating Plate
6. Adjustable feet
7. Butter compartment
8. Interior Light/Thermostat control
9. Door shelf
10. Door gasket
11. Bottle shelf
12. Egg tray
13. Air circulation
14. Air vent
15. Condenser
16. Evaporator tray
17. Compressor
Page 6
6
Using the Appliance
Before Use
Remove all securing tapes.
Wash the inside of the appliance with lukewarm water
with a little bicarbonate of soda added (5 ml to 0,5 litre
of water). Do not use soap or detergent as the smell
may linger. Dry the appliance thoroughly.
Do not use detergents, abrasive powders,
highly perfumed cleaning products, wax
polishes or products containing alcohol.
FF
To Start the Appliance
1. Allow the appliance to stand for 2 hrs after
installation.
2. Plug in the appliance and switch on at the mains
supply.
3. Turn the thermostat control to the required setting.
A setting of 3 is usually suitable for normal
operation (see thermostat control).
4. Leave the appliance for approximately 4 hours for
the correct temperature to be reached before
placing food inside.
Thermostat Control
The thermostat control situated inside the refrigerator
regulates the temperature of the larder compartment.
Thermostat control is marked from 1-5 the higher the
number, the colder the setting.
Position 0 - Off
Position 1 - Cold
Position 5 - Coldest
Hints for storage
Below is the recommended storage positions for
various food types:
1. Ready-cooked foods, convenience foods, fresh
meat, cold cuts
2. Milk, dairy products, foods in dishes
3. Fruits, vegetables, salads
4. Cheese, butter
5. Eggs
6. Yoghurt, sour cream
7. Small bottles, soft drinks
8. Large bottles, drinks
Page 7
7
Storage Shelves
The variable shelves increase the usefulness of the
fresh food compartment. The shelves can be
rearranged by opening the door to 90°.
The door shelves can also be rearranged to your
requirements.
Hints & Tips
Food Storage
To obtain the best results from your appliance
neither hot foods nor liquids which may evaporate,
should be placed in the larder compartment.
Keep the time between buying chilled food and
placing it in your fridge as short as possible.
Do not push food together too much, try to allow air
to circulate around each item.
Do not store food uncovered.
Remove suspect food from your refrigerator and
clean, refer to cleaning and maintenance.
Energy Saving Advice
Do not install the cabinet close to sources of
heat, such as a cooker, dishwasher or radiator.
Locate the appliance in a cool well ventilated
room and make sure that the air openings of the
cabinet are not obstructed.
Always leave warm food to cool down to room
temperature before placing in the fridge.
Try to avoid keeping the door open for long
periods, or opening the door too frequently as
warm air will enter the cabinet, and cause the
compressor to switch on unnecessarily often.
Ensure there are no obstructions preventing the
door from closing properly.
It is advisable to periodically clean the
refrigeration system at the back of the appliance
with a duster or vacuum cleaner.
Maint
Maint
enance & Cleaning
enance & Cleaning
Before any maintenance of cleaning work is
carried out DISCONNECT the appliance from
the ELECTRICITY SUPPLY.
Internal Cleaning
Clean the inside and accessories with warm water and
bicarbonate of soda (5 ml to 0.5 litre of water). Rinse
and dry thoroughly.
Do not use detergents, abrasive powders,
highly perfumed cleaning products, wax
polishes or cleaning products containing
bleach or alcohol.

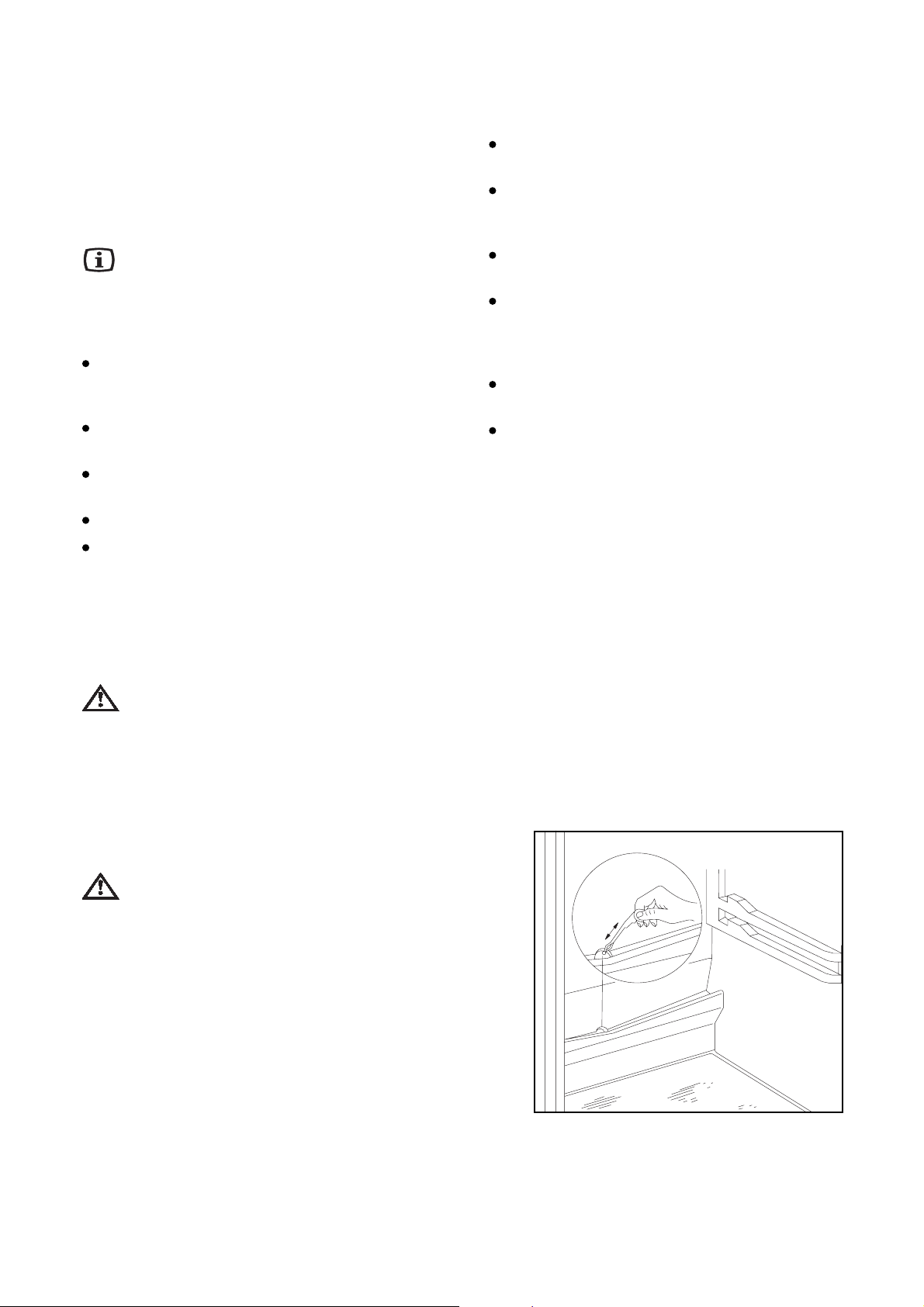

Clean the drain hole of the water trough at regular
intervals and ensure that the drain hole is clear at all
times. If blocked carefully clear using a piece of
flexible curtain wire inserted into the drain outlet to
remove the blockage.
Regularly check the door seals and wipe clean to
ensure they are clean and free from debris.
Page 8
8
External Cleaning
Wash the outer cabinet with warm soapy water.
Do NOT use abrasive products.
There are sharp edges on the underside of
the product so care should be taken when
cleaning.
Once or twice a year dust the condenser (black grille)
and the compressor at the back of the appliance with
a brush or vacuum cleaner, as an accumulation of dust
will affect the performance of the appliance and cause
excessive electricity consumption.
Changing the Light Bulb
Defrosting Your Appliance
The fridge compartment is defrosted automatically,
when the motor stops. Defrost water from the cooling
plate runs out of the drain and onto a tray on the motor
compressor where it evaporates. Droplets of water on
the cooling plate during defrosting are quite normal
and will freeze on the plate afterwards.
When the appliance is not in use
When the appliance is not in use for long periods
disconnect from the electricity supply, empty all of the
food and clean the appliance, leaving the door ajar to
prevent unpleasant smells.

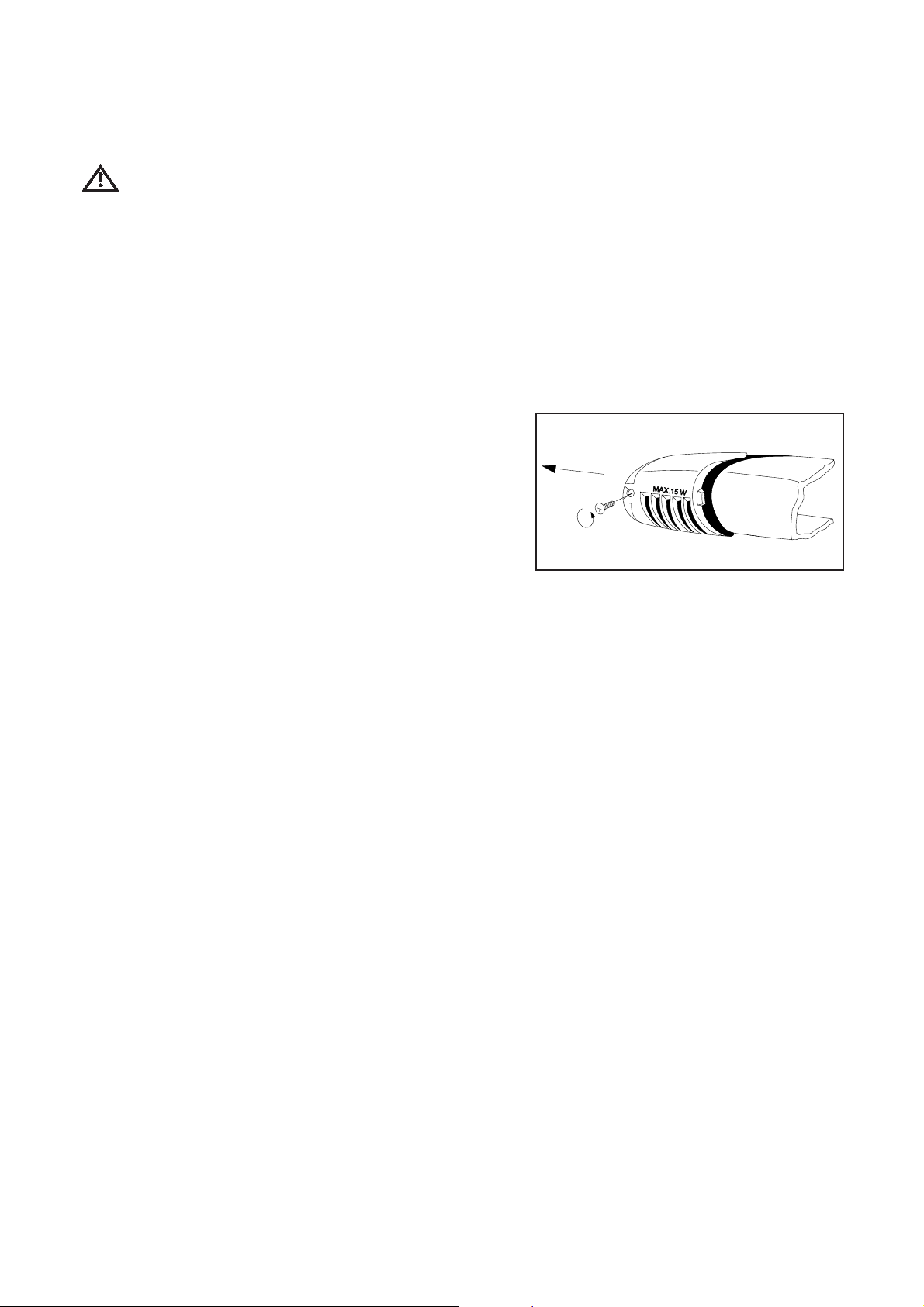

Should the light fail to work you can change it as
below:
Disconnect the appliance from the electricity supply.
Remove the lamp cover retaining screws, then take
the lamp cover off in the direction of arrow and the
bulb can be changed. (Type of the bulb: 230 V, 15 W,
E 14 thread)
After changing bulb replace the lamp cover, and
retaining screws and reconnect the appliance to the
electricity supply.
Page 9
9
Problem
No power to the
appliance
The temperature in the
appliance is too high
The temperature in the
appliance is too low
Excessive frost and ice
has built up
The appliance is noisy.
Water under the salad
drawer.
Possible Cause
No power at the socket.
There is a power cut.
The fuse has blown.
Thermostat control is set at 0.
The appliance is located in an unsuitable position.
The thermostat control is set too low.
The thermostat control is set too high.
The door has been left open.
Something is obstructing the door.
The door gasket is dirty.
The appliance is not level.
The drain hole is blocked.
Solution
Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
Check the thermostat setting.
Check the ambient temperature is within the
appliances operating limits of 16 °C to 32 °C.
Check that the thermostat control knob is turned to
the correct setting relative to ambient conditions.
Set the thermostat control knob to a warmer
position.
Check the door has not been left open.
Check nothing is preventing the door from closing.
Check the door gasket is intact and clean.
Check if the appliance stands stable (all four feet
should be on the floor).
Check the drain hole is not blocked (see
'Maintenance and Cleaning').
Some
Some
thing N
thing Noo
t W
t W
or
or
king
king
If the appliance is not working correctly, please carry out the following checks before contacting your local
Tricity Bendix Service Force Centre.
If after the above checks your appliance still does not
operate correctly, contact your local Tricity Bendix
Service Force Centre.
Please note that it will be necessary to provide proof
of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the
above checks have been made, as the
engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Page 10
10
Cus
Custt
omer Car
omer Car
e Depar
e Depar
tment
tment
For general enquiries concerning your Tricity Bendix appliance or for further information on Tricity Bendix
products, you are invited to contact our Customer Care Department by letter or telephone as follows:
Customer Care Department
Tricity Bendix
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel: 08705 950950 calls to this number may be recorded for training purposes.
Ser
Ser
vice and Spar
vice and Spar
e P
e P
ar
ar
ts
ts
In the event of your appliance requiring service, or if
you wish to purchase spare parts please contact your
local Tricity Bendix Service Force Centre by
telephoning:
0870 5 929929
Your call will be routed the Service Force Centre
covering your post code area.
For service in the Republic of Ireland contact Tricity
Bendix
Long Mile Road
Dublin 12
Telephone: 01 4090752.
Before calling out an engineer, please ensure you
have read the details under the heading 'Something
Not Working?'.
When you contact the Service Centre you will need
to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance
(found on the rating plate)
5. The purchase date
Page 11
11
PPeace of Mind f
eace of Mind f
or T
or Tww
elv
elv
e Months
e Months
Tricity Bendix standard
guarantee conditions
This guarantee is in addition to your statutory and
other legal rights.
We Tricity Bendix undertake that if within 12 months of
the date of the purchase this TRICITY BENDIX
appliance or any part thereof is proved to be defective
by reason only of faulty workmanship or materials, we
will, at our option repair or replace the same FREE OF
ANY CHARGE for labour, materials or carriage on
condition that:
The appliance has been installed correctly and
used only on the electrical supply stated on the
rating plate.
The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer's operating and maintenance
instructions.
The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any
person not authorised by us.
All service work under this guarantee must be
undertaken by a Tricity Bendix service
Representative or authorised agent.
Any appliance or defective part replaced shall
become our property.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours in which case a charge will be made.
EXCLUSIONS
This Guarantee does not cover:
Damage or calls resulting from transportation,
improper use or neglect, the replacemet of any light
bulbs or removable parts of glass or plastic.
Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliances
outside the United Kingdom.
Appliances found to be in use within a
commercial environment, plus those which are
the subject of rental agreements.
Products of Tricity Bendix manufacture which
are NOT marketed by Tricity Bendix Ltd.
EUROPEAN GUARANTEE
If you should move to another country within
Europe then your guarantee moves with you to your
new home subject to the following qualifications:
The guarantee starts from the date you first
purchased your product.
The guarantee is for the same period and to the
same extent for labour and parts as exists in the
new country of use for this brand or range of
products.
This guarantee relates to you and cannot be
transferred to another user.
Your new home is within the European
Community (EC) or European Free Trade Area.
The product is installed and used in accordance
with our instructions and is only used
domestically, i.e. a normal household.
Before you move please contact your nearest
Customer Care Centre, list below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your
move and able to look after you and your
appliances.
France Senlis +33 (0) 3 44 62 28 28
Germany Nurnberg +49 (0) 911 323 2600
Italy Pordenone +39 (0) 1678 47053
Sweden Stockholm +46 (0) 20 78 77 50
UK Slough +44 (0) 1753 219898
Page 12
12
CHANNEL ISLANDS
GUERNSEY Guernsey Electricity
PO Box 4
Vale, Guernsey
Channel Islands GY1 3AD
JERSEY Jersey Electricity Company
Haut De L'orme
Rue De Haut De L'orme
Trinity
Jersey
Channel Islands JE3 5FG
SCOTLAND
ABERDEEN 54 Claremont Street
Aberdeen AB10 6RA
AUCHTERMUCHTY 33a Burnside
Auchtermuchty
Fife KY14 7AJ
BLANTYRE Unit 5
Block 2
Auchenraith Ind. Estate
Rosendale Way
Blantyre G72 0NJ
DUMFRIES 93 Irish Street
Dumfries
DG1 2 PQ
DUNOON 7 Hill Street
Dunoon
Argyll
PA23 7AL
EDINBURGH Unit 12
Dumbryden Ind. Estate
2 Dumbryden Road
Edinburgh
EH14 2AB
GLASGOW Unit 4
Wellington Road
Bishopriggs
Glasgow G64 2SA
INVERNESS Unit 3BI
Smithton Ind. Estate
Smithton
Inverness IV2 7WL
ISLE OF ARRAN Arran Domestics
The Douglas Centre
Brodick
Isle of Arran KA27 8AJ
ISLE OF BARRA J Zerfah
244 Bruernish
Isle of Barra
Western Islands HS9 5QY
ISLES OF BUTE Walker Engineering
Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute PA20 9EH
ISLE OF LEWIS ND Macleod
16 James Street
Stornoway
Isle of Lewis PA87 2QW
KELSO 2, 6 & 8 Woodmarket
Kelso
Borders
TD5 7AX
ORKNEY 7 King Street
Kirkwall
Orkney
KW15 1JF
PERTH Scottish Hydro Electric
Central Warehouse
Inveralmond
(OWN SALES) Perth PH1 3AF
SHETLAND 3-4 Carlton Place
Lerwick
Shetland
(OWN SALES) ZE1 0PW
SHETLAND Bolts Shetland
26 North Road
Lerwick
(OWN SALES) Shetland ZE1 0PE
WHALSAY Leask Electrical
Harisdale
Symbister, Whalsay
(OWN SALES) Shetland ZE2 9AA
NORTHERN IRELAND
BELFAST Owenmore House
Kilwee Business Park
Dunmurry
Belfast
BT17 0HD
WALES
CARDIFF Unit 4
Guardian Industrial Estate
Clydesmuir Road
Cardiff
CF2 2QS
CLYWD Unit 6-7 Coed Parc
Abergele Road
Rhuddlan
Clwyd
LL18 5UG
DYFED Unit 9
St. Clears Business Park
Tenby Road
St. Clears
Carmarthen
SA33 4JW
OSWESTRY Plas Ffynnon Warehouse
Middleton Road
Oswestry
SY11 2PP
NORTH EAST
GATESHEAD Unit 356a
Dukesway Court
Dukesway
Gateshead NE11 0BH
GRIMSBY 15 Hainton Avenue
Grimsby
N. E. Lincs
DN32 9AS
HULL Unit 1
Boulevard Industrial Estate
Hull
HU3 4AY
LEEDS 64-66 Cross Gates Road
Cross Gates
Leeds
LS15 7YS
NEWTON AYCLIFFEUnit 23
Northfield Way
Aycliffe Industrial Park
Newton Aycliffe
DL5 6EJ
SHEFFIELD Pennine House
Roman Ridge Road
Sheffield
S9 1GB
NORTH WEST
BIRKENHEAD 1 Kelvin Park
Dock Road
Birkenhead
CH41 1LT
CARLISLE Unit 7
James Street Workshops
James Street
Carlisle
Cumbria CA2 5AH
ISLE OF MAN South Quay Ind. Estate
Douglas
Isle of Man
IM1 5AT
BOLTON Unit B
Central Industrial Estate
St Marks Street
Bolton
BL3 6NR
PRESTON Unit 250
Dawson Place
Bamber Bridge
Preston
Lancashire PR5 8AL
STOCKPORT Unit 20 Haigh Park
Haigh Avenue
Stockport
SK4 1QR
To contact your local Service Force Centre telephone 08705 929 929
Page 13
13
MIDLANDS
BIRMINGHAM 66 Birch Road East
Wyrley Trading Estate
Witton
Birmingham
B6 7DB
BOURNE Pinfold Road
Bourne
PE10 9HT
BRIDGNORTH 68 St. Mary's Street
Bridgnorth
Shropshire
WV16 4DR
GLOUCESTER 101 Rycroft Street
Gloucester
GL1 4NB
HEREFORD Units 3 & 4
Bank Buildings
Cattle market
Hereford
HE4 9HX
HIGHAM FERRERS 30 High Street
Higham Ferrers
Northants
NN10 8PL
ILKESTON Unit 2
Furnace Road
Ilkeston DE7 5EP
LEICESTER Unit 7
Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE9 5GF
LINCOLN Unit 8
Clifton Street
Stone Field Park
Lincoln
LN5 8LQ
NEWCASTLE 18-21 Croft Road
UNDER LYME Brampton Ind. Estate
Newcastle under Lyme
Staffordshire
ST5 0TW
REDDITCH 13 Thornhill Road
North Moons Moat
Redditch
Worcestershire
B98 9ND
TAMWORTH Unit 3
Sterling Park
Claymore
Tamworth
B77 5DQ
WORCESTER Units 1 & 2
Northbrooks Close
Gregorys Mill Ind. Estate
Worcester
WR3 8BP
LONDON & EAST ANGLIA
BECKENHAM 11a Gardner Ind. Estate
Kent House Lane
Beckenham
Kent BR3 1QZ
CHELMSFORD Hanbury Road
Widford Ind. Estate
Chelmsford
Essex
CM12 3AE
COLINDALE Unit 14
Capitol Park
Capitol Way
Colindale
London NW9 0EQ
ELTHAM 194 Court Road
Mottingham
Eltham
London SE9 4EW
ENFIELD 284 Alma Road
Enfield
London
EN3 7BB
GRAVESEND Unit B4
Imperial Business Estate
West Mill
Gravesend
Kent
DA11 0DL
IPSWICH Unit 6C
Elton Park Business Centre
Hadleigh Road
Ipswich
IP2 0DD
LETCHWORTH 16-17 Woodside Ind. Park
Works Road
Letchworth
Herts
SG6 1LA
LONDON 2 - 4 Royal Lane
Yiewsley
West Drayton
Middlesex
UB7 8DL
MAIDENHEAD Reform Road
Maidenhead
Berkshire
SL6 8BY
MOLESEY 10 Island Farm Avenue
West Molesey
Surrey
KT8 2UZ
NEWBURY 9 Pipers Court
Berkshire Drive
Thatcham
Berkshire
RG19 4ER
NORWICH 2b Trafalgar Street
Norwich
NR1 3HN
SUNBURY Unit 1a
The Summit
Hanworth Road
Sunbury on Thames
TW16 5DB
SOUTH EAST
ASHFORD Unit 2
Bridge Road Business Centre
Bridge Road
Ashford
Kent TN23 1BB
FLEET Unit 1
Redfields Ind. Estate
Church Crookham
Fleet
Hampshire GU13 0RD
HAYWARDS 21-25 Bridge Road
HEATH Haywards Heath
Sussex RH16 1UA
TONBRIDGE Unit 30
Deacon Trading Estate
Morley Road
Tonbridge
TN9 1RA
SOUTH WEST
BARNSTAPLE Main Road
Fremington
Barnstaple
North Devon EX31 2NT
BOURNEMOUTH63-65 Curzon Road
Bournemouth
Dorset
BH1 4PW
BRIDGEWATER 6 Herswell Business Park
Salmon Parade
Bridgwater
Somerset TA6 5PY
BRISTOL 11 Eldon Way
Eldonwall Trading Estate
Bristol
BS4 3QQ
EMSWORTH 266 Main Road
Southbourne
Emsworth
PO10 8JL
ISLE OF WIGHT Unit 8
Enterprise Court
Ryde Business Park
Ryde
Isle of Wight PO33 1DB
NEWTON ABBOTUnit 2
Zealley Ind. Estate
Kingsteignton
Newton Abbot
TQ12 3TD
REDRUTH Unit 7D
Pool Ind. Estate
Druids Road
Redruth
Cornwall TR15 3RH
To contact your local Service Centre telephone 08705 929 929
Page 14
14
Ins
Instrtr
uctions f
uctions f
or the Ins
or the Instt
aller
aller
Model
Gross capacity (l)
Net capacity (l)
Width (mm)
Height (mm)
Depth (mm)
Energy consumption (kWh/day)
(kWh/year)
Energy class, according to EU Standards
Rated power (W)
Weight (kg)
TB 59 L
Fresh food com.: 159
Fresh food com.: 148
550
850
600
0.60
219
C
100
34
Installing the appliance
Transportation, unpacking
The appliance and the interior fitting are protected for
transport.
Remove all packaging and any adhesive tape.
Any remnants of adhesive can be removed using
white spirit.
After transportation the appliance must not be
switched on for 2 hours. This is to allow the
refrigerant to settle.
Cleaning
Clean the accessories and the inside of the appliance
with warm water and bicarbonate of soda (5 ml
to 0.5 litres of water). Rinse and dry thoroughly.
Do not use detergents, abrasive powders, highly
perfumed cleaning products, wax polishes or
cleaning products containing bleach or alcohol.
Location
The appliance should be positioned in a well
ventilated, dry room.
Energy use is affected by the ambient temperature.
The appliance should therefore:
not be installed next to radiators, cookers or
other sources of heat
only be installed at a location where the ambient
temperature corresponds to the climate
classification, for which the appliance is
designed.
The climate classification can be found on the
serial plate.
The following table shows which ambient
temperature is correct for each climate
classification:
Climate Classification Ambient Temperature
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C
Technical data
Page 15
15
Ventilation Requirements
The appliance must have adequate ventilation to
ensure correct operation.
Diagram shows the ventilation requirements when
installed:
A* Under a worktop, or cupboard.
* The clearance space of 10 cm above the appliance
may be reduced to 5 cm providing a clearance
space 2.5 cm is left on either side of the appliance.
B When freestanding
Levelling
The appliance must be level. Level the appliance by
adjusting the two adjustable feet (1) at the front of the
appliance.
Door Reversal
If required the opening direction of the door can be
changed as follows:
To reverse the bottom hinge assembly proceed as
follows:
Disconnect the appliance from the electricity
supply.
Tilt the appliance backwards, resting the top edge
of the appliance on a stool or something similar.
Unscrew the adjustable feet situated on both sides
at the front (2 pieces). Remove the lower door
hinge plate by unscrewing the 3 retaining screws.
Remove the hinge pin from the bottom of the door.
Slot the hinge pin into the hole in the hinge plate
and relocate the hinge assembly to the opposite
location and refit using the retaining screws.
Put the cabinet in the upright position.
Page 16
16
To reverse the top hinge assembly proceed as follows:
Remove the 2 worktop retaining screws from the
back of the appliance.
Slide the worktop towards the rear and lift clear of
the appliance.
Remove the 2 upper hinge plate retaining screws.
Remove the hinge plate from the top of the door.
Unscrew the hinge pin from the hinge plate and re-
insert on the opposite side of the pate.
Rotate the hinge assembly 180° and insert the
hinge assembly into the opposite location.
Refit the 2 hinge plate retaining screws.
Relocate the worktop and refit the worktop
retaining screws.
Page 17
17
Electrical Connection
Electrical Connection
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
This appliance must be earthed.
The manufacturer declines any liability should
these safety measures not be observed.
Electrical Requirements
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance
rating plate.
The appliance is supplied with a 13 amp plug fitted. In
the event of having to change the fuse in the plug
supplied, a 13 amp ASTA approved (BS 1362) fuse
must be used. Should the plug need to be replaced
for any reason. The wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter E or
by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the
terminal N or coloured black.
The wire coloured brown must be connected to the
terminal marked L or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
This appliance complies with the following
E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive)
and subsequent modifications,
89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Page 18
18
SSttor
or
age time char
age time chartt
Time and method of storage of fresh foods in the refrigerator
Foods Storage time in days Method of packaging
1234567
Raw meat XXx x x cling film, airtight
Cooked meat XXXx x x dish covered
Roasted meat XXXx x dish covered
Raw minced meat X dish covered
Cooked minced meat XXx x dish covered
Cold cuts XXx x cling film, cellophane, grease-
proof paper
Fresh fish X x x cling film, airtight
Cooked fish XXx x dish covered
Tinned fish, open X x x dish covered
Fresh chicken XXXx x x cling film, airtight
Fried chicken XXXx x x dish covered
Fresh duck, goose XXXx x x cling film, airtight
Roasted duck, goose XXXXx x x dish covered
Butter unopened XXXXXXXoriginal packaging
Butter opened XXxxxxxoriginal packaging
Milk XXXx x original packaging
Cream XXx x plastic box
Sour cream XXXXx x x plastic box
Cheese (hard) XXXXXXXaluminium foil
Cheese (soft) XXXX x x x cling film
Egg XXXXXXX
Spinach, sorrel XXx x cling film
Green peas, green beans XXXXx x x cling film
Mushroom XXx x x cling film
Carrot XXXXXXXcling film
Tomato XXXXXXXcling film
Cabbage XXXXXx x cling film
Strawberry, raspberry, etc. XXXx x cling film
Tinned fruits opened XXXx x dish covered
Cakes filled with cream XXx x dish covered
Notation:
X recommended storage time
x maximum recommended storage time
Page 19
19
Page 20
Printed by Xerox Hungary Ltd.
© Electrolux Household Appliances Limited 2000
Loading...
