Page 1

A/T/9-2. (00.)1287177

REFRIGERATOR

OPERATING & INSTALLATION

INSTRUCTIONS

TB 584 R

Page 2

This instruction book contains safety precautions, information on use and helpful hints and tips.

To ensure you use this appliance effectively and safely, please read this instruction book carefully before installing or using this appliance and retain for future reference.

The symbols below help you to find things more easily:

Safety precautions

Warnings and Safety information

Hints, useful information

Environmental information

Page 3

IMPOR

IMPORTT

ANT S

AFET

Y INS

UCTIONS

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer Care Department.

Prior to installation

Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.

Installation

This appliance is heavy. Care should be taken when moving it.

It is dangerous to alter the specifications or attempt to modify this product in any way.

Ensure that the appliance does not stand on the electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from your local Service Force Centre.

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall, but leaving the required distance for ventilation, as stated in the installation instructions.

The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

Child Safety

Do not allow children to tamper with the controls or play with the product.

There is a risk of suffocation! Keep packaging material away from children!

During Use

This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs. It is not intended for commercial or industrial use.

Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans, fire extinguisher refill cartridges etc.

Frozen food should not be refrozen once it has thawed out.

Do not place carbonated or fizzy drinks in the freezer compartment.

Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer compartment.

Do not remove items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

Bottles and cans must not be placed in the freezer compartment they can burst when the contents freeze.

Manufacturers' recommended storage times should be adhered to. Refer to relevant instructions.

Maintenance and Cleaning

Before cleaning, always switch off the appliance and disconnect from the electrical supply.

When unplugging always pull the plug from the mains socket, do not pull on the cable.

Servicing

This product should be serviced by an authorised engineer and only genuine spare parts should be used.

Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.

At the end of the Appliance Life

When disposing of your appliance use an authorised disposal site.

Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

The Appliance and the Environment

This appliance does not contain gasses which could damage the ozone layer.

Avoid damaging the cooling unit. The packaging used on this appliance marked with

the symbol is recyclable.

Keep this instruction book for future reference and ensure it is passed on to any new owner.

Page 4

CONTENT

CONTENTSS

Instructions for the User

Guide to use the Instruction Book 2

Important Safety Instructions 3

Instructions for the User 5

General Information 5 Description of the Appliance, main parts 5

Using the Appliance 6

Before Use 6 To Start the Appliance 6 Thermostat Control 6 Hints for storage 6

Hints and Tips 7

Food Storage 7 Energy Saving Advice 7 Thawing 8 To make ice cubes 8 Storage Shelves 8

Maintenance and Cleaning 8

Internal cleaning 8 When the appliance is not in use 8 External cleaning 8 Defrosting 8 Changing the Light Bulb 9

Storage Chart (1) 10

Storage Chart (2) 10

Something Not Working 11

Guarantee Conditions 12

Instructions for the Installer

Technical Data 15

Installing the Appliance 15

Transportation, Unpacking 15 Cleaning 15 Location 15 Levelling 16 Ventilation Requirements 16 Door Reversal 17

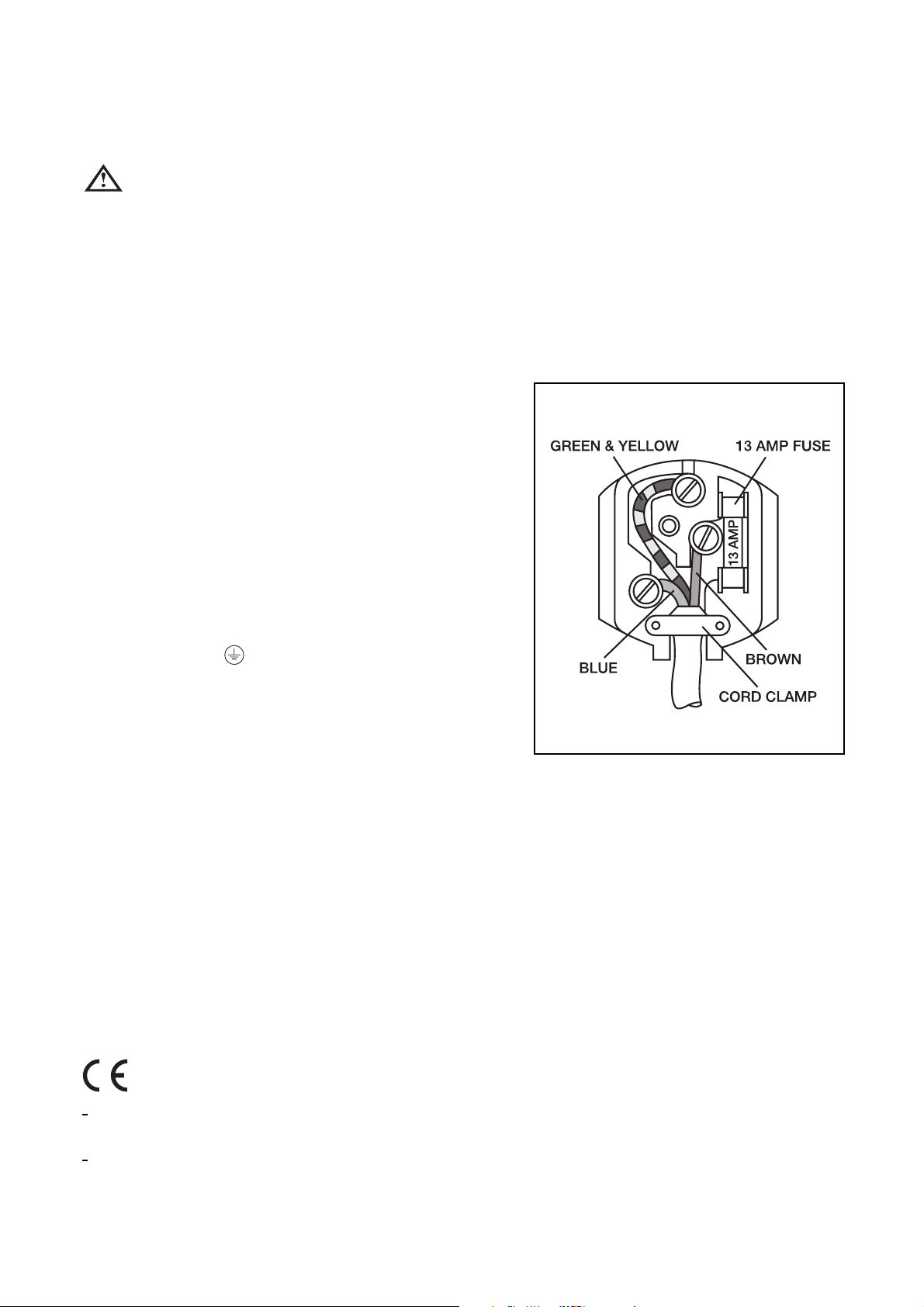

Electrical Connection 19

Page 5

1. Frozen food compartment

2. Wire shelf

3. Defrost water outlet

4. Glass shelf

5. Salad drawer

6. Rating plate

7. Adjustable feet

8. Ice tray

9. Butter compartment

10. Interior Light /Thermostat Control

11. Door shelf

12. Gasket

13. Bottle shelf

14. Egg tray

15. Air circulation

16. Air Vent

17. Condenser

18. Evaporator tray

19. Compressor

INS

UCTIONS F

OR THE USER

General information

This appliance is designed for the refrigeration of food in a domestic home. It has a four-star frozen food compartment for ice making, frozen food storage and freezeng fresh food.

To ensure correct operation, the appliance should be located where the ambient temperature is between 16-32 °C.

Description of the appliance, main parts

Page 6

Using the Appliance

Before Use

Remove all securing tapes. Wash the inside of the appliance with lukewarm water with a little bicarbonate of soda added (5 ml to 0,5 litre of water). Do not use soap or detergent as the smell may linger. Dry the appliance thoroughly.

Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or products containing alcohol.

To Start the Appliance

1. Allow the appliance to stand for 2 hrs after installation.

2. Plug in the appliance and switch on at the mains supply.

3. Turn the thermostat control to the required setting. A setting of 3 is usually suitable for normal operation (see thermostat control).

4. Leave the appliance for approximately 4 hours for the correct temperature to be reached before placing food inside.

Thermostat Control

The thermostat control situated inside the refrigerator regulates the temperature of both compartments. Thermostat control is marked from 1-5 the higher the number, the colder the setting.

Position 0 - Off Position 1 - Cold Position 5 - Coldest

With the control knob set at 3 the temperature inside the fresh food compartment is +5 °C or lower and the temperature inside the frozen food compartment is

-18 °C or lower.

Hints for storage

Below is the recommended storage positions for various food types:

1. Storing frozen foods, making ice. Freezing fresh foods.

2. Confectionery, ready-cooked foods

3. Foods in dishes

4. Opened cans

5. Milk, dairy products

6. Fresh meat, cold cuts, sausages, etc.

7. Fruits, vegetables, salads

8. Cheese, butter

9. Eggs

10. Yoghurt, sour cream

11. Small bottles, soft drinks

12. Big bottles, drinks 7

Page 7

Hints & T

ips

Normal Operating Sounds

You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or tubing.

When the compressor is on, the refrigerant is being pumped round and you will hear a whirring sound or pulsating noise from the compressor.

A thermostat controls the compressor and you will hear a faint 'click' when the thermostat cuts in and out.

Food Storage

To obtain the best performance from your appliance:

Neither hot foods nor liquids which may evaporate, should be placed in the larder compartment.

Keep the time between buying chilled food and placing it in your fridge as short as possible.

Do not store warm food or evaporating liquid. Avoid buying frozen food if you cannot store it

straight away. The use of an insulated container is advisable. When you arrive home, place the frozen food in the freezer immediately.

Do not push food together too much, try to allow air to circulate around each item.

Do not store food uncovered. Ensure that food placed in the freezer is dated and

labelled and used in date order to ensure that food is consumed at its best.

Lean food keeps better and longer than fatty food, salt reduces the storage time.

Wrap the food in polythene or aluminium freezing bags or foil so that they adhere to the food and provide an airtight seal.

Packaging which is swollen or has traces of refrozen water droplets on the pack could indicate that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it must be consumed within 24 hours. Never exceed the storage times indicated by the manufacturer.

Energy Saving Advice

Do not install the appliance close to sources of heat, such as a boiler or radiator.

Locate the appliance in a cool well ventilated room and make sure that the air openings of the appliance are not obstructed.

Avoid unnecessary frosting in the cabinet by packing all foodstuffs into airtight packages before placing them in the freezer.

Food which is to be frozen (when cool) should be placed in the fridge before being transferred to the freezer.

Try to avoid keeping the door open for long periods or opening the door too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.

Ensure there are no obstructions preventing the door from closing properly.

In the Event of a Power Failure

If there is a power failure during the storage of frozen foods, keep the door closed. If the temperature within your freezer should rise, do not refreeze the food without checking its condition. The following guidelines should assist you:

Ice Cream: Once thawed should be discarded. Fruits & Vegetables: If soft should be cooked and

used up.

Breads & Cakes: Can be refrozen without danger. Shellfish: Should be refrigerated and used up

quickly. Cooked Dishes: i.e. casseroles should be

refrigerated and used up. Large Pieces of Meat: Can be refrozen providing

there are still ice crystals remaining within them. Small Joints: Should be cooked and can then be

refrozen as cooked dishes. Chicken: Should also be cooked and refrozen as a

fresh dish.

Page 8

Thawing

Deep frozen or frozen food, prior to being used, can be thawed in the fridge or at room temperature, depending on the time available. Small food items may even be cooked from frozen, in this case cooking will take longer.

Any frozen food which is allowed to thaw accidentally should either be eaten as soon as possible, or thrown away. Alternatively, if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.

Defrosted cooked food must never be refrozen.

To Make Ice Cubes

1. Fill the ice cube tray ¾ full with cold water, place on

the freezing compartment and leave to freeze.

2. To remove the cubes twist the tray or hold it under

running water for a few seconds.

Never try to free an ice tray that is frozen to the freezer shelf by using pointed or sharp edged objects.

Storage Shelves

The shelves in the refrigerator compartment are adjustable to allow for the storage of large items.

The shelves can be re-arranged by opening the door to 90°

The door shelves are also adjustable.

To allow the air to circulate whitin the fridge compartment do not cover the wire shelves with paper or trays.

Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

Before any maintenance or cleaning is carried out you must DISCONNECT the

appliance from the electricity supply.

Internal Cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5 ml to 0.5 litre of water).

Rinse and dry thoroughly.

NEVER use detergents, abrasive powders,

highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.

External Cleaning

Wash the outer cabinet with warm soapy water. Once or twice a year dust the condenser (black grille)

and the compressor at the back of the appliance with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

When the Appliance is not in Use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all of the food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Defrosting

Refrigerator

The refrigerator defrosts every time the compressor stops. The water is discharged, via the pipe, into a tray located at the back of the appliance above the compressor, where it evaporates.

Maint

enance and Cleaning

Page 9

Freezer

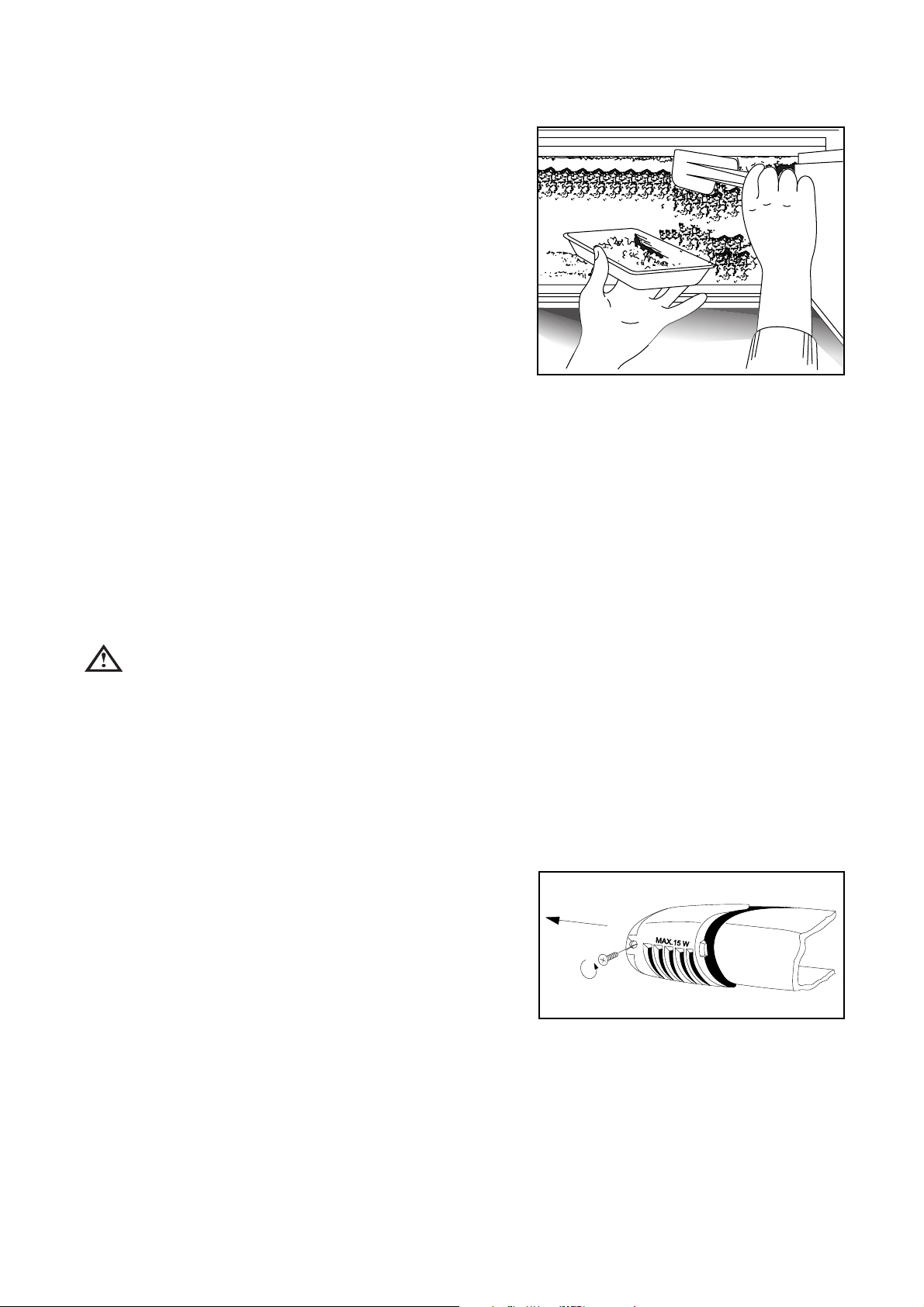

The freezer compartment will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost reaches

/4.

During this operation it is not necessary to switch of the power supply or to remove the foodstuffs.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out and it is advisable to perform this operation when the appliance is empty.

For complete defrosting (once or twice a year) proceed as follows:

1 Turn the thermostat dial to the "OFF" position (O) or

disconnect the appliance from the mains.

2 Remove any food from inside the freezer and

fridge; wrap it in several sheets of newspaper and store in a cool, dry place.

3 When defrosting is complete, dry the interior

thorough.

4 Reconnect the appliance to the mains or reset the

thermostat to 5 (coldest) and leave to run for at

least four hours. 5 Replace the previously removed food. 6 Return the thermostat to the normal position.

Important

A temperature rise of the frozen food packs during defrosting may shorten their safe storage life.

Never use sharp metal tools to scrape off frost from the evaporator as this could damage the appliance beyond repair.

Changing the Light Bulb

Should the light fail to work you can change it as below:

Disconnect the appliance from the electricity supply. Remove the lamp cover retaining screws, then take

the lamp cover off in the direction of arrow and the bulb can be changed. (Type of the bulb: 230 V, 15 W, E 14 thread)

After changing bulb replace the lamp cover and retaining screws and reconnect the appliance to the electricity supply.

Page 10

SSttor

age time char

t (1)

Time and method of storage of fresh foods in the refrigerator

Foods Storage time in days Method of packaging

1234567

Raw meat XXx x x cling film, airtight Cooked meat XXXx x x dish covered Roasted meat XXXx x dish covered Raw minced meat X dish covered Cooked minced meat XXx x dish covered Cold cuts XXx x cling film, cellophane, grease-

proof paper Fresh fish X x x cling film, airtight Cooked fish XXx x dish covered Tinned fish, open X x x dish covered Fresh chicken XXXx x x cling film, airtight Fried chicken XXXx x x dish covered Fresh duck, goose XXXx x x cling film, airtight Roasted duck, goose XXXXx x x dish covered Butter unopened XXXXXXXoriginal packaging Butter opened XXx x x x x original packaging Milk XXXx x original packaging Cream XXx x plastic box Sour cream XXXXx x x plastic box Cheese (hard) XXXXXXXaluminium foil Cheese (soft) XXXX x x x cling film Egg XXXXXXX Spinach, sorrel XX x x cling film Green peas, green beans XXXXx x x cling film Mushroom XXx x x cling film Carrot XXXXXXXcling film Tomato XXXXXXXcling film Cabbage XXXXXx x cling film Strawberry, raspberry, etc. XXXx x cling film Tinned fruits opened XXXx x dish covered Cakes filled with cream XXx x dish covered

Notation:

X recommended storage time

x maximum recommended storage time

SSttor

age time char

t (2)

Storage time of deep-frozen and frozen products

Foods In the fresh food In the ****frozen food

compartment +2 - +7 °C compartment -18 °C

Vegetables:

green beans, green peas, mixed vegetables, marrow, corn, etc. 1 day 12 months

Ready-cooked foods:

vegetable dish, trimmings, with meat, etc. 1 day 12 months

Ready-cooked foods:

sirloin steaks, stews 1 day 6 months

Soups 1 day 6 months Fruits:

cherry, gooseberry, fruit cream 1 day 12 months

Meat:

chicken, duck, goose, tuna fish 1 day 5 months Ice-cream, Ice-lollies 1 day 3 weeks

Page 11

If after the above checks your appliance still does not operate correctly, contact your local Tricity Bendix Service Force Centre.

Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

In-guarantee customers should ensure that the above checks have been made, as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Some

thing N

thing Noo

t W

king

If the appliance is not working correctly, please carry out the following checks before contacting your local Tricity Bendix Service Force Centre.

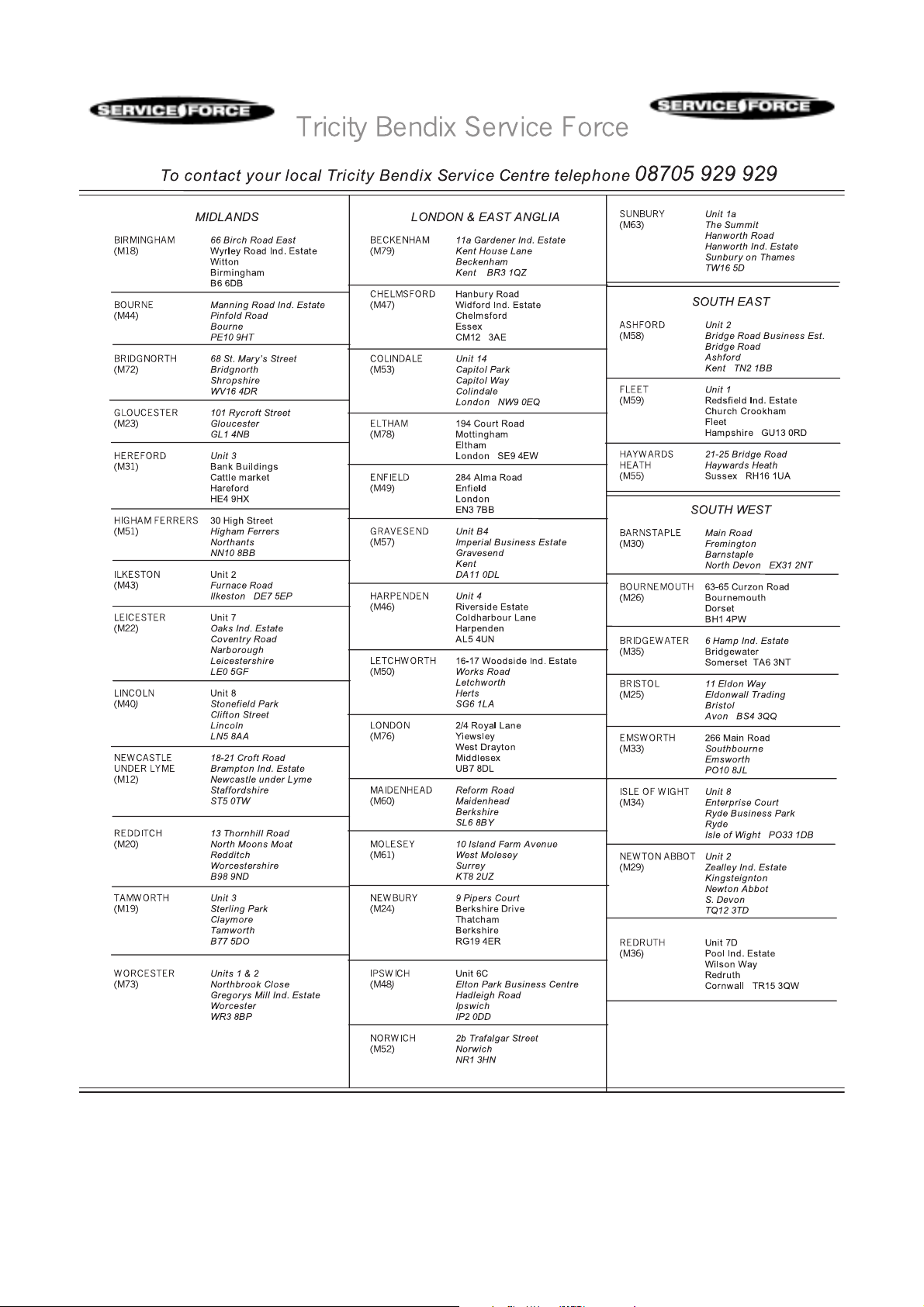

Ser

vice and Spar

e P

In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Tricity Bendix Service Force Centre by telephoning:

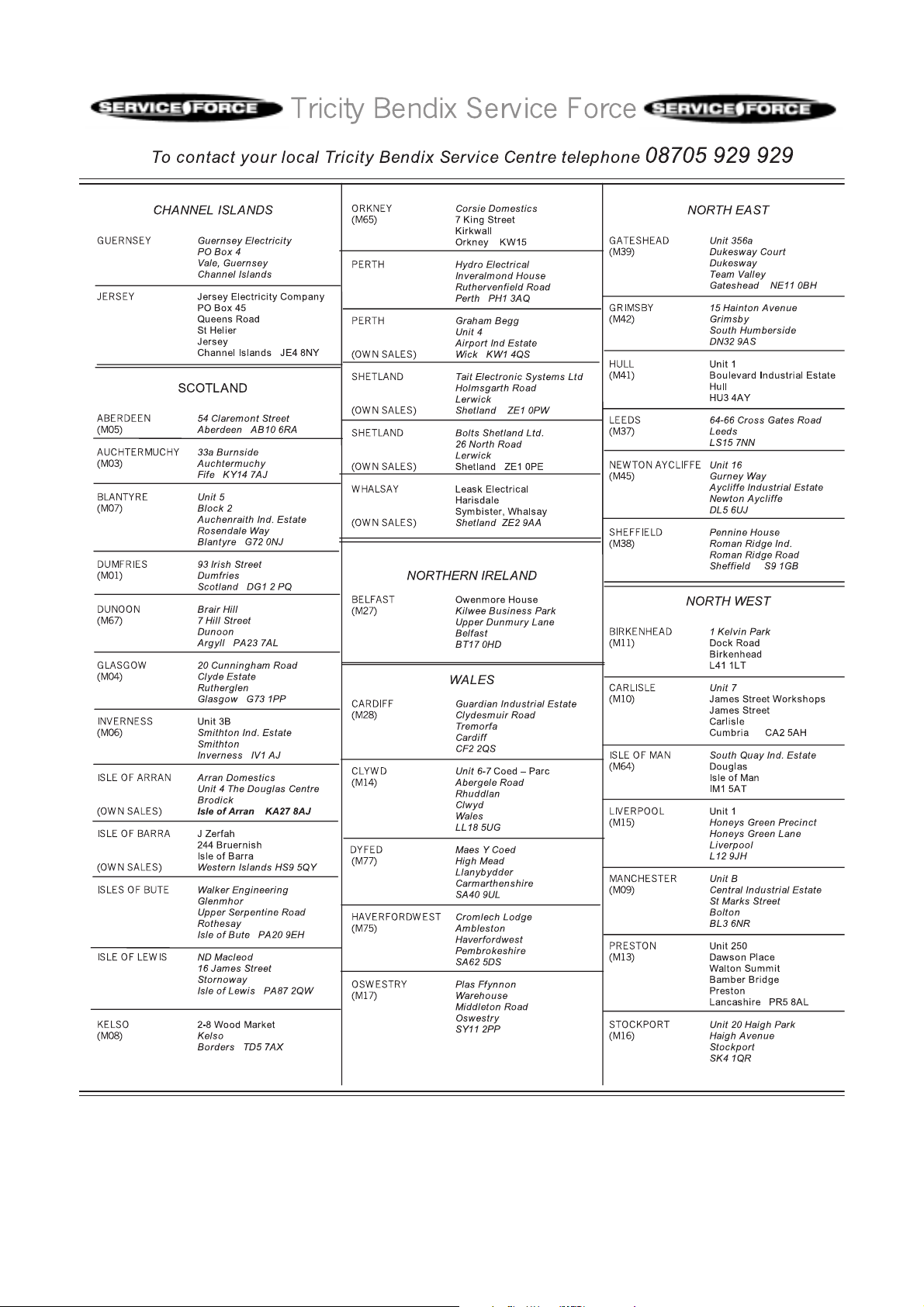

0870 5 929929

Your call be routed the Service Force Centre covering your post code area.

For service in the Republic of Ireland contact Tricity Bendix Long Mile Road Dublin 12

Telephone: 01 4090752.

Before calling out an engineer, please ensure you have read the details under the heading Something Not Working?.

When you contact the Service Centre you will need to give the following details:

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of the fault

4. The model and serial number of the appliance (found on the rating plate)

5. The purchase date

Problem

No power to the appliance

The temperature in the appliance is too high

The temperature in the appliance is too low

Excessive frost and ice has built up

The appliance is noisy.

Possible Cause

No power at the socket. There is a power cut.

The fuse has blown. Thermostat control is set at 0. The appliance is located in an unsuitable position.

The thermostat control is set too low.

The thermostat control is set too high.

The door has been left open. Something is obstructing the door. The door gasket is dirty. The appliance is not level.

Solution

Check there is power at the socket. Check there is not a power cut by checking the

household lights. Check the fuse has not blown. Check the thermostat setting. Check the ambient temperature is within the

appliances operating limits of 16 °C to 32 °C. Check that the thermostat control knob is turned to

the correct setting relative to ambient conditions. Set the thermostat control knob to a lower

position. Check the door has not been left open. Check nothing is preventing the door from closing. Check the door gasket is intact and clean. Check if the appliance stands stable (all four feet

should be on the table top).

Cus

Custt

omer Car

e Depar

tment

For general enquiries concerning your Tricity Bendix appliance or for further information on Tricity Bendix products, you are invited to contact our Customer Care Department by letter or telephone as follows:

Customer Care Department Tricity Bendix 55-77 High Street Slough Berkshire SL1 1DZ

Tel: 08705 950950 calls to this number may be recorded for training purposes.

Page 12

We Tricity Bendix undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.

The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.

The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

All service work under this guarantee must be undertaken by a Tricity Bendix Service Force Centre.

Any appliance or defective part replaced shall become the Company's property.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

EXCLUSIONS

This Guarantee does not cover:

Damage or calls resulting from transportation, improper use or neglect, the replacemet of any light bulbs or removable parts of glass or plastic.

Costs incurred for calls to put right an appliance improperly installed or calls to appliances outside the United Kingdom.

Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.

Products of Tricity Bendix manufacture which are not marked by Tricity Bendix.

The guarantee is in addition to your statutory and legal rights.

TRICITY BENDIX EUROPEAN GUARANTEE

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

The guarantee starts from the date you first purchased your product.

The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.

This guarantee relates to you and cannot be transferred to another user.

Your new home is within the European Community (EC) or European Free Trade Area.

The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.

The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care Centre, list below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis +33 (0) 3 44 62 29 99 Germany Nurenberg +49 (0) 911 323 2600 Italy Pordenone +39 (0) 1678 47053 Sweden Stockholm +46 (0) 8 738 79 50 UK Slough +44 (0) 1753 219898

Guar

ant

ee Conditions

Page 13

131415

Page 14

Page 15

TB 584 R

Frozen food comp.: 18 Fresh food comp.: 128 Frozen food comp.: 18 Fresh food comp.: 122

550 850 600

0,75

274

****

100

Model/Type

Gross capacity (l)

Net capacity (l)

Width (mm) Height (mm) Depth (mm) Energy consumption (kWh/24h)

(kWh/year) Energy class, according to EU standards Star rating of frozen food compartment Freezing capacity (kg/24h) Rising time (h) Rated power (W) Weight (kg)

Ins

Instrtr

uctions f

or the Ins

or the Instt

aller

Technical data

Installing the appliance

Transportation, unpacking

The appliance and the interior fitting are protected for transport.

Remove all packaging and any adhesive tape. Any remnants of adhesive can be removed using

white spirit. After transportation the appliance must not be

switched on for 2 hours. This is to allow the refrigerant to settle.

Cleaning

Clean the accessories and the inside of the appliance with warm water and bicarbonate of soda (5 ml to

0.5 litres of water). Rinse and try thoroughly.

Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol.

Location

The appliance should be positioned in a well ventilated, dry room.

Energy use is affected by the ambient temperature. The appliance should therefore:

not be installed next to radiators, cookers or other sources of heat

only be installed at a location where the ambient temperature corresponds to the climate classification, for which the appliance is designed.

The climate classification can be found on the serial plate.

The following table shows which ambient temperature is correct for each climate classification:

Climate Classification Ambient Temperature

SN +10 to +32 °C

N +16 to +32 °C

ST +18 to +38 °C

Page 16

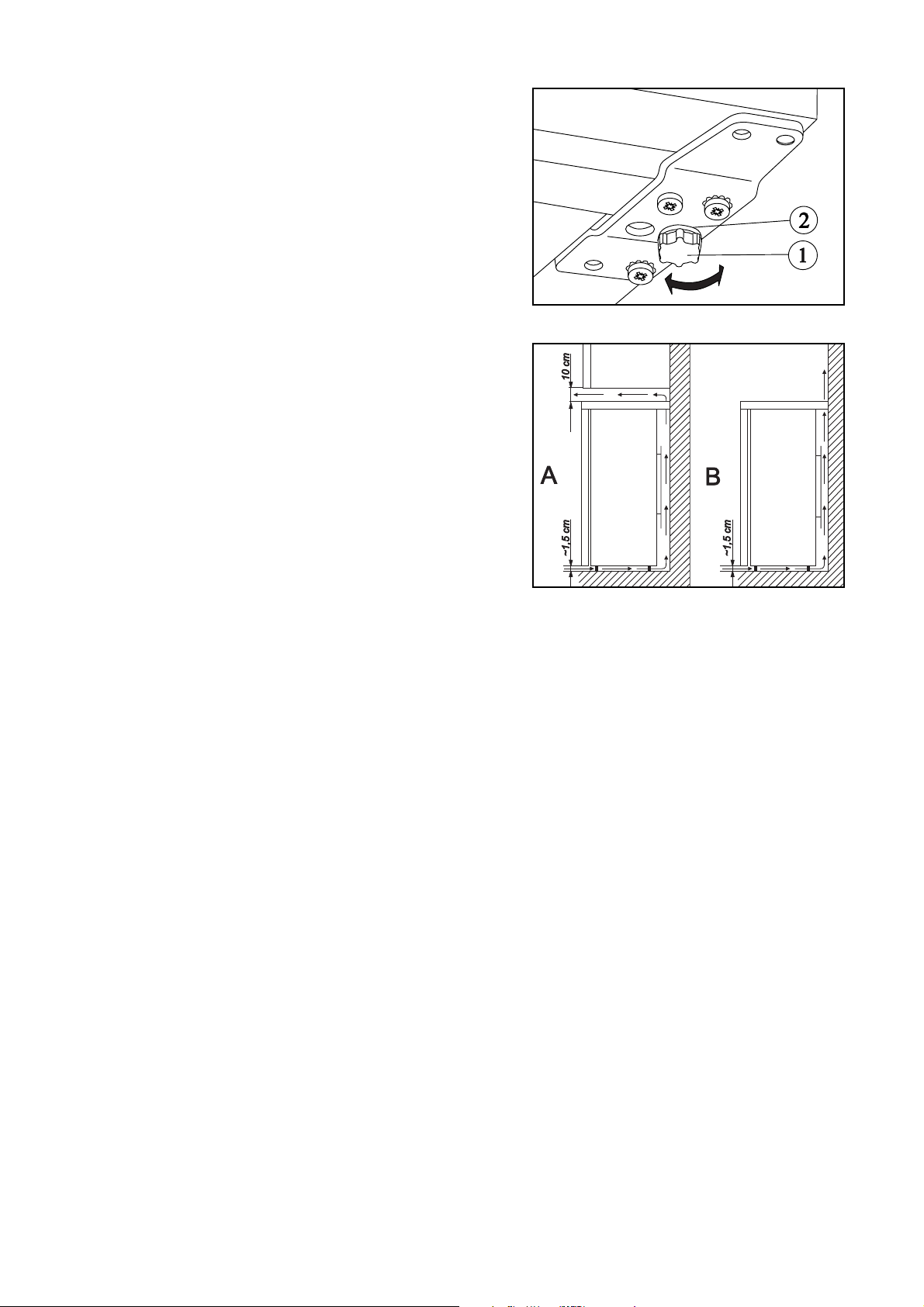

Ventilation Requirements

The appliance must have adequate ventilation to ensure correct operation.

Diagram shows the ventilation requirements when installed:

A:* Under a worktop, or cupboard.

* The clearance space of 10 cm above the

appliance may be reduced to 5 cm providing a clearance space 2,5 cm is left on either side of the appliance.

B: When freestanding

Levelling

The appliance must be level. Level the appliance by adjusting the two adjustable feet (1) at the front of the appliance.

Page 17

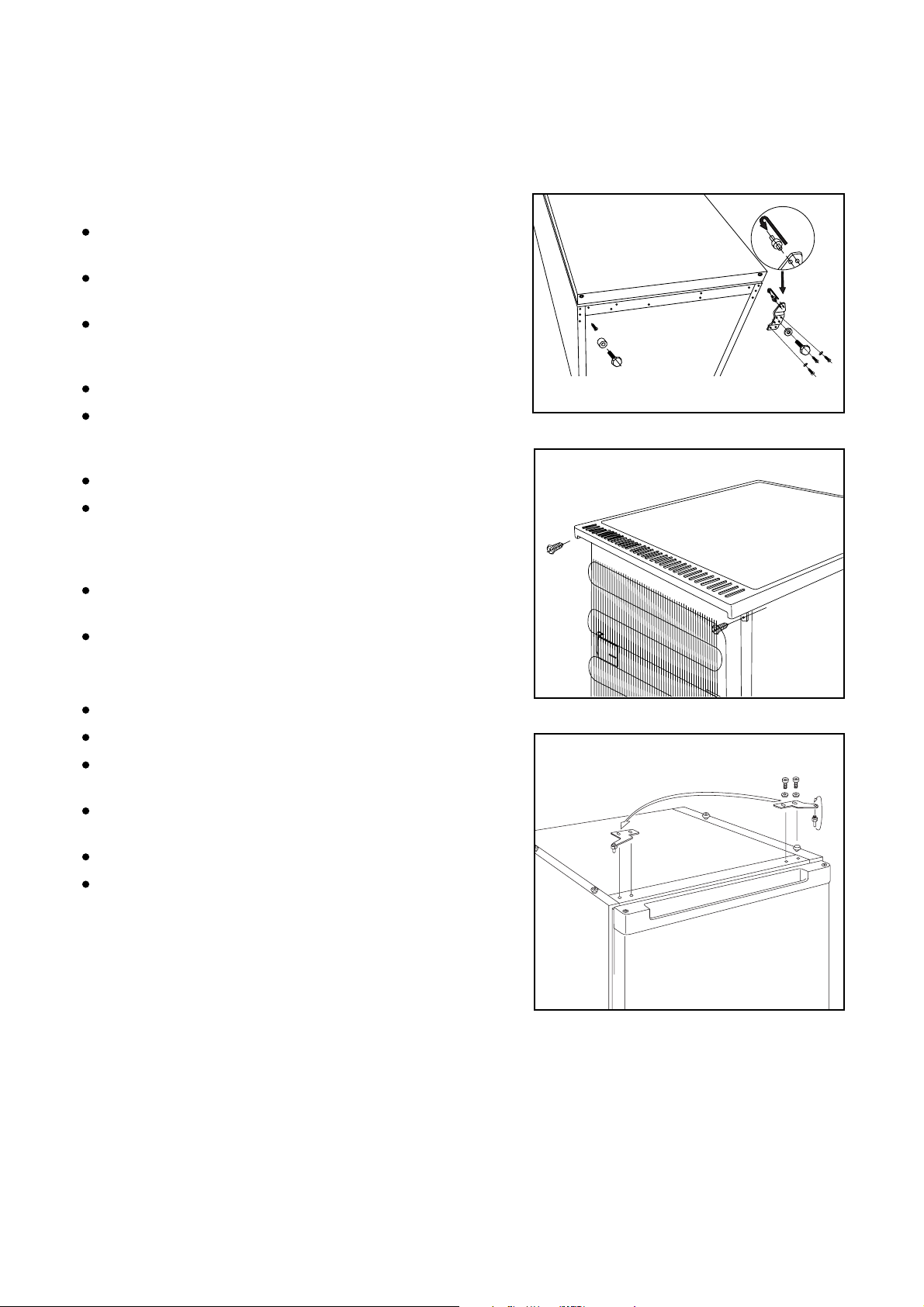

Door Reversal

If required the opening direction of the door can be changed as follows:

To reverse the bottom hinge assembly proceed as follows:

Disconnect the appliance from the electricity supply.

Tilt the appliance backwards, resting the top edge of the appliance on a stool or something similar.

Unscrew the adjustable feet situated on both sides at the front (2 pieces). Remove the lower door hinge plate by unscrewing the 3 retaining screws.

Remove the hinge pin from the bottom of the door. Slot the hinge pin into the hole in the hinge plate

and relocate the hinge assembly to the opposite location and refit using the retaining screws.

Refit the feet into their opposite location. Put the cabinet in the upright position.

To reverse the top hinge assembly proceed as follows:

Remove the 2 worktop retaining screws from the back of the appliance.

Slide the worktop towards the rear and lift clear of the appliance.

Remove the 2 upper hinge plate retaining screws. Remove the hinge plate from the top of the door. Unscrew the hinge pin from the hinge plate and re-

insert on the opposite side of the plate. Rotate the hinge assembly 180° and insert the

hinge assembly into the opposite location. Refit the 2 hinge plate retaining screws. Relocate the worktop and refit the worktop

retaining screws.

Page 18

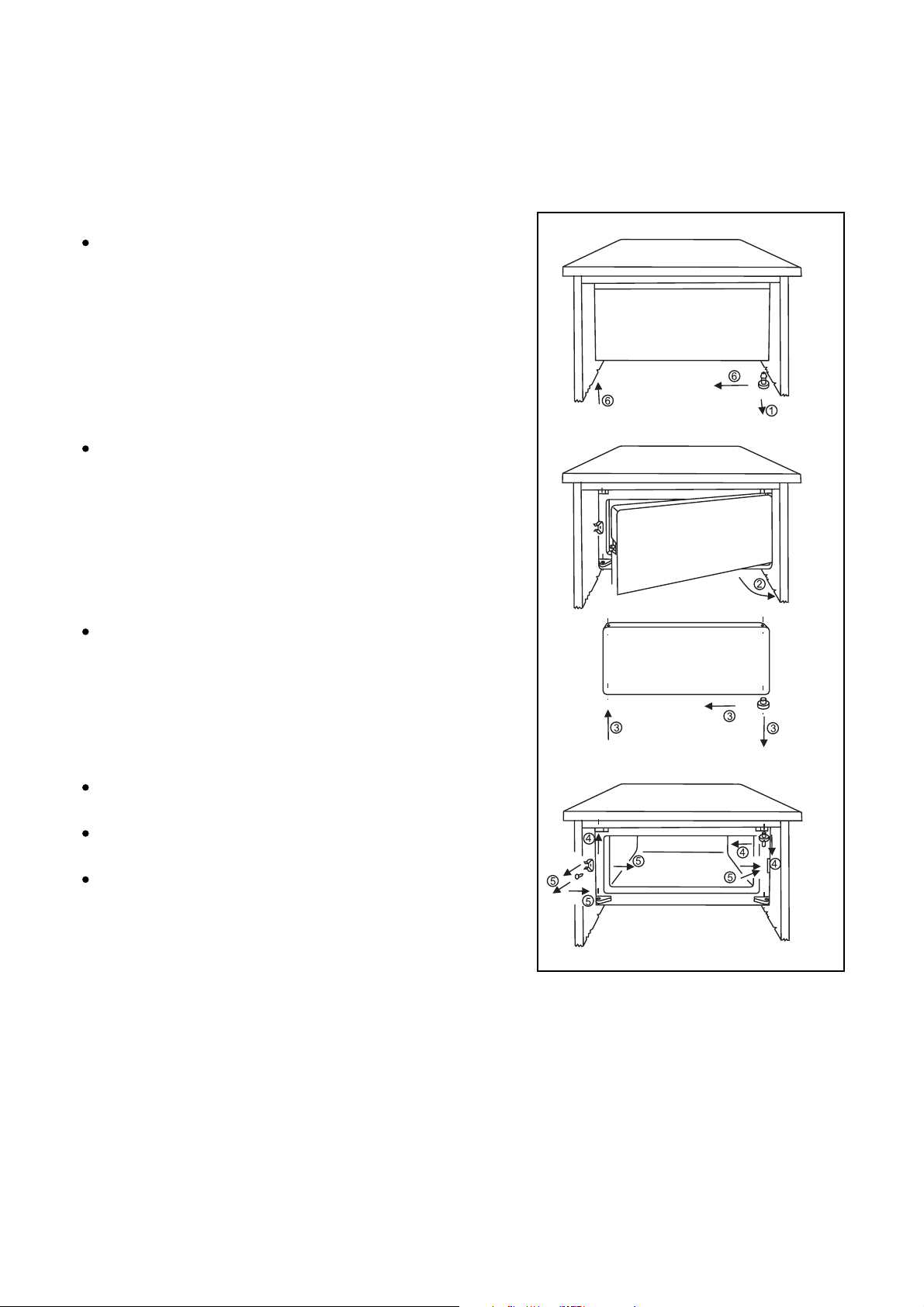

Change of door opening direction of frozen food compartment

After changing the outer door opening direction at this type it is necessary to remount the door of the frozen food compartment as well.

Proceed as follows.

Pull out the bottom pin holding the door of the frozen food compartment (1).

Open the door and remove it from the frame carefully (2).

Take the distance sleeve out of the door and replace it to the other side (3).

Pull the top pin out of the frame and put it back on the other side (4).

Remove the door latch (5) and secure on the opposite side.

Replace the door of the frozen food compartment and secure in place by refitting the bottom hinge pin (6).

In case you do not want to perform the procedures above, call the nearest brand-mark service. Technicians will accomplish the refitting expertly for charge.

Page 19

Electrical Connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

This appliance must be earthed.

The manufacturer declines any liability should these safety measures not be observed.

Electrical Requirements

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate.

The appliance is supplied with a 13 amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used. Should the plug need to be replaced for any reason. The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow: Earth Blue: Neutral Brown: Live The wire coloured green and yellow must be

connected to the terminal marked with the letter E or by the earth symbol or coloured green and yellow.

The wire coloured blue must be connected to the terminal N or coloured black.

The wire coloured brown must be connected to the terminal marked L or coloured red.

Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

This appliance complies with the following E.E.C. Directives:

73/23 EEC of 19.02.73 (Low Voltage Directive) and subsequent modifications,

89/336 EEC of 03.05.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Page 20

Printed by Xerox Hungary Ltd.
