Page 1

A/T/6-2. (00.)1272311

FRIDGE FREEZER

OPERATING & INSTALLATION

INSTRUCTIONS

TB 110 FF

Page 2

This instruction book contains safety precautions, hints, information on use and helpful hints and tips.

To ensure you use this appliance effective and safely, please read this instruction book carefully before installing or using this appliance and retain for future reference.

The symbols below help you to find things more easily:

Safety precautions

Warnings and Safety information

Hints, useful information

Environmental information

Page 3

IMPOR

IMPORTT

ANT S

AFET

Y INS

UCTIONS

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer Care Department.

Prior to installation

Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.

Installation

This appliance is heavy. Care should be taken when moving it.

It is dangerous to alter the specifications or attempt to modify this product in any way.

Ensure that the appliance does not stand on the electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from your local Service Force Centre.

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall, but leaving the required distance for ventilation, as stated in the installation instructions.

The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

Child Safety

Do not allow children to tamper with the controls or play with the product.

There is a risk of suffocation! Keep packaging material away from children!

During Use

This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs. It is not intended for commercial or industrial use.

Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the refrigerator.

Frozen food should not be refrozen once it has thawed out.

Do not place carbonated or fizzy drinks in the freezer compartment.

Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.

Do not remove items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

Bottles and cans must not be placed in the freezer compartment they can burst when the contents freeze.

Manufacturers' recommended storage times should be adhered to. Refer to relevant instructions.

Maintenance and Cleaning

Before cleaning, always switch off the appliance and disconnect from the electrical supply.

When unplugging always pull the plug from the mains socket, do not pull on the cable.

Servicing

This product should be serviced by an authorised engineer and only genuine spare parts should be used.

Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.

At the end of the Appliance Life

When disposing of your appliance use an authorised disposal site.

Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

The Appliance and the Environment

This appliance does not contain gasses which could damage the ozone layer.

Avoid damaging the cooling unit. The packaging used on this appliance marked with

the symbol is recyclable.

Keep this instruction book for future reference and ensure it is passed on to any new owner.

Page 4

CONTENT

CONTENTSS

Instructions for the User

Important Safety Instructions 3

General information 5 Description of the appliance, main parts 5

Using the Appliance 6

Before Use 6 To Start the Appliance 6 Temperature Control 6 Low Ambient Temperature Switch 7 The Refrigerator 7 Storage Shelves 7 Storage Times 7 The Freezer 8 Freezing Fresh Food 8 Frozen Food Storage 8 Thawing 9 To Make Ice Cubes 9

Hints and Tips 9

Normal Operating Sounds 9 Food Storage 9 Energy Saving Advice 9 In the Event of a Power Failure 10

Maintenance and Cleaning 10

Internal Cleaning 10 External Cleaning 10 When the Appliance is not in Use 10

Defrosting 10

Refrigerator 10 Freezer 11

To Change the Light Bulb 11

Something not Working 12

Service and Spare Parts 12

Customer Care 12

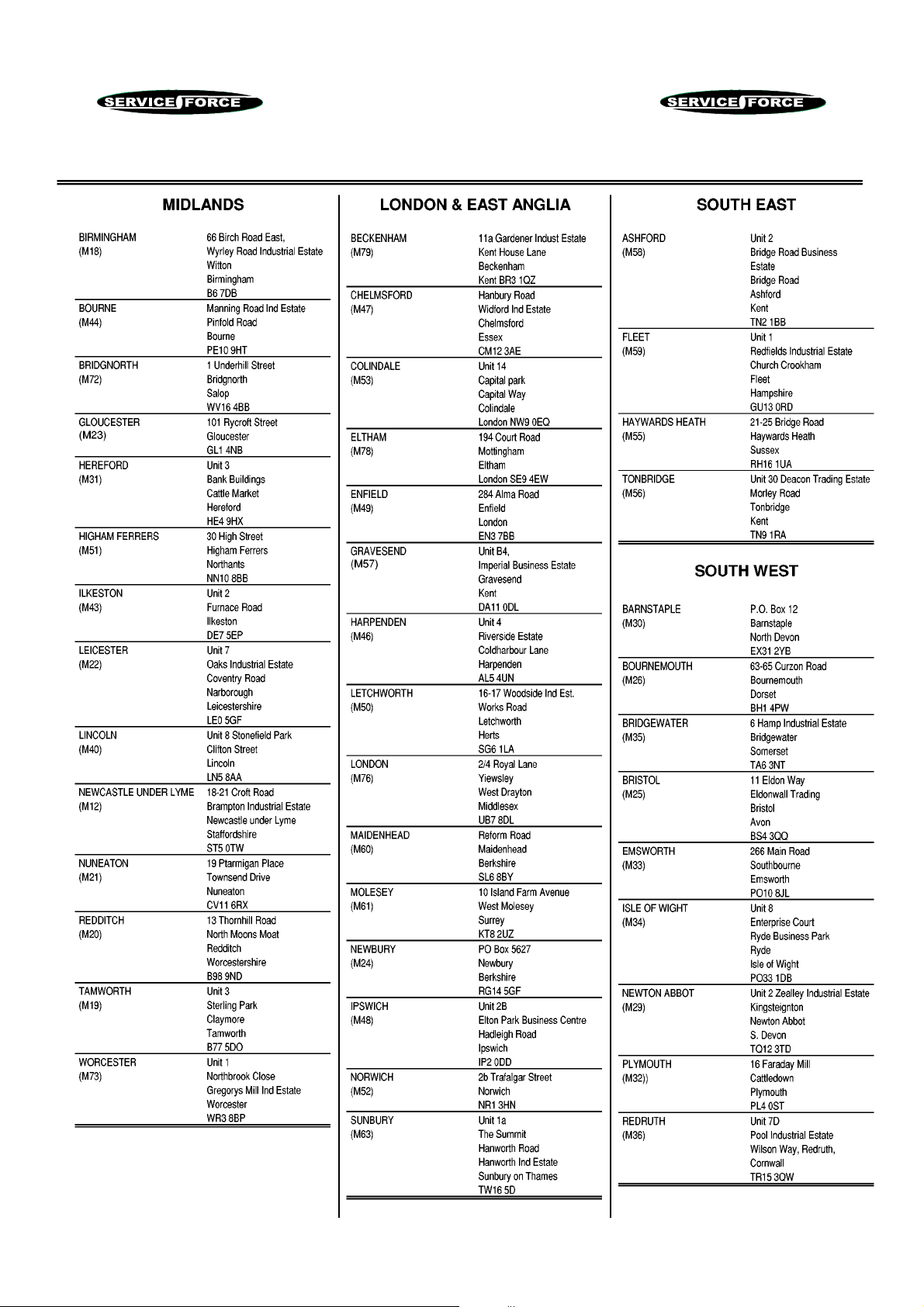

Service Force 13

Guarantee Conditions 15

Instructions for the Installer

Technical data 16

Installing the Appliance 16

Transportation, unpacking 16 Leveling the Appliance 17 Door Reversal 18

Electrical Connections 19

Page 5

INS

UCTIONS F

OR THE USER

General information

This appliance is designed for the storage of refrigerated and frozen food in a domestic environment.

To ensure correct operation, the appliance should be located where the ambient temperature is between 16-32 °C.

A - Refrigerator B - Freezer

1. Control Panel

2. Thermostat Control/Light

3. Wire shelves

4. Defrost water drain

5. Glass shelf

6. Salad drawers

7. Rating Plate

8. Freezing compartment

9. Frozen food storage compartments

10. Defrost water outlet

11. Bottom Plinth

12. Adjustable feet

13. Dairy compartment

14. Egg tray

15. Door shelf

16. Door gasket

17. Bottle shelf

18. Ice tray

19. Condenser

20. Defrost water outlet tube

21. Spacer

22. Evaporator tray

23. Compressor

24. Rollers

Description of the appliance, main parts

Page 6

Using the Appliance

This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs.

The appliance is designed to operate in ambient temperatures (surrounding air temperature) between 16 °C and 32 °C.

If these temperatures are exceeded i.e. colder or warmer, the appliance will not operate correctly. Should the ambient temperatures be exceeded for long periods, the temperature in the freezer section will rise above -18 °C and food spoilage may occur.

Before Use

Remove all packaging and securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0,5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.

Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or products containing alcohol.

To Start the Appliance

1. Allow the appliance to stand for 2 hrs after installation.

2. Plug in the appliance and switch on at the mains supply.

3. Turn the thermostat control to the required setting. A setting of 3 - 4 is usually suitable for normal operation (see thermostat control).

4. Leave the appliance for approximately 4 hours for the correct temperature to be reached before placing food inside.

Temperature Control

The thermostat control situated in the control panel regulates the temperature both within the fridge and freezer compartments. The thermostat control is marked from 1-5, the higher the number, the colder the setting.

Position 0 - Off Position 1 - Cold Position 5 - Coldest The temperature will be affected by:

Ambient temperature How often the door is opened How much food is stored Position of the appliance

Page 7

In determining the correct temperature control setting, all these factors have to be considered and some experimentation may be necessary.

Do not allow children to tamper with the controls or play with the product.

Low Ambient Temperature Switch

The low ambient temperature switch, situated on the right hand side of the panel at the top of the appliance, should be switched on when the room temperature falls below 16 °C.

When the room temperature rises above 16°C switch off, by releasing the switch. No damage can be caused by leaving the switch in this position for a period of time.

The Refrigerator

Below is the recommended storage positions for various food types:

1. Ready-cooked foods, fresh meat, cold cuts.

2. Milk, dairy products.

3. Fruits, vegetables, salads.

4. Cheese, butter.

5. Eggs.

6. Yoghurt, sour cream.

7. Small bottles, drinks.

8. Large bottles, drinks.

Storage Shelves

The shelves in the refrigerator compartment are adjustable to allow for the storage of large items.

To re-arrange the shelves, open the door to 90°.

Storage Times

The storage charts at the end of the instruction book give information on storage times in the freezer and refrigerator compartments. The storage times quoted are intended as a guide only.

Do not cover the shelves with paper or trays etc. as this will affect the air circulation within the refrigerator compartment.

Do not put hot foods in the refrigerator, allow hot foods to reach room temperature naturally before placing in the refrigerator.

Cover foods, or place in closed dishes before placing them in the refrigerator, this prevents any transference of food smells.

Page 8

The Freezer

When freezing fresh food always place the food in the freezing compartment which is the top drawer in the freezer section.

1. Turn the thermostat control to 5 (max).

2. Place the food to be frozen in the top drawer.

3. After 24 hours reset the thermostat control to its normal setting and place the frozen food into the storage compartments.

Frozen Food Storage

When first starting the freezer or if the freezer has been out of use for some time, we advise you to run your appliance for at least 2 hours before storing frozen food.

Do not exceed the storage period indicated by the manufacturer.

Do not open the door frequently or leave it open longer than is necessary.

Important

Do not put carbonated liquids in the freezer.

Ice lollies, if consumed immediately after removal from the freezer can cause a low temperature skin burn.

Page 9

In the event of a power cut the food in the freezer will not be affected if the power cut is short and the freezer is full. Do not open the door. Should the food begin to thaw it must be consumed quickly and must not be re-frozen. (See Hints and Tips)

Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

Thawing

Deep frozen or frozen food, prior to being used, can be thawed in the fridge or at room temperature, depending on the time available. Small food items may even be cooked from frozen, in this case cooking will take longer.

Any frozen food which is allowed to thaw accidentally should either be eaten as soon as possible, or thrown away. Alternatively, if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.

Defrosted cooked food must never be refrozen.

To Make Ice Cubes

1. Fill the ice cube tray ¾ full with cold water, place in the freezing compartment and leave to freeze.

2. To remove the cubes twist the tray or hold it under running water for a few seconds.

Never try to free an ice tray that is frozen to the freezer compartment by using pointed

or sharp edged objects.

Hints & T

ips

Normal Operating Sounds

You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or tubing.

When the compressor is on, the refrigerant is being pumped round and you will hear a whirring sound or pulsating noise from the compressor.

A thermostat controls the compressor and you will hear a faint 'click' when the thermostat cuts in and out.

Food Storage

To obtain the best performance from your freezer:

Do not store warm food or evaporating liquid. Avoid buying frozen food if you cannot store it

straight away. The use of an insulated container is advisable. When you arrive home, place the frozen food in the freezer immediately.

Do not push food together too much, try to allow air to circulate around each item.

Do not store food uncovered. Ensure that food placed in the freezer is dated and

labelled and used in date order to ensure that food is consumed at its best.

Lean food keeps better and longer than fatty food, salt reduces the storage time.

Wrap the food in polythene or aluminium freezing bags or foil so that they adhere to the food and provide an airtight seal.

Packaging which is swollen or has traces of refrozen water droplets on the pack could indicate that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it must be consumed within 24 hours. Never exceed the storage times indicated by the manufacturer.

Energy Saving Advice

Do not install the appliance close to sources of heat, such as a boiler or radiator.

Locate the appliance in a cool well ventilated room and make sure that the air openings of the appliance are not obstructed.

Avoid unnecessary frosting in the cabinet by packing all foodstuffs into airtight packages before placing them in the freezer.

Food which is to be frozen (when cool) should be placed in the fridge before being transferred to the freezer.

Try to avoid keeping the door open for long periods or opening the door too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.

Page 10

Ensure there are no obstructions preventing the door from closing properly.

In the Event of a Power Failure

If there is a power failure during the storage of frozen foods, keep the door closed. If the temperature within your freezer should rise, do not refreeze the food without checking its condition. The following guidelines should assist you:

Ice Cream: Once thawed should be discarded. Fruits & Vegetables: If soft should be cooked and

used up.

Breads & Cakes: Can be refrozen without danger. Shellfish: Should be refrigerated and used up

quickly. Cooked Dishes: i.e. casseroles should be

refrigerated and used up. Large Pieces of Meat: Can be refrozen providing

there are still ice crystals remaining within them. Small Joints: Should be cooked and can then be

refrozen as cooked dishes. Chicken: Should also be cooked and refrozen as a

fresh dish.

Maint

enance and Cleaning

Before any maintenance or cleaning is carried out you must DISCONNECT the

appliance from the electricity supply.

Internal Cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5 ml to 0.5 litre of water).

Rinse and dry thoroughly.

NEVER use detergents, abrasive powders,

highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.

External Cleaning

Wash the outer cabinet with warm soapy water. Once or twice a year dust the condenser (black grille)

and the compressor at the back of the appliance with

a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

When the Appliance is not in Use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door open to prevent unpleasant smells.

Defrosting

Refrigerator

The refrigerator defrost every time the compressor stops. The water is discharged, via the pipe, into a tray located at the back of the appliance above the compressor, where it evaporates.

Page 11

Important

To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of the V shaped drip collector at the back of the refrigerator compartment, behind the salad drawers. Use the defrost cleaner provided which you will find already inserted into the discharge hole.

Remember to wash to defrost cleaner in hot soapy water at regular intervals. Dry thoroughly before replacing.

Freezer

The freezer compartment will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost reaches

/4.

During this operation it is not necessary to switch of the power supply or to remove the foodstuffs.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out and it is advisable to perform this operation when the appliance is empty.

For complete defrosting (once or twice a year) proceed as follows:

1 Turn the thermostat dial to the "OFF" position (O) or

disconnect the appliance from the mains.

2 Remove any food from inside the freezer and

fridge; wrap it in several sheets of newspaper and store in a cool, dry place.

3 When defrosting is complete, dry the interior

thorough.

4 Reconnect the appliance to the mains or reset the

thermostat to 5 (coldest) and leave to run for at

least four hours. 5 Replace the previously removed food. 6 Return the thermostat to the normal position.

Important

A temperature rise of the frozen food packs during defrosting may shorten their safe storage life.

Never use sharp metal tools to scrape off frost from the evaporator as this could damage the appliance beyond repair.

To Change the Light Bulb

1. Disconnect the appliance from the electrical

supply or turn the thermostat to '0'.

2. Take the lamp cover off in the direction of the arrow

and change the bulb. (Type of bulb: 230 V, 15 W,

E 14 thread)

3. Replace the lamp cover and fixing screw. Spare bulbs are available from your local Tricity Bendix

Service Force Centre. 12

Page 12

If after the above checks your appliance still does not operate correctly, contact your local Tricity Bendix Service Force Centre.

Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

In-guarantee customers should ensure that the above checks have been made, as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Ser

vice and Spar

e P

In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Tricity Bendix Service Force Centre by telephoning:

0870 5 929929

Your call be routed the Service Force Centre covering your post code area.

Cus

Custt

omer Car

e Depar

tment

For general enquiries concerning your Tricity Bendix appliance or for further information on Tricity Bendix products, you are invited to contact our Coustomer Care Department by letter or telephone as follows:

Customer Care Department Tricity Bendix 55-77 High Street Slough Berkshire SL1 1DZ Tel: 08705 950950

Some

thing N

thing Noo

t W

king

If the appliance is not working correctly, please carry out the following checks before contacting your local Tricity Bendix Service Force Centre.

Problem

No power to the appliance

The temperature in the appliance is too high

The compressor runs continuously

The temperature in the appliance is too low

Excessive frost and ice has built up

The appliance is noisy.

Possible Cause

No power at the socket. There is a power cut.

The fuse has blown. Thermostat control is set at '0'. The appliance is located in an unsuitable

position. The thermostat control is set too low.

The thermostat is set at the wrong temperature. The door is open. Large quantities of food have been placed in the

cabinet. The door has been opened too frequently. The air ventilation is obstructed. The thermostat control is set too cold.

The door has been left open. Something is obstructing the door. The door gasket is dirty. The appliance is not level.

Solution

Check there is power at the socket. Check there is not a power cut by checking the

household lights. Check the fuse has not blown. Check the thermostat. Check the ambient temperature is within the

appliances operating limits of 16 °C to 32 °C. Check that the thermostat is turned to the correct

setting relative to ambient conditions. Adjust the thermostat. Close the door.

Check that the air ventilation is not obstructed. Set the thermostat to a warmer position.

Check the door has not been left open. Check nothing is preventing the door from closing. Check the door gasket is intact and clean. Check if the appliance stands stable on the floor.

Page 13

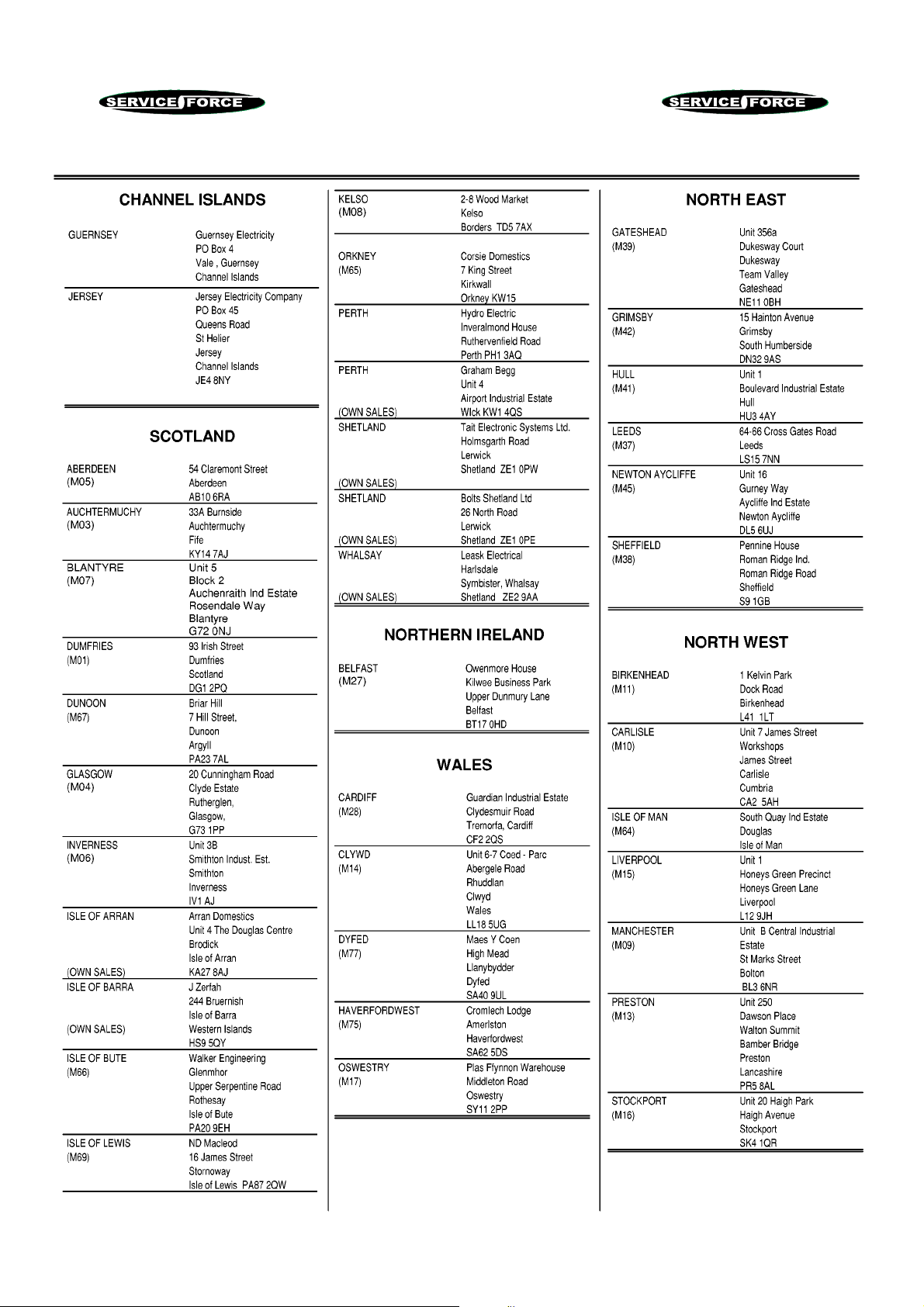

TRICITY BENDIX SERVICE FORCE

To contact your local Tricity Bendix Service Centre telephone 0870 5 929929

Page 14

TRICITY BENDIX SERVICE FORCE

To contact your local Tricity Bendix Service Centre telephone 0870 5 929929

Page 15

We Tricity Bendix undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.

The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.

The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

All service work under this guarantee must be undertaken by a Tricity Bendix Service Force Centre.

Any appliance or defective part replaced shall become the Company's property.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

EXCLUSIONS

This Guarantee does not cover: Damage or calls resulting from transportation,

improper use or neglect, the replacemet of any light bulbs or removable parts of glass or plastic.

Costs incurred for calls to put right an appliance improperly installed or calls to appliances outside the United Kingdom.

Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.

Products of Tricity Bendix manufacture which are not marked by Tricity Bendix.

The guarantee is in addition to your statutory and legal rights.

TRICITY BENDIX EUROPEAN GUARANTEE

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

The guarantee starts from the date you first purchased your product.

The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.

This guarantee relates to you and cannot be transferred to another user.

Your new home is within the European Community (EC) or European Free Trade Area.

The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.

The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care Centre, list below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis +33 (0) 3 44 62 29 99 Germany Nurenberg +49 (0) 911 323 2600 Italy Pordenone +39 (0) 1678 47053 Sweden Stockholm +46 (0) 8 738 79 50 UK Slough +44 (0) 1753 219898

Guar

ant

ee Conditions

Page 16

Ins

Instrtr

uctions f

or the Ins

or the Instt

aller

Technical data

Model

Gross capacity (l)

Net capacity (l)

Width (mm) Height (mm) Depth (mm) Energy consumption (kWh/24h)

(kWh/year) Energy class, according to EU standards Freezing capacity (kg/24h) Rising time (h) Rated power (W) Weight (kg) Number of compressors

TB 110 FF

Freezer: 105 Refrigerator: 195 Freezer: 80 Refrigerator: 192

600

1790

600

1,42

518

C 18 20

150

Installing the appliance

Transportation, unpacking

It is recommended to deliver the appliance in original packaging, in vertical position

considering the protective warning on packaging. After each transportation the appliance must not be

switched on for approx. 2 hours. Unpack the appliance and check if there is any

damage. Report possible damage immediately to the retailer.

Location

The appliance should be positioned in a well ventilated, dry room.

Energy use is affected by the ambient temperature. The appliance should therefore:

not be installed next to radiators, cookers or other sources of heat

only be installed at a location where the ambient temperature corresponds to the climate classification, for which the appliance is designed.

The climate classification can be found on the serial plate.

The following table shows which ambient temperature is correct for each climate classification:

Climate Classification Ambient Temperature

SN +10 to +32 °C

N +16 to +32 °C

ST +18 to +38 °C

If installation next to a source of heat is unavoidable, the following minimum clearances must be maintained at the sides of the appliance:

for electric cookers 3 cm for oil and coal fired ranges 30 cm

Page 17

Levelling the Appliance

When placing the appliance ensure that it stands level. This can be achieved by adjusting either or both of the feet (1) at the front of the appliance. If required the washers (2), that are accessories of the feet, can be removed.

Do not stand the appliance next to a source of heat a radiator or cooker.

Ventilation Requirements

The appliance must have adequate ventilation to ensure correct operation.

Diagram shows the ventilation requirements when installed:

A Under a cupboard. B When freestanding

Page 18

Door Reversal

If required the direction of the door can be changed as follows:

In figure the TB 110 FF appliance can be seen.

Remove carefully (e.g. with a knife) the covering nails of screws fixing the bottom cover grid, then the cover grid can be removed by unscrewing the plate-screws (2 pieces).

Dismount the bottom door holder of the freezer by removing the screws (2 pieces) and the fill plates (2 pieces).

Take off the door of the freezer by pulling it slightly downwards.

Dismount the double door holder by removing the screws (2 pieces) and the fill plates (2 pieces).

Take off the door of the refrigerator by pulling it slightly downwards.

Unscrew the top door holding pin of the refrigerator, then screw it back on the other side.

Remove the covering nails of the double door holder on the left side and put them to the other side.

Fit the door of the refrigerator to the top door holding pin.

Fix the double door holder onto the left side using the screws (2 pieces) and fill plates (2 pieces). Be careful that the door edge of the refrigerator is parallel with the edge of the mantle.

Fit the door of the freezer to the double door holding pin.

Fix the bottom door holder onto the left side using the screws (2 pieces) and fill plates (2 pieces). Be careful that the door edge of the freezer is parallel with the edge of the mantle.

Pull out the cover element of the cover grid in the direction of arrow (1) and place it on the contrary side (2).

Put the cover grid back and fix it with the platescrews (2 pieces), then put the covering nails back.

Put the appliance to its place, set it level and apply voltage to it.

In case you do not want to perform the procedures above, call the nearest brand-mark service. Technicians will accomplish the refitting expertly for charge.

Page 19

Electrical Connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

This appliance must be earthed.

The manufacturer declines any liability should these safety measures not be observed.

Electrical Requirements

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate.

The appliance is supplied with a 13 amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used. Should the plug need to be replaced for any reason. The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow: Earth Blue: Neutral Brown: Live The wire coloured green and yellow must be

connected to the terminal marked with the letter E or by the earth symbol or coloured green and yellow.

The wire coloured blue must be connected to the terminal N or coloured black.

The wire coloured brown must be connected to the terminal marked L or coloured red.

Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

This appliance complies with the following E.E.C. Directives:

73/23 EEC of 19.02.73 (Low Voltage Directive) and subsequent modifications,

89/336 EEC of 03.05.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Page 20

SSttor

age time char

age time chartt

Time and method of storage of fresh foods in the refrigerator

Foods Storage time in days Method of packaging

1 2 3 4 5 6 7

Raw meat X X x x x cling film, airtight Cooked meat X X X x x x dish covered Roasted meat X X X x x dish covered Raw minced meat X dish covered Cooked minced meat X X x x dish covered Cold cuts X X x x cling film, cellophane, grease-

proof paper Fresh fish X x x cling film, airtight Cooked fish X X x x dish covered Tinned fish, open X x x dish covered Fresh chicken X X X x x x cling film, airtight Fried chicken X X X x x x dish covered Fresh duck, goose X X X x x x cling film, airtight Roasted duck, goose X X X X x x x dish covered Butter unopened X X X X X X X original packaging Butter opened X X x x x x x original packaging Milk X X X x x original packaging Cream X X x x plastic box Sour cream X X X X x x x plastic box Cheese (hard) X X X X X X X aluminium foil Cheese (soft) X X X X x x x cling film Egg X X X X X X X Spinach, sorrel X X x x cling film Green peas, green beans X X X X x x x cling film Mushroom X X x x x cling film Carrot X X X X X X X cling film Tomato X X X X X X X cling film Cabbage X X X X X x x cling film Fruits (Strawberry, raspberry, etc.) X X X x x cling film Tinned fruits opened X X X x x dish covered Cakes filled with cream X X x x dish covered

Notation:

X recommended storage time

x maximum recommended storage time

Printed by Xerox Hungary Ltd.
