I/T/7. (01.)1330631
REFRIGERATOR
T 55 R (T T 160**)
INSTRUCTION BOOK
2
This instruction book contains safety precautions, information on use and helpful hints and tips.
To ensure you use this appliance effectively and safely, please read this instruction book carefully
before installing or using this appliance and retain for future reference.
The symbols below help you to find things more easily:
Safety precautions
Warnings and Safety information
Hints, useful information
Environmental information
3
IMPOR
IMPORTT
ANT S
ANT S
AFET
AFET
Y INS
Y INS
TR
TR
UCTIONS
UCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all
before installing or using this appliance. Your safety is of paramount importance. If you are unsure
about any of the meanings or these warnings contact the Customer Care Department.
Prior to installation
Check the appliance for transport damage. Under no
circumstances should a damaged appliance be
installed. In the event of damage please contact your
retailer.
Installation
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Ensure that the appliance does not stand on the
electrical supply cable. If the supply cable is
damaged, it must be replaced by a cable available
from your local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance should
be close to a wall, but leaving the required distance
for ventilation, as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow the
refrigerant to settle.
Child Safety
Do not allow children to tamper with the controls or
play with the product.
There is a risk of suffocation! Keep packaging
material away from children!
During Use
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs. It is
not intended for commercial or industrial use.
Containers with flammable gases or liquids can leak
at low temperatures. Do not store any containers with
flammable materials, such as spray cans, fire
extinguisher refill cartridges etc.
Frozen food should not be refrozen once it has
thawed out.
Do not place carbonated or fizzy drinks in the freezer
compartment.
Ice lollies can cause 'frost/freezer burns' if
consumed straight from the freezer compartment.
Do not remove items from the freezer
compartment if your hands are damp/wet, as this
could cause skin abrasions or frost/freezer burns.
Bottles and cans must not be placed in the freezer
compartment they can burst when the contents
freeze.
Manufacturers' recommended storage times
should be adhered to. Refer to relevant
instructions.
Maintenance and Cleaning
Before cleaning, always switch off the appliance
and disconnect from the electrical supply.
When unplugging always pull the plug from the
mains socket, do not pull on the cable.
Servicing
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local
Service Force Centre.
At the end of the Appliance Life
When disposing of your appliance use an
authorised disposal site.
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
The Appliance and the Environment
This appliance does not contain gases which could
damage the ozone layer.
Avoid damaging the cooling unit.
The packaging used on this appliance marked with
the symbol is recyclable.
Keep this instruction book for future
reference and ensure it is passed on to any
new owner.
4
CONTENT
CONTENTSS
Instructions for the User
Guide to use the instruction book 2
Important Safety Instructions 3
Instructions for the User 5
General Information 5
Description of the Appliance 5
Using the Appliance 6
Before Use 6
To Start the Appliance 6
Thermostat Control 6
Hints for storage 7
Storage time and temperature of foods 7
How to use the two-star frozen food compartment 7
How to make ice cubes 7
Storage Shelves 8
Hints and Tips 8
Food Storage 8
Energy Saving Advice 8
Maintenance and Cleaning 8
Internal cleaning 8
External cleaning 8
Defrosting 9
Changing the Light Bulb 9
When the appliance is not in use 9
Something Not Working 10
Warranty and service 10
Guarantee conditions 10
Service and spare parts 10
Instructions for the Installer
Technical data 11
Installing the Appliance 11
Transportation, Unpacking 11
Cleaning 11
Location 11
Ventilation Requirements 12
Levelling 12
Door Reversal 12
Electrical Connection 14
Storage Chart (1) 15
Storage Chart (2) 15
5
INS
INS
TR
TR
UCTIONS F
UCTIONS F
OR THE USER
OR THE USER
General information
This appliance is designed for the refrigeration of food
in a domestic home. It has a two-star frozen food
compartment for ice making and frozen food storage.
To ensure correct operation, the appliance should
be located where the ambient temperature is
between 16-32 °C.
Description of the appliance
1. Frozen food compartment
2. Drip tray
3. Wire shelf
4. Glass shelf
5. Salad drawer
6. Rating Plate
7. Adjustable feet
8. Ice tray
9. Butter compartment
10. Interior light/Thermostat control
11. Door shelf
12. Gasket
13. Bottle shelf
14. Egg tray
15. Air circulation
16. Air vent
17. Condenser
18. Compressor
6
Using the Appliance
Before Use
Remove all securing tapes.
Wash the inside of the appliance with lukewarm water
with a little bicarbonate of soda added (5 ml to 0,5 litre
of water). Do not use soap or detergent as the smell
may linger. Dry the appliance thoroughly.
Do not use detergents, abrasive powders,
highly perfumed cleaning products, wax
polishes or products containing alcohol.
FF
To Start the Appliance
1. Allow the appliance to stand for 2 hrs after
installation.
2. Plug in the appliance and switch on at the mains
supply.
3. Turn the thermostat control to the required setting.
A setting of 3 - 4 is usually suitable for normal
operation (see thermostat control).
4. Leave the appliance for approximately 4 hours for
the correct temperature to be reached before
placing food inside.
Thermostat Control
The thermostat control situated inside the refrigerator
regulates the temperature of the larder compartment.
Thermostat control is marked from 1-5 the higher the
number, the colder the setting.
Position 0 - Off
Position 1 - minimum coldness
Position 5 - maximum coldness
Model If the ambient Position of
temperature is drip tray
greater than
T 55 R +25 °C Open (pos. 1)
The temperature inside the refrigerator and the 2-star
compartment can be regulated by adjusting the tray
located under the 2-star compartment.
To obtain a lower temperature in the 2-star
compartment when frozen food is stored inside and
when the ambient temperature is 25 °C or lower push
the tray in Position 2. When frozen food is not stored
in the 2-star compartment and when the ambient
temperature is higher than 25 °C pull the tray out to
Position 1.
7
Hints for storage
Below is the recommended storage positions for
various food types:
1. Frozen food storage & ice making
2. Ready-cooked foods
3. Foods in dishes
4. Opened cans
5. Milk, dairy products
6. Fresh meat, cold cuts, sausages, etc.
7. Fruits, vegetables, salads
8. Cheese, butter
9. Eggs
10. Yoghurt, Cream
11. Small bottles, soft drinks
12. Large bottles, drinks
Storage time and temperature of
foods
The enclosed charts at the end of the instruction
books give information about storage time in the
frozen and the fresh food compartment.
The storage times quoted are intended as a guide
only.
How to use the two-star frozen
food compartment
The frozen food compartment is separated from the
fresh food compartment by the drip tray.
Depending on the position of the thermostatic control
knob and the temperature in the compartment
(-12 °C or lower), frozen food can be stored here.
Small quantities of fresh food can be frozen in the twostar compartment but storing them for a long period of
time is not recommended.
Do not allow fresh food to come into contact with
foods that are already frozen.
How to make ice cubes
Fill the supplied ice cube tray ¾ full with water and
place in the freezer compartment. Turning up the
thermostat control will speed up the freezing process,
but remember to turn the thermostat control back to
its original position.
To release the ice cubes, twist the tray along its
length.
8
Storage Shelves
The shelves in the refrigerator compartment are
adjustable to allow storage of large items.
The shelves can be re-arranged by opening the door
to 90°.
The door shelves are also adjustable.
To allow the air to circulate within the fridge
compartment do not cover the wire shelves
with paper or trays.
Hints & Tips
Food Storage
To obtain the best results from your appliance
neither hot foods nor liquids which may evaporate,
should be placed in the larder compartment.
Keep the time between buying chilled food and
placing it in your fridge as short as possible.
Do not push food together too much, try to allow air
to circulate around each item.
Do not store food uncovered.
Remove suspect food from your refrigerator and
clean, refer to cleaning and maintenance.
Energy Saving Advice
Do not install the cabinet close to sources of
heat, such as a cooker, dishwasher or radiator.
Locate the appliance in a cool well ventilated
room and make sure that the air openings of the
cabinet are not obstructed.
Always leave warm food to cool down to room
temperature before placing in the fridge.
Try to avoid keeping the door open for long
periods, or opening the door too frequently as
warm air will enter the cabinet, and cause the
compressor to switch on unnecessarily often.
Ensure there are no obstructions preventing the
door from closing properly.
It is advisable to periodically clean the
refrigeration system at the back of the appliance
with a duster or vacuum cleaner.
Maint
Maint
enance & Cleaning
enance & Cleaning
Before any maintenance of cleaning work is
carried out DISCONNECT the appliance from
the ELECTRICITY SUPPLY.
Internal Cleaning
Clean the inside and accessories with warm water and
bicarbonate of soda (5 ml to 0.5 litre of water). Rinse
and dry thoroughly.
Do not use detergents, abrasive powders,
highly perfumed cleaning products, wax
polishes or cleaning products containing
bleach or alcohol.
Regularly check the door seals and wipe clean
to ensure they are clean and free from debris.
External Cleaning
Wash the outer cabinet with warm soapy water.
Once or twice a year dust the condenser (black
grille) and the compressor at the back of the
appliance with a brush or vacuum cleaner, as an
accumulation of dust will affect the performance of
the appliance and cause excessive electricity
consumption.
9
Defrosting
Regular defrosting is necessary to ensure efficient
operation of the refrigerator.
WE RECOMMEND YOU DEFROST THE FREEZER
COMPARTMENT FORTNIGHTLY TO ENSURE
EFFICIENT OPERATION.
Frost will build in the frozen food compartment. This is
due to moisture in the air which enters the refrigerator
when the door is open and moisture from the stored
food.
Empty the frozen food compartment.
Push the drip tray into the closed position.
Push the defrosting button in the centre of the knob
of the thermostat control.
Leave the refrigerator door open.
The frost will melt away and the defrost water will
collect in the drip tray.
Place a container beneath the tray, and remove the
plastic bung. (Remember to replace the bung when
the water has drained away.)
Wipe out the interior of the frozen food
compartment.
Changing the Light Bulb
When the appliance is not in use
When the appliance is not in use for long periods
disconnect from the electricity supply, empty all of the
food and clean the appliance, leaving the door ajar to
prevent unpleasant smells.
Should the light fail to work you can change it as
below:
Disconnect the appliance from the electricity supply.
Remove the lamp cover retaining screws, then take
the lamp cover off in the direction of arrow and the
bulb can be changed. (Type of the bulb: 230 V, 15 W,
E 14 thread)
After changing bulb replace the lamp cover, and
retaining screws and reconnect the appliance to the
electricity supply.
10
Problem
No power to the
appliance
The temperature in the
appliance is too high
The temperature in the
appliance is too low
Excessive frost and ice
has built up
The appliance is noisy.
Possible Cause
No power at the socket.
There is a power cut.
The fuse has blown.
Thermostat control is set at 0.
The appliance is located in an unsuitable position.
The thermostat control is set too low.
The thermostat control is set too high.
The door has been left open.
Something is obstructing the door.
The door gasket is dirty.
The appliance is not level.
Solution
Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
Check the thermostat.
Check the ambient temperature is within the
appliances operating limits of 16 °C to 32 °C.
Check that the thermostat control knob is turned to
the correct setting relative to ambient conditions.
Set the thermostat control knob to a lower
position.
Check the door has not been left open.
Check nothing is preventing the door from closing.
Check the door gasket is intact and clean.
Check if the appliance stands stable (all four feet
should be on the floor).
Some
Some
thing N
thing Noo
t W
t W
or
or
king
king
If the appliance is not working correctly, please carry out the following checks before contacting your local
Tricity Bendix Service Force Centre.
If after the above checks your appliance still does not
operate correctly, contact your local Tricity Bendix
Service Force Centre.
Please note that it will be necessary to provide proof
of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the
above checks have been made, as the
engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Guarantee conditions
Service and spare parts
If calling the service is unavoidable, announce the
trouble at a brand-mark service nearest to your place.
When announcing the appliance has to be identified
according to its data label.
The data label of the appliance is stuck to the wall of
the interior beside the vegetable box in the fresh food
compartment in the bottom on the left side. All
necessary data are there which are needed to the
service announcement (type, model, serial number,
etc.). Note here the data from the data label of your
appliance:
Model
Product No.
Serial No.
Date of purchase:
WWar
arrr
ant
ant
y and ser
y and ser
vice
vice
The manufacturer reserves the right to make any changes in the products.
11
Ins
Instrtr
uctions f
uctions f
or the Ins
or the Instt
aller
aller
Model
Gross capacity (l)
Net capacity (l)
Width (mm)
Height (mm)
Depth (mm)
Energy consumption (kWh/day)
(kWh/year)
Energy class, according to EU Standards
Star rating of frozen food compartment
Rated power (W)
Weight (kg)
T 55 R
Frozen food comp.: 20
Fresh food com.: 137
Frozen food comp.: 20
Fresh food com.: 118
550
850
600
0.63
230
B
**
100
35
Installing the appliance
Transportation, unpacking
The appliance and the interior fitting are protected for
transport.
Remove all packaging and any adhesive tape.
Any remnants of adhesive can be removed using
white spirit.
After transportation the appliance must not be
switched on for 2 hours. This is to allow the
refrigerant to settle.
Cleaning
Clean the accessories and the inside of the appliance
with warm water and bicarbonate of soda (5 ml to
0.5 litres of water). Rinse and try thoroughly.
Do not use detergents, abrasive powders, highly
perfumed cleaning products, wax polishes or
cleaning products containing bleach or alcohol.
Location
The appliance should be positioned in a well
ventilated, dry room.
Energy use is affected by the ambient temperature.
The appliance should therefore:
not be installed next to radiators, cookers or
other sources of heat
only be installed at a location where the ambient
temperature corresponds to the climate
classification, for which the appliance is
designed.
The climate classification can be found on the
serial plate.
The following table shows which ambient
temperature is correct for each climate
classification:
Climate Classification Ambient Temperature
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C
Technical data
12
Ventilation Requirements
The appliance must have adequate ventilation to
ensure correct operation.
Diagram shows the ventilation requirements when
installed:
A:* Under a worktop, or cupboard.
* The clearance space of 10 cm above the
appliance may be reduced to 5 cm providing a
clearance space 2,5 cm is left on either side of
the appliance.
B: When freestanding
Door Reversal
If required the opening direction of the door can be
changed as follows:
To reverse the bottom hinge assembly proceed as
follows:
Disconnect the appliance from the electricity
supply.
Tilt the appliance backwards, resting the top edge
of the appliance on a stool or something similar.
Unscrew the adjustable feet situated on both sides
at the front (2 pieces). Remove the lower door
hinge plate by unscrewing the 3 retaining screws.
Remove the hinge pin from the bottom of the door.
Slot the hinge pin into the hole in the hinge plate
and relocate the hinge assembly to the opposite
location and refit using the retaining screws.
Put the cabinet in the upright position.
Levelling
The appliance must be level. Level the appliance by
adjusting the two adjustable feet (1) at the front of the
appliance.
13
To reverse the top hinge assembly proceed as follows:
Remove the 2 worktop retaining screws from the
back of the appliance.
Slide the worktop towards the rear and lift clear of
the appliance.
Remove the 2 upper hinge plate retaining screws.
Remove the hinge plate from the top of the door.
Unscrew the hinge pin from the hinge plate and re-
insert on the opposite side of the pate.
Rotate the hinge assembly 180° and insert the
hinge assembly into the opposite location.
Refit the 2 hinge plate retaining screws.
Relocate the worktop and refit the worktop
retaining screws.
To reverse the handle proceed as follows:
Remove screw covers (if fitted) and handle retaining
screws. Remove blanking plugs on the opposite
side.
Relocate the handle to the opposite side and refit
retaining screws (covers if fitted), and replace the
blanking plugs.
14
Electrical Connection
Electrical Connection
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
This appliance must be earthed.
The manufacturer declines any liability should
these safety measures not be observed.
Electrical Requirements
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance
rating plate.

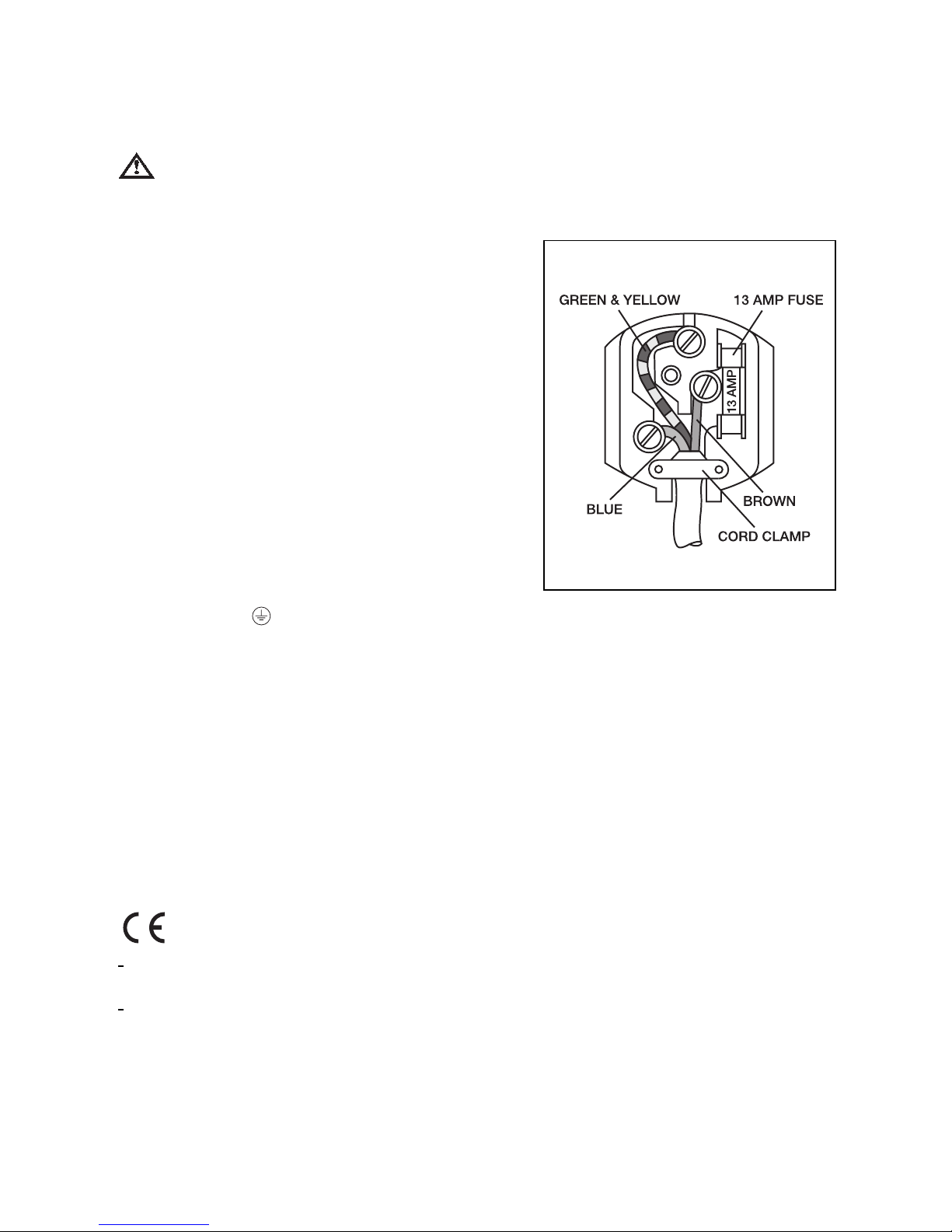

The appliance is supplied with a 13 amp plug fitted. In
the event of having to change the fuse in the plug
supplied, a 13 amp ASTA approved (BS 1362) fuse
must be used. Should the plug need to be replaced
for any reason. The wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter E or
by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the
terminal N or coloured black.
The wire coloured brown must be connected to the
terminal marked L or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
This appliance complies with the following
E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive)
and subsequent modifications,
89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
15
SSttor
or
age time char
age time char
t (1)
t (1)
Time and method of storage of fresh foods in the refrigerator
Foods Storage time in days Method of packaging
1234567
Raw meat XX x x x cling film, airtight
Cooked meat XXXx x x dish covered
Roasted meat XXXx x dish covered
Raw minced meat X dish covered
Cooked minced meat XXx x dish covered
Cold cuts XXx x cling film, cellophane, grease-
proof paper
Fresh fish X x x cling film, airtight
Cooked fish XXx x dish covered
Tinned fish, open X x x dish covered
Fresh chicken XXXx x x cling film, airtight
Fried chicken XXXx x x dish covered
Fresh duck, goose XXXx x x cling film, airtight
Roasted duck, goose XXXXx x x dish covered
Butter unopened XXXXXXXoriginal packaging
Butter opened XXxxxxxoriginal packaging
Milk XXX x x original packaging
Cream XXx x plastic box
Sour cream XXXXx x x plastic box
Cheese (hard) XXXXXXXaluminium foil
Cheese (soft) XXXX x x x cling film
Egg XXXXXXX
Spinach, sorrel XXx x cling film
Green peas, green beans XXXXx x x cling film
Mushroom XXx x x cling film
Carrot XXXXXXXcling film
Tomato XXXXXXXcling film
Cabbage XXXXXx x cling film
Strawberry, raspberry, etc. XXXx x cling film
Tinned fruits opened XXXx x dish covered
Cakes filled with cream XX x x dish covered
Notation:
X recommended storage time
x maximum recommended storage time
SSttor
or
age time char
age time char
t (2)
t (2)
Storage time of deep-frozen and frozen products
Foods In the fresh food In the **frozen food
compartment +2 - +7 °C compartment -12 °C
Vegetables:
green beans, green peas, mixed vegetables, marrow,
corn, etc. 1 day 30 days
Ready-cooked foods:
vegetable dish, trimmings, with meat, etc. 1 day 30 days
Ready-cooked foods:
sirloin steaks, stews 1 day 25 days
Soups 1 day 30 days
Fruits:
cherry, gooseberry, fruit cream 1 day 30 days
Meat:
chicken, duck, goose, tuna fish 1 day 30 days
Ice-cream, Ice-lollies 1 day 3 days
Printed by Xerox Hungary Ltd. Rev.: 2001. 07 17.
© Electrolux Household Appliances Limited 2000
Loading...
