FREEZER
T 45 UF (TT 120 F)
INSTRUCTION BOOK
All manuals and user guides at all-guides.com
all-guides.com
2
This instruction book contains safety precautions, information on use and helpful hints and tips.
To ensure you use this appliance effectively and safely, please read this instruction book carefully
before installing or using this appliance and retain for future reference.
The symbols below help you to find things more easily:
Safety precautions
Warnings and Safety information
Hints, useful information
Environmental information
All manuals and user guides at all-guides.com
3
IMPOR
IMPORTT
ANT S
ANT S
AFET
AFET
Y INS
Y INS
TR
TR
UCTIONS
UCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all
before installing or using this appliance. Your safety is of paramount importance. If you are unsure
about any of the meanings or these warnings contact the Customer Care Department.
Prior to installation
Check the appliance for transport damage. Under
no circumstances should a damaged appliance be
installed. In the event of damage please contact
your retailer.
Installation
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Ensure that the appliance does not stand on the
electrical supply cable. If the supply cable is
damaged, it must be replaced by a cable available
from your local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall, but leaving the required
distance for ventilation, as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
Do not allow children to tamper with the controls or
play with the product.
There is a risk of suffocation! Keep packaging
material away from children!
During Use
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs. It is
not intended for commercial or industrial use.
Containers with flammable gases or liquids can
leak at low temperatures. Do not store any
containers with flammable materials, such as spray
cans, fire extinguisher refill cartridges etc. in the
freezer.
Frozen food should not be refrozen once it has
thawed out.
Do not place carbonated or fizzy drinks in the
freezer.
Ice lollies can cause 'frost/freezer burns' if
consumed straight from the freezer.
Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
Bottles and cans must not be placed int the
freezer they can burst when the contents freeze.
Manufacturers' recommended storage times
should be adhered to. Refer to relevant
instructions.
Maintenance and Cleaning
Before cleaning, always switch off the appliance
and disconnect from the electrical supply.
When unplugging always pull the plug from the
mains socket, do not pull on the cable.
Servicing
This product should be serviced by an
authorised engineer and only genuine spare
parts should be used.
Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local
Service Force Centre.
At the end of the Appliance Life
When disposing of your appliance use an
authorised disposal site.
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
The Appliance and the Environment
This appliance does not contain gases which could
damage the ozone layer.
Avoid damaging the cooling unit.
The packaging used on this appliance marked with
the symbol is recyclable.
Keep this instruction book for future
reference and ensure it is passed on to
any new owner.
All manuals and user guides at all-guides.com
4
CONTENT
CONTENTSS
Instructions for the User
Guide to use the instruction book 2
Important Safety Information 3
Instructions for the User 5
General Information 5
Description of the Appliance 5
Indicator Lights 6
Fast Freeze Facility 6
Basket Storage 6
Freezer Tray 6
Using the Appliance 7
Before Use 7
To Start the Appliance 7
Thermostat Control 7
Freezing Fresh Food 7
Frozen Food Storage 8
Thawing 8
Making Ice Cubes 8
Hints and Tips 8
Food Storage 8
Energy Saving Advice 9
In the Event of a Power Failure 9
Maintenance and Cleaning 9
Internal cleaning 9
External cleaning 9
When the appliance is not in use 9
Defrosting 9
Something Not Working 10
Warranty and service 11
Guarantee conditions 11
Service and spare parts 11
Instructions for the Installer
Technical data 12
Installing the Appliance 12
Transportation, Unpacking 12
Location 12
Ventilation Requirements 13
Levelling 13
Door Reversal 14
Electrical Connection 15
All manuals and user guides at all-guides.com
5
INS
INS
TR
TR
UCTIONS F
UCTIONS F
OR THE USER
OR THE USER
General information
This appliance is designed for the freezing and
storage of frozen food in a domestic home.
To ensure correct operation, the appliance should
be located where the ambient temperature is
between 16-32 °C.
Description of the Appliance
1. Freezing tray (with 4 ice trays)
2. Freezing compartment
3. Storing compartments (wire baskets)
4. Rating Plate
5. Control Panel
a) Green Indicator Light
b) Red Indicator Light
c) Yellow Indicator Light
d) Fast Freeze Switch (continuous operation)
e) Thermostat control
6. Defrost water outlet
7. Adjustable feet
8. Door gasket
9. Thermostat
10. Air grid
11. Condenser
12. Air circulation
13. Compressor
All manuals and user guides at all-guides.com
6
Indicator Lights
The indicator lights are situated in the control panel.
a.) Green Indicator Light
When the appliance is switched on at the mains the
green indicator light will glow and continue to glow
until the appliance is switched off at the mains.
b.) Red Indicator Light
A few hours after starting up this will go out to show
that the correct temperature has been reached for
the setting chosen and will stay out to indicate that
everything is in order.
It will come on if the freezer temperature rises
unduly for instance, after opening the freezer door
or placing food inside the cabinet, but the light
should go out again when the temperature returns
to normal.
c.) Yellow Indicator Light - (Fast Freeze)
With the fast freeze on the Yellow Indicator Light
will come on and stay on as a reminder.
d.) Fast Freeze Facility
To operate the Fast Freeze Facility slide the Switch
to the right hand position.
e.) Thermostat Control
This is for setting and changing the temperature
inside the appliance.
Basket Storage
Frozen food should be stored in the two lower baskets
and the top compartment used for fast freezing.
Freezer Tray
The Freezer Tray is particularly suitable for open
freezing, for example strawberries, raspberries etc.
All manuals and user guides at all-guides.com
all-guides.com
7
Using the Appliance
Before Use
Remove all packaging and securing tapes. Wash
inside the appliance with lukewarm water and
bicarbonate of soda (5 ml to 0,5 litre of water). Do not
use soap or detergent as the smell may linger. Dry
thoroughly.
Do not use detergents, abrasive powders,
highly perfumed cleaning products, wax
polishes or products containing alcohol.
FF
To Start the Appliance
1. Allow the appliance to stand for 2 hrs after
installation.
2. Plug in the appliance and switch on at the mains
supply.
3. Slide the 'fast freeze' switch to the right (yellow
indicator light will illuminate) and leave to run for 4
hours to allow the correct temperature to be
reached before placing food inside.
4. The red indicator light will also illuminate until the
correct temperature is reached.
5. Slide the 'fast freeze' switch back to the left.
Thermostat Control
The temperature within the freezer is controlled by the
thermostat situated on the control panel.
0 = Off
Turning the thermostat clockwise makes the
temperature progressively colder.
Freezing Fresh Food
It is important that fresh food placed in the freezer is
frozen quickly and that the food already in the freezer
is heated as little as possible.
FF
If more than 3-4 kg of food is to be frozen:
1. Slide the fast freeze switch (d) to the right 6-24
hours before placing the fresh food in the freezer,
the yellow light will illuminate. The compressor will
now run continuously, to ensure that the fresh food
is frozen as quickly as possible.
2. Place the food in the freezing compartment and
leave the 'fast freeze' switch on for a further 24
hours.
All manuals and user guides at all-guides.com
8
3. After 24 hours, slide the 'fast freeze' switch back to
the left (the yellow light will go out) and transfer the
food to the storing compartments. The freezer will
return to normal storage temperature.
If the 'fast freeze' switch is accidentally left on,
the freezer will not be damaged, but energy
will be wasted.
Frozen Food Storage
When first starting the freezer or if the freezer has
been out of use for some time, we advise you to run
your appliance for at least 4 hours with the 'fast freeze'
switch on before storing frozen food.
Do not exceed the storage period indicated by the
manufacturer.
Do not open the door frequently or leave it open
longer than is necessary.
Important
Do not put carbonated liquids in the freezer.
Ice lollies, if consumed immediately after removal
from the freezer can cause a low temperature skin
burn.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
frost/freezer burns.
In the event of a power cut the food in the freezer
will not be affected if the power cut is short and the
freezer is full. Do not open the lid. Should the food
begin to thaw it must be consumed quickly and
must not be re-frozen. (See Hints and Tips)
Thawing
Deep frozen or frozen food, prior to being used, can
be thawed in a fridge or at room temperature,
depending on the time available. Small food items may
even be cooked from frozen, in this case cooking will
take longer.
Any frozen food which is allowed to thaw accidentally
should either be eaten as soon as possible, or thrown
away. Alternatively, if the food is uncooked and has not
been completely defrosted it can be cooked and then
refrozen.
Defrosted cooked food must never be
refrozen.
FF
To Make Ice Cubes
1. Fill the ice cube tray 3/4 full with cold water,
place in the freezing compartment and leave to
freeze.
2. To remove the cubes twist the tray or hold it
under running water for a few seconds.
Never try to free an ice tray that is frozen
to the freezer compartment by using
pointed or sharp edged objects.
Hints & Tips
Food Storage
To obtain the best performance from your freezer:
Do not store warm food or evaporating liquid.
Avoid buying frozen food if you cannot store it
straight away. The use of an insulated container
is advisable. When you arrive home, place the
frozen food in the freezer immediately.
Do not push food together too much, try to allow
air to circulate around each item.
Do not store food uncovered.
Ensure that food placed in the freezer is dated
and labelled and used in date order to ensure
that food is consumed at its best.
Lean food keeps better and longer than fatty
food, salt reduces the storage time.
Wrap the food in polythene or aluminium
freezing bags or foil so that they adhere to the
food and provide an airtight seal.
Packaging which is swollen or has traces of
refrozen water droplets on the pack could
indicate that the product has not been kept at a
suitable temperature and that it may have lost its
original quality. Partially thawed food must not be
refrozen, it must be consumed within 24 hours.
Never exceed the storage times indicated by the
manufacturer.
All manuals and user guides at all-guides.com
9
Energy Saving Advice
Do not install the appliance close to sources of
heat, such as a boiler or radiator.
Locate the appliance in a cool well ventilated room
and make sure that the air openings of the
appliance are not obstructed.
Avoid unnecessary frosting in the cabinet by
packing all foodstuffs into airtight packages before
placing them in the freezer.
Food which is to be frozen (when cool) should be
placed in the fridge before being transferred to the
freezer.
Try to avoid keeping the door open for long periods
or opening the door too frequently as warm air will
enter the cabinet and cause the compressor to
switch on unnecessarily often.
Ensure there are no obstructions preventing the
door from closing properly.
In the Event of a Power Failure
If there is a power failure during the storage of
frozen foods, keep the door closed. If the
temperature within your freezer should rise, do not
refreeze the food without checking its condition.
The following guidelines should assist you:
Ice Cream: Once thawed should be discarded.
Fruits & Vegetables: If soft should be cooked and
used up.
Breads & Cakes: Can be refrozen without danger.
Shellfish: Should be refrigerated and used up
quickly.
Cooked Dishes: i.e. casseroles should be
refrigerated and used up.
Large Pieces of Meat: Can be refrozen providing
there are still ice crystals remaining within them.
Small Joints: Should be cooked and can then be
refrozen as cooked dishes.
Chicken: Should also be cooked and refrozen as a
fresh dish.
Maint
Maint
enance & Cleaning
enance & Cleaning
Before any maintenance or cleaning is
carried out you must DISCONNECT the
appliance from the electricity supply.
Internal Cleaning
Clean the inside and accessories with warm water and
bicarbonate of soda (5 ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as these will
damage the surface and leave a strong
odour.
External Cleaning
Wash the outer cabinet with warm soapy water.
Once or twice a year dust the condenser (black grille)
and the compressor at the back of the appliance with
a brush or vacuum cleaner, as an accumulation of dust
will affect the performance of the appliance and cause
excessive electricity consumption.
When the Appliance is not in
Use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the door
open to prevent unpleasant smells.
Defrosting
The freezer compartment will become
progressively covered with frost. This should be
removed with the special plastic scraper provided
whenever the thickness of frost exceeds 1/4.
During this operation it is not necessary to switch
off the power supply or to remove the foodstuffs.
However, when the ice becomes very thick on the
inner liner, complete defrosting should be carried
out and it is advisable to peform this operation
when the appliance is empty.
All manuals and user guides at all-guides.com
10
Problem
No power to the
appliance
The temperature in the
appliance is too high
The temperature in the
appliance is too low
Excessive frost and ice
has built up
The appliance is noisy.
Possible Cause
No power at the socket.
There is a power cut.
The fuse has blown.
Thermostat control is set at 0.
The appliance is located in an unsuitable position.
The thermostat control is set too low.
The thermostat control is set too high.
The door has been left open.
Something is obstructing the door.
The door gasket is dirty.
The appliance is not level.
Solution
Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
Check the thermostat setting.
Check the ambient temperature is within the
appliances operating limits of 16 °C to 32 °C.
Check that the thermostat control knob is turned to
the correct setting relative to ambient conditions.
Set the thermostat control knob to a lower
position.
Check the door has not been left open.
Check nothing is preventing the door from closing.
Check the door gasket is intact and clean.
Check if the appliance stands stable (all four feet
should be on the floor).
FF
To carry out complete defrosting:
1. Disconnect the appliance from the electrical
supply. If the plug is inaccessible turn the
thermostat control knob to 0.
2. Remove any stored food, wrap in several layers of
newspaper and store in a cool place.
3. Leave the door open.
4. Carefully draw the plastic drain spout out of the
lower part of the appliance according to the
direction of the arrow and place a tray of a suitable
size in the position shown.
5. During defrosting, push the defrost water
towards the edge of the cooling plates using a
dry cloth or a sponge. It will be collected at the
bottom of the appliance, from where it can be
diverted into the tray and then disposed of.
6. To accelerate the defrosting process place a
bowl of hot (not boiling) water inside the freezer
and close the door.
7. When defrosting is completed, dry the interior
thoroughly, replace the drain spout and close
the door.
8. Turn the thermostat control knob back to a
medium setting and leave to run for at least 4
hours with the 'fast freeze' switch on.
9. Replace the previously removed food.
Important
A temperature rise of the frozen food packs
during defrosting may shorten their safe storage
life.
Never use sharp metal tools to scrape off frost
from the evaporator as this could damage the
appliance beyond repair.
Something Not Working
If the appliance is not working correctly, please carry out the following checks before contacting your local
Tricity Bendix Service Force Centre.
If after the above checks your appliance still does not
operate correctly, contact your local Tricity Bendix
Service Force Centre.
Please note that it will be necessary to provide proof
of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the
above checks have been made, as the
engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
All manuals and user guides at all-guides.com
11
Guarantee conditions
Service and spare parts
If calling the service is unavoidable, announce the
trouble at a brand-mark service nearest to your place.
When announcing the appliance has to be identified
according to its data label.
The data label of the appliance is stuck to the wall of
the interior beside the vegetable box in the fresh food
compartment in the bottom on the left side. All
necessary data are there which are needed to the
service announcement (type, model, serial number,
etc.). Note here the data from the data label of your
appliance:
Model
Product No.
Serial No.
Date of purchase:
The manufacturer reserves the right to make any changes in the products.
W
W
ar
arrr
ant
ant
y and ser
y and ser
vice
vice
All manuals and user guides at all-guides.com
all-guides.com
12
Ins
Instrtr
uctions f
uctions f
or the Ins
or the Instt
aller
aller

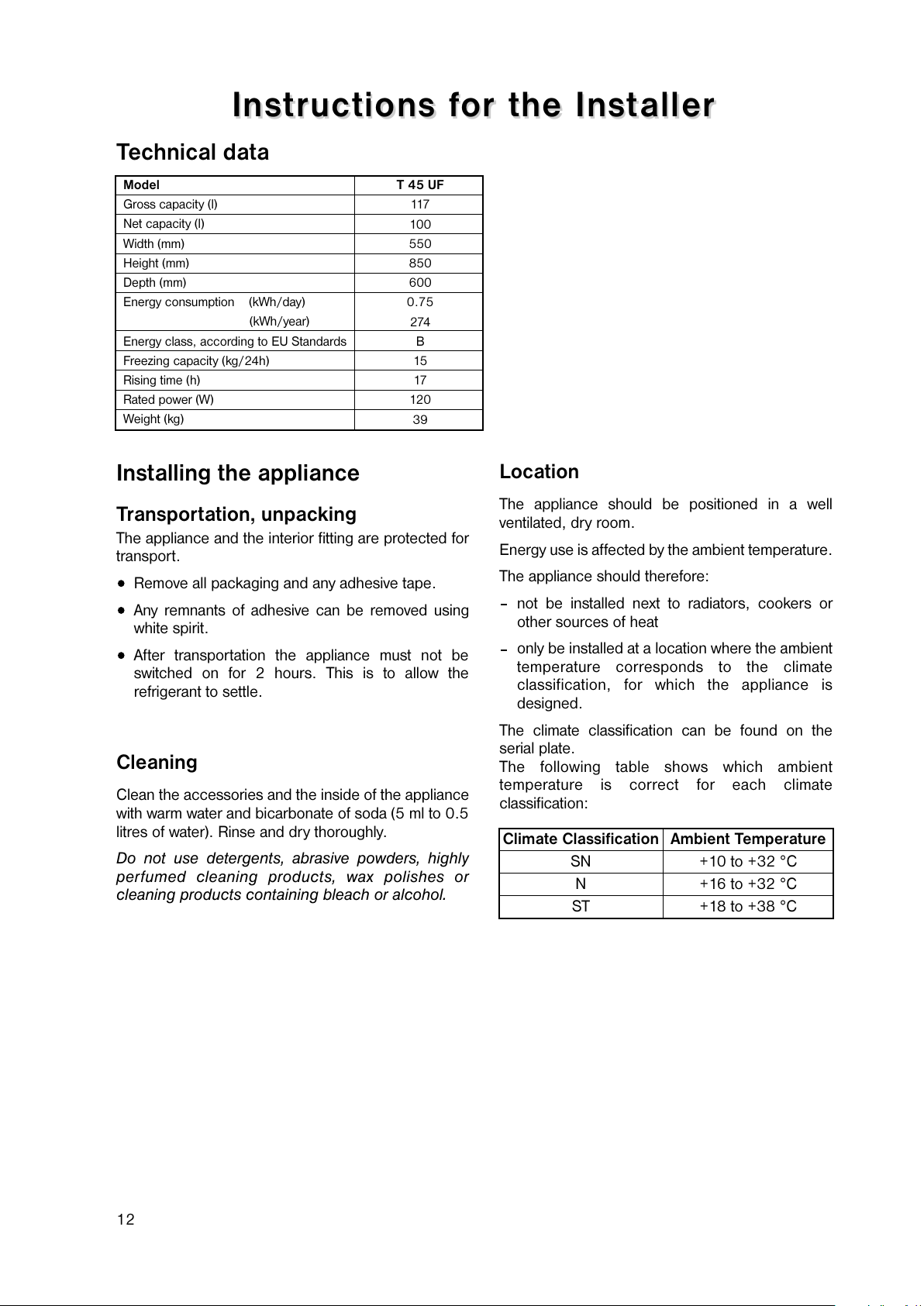

Model
Gross capacity (l)
Net capacity (l)
Width (mm)
Height (mm)
Depth (mm)
Energy consumption (kWh/day)
(kWh/year)
Energy class, according to EU Standards
Freezing capacity (kg/24h)
Rising time (h)
Rated power (W)
Weight (kg)
T 45 UF
117
100
550
850
600
0.75
274
B
15
17
120
39
Installing the appliance
Transportation, unpacking
The appliance and the interior fitting are protected for
transport.
Remove all packaging and any adhesive tape.
Any remnants of adhesive can be removed using
white spirit.
After transportation the appliance must not be
switched on for 2 hours. This is to allow the
refrigerant to settle.
Cleaning
Clean the accessories and the inside of the appliance
with warm water and bicarbonate of soda (5 ml to 0.5
litres of water). Rinse and dry thoroughly.
Do not use detergents, abrasive powders, highly
perfumed cleaning products, wax polishes or
cleaning products containing bleach or alcohol.
Location
The appliance should be positioned in a well
ventilated, dry room.
Energy use is affected by the ambient temperature.
The appliance should therefore:
not be installed next to radiators, cookers or
other sources of heat
only be installed at a location where the ambient
temperature corresponds to the climate
classification, for which the appliance is
designed.
The climate classification can be found on the
serial plate.
The following table shows which ambient
temperature is correct for each climate
classification:
Climate Classification Ambient Temperature
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C
Technical data
All manuals and user guides at all-guides.com
13

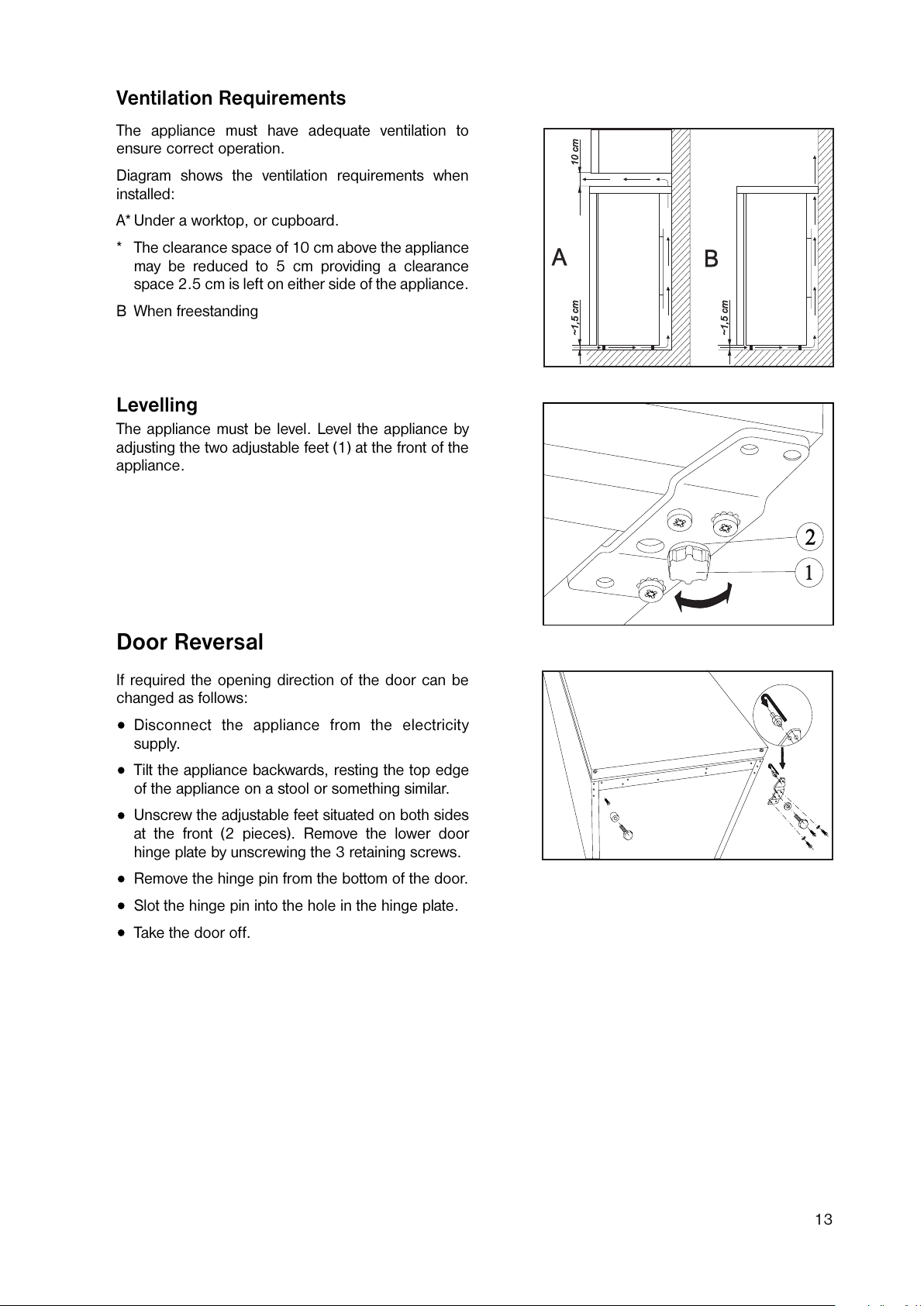

Levelling
The appliance must be level. Level the appliance by
adjusting the two adjustable feet (1) at the front of the
appliance.
Door Reversal
If required the opening direction of the door can be
changed as follows:
Disconnect the appliance from the electricity
supply.
Tilt the appliance backwards, resting the top edge
of the appliance on a stool or something similar.
Unscrew the adjustable feet situated on both sides
at the front (2 pieces). Remove the lower door
hinge plate by unscrewing the 3 retaining screws.
Remove the hinge pin from the bottom of the door.
Slot the hinge pin into the hole in the hinge plate.
Take the door off.
Ventilation Requirements
The appliance must have adequate ventilation to
ensure correct operation.
Diagram shows the ventilation requirements when
installed:
A* Under a worktop, or cupboard.
* The clearance space of 10 cm above the appliance
may be reduced to 5 cm providing a clearance
space 2.5 cm is left on either side of the appliance.
B When freestanding
All manuals and user guides at all-guides.com
14
Fit the door in place on the hinge pin.
Refit the bottom hinge plate assembly on the
opposite side, taking care that the edge of the door
is parallel with the side of the cabinet.
Slot the hinge pin into the hole in the hinge plate
and relocate the hinge assembly to the opposite
location and refit using the retaining screws.
To reverse the handle proceed as follows:
Remove screw covers (if fitted) and handle retaining
screws. Remove blanking plugs on the opposite
side.
Relocate the handle to the opposite side and refit
retaining screws (covers if fitted), and replace the
blanking plugs.
All manuals and user guides at all-guides.com
15
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
This appliance must be earthed.
The manufacturer declines any liability should
these safety measures not be observed.
Electrical Requirements
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance
rating plate.
The appliance is supplied with a 13 amp plug fitted. In
the event of having to change the fuse in the plug
supplied, a 13 amp ASTA approved (BS 1362) fuse
must be used. Should the plug need to be replaced
for any reason. The wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter E or
by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the
terminal N or coloured black.
The wire coloured brown must be connected to the
terminal marked L or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
This appliance complies with the following
E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive)
and subsequent modifications,
89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Electrical Connection
Electrical Connection
All manuals and user guides at all-guides.com
Printed by Xerox Hungary Ltd. Rev.: 2001. 07 17.
© Electrolux Household Appliances Limited 2000
All manuals and user guides at all-guides.com
all-guides.com
Loading...
