Tricity Bendix SIE504 Operating Instruction
OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SIE504
TECHNICAL DETAILS
MODEL NO. SIE 504
Voltage: 230/240 Volts AC 50Hz
Wattage: 10.2/11.1 kW
Height: 900mm
Width: 600mm
Depth: 598mm
Weight 65 kg
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC
2
CONTENTS
Technical Details .................................................................................................................................... 2
Contents ................................................................................................................................................. 3
Preface .................................................................................................................................................... 5
Safety ...................................................................................................................................................... 6
Before Installation .......................................................................................................................... 6
During Operation ............................................................................................................................ 6
After Use ........................................................................................................................................ 7
General ........................................................................................................................................... 7
Introduction ............................................................................................................................................ 8
Rating Plate .................................................................................................................................... 8
Installation ...................................................................................................................................... 8
General Notes on Using Your Appliance ....................................................................................... 9
About Condensation and Steam .................................................................................................... 9
The Cooling Fan for the Controls ................................................................................................... 9
Control Panel Indicator Neons ....................................................................................................... 9
Cookware ....................................................................................................................................... 9
Grill and Oven Furniture ................................................................................................................. 10
Getting to Know Your Appliance .......................................................................................................... 11

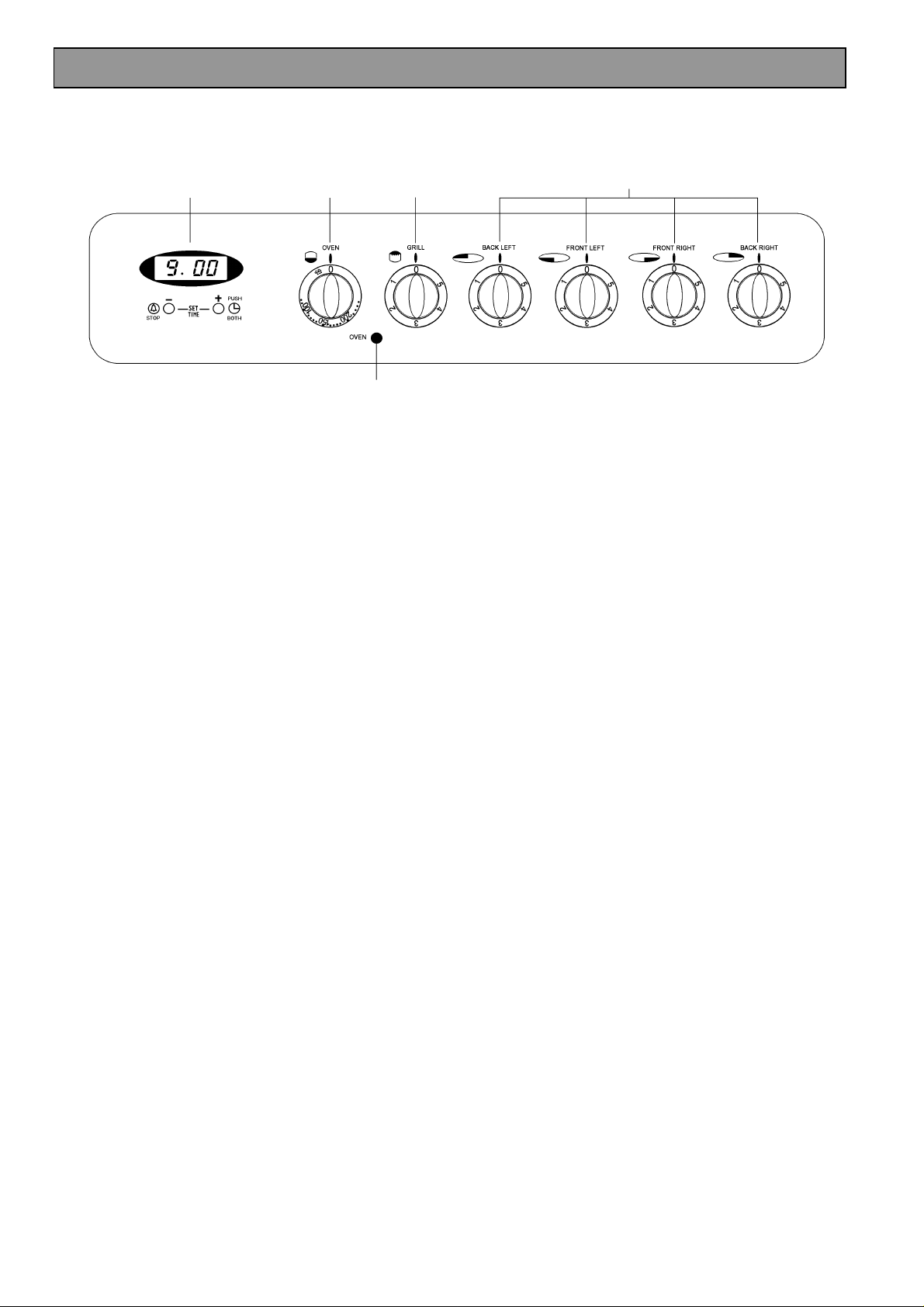

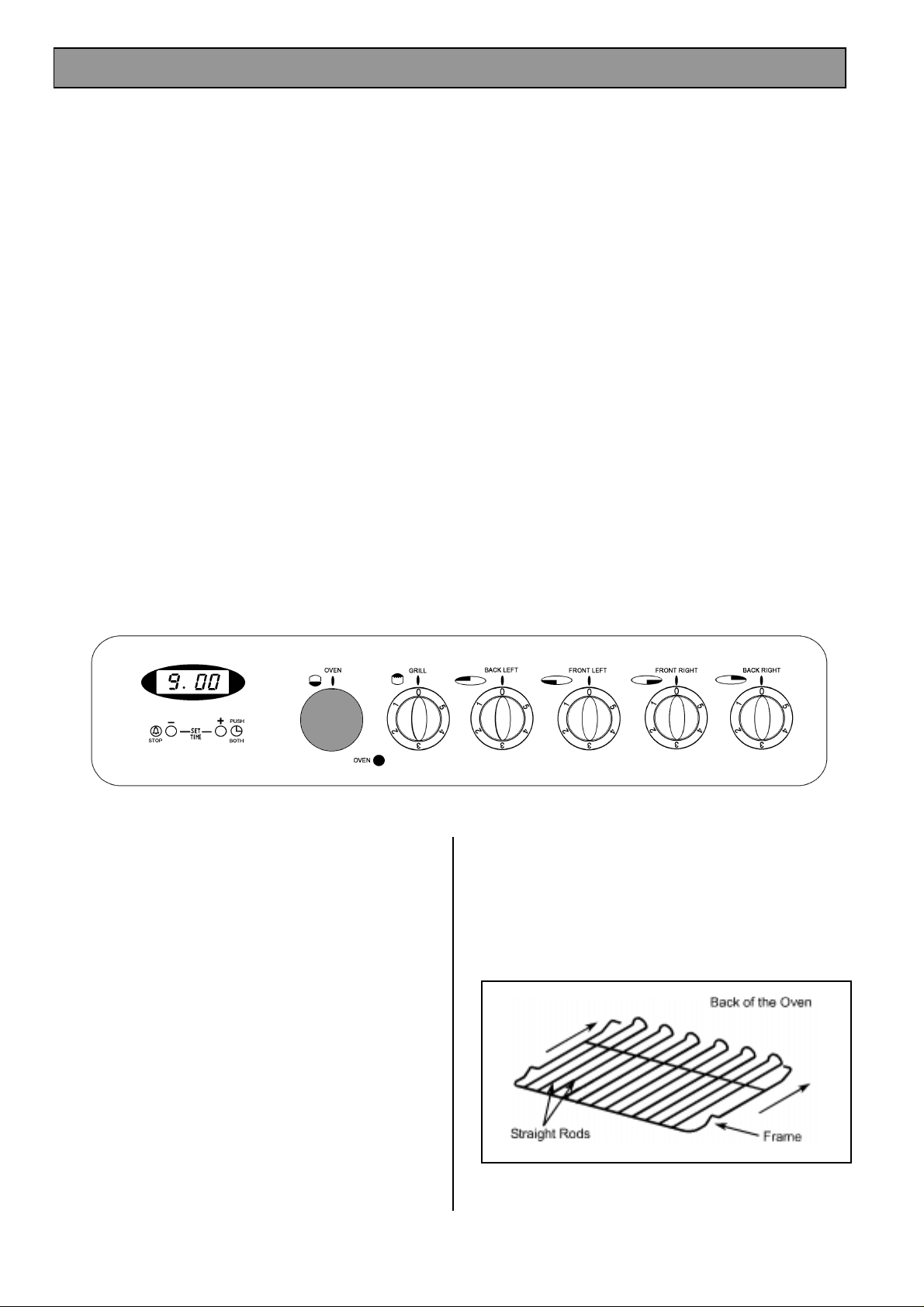

The Control Panel .......................................................................................................................... 11

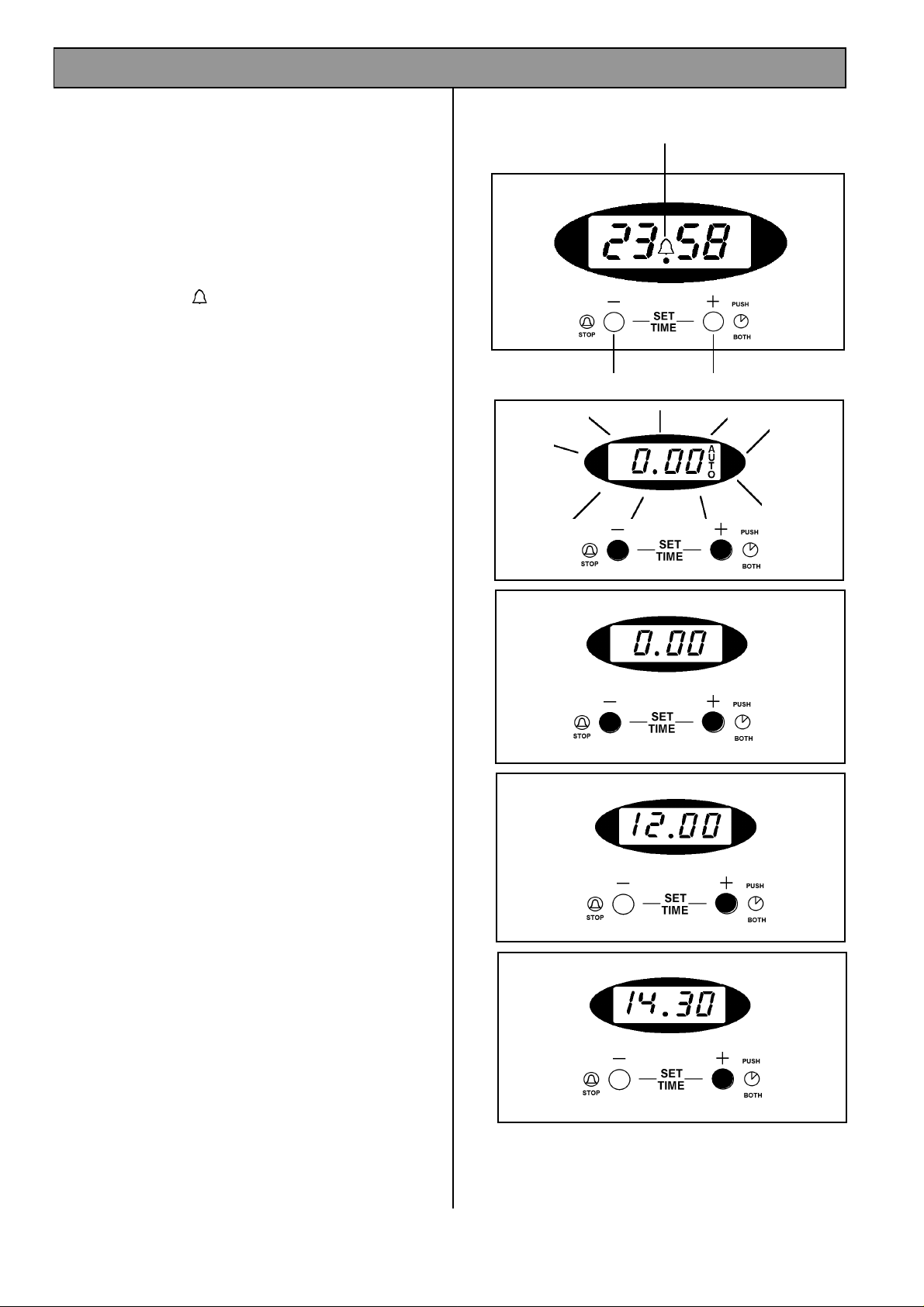

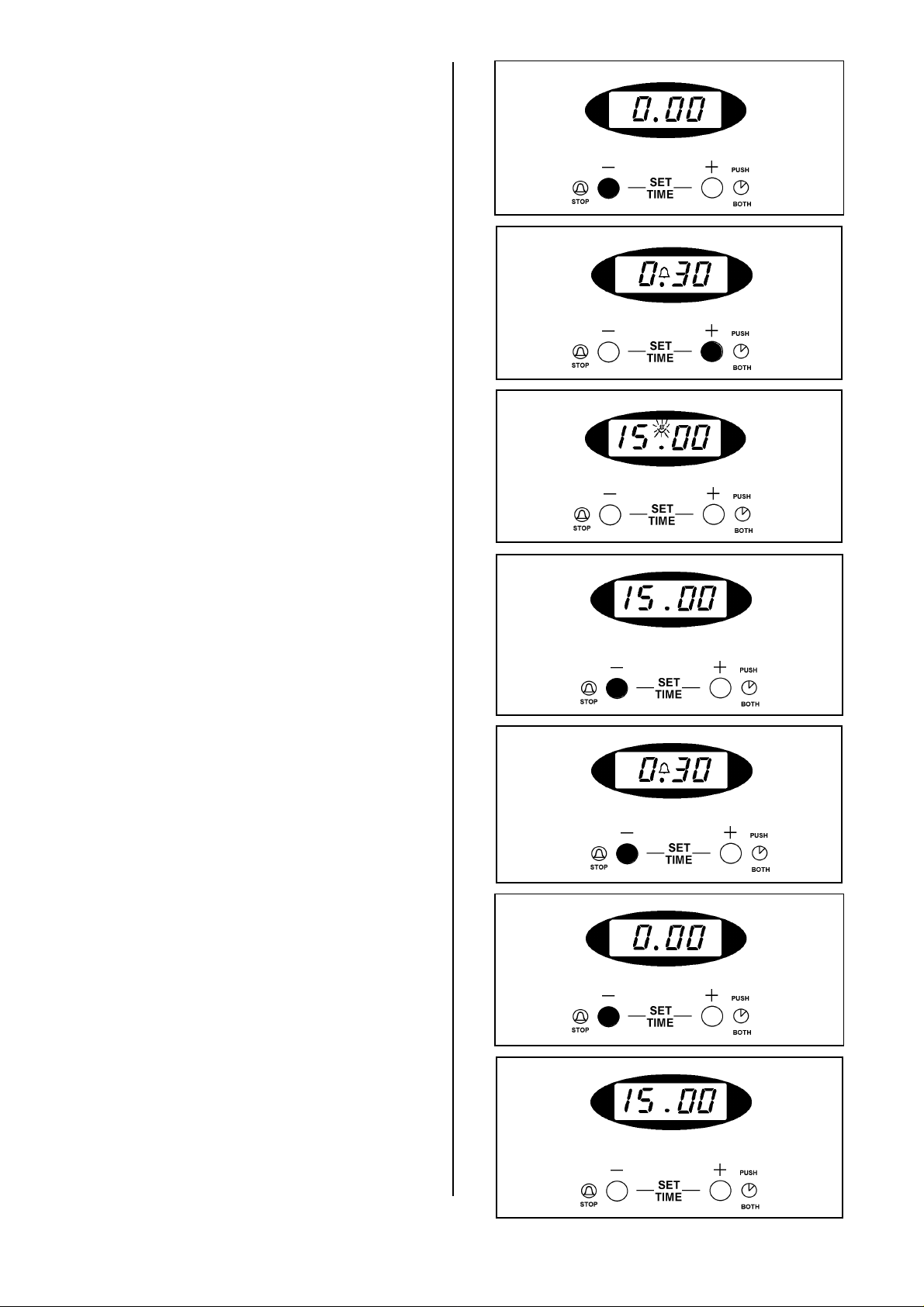

The Electronic Minute Minder ......................................................................................................... 12
The Ceramic Hob ................................................................................................................................... 14
Recommended Saucepans ............................................................................................................14
Hints and Tips ................................................................................................................................ 14
Deep Fat Frying ...................................................................................................................................... 15
Preserving .............................................................................................................................................. 15
The Grill .................................................................................................................................................. 16
Uses of the Grill .............................................................................................................................. 16
Selecting the Grill ........................................................................................................................... 16
Things to Note ................................................................................................................................ 16

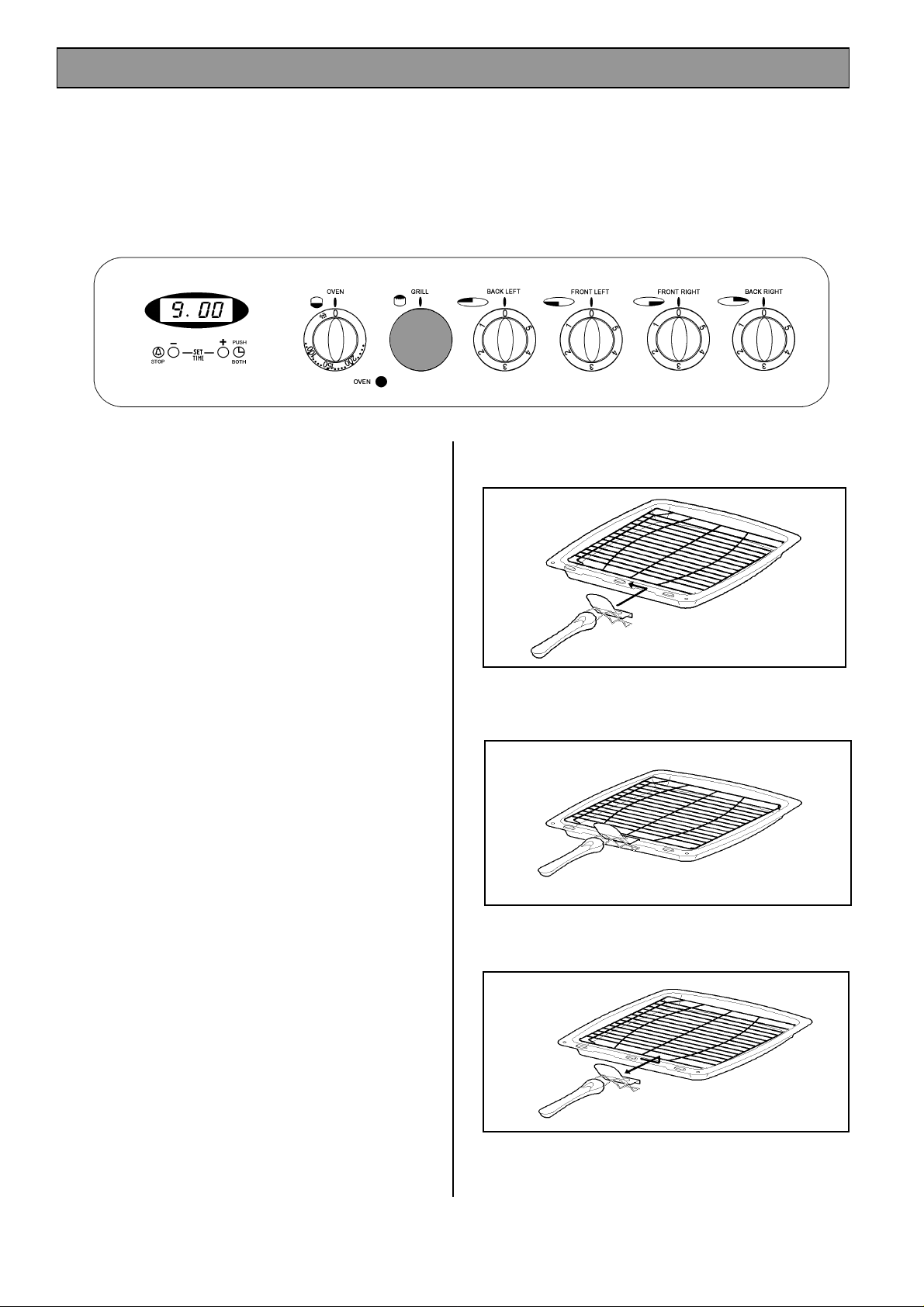

The Grill Pan and Handle ............................................................................................................... 16
Hints and Tips ................................................................................................................................ 17
Grilling Chart .................................................................................................................................. 17
The Fan Oven ......................................................................................................................................... 18
Uses of the Fan Oven .................................................................................................................... 18
Selecting the Top Oven .................................................................................................................. 18
Things to Note ................................................................................................................................ 18

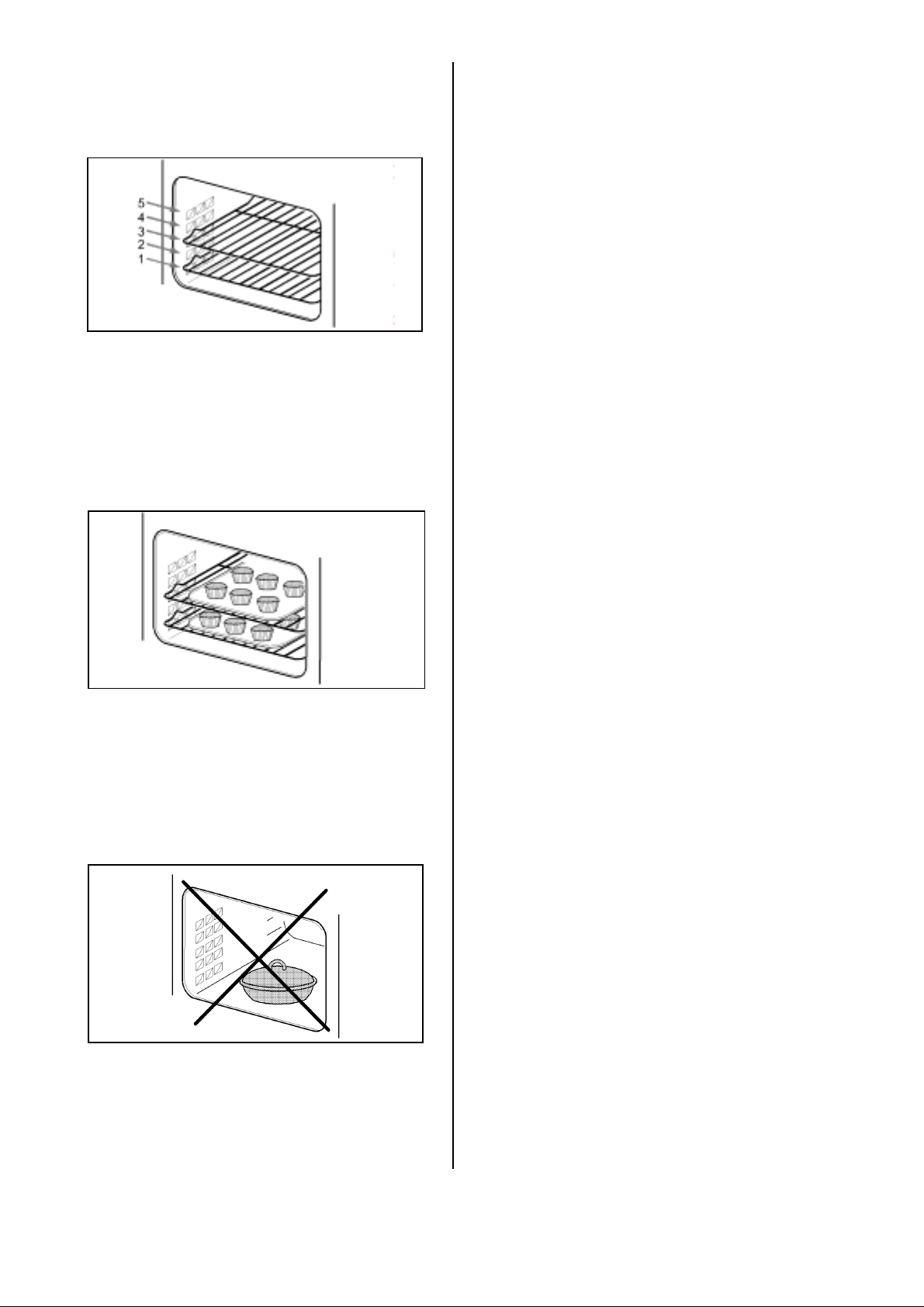

To Fit the Oven Shelves ................................................................................................................. 18
Hints and Tips ................................................................................................................................ 19
Oven Cooking Chart .............................................................................................................................. 20
Roasting Chart ....................................................................................................................................... 21
3
CONTENTS

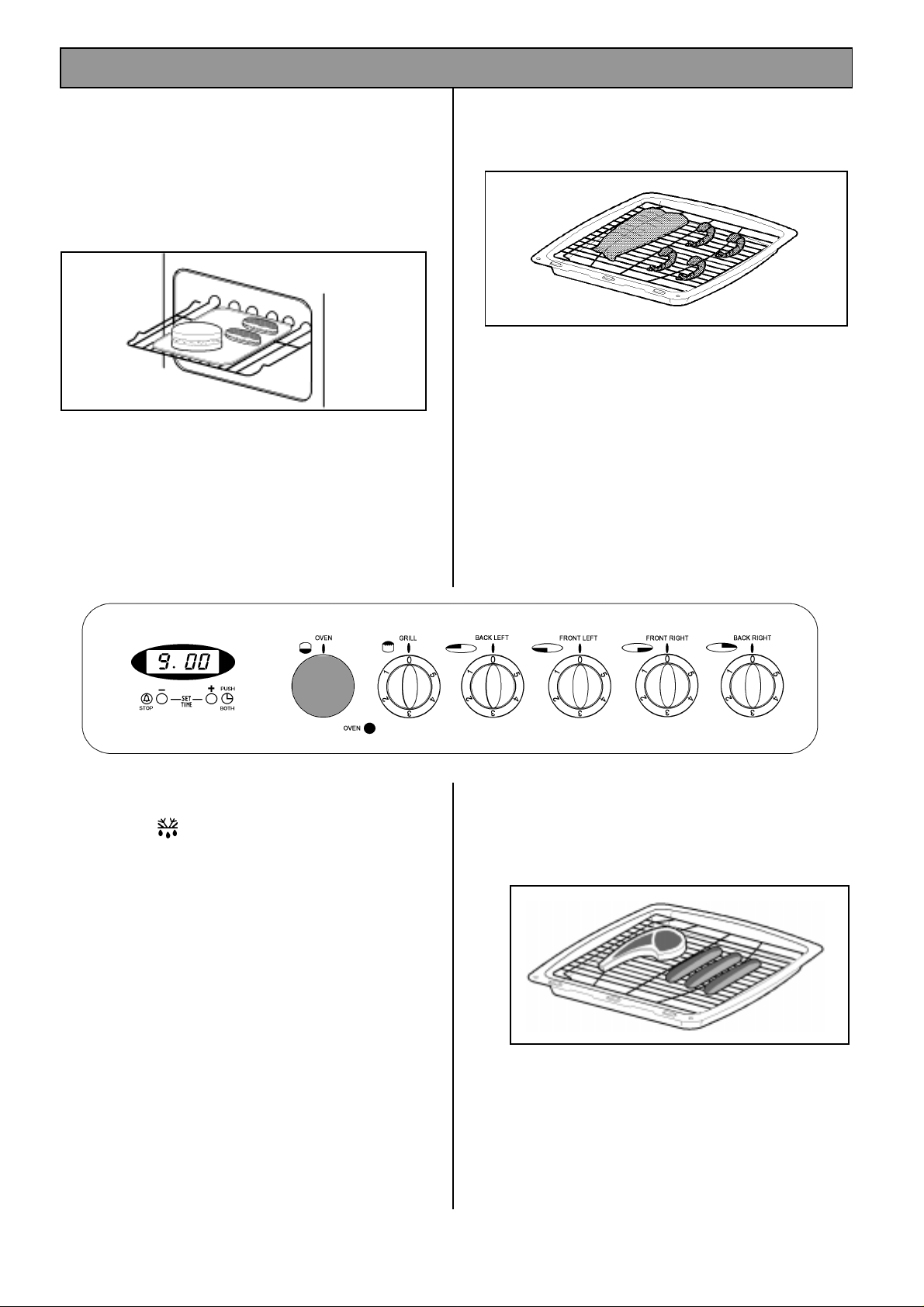

Defrosting ............................................................................................................................................... 22
Uses of Defrost Feature ................................................................................................................. 22
Selecting Defrost ............................................................................................................................ 22
Things to Note ................................................................................................................................ 22
Hints and Tips ................................................................................................................................ 22
Care and Cleaning ................................................................................................................................. 23
Cleaning Materials ......................................................................................................................... 23
Cleaning the Ceramic Hob ............................................................................................................. 23
Hints and Tips ................................................................................................................................ 24
Cleaning the Outside of the Appliance ........................................................................................... 24
Cleaning the Grill and Oven Furniture ........................................................................................... 24
Cleaning Inside the Oven and Grill Compartments ........................................................................ 25
Care of Stayclean Surfaces ........................................................................................................... 25
Hints and Tips ................................................................................................................................ 25
Cleaning the Door Glass ................................................................................................................ 25
Replacing the Oven Light Bulb .......................................................................................................26
Something not Working? ...................................................................................................................... 27
Service and Spare Parts ........................................................................................................................ 28
Guarantee Conditions ........................................................................................................................... 29
4
PREFACE
Dear Customer,
Thank you for buying a Tricity Bendix appliance. With our 80 years experience in
developing and manufacturing the very best in U.K. appliances, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix appliances comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix appliance, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made
to cooking times and temperatures, which may differ from your p revious appliance.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and leave
the appliance, always ensure that the book remains with the appliance. This will
enable the new owner to be acquainted with the functioning of the appliance and
the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
5
SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE APPLIANCE.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This appliance is heavy and care
must be taken when moving it.
Ensure that all packaging, both
inside and outside the appliance has
been removed before the appliance
is used.
Iftheapplianceistobeplacedona
base, measures must be taken to
prevent the appliance slipping from
the base.
Do not try to lift or move the
appliance by pulling the door
handles.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
After installation, please dispose of
the packaging with due regard to
safety and the environment, your
local authority can arrange this.
DURING OPERATION
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the appliance or play with the
controls.
During use the appliance becomes
Hot. Care should be taken to avoid
touching the heating elements inside
the oven.
CAUTION: Accessible parts may
be hot when the grill is in use.
Young children should be kept
away.
Take great care when heating fats
and oils, as they will ignite if they
become too hot.
This appliance has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
It is dangerous to alter or modify the
specifications of the appliance in any
way.
Do not use the appliance if the
ceramic glass is damaged. If a fault
or crack becomes visible during
cooking, disconnect the appliance
immediately from the electricity
supply and contact your local Service
Force Centre.
Do not place foil or plastic containers
on ceramic glass.
Do not allow young children to play
with any part of the packaging.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
6
Take care to follow the
recommendations given for tending
the food when grilling.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched on.
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
Ensure that all vents are left
unobstructed to ensure ventilation of
theovencavity.
Ensure the anti-tilt shelves are put in
place correctly. Refer to instructions
on page 18.
Never line any part of the appliance
with foil. Do not allow heatproof
cooking materials e.g. roasting bags,
to come into contact with oven
elements.
Always stand back from the
appliance when opening the oven
door to allow any build up of steam or
heat to release.
Never leave the appliance
unattended when the oven door is
open.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the appliance
until it has cooled.
GENERAL
Under no circumstances should
any repairs be carried out by an
inexperienced person as this may
cause injury or serious malfunction.
This appliance should be serviced by
an authorised service Engineer and
only genuine-approved spare parts
should be used. Details of repair and
servicing arrangements are supplied
on page 28 of this book.
Do not stand on the appliance or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handle. They are a safety hazard.
Always allow the cooling fan to cool
the appliance down before switching
off at the wall prior to carrying out
any cleaning or maintenance work.
AFTER USE
Do not leave the hotplates switched
ON for long periods when not
covered by a saucepan. The
controls may overheat.
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons
this appliance should be kept
clean at all times. A build-up of
fats or other foodstuffs could
result in a fire, especially in the
grill pan.
Only clean this appliance in
accordance with the instructions
given in this book.
Extreme care must be taken when
using a ceramic hob scraper.
Your safety is of paramount importance.
Therefore, if you are unsure about any of
the meanings of these WARNINGS contact
the:
Customer Care Department
Telephone 0870 5 950950
7
INTRODUCTION
WARNING: THIS APPLIANCE MUST BE EARTHED
RATING PLATE
This is situated on the front frame of the appliance
and can be seen upon opening the top cavity door.
Alternatively the rating plate may also be found on
the back or top of some models (where applicable).
The appliance must be protected by a suitably
rated fuse or circuit breaker. The rating of the
appliance is given on the rating plate.
Do not remove the rating plate from the
appliance as this may invalidate the guarantee.
INSTALLATION
If your appliance has been damaged in transit,
contact your supplier immediately. DO NOT
attempt to install it.
Your appliance left the factory fully packaged to
protect it from damage. If it is delivered without
packaging and damage has occurred, the
manufacturer cannot accept responsibility. Contact
you supplier for advice.
The cable must be routed away from potentially hot
areas marked by X in the diagram below.
REAR VIEW
To move the appliance, open the oven door, and
lift the appliance by holding inside the top of the
compartment.
Once the packaging has been removed the
appliance should only be moved by hand. DO
NOT use a sack barrow or any other aid to lift the
appliance as damage may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation in all poles. The
cable must have conductors of sufficiently high
cross-sectional area to prevent overheating and
deterioration.
Six square millimetres (6.00mm
2
)isthe
recommended cross-section area.
This is a type Y appliance which means it is freestanding and can be fitted with cabinets on one or
both sides. It may also be fitted in a corner setting.
Ensure that the appliance is standing level.
Side walls which are above hob level should be
protected by heat resistant non-combustible
material and MUST NOT be nearer than 40mm to
the hob side.
A nominal air gap of 2mm all around the appliance
is required to enable the appliance to be moved
into position.
Always ensure an air gap is maintained at hotplate
level. Tiles or other forms of deep wall covering
should not obscure this gap.
Air gap
8
Note: Vapours from the oven vents may in time
cause discolouration of wallcoverings behind the
appliance. For ease of cleaning it may be
preferable to tile behind the appliance.
Overhanging surfaces or a cooker hood should be
a minimum of 685mm above the hob.
THE COOLING FAN FOR THE
CONTROLS
The cooling fan may not switch on except when
used for a longer period of time. The cooling fan
may run on, and turn on and off after the control
knobs have been switched off, until the appliance
has cooled. Do not switch the appliance off at its
power point until the fan has cooled the appliance
down.

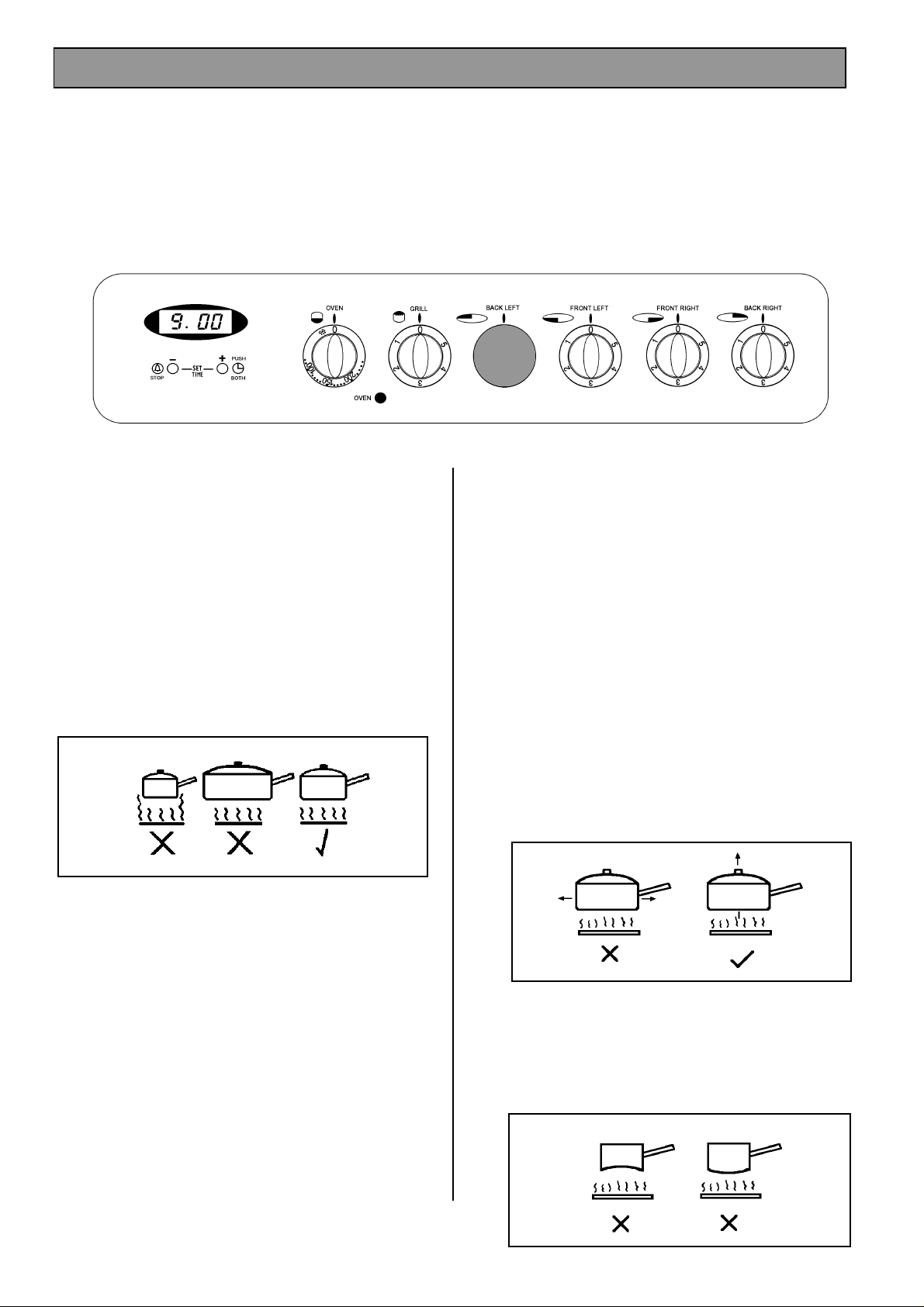

CONTROL PANEL INDICATOR NEON
The light will indicate whether the oven is switched
on, the neon also indicates when the set
temperature has been reached. The neon will turn
on and off during use to show that the temperature
is being maintained.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.
GENERAL NOTES ON USING YOUR
APPLIANCE
We suggest that you run the oven elements for 10
– 15 minutes at 220
their surfaces. The procedure should be repeated
with the grill for approximately 5 – 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for
ventilation.
o
C to burn off any residue from
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The oven is vented to allow some of
this steam to escape. However, always stand back
from the appliance when opening the oven door to
allow any build up of steam or heat to release.
COOKWARE
Baking trays, oven dishes etc., should not be
placed directly against the grid covering the fan at
the back of the oven.
Do not use baking trays larger than 30cm x 35cm
(12” x 14”) as they will restrict the circulation of
heat and may affect performance.
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is
quite normal and is not caused by a fault on the
appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety wallcoverings at the rear of the
appliance should be securely fixed to the wall.
9
GRILL AND OVEN FURNITURE
The following items of grill/oven furniture have
been supplied with the appliance. If you require
replacements of any of the items listed below,
please contact your local Service Force Centre
quoting the relevant part number.

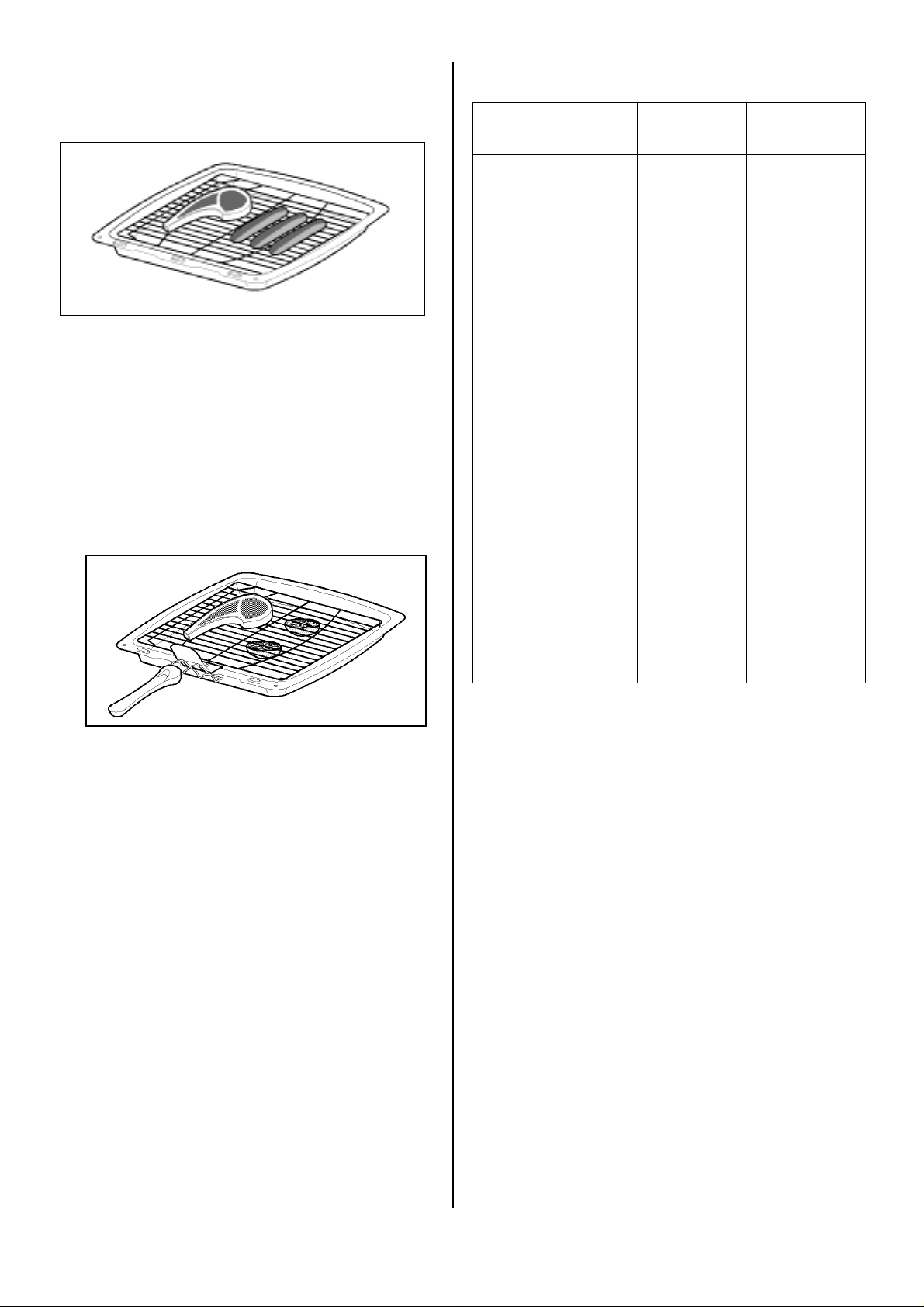

1 grill pan
(311409401)
1 grill pan handle
(311468100)
NOTE
If you require an additional handle for your grill
pan, this can be ordered from your local Service
Force Centre by quoting part number
311479800\6.
1 grill pan grid
(311419801)
1 straight shelf
for grilling
2 straight shelves
for oven cooking
10
Loading...
