Triax Mark IV Zone 1 Digidish Assembly & Instruction Manual

Model Item no.

Mark IV Zone 1 Digidish

Version 03 - 2008 EN

triax.com

BSkyB

Assembly Instructions

Parts List:

Item Description

Quantity

1 Reflector
2 Antenna

Bracket

3 Wall mount bracket

1

4 Fixing

kit

Not supplied in dish package ­LNB, feed clamp and mounting button
Coach screws and nylon plugs

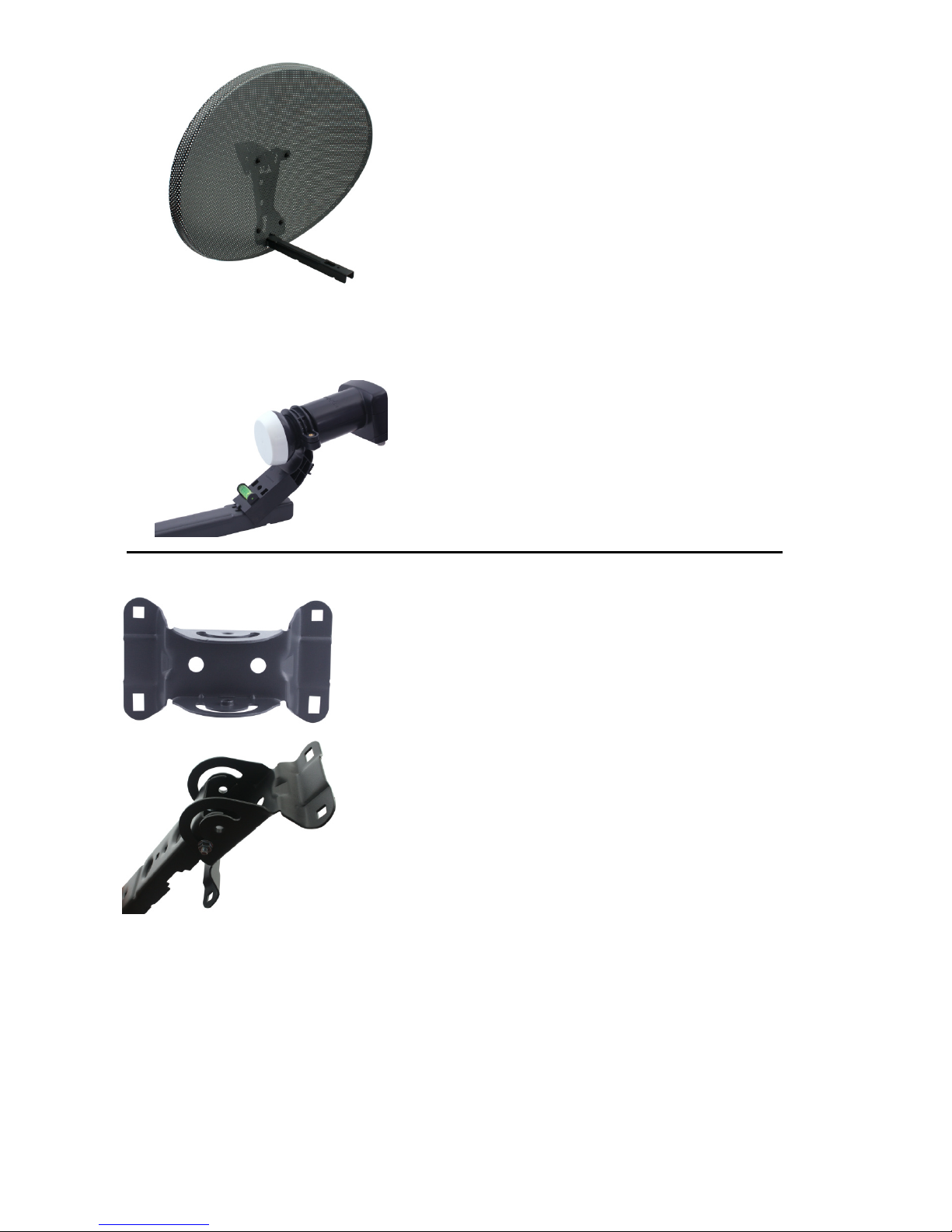

1 – Reflector

2 – Antenna bracket 3 – Wall mount bracket

ASSEMBLY INSTRUCTIONS

1. Remove the pre-assembled antenna bracket from
the packaging, pull down the feed leg until the
locking feature clicks positively into place.

2. After determining the correct side appropriate for the
installation rotate the swing arm through 90

°.

S

ecure into position by passing a second M6 x
16mm carriage nut and bolt through the rotation bracket and swing arm from whichever
side is most convenient. These bolts must be only finger tight and will be fully secured

during final alignment.

3. Fit a M6 x 16mm nut and bolt through
the elevation bracket on the most
convenient side for access and fix finger
tight.

4. Fit the Reflector to the Antenna Bracket
by passing the Feed Leg through the
cut out and secure the Reflector to the
Bracket using 4 x M4.8 Crimptite screws

1
1

1
