Triax CC2CT 800 C Assembly Instruction Manual

Download
AssemblyInstruction
CC2CT800C
Model Itemno.
CC2CT 800 C 325221
Version 14 Date 06/2016 EN
Contents
1 Safety regulations and notes ........................................................................4
2 General information ....................................................................................5
3 Assembly ....................................................................................................9
4 The control panel at a glance ..................................................................... 13
5 Programming ............................................................................................ 14
5.2
Notes on level setting ...................................................................14
Modulator on/off, Level...........................................................19
Channel / Frequency ..............................................................19
Output symbol rate, QAM modulation
Substitute signal in the case of an incorrect input signal ...............21
Kind of modulation .................................................................22
Physical Layer Pipes / Slices ....................................................23
Input channel / frequency........................................................24
- 2 - CC2CT 800 C
.......................................20
Operation with a CA module ...................................................25
Station filter – Selection ...........................................................25
Station filter on/off .................................................................26
PID monitoring .......................................................................27
CA module ............................................................................28
Economize descrambling capacity ............................................29
Transport stream ID and ORGNET-ID .........................................30
BAT/SDT-OTHER tables ...........................................................31
Deleting a PID ........................................................................31
Renaming a PID .....................................................................32
6 Final procedures ........................................................................................ 36
7 Channel and frequency tables ....................................................................37
- 3 - CC2CT 800 C

1 safety regulations and notes

• Assembly, installation and servicing should be carried out by authorised electricians.
• Switch off the operating voltage of the system before beginning with assem­bly or service work or pull out the mains plug.
• Do not perform installation and service work during thunderstorms.
• Install the system so it will not be able to vibrate…
- in a dust-free, dry environment
- in such a manner that it is protected from moisture, fumes, splashing wa-
ter and dampness
- somewhere protected from direct sunlight
- not within the immediate vicinity of heat sources
- in an ambient temperature of 0 °C to +50 °C. In case of the formation of
condensation wait until the system is completely dried.
• Ensure that the head-end station is adequately ventilated. Do not cover the ventilation slots.
• Beware of short circuits
• No liability is accepted for any damage caused by faulty connections or inappropriate handling.
• Observe the relevant standards, regulations and guidelines on the installa­tion and operation of antenna systems.
• The standards EN/DIN EN 50083 resp. IEC/EN/DIN EN 60728 must be observed.
• For further information please read the assembly instructions for the head­end station used.
• Test the software versions of the head-end station and the cassette and update them if necessary. The current software versions can be found at "www.triax.com".
Take action to prevent static discharge when working on the device!
Electronic devices should never be disposed of in the household rubbish. In
accordance with directive 2002/96/EC of the European Parliament and the European Council from January 27, 2003 which addresses old electronic and electrical devices, such devices must be disposed of at a designated collection facility. At the end of its service life, please take your device to one of these public collection facilities for proper disposal.
- 4 - CC2CT 800 C

2 general information

2.1 PaCk ing Co ntents

1 Cassette CC2CT 800 C 2 RF cables 1 CD (assembly instructions) 1 Brief assembly instructions

2.2 meani ng of t h e sym b ols us e d

Important note —> General note
• Performing works

2.3 teChniCal da ta

The devices meet the following EU directives: 2011/65/EU, 2014/30/EU, 2014/35/EU The product fulfils the guidelines and standards for CE labelling.
Unless otherwise noted all values are specified as "typical".
RF input
Frequency range: ........................................................... 42 … 862 MHz
Channel range: ........................C 05 …C 12, S 21 … S 41, C 21 … C 69
Input level: .............................................................. 60 dBμV … 80 dBμV
Input impedance: ............................................................................ 75 Ω
RF output
Frequency range: ................................................... 42 MHz … 868 MHz
Channels: ............................................................................ S21 … C69
Output level: ....................................................................90…100 dBμV
Output impedance: ......................................................................... 75 Ω
Connections:
RF inputs: .............................................................................. 2 F sockets
RF output: ........................................................................... 1 IEC socket
Connection strip (10-pin): ..................for supply voltages and control circuits
RS-232 socket: ..................................... serial interface for software update
Common Interface: ......................2 (several channels can be descrambled).
- 5 - CC2CT 800 C
Remote maintenance
Remotely controllable (via
CCRS 1000
*): ...............................................yes
Remote update (via BEflash*): ............................................................. yes
(* and a corresponding management unit)

2.4 des CriPtion

The twin transmodulator cassette is a converter, which converts signals modu-
lated according to DVB-C/C2/T/T2 for feeding into a cable network.
standard into two QAM modulated signals
The
cassette
has two digital RF inputs and one
RF output.
Two common interfaces are present to descramble scrambled channels.

bloCk d iagram

Tuner "A"IN "A"
IN "B"
Tuner "B"
CA-Modul
CA module
CA-Modul
CA module
TPS
TPS
Modulator
"A"
Modulator
"B"
Combiner
RF OUT

ge n e r al

The cassette is equipped with two channel strips ("A" and "B").
Using ad­equate CA modules scrambled channels can be descrambled via tuner "A" and "B".
LEDs provide an indication of the input signal quality based on their colour
and indicate if the respective channel strip is switched on (LED illuminates) or off.
LED
indicator
Green Signal quality is good
Orange Signal quality is poor
Red No signal
Red<–
>Green
Off Channel strip (modulator) off
Indication
Data rate overflow (output)
The integrated TPS module (Transport Stream Processing) processes the data
of the transport streams.
- 6 - CC2CT 800 C
By default the station filter is switched off. This may result in data overflows at
the output if you take the cassette in operation without corresponding settings. Customize the station filters accordingly!
Channel as well as frequency setting is possible for modulators. The QAM modulated RF output signals are sent through the RF output of the
cassette to the output collector. The common output level of the channel strips can be set at the output collector.
The control of the cassette takes place via the control unit of the head-end station. When the head-end station is switched on, the two-line LC display shows the
software version of the control unit. To operate this cassette the software ver­sion of the control unit must be "V 45" or higher. You can find the current op­erating software for the control unit and the cassette, the software "BE-Flash" and the current assembly instructions on the website "www.triax.com".
The cassette is intended for use in CSE 3300 head-end systems.
When using these cassettes in Stations with more than eight slots, a maximum
of 8 cassettes may be operated, to prevent overloading the power supply and overheating the head-end station.
All other slots must remain free!

2.5 soft ware q u ery

Control unit
If necessary, you can activate the indication of the software version of the
control unit manually:
• Press any two keys on the control unit of the head-end station simultaneously until the display goes dark and the software version, e.g. "V 45" appears.
Cassette
The software version of the cassette is shown in the display after activating the
cassette (see page 18).
- 7 - CC2CT 800 C

2.6 how the tPs mod ule wo r ks

After decoding the input signals, the demodulated data streams can be ac-
cessed via the integrated TPS module. These data streams, also called trans­port streams, contain several stations in all their components (video, audio, data and service information), which can be changed using the TPS module.

station f i lte r

Individual stations can be deleted. This reduces the data rate and, conse-
quently, the output symbol rate.

Ch anging t h e tr a nsPort stream a n d orgnet-id

The transport stream ID can be changed. If the stations of a transponder are
split into the transport streams of different channel strips, a new identification must be allocated to the "new" transport streams to realise the channel search of the settop boxes connected without mistakes.
If the ORGNET-ID is changed a new NIT must be generated.

Ch anging t h e nit

The transport stream contains data in the form of tables which the receiv-
ers evaluate and require for convenient use. The TPS module can adjust the "Network Information Table" (NIT) to accommodate the new station data. The "NIT" contains data which is required by the set-top boxes connected to the cable network for the automatic search feature.
- 8 - CC2CT 800 C

3 assembly

3.1 installi ng the C assette

– Ensure the head-end station is mounted so it will not be able to vibrate.
Avoid, for example, mounting the head-end station onto a lift shaft or any other wall or floor construction that vibrates in a similar way.
– Before installing or changing a cassette unplug the power cable from the
mains power socket.
When using these cassettes in Stations with more than eight slots, a maximum
of 8 cassettes may be operated, to prevent overloading the power supply and overheating the head-end station.
All other slots must remain free!
• Remove the fastening screws 1 of an unoccupied slot from the bracket of the head-end station.
• Insert the cassette in this slot and push it into the housing.
• Align the cassette and apply slight pressure to connect it to the connections of the board and the RF bus bar.
• Fasten the cassette with the screws 1.
1
1
- 9 - CC2CT 800 C

3.2 emC regulations

To comply with the current EMC regulations, it is necessary to connect the lines
leading in and out of the head-end station using cable terminals.
When mounting the cassette in a head-end station which is installed in a 19"
cabinet, make sure the connections leading in and out for the 19" cabinet are made using cable terminals.
The attenuation of shielding of the connection lines for ASI and antenna must
KLASSE
CLASS
meet the requirements for "Class A".
• Insert the required number of cable terminals in the openings provided in the head-end station or in the 19" cabinet.
Tighten the nuts on the cable terminals until the teeth on the lock washer have penetrated the exterior coating and a good connection is made between the hous­ing and cable terminals.
- 10 - CC2CT 800 C

3.3 Cas sette overv iew

1 Slot for CA module of "tuner A" 2 Slot for CA module of "tuner B" 3 D-SUB socket "RS 232"
1
4 Input "A" 5 Status LED of channel strip "A"
2
6 no function 7 no function 8 Status LED of channel strip "B" 9
3
Input "B"
4 5 6 7 8
The operating software of the cassette can be updated via the
9
9-pin D-SUB socket "RS 232" using a PC or notebook and the
software "BE-Flash". You can find the current operating software
on the website
"www.triax.com".

3.4 Con neCting the C a ssette

•
•
- 11 - CC2CT 800 C
Connect "
Connect the head-end station to the mains power supply.
input A
—> Avoid wide differences in level at the inputs!
" 4 and "
input B
" 9 to corresponding signal sources.

3.5 retr o fitting a Ca module

The cassette is equipped with two common interfaces. This allows you to con-
nect two CA modules for various scrambling systems and service providers. Scrambled channels can only be descrambled with a CA module suitable for the scrambling system and the corresponding smart card. The smart card con­tains all the information for authorisation, descrambling and subscription.
Caution
– Check with the distributor or manufacturer of the CA modules to be used
to ensure that they are suitable for descrambling several channels.
– The hardware and software of this cassette have been thoroughly prepared
and tested.
– Any changes made by programme provider to the structures in the pro-
gramme data might impair or even prevent this function.
– When working with the CA modules, please read the corresponding oper-
ating manuals from the respective providers.
• Insert the smart cards into the CA modules so that the chip 3 on the smart
card 1 faces the thicker side (top) of the CA module 2.
• Insert the CA modules into the slots 4 with the top sides of the CA modules
in left direction.
• Push the CA modules without canting into the guide rails of the CA slots 4
and contact them to the common interfaces.
34 12
—> If the cassette is inserted in the head-end station, the left common
interface is assigned to tuner A, the right one to tuner B.
- 12 - CC2CT 800 C

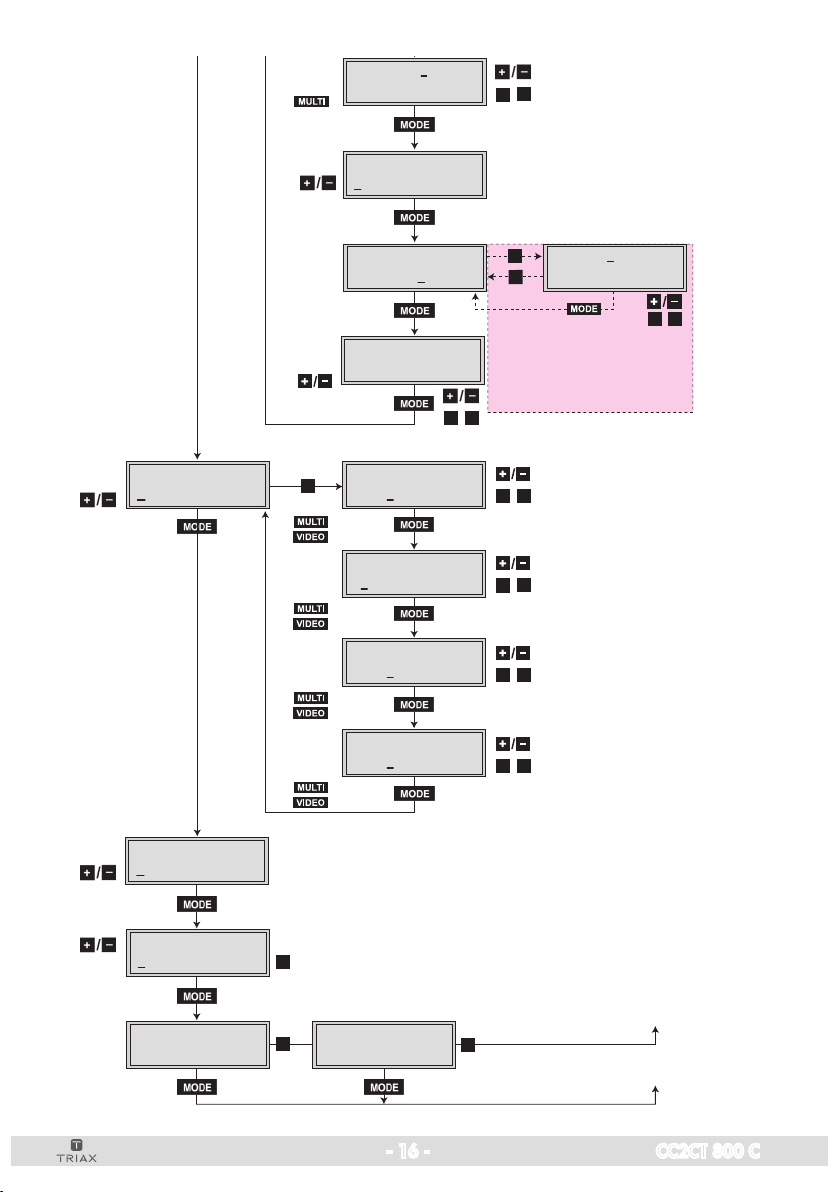

4 the Control Panel at a glanCe

4.1 menu i tems

Programme the
cassette
using the buttons on the control unit of the head-end
station. The two-line display of the control unit then shows the menus. The parameters and functions to be set are underlined. Use the key to select the following main menu items: – Output signal settings: Modulator on/off, level Output channel / Output frequency QAM modulation Substitute signal
BE-Re mote V 45 please wai t . . .
– Input signal settings: Kind of modulation Physical Layer Pipes / Slices Input channel / frequency Station filter CA module Economize descrambling capacity – Options: Transport stream and ORGNET-ID BAT, STD-other Deleting a PID Renaming a PID – Data rate – Network Information Table (NIT) – Factory reset

4.2 Con trol Pane l

The key pad on the head-end station is used to scroll through the menus step-
by-step:
scrolls forward through the menus.
select parameters in the menus.
set values, initiate actions.
selects sub-menus.
scrolls backward through the menus.
saves all entries.
- 13 - CC2CT 800 C

5 Programming

5.1 Pre Par atio n

• Test the software versions of the head-end station and the cassette and up-
date them if necessary.
The current software versions can be found on the website "www.triax.com".
• Connect the test receiver to the RF output or the test output of the head-end
station.
• Set the output channel / output frequency of the
the TV test receiver to this channel / frequency.
•
• Balance the output levels of the channel strips "A" and "B" if the difference
5.2
In order to prevent interference within the head-end station and the cable sys-
Switch on the channel strip (modulator) if necessary ( nel strip, there is a status LED which indicates if the channel strip is switched on
(5, 8 page 11)
in level is ≥ 1 dB (page 19).

not e s on l e vel se tting

tem, the output level of the cassette must be decreased by 10dB compared to
an analogous level at 64 QAM, and by 4 dB compared to analogue cassettes
at 256 QAM.
.
cassette
page
(page 19) and adjust
19). For each chan-
• Measure the output levels of the other cassettes and tune them to a uniform
output level using the appropriate level controls or software dependent on the head-end station used. Please regard the assembly instructions of the respective head-end station.
—> Avoid wide differences in level at the inputs!
- 14 - CC2CT 800 C

5.3 Progr am ming Pr o Cedure

Box 1
..... ..... ....
.... ..... .....
.... ..... .....
Bx 1A
C5-12 ,S3-2 4
TWIN- SAT
C07
Böx 4
C5-12 ,S3-2 4
TWIN- SAT
C07
Box 5
..... ..... ....
.... ..... .....
.... ..... .....
Ein / On
Modulator A / B
BE–Re mote
pleas e wai t …
t > 10 s
+
Box 4
DVB-T 2/C2
V 14
Bx 4
Mod A
V 45
QAM – – –
OUTPU T
C66 = >
Bedienhinweise "blättert" Menüs vorwärts. "blättert" Menüs rückwärts. wählen die Eingabeposition wählt Untermenü stellen Werte ein,. speichert alle Eingaben.
1 zeigt die Eingabeposition
▶
Bx 4A
on
Mod A…B Mod B…A
Bx 4A
C66
Mod A…B Mod B…A
Bx 4A !
6900 QAM 2 56
Mod A…B Mod B…A
Tables
Mod A…B Mod B…A
LEVEL
- 3 d B
FREQ
834.0 0 MHz
QAM–M ODE
POS
FAILUREBx 4A
Operating Hints scrolls forward through the menu. scrolls backward through the menu. select the enter position. selects a submenu. set values and triggers actions. saves all entries.
1 shows the enter position
A
Page 16
B
on / off
◀
▶
0 … -20 dB
/
◀
▶
/
1000…7500
◀
▶
/
4 … 256 POS/ NEG
Tables / Single Carrier
Bx 4
Tuner A
Tuner A / B
- 15 - CC2CT 800 C
INPUT
OK =>
▶
Bx 4A
T 8 MHZ
Bx 4A
Bx 4A
Bx 4A
C55 7 46.00
PLP/SLICE
MODE
OK
PLP
0 0
FREQ
OK
QAM, COFDM 6…8MHz T/T2 5…8MHz
◀
▶
/
C/C2 6/8MHz
nur bei MODE T2
only if MODE is T2
0
nur bei MODE C2
only if MODE is C2
◀
▶
/
◀
▶
/
Box 1
..... ..... ....
.... ..... .....
.... ..... .....
Bx 1A
C5-12 ,S3-2 4
TWIN- SAT
C07
Böx 4
C5-12 ,S3-2 4
TWIN- SAT
C07
Box 5
..... ..... ....
.... ..... .....
.... ..... .....
FREQ
OK
Bx 4A
C55 7 46.00
▶
◀
/
▶
◀
/
A / B
Bx 4
A
OPTIO NS
=>
arte
alle + / alle –
all + / all –
off
on / off
PID C heck on
Bx 4A
PID 1 :
PID 1…9
Bx 4A
▶
0x000 1,010 0
A…B B…A
Bx 4A
bat
A…B B…A
Bx 4A
0x000 0
A…B B…A
Bx 4A
0x000 0–>00 00
A…B B…A
SKIP CA
BAT/SDT
sdt–o ther
01/04Bx 4A TV +
FILTERBx 4A
0x000 0
◀
TS/ON ID
DROP
REMAP
+ aktiviert/activated – deaktiviert/deactivated
◀
▶
/
X entschlüsseln/descramble
▶
Bx 4A 01/0 5
Infor matio n *)
▶
nur mit CA-Modul/
only with CA module
*) Die angezeigte Information ist abhängig vom verwendeten CA-Modul.
The information displayed is dependent on the CA module used.
0x0000 … 0xFFFF
◀
▶
/
on / off
bat / BAT
◀
▶
/
sdt–o ther / SDT –OTHER
◀
▶
/
off / on
◀
▶
/
off / on
CA
/
off
=>
▶
off
off
MENUBx 4A
◀
▶
/
Bx 4A
A / B
on / off
A ! ! !
Bx 4A
off
DATARATE
36/51 Mb
=> Make
NIT
aktue ll/ma x.
curre nt/ma x.
!!! O verfl ow
▶
Make
Page 15
Bx 4
Defau lts
- 16 - CC2CT 800 C
FACTORY
=>
▶
Bx 4
STORE
FACTORY
=> M
auf Werkseinstellung zurücksetzen und speichern
M
reset to factory defaults and store
A
B

5.4 Pro g r a m m i n g the Cass et te

—> Pressing the button for longer than 2 seconds cancels the
programming procedure. This takes you back to the programme item "Selecting the cassette" from any menu. Any entries that have not been saved are reset to the previous settings.
—> Entries in the menus can be saved by pressing the key. You are
taken back to the "Selecting the cassette" menu item.
—> The cursor position for settings is shown by "_". —> Dependent on the settings not needed menus are hidden.
• Switch on the head-end station
—> The display shows the software version (e.g. V 45). —> The processor reads the
onds).
cassettes
‘ data (approximately 10 sec-
Ein / On
• Press the button.
—>
The "Selecting the cassette" – "Box x …" menu is activated.
BE–Remote
please wait …
t > 10 s
V 45
- 17 - CC2CT 800 C

se l eCtin g the C a ssette

Box 1
..............
..............
..............
Bx 1A
C5-12,S3-24
TWIN-SAT
C07
Böx 4
C5-12,S3-24
TWIN-SAT
C07
Box 5
..............
..............
..............
+
• Select the
Box 4
V 14
cassette
DVB-T2/C2
QAM – – –
you want to programme (e.g. Box 4) by repeatedly press-
ing the button if necessary.
—> The display shows e.g. the menu :
V14 QAM
"Box 4" stands for "
DVB-T2/C2 QAM
" Type of cassette
"V 14" Software version of the cassette
Box 4 DVB-T2/C2
slot
4
• Press the button.
—>
The "Output settings" – "OUTPUT" main menu is activated.

out Put s e t tings

In this menu you select the modulator for which you would like to do the output
settings in the related submenus.
Bx 4
Mod A
OUTP UT
C66 =>
—> In order to skip the "Output settings", press button
.
—> For example an indicated "C66" shows the current channel set. If
"C – –" is displayed a frequency which does not correspond to the DVB-T channel-/frequency grid was set.
—> It is possible to rotate through the submenus of the modulators using
the buttons and .
• Using buttons select the desired modulator.
•
- 18 - CC2CT 800 C
Press the
button.
—> The "Modulator on/off, Level"
– "LEVEL" submenu is activated.
mo d u l ato r on/off, le v el
This menu item is used to set the output levels of the four modulators to the
same value and to switch the modulators on or off.
Bx 4A/B
on
LEVEL
– 3 dB
• Measure and note down the output level of each modulator.
—> To adjust the output levels to the output levels of the other cassettes
please pay attention to chapter "Final procedures" (page 36).
•
Using the buttons (ascending) or (descending)
activate the
"LEVEL" menu of all the modulators with higher output levels.
• By pressi
ng adjust the higher output levels to the output level of the
modulator with the lowest output level incrementally.
• Use the button to place the cursor under "on" resp. "off".
•
Use the buttons to switch each modulator on or off.
• Press the button.
—> The "Channel / Frequency" – "FREQ" submenu is activated.
Ch annel / fre quenCy
In this menu you adjust the output channel (only at modulator A + C) or the
output frequency of the respective modulator.
—> The QAM signal is normally transmitted with a bandwidth of 8 MHz.
This means that you can only use the channel centre frequency of the existing channel grid in the range of channels C21…C69 (fre­quency grid 8 MHz). The CCIR channel grid is 7 MHz in the range of the lower frequency bands (channels C5 … C12). If 8 MHz QAM signal packages are transmitted in these channel ranges, this will result in interference (overlapping) and transmission problems.
For programming in these channel ranges and in the frequency rang-
es below them, we recommend starting with frequency 306 MHz going back in steps of 8 MHz (see frequency table on page 37). Please note thereby that many receivers cannot receive the channel ranges S21…S41 (306 … 466 MHz).
- 19 - CC2CT 800 C
Channel setting:
Bx 4A/B
C66
FREQ
834.00 MHz
• Use buttons to select the cursor position for channel setting.
• Use buttons to adjust the desired channel.
Frequency setting (42,0 MHz … 860,0 MHz):
Bx 4A/B
C66
FREQ
834.00 MHz
• Use buttons to select the cursor position for frequency setting.
• Use buttons to adjust the desired frequency.
• Press the button.
—> The "Output symbol rate, QAM modulation" – "QAM-MODE" sub-
menu is activated.
ou tPut s ymbo l rat e, qa m m odulat i o n
In this menu you can set the output symbole rate, the QAM modulation and invert
the user signal.
Bx 4 A !
6900 QAM 256
QAM– MODE
POS
Output symbole rate: In this menu item you can set the output symbole rate.
•
Use the buttons to place the cursor under the number to be changed of e.g. "6900" and set the symbol rate with the buttons .
—> A displayed "!" indicates an output data overflow (page 33).
In this case increase the output symbol rate or the QAM modulation
or remove stations from the data stream using the station filter.
- 20 - CC2CT 800 C
Bx 4 A ! QAM–MODE
QAM-Modulation: In this menu item you can set the QAM modulation.
—>
For higher QAM modulation, the output symbol rate is lowered. An output QAM modulation of > 64QAM places a large burden on the cable network. Due to noise, delay and frequency response prob­lems, reception of the converted output signal can be affected.
• Use the buttons to place the cursor under "QAM…
•
Bx 4 A !
6900 QAM 256
Use to set the QAM modulation ("4" … "256").
QAM– MODE
POS
".
Inverting the user signal:
For exceptional cases and "older" digital cable receivers, the spectral position
of the user signal can be inverted "NEG"
• Use to place the cursor under "POS
Bx 4 A !
6900 QAM 256
QAM– MODE
. Factory default is
".
POS
"POS".
• Use to set the spectral position to "NEG".
• Press the button.
—> The "Substitute signal in the case of an incorrect input signal" –
"FAILURE" submenu is activated.
su bstit ute s ignal i n the Case o f an i nCorre C t inPu t sign al
You use this menu to set whether a "Single Carrier" signal should be provid-
ed or the self-made tables
"Tables" should
transmitted furthermore whenever
an incorrect input signal occurs.
FAILUREBx 4A/B
Tables
- 21 - CC2CT 800 C
• Use the buttons to set the required output signal.
• Press the button.
—> Returning to "Output settings" main menu (page 18). —> If necessary set a further modulator.
• Press the button.
—> The "Input parameter" – "
INPUT
" main menu is activated.

in Put Parameter

In this menu you select the tuner for which you would like to do the input pa-
rameter in the related submenus.
•
•
Bx 4
Tuner A
—> In order to skip the "Input parameter settings", press button —> "OK" indicates a present input signal.
Using the buttons select the desired tuner.
Press button
.
—> The "Kind of modulation" – "
INPU T
OK = >
MODE
" submenu is activated.
ki n d of m o d u l ati on
.
In this menu set the kind of modulation and the symbol rate (only QAM) of the
input signal.
Bx 4A/B
T 8 MHZ
MODE
OK
• Select the kind of modulation of the transponder (T 6/7/8 MHz, T2
5/6/7/8 MHz, C2 6/8 MHz, C) using buttons .
- 22 - CC2CT 800 C
• Press the button.
If T/C is selected: —> The "Input channel / frequency" – "FREQ" submenu is activated
(page
24). If T2/C2 is selected: —> The "Physical Layer Pipes" – "PLP" submenu is activated
Ph ysiC al lay er Pi Pes / sliCes
—> This menu is only displayed if you have selected "T2" or "C2" for
the kind of modulation.
In this menu, you enter the parameter(s) PLP (DVB-T2) or PLP and SLICE (for
DVB-C2), which are required for the selection of the data stream.
DVB-T2 DVB-C2
Bx 4A
—> For the reception of DVB-T2 / C2 transponders operating in
"Mode B" (Multiple Input Streams), the needed to select a data stream. If the data streams of a DVB-C2 transponder are also bundled into slices, additionally you need the Slice ID to select a data stream.
—> If you can not receive the desired data stream with the default IDs
"0" (e.g. also used at "Mode A" – Single Input Stream), ask your service provider for the corresponding IDs!
PLP
0
Bx 4A
PLP/SLICE
0 0
Physical Layer Pipe ID
is
• Use buttons to position the cursor under the digit of the parameters to be set.
•
Press buttons to set the desired parameter.
• Press the button.
—> The "Input channel / frequency" – "FREQ" submenu is activated.
- 23 - CC2CT 800 C
in Put C hannel / frequ enCy
In this menu you set the input channel / input frequency of the transponder you
would like to receive.
Bx 4A/B
C55 746.00
FREQ
OK
• Use buttons to position the cursor under the digit of the frequency resp. channel displayed to be set.
•
Press buttons to set the desired channel/frequency.
—> Once the RF receiver has synchronised to the input signal, "OK" is
displayed.
—> If "– –" appears in the second line of the display, there is no input
signal present. Check the configuration of the antenna system and the head-end station as well as the preceding settings of the module.
—>
The quality of the received transport stream is indicated by a status
LED
:
LED indicator Indication
Green Signal quality is good
Yellow
Red No signal
Blinking
red/green
Off The channel strip (modulator) is switched off
Signal quality is insufficient
Data overflow of the output data rate
• Press the button.
—>
The "Station filter – Selection" – e.g. "01/04" submenu is activated.
- 24 - CC2CT 800 C
oPer ation with a Ca module
In order to descramble scrambled channels a corresponding smart card is
needed.
The channels to be descrambled are set in submenu "station filter".
station f i lte r – sel eCtio n
In this menu stations (services) of a transponder can be switched off. Herein you select which scrambled station should be descrambled using an
adequate CA module.
01/04Bx 4A/B TV +
arte
—> All stations from the channel strip will be read, and then displayed
with name and station type.
—> If no station is found, the following error message will appear in the
display: "FILTER no Service".
In this case, check the configuration of the antenna system and
head-end station, as well as the previously adjusted settings for the cassette.
—> The display shows e.g.:
arte
Bx 4A TV + 01/04
Meaning of the indicators in the example:
"Bx 4A" Slot 4, channel strip "A" "TV" TV channel type " + " "
01/04" The 1st of 4 stations is being displayed.
"
arte
" Station name
Further possible terms displayed:
"RA" Radio channel type For radio stations, the back
" – " " * " The star means that the TV or radio station selected is
- 25 - CC2CT 800 C
The currently
connected TV or test receiver is darkened. The currently selected station is
encoded. To enable the stations, the CA module and the appropriate smart card of the station provider are required.
selected
station is switched on.
ground of the screen of the
switched off.
—> If a service number (e.g. "131") appears instead of "TV" or "RA",
this indicates that an unnamed station or an undefined data stream is being received.
• Use the
to activate (indicated by " + ") or to deactivate them (indicated by
buttons to call up the stations in sequential order, then use
" – ").
—> Using button all station can be activated/deactivated. —> If a station is scrambled (indication "*"), in this menu you select
whether it should be descrambled using an adequate CA module.
• Press button twice to descramble a station (indication "X").
01/04Bx 4A/B TV * X
• Press the button.
—> The "Station filter on/off" – "FILTER" submenu is activated.
station f i lte r on/o ff
Herein you can switch on resp. off the station filter. This influences the behav-
iour of the cassette when changing the station assignment of the input signals.
FILTERBx 4A/B
off
– Filter on: Only stations which are selected (+) in menu Station filter – Selec-
tion will be passed. New stations will be blocked until they will be activated
in the Station filter – Selection menu (+).
– Filter off: All stations will be passed – also "new" stations – this may cause
data overflow at the output!
—> The menus Station filter on/off and Station filter – Selection influ-
ence each other:
If a station will be deactivated (–) in the Station filter – Selection
menu, the station filter is activated (on).
- 26 - CC2CT 800 C
If the station filter will be switched off in menu Station filter on/off,
all deactivated stations are activated in the Station filter – Selection menu (+).
• Use the buttons to switch "on" or "off" the station filter.
• Press the button.
—> The "PID monitoring" – "CA" sub
menu is activated
.
Pid mo nitori ng
In this menu you can switch off the PID monitoring and call up a menu for the
settings of the CA module (dependent on the CA module).
Bx 4A/B
PID Check onCA=>
PID monitoring:
—> The factory default of the PID monitoring is switched on. If particular PIDs are not descrambled the CA module is reset. Ad-
ditionally dropouts may occur if several stations are decrypted. To prevent this the PID monitoring can be switched off.
• Use the buttons to switch "off" or "on" the PID monitoring.
Menu of the CA module:
• Use the button to activate the menu of the CA module.
—> Access to this menu is only possible with installed CA module and
inserted smart card.
- 27 - CC2CT 800 C
Ca modul e
The menu varies according to which CA module you are using. For this rea-
son, please refer to the operating manual of your particular CA module. The relevant information is shown in the display of the head-end station. This may appear as a fixed display or as scrolling text according to display capabilities.
Bx 4A/B
PID Check onCA=>
—> The display shows e.g.: Bx 4A 01/05 MENU Meaning of the indicators:
"Bx 4A" Slot 4, channel strip "A" "
01/05
" The first of five menu items is activated.
"
MENU
" The menu of the CA module is activated.
▶
▶
Bx 4A/B 01/05
Information *)
MENU
For the explanation of further details please use the operating instructions of
the CA module used.
• Use the buttons to activate the menu desired.
• Press the button to activate the menu.
• Use the buttons to select the function desired.
• To set the CA module use the and buttons.
—> By pressing the button you can cancel the settings in the
menu of the CA module and are returned to the "PID monitoring" – "CA PID-Check" menu.
• All settings are saved by pressing the button.
—> You will be returned to the "PID monitoring" – "CA PID-Check" menu.
• Press the button.
—> The "Economize descrambling capacity" – "SKIP CA" is activated.
- 28 - CC2CT 800 C
eConomiz e desC ra m b ling C aPa City
In this menu up to 9 not needed PIDs (e.g. audio PIDs of foreign language
versions) can be excluded from the descrambling in order to economize de­scrambling capacity.
Bx 4A/B
PID 1:
SKIP CA
0x0000
• Using buttons select the desired memory location
(PID 1…9) .
• Use to position the cursor under the digit of PID to be set.
•
Press to set the respective digit of the PID needed.
• Repeat the procedure by the quantity of the digits to be set.
—> If required select another memory location and enter the next PID
which shall not descrambled.
—> To delete a stored PID, overwrite it by "0000".
• Press the button.
—> Returning to "Input parameter" —> If required set further channel strips.
- "INPUT"
main menu (page 22).
• Press the button.
—> The "Option settings" – "OPTIONS" main
menu is activated
.
- 29 - CC2CT 800 C
oP t i ons
In this menu you select the channel strip for which you would like to do the
option settings in the related submenus.
Bx 4
A
—> In order to skip the "Option settings", press button —> It is possible to rotate through the channel strips within the submenus
using the buttons and .

OPTI ONS

=>
.
• Using the buttons select the desired channel strip.
•
Press button
—> The "Transport stream ID and ORGNET-ID" – "TS/ONID" menu is
.
activated.
transP ort s tream id and orgnet-id
If the stations of a transponder are split into the transport streams of several
channel strips, a new identification must be allocated to the further transport streams to realise the channel search of the settop boxes connected without mistakes.
If the ORGNET-ID is changed also a new NIT must be generated (page 33).
Bx 4A/B
0x0001,0100
TS/ONID
off
• Use the buttons to position the cursor under the digit of the hexadeci­mal number to be set.
•
Press to set the respective digit of the hexadecimal number.
• Repeat the procedure by the quantity of the digits to be set.
• Using the button place the cursor under "off" and switch "on" the trans­mitter identification using the buttons.
—>
By pressing the setting
.
- 30 - CC2CT 800 C
button you return to the hexadecimal number
• Press the button.
—> The "BAT/SDT-OTHER tables" – "BAT/SDT" submenu is activated.
bat/sdt-other ta bles
In this menu you can switch on resp. off the BAT- and SDT-OTHER tables.
—> BAT = Bouquet Association Table: Information in the data stream about the affiliation of station packets
to a specific bouquet. —> SDT-OTHER = Service Description Table – OTHER data streams: Information in the data stream about service parameter of other data
streams.
Bx 4A/B
bat
BAT/SDT
sdt–other
• Using the button place the cursor under "bat" and switch "on" ("BAT") or "off" ("bat") the bouquet association table using the buttons.
• Using the button place the cursor under "sdt-other" and switch "on" ("SDT-OTHER") or "off" ("sdt-other") the service description table using the
buttons.
—> Capital letters: Function activated Lower case letters: Function deactivated (factory default)
• Press the button.
—> The "Deleting a PID" – "DROP" submenu is activated.
de l eting a Pid
In this menu a PID of the transport stream can be deleted.
Bx 4A/B
0x0000
DROP
off
• Use the buttons to place the cursor under the respective digit of the
- 31 - CC2CT 800 C
hexadecimal number of the PID to be deleted ("0x0000") and set the hexa­decimal number using .
• Use the
button to set the cursor under "
off
" and
delete the PID
using the
buttons ("on").
• Press the button.
—> The "Renaming a PID" – "REMAP" submenu is activated (page 32).
re n a ming a Pid
In this menu you can allocate a new address to a PID retaining the complete
data content.
Bx 4A/B
0x0000–>0000
REMAP
off
• Use the buttons to place the cursor under the respective digit of the hexadecimal number of the PID to be changed ("0x0000") and set the hexadecimal number using .
• Use the buttons to place the cursor under the respective digit of the hexadecimal number of the new PID ("–> 0000").
• Set the hexadecimal number using .
• Use the button to set the cursor to "off" and rename the PID using the
buttons ("on").
• Press the button.
—> Returning to "Option settings" main menu (page 30). —> If necessary set further channel strips.
• Press the button.
—> The "Output data rate" – "DATARATE" main
menu is activated
.
- 32 - CC2CT 800 C

ou tPut data rate

This menu shows the output data rate defined using the QAM settings and the
current output data rate.
Bx 4
A ! ! !
DATARATE
36/51 Mb
36: The current measured gross output data rate. 51: Maximum gross output data rate If the station filter is set correctly, current data rate is lower than the maximum
data rate. The value fluctuates, since the data rates of individual stations are dynamically modified by the broadcasters.
—> Is the current data rate higher than the maximum data rate exclama-
tion marks "!!!" appear in the display. In this case correct the QAM settings (pages 20 …) or the settings of the station filter (page 25).
Bx 4
A ! ! !
DATARATE
53/51 Mb
• Press the button.
—> The "Network Information Table" – "NIT" main menu is activated.

ne t work in f ormat ion table (nit)

Bx 4
off
NIT
=> Make
• To switch NIT on/off ("on"/"off") press the buttons.
• Press the button to activate NIT ("Make").
All active cassettes which are able to output a NIT ("NIT cassettes") must be
set and ready for reception.
- 33 - CC2CT 800 C
—> The NIT of all "NIT cassettes" are switched on. —> The cassette fetches all the information (output frequencies, output
data rates, etc.) it needs from all the "NIT cassettes" in order to generate the NIT. This process may take a few seconds.
Then the NIT is generated, added and sent to all "NIT cassettes".
The other "NIT cassettes" also add this new NIT. The status of all "NIT cassettes" in the NIT menu changes to "on".
The display shows: "read … / copy …".
• To switch off the new NIT
—>
The NITs of the other "NIT c
the NIT of the cassette is
button, the previously generated NIT is added again. If you have changed parameters in the meantime, you must first select " to generate a new, up-to-date NIT.
• Press the button.
—> The "Factory reset" – "FACTORY Defaults" menu is activated.
("off")
press the
button.
assettes"
switched on again ("on") by pressing the
will
stay switched on. When
Make
"
- 34 - CC2CT 800 C

faC tory reset

In this menu you can reset all settings to the factory defaults.
Bx 4
Defa ults
FACTORY
• Press the button.
—> The factory defaults are invoked ("FACTORY STORE") —> By pressing the button, you will be returned to the menu
item "Output settings" without
• Press the button.
—> The factory defaults are saved The display shows "STORE" —> Back to "Selecting the cassette" (page 18).
—> By pressing the button, you will be returned to the menu
item "Output settings" without
—> If necessary set another channel strip.

sav ing se ttings

=>
▶
Bx 4
STORE
FACTORY
=> M
invoking the factory defaults
.
saving the factory defaults
M
.
(page 18).
(page 18).
• Press the button.
—> Returning to "Selecting the cassette" menu (page 18). —> The settings are saved. —> If functions of the TPS module are activated, their status is shown in
the second line of the menu:
"M" – Station filter is switched on. "N" – NIT is activated. —> If necessary set another channel strip.
- 35 - CC2CT 800 C

6 fi n a l ProCedures

After installing the head-end station, upgrading accessories or installing cas-
settes it is necessary to tighten all cable connections, cable terminals and cover screws in order to maintain compliance with current EMC regulations securely.
• Securely tighten the cable connections using an appropriate open-ended spanner.
• Measure the output levels of the other cassettes and tune them to a uniform output level using the appropriate level controls or software dependent on the head-end station used. Please regard the assembly instructions of the respective head-end station.
• Mount the front cover (see assembly instructions of the head-end station).
- 36 - CC2CT 800 C

7 Channel and frequenCy tables

Advice for a frequency grid (8 MHz) in the Band I/III
]
[MHz
Frequenzraster
Frequency grid
]
[MHz
Frequenzraster
Frequency grid
]
[MHz
Frequenzraster
Frequency grid
]
[MHz
Frequenzraster
Frequency grid
Frequenzraster
Frequency grid
]
[MHz
]
[MHz
Frequenzraster
Frequency grid
42.00
50.00
58.00
66.00
74.00
82.00
114.00
122.00
130.00
138.00
146.00
154.00
162.00
170.00
178.00
186.00
194.00
202.00
210.00
218.00
CCIR – Hyperband (Frequency grid 8 MHz)
Kanal
Channel
Kanalmittenfrequenz
Channel centre frequency
S 21 306.00 S 22 314.00 S 23 322.00 S 24 330.00 S 25 338.00
]
[MHz
Kanal
S 26 346.00 S 27 354.00 S 28 362.00 S 29 370.00
]
[MHz
Channel
Kanalmittenfrequenz
Channel centre frequency
Kanal
Channel
Kanalmittenfrequenz
Channel centre frequency
S 30 378.00 S 31 386.00 S 32 394.00 S 33 402.00
]
[MHz
CCIR – Band IV/V (Frequency grid 8 MHz)
C 21 474.00 C 22 482.00 C 23 490.00 C 24 498.00 C 25 506.00 C 26 514.00 C 27 522.00 C 28 530.00 C 29 538.00 C 30 546.00
C 31 554.00 C 32 562.00 C 33 570.00 C 34 578.00 C 35 586.00 C 36 594.00 C 37 602.00 C 38 610.00 C 39 618.00 C 40 626.00
C 41 634.00 C 42 642.00 C 43 650.00 C 44 658.00 C 45 666.00 C 46 674.00 C 47 682.00 C 48 690.00 C 49 698.00 C 50 706.00
226.00
234.00
242.00
250.00
258.00
Kanal
Channel
Kanalmittenfrequenz
Channel centre frequency
S 34 410.00 S 35 418.00 S 36 426.00 S 37 434.00
C 51 714.00 C 52 722.00 C 53 730.00 C 54 738.00 C 55 746.00 C 56 754.00 C 57 762.00 C 58 770.00 C 59 778.00 C 60 786.00
]
[MHz
266.00
274.00
282.00
290.00
298.00
Kanal
Channel
Kanalmittenfrequenz
Channel centre frequency
S 38 442.00 S 39 450.00 S 40 458.00
S 41 466.00
C 61 794.00 C 62 802.00 C 63 810.00 C 64 818.00 C 65 826.00 C 66 834.00 C 67 842.00 C 68 850.00 C 69 858.00
]
[MHz
- 37 - CC2CT 800 C
For further information
and updated manuals go to
Copyright © 2016 TRIAX. All rights reserved. The TRIAX Logo and TRIAX, TRIAX Multimedia are registered tr ademarks or trademarks of the TRIA X Company or its affiliates. All specificat ions in this guide are subject to change without further notice.
TRIAX A/S | Bjørnkærvej 3 | DK-8783 Hornsyld | Denmark
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
