TRIAX Aerials & Mast electronics

– ensuring quality signals from rooftop to outlet

triax.com/aerials

Page 2

triax.com/aerials

TRIAX® Aerials and Mast electronics

A complete range of solutions for terrestrial TV reception

Reliability from rooftop to outlet

Invest in a partner ready to grow your business. When installing aerials and electronics, you can rely on TRIAX solutions to perform exactly as you expect them to. Beware of cheap components might include surprises and instability

that

TRIAX solutions can help protect TV signals from 4G/ LT E mobile broadband interference

The 4G/LTE technology operating in the 694-862 MHz frequency range may cause problems for installed DTT and CATV (cable TV) networks. Worldwide frequency bands traditionally used for DTT (Digital Terrestrial TV) reception are gradually being discontinued for DTT use in favour of emerging high speed mobile broadband services such as LTE (Long Term Evolution) and/or LTE Advanced technology. In Europe, LTE now uses the 800MHz band (790-862MHz - previously TV channels 61-69) and in some markets 700MHz band (694-790MHz - previously TV channels 49-60) in addition to the 1.8GHz and 2.6GHz bands, which were previously the only available LTE frequencies.

Selection of

5ranges

AERIALS AMPLIFIERS FILTERS POWER SUPPLIES CABLES

2/16

LTE is a trademark of ETSI

Page 3

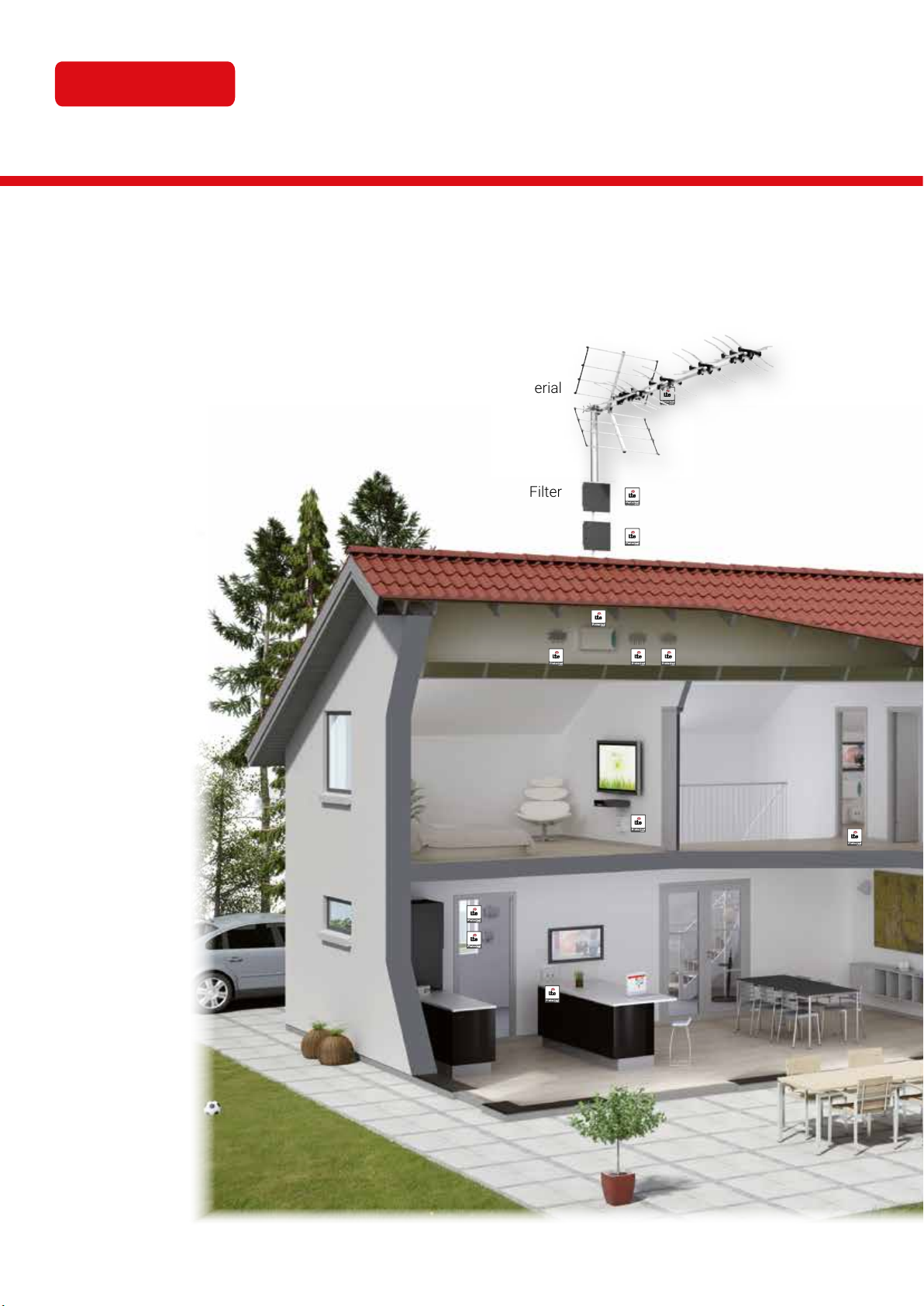

Ensure the best picture quality

The single most important part of an installation is the quality of the incoming signals. We recommend you use an aerial that ensures the optimum signal levels depending upon the geographical location of the installation. It is not recommended to compromise on the size of the aerial, as the system is dependent on high quality signals from the outset. The reception systems TRIAX UNIX or DIGI range, and filters.

• UHF AERIALS for 700MHz & 800MHZ LTE

TRIAX aerials are manufactured to protect you from interference in the entire LTE mobile

broadband spectrum. Our range of terrestrial aerials consists of FM, DAB, VHF, UHF,

Combi and compact UFO aerials.

• MAST AMPLIFIERS for 700MHz & 800MHZ LTE

Mast electronics including easy-to-mount high-performance range of mast amplifiers with

F-connector. The MFA 611, MFA 621 & MFA 656 mast amplifiers are wideband amplifiers featuring 1-2-3 inputs and 1-2 outputs, and cut off channels E61-69 and E49-59.

require the correct size of LTE aerial, such as the

combined with the best low noise mast amplifier

• STOP FILTERS for 700MHz & 800MHZ LTE

TRIAX high performance stop 4G/LTE filters protect you from interference in the entire LTE mobile

broadband spectrum on DVB-T signals and also protect against overload from strong

LTE signals (base station transmitters) on antenna amplifiers, TV tuners and set-top boxes.

• POWER SUPPLIES with 700MHz & 800MHZ LTE lters

The TRIAX IFP Power supply with LTE filter are indoor power supplies for masthead amplifiers, providing

a ‘last defence’ filter function protecting against local 4G/LTE interference. Easy installation F-connectors

for maximum shielding. LTE filter 6-23 dB, (694-862MHz).

• COAXIAL CABLES

The performance of a terrestrial installation relies heavily on the quality of the distribution cable installed to deliver signal levels and immunity to interference. TRIAX supplies a range of high quality coax cables with Class A to A++ shielding.

3/16

Page 4

triax.com/aerials

TRIAX® Aerials and Mast electronics

The product families

TRIAX has developed a wide range of aerials especially designed with high performance attenuation of the signal above channel 48/60 to address the challenges associated with 4G/LTE.

• Quick-install clip-on dipole

• Impedance-matched balun with rear-facing

• F-connector to optimise maximum signal transfer

• Weather proof, pre-assembled housing F-connector.

DIGI series

DIGI 6

DIGI 10

UNIX series DIGI Grid & DIGI 343

UNIX 32

LTE is a trademark of ETSI

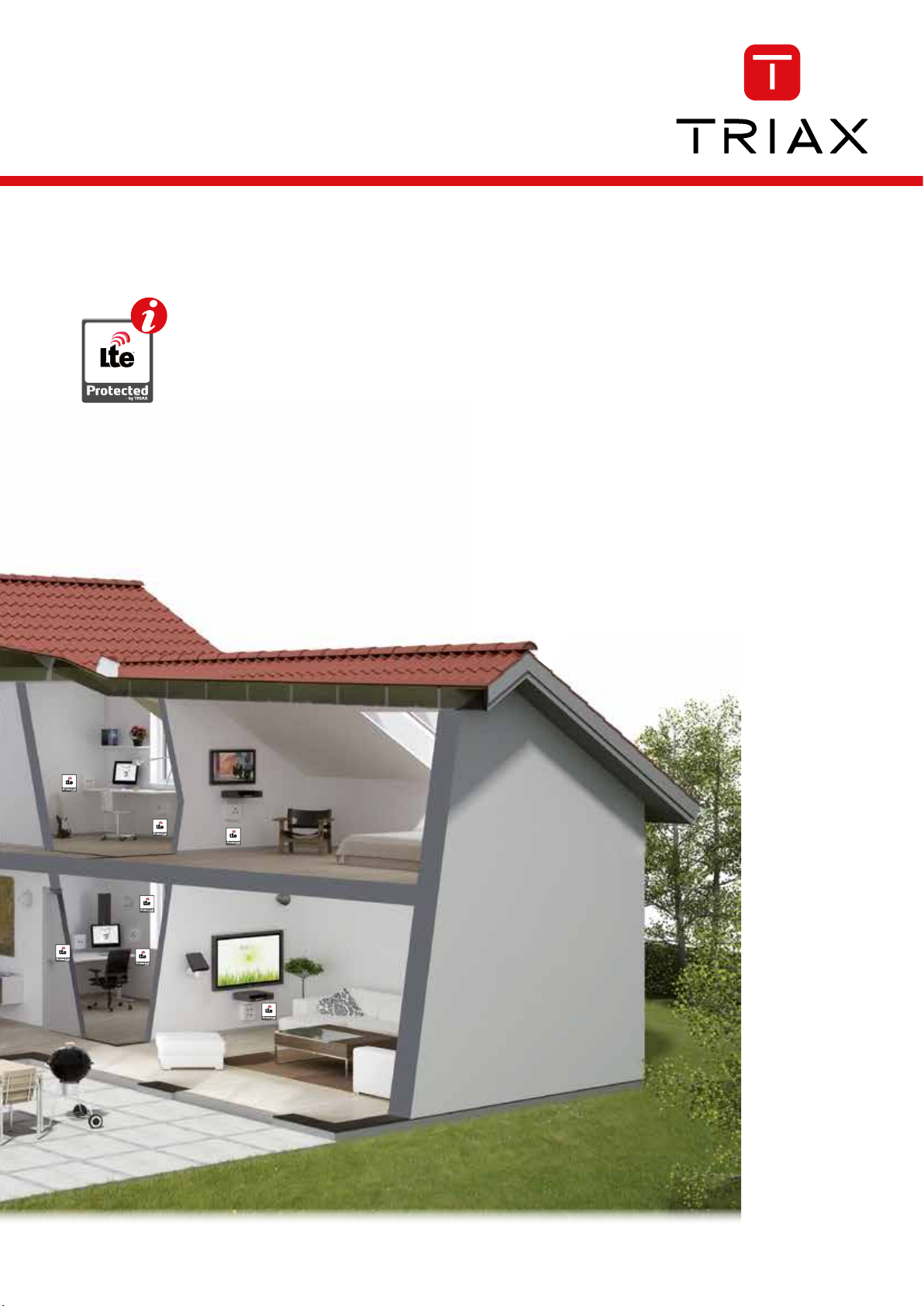

The LTE-protected-by TRIAX logo is displayed on products that complies with 4G/LTE protection requirements.

DIGI Grid

DIGI 14

DIGI 18

4/16

UNIX 52

UNIX 100

UNIX 100 is provided

with a support boom.

DIGI 343 VIP

Page 5

Combi

Outdoor

Filters

Aerials

Combi Aerials for VHF/UHF reception in a wide range of versions, including models with increased gain.

UFO 150 &170

COMBI 12

amplifiers

In mast electronics it pays well to invest in quality.

• Durability

• Easy installation

• High quality

• Weather proof

• For 700 & 800 MHz LTE

MFA 611

TRIAX high performance LTE stop

lters protect from interference on

DTT signals and protect against overload from strong LTE signals (base station transmitters) on

antenna ampliers, TV tuners, and

set-top boxes. For both 700 & 800 MHz LTE.

TBSI - ler

COMBI 20

COMBI 57

MFA 621

TBSO - ler

4G/LTE - lter

MFA 656

5/16

Page 6

triax.com/aerials

21 31 37 50 56

69Ch.

4425 60

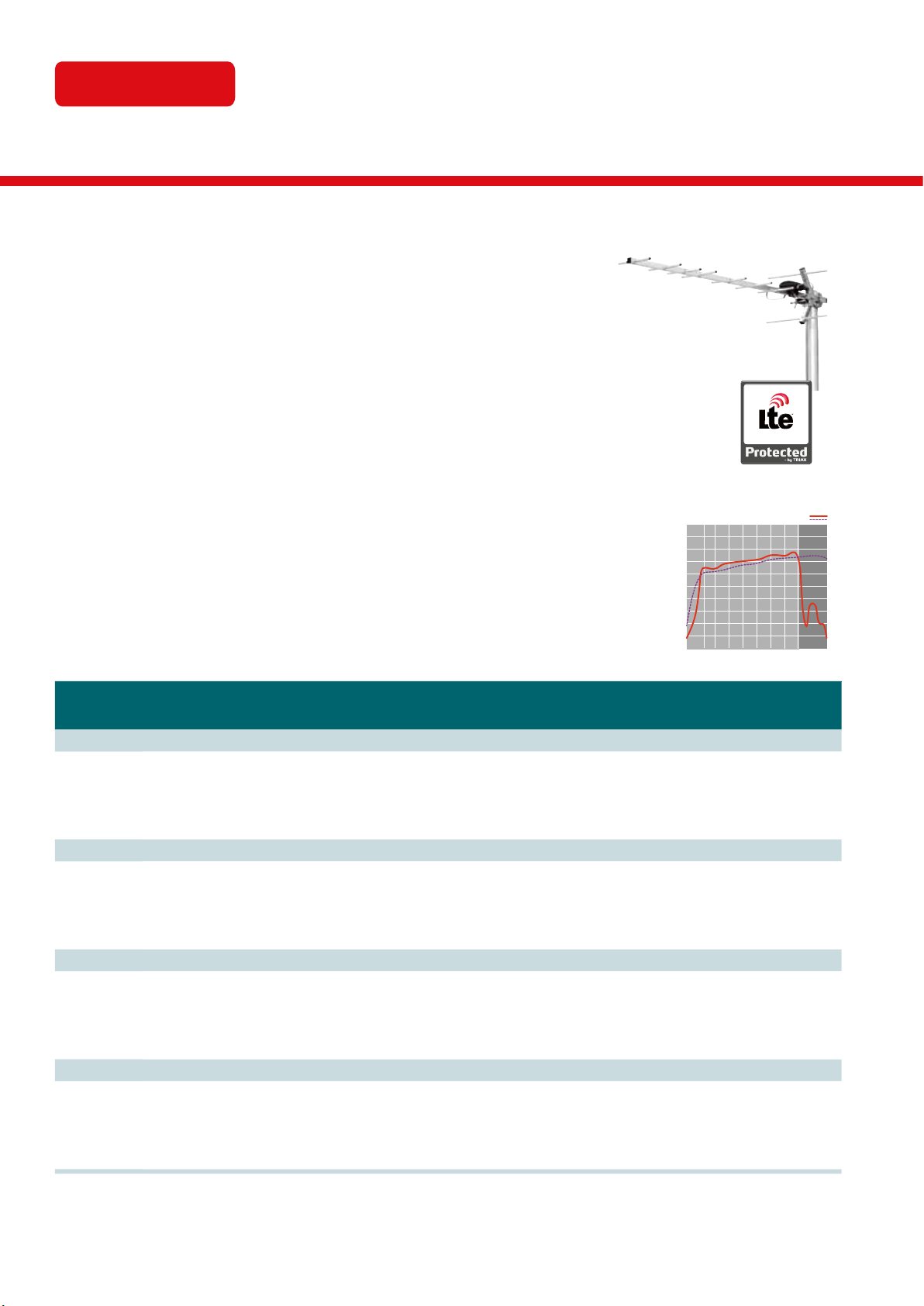

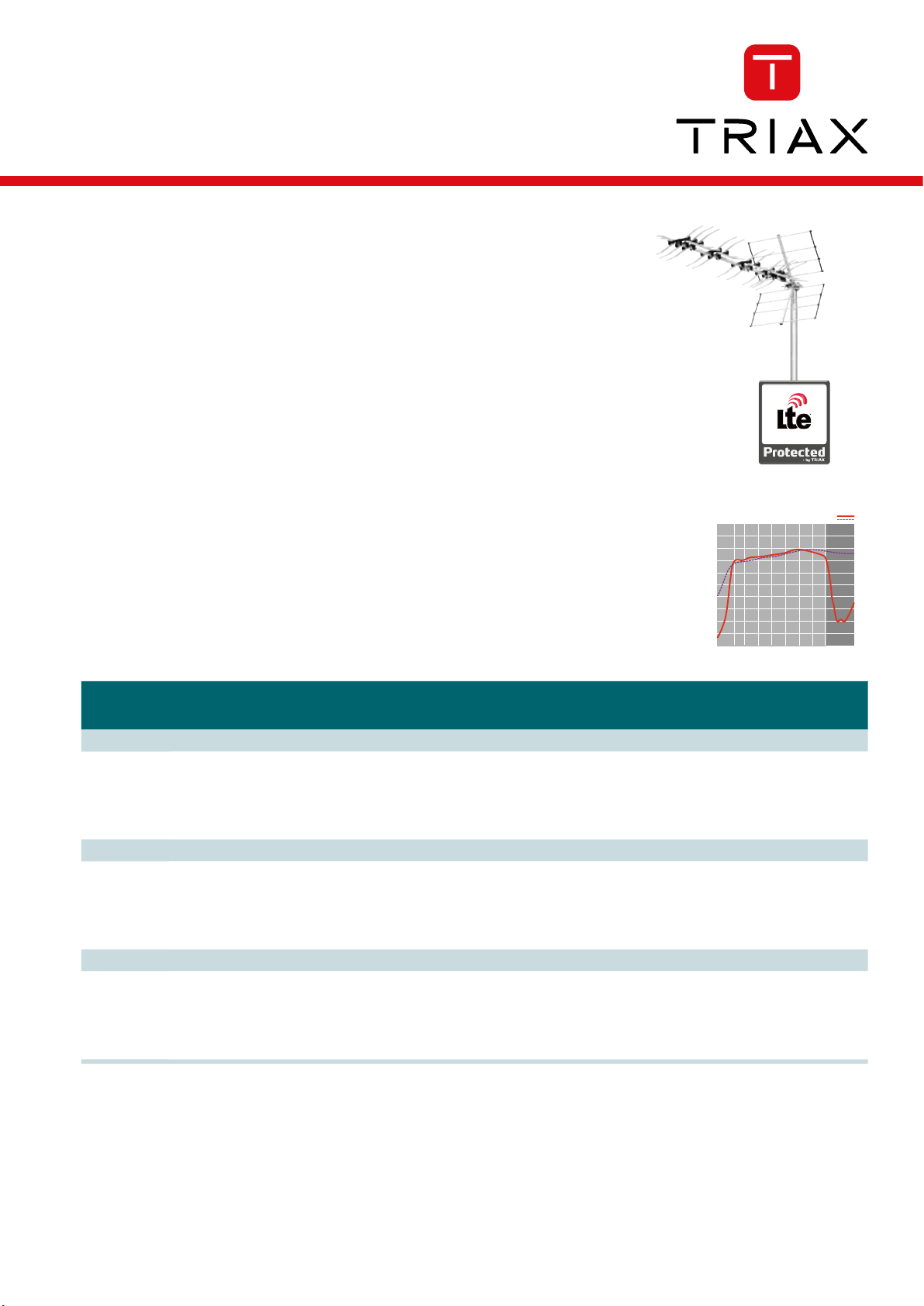

DIGI Aerials

Assortment and characteristics

Common Features

• 6, 10, 14 and 18 elements UHF antenna with 18 mm boom

• Semi-assembled aerials - saves time during installation

• Unparalleled gain and rejection performance

• Designed to receive DTT (Digital Terrestrial TV) signals in 470-694 and 470-790 MHz range

• Rejects 4G/LTE signals in 694-790 and 790-862 MHz range using TRIAX’s “Antenna Low Pass System”

• Improved weather proof dipole house with F-connector for optimal TV-signal performance

• Resistant to extreme weather conditions

• Adjustable rear mast brackets for masts up to 60 mm.

Digi 10

Gain (dBi)

LTE is a trademark of ETSI

Channel 21-60

-5

-10

-15

-20

LTE - Antenna Low Pass System Aerial

Old type aerial

Type Description Packing Art. No. Gain

DIGI 6

Colour box

105400

105450

10.0 dB

10.0 dB 14.0 dB 14N 655 x 330

800 MHz

700 MHz

6 element Digi, UHF - 4G/LTE 6 element Digi, UHF - 4G/LTE Polybag 105401 6 element Digi, UHF - 4G/LTE 6 element Digi, UHF - 4G/LTE Polybag 105451

DIGI 10

Colour box

105410

105460

13.0 dB

13.0 dB 15.0 dB 22N 1085 x 480

800 MHz

700 MHz

10 element Digi, UHF - 4G/LTE 10 element Digi, UHF - 4G/LTE Polybag 105411 10 element Digi, UHF - 4G/LTE 10 element Digi, UHF - 4G/LTE Polybag 105461

DIGI 14

Colour box

105420

105470

13.5 dB 21.0 dB 54N

13.5 dB 23.0 dB 54N 1085 x 480

800 MHz

700 MHz

14 element Digi, UHF - 4G/LTE 14 element Digi, UHF - 4G/LTE Polybag 105421 14 element Digi, UHF - 4G/LTE 14 element Digi, UHF - 4G/LTE Polybag 105471

DIGI 18

Colour box

105430

105480

14.5 dB

14.0 dB 25.0 dB 59N 1414 x 480

800 MHz

700 MHz

18 element Digi, UHF - 4G/LTE 18 element Digi, UHF - 4G/LTE Polybag 105431 18 element Digi, UHF - 4G/LTE 18 element Digi, UHF - 4G/LTE Polybag 105481

Front to

back ratio

17.0 dB

21.0 dB

25.0 dB

Windload NDimension

L x W mm

14N

718 x 260

22N 1015 x 350

1015 x 420

59N

1446 x 420

6/16

Page 7

UNIX Aerials

21 31 37 50 56

69Ch.

4425 60

Assortment and characteristics

Common Features

• 32, 52 and 100 elements UHF antenna with 18mm boom

• Semi-assembled aerials - saves time during installation

• Unparalleled gain and rejection performance

• Designed to receive DTT (Digital Terrestrial TV) signals in 470-694 and 470-790 MHz range

• Rejects 4G/LTE signals in 694-790 and 790-862 MHz range using TRIAX’s “Antenna Low Pass System”

• Improved weather proof dipole house with F-connector for optimal TV-signal performance

• Resistant to extreme weather conditions

• Adjustable rear mast brackets for masts up to 60 mm.

UNIX 52

Gain (dBi)

-10

-15

-20

LTE is a trademark of ETSI

Channel 21-60

-5

LTE - Antenna Low Pass System Aerial

Old type aerial

Type Description Packing Art. No. Gain

UNIX 32

Colour box

105500

105550

12.5 dB

12.5 dB 22.0 dB 58N 777 x 580

800 MHz

700 MHz

32 element UNIX, UHF - 4G/LTE 32 element UNIX, UHF - 4G/LTE Polybag 105501 32 element UNIX, UHF - 4G/LTE 32 element UNIX, UHF - 4G/LTE Polybag 105551

UNIX 52

Colour box

105510

105560

14.5 dB

14.5 dB 20.0 dB 96N 1394 x 580

800 MHz

700 MHz

52 element UNIX, UHF - 4G/LTE 52 element UNIX, UHF - 4G/LTE Polybag 105511 52 element UNIX, UHF - 4G/LTE 52 element UNIX, UHF - 4G/LTE Polybag 105561

UNIX 100

Colour box

105520

Polybag 105521 Colour box

105570

Polybag 105571

17.0 dB

17.0 dB 20.0 dB 162N 2343 x 580

800 MHz

700 MHz

100 element UNIX, UHF - 4G/LTE 100 element UNIX, UHF - 4G/LTE 100 element UNIX, UHF - 4G/LTE 100 element UNIX, UHF - 4G/LTE

Front to

back ratio

24.0 dB

25.0 dB

27.0 dB

Windload NDimension

L x W mm

58N

96N

162N

791 x 500

1512x 500

2257 x 500

7/16

Page 8

triax.com/aerials

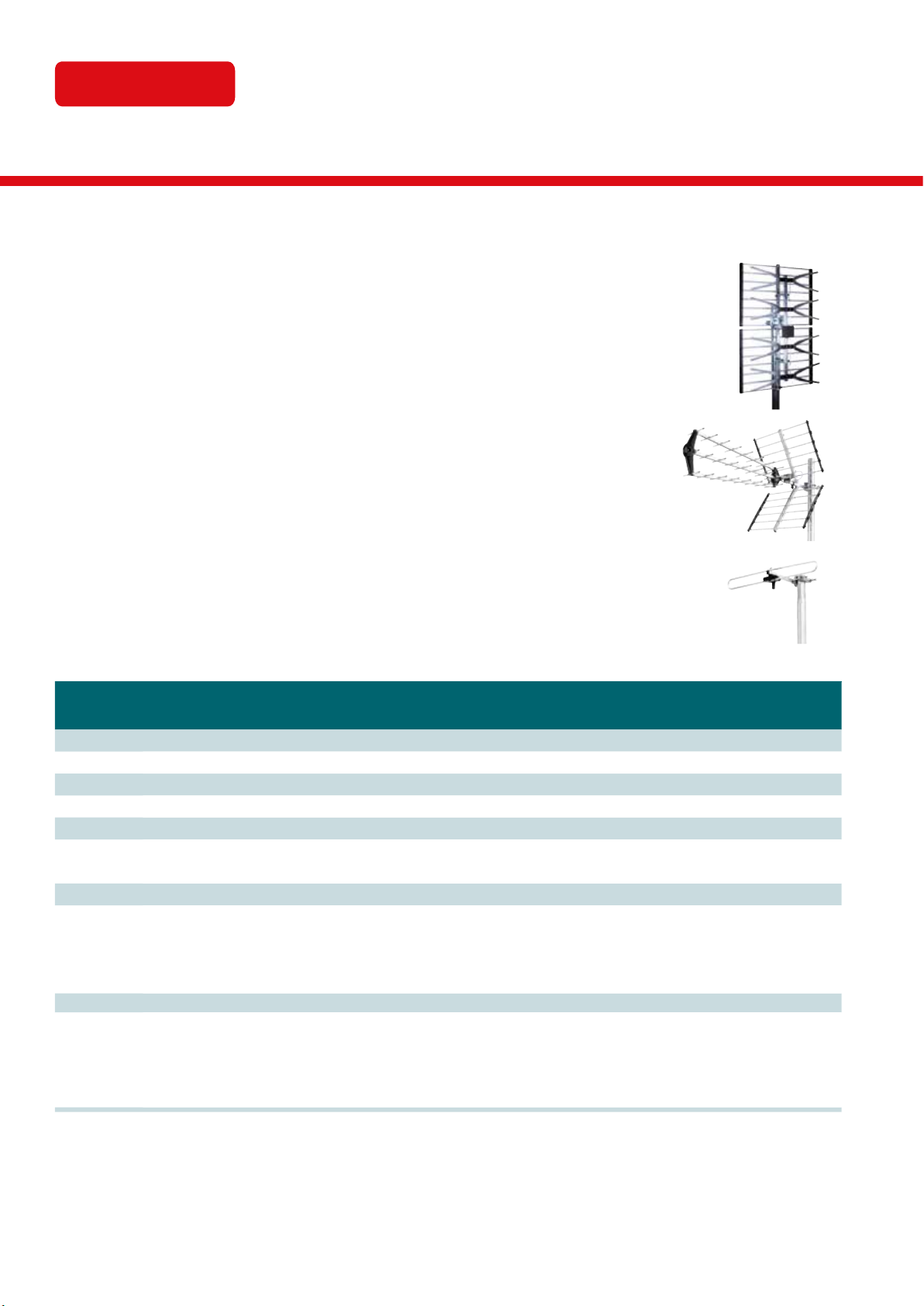

DIGI Grid, DIGI 343,VIP, FM-DAB, VHF

Assortment and characteristics

DIGI Grid Aerial

• High gain, large beam width and an excellent front to back ratio

• Very compact, easy to install with an almost even gain curve.

TRIAX DIGI 343 and VIP Aerials

• Eliminate reflections and combines low weight with high gain and an excellent front to back ratio

• Rejects 4G/LTE signals in 791-862 MHz range using TRIAX’s “Antenna Low Pass System”.

TRIAX FM and DAB Aerials

• Eliminate reflections and combines low weight with high gain and an excellent front to back ratio

• Rejects 4G/LTE signals in 791-862 MHz range using TRIAX’s “Antenna Low Pass System”.

Front to

Type Description Packing Art. No. Gain

DIGI GRID

800 MHz 16 elem. Digi Grid, UHF Colour box 108016 12.5 dB 22.0 dB 78N 805 x 545

DIGI 343

800 MHz 343 elem. Split boom - 4G/LTE Colour box 108961 15.5 dB

DAB 1

Colour box

Polybag 103862

Colour box

105130

105100

105110

105200

2.2 dB - 20N

0.0 dB 0.0 dB 16N

6.0 dB 16.0 dB 56N

7.5 dB 16.0 dB 48N

9.5 dB 22.0 dB 78N

8.0 dB 20.0 dB 58N 870 x 880

187-230 MHz

87.5-108MHz

VHF

174-230 MHz

1 element DAB+/VHF BIII 1 element DAB+/VHF BIII Polybag 105131

1 x Z element FM/BII 1 x Z element FM/BII Polybag 105101 3 element FM/BII 3 element FM/BII Polybag 105111

6 element BIII 10 element BIII Polybag 104579

9 element BIII - short boom 9 element BIII - short boom Polybag 105201

13 element BIII Polybag 104211 12.8 dB 20.0 dB 58N 2080 x 920

back ratio

20.0 dB

Windload NDimension

L x W mm

150N 1056x 540

400 x 625

550 x 1140

1188 x 1577

1410 x 800 1735 x 880

8/16

Page 9

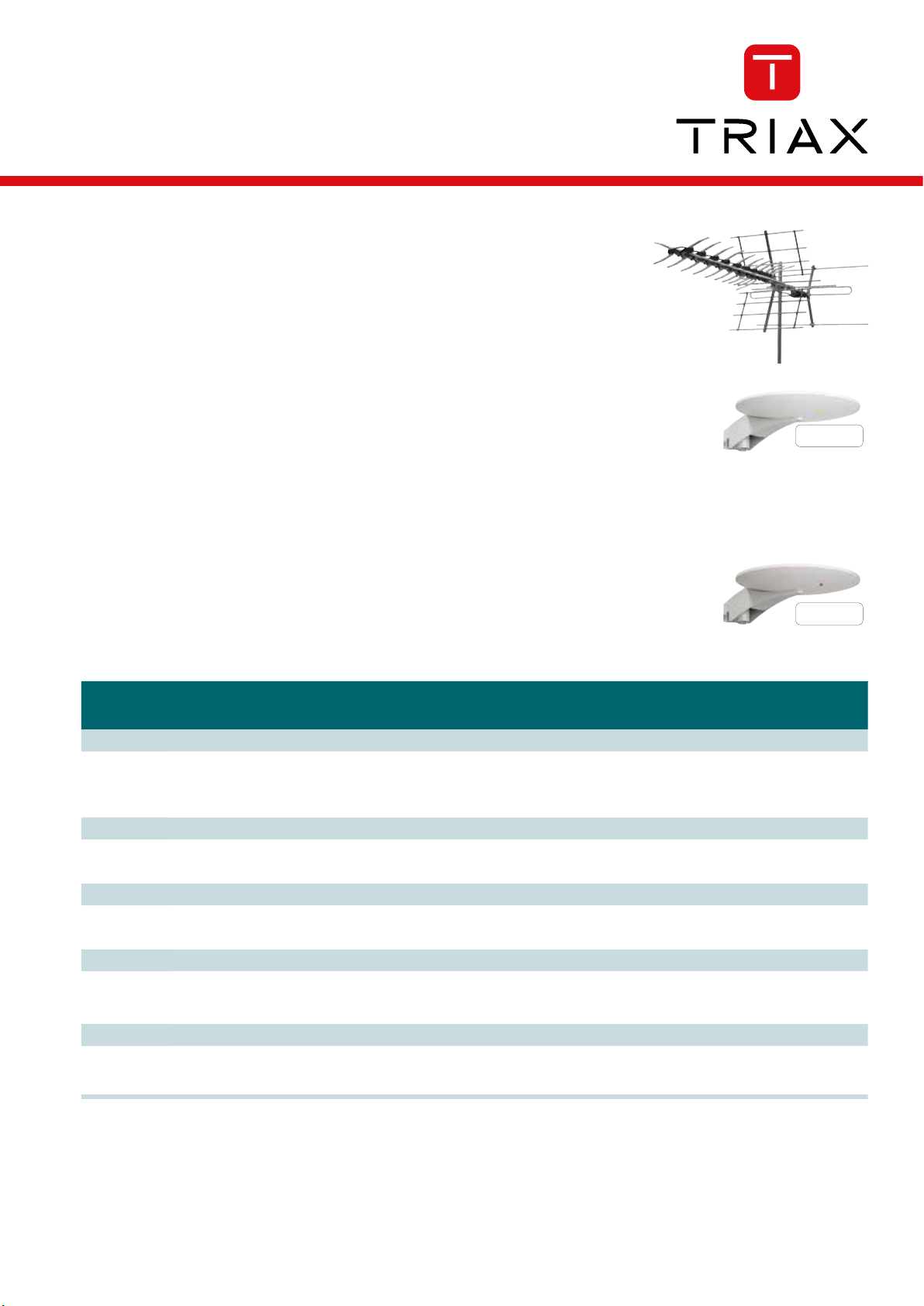

VHF/UHF Combi Aerials

Assortment and characteristics

Common Features

• 1 element Omni + 12, 20 and 57 elements VHF/UHF antenna with 18mm boom

• Semi-assembled aerials – saves time during installation

• Unparalleled gain and rejection performance

• Designed to receive DTT (Digital Terrestrial TV) signals in 470-694 and 470-790 MHz range

• Rejects 4G/LTE signals in 694-790 and 790-862 MHz range using TRIAX’s “Antenna Low Pass System”

• Improved weather proof dipole house with F-connector for optimal TV-signal performance

• Resistant to extreme weather conditions

• Adjustable rear mast brackets for masts up to 60 mm.

UFO 150

UFO 170

Type Description Packing Art. No. Gain

COMBI 12

800 MHz LTE

COMBI 20

800 MHz LTE

COMBI 57

800 MHz LTE

UFO 150

800 MHz LTE

UFO 170

700 MHz LTE

12 elem. Combi, VHF/UHF -Mast 12 elem. Combi, VHF/UHF - Window

20 elem. Combi, VHF/UHF 108694 6.0/11.5 12/17 dB 56 815 x 760

57 elem. Combi, VHF/UHF 108696 8.0/14.5 17/25 dB 146 1725 x 880

1 elem. VHF/DAB/UHF Colour box 109150 28.0 - 5.5 325 x 255

1 elem. VHF/DAB/UHF Colour box 109170 28.0 - 5.5 325 x 255

Colour box 108936 Colour box 108937

4.0/9.0 12/15 dB 34 866 x 855

Front to

back ratio

Windload NDimension

L x W mm

9/16

Page 10

triax.com/aerials

Mast electronics and Power supplies

Assortment and characteristics

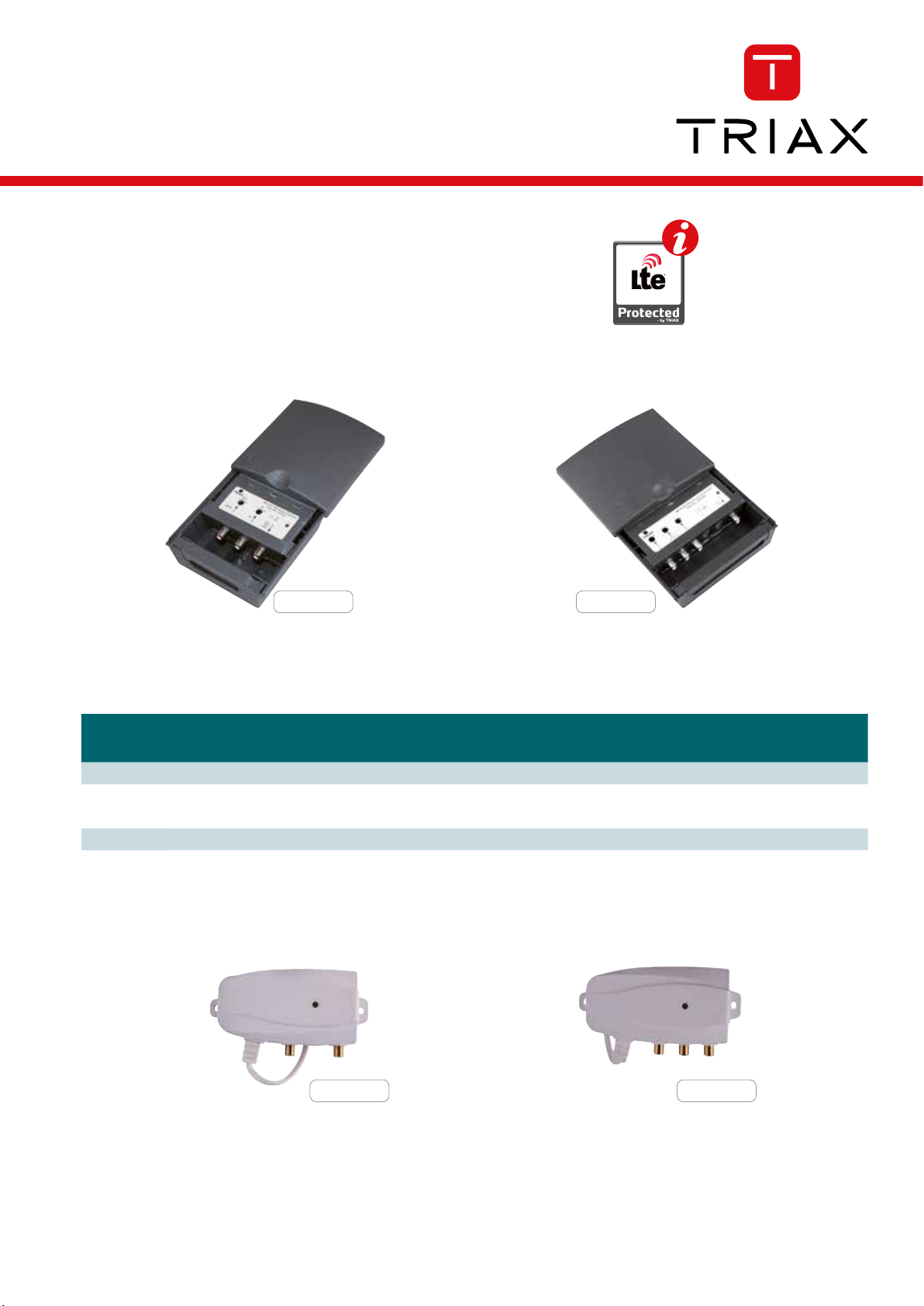

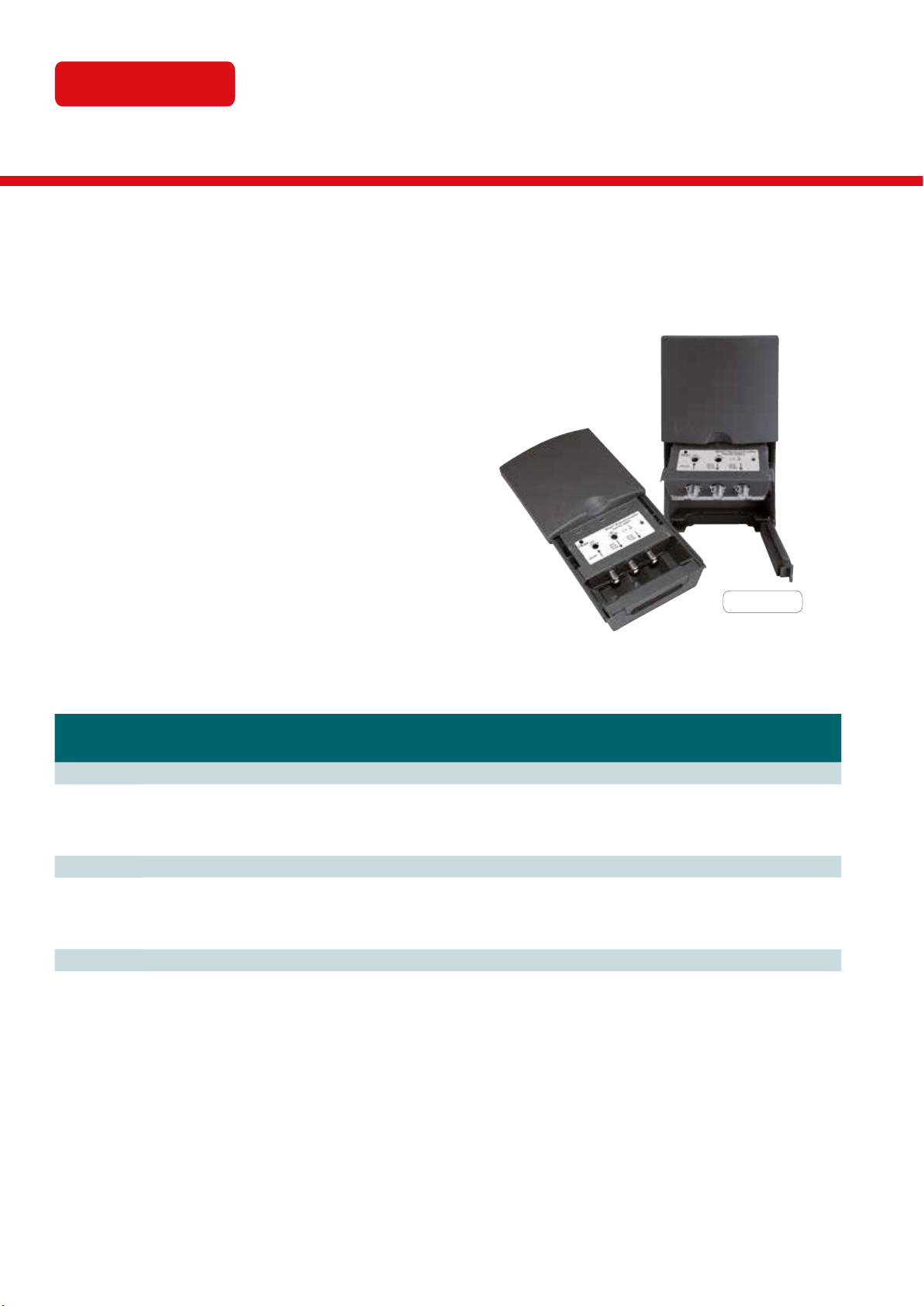

TRIAX outdoor Masthead amplifiers

In mast electronics it pays well to invest in quality. When choosing TRIAX products you can expect many

years of operation without difculties. TRIAX range of masthead ampliers are designed to

cut off channel 49-69 where 4G/LTE mobile broadband services are transmitted:

• Input/output: BIII (DAB/UHF up to 694-790 MHz) (E48 - E60)

• High-quality weather proof mast housing

• Low noise gures

• Simple and easy mounting on mast.

MFA 611

Mastamplifier series for 700MHz & 800 MHZ LTE

Type Description Packing Art. No.

MFA 611

800 MHz

700 MHz

MFA 621

800 MHz

700 MHz

MFA 656

800 MHz

700 MHz

1 Input, VHF/UHF - 4G/LTE Amp.

2 Input, VHF/DAB/UHF - 4G/LTE

3 Input, VHF/UHF - 4G/LTE Amp.

Colour box

340611

340911

340621

340921

340656

340956

Frequency

174-230/

470-790

174-230/

470-694

174-230/

470-790

174-230/

470-694

87-108/

174-230/

470-790

87-108/

174-230/

470-694

Gain

15-30/

10-25

15-30/

10-25

5-15/

20-35

15-30/

10-25

15-30/

10-25

Noise gure

VHF/UHF

< 3.5/

< 3.5

< 3.5/

< 3.5

< 2.5/

< 2.5

< 3.5/

< 3.5

< 3.5/

< 3.5

Max. out

@60dB IMA

103.0 12-24

Power

VDC

10/16

Page 11

MFA 621 MFA 656

Power Supply range for 700MHz & 800 MHZ LTE

LTE is a trademark of ETSI

The LTE-protected-by TRIAX logo is displayed on products that complies with 4G/LTE protection requirements.

Type Description Packing Art. No.

IFP 101 LTE

800 MHz 700 MHz

IFP 102 LTE

800 MHz 700 MHz

1 output Power Supply - 4G/LTE 1 output Power Supply - 4G/LTE

2 output Power Supply - 4G/LTE 2 output Power Supply - 4G/LTE

Colour box Colour box 370113

Colour box Colour box 370114

370102 5-790

370109 5-790

IFP 101 IFP 102

Frequency

5-702

Rejection

Loss

< 2.0 > 18.0 100 mA 12V

< 6.0 > 23.0 100 mA 12V

@ 821 MHz

Max

current

Voltage

11/16

Page 12

triax.com/aerials

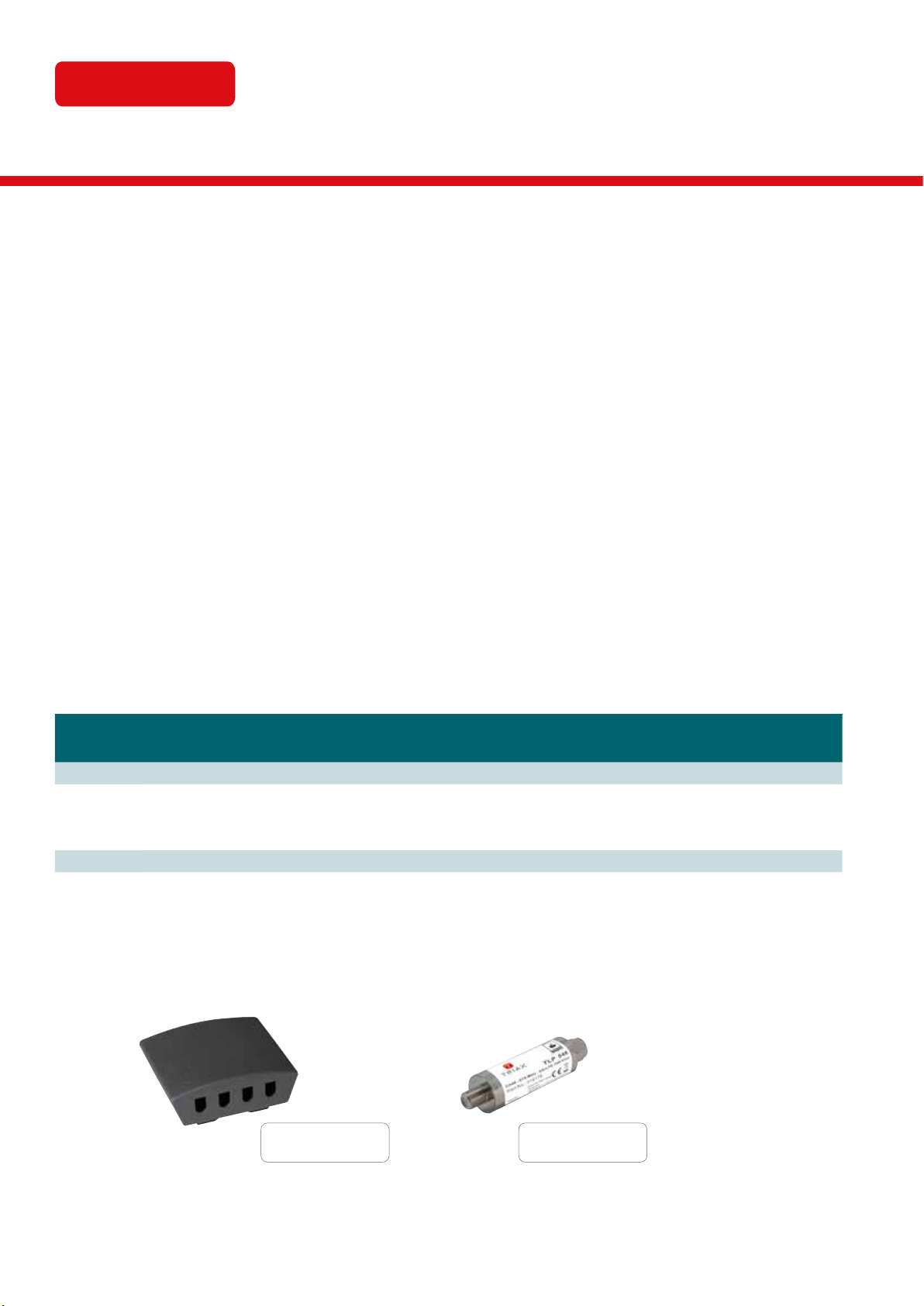

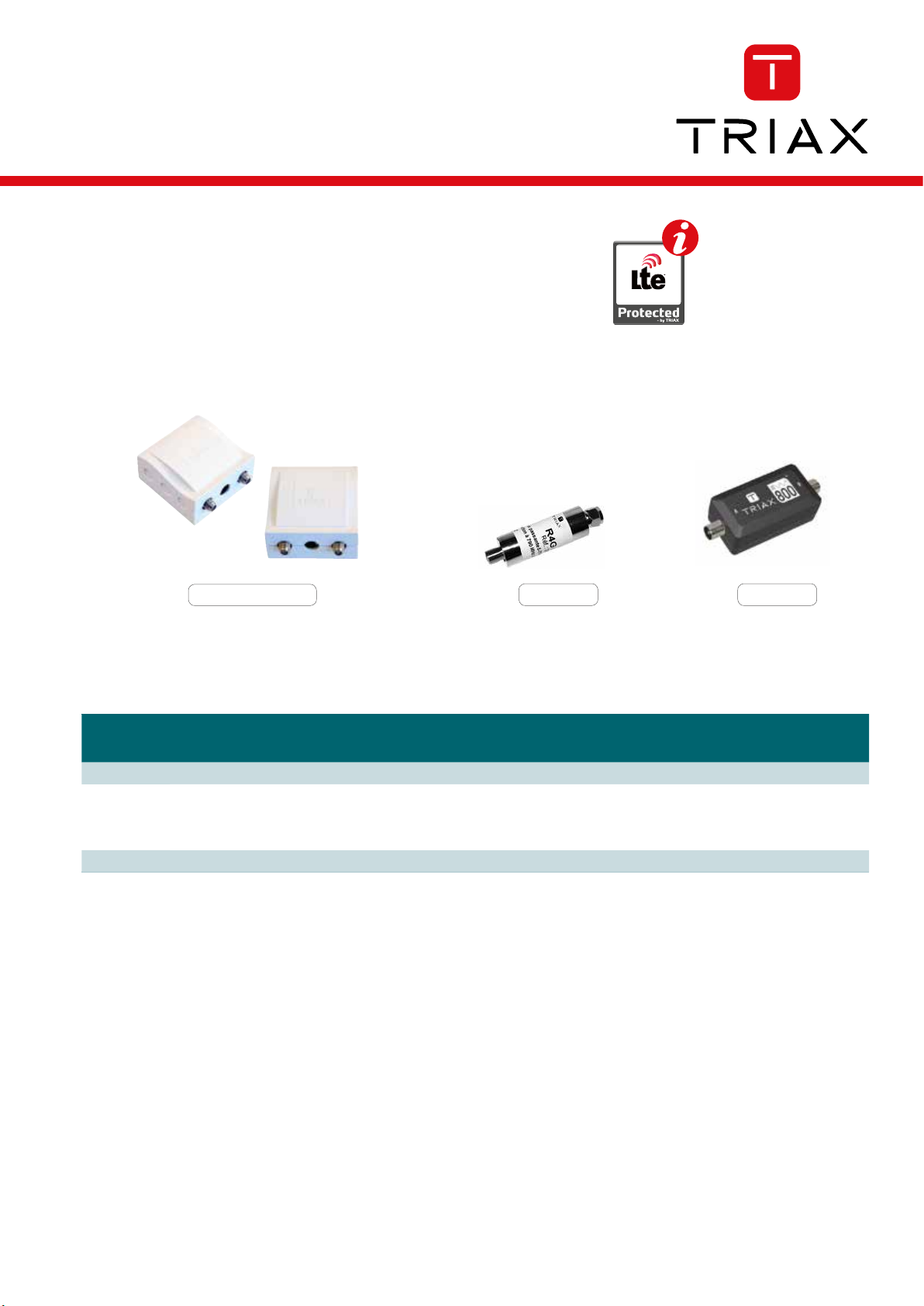

TRIAX Stop lters

Assortment and characteristics

TRIAX high performance 4G/LTE stop lters protect

from interference on DTT signals and protect overload from strong 4G/LTE signals (base station transmitters)

on antenna ampliers, TV tuners and set-top boxes. TRIAX high performance lters protect from the entire

4G/LTE mobile broadband spectrum Ch. 48-60/61-69 (694-790/790-862MHz).

TRIAX high performance 4G/LTE band stop lters are

customised to provide the highest protection in the LTE mobile broadband “downlink” frequency spectrum 791-821 MHz, where 4G/LTE transmission levels will be

highest. The weatherproof lters are suitable for in- or

outdoor use, whatever the weather.

Outdoor stop filter series for 700MHz & 800 MHZ LTE

Trough

Type Description Packing Art. No.

TBSO lter Outdoor

800 MHz

4G/LTE Filter

700 MHz

Outdoor, Ch. 57 - 4G/LTE Outdoor, Ch. 59 - 4G/LTE Outdoor, Ch. 60 - 4G/LTE

Outdoor/Indoor

F-Barrel type, Ch. 46 - 4G/LTE F-Barrel type, Ch. 48 - 4G/LTE

Colour box 314075 47-766 1.5-2.3 25.5Colour box 314071 47-782 0.9-3.0 8.0Colour box 314073 47-790 0.8-3.0 3.0

Bulk 314178 5-678 0.8-3.0 > 50.0 Bulk 314176 5-694 1.0 > 50.0

Frequency

Loss

Rejection

LTE

Shielding

efciency

> 75.0 Yes

DC pass

12/16

TBSO

outdoorlter

4G/LTE

out-/indoorlter

Page 13

LTE is a trademark of ETSI

The LTE-protected-by TRIAX logo is displayed on products that complies with 4G/LTE protection requirements.

TBSI - ler

Indoor Stop filter series for 800 MHZ LTE

Type Description Packing Art. No.

TBSI lter Indoor

800 MHz

4G/LTE Filter

800 MHz

Indoor, Ch. 57 - 4G/LTE Indoor, Ch. 59 - 4G/LTE Indoor, Ch. 60 - 4G/LTE

Indoor

F-Barrel type, Ch. 58 - 4G/LTE F-Barrel type, Ch. 59 - 4G/LTE IEC-type, Ch. 59 - 4G/LTE

Colour box 314074 47-766 1.5-2.3 25.5 Colour box 314070 47-782 0.9-3.0 8.0 Colour box 314072 47-790 0.8-3.0 3.0

Bulk 360112 5-774 < 6.5 > 50.0 Bulk 360113 5-782 < 6.5 > 50.0 > 75.0 Yes Colour box 314080 47-782 < 4.0 > 25.0

4G/LTE

Frequency

Trough

Loss

Rejection

LTE

4G/LTE

Shielding

efciency

> 75.0 Yes

DC -

pass

13/16

Page 14

triax.com/aerials

LTE is a trademark of ETSI

TRIAX Aerials & Mast electronics

- ensures quality signals from rooftop to outlet

Aerial

Filter

Masthead amplier

Tap/Splitter Tap/Splitter

LTE is a trademark of ETSI

TE is a trademark of ETSI

Power

Supply

Outlet

Tap/Splitter

Outlet

Amplier

Outlet

14/16

Page 15

LTE is a trademark of ETSI

Outlet

The LTE-protected-by TRIAX logo is displayed on products that complies with 4G/LTE protection requirements.

The 4G/LTE technology operating in the 694-862MHz frequency range may cause problems for installed DTT and CATV (cable TV) networks that historically have been developed to operate within these frequencies.

TRIAX provides you with a full range of products, designed to protect your network from 4G/LTE mobile broadband interference and disturbance.

Look for the “LTE Protected – by TRIAX” logo, to ensure that your future product meets the TRIAX requirements so you experience the perfect TV picture experience.

Outlet

Splitter

Outlet

15/16

Page 16

Contact

Headquartered in Denmark, TRIAX is an international supplier of innovative, high-tech solutions for the reception and distribution of video, audio and data signals. The company’s products and solutions are used by broadcasters, cable operators, local closed networks and domestic dwelling.

TRIAX has 9 sales subsidiaries generating a turnover of approx. €90M and operates in more than 60 distributor countries. The TRIAX team consists of 350 employees and is owned Polaris Private Equity.

triax.com/contact

See TRIAX.com for further info.

TRIAX Multimedia are registered trademarks or trademarks of the TRIAX

Company or its affiliates.

All specifications in this brochure are subject to change without further notice.

09-2017
