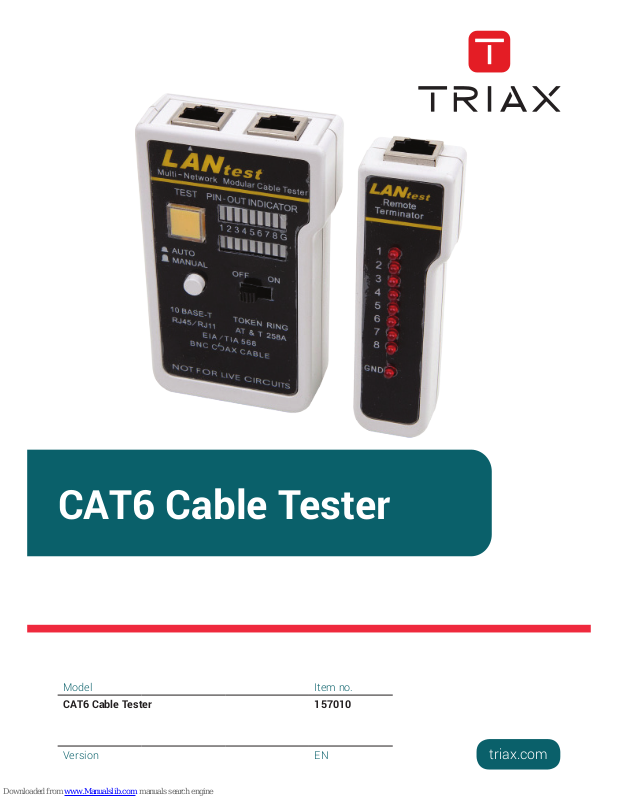

Page 1
Model Item no.
CAT6 Cable Tester 157010
Version EN
triax.com
CAT6 Cable Tester
Page 2
Application
1
For checking CAT 5e and CAT 6 cables, (UTP and STP).
Can also be used with BNC coaxial cable and modular cables.
Contents
Product Overview 2
Features 3
Product Prole 4
Operation 5
10Base-T Cable Test 5
Modular Cable Test 6
10Base-2 Cable Test 6
Remote Test 7
Test Results 9
The CAT 5e / 6 cable tester provides a simple method of checking
the correct pin conguration of 10Base-T cable, 10Base-2 cable,
RJ45/RJ11 modular cables, 258A, TIA-568A/568B and Token Ring
cables.
It comprises of a Master Unit and a separate Remote Receiving
Unit. The LED indicators on the master and remote units can then
be used to determine the status of the cable under test. The Master
unit can be used on its own, e.g. for testing short cables at one
location, or with the Remote Unit for testing longer cables or pre-
installed cables.
As the Remote Receiver is separate to the Master Unit, it does not
matter whether the cable under test is long, short, on a wall plate or
patch panel. The tester can be used to check for cable continuity,
open circuit, short circuit or a cross connected cable.
Product Overview
2
Page 3
The CAT 5e / 6 cable tester provides a simple method of checking
the correct pin conguration of 10Base-T cable, 10Base-2 cable,
RJ45/RJ11 modular cables, 258A, TIA-568A/568B and Token Ring
cables.
It comprises of a Master Unit and a separate Remote Receiving
Unit. The LED indicators on the master and remote units can then
be used to determine the status of the cable under test. The Master
unit can be used on its own, e.g. for testing short cables at one
location, or with the Remote Unit for testing longer cables or preinstalled cables.
As the Remote Receiver is separate to the Master Unit, it does not
matter whether the cable under test is long, short, on a wall plate or
patch panel. The tester can be used to check for cable continuity,
open circuit, short circuit or a cross connected cable.
Product Overview
2
Page 4
• Versatile and simple to use.
• Can be used to check the pin conguration of 10Base-T,
10Base-2 Ethernet cable, RJ45 /RJ11 modular cables, 258A,
TIA-568A/568B and Token Ring cable.
• Easy to read LED indicators on the Master and Remote Units
showing the cable status.
• Can be used to verify cable continuity, open circuit, short circuit
and cross wiring.
• The separate remote receiving unit can be used to test cables
whether long, short on a wall plate or patch panel.
• Can be used to test grounding.
• Selectable auto or manual scan.
Features
3
Product Prole
1 Source RJ45 Jack
2 Receiving RJ45 Jack
3 LED Display for Sourcing End (Jack 1)
4 LED Display for Receiving End (Jack 2)
5 Power Switch
6 LED Scanning Mode Switch
7 Test Switch for Manual Scan
8 Remote RJ45 Jack
9 LED Display for Receiving End (Same as Jack 2)
10 Ground LED for Receiving End
11 Battery Compartment (9V) Battery included
4
Page 5
Product Prole
1 Source RJ45 Jack
2 Receiving RJ45 Jack
3 LED Display for Sourcing End (Jack 1)
4 LED Display for Receiving End (Jack 2)
5 Power Switch
6 LED Scanning Mode Switch
7 Test Switch for Manual Scan
8 Remote RJ45 Jack
9 LED Display for Receiving End (Same as Jack 2)
10 Ground LED for Receiving End
11 Battery Compartment (9V) Battery included
4
Page 6
Loopback test (using the Master Unit):
10Base-T Cable Test
Plug one end of the cable under test into the source RJ45 socket,
(marked with the p arrow), and the other end of the cable under
test into the second, receiving RJ45 socket.
Switch the Master Unit on. The LED’s will start to scan in sequence
if the Auto/Manual switch is set to Auto mode or, the LED will light
on pin 1 if the Auto/Manual switch is set to Manual mode.
Note: Ensure the battery has sufcient charge or inaccurate results may be
obtained.
Use the ‘Auto / Manual’ switch to select the required scan method.
When scanning, the upper and lower LED indicators will illuminate
simultaneously.
Observe the LED displays. It shows the status of the pin
conguration of the cable under test. If you fail to read the result in
the rst LED scan, in ‘Auto’ mode the scan will repeat continuously.
If ‘Manual mode’ is selected, press the test switch to scan the pins
one by one. Please refer to picture 1 below.
Operation
5
Picture 1
Modular Cable Test
Please refer to the procedures for 10Base-T Cable Test. However,
in this test, the LED display should be as shown in picture 2.
Note: You will need to use a RJ45 to RJ11 adaptor, not supplied.
10Base-2 Cable Test
Plug the two RJ45 to BNC adaptor cables (supplied) into the RJ45
sockets on the Master Unit. Connect the BNC cable under test to
the BNC connectors on the adaptor cables.
For the remaining procedure refer to the 10Base-T cable test on
page 7.
Note:
The centre pin of the BNC cable should be read on LED 1 and the
shielding of the BNC cable should be read on LED 2. Please refer
to picture 3 below.
6
Picture 2
Picture 3
Page 7
Modular Cable Test
Please refer to the procedures for 10Base-T Cable Test. However,
in this test, the LED display should be as shown in picture 2.
Note: You will need to use a RJ45 to RJ11 adaptor, not supplied.
10Base-2 Cable Test
Plug the two RJ45 to BNC adaptor cables (supplied) into the RJ45
sockets on the Master Unit. Connect the BNC cable under test to
the BNC connectors on the adaptor cables.
For the remaining procedure refer to the 10Base-T cable test on
page 7.
Note:
The centre pin of the BNC cable should be read on LED 1 and the
shielding of the BNC cable should be read on LED 2. Please refer
to picture 3 below.
6
Picture 2
Picture 3
Page 8
As the 10Base-2 cable has only two wires, we suggest you scan
using manual mode although ‘Auto’ mode can still be used.
Remote Test (using the Master and Remote Units).
Plug one end of the cable under test to the source RJ45 socket
(marked with the p arrow) of the Master Unit and the other end to
the receiving RJ45 socket of the remote unit. If the cable under test
is already installed on a patch panel or wall plate, you will have to
use a suitable adaptor cable (not supplied) to solve the connector
gender problem. Please refer to pictures 4 and 5.
Set the Auto/Manual switch to Auto mode if you are carrying out the
test alone.
Observe the test result on the LED display of the remote unit.
Note: The LED display on the remote unit is scanned in sequence
corresponding to the source end at the master unit.
7
8
Picture 4
Picture 5
Page 9
8
Picture 4
Picture 5
Page 10
Test Result
Continuity: Pin 2 is connected
Open: Pin 2 is Open circuit
Short: Pin 2 and Pin 3 are short circuited
Miswired: Pin 3 and Pin 6 are incorrectly wired
Warning
Do not operate the tester in a live circuit because damage may
occur to the tester.
If you do not use the tester for a long time, remove the battery from
the battery compartment.
9
