Triax c6 User Information

1

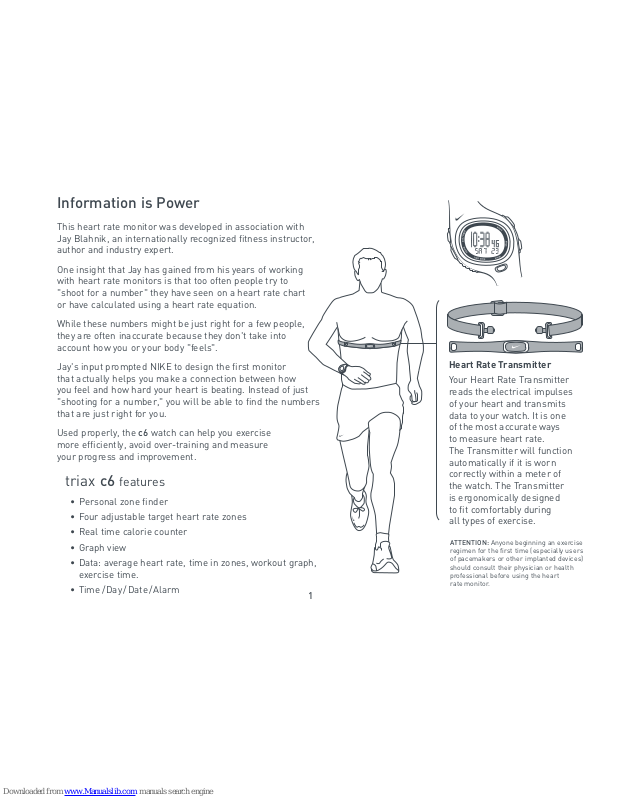

Information is Power

This heart rate monitor was developed in association with
Jay Blahnik, an internationally recognized fitness instructor,
author and industry expert.

One insight that Jay has gained from his years of working
with heart rate monitors is that too often people try to
"shoot for a number" they have seen on a heart rate chart
or have calculated using a heart rate equation.

While these numbers might be just right for a few people,
they are often inaccurate because they don't take into
account how you or your body "feels".

Jay's input prompted NIKE to design the first monitor
that actually helps you make a connection between how
you feel and how hard your heart is beating. Instead of just
"shooting for a number," you will be able to find the numbers
that are just right for you.

Used properly, the c6 watch can help you exercise
more efficiently, avoid over-training and measure
your progress and improvement.

Heart Rate Transmitter

Your Heart Rate Transmitter
reads the electrical impulses
of your heart and transmits
data to your watch. It is one
of the most accurate ways
to measure heart rate.
The Transmitter will function
automatically if it is worn
correctly within a meter of
the watch. The Transmitter
is ergonomically designed
to fit comfortably during
all types of exercise.

ATTENTION: Anyone beginning an exercise
regimen for the first time (especially users
of pacemakers or other implanted devices)
should consult their physician or health
professional before using the heart
rate monitor.

triax c6 features

• Personal zone finder

• Four adjustable target heart rate zones

• Real time calorie counter

• Graph view

• Data: average heart rate, time in zones, workout graph,
exercise time.

• Time /Day /Date / Alarm

2

Contents

Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

TIME mode

Set Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Set Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

WORKOUT mode

Completing the Heart Rate Zone Finder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Editing Heart Rate Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Setting Calorie Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using the Chronograph . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

DATA mode

Review Workout Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Heart Rate Intensity Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Service Centers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

CE Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

This document with updates is available online at

www.nike.com/ manuals

Printed on Wood Free Paper

3

3

Attach other side of HR Transmitter
around chest. Position on rib cage just
below the breast plate. Should be worn
directly against skin and snug enough
to not slip down while running.

1

Push tab up through slot
in HR Transmitter.

Press down tab until flush.

2

Generously wet both
grooved areas on the back

of HR Transmitter to ensure
a good pick up between your
pulse and the Transmitter.

4

Quick Start Follow steps through to position the Heart Rate Transmitter and go for a run.

4

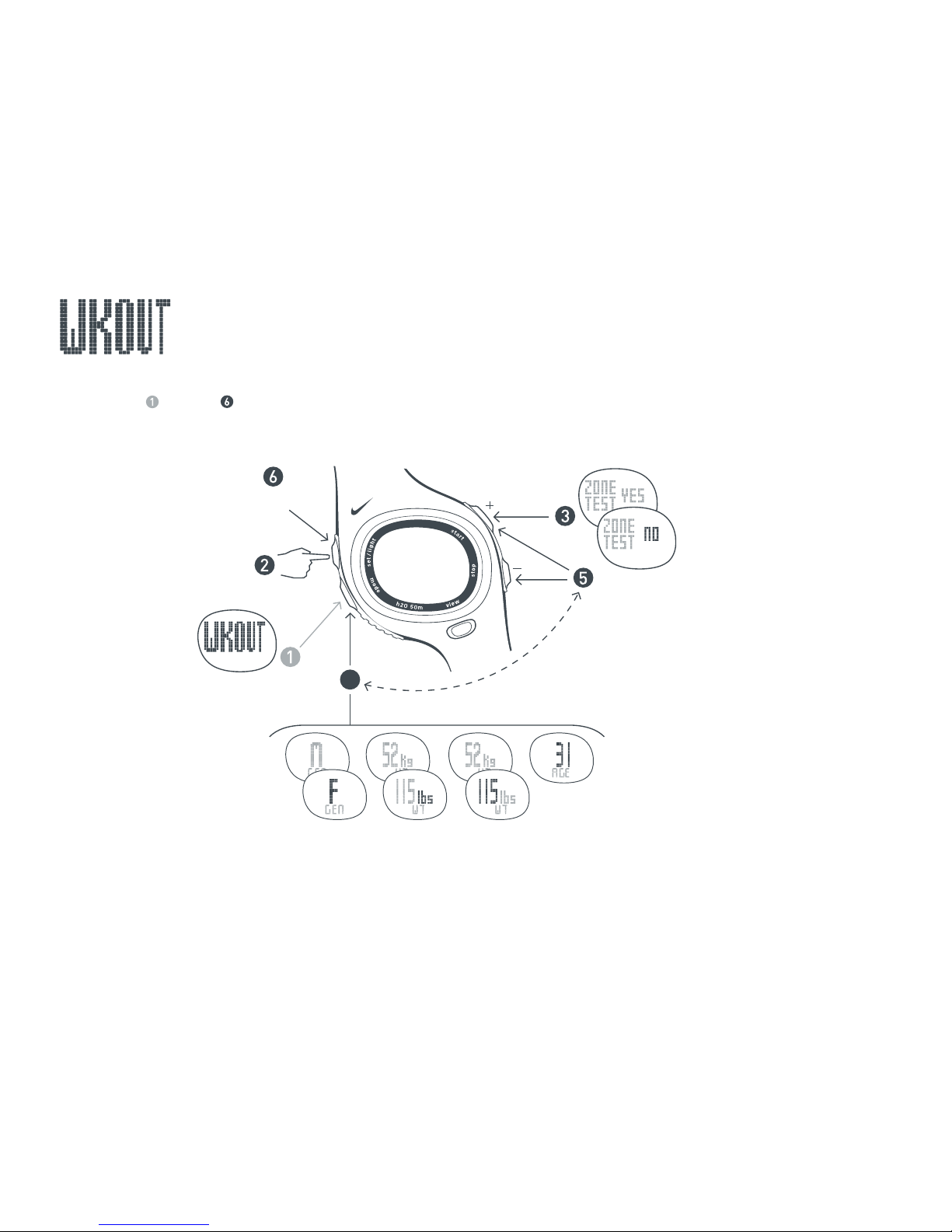

In WORKOUT mode , you can
VIEW your information in 3
different ways. Pick the VIEW that
displays the information most
relevant to you.

Scroll to

WORKOUT mode

Graph View

Each bar is your heart rate
average for 2 minutes.

Start Workout

Chronograph
View

or

or

Heart Rate /
Calories View

No Heart Rate Displayed

If you see three blinking lines
in the display, the watch is not
receiving transmission from
the Heart Rate Transmitter.

Run through the Quick Start again
or see page 14 Troubleshooting

Zone Number

Displays in
which zone you
are exercising.

5

Set Time

In TIME mode you can set the time, date and power save option. TIME mode is the only mode in which you can turn
the button chime ON and OFF. Follow steps through to set the time and date.

Power Save (0-24hrs.)
After X hours with no activity, watch
goes to sleep. Push any button to
wake. Alarm will still function.

Press button to select
adjustable element.

Electrolight
ON/OFF

Chime ON/OFF

Chime sounds at the
press of any button.

Scroll to

TIME mode

4

4 SEC

EXIT

Set hour Set minutes Set seconds Set day Set month Set year Choose 12 or

24 hour clock

6

Set Alarm

Within TIME mode you can set an alarm. Follow steps through to set the alarm.

Scroll to

TIME mode

4 SEC

Set hour Set minutes

Alarm View Time View

Press button to select
adjustable element.

(Alarm On)

EXIT

Turn Alarm ON/OFF

The alarm icon will
show in the display of any
mode when the alarm is
turned ON.

7

Completing the Heart Rate Zone Finder

A heart rate monitor is a great way to measure your exercise intensity in order to get results from your workout.
It is very important to learn which numbers are right for you.

The c6 watch is the first monitor with a Heart Rate Zone Finder. It helps you establish which numbers are easy (Z1),
medium (Z2), hard (Z3) and very hard (Z4) for you. It is a simple exercise test that takes just 15 minutes,
but will enable you to maximize the benefits of this watch, and learn more about your fitness.

Simply workout at the effort level displayed on the watch for the specified period of time. The c6 then calculates
your personal zones based upon the effort levels you achieved during the test. Rather than determining your zones
or numbers through an arbitrary heart rate chart or equation, the Zone Finder creates custom zones just for you.

As your fitness improves, you will find that
heart rates (or heart rate zones) that used to be
challenging will begin to feel easier, or you will
be able to maintain each zone for a longer
period of time than before.

We recommend you take the Zone Finder test
approximately every 30 days to check your
progress and improvement. Your watch will
even send you a reminder every 30 days
so you don't forget.

Follow steps through to complete
the Heart Rate Zone Finder.

4 SEC

Scroll to

WORKOUT mode

See opposite page

4

EXIT

8

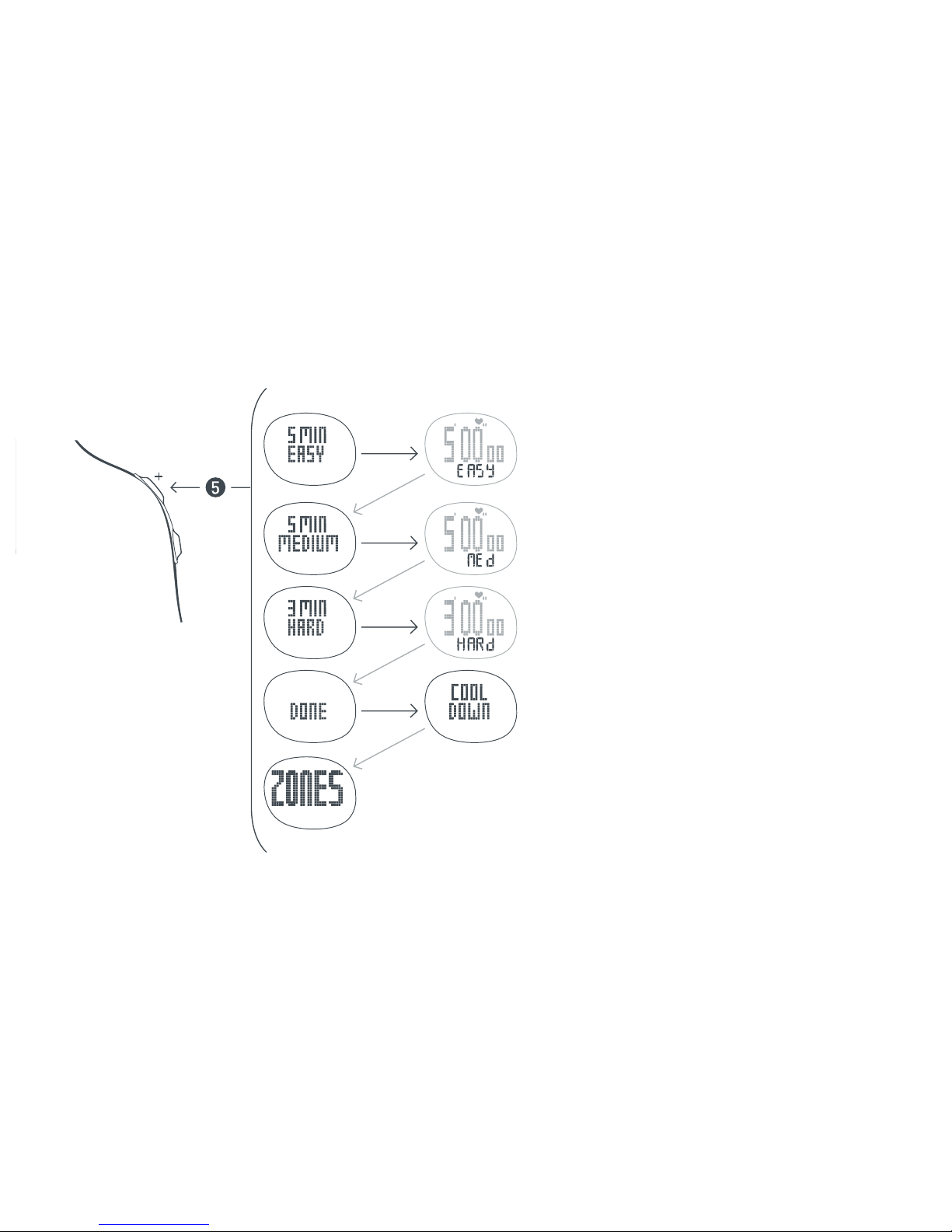

Auto-Scroll through Zones 1-4.
The zones each have an upper and lower
limit based on your average heart rate
from each of the above segments.

Exercise for 5 minutes at an effort that feels EASY...

... it feels like you are warming-up.
... you feel at-ease and non-challenged.
... you could maintain this intensity for 30-60 minutes.

Exercise for 5 minutes at an effort that feels MEDIUM...

... it is challenging, but comfortable.
... it feels harder than a warm-up, but not uncomfortable.
... you could maintain this intensity for 20-40 minutes.

Exercise for 3 minutes at an effort that feels HARD..

... it is challenging and uncomfortable but achievable.
... it feels like a competitive pace that you could not do for very long.
... you could maintain this intensity for no more than 3-5 minutes.

Cool down for 2 minutes.

2 SEC

2 SEC

2 SEC

2 SEC

Choose your favorite indoor or outdoor cardio activity, like the exercise bike, stair climber or running. You will do
3 exercise "sets" at varying intensities. Try to acquire the effort level requested by the watch. Try not to manipulate
your heart rate, but rather simply try to maintain the effort level requested on the watch. The watch will take you through
the following protocol:

Note: On page 13 you will find
an alternate method for
determining your heart rate zones.

9

Editing Heart Rate Zones

Once your personal zones are set with the Zone Finder, you can review and manually edit them in WORKOUT mode
if you feel the zones need to be adjusted up or down. Follow steps through to edit your heart rate zones
and turn the zone alarm ON /OFF.

4 SEC

Scroll to

WORKOUT mode

Tur n

zone alarm

ON/OFF

Edit

Zone 1

Edit

Zone 2

(upper limit)

Edit

Zone 3

(upper limit)

Zone 4

is set by

Zone 3

4

EXIT

Zone Alarm ON Indicator

If zone alarm is ON the watch
will beep as your heart rate
moves between zones.

10

Setting Calorie Information

The c6 watch will automatically determine the amount of calories you have burned during a workout.
Follow steps through to enter the information used to calculate calories burned.

4 SEC

Scroll to

WORKOUT mode

Scroll to

gender select

display

Select

weight

units

Enter

weight

Enter

age

4

EXIT

11

Using the Chronograph

Now that you have set your zones and entered the necessary information to measure calories, you are ready to begin
a workout. In WORKOUT mode you can view current heart rate, calories burned, and your average heart rate at any time
during the workout. Follow steps through to use the chronograph.

2

Scroll to

WORKOUT mode

Press button to switch
views at any time during
your workout.

Graph View

Start Workout

A blinking stopwatch will appear.

Clear Workout

Clearing the workout
will also clear the
information stored in
DATA mode.

NOTE: Calories and Graph start when
the workout is started, stop when the
workout is stopped and reset when
the workout is cleared.

Stop Workout

Stopwatch goes away.

3 SEC

Chronograph

View

Heart Rate /

Calories View

12

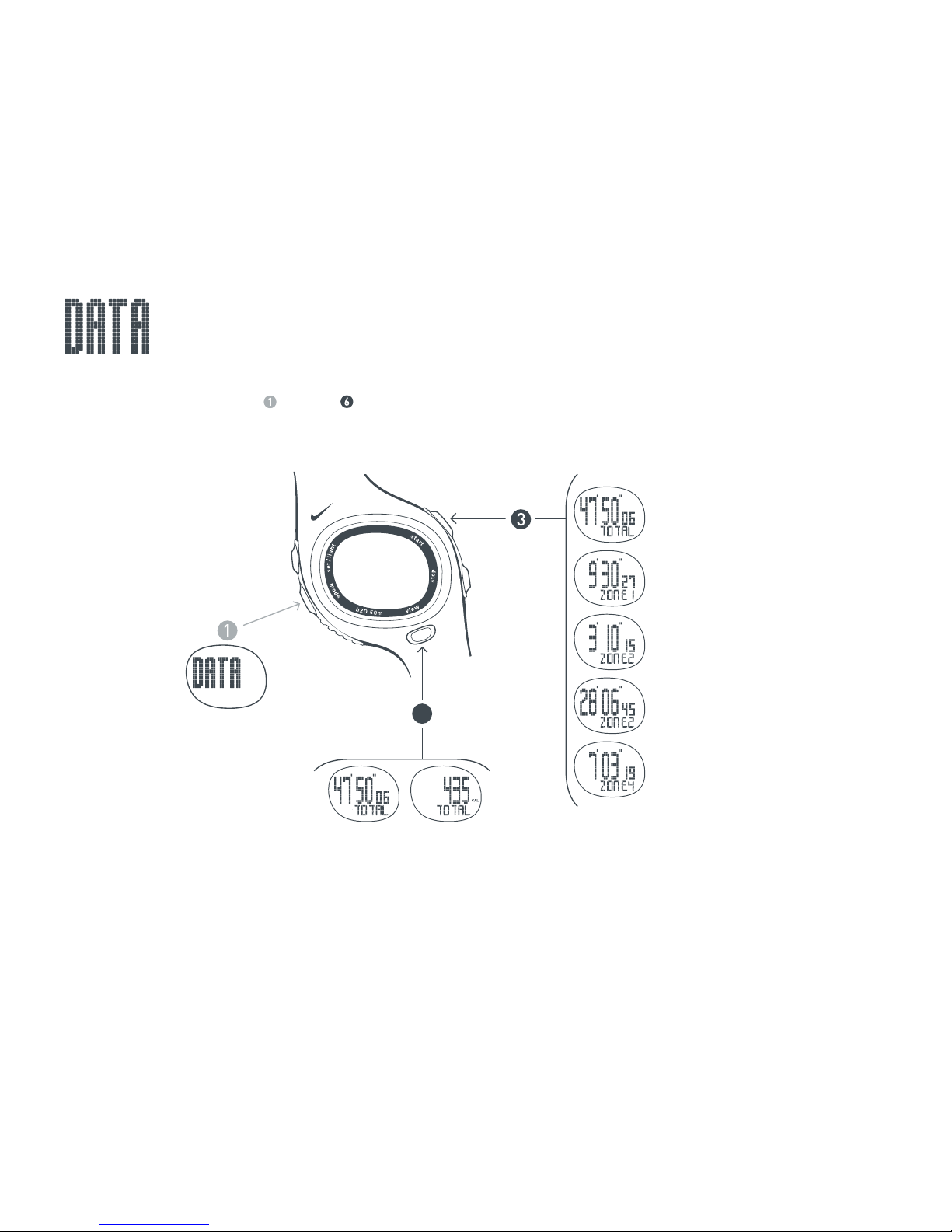

Review Workout Data

In DATA mode you can review total workout time, total calories burned, and the amount of time spent in each
heart rate zone. Follow steps through to view data recorded during the workout.

Scroll to

DATA mo de

Total time Total calories

burned

4

Total time

Total time in
ZONE 1 (Z1)

Total time in
ZONE 2 (Z2)

Total time in
ZONE 3 (Z3)

Total time in
ZONE 4 (Z4)

NOTE: Clearing the workout
will also clear the information
stored in DATA mode.

13

Heart Rate Intensity Chart

We encourage you to use the Zone Finder (page 7) to determine your heart rate zones because it will provide you with
a very accurate correlation between your heart rates and actual effort. However, if you do not wish to use the Zone Finder,
you may also use the following chart to input your heart rate zones. Please note this chart will not be accurate for everyone.

Determine your Target Heart Rate Zones (Intensities)

Max Heart Rate

205 bpm

200

195

190

185

180

175

170

165

160

155

150

123 - 143 bpm

120 - 139

117 - 136

114 - 132

111 - 129

108 - 125

105 - 122

102 - 118

99 - 115

96 - 111

93 - 108

90 - 104

144 - 163 bpm

140 - 159

137 - 155

133 - 151

130 - 147

126 - 143

123 - 139

119 - 135

116 - 131

112 - 127

109 - 123

105 - 119

164 - 184 bpm

160 - 179

156 - 175

152 - 170

148 - 166

144 - 161

140 - 157

136 - 152

132 - 148

128 - 143

124 - 139

120 - 134

184 - 205 bpm

180 - 200

176 - 195

171 - 190

167 - 185

162 - 180

158 - 175

153 - 170

149 - 165

144 - 160

125 - 155

121 - 150

Light Intensity
(60-70% of Max HR)

Exercise in this range at the
start of a workout or to recover
from a tough workout or race.
You should be able to easily
maintain a conversation while
exercising at this intensity.

Find your

Max Heart Rate

Moderate Intensity
(70-80% of Max HR)

Exercise in this range to develop
endurance and prepare your
muscles to make the transition
from aerobic to anaerobic.
You should be able to maintain
this for a while. You should not
be completely breathless and
this should not hurt.

Heavy Intensity
(80-90% of Max HR)

Exercise in this range
to increase muscle strength
and improve your anaerobic
threshold. This is uncomfortable.
You should be breathing very
heavily. You should only be able
to sustain this for a brief time.

Maximum Intensity
(90-100% of Max HR)

Exercise in this range to increase
mental toughness, Max V02 and
tolerance to lactic acid. This is
very uncomfortable. You can
barely sustain it. You should be
completely breathless. Do not
exercise at this intensity except
on the advice of a trained
medical professional.

14

Troubleshooting

No heart rate displayed on watch:

The grooved sensors may not be wet enough.
Wet and try again. It is recommended that you wear
the Heart Rate Transmitter directly against your skin.
If you are wearing the HR Transmitter over clothing,
try getting the clothing wet also.

The HR Transmitter may not be positioned correctly.
Make sure the grooved sensors are flat against the skin.

Heart rate reading on watch is erratic or stops:

You may need to replace the battery in the HR Transmitter.

Sources of electromagnetic fields like appliances,
computers and power lines can cause interference.
Change your location.

This product complies with EN60601-1-2

REDO ZONE FINDER displayed after completing zone finder:

Your intensity increased too quickly or was erratic during
sections of the test or interference may have caused
inaccurate readings during the test.

Concentrate on maintaining a steady output during each
intensity level as you retry the test.

Watch display is Frozen:

The display of your watch may "freeze" due to static
electricity or recent battery replacement. If this occurs,
press and hold all four buttons at the same time.
This will erase the data in the memory and allow you
to reset the watch to the factory settings.

Watch beeps continuously:

If you have the zone alarm on and your heart rate does not
fall within any of your zones, the watch will beep to let you
know you are out of your zones. Press mode button to exit
WRKOUT mode or turn off zone alarm. See page 9 for

instructions on how to turn off the zone alarm.

Specifications

IP code: IPX8
Applied Part: Type CF
Storage: Standard Conditions (within operating temperature)

Watch

Water Resistant up to 50 Meters:

Designed for underwater performance
to a depth of 165 feet (50 m).

ATTENTION: Water damage
will occur if watch buttons
are pressed while underwater!

Operating Temperature: -5 to 50˚ Celsius

Material Specifications:

Crystal: Mineral Glass
Case: Polycarbonate
Buckle: Stainless Steel
Bezel: Stainless Steel
Caseback: Stainless Steel
Strap: Polyurethane

Mode Limits:

Chronograph: 23:59’59”
Heart Rate: 30 - 240 bpm

Calories: 9999

Heart Rate Transmitter

Water Resistant up to 30 Meters:

Wipe dry after use. Do not store among conductive material.

Operating Temperature: -5 to 50˚ Celsius

Accuracy:

+

-

1% or

+

-

1% bpm, whichever larger (steady state)

Material Specifications:

Case: Polycarbonate
Strap: Urethane
Band: Elastic

15

Battery

WARNING! Keep watch batteries away from children. If swallowed, contact a doctor immediately.
WARNING! Batteries contain chemical substances. They should be disposed of properly according to local regulations.

Watch

Battery Type: CR2032 3V Lithium

Battery Life:

The battery is estimated to last 1-1.5 years depending on frequency and use
of certain features. Activating the Electrolite feature will contribute to battery drain.
Utilizing the Power Save function will help conserve battery life.

Battery Replacement:

Follow steps below to replace your watch battery. For best results, you can have
Nike’s authorized service center change the watch battery.

Heart Rate Transmitter

Battery Type: CR2032 3V Lithium

Battery Life:

The battery is estimated to last 1 year if HR Transmitter is used one hour per day.

Open the battery
lid on the watch
with a coin by
turning counter­clockwise.

Replace the
battery holder
cover and
battery lid.

Insert a CR2032,
3V lithium
battery with the
writing facing
you. Do not
touch the 2
contacts.

Twist and
remove battery
holder cover.
Remove old
battery.

Open the battery lid on
the HR Transmitter
with a coin by turning
counter-clockwise.

Insert a CR2032, 3V
lithium battery with
the writing facing you.
Do not touch the 2
contacts.

Replace the battery lid.

16

Two-Year Limited Warranty

Your NIKE watch is warranted to be free of defects in materials or workmanship,
under normal use, for a period of two years from the date of delivery. This limited
warranty excludes the battery, crystal, strap, or damage resulting from improper
care or handling, accidents, modification, unauthorized repairs or normal wear.

Return the defective watch and the store receipt to the place of purchase.
If there is a covered defect, you have the option to have the defective parts or
watch repaired or replaced with the same product (if available) or a similar
product of equal price. However, NIKE reserves the right to refuse either repair
or replacement (but not both) if the cost of doing so would be disproportionate
to the defect.

This limited warranty is in place of all other express warranties, and excludes
refund of the purchase price. Any implied warranties, including merchantability
and fitness for a particular purpose, are limited to the duration of this limited
warranty. In no event shall NIKE be liable for direct, indirect, incidental or
consequential damages arising out of the use of the watch, and any recovery is
limited to the purchase price. No other person or company is authorized to
change this limited warranty, and your dealer is solely responsible for any
other warranties.

For U.S. Purchasers: Some states do not allow limitations on how long an implie
warranty lasts, or exclusions of incidental or consequential damages, so the above
limitations may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights which vary from state to state.

The foregoing is without prejudice to other legal rights that may arise
under applicable national legislation.

For non-warranty service like battery or strap replacement,
contact one of the listed service centers.

CE Compliance

This product complies with the Medical Device Directive (Directive 93/42/EEC).

0197

Service Centers

USA: 800-359-2508
Parsec Enterprises, Inc.
7501 N. Harker Dr.
Peoria, IL 61650

Denmark: [phone]
France: [phone]
UK: [phone]
Germany: [phone]
Netherlands: [phone]
Belgium: +00 32 2 468 32 05
Italy: [phone]
Norway: [phone]
Sweden: [phone]
Austria: [phone]
Finland: [phone]
Switzerland: [phone]
Spain: [phone]
Greece: [phone]
Slovenia: [phone]
Croatia: [phone]
Hungary: [phone]
Israel: [phone]
Turkey: [phone]
CIS: 7 095 232 0115
UAE: [phone]
Saudie Arabia: [phone]
Lebanon: [phone]
Egypt: [phone]
Japan: 0120-500-719
Korea: 080-022-0182
Singapore: 65-788 0990
Malaysia: 603-7722 2459
Thailand: 662-676 6100
Philippines: 632-848 9851
Australia: 1300 656 453
Taiwan: 0800-009-868
