This manual is developed for users, system managers, network managers, and
contains installation, configuration, and operation of the WLAN ADSL2+ Router.
1.1 Document Objectives
The objectives of this manual are to describe all the initial hardware installation and
basic configuration procedure for the WLAN ADSL2+ Router. After completing the
installation and basic configuration procedures, you can then use the appropriate
contents to more completely configure your system.
1.2 Product Overview
This section provides an overview of the WLAN ADSL2+ Router. It also describes the
general applications available with the WLAN ADSL2+ Router.
Note! This section documents general product features
available in the WLAN ADSL2+ Router product series. Please
refer to the release notes for a current list of upgraded
hardware and software s
ecifications.
1.3 Product Description
WLAN ADSL2+ Router is a low cost, high performance and high-speed device that
provides a full rate ADSL2+ Router with the superb reliability and a complete solution
for home and office router. WLAN ADSL2+ Router can have a maximum downstream
data rate of up to 24Mbps and an upstream of up to 1Mbps. When configured as a
DHCP server, it will assign IP address to every connected PC and acts as the only
externally recognized Internet device on your local area network. With build-in NAT,
WLAN ADSL2+ Router serves as an Internet firewall, protecting your network from
being accessed by outside users. You can safely enjoy the new generation broadband
Internet with WLAN ADSL2+ Router.
1
r
WLAN ADSL2+ Route
2.0 Specification
ADSL Standards supported
●Compliant to ITU-T G.992.1 (G.dmt), G.992.2 (G.lite),
G.992.3 (ADSL2), G.992.4 (splitterless ADSL2), G.992.5 (ADSL2+) for Annex A, B
●G.lite (G.992.2) with line rate support of up to 1.5Mbps downstream and 512Kbps upstream.
●Supports Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (G.992.1); G.994.1 and
G.996.1(for ISDN only); G.991.1;G.lite (G992.2)).
●Supports OAM F4/F5 loop-back, AIS and RDI OAM cells.
●ATM Forum UNI 3.1/4.0 PVC.
●Supports up to 8 PVCs (UBR, CBR, VBR).
●Multiple Protocols over AAL5 (RFC 1483).
●PPP over AAL5 (RFC 2364).
●PPP over Ethernet (RFC 2516).
Wireless Ethernet 802.11g
With built-in 802.11g access point for extending the communication media to WLAN
while providing the WEP and WPA for securing your wireless networks.
Network Address Translation (NAT)
Network Address Translation (NAT) allows the translation of an Internet protocol address used
within one network (for example a private IP address used in a local network) to a different IP
address known within another network (for example a public IP address used on the Internet).

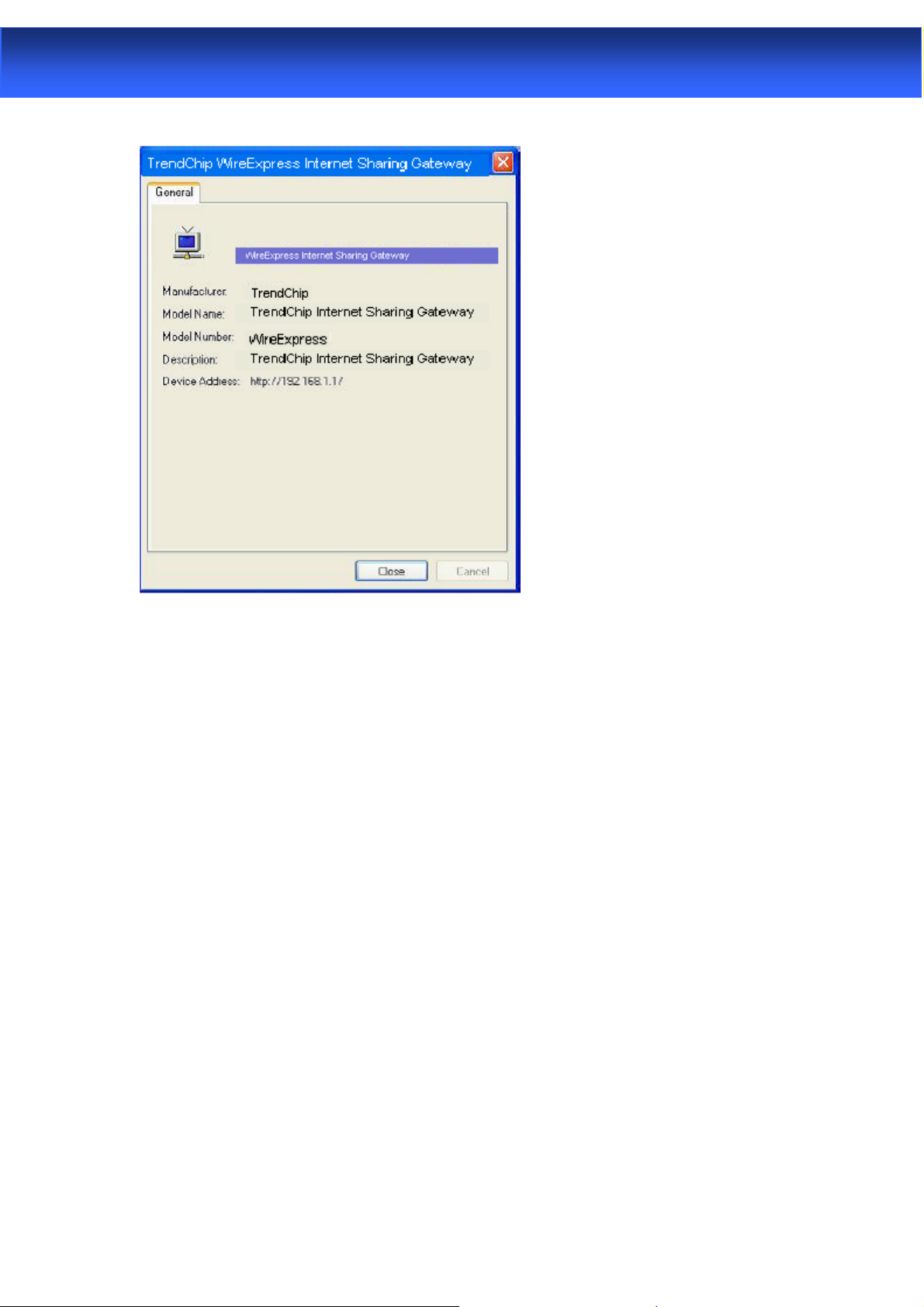

Universal Plug and Play (UPnP)
Using the standard TCP/IP protocol, the WLAN ADSL2+ Router and other UPnP enabled
devices can dynamically join a network, obtain an IP address and convey its capabilities to
other devices on the network.
10/100M Auto-negotiation Ethernet / Fast Ethernet Interface
This auto-negotiation feature allows the WLAN ADSL2+ Router to detect the speed of
incoming transmissions and adjust appropriately without manual intervention. It allows data
transfer of either 10 Mbps or 100 Mbps in either half-duplex or full-duplex mode depending on
your Ethernet network.
Dynamic DNS Support
With Dynamic DNS support, you can have a static hostname alias for a dynamic IP address,
Multiple PVC (Permanent Virtual Circuits) Support
Your WLAN ADSL2+ Router supports up to 8 PVC’s.
DHCP Support
DHCP (Dynamic Host Configuration Protocol) allows individual clients (computers) to obtain
TCP/IP configuration at start-up from a centralized DHCP server. The WLAN ADSL2+ Router
has built-in DHCP server capability enabled by default. It can assign IP addresses, an IP
default gateway and DNS servers to DHCP clients. The WLAN ADSL2+ Router can now also
act as a surrogate DHCP server (DHCP Relay) where it relays IP address assignment from the
actual real DHCP server to the clients.
2
r
WLAN ADSL2+ Route
2.1 LED Meaning
Your WLAN ADSL2+ Router has indicator lights on the front side. Please see below for an
explanation of the function of each indicator light.
Power indicator
ADSL Link indicator
ADSL Active indicator
Wireless Active indicator
Ethernet Active indicator
Table 1. LED function
Label ColorOn Flash Off
GreenReady Not Ready Power Off
Green Connect to DSLAM Disconnect to DSLAMN/A
GreenN/A ADSL Active ADSL IDLE
GreenN/A Wireless Active N/A
Green
Ethernet
Connected
Transmit / Receive Data
Ethernet
Disconnected
r
WLAN ADSL2+ Route
2.2 Back Panel Connectors
Table 2 shows the function of each connector and switch of the WLAN ADSL2+
Router’s back panel. Figure 1 illustrated the connectors
Table 2. Function / Description of Connectors
Connector Description
RESET
SWITCH
POWER
LAN1~4
LINE
Figure1. Rear View of the WLAN ADSL2+ Router
Reset bottom, RESET the WLAN ADSL2+ router to its default settings
Power Switch
Connects to your WLAN ADSL2+ router 12Vac power adaptor
RJ-45 Jack (Ethernet Cable) connection to your PC, or HUB
Connects to your ADSL2+ line – for ADSL2+ Line input
.
4
r
WLAN ADSL2+ Route
2.3 Factory Default Settings
Before configuration, please refer to following default settings,
Web interface:
Username: admin
Password: 1234
LAN IP Settings:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
DHCP:
DHCP Server: Enable
3.0 Hardware Requirements
To use WLAN ADSL2+ Router, please have following hardware / accessories ready.
A PC with Pre-installed Ethernet Adapter (Required)
12Vac power adaptor (Included in the package)
RJ-45 Ethernet cable (Included in the package)
RJ-11cable (Included in the package)
3.1 Setting up the Hardware Environment
Please kindly refer to chapter 4.0 “Installation & Setup”
Note! Be sure that you are well insulated from any power
source to avoid electricity shock.
3.2 Powering on WLAN ADSL2+ Router
Note! Use only the manufacturer-approved power supply that
shipped with the WLAN ADSL2+ Router.
1. Connect the power to the WLAN ADSL2+ Router by plugging the power
supply into an appropriate electrical outlet.
2. If the Power LED is off, refer to “Troubleshooting” for information.
Please kindly refer to chapter 4.0 “Installation & Setup”
Important Notice!
For software installation, please refer to the file inside your CD.
CD ROM :\MANUAL\Manual.pdf.
5
r
WLAN ADSL2+ Route
4.0 Installation & Setup
Follow each STEP carefully and only go to the next step once you have complete the
previous STEP.
Connection of WLAN ADSL2+ Router
If you have an ISDN telephone line connect the modem router as shown below:
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to any of
the 4 WLAN ADSL2+ Router's LAN Ports.
2. Connect the supplied RJ11 telephone cable from your home's telephone jack to
the “LINE” port of thesupplied splitter. Connect another RJ11 telephone cable to
the “MODEM”port of the splitter and connect the other end of this cable to the
LINEport of your WLAN ADSL2+ Router.
3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter and connect
the other end to your telephone.
4. Connect the power adapter to the power inlet “POWER” of the WLAN ADSL2+
Router and turn the “ON/OFF SWITCH” switch of your WLAN ADSL2+ Router on.
6
r
WLAN ADSL2+ Route
If you have a PSTN telephone line (normal analog line) connect the router as
shown below:
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to any of
the 4 WLAN ADSL2+ Router's LAN Ports.
2. Connect the supplied RJ11 telephone cable from your home's telephone jack to
the “LINE” port of the supplied splitter. Connect the other supplied RJ11 telephone
cable to the “DSL” port of the splitter and connect the other end of this cable to the
“LINE” port of your WLAN ADSL2+ Router.
3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter and connect
the other end to your telephone.
4. Connect the power adapter to the power inlet “POWER” of the WLAN ADSL2+
Router and turn the “ON/OFF SWITCH” switch of your WLAN ADSL2+ Router on.
7
r
WLAN ADSL2+ Route
5.0 Configuration Procedures
Before starting the WLAN ADSL2+ Router configuration, please kindly
configure the PC computer as below, to have automatic IP address / DNS
Server.
For Windows 98SE/ME/2000/XP
1. Click on “Start” -> “Control Panel” (in Classic View). In the
Control Panel; double click on “Network Connections” to continue.
2. Single RIGHT click on “Local Area connection”, then click “Properties”.
8
r
3. Double click on “Internet Protocol (TCP/IP)”.
WLAN ADSL2+ Route
4. Check “Obtain an IP address automatically” and “Obtain DNS
server address automatically” then click on “OK” to continue.
5. Click “Show icon in notification area when connected” (see screen
image in 3. above) then Click on “OK” to complete the setup procedures.
9
r
WLAN ADSL2+ Route
For Windows Vista-32/64
1.Click on "Start” -> “Control Panel” (in Classic View) -> “Network and
Sharing Center”. In the Manage network connections, double click on
"Manage network connections" to continue.
2. Single RIGHT click on “Local Area connection", then click "Properties".
3. The screen will display the information “User Account Control” and click
“Continue” to continue.
10
r
WLAN ADSL2+ Route
4. Double click on "Internet Protocol Version 4 (TCP/IPv4)"
5. Check "Obtain an IP address automatically" and “Obtain DNS server
address automatically” then click on "OK" to continue.
6. You can see the screen will appear as shown in Step 4. above, then click “OK”
to complete the setup procedures.
11
r
WLAN ADSL2+ Route
6.0 WLAN ADSL2+ Router Configuration
1. Please insert the supplied CD into your CD-ROM drive.
2. The CD should auto-start, displaying the window shown in 3. below. If
your CD does not start automatically, go to Windows Explorer, Select
your CD drive and double click “setup.exe”.
3. Please choose your language and then click button to continue.
12
r
WLAN ADSL2+ Route
4. To configure the device, please click the “Configuration”
5. There are two ways to configure your WLAN ADSL Router, depend on
your connection type. One is normal connection, please click “Internet Configuration” button to continue (see 6 ~ 10 below). The another one
is for IPTV connection, please click “IPTV Connection” button to
continue (see 11 ~ 18 below).
13
r
WLAN ADSL2+ Route
If you click “Internet Configuration“ button, displaying the window
shown in 6 below.
6. Please click the “Next” to continue.
7. Select your country, town, ISP and settings your ISP (Internet Services
Provider) provided, and enter your required settings. Then press “Save Configuration”. Please wait for about 60 seconds.
14
r
WLAN ADSL2+ Route
8. When the “Information” screen pop-up, please click “OK” button to
configure the WLAN setting, or click “Cancel” button to quit.
9. Please enter the SSID and wireless channel if you want to change
(the default setting SSID=TRENDnet_ADSL, Channel=9). Choose the
Authentication type if necessary, as Disable / WEP-64bits /
WEP-128bits / WPA-PSK and WPA2-PSK. For example, you choose
the WEP 64bits type and save the authentication keys in key 1,
displaying the screen shown in 9. below.
15
r
WLAN ADSL2+ Route
10. Please click on “Save configuration” button. When the “Information”
screen pop-up, please click “OK” button to exit the program.
If you click “ IPTV Connection “ button, displaying the window shown
in 11 below.
11. Please click the “Next” to continue.
16
r
WLAN ADSL2+ Route
12. Follow the diagram to connect your device, please click the “Next” to
continue.
13. Select your town, ISP and settings your ISP (Internet Services Provider)
provided, and enter your required settings. Then press “Save Configuration”. Please wait for about 60 seconds.
17
r
WLAN ADSL2+ Route
14. When the “Information” screen pop-up, please click “OK” button to
configure the Internet setting, or click “Cancel” button to quit.
15. Select your country, town, ISP and settings your ISP (Internet Services
Provider) provided, and enter your required settings. Then press “Save Configuration”. Please wait for about 60 seconds.
18
Loading...
+ 46 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
