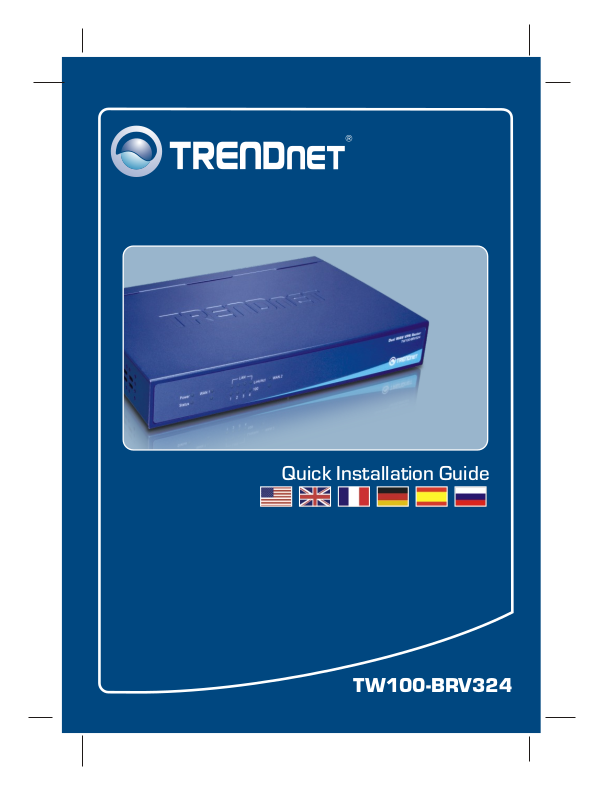

Quick Installation Guide
TW100-BRV324
Table of Contents
Table of Contents
English ......................................................................................................
1. Before You Start
2. Hardware Installation .........................................................................
3.
Configure the Router .........................................................................
Troubleshooting ........................................................................................
.................................................................................
1
1
2
3
4
Version 09.05.2007
1. Before You Start
W100-BRV324
T
?
Quick Installation Guide
?
?User's Guide CD-ROM
?1 x RJ-45 Ethernet Cable
? Power Adapter (5V, 3A)
Installation Requirements
A computer with a wired network adapter properly installed.
?
?Web Browser: Internet Explorer (5.0 or higher) or Netscape
Navigator (4.7 or higher)
?Broadband Internet
?Installed Cable or DSL Modem
Application
INTERNET
Virtual Private Network
Internet Internet
Workstations with
PCI Adapter
Corporate
Office
10/100Mbps
Cable/DSL Advanced
VPN Firewall Router
(TW100-BRV304)
10/100Mbps Switch
Wireless AP
Cable/DSL
Modem
Dual WAN Advanced
VPN Router
(TW100-BRV324)
Notebook with
10/100Mbps PC Card
(TE100-PCBUSR)
Workstation with
10/100Mbps PCI Adapter
(TE100-PCIWN)
Package Contents
Cable/DSL VPN
Firewall Router
(TW100-BRV204)
Notebooks with
10/100Mbps PC Cards
(TE100-PCBUSR)
Home
Office
1
English
2. Hardware Installation
Note: Gather all information related to your Internet Connection before you
start. If necessary, contact your Internet Service Provider (ISP).
1. Verify that you have an Internet
connection when connecting your
computer directly to the Cable or
DSL modem.
2. Connect one end of a RJ-45 cable
to the TW100-BRV324's WAN 1
port. Connect the other end of the
cable to your modem. If you have
a second Internet connection,
connect one end of a RJ-45 cable
to WAN 2. Then connect the other
end of the cable to the second
modem.
3. Connect one end of a RJ-45 cable
to one of the TW100-BRV324's
LAN ports. Connect the other end
of the cable to the computer's
Ethernet port.
Internet
Cable/DSL Modem
4. Connect the AC Power Adapter to
the TW100-BRV324 and then to a
power outlet.
5. Verify that the following panel lights
are on: Power, LINK/Act, WAN 1
and WAN 2.
2
English
3. Configure the Router
1. Open your web browser, type
http://192.168.0.1 in the
Address bar, and press Enter.
2. Enter the User name and
Password. Then click OK.
User name: admin
By default, there is no password.
3. Click Setup, and then click WAN
Port. Select the type of Internet
access that you have. Configure
the settings based on information
provided by your ISP. Then click
Save.
4. If you have a second Internet
connection, repeat step 3 for
WAN 2.
Your configuration is now complete.
For detailed information regarding the TW100-BRV324's configuration and
advanced settings, please refer to the Troubleshooting section, User's Guide
CD-ROM, or TRENDnet's website at http://www.trendnet.com.
3
English
Troubleshooting
Q1:
I typed http://192.168.0.1 in my Internet Browser's Address Bar, but an error message says “The page
cannot be displayed.” How can I get into the TW100-BRV324's web configuration page?
First, check your hardware settings again by following the instructions in Section 2. Second, make
A1:
sure the LINK/ACT light for the LAN port is lit. Third, make sure your TCP/IP settings are set to Obtain an
IP address automatically (see the steps below).
1. Go into the Control Panel and double-click the
Network Connections icon, right-click the Local
Area Connection icon and then click Properties.
2. Click Internet Protocol (TCP/IP) and then click
Properties. Then click on Obtain an IP address
automatically.
Fourth, press on the factory reset button for 15 seconds.
Q2:
I am not sure what type of Internet Account Type I have for my Cable/DSL connection.
How do I find out?
A2:
Contact your Internet Service Provider's (ISP) support service for the correct information.
Q3:
I went through the Setup Wizard, but I can not get onto the Internet. What should I do?
A3:
First, verify that you can get onto the Internet with a direct connection into your modem. Second,
contact your ISP and verify all the information that you have in regards to your Internet connection settings
is correct. Third, power cycle your modem and router. Unplug the power to the modem and router. Wait
30 seconds, and then reconnect the power to the modem. Wait for the modem to fully boot up, and then
reconnect the power to the router.
Q4:
Can I use the console port to configure the TW100-BRV324?
A4:
The console port is intended for troubleshooting purposes only. You can not use the console port
for configuration purposes. Please use the browser to configure the TW100-BRV324.
If you still encounter problems or have any questions regarding the TW100-BRV324, please contact TRENDnet’s
Technical Support Department.
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
4
Register Your Product
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de
alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al
mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador
de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria
existente en el pais o zona de instalación.
TRENDnet Technical Support
.
US Canada
Toll Free Telephone: 1(866) 845-3673
24/7 Tech Support
Europe (Germany France Italy Spain Switzerland UK)
Toll Free Telephone: +00800 60 76 76 67
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
. . . . .
Worldwide
Telephone: +(31) (0) 20 504 05 35
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com/register
20675 Manhattan Place
Torrance, CA 90501
USA
Copyright ©2007. All Rights Reserved. TRENDnet.
