TRENDnet TK-400K b1 Datasheet

Page 1

kvm

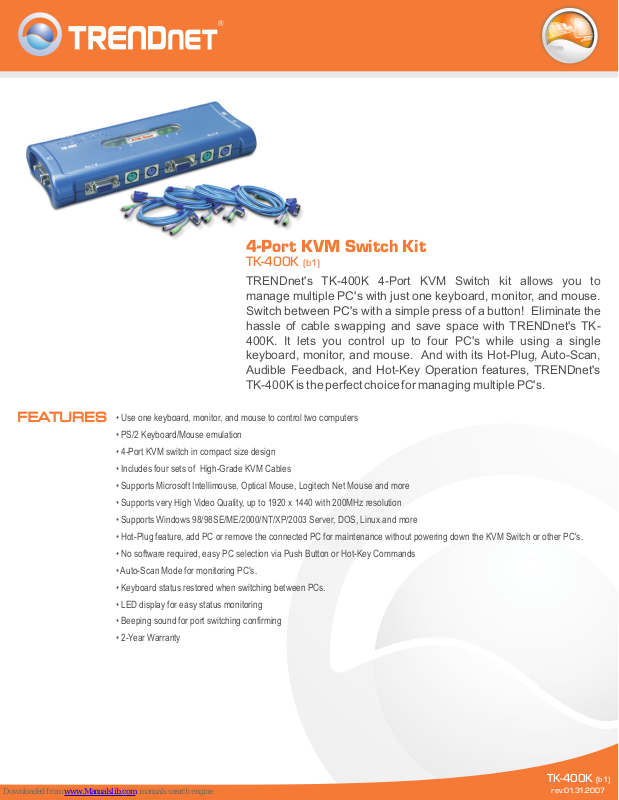

4-Port KVM Switch Kit

TK-400K (b1)

TRENDnet's TK-400K 4-Port KVM Switch kit allows you to manage multiple PC's with just one keyboard, monitor, and mouse. Switch between PC's with a simple press of a button! Eliminate the hassle of cable swapping and save space with TRENDnet's TK400K. It lets you control up to four PC's while using a single keyboard, monitor, and mouse. And with its Hot-Plug, Auto-Scan, Audible Feedback, and Hot-Key Operation features, TRENDnet's TK-400K is the perfect choice for managing multiple PC's.

FEATURES

• Use one keyboard, monitor, and mouse to control two computers

• PS/2 Keyboard/Mouse emulation

• 4-Port KVM switch in compact size design

• Includes four sets of High-Grade KVM Cables

• Supports Microsoft Intellimouse, Optical Mouse, Logitech Net Mouse and more

• Supports very High Video Quality, up to 1920 x 1440 with 200MHz resolution

• Supports Windows 98/98SE/ME/2000/NT/XP/2003 Server, DOS, Linux and more

• Hot-Plug feature, add PC or remove the connected PC for maintenance without powering down the KVM Switch or other PC's.

• No software required, easy PC selection via Push Button or Hot-Key Commands

• Auto-Scan Mode for monitoring PC's.

• Keyboard status restored when switching between PCs.

• LED display for easy status monitoring

• Beeping sound for port switching confirming

• 2-Year Warranty

TEW-503PI (07-28-2005)

TK-400K (b1)

rev:01.31.2007

Page 2

4-Port KVM Switch Kit

TK-400K (b1)

SPECIFICATIONS

Hardware

Computer Connections

KVM Cable Port Interface

PC Port

Console Port

Port Selection

Auto-Scan Interval

Power Type

Power Supply

Dimensions

Weight

Temperature

Humidity

Certifications

• 4

• 4 Sets of 1.8M (6ft) High-Grade KVM Cables (UL2919 for VGA monitor, male to male)

• PS/2 Keyboard 6-pin Mini Din (Female) • PS/2 Mouse 6-pin Mini Din (Female) • VGA HDB 15-pin (Female)

• 4

• 1

• Push Button and Hot-Key Commands

• 4 seconds

• PS/2 Keyboard Interface Power

• 5V-9V DC, 800mA~1A Optional External Power Supply

• 192 x 81 x 31mm (7.5 x3.2 x 1.2in.)

• 240g (8.5Oz)

• Operating: 0C° ~ 40C° (32F° ~104F°) • Storage: -20C° ~ 60C° (-4F° ~140F°)

• 0%~8%, Non-Condensing

• CE, FCC

NETWORKING SOLUTIONS

4-Port KVM Switch Kit

PS/2

VGA

PC 1

LCD Monitor

PS/2

VGA

PC 3

(TK-400K)

VGA Cable PS/2 Cable

PS/2

VGA

Keyboard

PS/2

VGA

PC 2

PC 4

Mouse

PACKAGE CONTENTS

• TK-400K

• 4 set of KVM Cable

• Multi-Language User's Guide
