Trendnet TFM-560EPLUS, TFM-560E User Manual

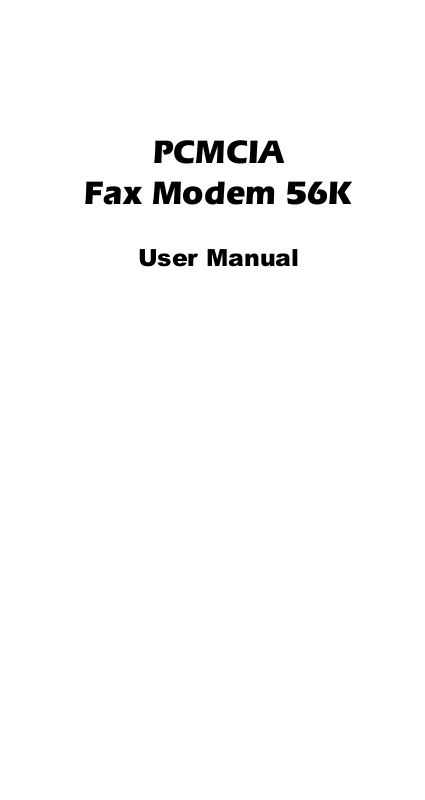

PCMCIA

Fax Modem 56K

User Manual

FCC REGULATORY STATEMENTS

FCC Part 68 Registration

This device complies with FCC Part 68 rules, and the use of this device is subject to the following restrictions:

The FCC has established rules which permit this device to be directly connected to the telephone network. Standardized jacks are used for these connections. This equipment should not be used on party lines or coin phones. If this device is malfunctioning, it may also be causing harm to the telephone network; this device should be disconnected until the source of the problem can be determined and until repair has been made. If this is not done, the telephone company may temporarily disconnect service. The telephone company may make changes in it's facilities, equipment, operation and procedures; if such changes affect the compatibility or use of this device, the telephone company is required to give adequate notice of the situation with the FCC. If the telephone company requests information on what equipment is connected to their lines, inform them of:

a. The telephone number to which this unit is connected. b. The Ringer Equivalence Number (REN). c. The USOC jack required. d. The FCC Registration number.

Items (b) and (d) are indicated on the label. The Ringer Equivalence Number (REN) is used to determine how many devices can be connected to your telephone line. In most areas, the sum of the REN's of all the devices on any one line should not exceed 5.0. If too many devices are attached, they may not ring properly.

FCC Part 15 Registration

This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interface, and

2. This device must accept any interface received including

interface that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy,

and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the distance between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected. (4) Consult an experienced radio/TV technician for help.

CTR 21 pan-European Certification

This equipment has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point. In the event of problems, you should contact your equipment supplier in the first instance.

This device is designed to work with the notified networks in all EC member states. Nevertheless, some of the network services in invidual countries might not be supported, but they will not affect the normal data and fax applications. For example, the metering charge service in Germany. Besides you may encounter difficulty of using PULSE dialing function in some of the countries, such as Nordic countries. This kind of network compatibility is dependent on the physical and software settings of this device. If the users are desired to use this device on those networks, they should contact the vendor or supplier first.

INTRODUCTION

This PCMCIA Fax Modem 56K is a credit-card-size Type II PC card that complies with the PCMCIA 2.1 standards.

The PCMCIA Fax Modem 56K is Bell, ITU-T (formerly CCITT) compliant and Hayes AT command compatible, so that it can be used worldwide with today’s popular communication software programs. You will be able to send and receive faxes to/from any Group 3 compatible fax machine. Using standard phone lines, the data communication functions of the modem will enable you to successfully hook up to the Internet, transmit E-mail, send and receive information and communicate with other PCs, Bulletin Board Services (BBS) or computer networks such as Compuserve

Specifications

Data

K56flex, V.90, V.34bis, V.34, V.32bis, V.32, V.22bis, V.22, and V.21, Bell 212A and Bell 103

Fax

V.17, V.29, V.27ter, and V.21 channel 2 Group 3 send and receive facsimile

Error Correction

V.42 and MNP 2-4

Data Compression

V.42bis and MNP 5

Communication software compatible commands

Hayes compatible enhanced "AT" command set

- 1 -

Fax Service Class 1 commands

Built-in DTE interface

: DTE speed up to 115,200 bps 16C550 UART interface

System Requirements



A notebook or desktop computer with PCMCIA

type II or III slot.



A telephone line with RJ-11 jack.



A CD-ROM drive.



Windows 95/98/2000/Millennium or Windows

NT pre-installed.

- 2 -

HARDWARE INSTALLATION

1. Locate the PCMCIA slot of your system.

2. Align the PCMCIA FAX MODEM 56K PC Card

toward the PCMCIA slot. Push evenly and steadily until it is seated.

Notebook

Connects to RJ-11 phone jack

3. Connect the other end of the PC Card cable to

the telephone line outlet.

4. You are now ready to continue the software

installation.

CAUTION

To reduce the risk of fire, use only No. 26 AWG

or larger telecommunication line cord.

1. For Windows NT does not support “Hot Insert/Remove”, be sure to complete the hardware installation as described above before you start Windows NT and software installation.

- 3 -

SOFTWARE INSTALLATION

Installation for Windows 95

1. As soon as the PCMCIA Fax Modem 56K PC is

inserted into the PCMCIA slot, Windows automatically detects the new hardware device and prompts the following message.

2. Insert the device driver compact disc into your

CD-ROM drive. When the following dialog box appears, click the

Other Locations

button.

- 4 -

3. Type the CD-ROM drive letter followed by

driver\win95.

Or you may click the

button to select the

driver\win95

Browse

folder in your

CD-ROM drive. Click OK.

4. When the following figure appears, click

Finish.

The Installation program will continue.

5. When the following figure appears, click OK to

continue.

- 5 -

6. Repeat Step 3 as described above.

7. Follow the on-screen instruction to continue.

8. When finished, press

installation.

Remember to restart Windows 95 to

activate the new device.

- 6 -

Finish

to complete the

Installation for Windows 98

1. As soon as the PCMCIA Fax Modem 56K PC is

inserted into the PCMCIA slot, Windows automatically detects the new hardware device and the following message will be prompted.

2. Insert the device driver compact disc into your

CD-ROM drive. When the following dialog box appears, click

- 7 -

3. Select

Specify a location

when the following figure appears. Enter the CD-ROM drive letter followed by

driver\win98

may click the

driver\win98

folder in your CD-ROM drive.

Browse

- 8 -

. Click

button to select the

. Or you

4. When the following figure appears, click

The Installation program will continue.

5. Follow the on-screen instruction to proceed.

- 9 -

Finish.

- 10 -

6. The installation program will proceed

automatically. Click

Finish

to complete the

installation.

Installation for Windows 2000

If you want to use the Microsoft built-in driver, make sure to execute perform the following procedures to update the latest driver.

1. Once the PCMCIA Fax Modem 56K PC Card is

plugged into your PCMCIA slot, Windows will prompt you a standard PCMCIA Card Modem has been installed and ask you if you want to restart your computer. Select No.

2. Double-click the small icon at the right bottom

on your screen as illustrated below. If the icon does not appear at all, go to

Control PanelÆ SystemÆHardwareÆDevice Manager

d:\Driver\Win2000\PAR.exe

My ComputerÆ

. Select

Modems

and skip to Step 4.

. Or

- 11 -

3. Click

Properties

4. Select the

Driver…

button.

Driver

tab. Click the

- 12 -

Update

5. Click

6. Select

to continue.

Display a list of the known drivers for this device so that I can choose a specific driver

as illustrated below. And click

- 13 -

7. Click

Driver Wizard

Have Disk

dialog appears.

when the

Update Device

8. Load the CD that contains the device driver has

into your CD drive. Click

Browse

and direct the

proper file location with the disk drive followed

Driver\Win2000\LTW2KG

9. Select

LTW2KG

, and click

Open

. Follow the

on-screen instructions to proceed.

10. When the following figure appears, click

- 14 -
