Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are
firmware programmed at the factory to match the intended destination. The firmware setting is not accessible
by the end user.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test
methods have been applied in order to prove presumption of conformity with the essential requirements of
the R&TTE Directive 1999/5/EC:
EN60950-1: 2006
Safety of Information Technology Equipment
EN 50385: 2002
Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for
wireless telecommunication systems with the basic restrictions or the reference levels related to human
exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public
EN 300 328 V1.7.1 (2006-10)
ii
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data
Česky *Czech+
TRENDnet tímto prohlašuje, že tento TEW-651BR je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede TRENDnet erklærer herved, at følgende udstyr TEW-651BR
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt TRENDnet, dass sich das Gerät TEW-651BR in Übereinstimmung
mit den grundlegenden Anforderungen und den übrigen einschlägigen
Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab TRENDnet seadme TEW-651BR vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English
Hereby, TRENDnet, declares that this TEW-651BR is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente TRENDnet declara que el TEW-651BR cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de
la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΣΗΝ ΠΑΡΟΤΑ TRENDnet ΔΗΛΩΝΕΙ ΟΣΙ TEW-651BR ΤΜΜΟΡΦΩΝΕΣΑΙ
ΠΡΟ ΣΙ ΟΤΙΩΔΕΙ ΑΠΑΙΣΗΕΙ ΚΑΙ ΣΙ ΛΟΙΠΕ ΧΕΣΙΚΕ ΔΙΑΣΑΞΕΙ ΣΗ
ΟΔΗΓΙΑ 1999/5/ΕΚ.
Français
Par la présente TRENDnet déclare que l'appareil TEW-651BR est conforme aux
transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques;
Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive
EN 301 489-1 V1.8.1 (2008-04)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-17 V1.3.2 (2008-04)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission
systems and 5 GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states
and EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain
authorization to use the device for setting up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output
power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information
the end-user should contact the national spectrum authority in France.
iii
[French]
exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Italiano
[Italian]
Con la presente TRENDnet dichiara che questo TEW-651BR è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski
[Latvian]
Ar šo TRENDnet deklarē, ka TEW-651BR atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo TRENDnet deklaruoja, kad šis TEW-651BR atitinka esminius reikalavimus ir
kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart TRENDnet dat het toestel TEW-651BR in overeenstemming is
met de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EG.
Malti
[Maltese]
Hawnhekk, TRENDnet, jiddikjara li dan TEW-651BR jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, TRENDnet nyilatkozom, hogy a TEW-651BR megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish]
Niniejszym TRENDnet oświadcza, że TEW-651BR jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy
1999/5/EC.
Português
[Portuguese]
TRENDnet declara que este TEW-651BR está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
TRENDnet izjavlja, da je ta TEW-651BR v skladu z bistvenimi zahtevami in
ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
TRENDnet týmto vyhlasuje, že TEW-651BR spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
TRENDnet vakuuttaa täten että TEW-651BR tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Svenska
[Swedish]
Härmed intygar TRENDnet att denna TEW-651BR står I överensstämmelse med
de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
iv
TABLE OF CONTENTS
ABOUT THIS GUIDE .................................................................................... 1
Congratulations on your purchase of this TEW-651BR Wireless Home Router. This
integrated access device combines Internet gateway functions with wireless LAN
and Fast Ethernet switch. It provides a complete solution for Internet surfing and
office resource sharing, and it is easy to configure and operate for every user.
Purpose
This manual discusses how to install the IEEE 802.11b/g/n Wireless Home Router.
Terms/Usage
In this guide, the term “the WLAN Router” refers to your IEEE 802.11b/g/n
Wireless Home Router.
Overview of this User’s Guide
Introduction. Describes the IEEE 802.11b/g/n Wireless Home Router and its
features.
Unpacking and Setup. Helps you get started with the basic installation of the IEEE
802.11b/g/n Wireless Home Router.
Identifying External Components. Describes the front panel, rear panel and LED
indicators of the IEEE 802.11b/g/n Wireless Home Router.
Connecting the WLAN Router. Tells how you can connect the IEEE 802.11b/g/n
Wireless Home Router to your xDSL/Cable Modem.
Technical Specifications. Lists the technical (general, physical and environmental,
performance and Routers settings) specifications of the IEEE 802.11b/g/n Wireless
Home Router.
1
INTRODUCTION
With the explosive growth of the Internet, accessing information and services at
any time, day or night has become a standard requirement for most people. The
era of the standalone PC is waning. Networking technology is moving out of the
exclusive domain of corporations and into homes with at least two computers.
This integrated access device combines Internet gateway functions with wireless
LAN and Fast Ethernet switch. Designed for the business and home, it saves you
the cost of installing a separate modem and ISP line for each computer, while
providing ready connection for the users, with or without the network wires.
Broadband network access is also gaining ground. However, allowing more than
two computers to access the Internet at the same time means less affordable,
higher costs. Thus, there is a need to share one public IP address over a single
Internet connection to link the home with the Internet.
The scarcity of IP addresses and using a shared Internet connection through an
Internet sharing device can solve high network access costs. All linked computers
can make full use of broadband capabilities over such a device.
This device not only comes equipped with a wide range of features, but also can
be installed and configured right out of the box. This device supports a simple local
area network and Internet access share, offering great cost savings.
The local area network connects home computers while also allowing any of the
computers to access the Internet, share resources, or play online games—the
basis of the family computing lifestyle.
Applications:
Broadband Internet access:
Several computers can share one high-speed broadband connection through
wireless or wired (WLAN, LAN and WAN-Internet).
Resource sharing:
Share resources such as printers, scanners and other peripherals.
File sharing:
Exchange data, messages, and distribute files thus making good use of hard disk
space.
Online gaming:
Through the local area network, online gaming and e-commerce services can be
easily setup.
2
Firewall:
A built-in firewall function — for security and anti-hacking systems.
Supported Features:
Based on IEEE 802.11n technology and compliant with IEEE 802.11b/g
standards
4 x 10/100Mbps Auto-MDIX LAN ports
1 x 10/100Mbps WAN port (Internet)
GREENnet technology reduces port-based power consumption
Compatible with most popular cable/DSL Internet service providers using
Dynamic/Static IP, PPPoE, PPTP and L2TP
High-speed data rates of up to 150Mbps with IEEE 802.11n*
Wi-Fi Protected Setup (WPS) connects wireless clients at the push of a
button
Supports 64/128-bit WEP, WPA/WPA2-RADIUS and WPA-PSK/WPA2-PSK

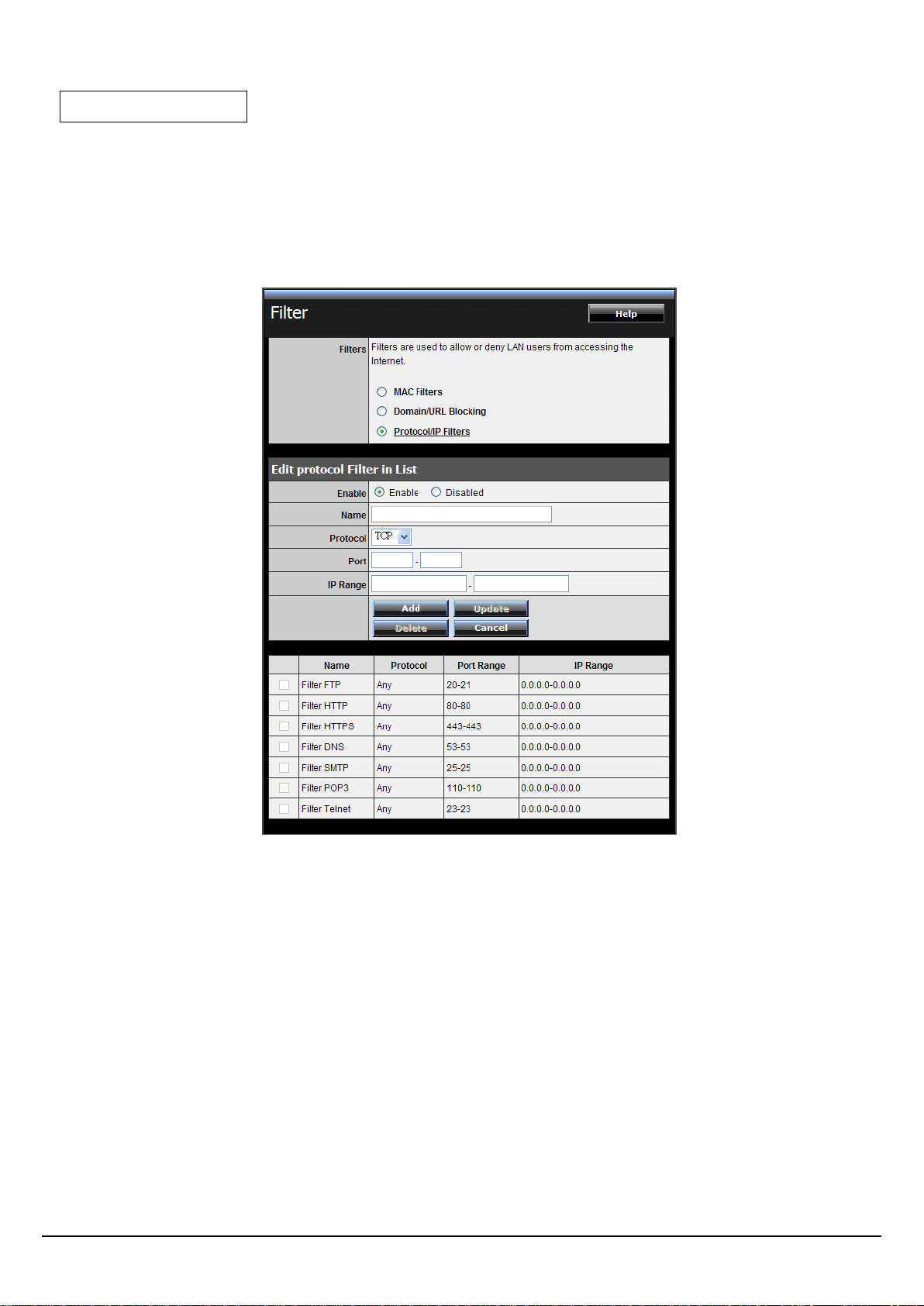

Internet Access Control (MAC Address, Domain and IP Filtering)
Easy remote management via Web browser
Firewall features Network Address Translation (NAT)
Universal Plug and Play (UPnP) and Application Level Gateway support for
Internet applications such as email, FTP, gaming, remote desktop, Net
Meeting, Telnet and more
Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
Simple setup via Web browser using the latest version of Internet Explorer,
Firefox, and Safari
Works with Windows, Linux, and Mac operating systems
Indoor range up to 100 meters (330 ft.) depending on the environment
Outdoor range up to 300 meters (980 ft.) depending on the environment
3-year limited warranty
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data
throughput and coverage will vary depending on interference, network traffic, building materials and other
conditions.
3
Wireless Performance Considerations
There are a number of factors that can impact the range of wireless devices.
1. Adjust your wireless devices so that the signal is traveling in a straight path,
rather than at an angle. The more material the signal has to pass through the
more signal you will lose.
2. Keep the number of obstructions to a minimum. Each obstruction can reduce
the range of a wireless device. Position the wireless devices in a manner that
will minimize the amount of obstructions between them.
3. Building materials can have a large impact on your wireless signal. In an indoor
environment, try to position the wireless devices so that the signal passes
through less dense material such as dry wall. Dense materials like metal, solid
wood, glass or even furniture may block or degrade the signal.
4. Antenna orientation can also have a large impact on your wireless signal. Use
the wireless adapter’s site survey tool to determine the best antenna
orientation for your wireless devices.
5. Interference from devices that produce RF (radio frequency) noise can also
impact your signal. Position your wireless devices away from anything that
generates RF noise, such as microwaves, radios and baby monitors.
6. Any device operating on the 2.4GHz frequency will cause interference. Devices
such as 2.4GHz cordless phones or other wireless remotes operating on the
2.4GHz frequency can potentially drop the wireless signal. Although the phone
may not be in use, the base can still transmit wireless signal. Move the phone’s
base station as far away as possible from your wireless devices.
If you are still experiencing low or no signal consider repositioning the wireless
devices or installing additional access points. The use of higher gain antennas may
also provide the necessary coverage depending on the environment.
4
UNPACKING AND SETUP
This chapter provides unpacking and setup information for the IEEE 802.11b/g/n
Wireless Home Router.
Unpacking
Open the box of the WLAN Router and carefully unpack it. The box should contain
the following items:
TEW-651BR Wireless N Home Router
CD-Rom (User’s Guide)
Multi-Language Quick Installation Guide
External power adapter (5V DC, 1A)
1.5m (4.9ft) Cat.5 Ethernet Cable
If any item is found missing or damaged, please contact your local reseller for
replacement.
Setup
The setup of the WLAN Router can be performed properly using the following
methods:
The power outlet should be within 1.82 meters (6 feet) of the Broadband
Router.
Visually inspect the DC power jack and make sure that it is fully secured to the
power adapter.
Make sure that there is proper heat dissipation and adequate ventilation
around the Broadband Router. Do not place heavy objects on the Broadband
Router.
Fix the direction of the antennas. Try to place the Wireless Router in a position
that can best cover your wireless network. Normally, the higher you place the
antenna, the better the performance will be. The antenna’s position enhances
the receiving sensitivity.
5
HARDWARE INSTALLATION
Front Panel
The figure below shows the front panel of the IEEE 802.11b/g/n Wireless Home
Router.
Front Panel
POWER
This indicator lights green when the hub is receives power, otherwise it is off.
Status
This indicator blinking green means the WLAN Router is working successfully.
Otherwise, this indicator always on or off means the function of the WLAN Router
has failed.
WAN (Link/ACT)
The indicators light green when the WAN port is connected to a xDSL/Cable
modem successfully.
The indicators blink green while the WAN port was transmitting or receiving data
from the xDSL/Cable modem.
WLAN (ACT)
This indicator lights green when there are wireless devices connected and
transmitting data to the WLAN Router.
LAN (Link/ACT)
These indicators light green when the LAN ports were connected successfully.
These indicators blinking green while the LAN ports were accessing data.
6
Rear Panel
The figure below shows the rear panel of the IEEE 802.11b/g/n Wireless Home
Router.
Rear Panel
Antenna
There is one 2dBi gain antenna on the rear panel for wireless connection.
LAN (1-4)
Four RJ-45 10/100Mbps Auto-MDIX ports for connecting to either 10Mbps or
100Mbps Ethernet connections.
WAN
In the four port broadband Router, there is an RJ-45 10/100Mbps Auto-MDIX port
for the WAN that connects to the xDSL/Cable modem for Internet connectivity.
POWER
Plug the power adapter to this power jack
RESET
Use a pin-shaped item to push to reset this device to factory default settings (Hold
for 15 seconds and release). It will be a useful tool when the manager forgot the
password to login, and needs to restore the device back to default settings.
POWER SWITCH
Use the power on/off switch to turn the device on or off.
7
Side Panel
The figure below shows the side panel of the IEEE 802.11b/g/n Wireless Home
Router.
Side Panel
WPS
Push and hold this button for 3 seconds and release it to initiate the Wi-Fi
Protected Setup process.
Hanging Way
User can mount the device on a wall. Mount the Nylon screw anchors into a
cement wall and then drive a screw into the Nylon screw anchors. It does not need
to mount the Nylon screw anchors into a wood wall. Hook the mounting holes of
the switch back on the screws and completed the wall-mount.
8
Hardware connections
Connecting the WLAN Router
1. Plug in one end of the network cable to the WAN port of the WLAN Router.
2. Plug in the other end of the network cable to the Ethernet port of the xDSL or
Cable modem.
3. Use another network cable to connect to the Ethernet card on the computer
system; the other end of the cable connects to the LAN port of the WLAN
Router. Since the IEEE 802.11b/g/n Wireless Home Router has four ports, you
can connect up to four computers directly to the unit. Then you do not have to
buy a switch to connect these computers since one WLAN Router functions
both as a connection-sharing unit and as a switch.
9
Check the installation
The control LEDs of the WLAN Router are clearly visible and the status of the
network link can be seen instantly:
1. With the power source on, once the device is connected to the broadband
modem, the Power, Status, LAN, WLAN and WAN port LEDs of the WLAN Router
will light up indicating a normal status.
2. When the WAN Port is connected to the ADSL/Cable modem, the WAN LED will
light up.
3. When the LAN Port is connected to the computer system, the LAN LED will light
up.
10
PC NETWORK TCP/IP SETTINGS
The network TCP/IP settings differ based on the computer’s operating system
(Win95/98/ME/NT/2000/XP/Vista) and are as follows.
Windows 95/98/ME
1. Click on the “Network neighborhood” icon found on the desktop.
2. Click the right mouse button and a context menu will be show.
3. Select “Properties” to enter the TCP/IP setting screen.
4. Select “Obtain an IP address automatically” on the “IP address” field.
5. Select “Disable DNS” in the “DNS” field.
11
6. Select “None” for the “Gateway address” field.
Windows 2000
Double click on the “My Computer” icon on the desktop. When “My Computer”
window opens, select “Control Panel” and thenopen the “Network dialup
connection” applet. Double click on the “Local area network connection” icon.
Select “Properties” to enter the TCP/IP setting window.
1. In the “Local area network status” window, click on “Properties.”
2. In the “Local area network connection” window, first select TCP/IP setting and
then select “Properties.”
3. Set both “IP address” and “DNS” to Automatic configuration.
12
Windows XP
Point the cursor and click the right button on the “My Network Place” icon.
Select “properties” to enter the TCP/IP setting window.
1. Click “Start” button, and click on “Control Panel”.
2. Click on “Network and Internet Connections” and click on “Network
Connections”. Note: In Classic, double-click on “Network Connections”.
3. Right click “Local Area Connection” and select “Properties”.
13
4. Click on “Internet Protocol (TCP/IP)” and click on “Properties”.
5. Set “IP address” to “Obtain an IP address automatically.”
6. Set “DNS” to “Obtain DNS server address automatically.”
14
Windows Vista / 7
1.Click on the “Start/Windows” button. Right click on “Network” and select
“Properties”.
2. Window Vista: Click on “Manage Network Connections.
Windows 7: Click on “Change adapter settings”.
3. Right click “Local Area Connection” and select “Properties”. Click on “Internet
Protocol Version 4 (TCP/IPv4)” and click “Properties”.
15
4. Set “IP address” to “Obtain an IP address automatically.”
5. Set “DNS” to “Obtain DNS server address automatically.”
16
CONFIGURATION
First make sure that the network connections are functioning normally.
This WLAN Router can be configured using Internet Explorer 5.0 or newer web
browser versions.
Login to the WLAN Router through Wireless LAN
Before configuring the WLAN Router through WLAN, make sure that the SSID,
Channel and the WEP is set properly.
The default setting of the WLAN Router that you will use:
Before you configure this device, note that when the WLAN Router, make sure the
host PC must be set on the IP subnet that can be accessed by the xDSL/Cable
modem. For example, when the default network address of the xDSL/Cable
modem Ethernet interface is 192.168.10.x, then the host PC should be set at
192.168.10.xxx (where xxx is a number between 2 and 254), and the default
subnet mask is 255.255.255.0.
Using the Web Browser
1. Open Internet Explorer 6.0 or above Internet browser.
2. Enter IP address http://192.168.10.1 (the factory-default IP address setting) to
the URL web address location.
3. When the following dialog box appears, enter the user name and password to
login to the main configuration window, the default username and password is
“admin”.
17
Setup Wizard
Setup wizard is provided as part of the web configuration utility. User can simply
follow the step-by-step process to get the wireless Router configuration ready to
run in 6 easy steps by clicking on` the “Wizard” button on the function menu. The
following screen will appear. Please click “Next” to continue.
Step 1: Set your new password
Setting the new admin password of the WLAN Router. Please click “Next” to
continue.
18
Loading...
+ 56 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
