Trendnet TEW-445UB User Manual

108Mbps 802.11g High Power Wireless USB 2.0 Adapter
Table of Contents
1 INTRODUCTION................................................................................................................... 3
a) Ad hoc (peer-to-peer) Mode.................................................................................................... 6
b) Infrastructure Mode................................................................................................................. 7
2 INSTALL DRIVERS & CLIENT UTILITY.................................................................................. 8
3 USING THE CLIENT UTILITY................................................................................................ 20
3.2.1 Scan for available networks..................................................................................... 22
3.2.2 Create a New Profile................................................................................................ 23
3.2.3 Security.................................................................................................................... 24
3.2.3.1 Security Disabled..........................................................................................................24
3.2.3.2 WPA / WPA2– TLS, TTLS.............................................................................................25
3.2.3.3 WPA/WPA2 – PEAP (EAP-GTC)..................................................................................27
3.2.3.4 WPA/WPA2 – PEAP (EAP-MSCHAP-V2).....................................................................29

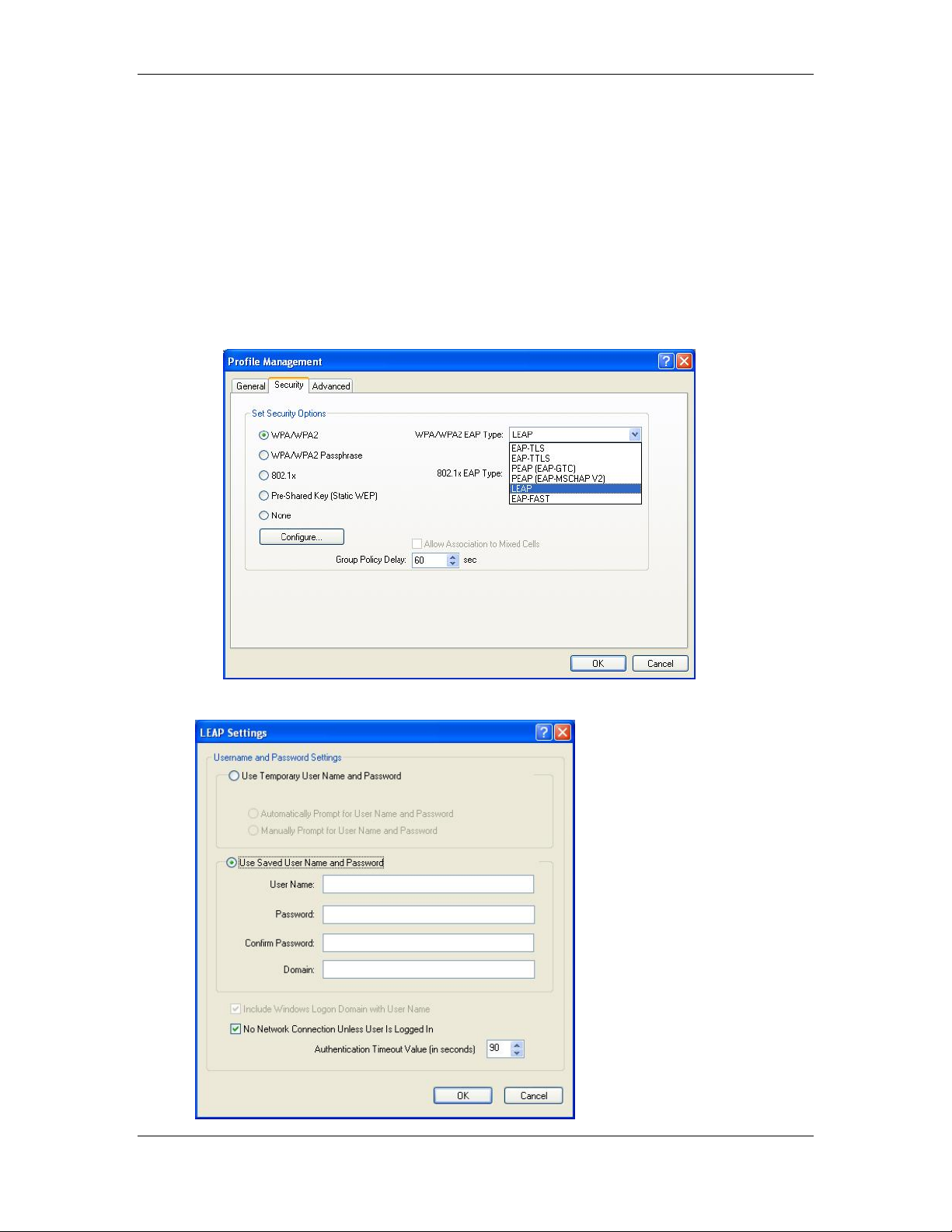

3.2.3.5 WPA/WPA2 – LEAP......................................................................................................31

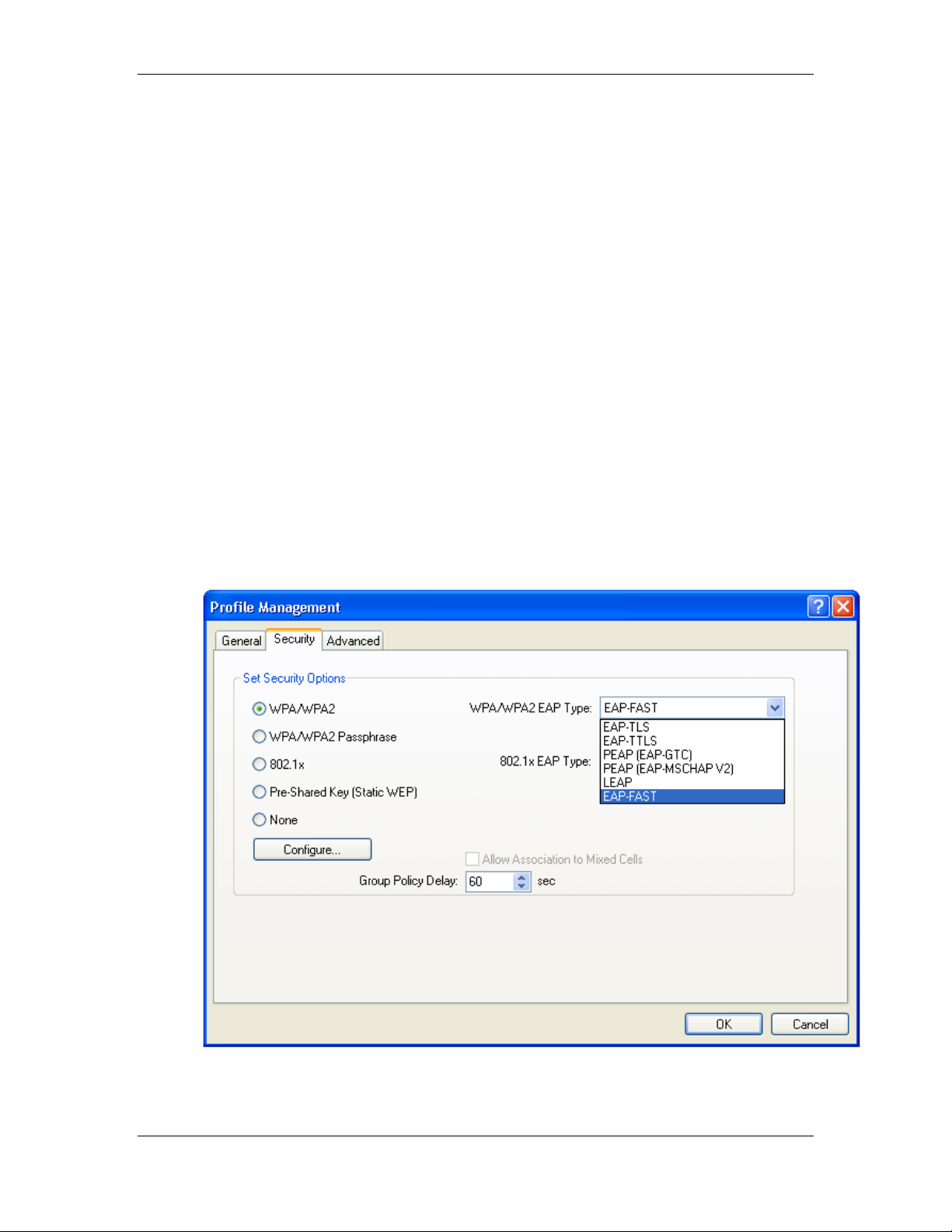

3.2.3.6 WPA/WPA2 – EAP-FAST..............................................................................................32
3.2.3.7 WPA/WPA2 – Passphrase............................................................................................34
3.2.3.8 802.1x – TLS, TTLS......................................................................................................34
3.2.3.9 802.1x – PEAP (EAP-GTC)..........................................................................................36

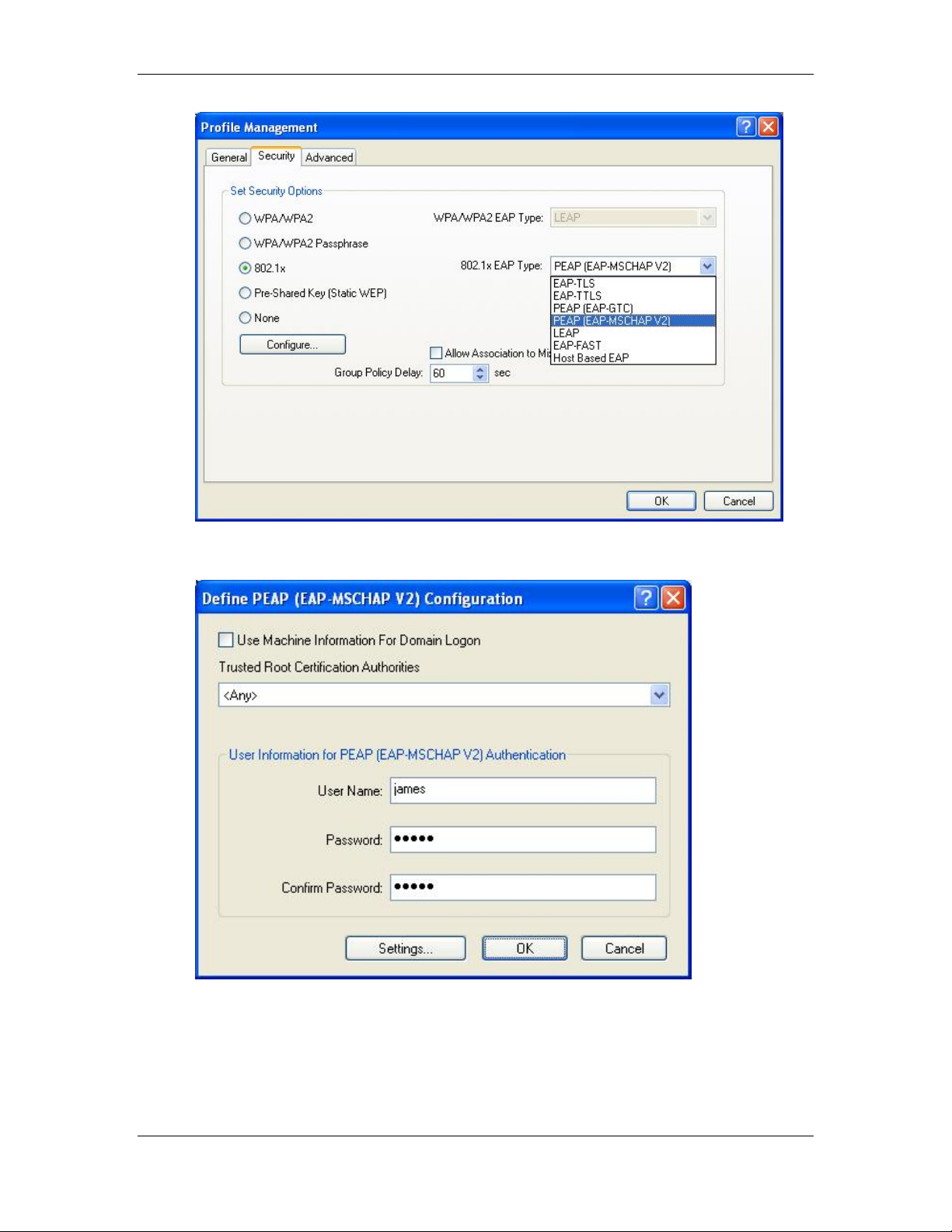

3.2.3.10 802.1x – PEAP (EAP-MSCHAP-V2).............................................................................38

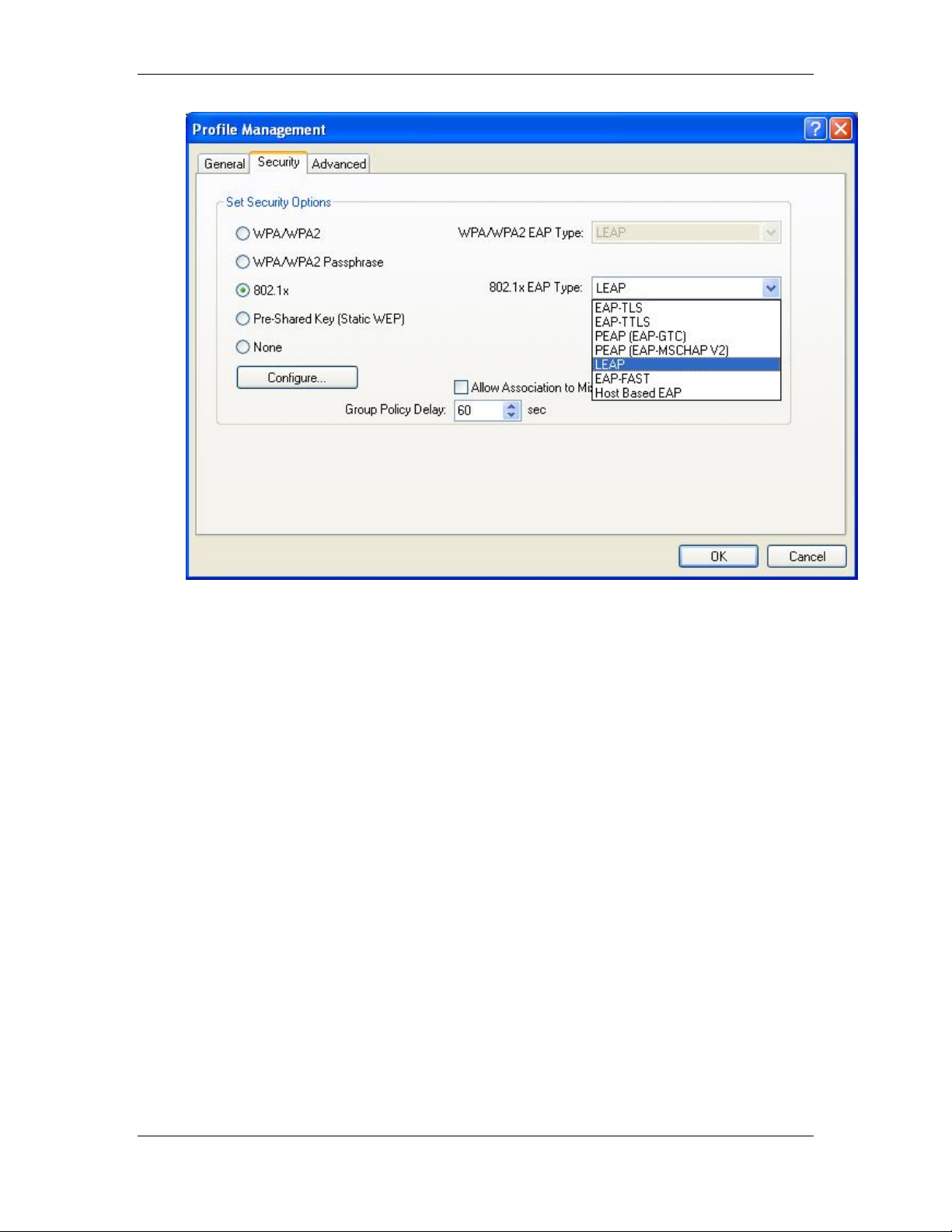

3.2.3.11 802.1x – LEAP..............................................................................................................40
3.2.3.12 802.1x – EAP-FAST......................................................................................................42
3.2.3.13 Pre-Shared Key (Static WEP).......................................................................................44
3.2.4 Advanced Settings................................................................................................... 46
3.2.4.1 Infrastructure Settings...................................................................................................46
3.2.4.2 Ad Hoc Settings............................................................................................................47
4 UNINSTALL THE DRIVERS & CLIENT UTILITY .................................................................. 54
APPENDIX A – SPECIFICATIONS............................................................................................... 56
APPENDIX B – FCC INTERFERENCE STA TEMENT................................................................. 57
2
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
1 Introduction
This 108Mbps 802.11g High-Gain Wireless USB Adapter supports the IEEE
802.11b/g (2.4GHz) protocol. It provides a high-speed wireless connection with data rates up to 108Mbps.
To protect your wireless connectivity, the high-speed wireless USB adapter supports 64/128/152-bit WEP data encryption and WPA. Dynamic Frequency Selection (DFS) puts your network on the clearest channel in your location. With this high-speed wireless USB adapter, you will experience the best wireless connectivity available.
This chapter describes the features & benefits, package contents, applications, and network configuration.
1.1 Features & Benefits
Features Benefits
High Speed Data Rate up to 108 Mbps in
Capable of handling heavy data payloads
Super G mode High Output Power up to 23 dBm A higher power output can increase the range. Advanced Encryption Standard (AES),
Temporal Key Integrity Protocol (TKIP) and Wired Equivalent Privacy (WEP)
IEEE 802.1x Client Support Enhances authentication and security. Support for 802.11e standard
Advanced Power Management
Support eXtended Range technology
such as MPEG video streaming.
Powerful data security.
Wireless Multimedia Enhancements Quality of Service support (QoS)
Low power consumption in power saving mode up to 98%.
eXtended Range technology provides Wi-Fi products twice the range of existing designs
3
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
1.2 Package Contents
Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case you need to return the product return. The unit must be returned in its original package.
h One Wireless LAN USB Adapter h One USB Cable (Type A to Mini B) h One 2dBi Detachable Antenna h One Driver and Utility CD-ROM with User’s Manual Included h One Quick Installation Guide
1.3 USB Adapter Description
This wireless USB adapter fits into your computer’s USB 1.1 or 2.0 port. The USB adapter has a LED indicator and an external high-sensitivity dipole antenna.
High-sensitivity Dipole Antenna
LED Indicator: Ad hoc Mode: Solid Green, whether the
wireless is connected or not. Infrastructure Mode: Solid green while connected, and blinking during activity.
USB port
1.4 System Requirements
The following are the minimum system requirements in order to use the USB adapter.
h PC/AT compatible computer with a USB 1.1 or 2.0 interface. h Windows 2000/XP operating system. h 20 MB of free disk space for installing the USB adapter driver and utility
program.
h CD-ROM Drive h CPU: 300MHz or above h Memory: 32MB or above
4
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
1.5 Applications
. The following list describes some of the many applications made possible through the power and flexibility of wireless LANs:
a) Difficult-to-wire environments
There are many situations where wires cannot be easily installed. Historic buildings, older buildings, open areas and across busy streets make the installation of LANs either impossible or very expensive.
b) Temporary workgroups
Consider situations in parks, athletic arenas, exhibition centers, disaster­recovery, temporary offices and construction sites where one wants a temporary WLAN established and removed.
c) The ability to access real-time information
Doctors/nurses, point-of-sale employees, and warehouse workers can access real-time information while dealing with patients, serving customers and processing information.
d) Dynamic environments
Show rooms, meeting rooms, retail stores, and manufacturing sites where the workplace is frequently rearranged.
e) Small Office and Home Office (SOHO) networks
SOHO users need a cost-effective, easy–to-install network.
f) Wireless extensions to Ethernet networks
Network managers in dynamic environments can minimize the overhead caused by moves, extensions to networks, and other changes with wireless LANs.
g) Wired LAN backup
Network managers implement wireless LANs to provide backup for mission-critical applications running on wired networks.
5
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
1.6 Network Configuration
To better understand how wireless devices work together to create a wireless network, it might be helpful to depict a few of the possible wireless network configurations. Wireless devices can be configured as:
a) Ad hoc (or peer-to-peer)
b) Infrastructure
a) Ad hoc (peer-to-peer) Mode
In ad hoc mode, each client is peer-to-peer. The client would only have access to the resources of the other client. Ad hoc mode does not require an access point. This is the easiest and least expensive way for the SOHO to set up a wireless network. The image above depicts a network in Ad hoc mode.
6
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
b) Infrastructure Mode
Infrastructure mode requires the use of an access point (AP). In this mode, all wireless communication between clients passes through an AP. It doesn’t matter if the AP is stand-alone or wired to an Ethernet network. If used in stand-alone, the AP can extend the range of independent wireless LANs by acting as a repeater. The image below depicts a network in infrastructure mode.
7
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
2 Install Drivers & Client Utility
2.1 Before You Begin
Before installing your wireless USB adapter, you need to remove all Wireless LAN drivers that you have previously installed.
During the installation, Windows XP/2K/ME/98 may need to copy systems files from its installation CD. Therefore, you may need a copy of the Windows installation CD at hand before installing the drivers. On many systems, instead of a CD, the necessary installation files are archived on the hard disk in C:\WINDOWS \OPTIONS\CABS directory.
2.2 Installing the Drivers
Windows XP/2000 Follow the steps below in order to install the USB adapter drivers:
1. Insert the provided CD-ROM into your CD-ROM drive. The autorun screen will appear.
2. Click Install Utility & Driver and then click Windows 2000/XP.
8
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
3. Click Run.
4. Click Run.
5. Click Next to continue.
9
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
6. Select Install Client Utilities and Driver and then click Next.
7. This message informs you that the system must be restarted after the installation is complete. Click Yes to continue.
10
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
8. Click on the Browse button to select another drive or folder to install the drivers, and then click Next. If you would like to use the default destination folder, click Next.
9. Select a program folder for the Start menu, or use the default setting: WLAN. Click Next to continue.
11
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
10. The message below informs you about configuring this device through the
802.11 Client Utility (ACU) or a third party supplicant. If you choose to use a third party supplicant, some of the ACU features will not be available. Click Next to continue.
12
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
11. Select one of the options. It is recommended that you select the first option: WLAN Client Utility (ACU) and Supplicant. Click Next to continue.
12. When you reach the screen below, plug in the provided USB cable into the TEW-445UB and into an available USB plug on your computer. Cancel the Found New Hardware Wizard and then click OK.
13. If you are using Windows XP, you will see a message regarding Windows Logo Testing, click on the Continue Anyway button to continue.
13
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
14. If you are using Windows 2000, a Digital Signature Not Found window appears. Click Yes to continue the installation.
15. Select Yes, I want to restart my computer now and then click Finish.
14
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
Windows ME/98SE
Follow the steps below in order to install the USB adapter drivers:
1. Insert the provided CD-ROM into your CD-ROM drive. The autorun screen will appear.
2. Click Install Utility & Driver and then click Windows 98/ME.
3. Select Run this program from its current location and then click OK.
15
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
4. Click Yes.
5. Remove the USB adapter from the USB port if it is inserted and then click OK.
6. Click Next to continue.
16
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
7. Select Install Client Utilities and Driver and then click Next.
17
108Mbps 802.11g High Power Wireless USB 2.0 Adapter
8. This message informs you that the system must be restarted after the installation is complete. Click Yes to continue.
9. Click on the Browse button to select another drive or folder to install the drivers, and then click Next. If you would like to use the default destination folder, click Next.
10. . Click Next to continue.
18
