TRENDNET TEW1750ACV2 User Manual

802.11ac(draft 2.0)

TEW-815DAP Wireless Access Point

TEW-815DAP

Rev 0.1

User Manual

Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:

z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

z Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

IMPORTANT NOTE:
FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 24cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.

The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.

1

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The
following test methods have been applied in order to prove presumption of conformity with the
essential requirements of the R&TTE Directive 1999/5/EC:

- EN60950-1:2006

Safety of Information Technology Equipment

- EN

- Product standard to demonstrate the compliance of radio base stations and fixed terminal

- EN 300 328 V1.7. 1 : (2 006- 10 )

- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission

- EN 301 489-1 V1.8.1: (2008-04)

- Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic

-

- Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic

-

-

This device is a 2.4/5G GHz wideband transmission system (transceiver), intended for use in all EU
member states and EFTA countries, except in France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the national spectrum authorities in order to
obtain authorization to use the device for setting up outdoor radio links and/or for supplying public
access to telecommunications and/or network services.

This device may not be used for setting up outdoor radio links in France and in some areas the RF

62311:2008

stations for wireless telecommunication systems with the basic restrictions or the reference
levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz)

- General public

systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread
spectrum modulation techniques; Harmonized EN covering essential requirements under
article 3.2 of the R&TTE Directive

Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical
requirements

EN 301 489-17 V2.1.1:( 2009-05)

Compatibility (EMC) standard for radio equipment; Part 17: Specific conditions for 2,4 GHz
wideband transmission systems, 5 GHz high performance RLAN equipment and 5,8 GHz
Broadband Data Transmitting Systems

EN 301 893 V1.5.1(2008-12)

Broadband Radio Access Networks (BRAN);5 GHz high performance RLAN;Harmonized EN
covering the essential requirements of article 3.2 of the R&TTE Directive

+A11: 2009

2

output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For
detailed information the end-user should contact the national spectrum authority in France.

3

Česky

[Czech]

[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.

Dansk [Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets
typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Deutsch
[German]

Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.

Eesti
[Estonian]

Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme
tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

English Hereby, [name of manufacturer], declares that this [type of equipment] is in

compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.

Español
[Spanish]

Por medio de la presente [nombre del fabricante] declara que el [clase de
equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE.

Ελληνική
[Greek]

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.

Français
[French]

Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est
conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.

Italiano
[Italian]

Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio]
è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla
direttiva 1999/5/CE.

Latviski
[Latvian]

Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of
equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.

Lietuvių
[Lithuanian]

Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

4

Nederlan
ds [Dutch]

Malti
[Maltese]

Magyar
[Hungarian]

Polski
[Polish]

Portuguê
s
[Portuguese
]

Slovensk
o
[Slovenian]

Slovensk
y [Slovak]

Suomi
[Finnish]

Svenska
[Swedish]

Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen
van richtlijn 1999/5/EG.

Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.

Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.

[Nome do fabricante] declara que este [tipo de equipamento] está conforme com
os requisitos essenciais e outras disposições da Directiva 1999/5/CE.

[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in
ostalimi relevantnimi določili direktive 1999/5/ES.

[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.

[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen
tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja

sitä koskevien direktiivin muiden ehtojen mukainen.
Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med

de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår
av direktiv 1999/5/EG.

European Union Notice:

Radio products with the CE marking comply with the R&TTE Directive (1999/5/EC), the
EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the
Commission of the European Community.

5

Compliance with these directives implies conformity to the following European Norms:

z EN 60950 Product Safety
z EN 300 328 Technical requirement for radio equipment
z EN 301 489-1/-17 General EMC requirements for radio equipment
z EN 301 893 V1.5.1(2008-12)

Trademark recognition

All product names used in this manual are the properties of their respective owners and are
acknowledged.

6

Getting Started with the TEW-815DAP

Congratulations on purchasing the TEW-815DAP! This manual provides information for setting up
and configuring the TEW-815DAP. This manual is intended for both home users and professionals.

The following conventions are used in this manual:

THE NOTE SYMBOL INDICATES ADDITIONAL INFORMATION ON THE
TOPIC A T HAND.

THE TIP SYMBOL INDICATES HELPFULL INFORMATION AND TIPS TO
IMPROVE YOUR NETWORK EXPERIENCE.

THE CAUTION SYMBOL ALERTS YOU TO SITUATIONS THAT MAY
DEGRADE YOUR NETWORKING EXPERIENCE OR COMPROMISE

LIKE NOTES AND TIPS, THE IMPO RTANT SYMBOL INDICATES
INFORMA TION THAT CAN IMPROVE NETWORKING. THIS INFORMATION
SHOULD NOT BE OVERLO OK ED.

7

Package Contents

z TEW-815DAP 802.11ac(draft 2.0)3x3 Gigabit Wireless Access Point

z CAT-5 Ethernet Cable (All the TEW-815DAP’s Ethernet ports are Auto-MDIX)

z Power Adapter (12V, 2A)

z CD-ROM with Software and Manual

z Quick Installation Guide

Using a power supply with a different voltage than the one included with your
product will cause damage and void the warranty for this product.

Minimum System Requirements

z Ethernet-Based Cable or DSL Modem

z Computers with Windows, Macintosh, or Linux-based operating systems with an installed

Ethernet adapter and CD-ROM Drive

z Internet Explorer (Version 6.0 or higher)

Mozilla or Safari.

8

Wireless LAN Networking

This section provides background information on wireless LAN networking technology. Consult
the Glossary for definitions of the terminology used in this section.

T

HE INFORMATION IN THIS SECTION IS FOR YOUR REFERENCE. CHANGING

NETWORK SETTINGS AND PARTICULARLY SECURITY SETTTINGS SHOULD ONLY BE
DONE BY AN AUTHORIZED ADMINISTRATOR.

Transmission Rate (Transfer Rate)

The TEW-815DAP provides various transmission (data) rate options for you to select. In most
networking scenarios, the factory default Best (automatic) setting proves the most efficient. This
setting allows your TEW-815DAP to operate at the maximum transmission (data) rate. When the
communication quality drops below a certain level, the TEW-815DAP automatically switches to a
lower transmission (data) rate. Transmission at lower data speeds is usually more reliable.
However, when the communication quality improves again, the TEW-815DAP gradually increases
the transmission (data) rate again until it reaches the highest available transmission rate.

Types of Wireless Networks

Wireless LAN networking works in either of the two modes: ad-hoc and infrastructure. In infra­structure mode, wireless devices communicate to a wired LAN via access points. Each access
point and its wireless devices are known as a Basic Service Set (BSS). An Extended Service Set
(ESS) is two or more BSSs in the same subnet. In ad hoc mode (also known as peer-to-peer
mode), wireless devices communicate with each other directly and do not use an access point.
This is an Independent BSS (IBSS).

To connect to a wired network within a coverage area using access points, set the operation mode to
Infrastructure (BSS). To set up an independent wireless workgroup without an access point, use
Ad-hoc (IBSS) mode.

A

D-H OC (IBSS) NETWORK

Ad-hoc mode does not require an access point or a wired network. Two or more wireless stations
communicate directly to each other. An ad-hoc network may sometimes be referred to as an
Independent Basic Service Set (IBSS).

To set up an ad-hoc network, configure all the stations in ad-hoc mode. Use the same SSID and
channel for each station.

9

10

When a number of wireless stations are connected using a single access point, you have a Basic
Service Set (BSS).

In the ESS diagram below, communication is done through the access points, which relay data
packets to other wireless stations or devices connected to the wired network. Wireless stations can
then access resources, such as a printer, on the wired network.

In an ESS environment, users are able to move from one access point to another without losing the

11

connection. In the diagram below, when the user moves from BSS (1) to BSS (2) the WLAN client
devices automatically switches to the channel used in BSS (2).

Roaming in an ESS network diagram

12

Introduction

The TEW-815DAP 802.11ac (draft 2.0)3x3 Gigabit Wireless Access Point is an high-performance,
wireless Access Point that supports high-speed wireless networking at home, at work or in
public places.

Unlike most Access Points, the TEW-815DAP provides data transfers at up to 867Mbps when using

11AC connection. This Access Point is also back compatible with 802.11n or 802.11g or 11b

devices. This means that you do not need to change your entire network to maintain connectivity. You
may sacrifice some of 11ac’s speed when you mix 11ac /11n and 11b/g devices, but you will not
lose the ability to communicate when you incorporate the 11ac standard into your 11b/g/n network.
You may choose to slowly change your network by gradually replacing the 11b/g/n devices with 11ac
devices.

Features

• 1 x 10/100/1000Mbps LAN port

• 1 x Wi-Fi Protected Setup (WPS) button

• On/Off power switch (CE version only)

• Supports simultaneous 2.4GHz / 5GHz wireless networks

• Compliant with the latest draft 802.11ac wireless technology

• Backwards compatible with IEEE 802.11a/b/g/n wireless standards

• High-speed data rates up to 1300Mbps with 802.11ac and 450Mbps with 802.11n *

• IPv6 (Internet Protocol v6) basic function support

• Supports Wireless Distribution System (WDS) for wireless network bridging

• Advanced wireless security of up to WPA2-RADIUS

• Supports Wi-Fi Multimedia (WMM)

• Support VLAN Tagging

• One touch wireless connection using WPS button

• Configurable web interface using the latest version of Internet Explorer, FireFox,

Safari and Chrome

• 3- year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical
specifications. Actual data throughput and coverage will vary depending on
interference, network traffic, building materials and other conditions. For maximum
performance of up to 1300Mbps, please use with a 3x3 802.11ac wireless adapter.

** Printer Control Center utility installation required for each computer in order to
access the print server

13

Hardware Overview

LED Indications: (from bottom to top)

¾ PWR/WPS
¾ WAN
¾ LAN
¾ Wireless 2.4G
¾ Wireless 5G

Rear panel: (from bottom to top)

• DC-IN

• POWER SWITCH( EU)

• LAN

Installation Considerations

The TEW-815DAP 802.11ac(draft 2.0)3X3 Gigabit Wireless Access Point lets you access your network,
using a wireless connection, from virtually anywhere within its operating range. Keep in mind, however,
that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must
pass through, may limit the range. Typical ranges vary depending on the types of materials and
background RF (radio frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:

1 Keep the number of walls and ceilings between the TEW-815DAP and other network devices to

a minimum - each wall or ceiling can reduce your wireless product’s range from 3-90 feet
(1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

2 Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a

45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over
42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or
ceiling (instead of at an angle) for better reception.

3 Building Materials can impede the wireless signal - a solid metal door or aluminum studs may

have a negative effect on range. Try to position wireless devices and computers with wireless
adapters so that the signal passes through drywall or open doorways and not other materials.

4 Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances

that generate extreme RF noise.

14

Getting Started

For a typical wireless setup at home, please do the following:

1. You will need broadband Internet access (a Cable or DSL-subscriber line into your home or

office)

2. Consult with your Cable or DSL provider for proper installation of the modem.

3. Connect the Cable or DSL modem to the TEW-815DAP Access Point (WAN port).

4. Ethernet LAN ports of the TEW-815DAP are Auto MDI/MDIX and will work with both
Straight-Through and Cross-Over cable.

Start

1. Plug in the power adapter and verify the Power & Ethernet LEDs are light.

2. To configure the Access Point, open your browser, type 'http://192.168.10.1' into the

address bar

3. At the Password prompt, the User name is 'admin' and password is admin. Enter default

username and password and press “Login”

15

Network Status

Show your network status

16

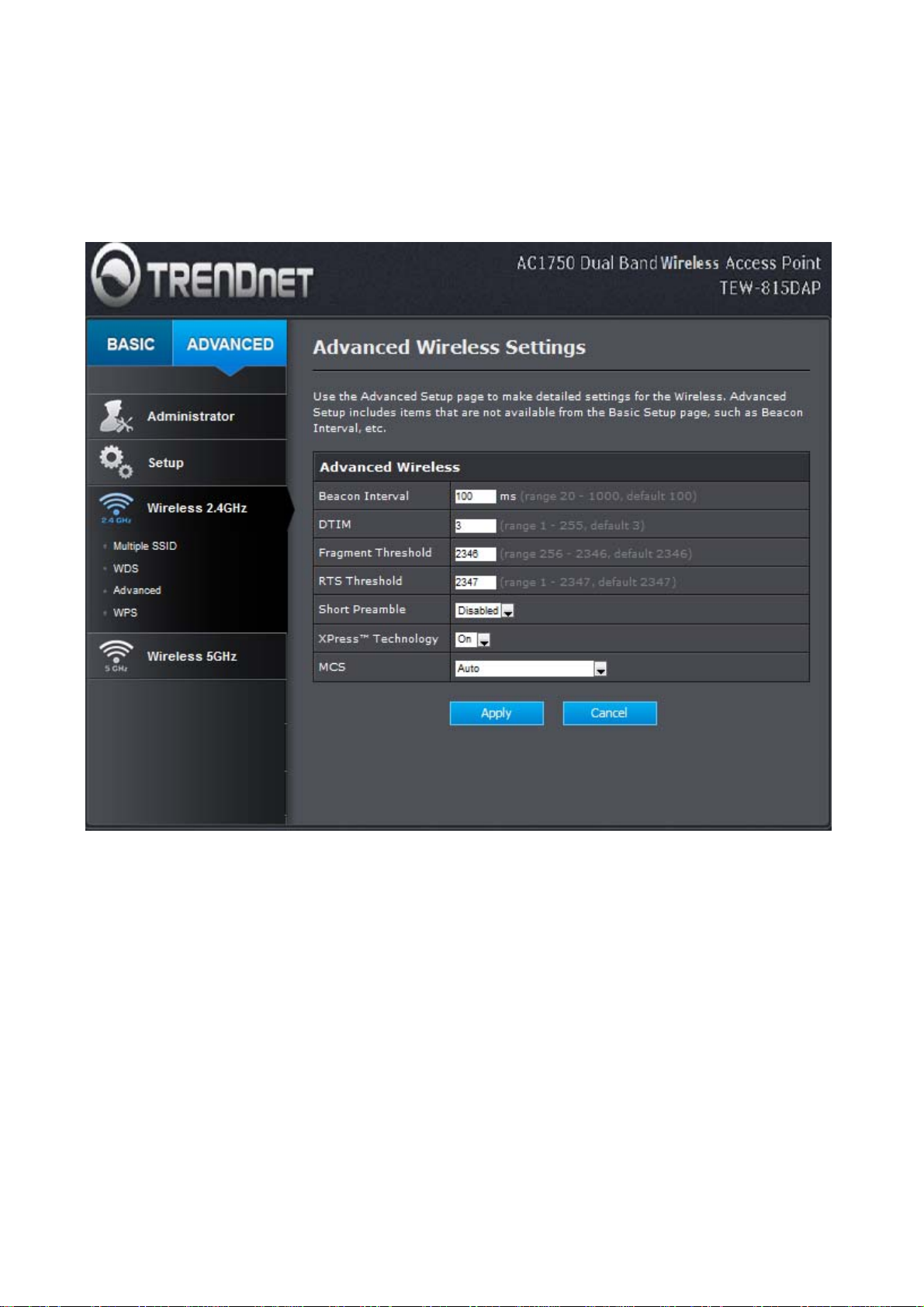

Wireless Setting:

You could configure the minimum number of Wireless settings for communication, such as
Network Name (SSID) and Security Mode. The Access Point can be set simply with only the
minimum setting items.

17
