HS-6038

Socket 370 133MHz FSB

Industrial Single Board Computer

•Full-size•All-in-One•CompactFlash• 133MHz FSB•CRT•Dual LAN•Audio•

•

•ATA/33/66/100•RS-232/422/485•PC/104•

IrDA•USB•DOC•WDT•H/W Monitor•

•

•PICMG Bus Industrial Single Board Computer•

The accuracy of contents in this manual has passed thorough checking and review before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for any infringements of patents or other rights resulting from its use. The

manufacturer will not be responsible for any direct, indirect, special, incidental or consequential damages arising from the use of this product or documentation, even if advised of the possibility of such damage(s).

This manual is copyrighted and BOSER Technology Co., Ltd. reserves all documentation rights. Unauthorized reproduction, transmission, translation, and storage of any form and means (i.e.,

recording) of this document, in whole or partly, is prohibited, unless granted permission by BOSER Technology Co., Ltd.

BOSER Technology Co., Ltd. reserves the right to change or improve the

contents of this document without due notice. assumes no responsibility for any errors or omissions that may appear in this manual, nor does it make any commitment to update the information contained herein.

BOSER is a registered trademark of BOSER Technology Co., Ltd. ISB is a registered trademark of BOSER Technology Co., Ltd. Intel is a registered trademark of Intel Corporation. AMI is a registered trademark of American Megatrends, Inc. Award is a registered trademark of Award Software, Inc. All other trademarks, products and or product names mentioned herein are

mentioned for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies or owners.

electronic, mechanical, photocopying,

BOSER Technology Co., Ltd.

Table of Contents

Chapter 1 General Description…………………...1

1.1 Major Features.................................................................. 2

1.2 Specifications ................................................................... 3

1.3 Board Dimensions............................................................ 4

Chapter 2 Unpacking……………………………..5

2.1 Opening the Delivery Package........................................ 5

2.2 Inspection.......................................................................... 5

Chapter 3 Hardware Installation………………...7

3.1 Before Installation ............................................................ 7

3.2 Board Layout .................................................................... 8

3.3 Jumper List ....................................................................... 9

3.4 Connector List .................................................................. 9

3.5 Configuring the CPU ...................................................... 10

3.6 System Memory .............................................................. 10

3.7 VGA Controller ............................................................... 10

3.8 IDE Drive Connector ...................................................... 11

3.9 Floppy Disk Drive Connector ........................................ 12

3.10 Serial Port Connectors .................................................. 12

3.11 Parallel Connector.......................................................... 13

3.12 Ethernet Connector........................................................ 14

3.13 IrDA Connector ............................................................... 14

3.14 USB Connector ............................................................... 15

3.15 CMOS Data Clear............................................................ 15

3.16 Power and Fan Connectors........................................... 16

3.17 Keyboard/Mouse Connectors ....................................... 17

3.18 System Front Panel Connectors................................... 17

3.19 External Speaker ............................................................ 18

3.20 Thermal Input Connectors............................................. 18

3.21 Audio Connectors .......................................................... 19

3.22 SMI Signal Input Switch................................................. 19

3.23 Watchdog Timer ............................................................. 20

3.24 CompactFlash Connector........................................... 21

3.25 PC/104 Connectors ........................................................ 22

3.26 DiskOnChip Address Setting ..................................... 25

Chapter 4 AMI BIOS Setup……………………..27

4.1 Starting Setup ................................................................. 27

4.2 Using Setup..................................................................... 28

4.3 Main Menu ....................................................................... 29

4.4 Standard CMOS Setup ................................................... 30

4.5 Advanced CMOS Setup ................................................. 31

4.6 Advanced Chipset Setup ............................................... 32

4.7 Power Management Setup ............................................ 33

4.8 PCI / Plug and Play Setup.............................................. 34

4.9 Peripheral Setup............................................................. 35

4.10 Hardware Monitor Setup................................................ 36

4.11 Auto-Detect Hard Disks ................................................. 37

4.12 Change Supervisor/User Password ............................. 38

4.13 Auto Configuration with Optimal Settings .................. 39

4.14 Optimal Configuration with Fail Safe Settings ............ 40

4.15 Save Settings and Exit................................................... 41

4.16 Exit Without Saving........................................................ 42

Chapter 5 Software Utilities…………………….43

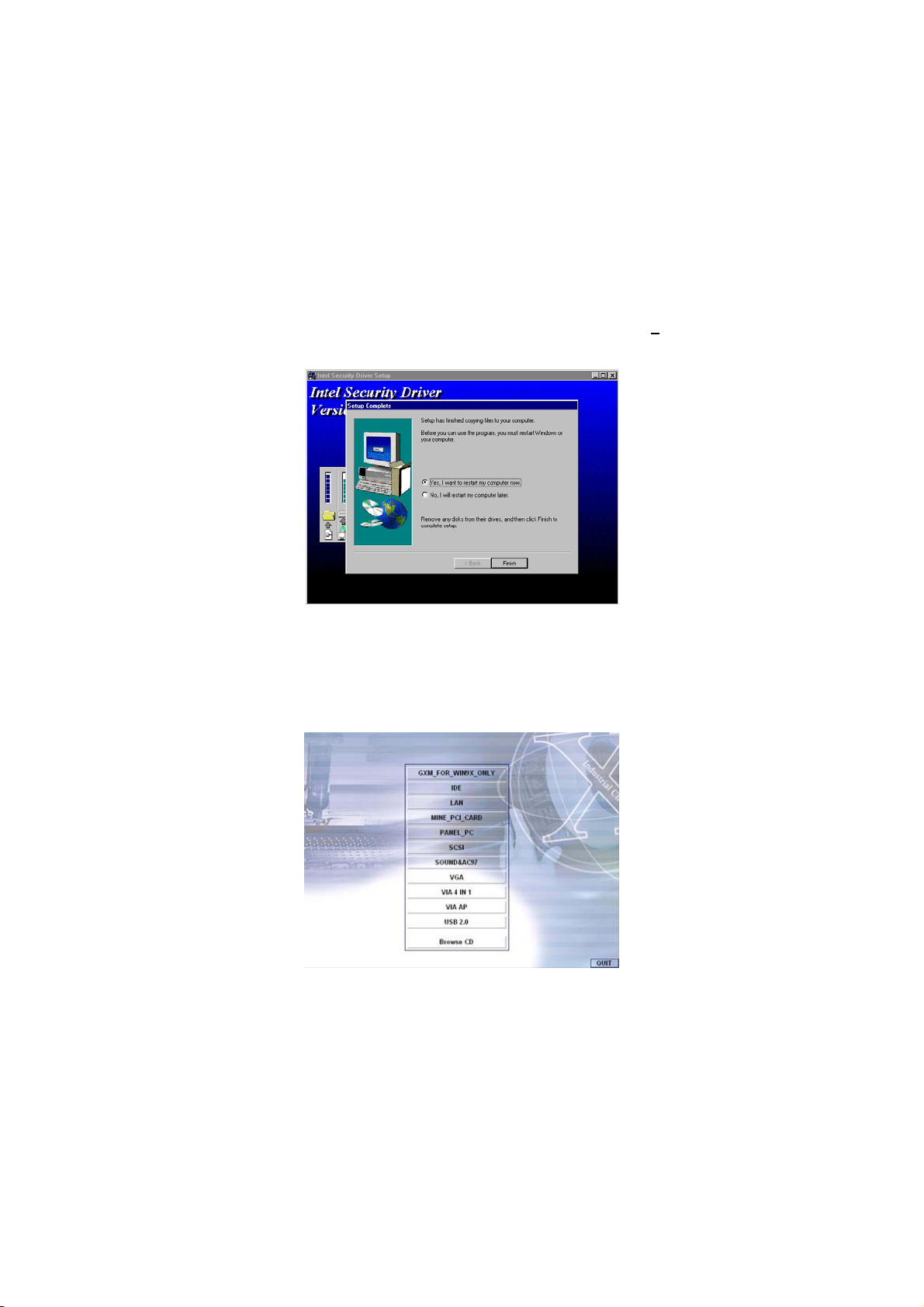

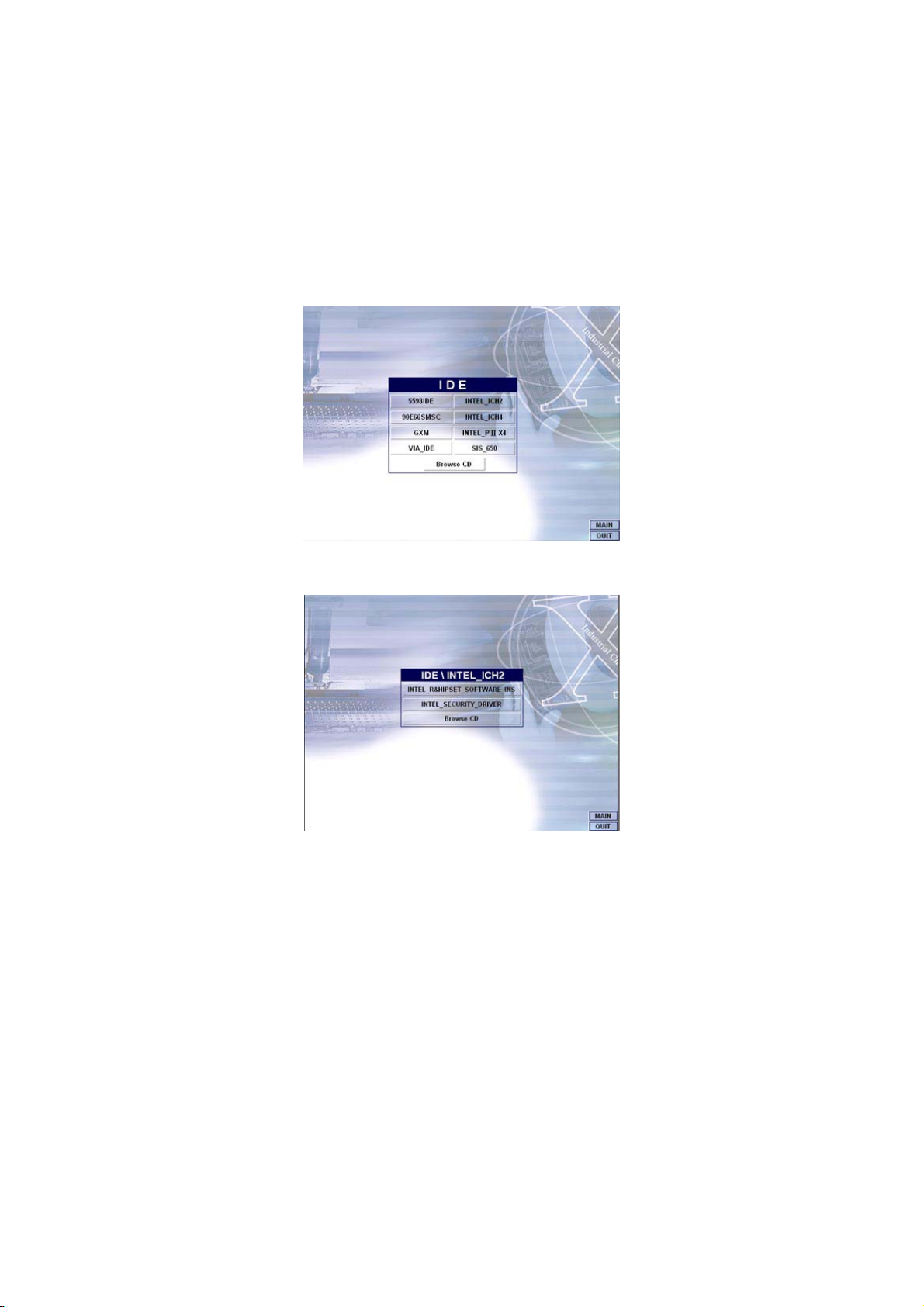

5.1 IDE Driver Installation .................................................... 43

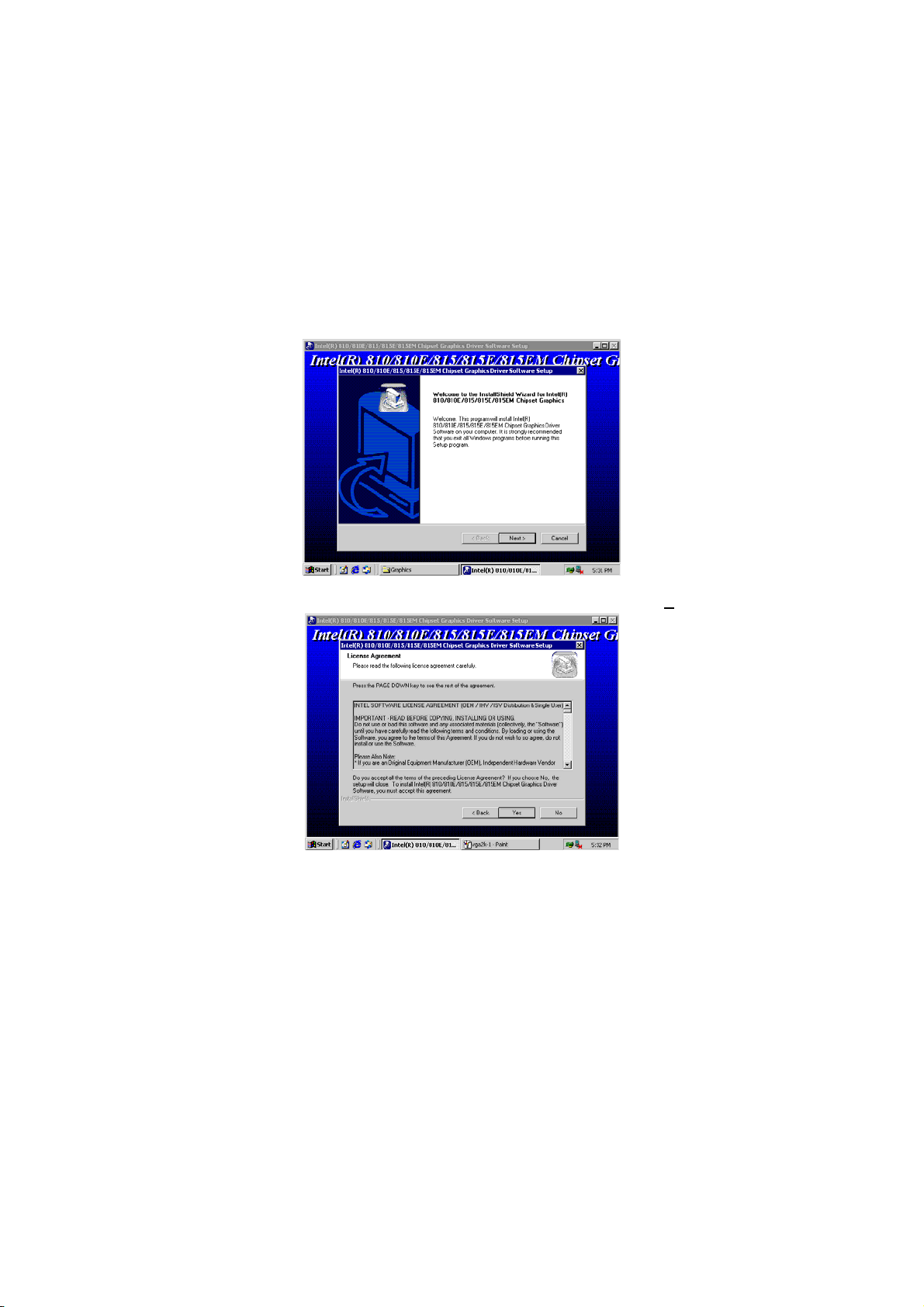

5.2 VGA Driver Installation .................................................. 49

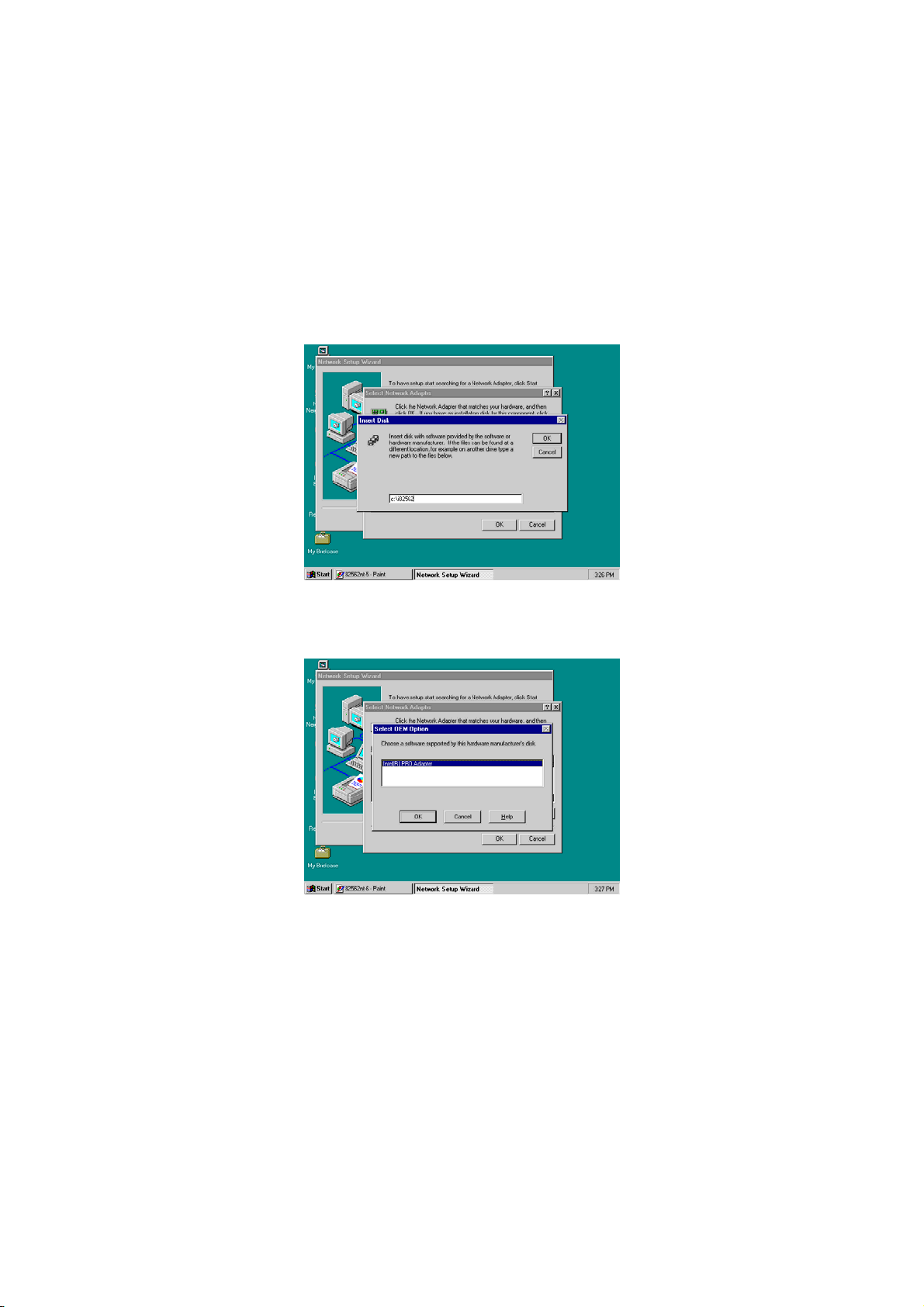

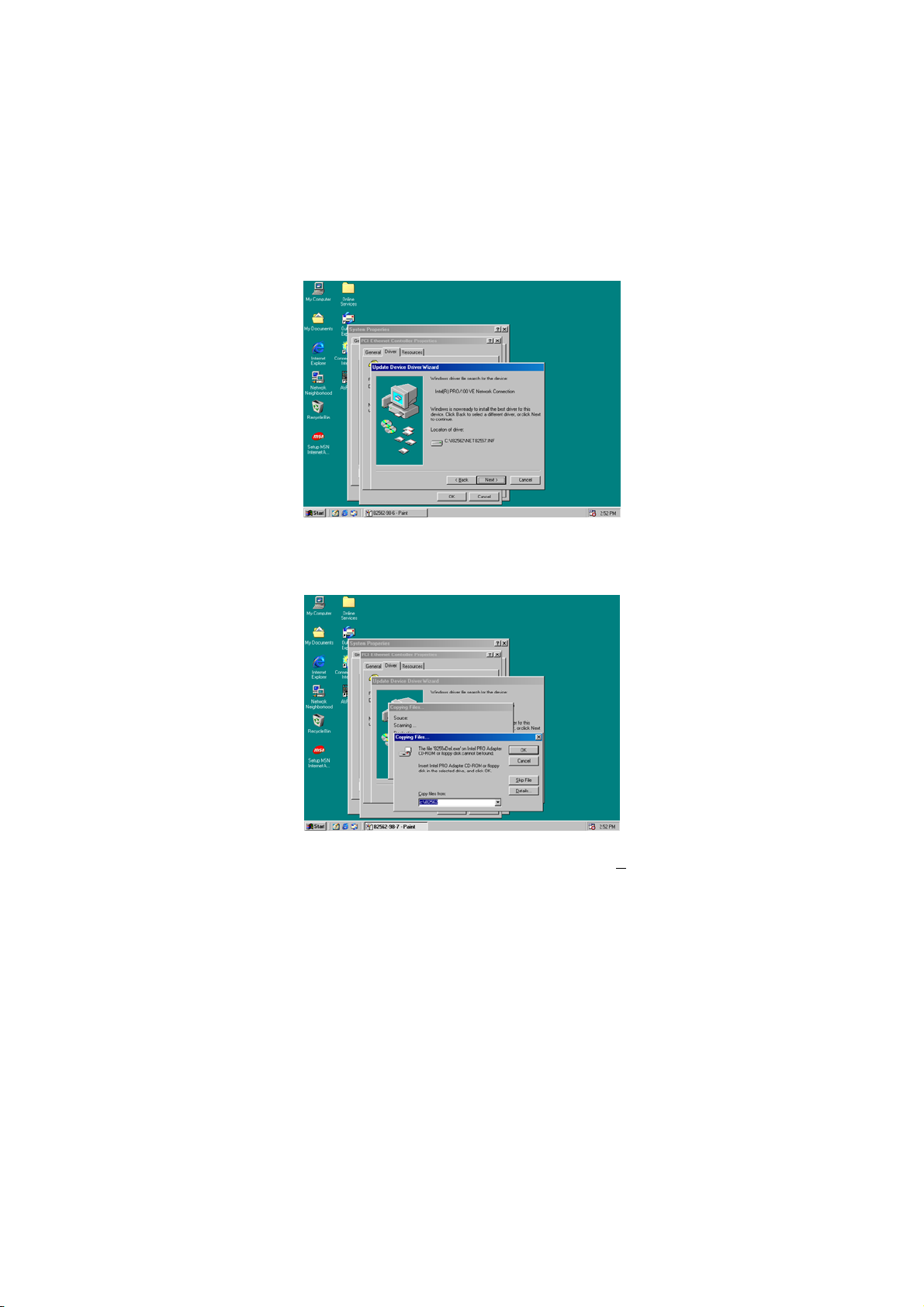

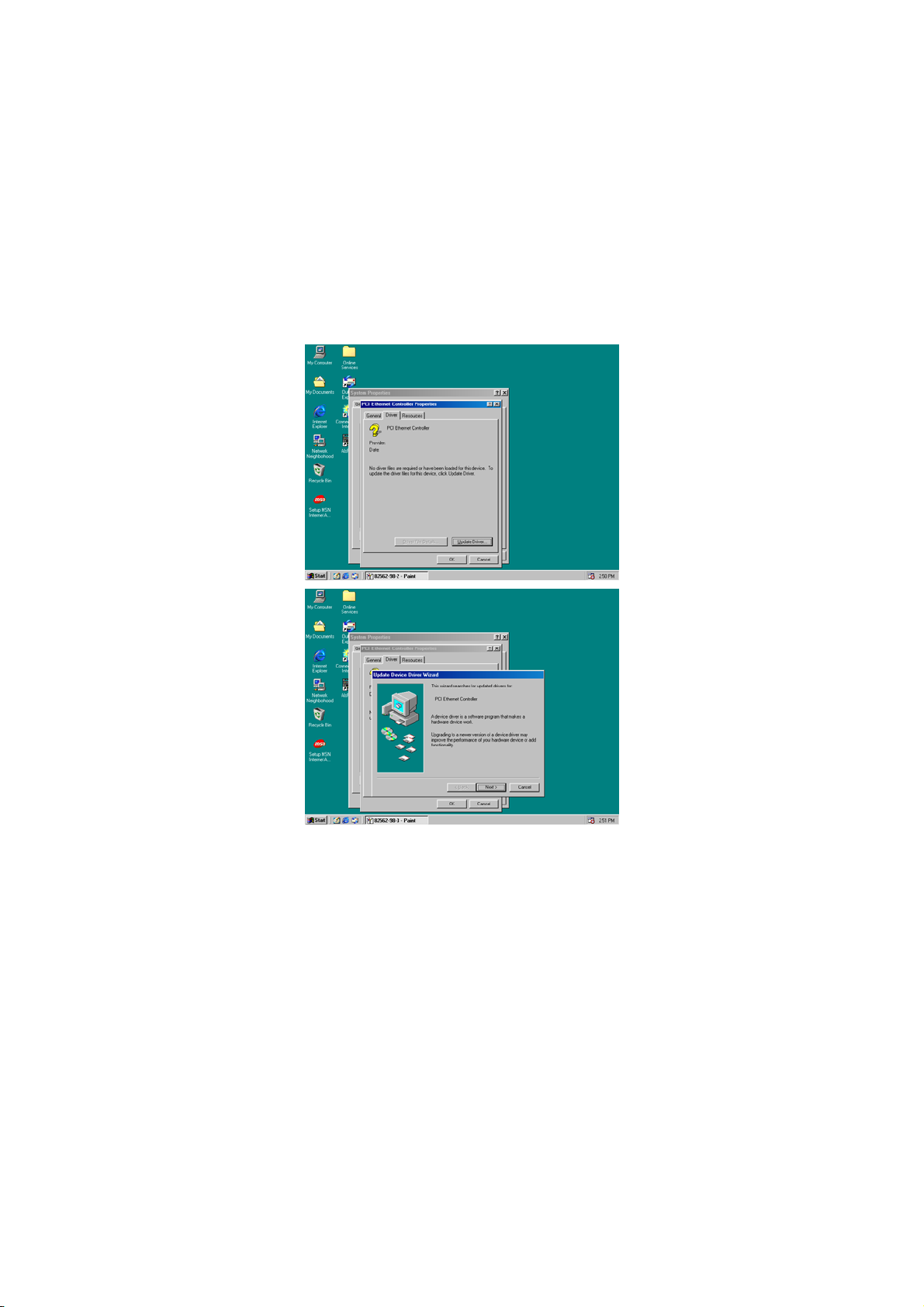

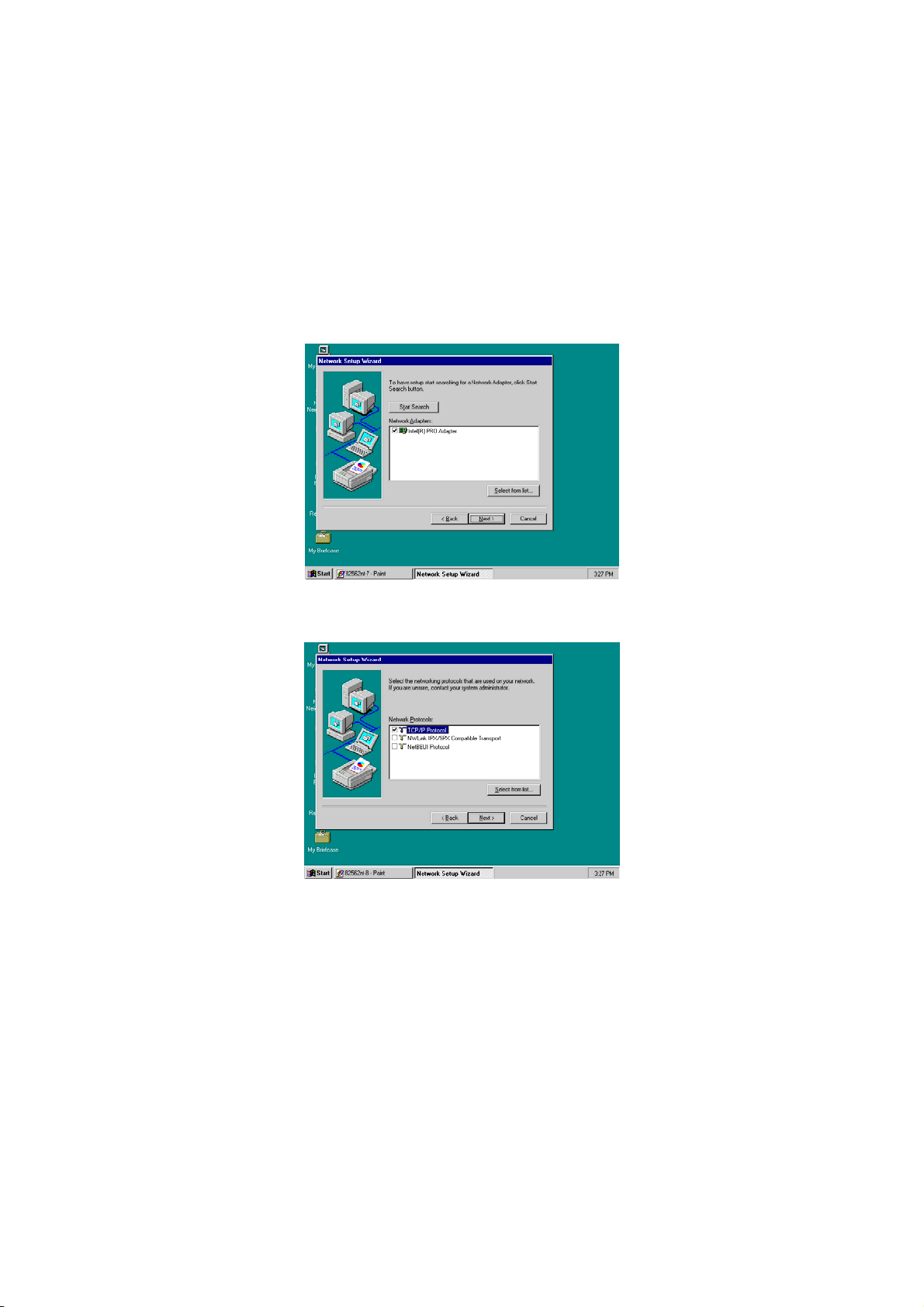

5.3 LAN Driver Installation................................................... 55

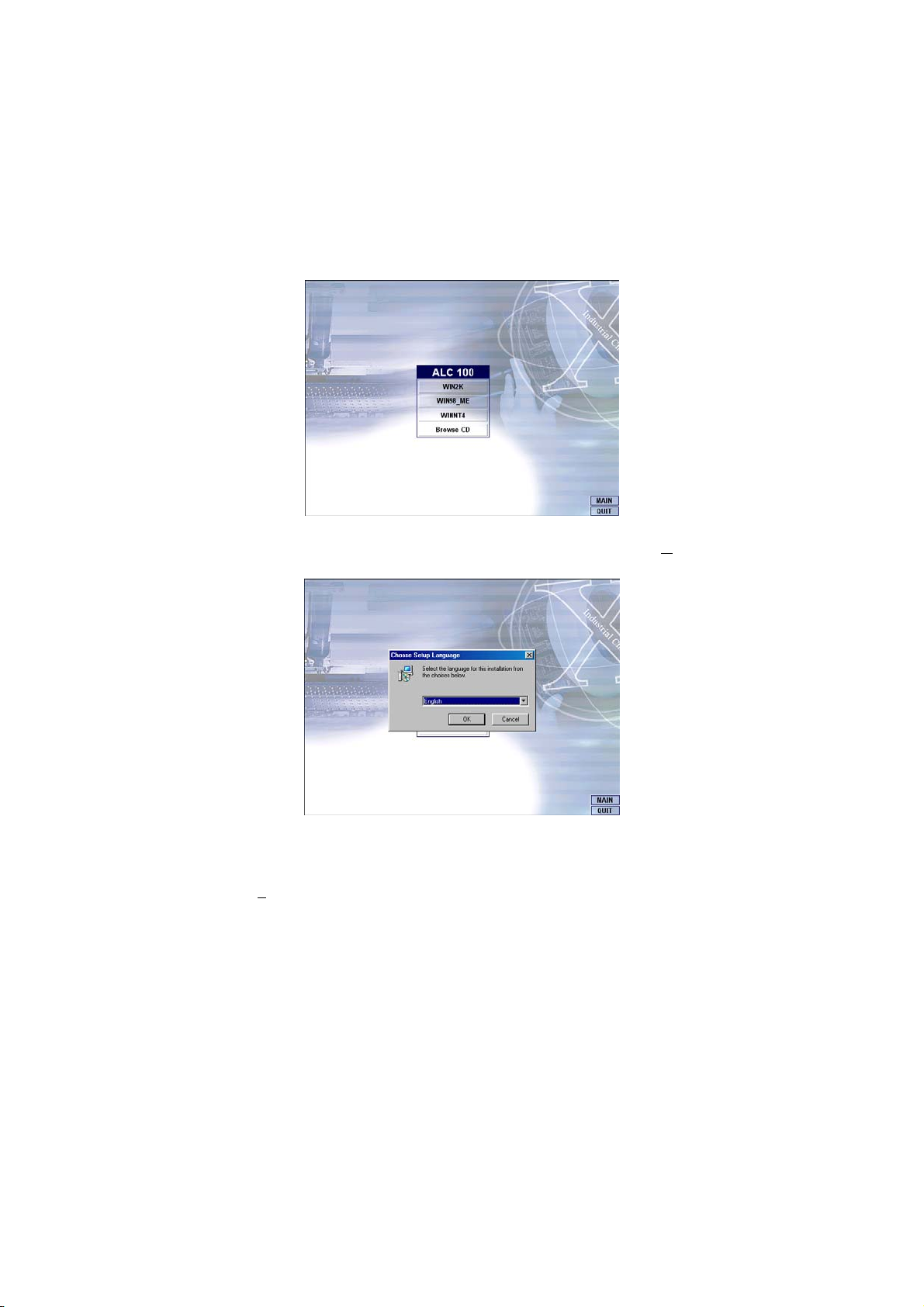

5.4 Audio Driver Installation................................................ 74

Safety Instructions

Integrated circuits on computer boards are sensitive to static electricity. To avoid damaging chips from electrostatic discharge, observe the following precautions:

 Do not remove boards or integrated circuits from their anti-static

packaging until you are ready to install them.

 Before handling a board or integrated circuit, touch an unpainted portion

of the system unit chassis for a few seconds. This helps to discharge any static electricity on your body.

 Wear a wrist-grounding strap, available from most electronic component

stores, when handling boards and components. Fasten the ALLIGATOR clip of the strap to the end of the shielded wire lead from a grounded object. Please wear and connect the strap before handle the HS-6038 to ensure harmlessly discharge any static electricity through the strap.

 Please use an anti-static pad when putting down any components or

parts or tools outside the computer. You may also use an anti-static bag instead of the pad. Please inquire from your local supplier for additional assistance in finding the necessary anti-static gadgets.

NOTE:

DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC PROTECTION.

Chapter 1

General Description

The HS-6038 is a 133MHz FSB Intel® 82815/82801BA chipset-based board designed for PICMG Bus Celeron™/Coppermine™/Tualatin™ 800MHz~1.2GHz CPU compatibility. These features combine and make the HS-6038 an ideal all-in-one industrial single board computer. Additional features include an enhanced I/O with CompactFlash, VGA, dual LAN, audio, and two COM interfaces.

Its onboard ATA/33/66/100 to connected IDE drive interface architecture allows the HS-6038 to support data transfers of 33, 66 or 100MB/sec. for each IDE drive connection. Designed with the Intel 82815/82801BA core logic chipset, the board supports all Celeron™/Coppermine™/Tualatin™ CPU series operating at 800MHz to 1.2GHz. The 82815 integrated CRT display controller supports up to 1280 x 1024 at 16 color resolution.

A single Flash chip holds the system BIOS, and you can change the Flash BIOS by the Utility Update. Advanced IrDA port also provides a faster data transmission. You can also use the DOS version of the “DiskOnChip without the necessity of other software supports up to 288MB. System memory is also sufficient with the two DIMM sockets that can support up to 512MB.

” socket by issuing commands from the DOS prompt

Additional onboard connectors include an advanced USB and IrDA ports providing faster data transmission, and a dual RJ-45 connector for 10/100 Based Ethernet use.

To ensure the reliability in an unmanned or standalone system

, the

Watchdog Timer (WDT) onboard HS-6038 is designed with pure hardware that does not need the arithmetical functions of a real-time clock chip. If any program causes unexpected halts to the system, the onboard Watchdog Timer (WDT) will automatically reset the CPU or generate an interrupt to resolve such condition.

The HS-6038 also has a CompactFlash

connector that

accommodates standard of memory cards available in the market.

1.1 Major Features

The HS-6038 comes with the following features:

 Socket 370 for Intel® Celeron/Coppermine/Tualatin

~1.2GHz CPU

 Supports 66/100/133MHz FSB  Two DIMM sockets with a max. capacity of 512MB  Intel  Winbond W83627 super I/O chipset  Intel  Intel  AC97 3D audio controller  Two COM, four USB connectors  PC/104 Bus connector  DiskOnChip  Supports Hardware Monitor  Supports CompactFlash

82815/82801BA system chipset



82815 CRT display controller



82559 and ICHII 10/100 Based LAN

socket supporting memory sizes of up to 288MB

card reader (optional)

800MHz



1.2 Specifications

 CPU: Socket 370 for Intel Celeron/Coppermine/Tualatin 800MHz

~1.2GHz CPU

 Bus Interface: PICMG Bus  Memory: Two DIMM sockets supporting up to 512MB  Chipset: Intel  I/O Chipset: Winbond W83627  CompactFlash: One, IDE interface adapter (optional)  VGA: Intel  LAN: Intel  Audio: AC97 3D audio controller 

 FDD: Supports up to two floppy disk drives  Parallel: One enhanced bi-directional parallel port supporting

 Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232

 PC/104: PC/104 connector for 8-bit ISA Bus  IrDA: One TX/RX IrDA header  USB: Four USB connectors  Keyboard/Mouse: PS/2 6-pin Mini DIN  DiskOnChip: DiskOnChip socket supporting memory sizes of up to

 BIOS: AMI PnP Flash BIOS  Watchdog Timer: Software programmable time-out intervals from

 CMOS: Battery backup  Power Consumption: +5V/7.5A (1GHz CPU), +12V/120mA  Operating Temperature: 0~60°C  Hardware Monitor: Winbond W83627  Board Size: 33.8 x 12.1 cm

Four IDE disk drives supporting ATA/33/66/100 and with transfer

IDE:

rates of up to 33/66/100MB/sec.

SPP/ECP/EPP

x 1 serial ports with 16-byte FIFO

288MB

1~256 sec.

82815/82801BA



82815 supporting CRT display up to 1280 x 1024 at 16 colors

82559 and Intel® ICHII 10/100 Based LAN

1.3 Board Dimensions

Chapter 2

Unpacking

2.1 Opening the Delivery Package

The HS-6038 is packed in an anti-static bag. The board has components that are easily damaged by static electricity. Do not remove the anti-static wrapping until proper precautions have been taken. Safety Instructions in front of this manual describe anti-static precautions and procedures.

2.2 Inspection

After unpacking the board, place it on a raised surface and carefully inspect the board for any damage that might have occurred during shipment. Ground the board and exercise extreme care to prevent damage to the board from static electricity.

Integrated circuits will sometimes come out of their sockets during shipment. Examine all integrated circuits, particularly the BIOS, processor, memory modules, ROM-Disk, and keyboard controller chip to ensure that they are firmly seated. The HS-6038 delivery package contains the following items:

 HS-6038 Industrial Single Board Computer  ATA/100 IDE flat cable x 2  FDD flat cable x 1  Printer cable with bracket x 1  KB/MS transfer cable x 1 

8-pin USB split type cable with bracket x 1

 Speaker connector flat cable with bracket x 1  Two RS-232 cable with bracket x 1  5-pin ATX cable x 1  Jumper Bag  Utility CD-ROM  User’s Manual

It is recommended that you keep all the parts of the delivery package intact and store them in a safe/dry place for any unforeseen event requiring the return shipment of the product. In case you discover any missing and/or damaged items from the list of items, please contact your dealer immediately.

Chapter 3

Hardware Installation

This chapter provides the information on how to install the hardware using the HS-6038. This chapter also contains information related to jumper settings of switch, watchdog timer, and the DiskOnChip address selection etc.

3.1 Before Installation

After confirming your package contents, you are now ready to install your hardware. The following are important reminders and steps to take before you begin with your installation process.

1. Make sure that all jumper settings match their default settings and CMOS setup correctly. Refer to the sections on this chapter for the default settings of each jumper.

2. Go through the connections of all external devices and make sure that they are installed properly and configured correctly within the CMOS setup. Refer to the sections in this chapter for the detailed information on the connectors.

3. Keep the manual and diskette in good condition for future reference and use.

3.2 Board Layout

3.3 Jumper List

Jumper Definition Setting Page

JP2 Host Bus Clock Rate Select: 133MHz FSB Open 10 JP3 Clear CMOS: Normal Operation Short 1-2 15 JP4 LAN2 Enabled/Disabled Select: Enabled Short 1-2 14 JP5 JP6 Short 3-4 25 JP7

JP8 / JP9 /

JP11 / JP12

WDT Active Type Setting: System Reset Short 2-3 20 DiskOnChip Address Select: 0D000H~ 0D1FFH COM 2 Use RS-232 or RS-422/485 Select: RS-232

Short 1-2 25

Short 2-3

3.4 Connector List

Connector Definition Page

ATX1 20-pin ATX Power In Connector 16

CD1 CD-ROM Analog Input Connector 19 CD2 CN1 Keylock Connector 17 CN2 Speaker Connector 18 CN3 5-pin Keyboard Connector 17 CN4 HDD LED Connector 17 CN5 CN6 2-pin ATX Power On Switch 16 CN7 2-pin Reset Button Connector 17 CN8 Fan Power In Connector 16 CN9 I2C Bus Connector 10

CN10 5-pin ATX Power In Connector 16 CN11 COM 1 Connector (5x2 header) 12 CN12 RS-422/485 Connector (5x2 header) 12 CN13 COM 2 Connector (5x2 header) 12

CF1 CompactFlashTM Connector 21

DIM1/DIM2 168-pin DIMM Sockets 10

FDC1 Floppy Connector 12

IDE1/IDE2 Primary/Secondary IDE Connectors 11

IR1 IrDA Connector 14

JP1 System Sensing Connector 18

JP13 MIC In / Audio Out Connector 19

KB1 PS/2 6-pin Mini DIN KB/MS Connector 17

LAN1 Dual RJ-45 Connector 14 LPT1

Line In Connector 19

SMI Signal Input Connector 19

Parallel Connector 13

…More on next page…

Connector Definition Page

PC1 / PC2 PC/104 Bus 64-pin/40-pin Connectors 22

USB1 External USB Connector 15

USB2/USB3 Internal USB Connectors 15

RT1/RT2 Power Sensing Connectors 18

VGA1

15-pin VGA Connector 10

3.5 Configuring the CPU

JP2 is used to set the Host Bus Clock Rate. The setting of internal Host Bus Clock Rate is for defining the operating clock base rate of the internal bus of core logic.



JP2: Host Bus Clock Rate Select

Description Setting

66/100MHz FSB Short

133MHz FSB (default) Open

3.6 System Memory

The HS-6038 provides two 168-pin DIMM sockets at locations DIM1 and DIM2. The maximum capacity of the onboard memory is 512MB.

3.7 VGA Controller

The HS-6038 provides one connection for VGA device. VGA1 offers a single standard 15-pin CRT connector.



VGA1: 15-pin CRT Connector

PIN Description PIN Description

1 Red 2 Green 3 Blue 4 VCC 5 GND 6 GND 7 GND 8 GND

9 VCC 10 GND 11 VCC 12 DDCDA 13 HSYNC 14 VSYNC 15 DDCCL

An Inter-IC connector CN9, also offers the flexibility of installing an I2C digital signal-based device.



CN9: I

C Bus Connector

PIN Description

123

1 SMBDATA 2 SMBCLK 3

GND

3.8 IDE Drive Connector

IDE1/IDE2 are standard 40-pin connector daisy-chain driver connectors serving the PCI E-IDE drive provisions onboard the HS-6038. A maximum of four IDE drives can be connected to the HS-6038 via IDE1/IDE2.



IDE1/IDE2: Primary/Secondary IDE Connectors

PIN Description PIN Description

1 RESET 2 GND 3 DATA 7 4 DATA 8 5

DATA 6

7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11 11 DATA 3 12 DATA 12 13 DATA 2 14 DATA 13 15

DATA 1

17 DATA 0 18 DATA 15 19 GND 20 N/C 21 PDREQ 22 GND 23 PDIOW# 24 GND 25 PDIOR# 26 GND 27 PIORDY 28 GND 29 RPDACK- 30 GND 31 IRQ14 32 N/C 33 RPDA1- 34 PATA66DET 35 RPDA0- 36 RPDA2- 37 RPCS1- 38 RPCS3- 39 HDD ACTIVE 40 GND

DATA 9

DATA 14

46810

3 5 7 9 17 19 21 23 25 27 29 31

12 14

11 13 15 35 37

202224 262830

16 36

32 34

3.9 Floppy Disk Drive Connector

The HS-6038 uses a standard 34-pin header connector, FDC1, for floppy disk drive connection. A total of two floppy drives may be connected to FDC1 at any given time.



FDC1: Floppy Connector

PIN Description PIN Description

1 GND 2 RWC- 3 GND 4 N/C 5 GND 6 DS1- 7 9

11 GND 12 Drive Select B# 13 GND 14 Drive Select A# 15 GND 16 Motor Enable B# 17 GND 18 Direction# 19 GND 20 Step# 21 GND 22 WD- 23 GND 24 WE- 25 GND 26 Track 0# 27 GND 28 WP- 29 N/C 30 RDATA- 31 GND 32 HEAD- 33 N/C 34 DSKCHG-

GND GND

Index#

Motor Enable A#

3.10 Serial Port Connectors

The HS-6038 offers one NS16C550 compatible UARTs with Read/Receive 16-byte FIFO serial ports.



CN11, CN13: COM1/COM2 Connectors (5x2 header)

PIN Description PIN Description

1 DCD 2 DSR 3 RXD 4 RTX 5 7 DTR 8 RI 9 GND 10 N/C

TXD

CTX

246810

13579



CN12: RS-422/485 Connector (5x2 header)

PIN Description PIN Description

TX+

RX-

RTS-

N/C

246810

CTS+

1 TX- 2 TX+ 3 RX+ 4 RX- 5 GND 6 RTS- 7 RTS+ 8 CTS+

13579

TX-

RX+

GND

CTS-

RTS+

9 CTS- 10 N/C



JP8/JP9/JP11/JP12: COM2 Use RS-232 or RS-422/485 Select

Options Settings

RS-232 (default)

Short 2-3

RS-422/485 Short 1-2

3.11 Parallel Connector

LPT1 is a standard 26-pin flat cable connector designed to accommodate parallel port connection onboard the HS-6038.



LPT1: Parallel Connector

PIN Description PIN Description

1 Strobe 2 DATA 0 3 DATA 1 4 DATA 2 5

DATA 3

7 DATA 5 8 DATA 6

9 DATA 7 10 Acknowledge 11 Busy 12 Paper Empty 13 Printer Select 14 Auto Form Feed 15 ERROR# 16 Initialize 17 Printer Select LN# 18 GND 19 GND 20 GND 21 GND 22 GND 23 GND 24 GND 25 GND 26 GND

DATA 4

3.12 Ethernet Connector

The HS-6038 provides one dual RJ-45 10/100 Based LAN interface connectors. Please refer to the following table for their identical pin assignments.



LAN1: Dual RJ-45 Connector

PIN Description PIN Description

1 1TX+ 2 1TX- 3

1RX+

5 1R/C GND 6 1RX- 7 1R/C GND 8 1R/C GND 9 2TX+ 10 2TX-

11 2RX+ 12 2R/C GND 13

2R/C GND

15 2R/C GND 16 2R/C GND

1R/C GND

1RX+

1TX+

1R/C GND

2TX+

2RX+

1R/C GND

2RX-

2R/C GND

1TX-



JP4: LAN2 Enable/Disable Select

1RX-

1R/C GND

Options Settings

1R/C GND

2TX-

2RX-

2R/C GND

123

2R/C GND

Enabled (default) Short 1-2

Disabled Short 2-3

3.13 IrDA Connector

IR1 is a 5-pin internal IR communication connector for connection of an IrDA device.



IR1: IrDA Connector

PIN Description

1 VCC 2

N/C

3 IRRX 4 GND 5 IRTX

12345

3.14 USB Connector

The HS-6038 provides one 4-pin external USB connector at location USB1, and two 8-pin connectors at locations USB2 and USB3.



USB1: External USB Connector

PIN Description

1 VCC 2 3 BD0+ 4 GND



USB2: Internal USB Connector

BD0-

PIN Description PIN Description

1 VCC 2 VCC 3 BD0- 4 BD1- 5 7 GND 8 GND

BD0+



USB3: Internal USB Connector

PIN Description PIN Description

1 3 BD02- 4 BD3- 5 BD02+ 6 BD3+ 7 GND 8 GND

VCC

BD1+

VCC

BD0-

BD0+

GND

3.15 CMOS Data Clear

The HS-6038 has a Clear CMOS jumper on JP3.



JP3: Clear CMOS

Options Settings

Short 1-2

NOTE:

Normal Operation (default)

Clear CMOS Short 2-3

The default setting of JP3 is Short 1-2 in storage. Before you turn on the power of your system, please set JP3 to Short 1-2 for normal operation.

3.16 Power and Fan Connectors

The HS-6038 provides one 5-pin ATX Power On connector at CN10, one 2-pin ATX Power ON switch at CN6, and a single 3-pin FAN out connector at CN8.



CN10: 5-pin ATX Power In Connector

PIN Description

GND

PS_ON

PWORK

+3.3V

GND

+5V

GND

+5V

GND

+5Vsb

+12V

111

10 20

+3.3V

-12V

GND

PS_ON

GND

-5V

+5V

1 GND

2 PS_ON 3

VCC13

4 5Vsb 5 VCC



ATX1: 20-pin ATX Power In Connector

PIN Description PIN Description

1 +3.3V 11 +3.3V 2 +3.3V 12 -12V 3 4 +5V 14 PS_ON 5 GND 15 GND 6 +5V 16 GND 7 GND 17 GND 8 9 +5Vsb 19 +5V

10 +12V 20 +5V

GND

PWORK

VCC

5Vsb

GND

-5V

VCC13

If the system is not using the ATX power function, you may SHORT pins 4 and 5 of CN10 so that the ATX power supply can be used as an AT power unit. If not, CN2 must be connected to a corresponding connector on a PICMG Bus backplane in order to use the ATX Power function.

When using the ATX Power, CN6 is used to turn on the power. In this case, a BOSER PICMG Bus backplane must complement the HS-6038 for proper operation.



CN6: 2-pin ATX Power On Switch

PIN Description

1 5VSBY 2

PANSWIN

CN8 onboard HS-6038 is a 3-pin fan power output connector.



CN8: Fan Power In Connector

PIN Description

1 GND 2 +12V 3 FAN In 1

GND

+12V

FAN In 1

3.17 Keyboard/Mouse Connectors

The HS-6038 offers two possibilities for keyboard connection. The connections are via KB1 for an external PS/2 type keyboard/mouse or via CN3 for an internal 5-pin cable converter to an AT keyboard.



CN3: 5-pin Keyboard Connector

PIN Description

1 Keyboard Clock 2 Keyboard Data 3 N/C 4 GND 5 +5V



KB1: PS/2 6-pin Mini DIN Keyboard/Mouse Connector

PIN Description

1 Keyboard Data 2 Mouse Data 3 GND 4 +5V 5 Keyboard Clock 6 Mouse Clock

12345

Keyboard

Clock

Mouse

Clock

GND

Keyboard

Data

Mouse

Data

+5V

3.18 System Front Panel Connectors

The HS-6038 has one LED at location D1 that indicates the power-on status. This visual feature of the IDE LED may also be connected to an external IDE LED via connector CN4.



CN4: IDE LED Connector

PIN Description

1 +5V 2 HDD ACTIVE#

CN1 and CN7 are the Keylock and Reset Button connectors onboard.



CN1: Keylock Connector

PIN Description

1 VCC 2 N/C 3 GND 4 Keylock 5



CN7: 2-pin Reset Button Connector

GND

PIN Description

1 GND 2 H/W Reset

12345

3.19 External Speaker

Aside from the buzzer at location BZ1 onboard, the HS-6038 also offers a connector (CN2) for an external speaker connection. The table below lists the pin assignments of CN2.



CN2: Speaker Connector

PIN Description

1 Speaker Signal 2 GND 3 GND 4 +5V

1234

3.20 Thermal Input Connectors

In relevance to the Hardware Monitoring feature provided by the onboard Winbond W83627, the board allows the installation of a thermal sensor via connectors RT1/RT2 and JP1. The thermal connector JP1 monitors and displays the current system temperature whereas RT2 monitors the temperature conditions along the area where the power supply system sits. The displayed values are read-only figures and may not be altered.



RT1, RT2, JP1: System/Power Sensing Connectors

PIN Description

1 Sensing 2 GND

3.21 Audio Connectors

The HS-6038 has an onboard AC97 3D audio interface. The following tables list the pin assignments of the CD-ROM Analog Input, the Line In and the MIC In/Audio Out connectors.



CD1: CD-ROM Analog Input Connector

PIN Description

1 CD IN_R 2 CD REF 3 CD REF 4 CD IN_L



CD2: Line In Connector

PIN Description

1 LINE_R 2 GND 3 GND 4 LINE_L



JP13: MIC In/Audio Out Connector

PIN Description PIN Description

1 OUT_L 2 OUT_R 3 GND 4 GND 5 MIC IN 6 N/C 7 GND 8 GND

1234

3.22 SMI Signal Input Switch

The HS-6038 has an SMI connector at location CN5. If there is an external SMI Signal Input Switch, this input switch will be able to receive signals.



CN5: SMI Signal Input Switch

PIN Description

1 2 EXTSMI

GND

3.23 Watchdog Timer

Once the Enable cycle is active, a Refresh cycle is requested before the time-out period. This restarts counting of the WDT period. When the time counting goes over the period preset of WDT, it will assume that the program operation is abnormal. A System Reset signal is to re-start when such error happens.



JP5: WDT Active Type Setting

Options Settings

123

Active NMI Short 1-2

System Reset (default) Short 2-3

Disabled Watchdog Timer Open

The following sample programs show how to Enable, Disable and Refresh the Watchdog Timer:

;---------------------------------------------------------------------------------; Enter the WDT function mode, interruptible double-write ;--------------------------------------------------------------------------------- MOV DX, 2EH MOV AL, 87H OUT DX, AL OUT DX, AL MOV DX, 2EH MOV AL, 07H OUT DX, AL MOV DX, 2FH MOV AL, 08H OUT DX, AL MOV DX, 2EH MOV AL, F5H OUT DX, AL ; select CRF0 MOV DX, 2FH MOV AL, 80H OUT DX, AL MOV DX, 2EH MOV AL, F7H OUT DX, AL MOV DX, 2FH MOV AL, 00H OUT DX, AL MOV DX, 2EH MOV AL, F6H

OUT DX, AL

MOV DX, 2FH MOV AL, 00H ; * 00H=Disabled OUT DX, AL ;--------------------------------------------------------------------------------; Exit extended function mode ;---------------------------------------------------------------------------------

MOV DX, 2EH MOV AL, AAH OUT DX, AL

* User can also use AL, 00H’s defined time for reset purposes,

e.g.00H for Disable, 01H = 1sec, 02H = 2sec…..FFH = 255sec

3.24 CompactFlash Connector

The HS-6038 also offers an optional CompactFlash connector which is IDE interface located at the solder side of the board. The designated IDE2 connector, once soldered with an adapter, can hold CompactFlash cards of various sizes. Please turn off the power before inserting the CF card. Inserting a CompactFlash card into the adapter is not a difficult task. The socket and card are both keyed and there is only one direction for the card to be completely inserted. Refer to the diagram below for the traditional way of inserting the card.



CF1: CompactFlash

PIN Description PIN Description

1 GND 2 DATA 3 3 DATA 4 4 DATA 5 5 DATA 6 6 DATA 7 7

9 GND 10 GND 11 GND 12 GND 13 +5V 14 GND 15 17 GND 18 SDA2 19 SDA1 20 SDA0 21 DATA 0 22 DATA 1 23 25 N/C 26 N/C 27 DATA 11 28 DATA 12 29 DATA 13 30 DATA 14 31 33 N/C 34 IOR 35 IOW 36 EWE0 37 IRQ 38 +5V 39 41 Reset 42 IORDY 43 N/C 44 REQ 0 45 IDE LED 46 PDIAG 47 49 DATA 10 50 GND

Connector

SDCS1#

GND

DATA 2

DATA 15

N/C

DATA 8

470Ω pull to GND

GND

SDCS3#

N/C

DATA 9

Inserting a CompactFlash card into the adapter is not a difficult task. The socket and card are both keyed and there is only one direction for the card to be completely inserted. Refer to the diagram on the following page for the traditional way of inserting the card.

CompactFlash

M T

e d

3.25 PC/104 Connectors

The PC/104 expansion bus offers provisions to connect all types of PC/104 modules. With the PC/104 bus being known as the new generation of industrial embedded 16bit PC standard bus, thousands of PC/104 modules from multiple venders can be easily installed onboard. The detailed pin assignment of the PC/104 expansion bus connectors PC1 and PC2 are listed in the following tables:

NOTE：

The PC/104 connector allows direct plugging or stack-through piling of PC/104 modules without requiring the PC/104 mounting kit.



PC2: PC/104 Bus 40-pin Connector

PIN Description PIN Description

1 GND 21 GND 2 MEMCS16* 22 SBHE* 3 4 IRQ10 24 LA22 5 IRQ11 25 LA21 6 IRQ12 26 LA20 7 IRQ15 27 LA19 8

9 DACK0* 29 LA17 10 DRQ0 30 MEMR* 11 DACK5* 31 MEMW* 12 DRQ5 32 SD8 13 DACK6* 33 SD9 14 DRQ6 34 SD10 15 16 DRQ7 36 SD12 17 +5V 37 SD13 18 MASTER* 38 SD14 19 GND 39 SD15 20 GND 40 GND

IOSC16*

IRQ14

DACK7*

LA23

LA18

SD11

Connector diagram rotated 90 degrees

clockwise from

original position

121



PC1: PC/104 Bus 64-pin Connector

PIN Description PIN Description

1 IOCHECK* 33 GND

2 SD7 34 RESETDRV

4 SD5 36 IRQ9

5 SD4 37 N/C

6 SD3 38 DRQ2

7 SD2 39 -12V

9 SD0 41 +12V 10 IOCHRDY 42 GND 11 AEN 43 SMEMW* 12 SA19 44 SMEMR* 13 SA18 45 IOW* 14 SA17 46 IOR* 15 16 SA15 48 DRQ3 17 SA14 49 DACK1* 18 SA13 50 DRQ1 19 SA12 51 REFRESH* 20 SA11 52 SYSCLK 21 SA10 53 IRQ7 22 SA9 54 IRQ6 23 SA8 55 IRQ5 24 SA7 56 IRQ4 25 SA6 57 IRQ3 26 SA5 58 DACK2* 27 28 SA3 60 BALE 29 SA2 61 +5V 30 SA1 62 OSC 31 SA0 63 GND 32 GND 64 GND

SD6

SD1

SA16

SA4

+5V

OWS

DACK3*

Connector diagram rotated 90 degrees

clockwise from

original position

133

6432

3.26 DiskOnChip Address Setting

The DiskOnChip function allows the system to boot or operate without a FDD or a HDD. DiskOnChip modules may be formatted as drive C. With DiskOnChip, user may also execute DOS commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY, DISKCOMP, etc.

The U31 location onboard the HS-6038 is the DiskOnChip module socket. If you have another memory device that has a similar memory capacity with that of the DOC in your system, please set both at different memory address mapping to avoid mapping area conflicts. Failing to do so will not make the HS-6038 and the additional memory device function properly. JP6/JP7 selects the starting memory address of the DiskOnChip (D.O.C.) to avoid the mapping area with any other memory devices.



JP6 and JP7: DiskOnChip Address Select

Address JP6 JP7

0C800H~0C9FFH Short 1-2 Short 1-2

0CC00H~0CDFFH Short 1-2 Short 3-4

0D000H~0D1FFH (default) Short 3-4 Short 1-2

0D400H~0D5FFH Short 3-4 Short 3-4 0D800H~0D9FFH Short 5-6 Short 1-2

0DC00H~0DDFFH Short 5-6 Short 3-4

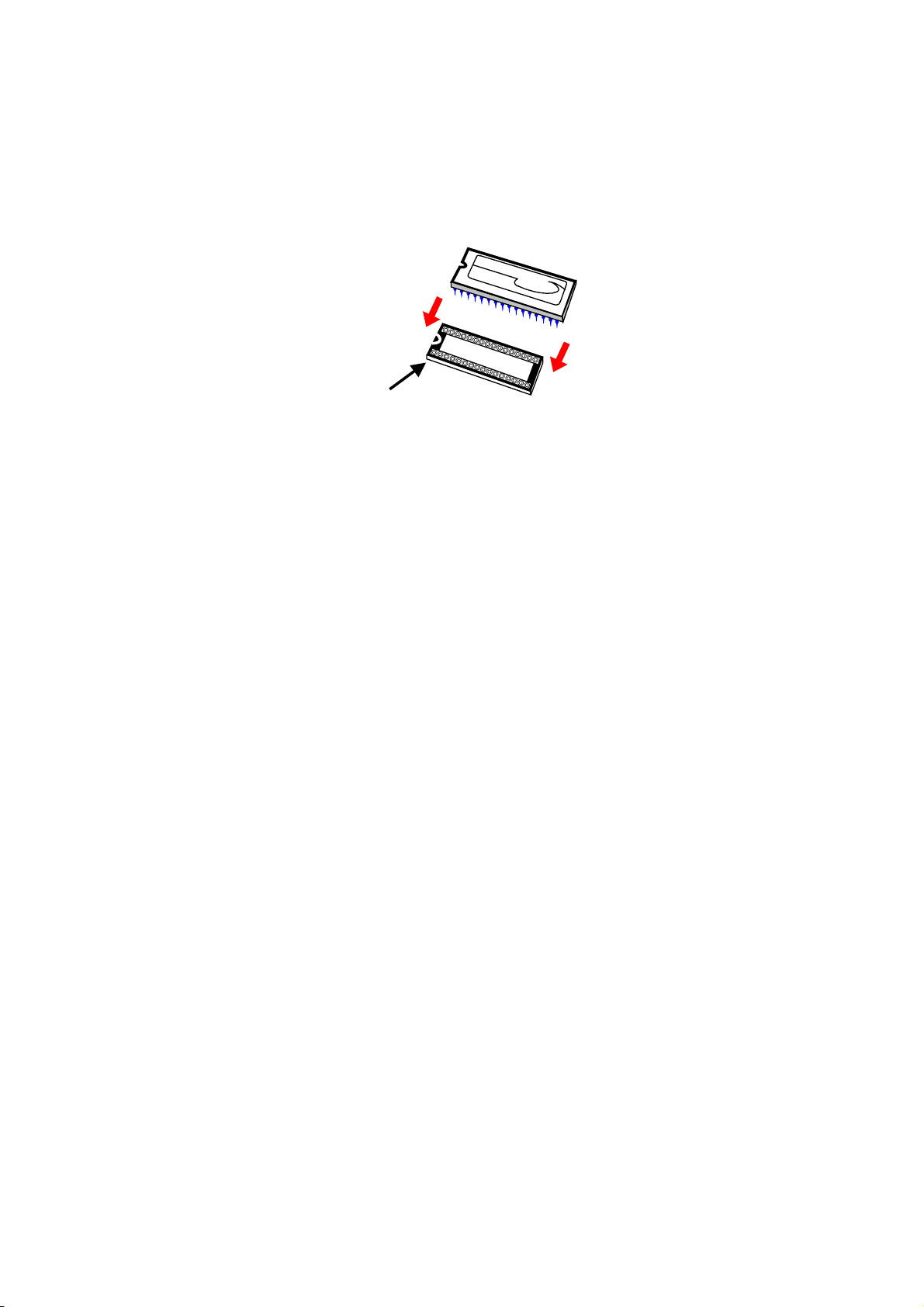

3.26.1 Installing DiskOnChip Modules

JP6 JP7

When installing a DiskOnChip module onto your board, please take note of the following:

1. Orient yourself properly with the location of the DiskOnChip socket. Try to locate the pin 1 location on your socket. Pin numbers are usually printed on either the component side or the solder side of your board.

2. Locate the Pin 1 location on your DiskOnChip module. More often than not, Pin 1 can be found on the lower right corner of the chip. Please refer to the diagram for the exact location.

3. Once you have figured out where the pin 1 locations are (on both chip and socket), align the module’s pins on an upright angle against the socket. Using both thumbs, gently press the module into the socket until all the pins are secured to their designations.

Pin 1

Location

4. The installation is now complete and your module is now ready for use.

NOTE:

If you encounter difficulty installing your DiskOnChip

module,



please consult a qualified technician or engineer to perform the installation.

3.26.2 Removing DiskOnChip Modules

When removing a DiskOnChip module from its socket, please take note of the following:

1. Loosen the contact of the module from its socket using a screwdriver.

2. Insert the screwdriver’s flat head into a gap on either end of the socket. Do not insert the screwdriver head on either side where the pins are located. Doing so might damage the pins in the process.

3. Slowly lift the screwdriver handle upwards. This will disengage the module from its socket.

NOTE: If you encounter difficulty removing your DiskOnChip module,

please consult a qualified technician or engineer to remove it for you.

Chapter 4

AMI BIOS Setup

The HS-6038 uses AMI BIOS for the system configuration. The AMI BIOS setup program is designed to provide the maximum flexibility in configuring the system by offering various options that could be selected for end-user requirements. This chapter is written to assist you in the proper usage of these features.

4.1 Starting Setup

The AMI BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF, then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

4.2 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and <PageDown> keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more details about how to navigate in the Setup program using the keyboard.

Up arrow

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu -- Quit and not save changes into CMOS

PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes

+ key

- key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and Option

(Shift)F2 key Change color from total 16 colors. F2 to select color

F3 key Calendar, only for Status Page Setup Menu F4 key Reserved F5 key Restore the previous CMOS value from CMOS, only for

F6 key

F7 key Load the default F8 key Reserved F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

Move to previous item

Status Page Setup Menu and Option Page Setup Menu -Exit current page and return to Main Menu

Increase the numeric value or make changes

Page Setup Menu

forward, (Shift) F2 to select color backward

Option Page Setup Menu Load the default CMOS value from BIOS default table, only for Option Page Setup Menu

4.2.1 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

4.3 Main Menu

Once you enter the AMI BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to enter the sub-menu.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

HS-6038LV VER:1.1.

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

NOTE:

A brief description of the highlighted choice appears at the bottom of the screen.

Save Settings and Exit

Exit Without Saving

4.4 Standard CMOS Setup

The Standard Setup is used for the basic hardware system configuration. The main function is for Data/Time and Floppy/Hard Disk Drive settings. Please refer to the following screen for the setup. When the IDE hard disk drive you are using is larger than 528MB, you must set the HDD mode to BIOS SETUP to install the HDD correctly.

AMIBIOS SETUP – STANDARD CMOS SETUP

Date (mm/dd/yyyy) : Fri Oct 24, 2003 Base Memory : 639 KB Time (hh/mm/ss) : 19:04:12 Extd Memory : 126 MB

Floppy Drive A: Not Installed Floppy Drive B: Not Installed

LBA Blk PIO 32Bit

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode Pri Master : Not Installed Pri Slave : Not Installed Sec Master : Not Installed Sec Slave : Not Installed

Boot Sector Virus Protection : Disabled Month: Jan - Dec ESC:Exit

Day: 01 - 30 PgUp/PgDn: Modify

Year: 1980 - 2099 F1:Help F2/F3:Color

mode. Please use the IDE Setup Utility in

LBA



:Sel

4.5 Advanced CMOS Setup

This section allows you to configure your system for the basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

AMIBIOS SETUP – STANDARD CMOS SETUP

Quick Boot Enabled Pri Master ARMD Emulated as Auto Pri Slave ARMD Emulated as Auto Enabled Sec Master ARMD Emulated as Auto Sec Slave ARMD Emulated as Auto USB ARMD Emulated as Auto 1st Boot Device Disabled 2nd Boot Device Disabled 3rd Boot Device Disabled Try Other Boot Devices Yes Initial Display Mode BIOS Display Mode at Add-On ROM Init Force BIOS Floppy Access Control Read-Write S.M.A.R.T. for Hard Disks Disabled BootUp Num-Lock On Floppy Drive Seek Disabled PS/2 Mouse Support Enabled Primary Display VGA/EGA Password Check Setup Boot To OS/2 No CPU Serial Number Disabled L1 Cache Writeback L2 Cache Writeback System BIOS Cacheable Disabled C000,16k Shadow Enabled C400,16k Shadow Enabled C800,16k Shadow Enabled CC00,16k Shadow Disabled D000,16k Shadow Disabled D400,16k Shadow Disabled ESC:Exit D800,16k Shadow Disabled PgUp/PgDn: Modify DC00,16k Shadow Disabled

Available Options:

Disabled



:Sel

F1:Help F2/F3:Color

4.6 Advanced Chipset Setup

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and the access to the system memory resources, such as DRAM and the external cache. It also coordinates the communications between the conventional ISA and PCI buses. It must be stated that these items should never be altered. The default settings have been chosen because they provide the best operating conditions for your system. You might consider and make any changes only if you discover that the data has been lost while using your system.

AMIBIOS SETUP – ADVANCED CHIPSET SETUP

CPU Ratio Selection Safe Mode Available Options: CPU BIST Enable Disabled ICH Delayed Transaction Disabled 5.5x DMA Collection Buffer Enable Disabled 6.0x DRAM Page Closing Policy Open 6.5x Memory Hole Disabled 7.0x MPS Revision 1.1 7.5x

System memory Frequency 100MHz 8.0x SDRAM Timing by SPD Disabled 8.5x

DRAM Refresh 15.6us 9.0x DRAM Cycle time (SCLKs) 7/9 9.5x CAS# Latency (SCLKs) 3 10.0x

RAS to CAS delay (SCLKs) 3 10.5x SDRAM RAS# Precharge (SCLKs) 3 11.0x Internal Graphics Mode Select 1MB 11.5x Display Cache Window Size 64MB 12.0x AGP Aperture Window 64MB Local memory Frequency 100MHz Initialize Display Cache Memory Enabled Paging Mode Control Closed RAS – to CAS Default CAS Latency Slow RAS Timing Slow RAS Precharge Timing Slow CPU Latency Timer Disabled USB Function All USB Port ESC:Exit USB Device Legacy Support Disabled PgUp/PgDn: Modify Port 64/60 Emulation Disabled F1:Help F2/F3:Color

Safe Mode



:Sel

4.7 Power Management Setup

The Power Management Setup allows user to configure the system for saving energy in a most effective way while operating in a manner consistent with his own style of computer use.

AMIBIOS SETUP – POWER MANAGEMENT SETUP

ACPI Aware O/S No Available Options: APIC Interrupt Mode Disabled Sleep State S1/POS Yes USB KB/MS Wake Up From S3 Disabled Power Management/APM Enabled Suspend Time Out Disabled Keyboard & PS/2 Mouse Monitor FDC/LPT/COM Ports Monitor SB & NSS Audio Ports Ignore MIDI Ports Ignore ADLIB Ports Ignore Primary Master IDE Monitor Primary Slave IDE Ignore Secondary Master IDE Monitor Secondary Slave IDE Ignore System Thermal Ignore Power Button Function On/Off Restore on AC/Power Loss Power On Wake Up On Ring Disabled Wake Up On LAN Disabled Wake Up On PME Disabled Resume By Alarm Disabled Alarm Date 15 Alarm Hour 12 ESC:Exit Alarm Minute 30 PgUp/PgDn: Modify Alarm Second 30 F1:Help F2/F3:Color



:Sel

4.8 PCI / Plug and Play Setup

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system that allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP

Plug and Play Aware O/S No Available Options: Clear NVRAM on Every Boot No PCT Latency Timer (PCI Clocks) 64 Yes Primary Graphics Adapter Auto Allocate IRQ to PCI VGA Yes PCI IDE BusMaster Disabled DMA Channel 0 PnP DMA Channel 1 PnP DMA Channel 3 PnP DMA Channel 5 PnP DMA Channel 6 PnP DMA Channel 7 PnP IRQ3 PCI/PnP IRQ4 PCI/PnP IRQ5 PCI/PnP IRQ7 PCI/PnP IRQ9 PCI/PnP IRQ10 PCI/PnP IRQ11 PCI/PnP ESC:Exit IRQ14 PCI/PnP PgUp/PgDn: Modify IRQ15 PCI/PnP F1:Help F2/F3:Color



:Sel

4.9 Peripheral Setup

The IDE hard drive controllers can support up to two separate hard drives. These drives have a master/slave relationship that is determined by the cabling configuration used to attach them to the controller. Your system supports two IDE controllers--a primary and a secondary--so you can install up to four separate hard disks.

PIO means Programmed Input/Output. Rather than having the BIOS issue a series of commands to affect the transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by them. This is much simpler and more efficient (also faster).

AMIBIOS SETUP – PERIPHERAL SETUP

OnBoard FDC Enabled Available Options: OnBoard Serial Port A 3F8/COM1 OnBoard Serial Port B 2F8/COM2 Enabled

Serial Port B Mode Normal

IR Duplex Mode Half Duplex

IR Pin Select IRRX/IRTX

OnBoard Parallel Port 378

Parallel Port Mode Normal EPP Version N/A Parallel Port IRQ 7

Parallel Port DMA Channel N/A Keyboard Power On Function Disabled Specific Key for Power On N/A Mouse Power On Function Disabled

On-Chip IDE Both ESC:Exit OnBoard Lan Enabled PgUp/PgDn: Modify F1:Help F2/F3:Color

Disabled



:Sel

4.10 Hardware Monitor Setup

AMIBIOS SETUP – HARDWARE MONITOR SETUP

CPU Temperature Detected by CPU Available Options:

CPU Temperature System Temperature Thermistor Power Temperature CPU Fan Speed Chassis Fan Speed Power Fan Speed CPU VID Vcore Vtt Vio + 5.000V +12.000V

-12.000V

- 5.000V ESC:Exit Battery PgUp/PgDn: Modify +5V SB F1:Help F2/F3:Color

CPU



:Sel

4.11 Auto-Detect Hard Disks

This option detects the parameters of an IDE hard disk drive, and automatically enters them into the Standard CMOS Setup screen.

Up to four IDE drives can be detected, with parameters for each appearing in sequence inside a box. To accept the displayed entries, press the “Y” key; to skip to the next drive, press the “N” key. If you accept the values, the parameters will appear listed beside the drive letter on the screen.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

HS-6038LV VER:1.1.

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

PCI / Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Save Settings and Exit

Exit Without Saving

4.12 Change Supervisor/User Password

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

HS-6038LV VER:1.1.

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Enter new supervisor password: _

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

You can set either supervisor or user password, or both of then. The differences between are:

 supervisor password: can enter and change the options of the setup

menus.

 user password: just can only enter but do not have the right to change the

options of the setup menus.

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

4.13 Auto Configuration with Optimal Settings

When you press <Enter> on this item you will get a confirmation dialog box with a message shown below. This option allows you to load/restore the BIOS default values permanently stored in the BIOS ROM. Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

HS-6038LV VER:1.1.

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load high performance settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

4.14 Optimal Configuration with Fail Safe Settings

When you press <Enter> on this item you get a confirmation dialog box with a message similar to the figure below. This option allows you to load/restore the default values to your system configuration, optimizing and enabling all high performance features. Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

HS-6038LV VER:1.1.

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Load failsafe settings (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

4.15 Save Settings and Exit

Pressing <Enter> on this item asks for confirmation:

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

HS-6038LV VER:1.1.

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Save current settings and exit (Y/N) ? Y

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values, the system will restart.

4.16 Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing and having any change in CMOS. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.52

HS-6038LV VER:1.1.

Standard CMOS Setup

Advanced CMOS Setup

Advanced Chipset Setup

Power Management Setup

Quit without saving (Y/N) ? N

Change Supervisor Password

Auto Configuration with Optimal Settings

Optimal Configuration with Fail Safe Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit :Sel F2/F3: Color F10: Save & Exit

Chapter 5

Software Utilities

This chapter contains the detailed information of IDE, VGA, LAN and Audio driver installation procedures. The utility disk that came with the delivery package contains an auto-run program that invokes the installation programs for the IDE, VGA, LAN and Audio drivers. The following sections describe the installation procedures of each driver based on Win 95/98, Win 2000 and Win NT operating systems. It is recommended that you install the drivers matching the sections listed in this chapter.

5.1 IDE Driver Installation

5.1.1 Installing Intel 815 Chipset Software

1. Insert Utility CD Disk into your CD ROM drive. The main menu will pop up as shown below. Select on the IDE button to launch the installation program.

2. Click on the INTEL_ICH2 button to continue.

3. When the IDE \ INTEL_ICH2 box appears on your screen, click on the INTEL_R&HIPSET_SOFTWARE_INS to install the IDE plug and play information files into your system.

4. Immediately after clicking the IDE button in Step 1, the program launches the InstallShield Wizard that will assist you in the installation process. Click on the N

ext > button to proceed.

5. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

es to proceed.

6. When the Readme Information dialog box pops up, just click on the N

ext button to proceed.

7. Once the InstallShield Wizard finishes updating your system, it will prompt you to restart the computer. Tick on the Yes, I want to restart my computer now followed by a click on the F button to reboot. Only after your computer boots will the new settings take effect.

inish

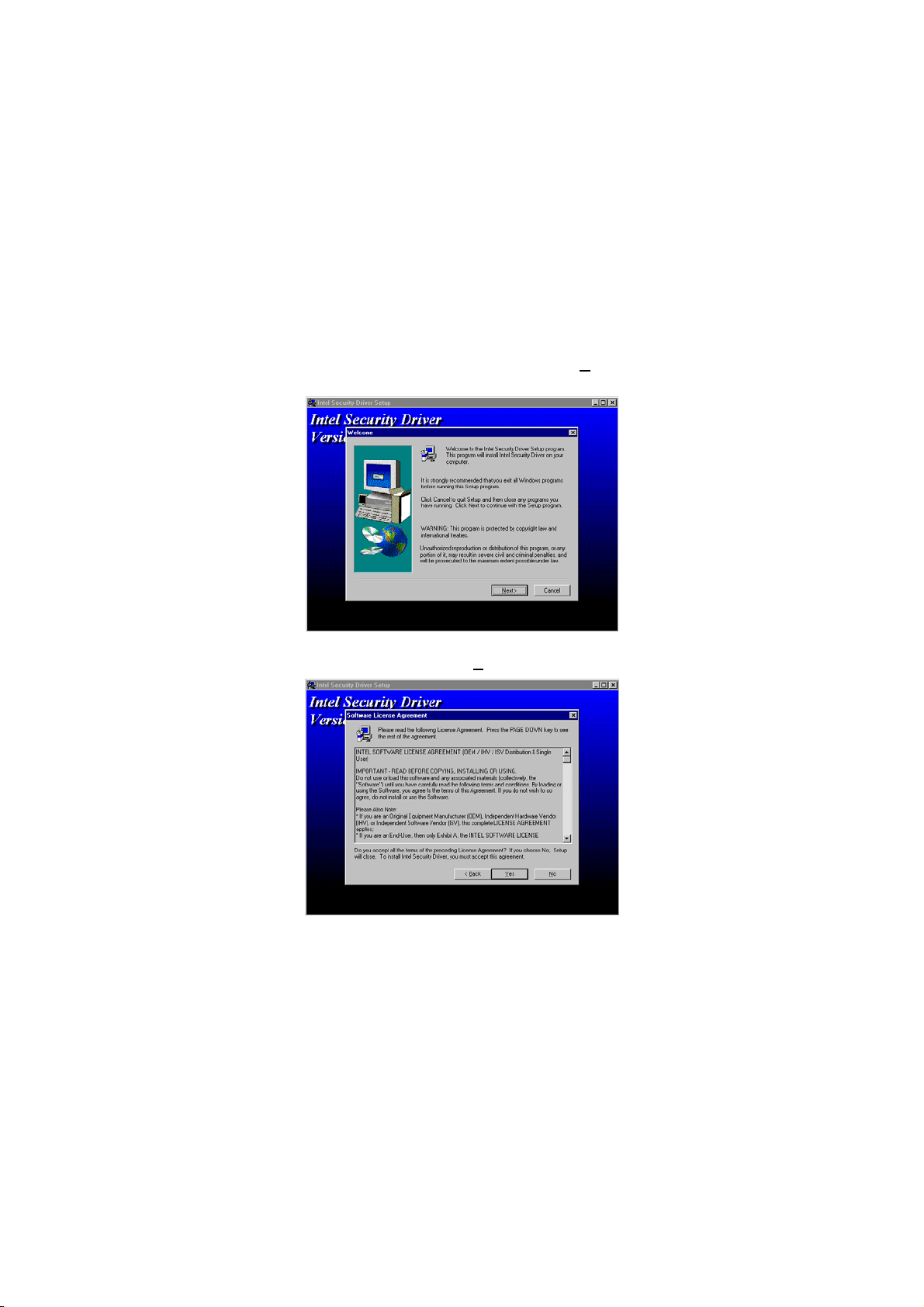

5.1.2 Installing Intel Security Driver

1. Following Steps 1 ~ 3 of the Intel 815 chipset software (from the preceding section), click on the INTEL_SECURITY_ DRIVER button. When the dialog box below appears, make sure you close all other Windows applications then click on the N proceed.

2. The Intel OEM Software License Agreement dialog box then appears on the screen. Choose Y

es to proceed.

ext > button to

3. When the Release Notes box pops up on the screen, read through any important information listed before clicking the

ext > button.

4. Setup will then prompt you to specify the path where you would like the Security driver installed. Select the N you have made your path/installation choice.

ext > button after

5. Once the setup program finishes copying files into your system, it will prompt you to restart the computer. Tick on the Yes, I want to restart my computer now followed by a click on the F button to reboot. Only after your computer boots will the new settings take effect.

inish

5.2 VGA Driver Installation

5.2.1 Win 95/98

1. After loading the Utility CD-ROM, the program automatically runs the utility. Press Enter to proceed installing. When the main utilities window pops up on the screen, select the VGA button.

2. When the VGA main utility window is displayed. Select INTEL_815 to continue.

3. The INTEL_815 window shows up next. Select WIN9X to invoke the corresponding installation program.

4. The program launches an introduction screen of what graphics driver it will install. Close all other running Windows applications then click on the Next > button to proceed.

5. Immediately after clicking on the Next > button, the Intel OEM Software License Agreement pops up on the screen. Choose Y to proceed.

6. The VGA driver utility program starts copying files needed by your Win98 to invoke the VGA capabilities. Once finishes, the system will prompt you to restart your computer. Tick on the Yes, I want to restart my computer now followed by a click on the Finish button to complete the installation.

5.2.2 Win 2000

1. Follow steps 1 and 2 from the Win9x installation procedure. When the INTEL_815 window shows up, select WIN2K to invoke the installation program to your Win 2000 OS.

2. The program launches the InstallShield Wizard for Intel 810/810E/815/815E/815EM chipset graphics. Close all other running Windows applications then click on the Next > button.

3. Immediately after clicking the Next > button, the Intel OEM Software License Agreement pops up on the screen. Choose Y

es.

4. Once the utility program finishes copying and installing all the necessary files into your system, it will prompt you to restart your computer. Tick on the Yes, I want to restart my computer now followed by a click on the Finish button to complete the installation.

5.2.3 Win NT4.0

1. Follow steps 1 and 2 from the Win9x installation procedure. When the INTEL_815 window shows up, select NT40 to invoke the installation program to your Win 2000 OS.

2. The program launches an introduction screen of the graphics it will install. Close all other running Windows applications and then click on the Next > button to proceed.

3. Immediately after clicking on the Next > button, the Intel OEM Software License Agreement pops on the screen. Choose Y

es.

5.3 LAN Driver Installation

5.3.1 Win 95/98

1. Right click on My Computer icon then scroll to the Properties item from the pop-up menu.

2. Select Device Manager from the top menu bar. A list of all devices installed appears, scroll down to the Other devices and then select on PCI Ethernet Controller. Select the Properties button to access the details of this unknown device. Refer to the following screen shot for a clearer explanation of this step.

3. Once the PCI Ethernet Controller Properties screen pops up on the screen, click on the Update Driver … button to launch the Update Device Driver Wizard screen.

4. The succeeding screen then lets you choose whether to search for a better driver for the LAN or display the available list of drivers. Select Search for a better driver than the one your device is using now followed by a click on the Next > button.

5. The wizard program will then require you to specify the location of the driver file. Tick on the Specify a location: and type or select the path where the driver files exist (c:\i82562). Click on the Next > button to proceed.

6. The program now starts copying the file(s) needed by your Win98. When the program fail s t o s e ek f o r 8 2 5 5 x D e l . e x e f i l e f r o m your specified location, it will prompt you to specify the path where the Intel Pro Adapter exists.

7. With the Utility CD Disk on your CD drive, key in

d:\win98_se\setup\win98 on the blank space below C from: then press the OK button.

opy files

8. When the program finishes updating and copying files for the Intel Pro/100VE Network Connection, click on the Finish button to proceed.

9. For the new hardware settings to take effect and to complete the installation process, you must restart your computer when the

System Settings Change window below pops up. Click on the Y

es button to complete the installation.

5.3.2 Win 2000

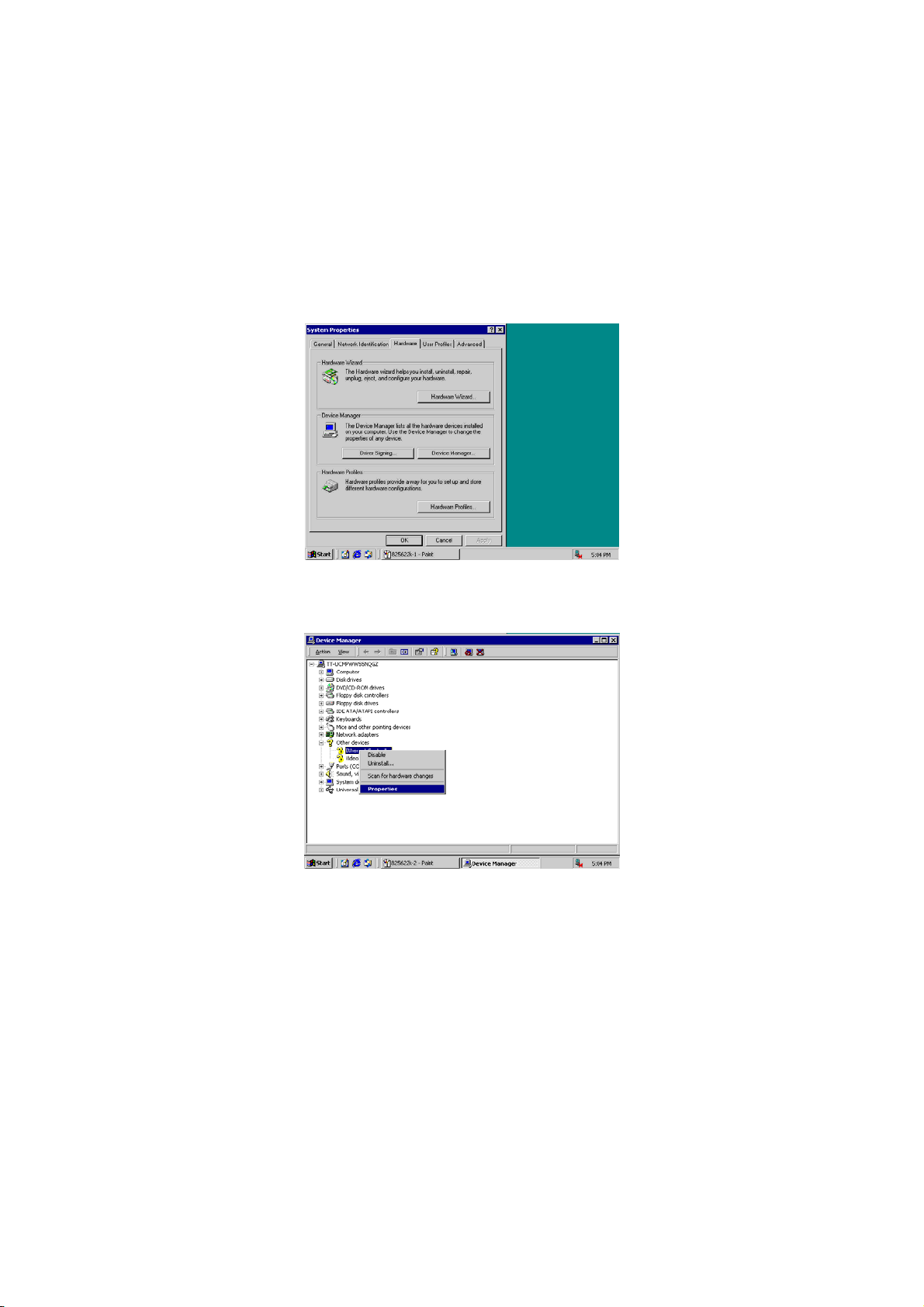

1. Right click on My Computer icon and then scroll to the Properties item from the pop-up menu.

2. When the System Properties window pops up on the screen, click on the Device Manager button.

3. A list of all devices installed appears, scroll down to the Other devices and then right click on Ethernet Controller to select the Properties button. Refer to the following screen shot for a clearer explanation of this step.

4. Once the Ethernet Controller Properties screen pops on the screen, click on the Update Driver … button to launch up the

Update Device Driver Wizard screen. Once the Upgrade Device Driver Wizard screen pops up on the screen, click Update Driver … to launch the Win 2000 driver installation

program.

5. Click on Next > button to proceed with the installation.

6. The wizard will then inform you the unknown device it detected

from the system. Since the Win2000 driver list does not include Intel chip driver onboard HS-6038, tick Search for a better driver than the one your device is using now followed by a click on the Next > button to continue.

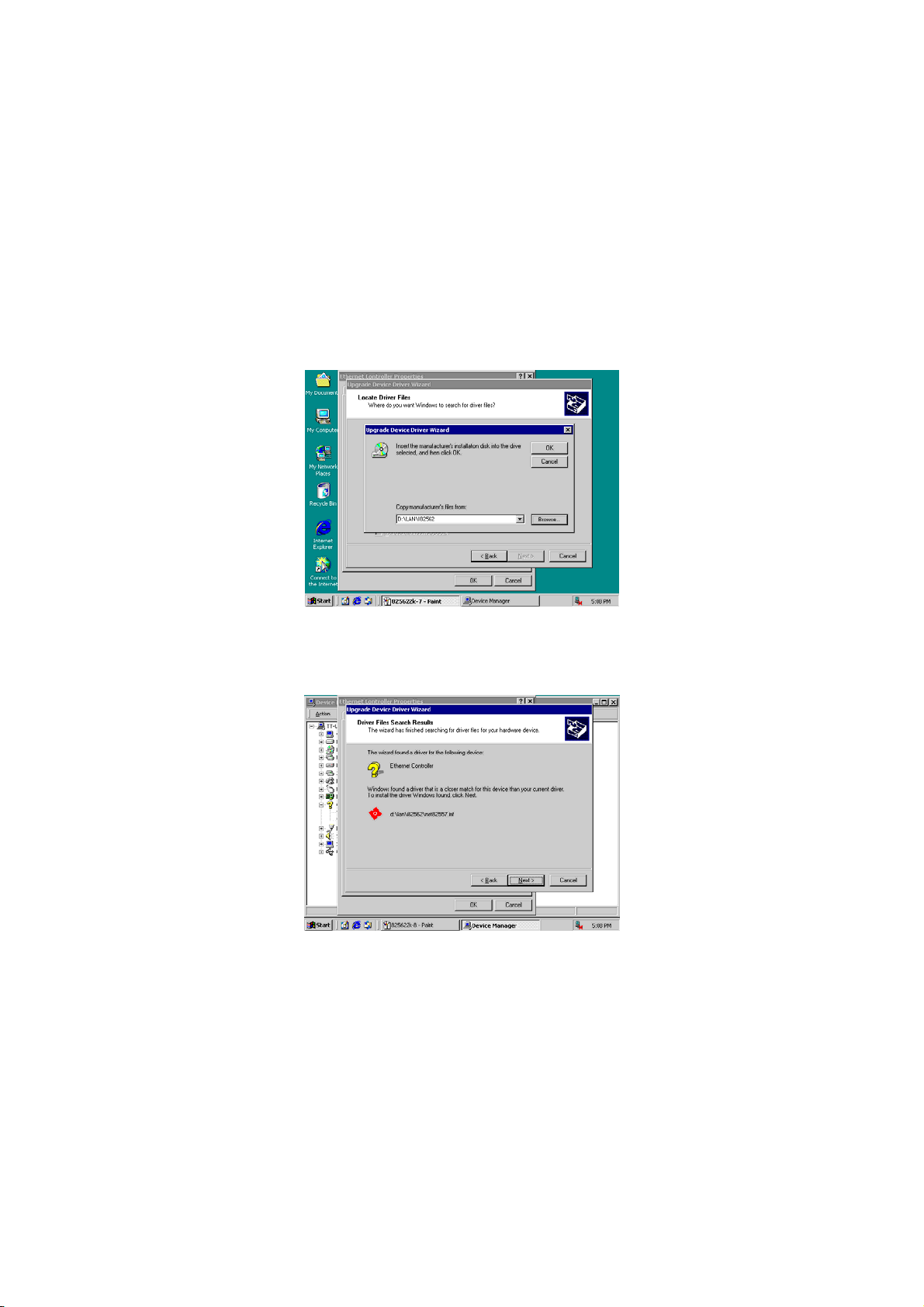

7. The wizard program will then prompt you to specify the location

where it will start searching for the driver. Tick on the Specify a location: and then click on the Next > button to proceed.

8. The wizard program will then require you to insert the

manufacturer disk at your specified location (entered at the Copy manufacturer’s files from: space) of the driver file. With your Utility CD disk inserted in the drive, type d:lan\i82562 then click on the OK button to proceed.

9. The wizard program will start to scan and search for the driver(s) located at your specified location; after which, the wizard program will show the result of its search. When it finds a more suitable driver fitting your device, it will list the driver name and path. Just click on the Next > button to continue installing.

10. When the program finishes updating and copying files for the Intel Pro/100VE Network Connection, click Finish to proceed.

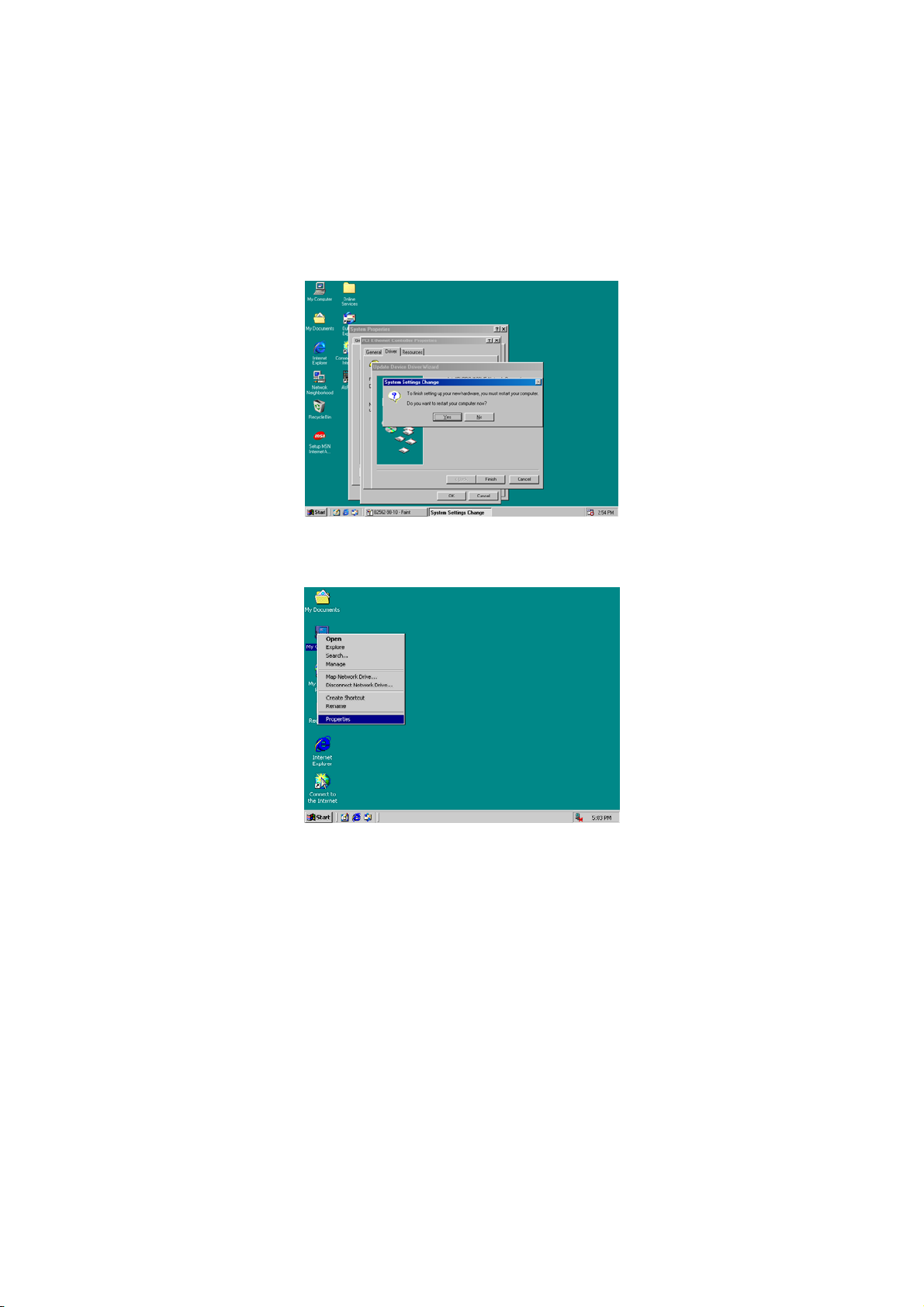

11. For the new hardware settings to take effect and to complete the installation process, you must restart your computer when the

System Settings Change window below pops up. Click on the Y

es button to complete the installation.

5.3.3 Win NT

1. Right click on Network Neighborhood icon and then scroll to the Properties item from the pop-up menu.

2. The Network Configuration dialog box then appears, notifying the user that there is no Windows NT Networking available. Click on the Y

es button to start the installation process.

3. The Network Setup Wizard will then ask you to identify the network connection of your computer. Select W

network and click on the Next > to continue.

ired to the

4. The succeeding screen then indicated that the wizard will initially search for Network Adapter from the available list of drivers. Select on St

art Search.

5. When it is done searching for available network drivers, the wizard will show a list and allow you to locate and choose the appropriate Network Adapter. Since the LAN device driver is in the Utility CD Disk, select on Have Disk … to proceed.

6. The wizard program will then require you to insert the manufacturer disk and specify the location of the driver file (i.e., c:\i82562). Click on the OK button to proceed.

7. The Select OEM Option then appears, prompting you to select the software supported by the network hardware device you will install. Select Intel(R) PRO Adapter and click on the OK button to continue installing.

8. The wizard program now displays on the screen that it has detected the Intel() PRO Adapter. Click on the Next > button to continue installing.

9. The wizard program now prompts you to specify the networking protocols used on your network structure. Tick on the TCP/IP Protocol and click on the Next > button to proceed.

10. The next screen will allow you to customize the Network Services the wizard program intends to install. Tick services as needed and then click on the Next > button to continue.

11. The Network Setup Wizard then prompts you that it is ready to install the network components based on your selection. You may start installing by clicking on he N modifications on your choices using the < B

ext > button or make

ack button.

12. The Network Setup Wizard will then need to copy the drive file(s). Specify the path of your device driver(s) (i.e., d:\i386) and click the C

ontinue button.

13. Choose the default entry, No, when the following screen pops up on the screen.

14. If you need to disable network bindings on the network services installed, select the service and then click on the D Otherwise, proceed by clicking on the N

ext > button.

isable button.

15. Select which member (Workgroup or Domain) you belong to. Click on the N installed on your computer.

ext > button after identifying the network group

16. The wizard program then informs you that Networking is now installed on your system. You must restart your computer to make the setting changes take effect. Click on the F to close the wizard program.

inish button

17. When the following dialog box pops up on your screen, click on

es button to restart your computer and make the setting

the Y changes take effect.

5.4 Audio Driver Installation

5.4.1 Win 95/98

1. After loading the Utility CD-ROM, the program automatically runs the utility. Press Enter to proceed installing. When the main utilities window pops up on the screen, select SOUND&AC7.

2. The succeeding screen will then show you the SOUND&AC97 main menu. Select on ALC 100 to continue installation. When the ALC100 dialog box appears, pick on WIN98_ME and it will take you to the ALC 100 menu. Refer to the following screen shots for a graphical description of this step.

3. Select the language you intend to use for the installation. The default is English. After making your choice, press on the O button to proceed.

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove disks from their drives, and prompt you to restart your system. Tick on the Yes, I want to restart my computer now. Afterwards, click on the

inish button to complete the installation process. The system

changes you made will take effect after the system restarts.

5.4.2 Win 2000

1. Following steps 1 and 2 of the Win95/98 AC97 installation, select WIN2K button when the ALC100 dialog box appears on the screen.

2. Select the language you intend to use for the installation. The default is English. After making your choice, press on the O button to proceed.

3. Immediately after clicking on the OK button from the preceding step, the Advance AC’97 Audio Drivers and Applications

Setup dialog box will appear on the screen. Just click on the N

ext > button to continue.

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove any disks from their drives, and prompt you to restart your system. Tick on the Y

es, I want to restart my computer now. Afterwards, click on inish button to complete the installation process. The

the F system changes you made will take effect after the system restarts.

5.4.3 Win NT

1. Following steps 1 and 2 of the Win95/98 OR step 1 of Win 2000 AC97 installation, select WINNT button when the ALC100 dialog box appears on the screen.

2. Select the language you intend to use for the installation. The default is English. After making your choice, press on the O button to proceed.

3. Immediately after clicking on the OK button from the preceding step, the Advance AC’97 Audio Drivers and Applications

Setup dialog box will appear on the screen. Just click on the N

ext > button to continue.

4. Once the InstallShield Wizard completes the operation and update of your AC’97 driver, it will ask you to remove any disks from their drives, and prompt you to restart your system. Tick on the Y

es, I want to restart my computer now. Afterwards, click on

the F

inish button to complete the installation process. The system changes you made will take effect after the system restarts.

This page intentionally left blank.

TRENDnet HS-6038 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
