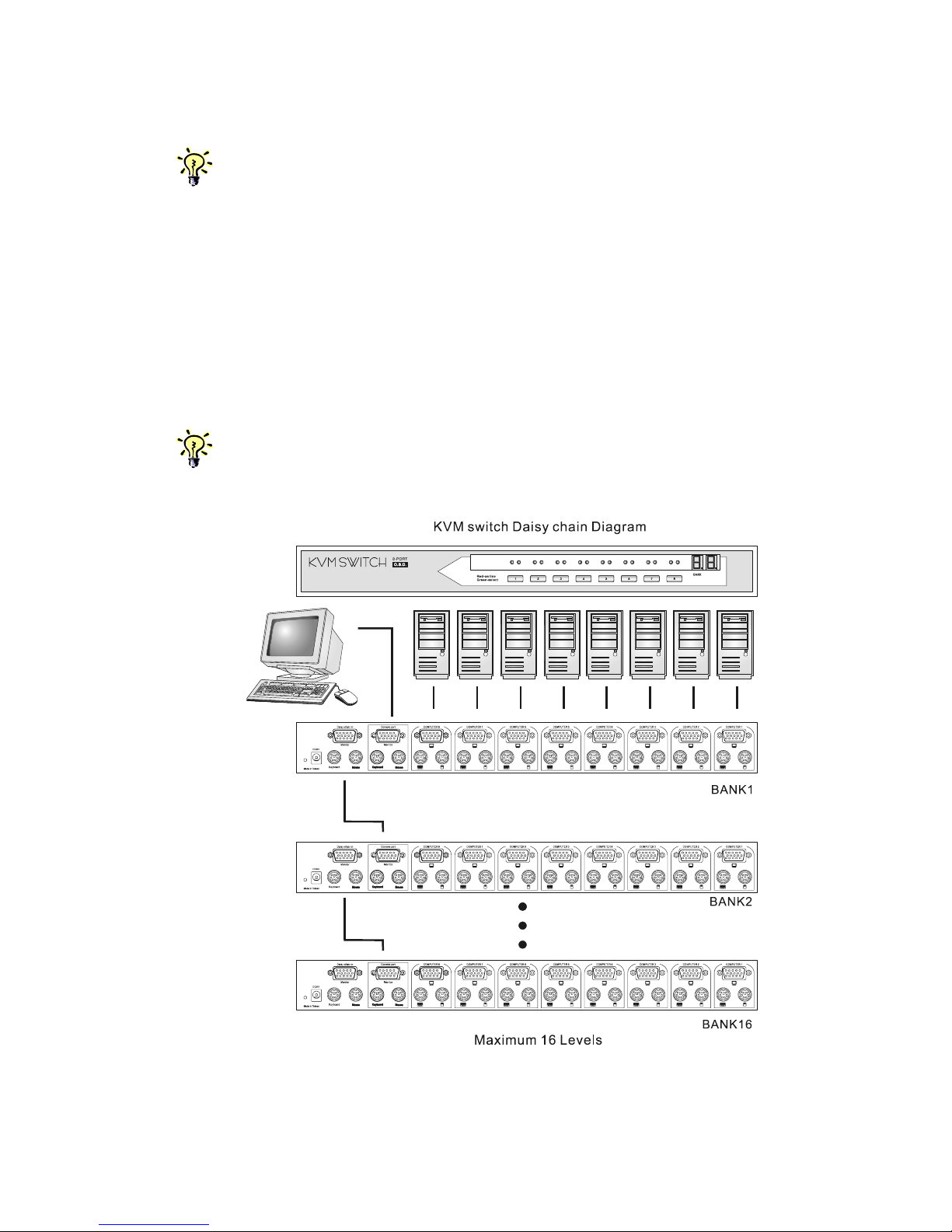

Figure 2-2 Daisy-chaining multiple KVM switches in a cascaded application ........................14

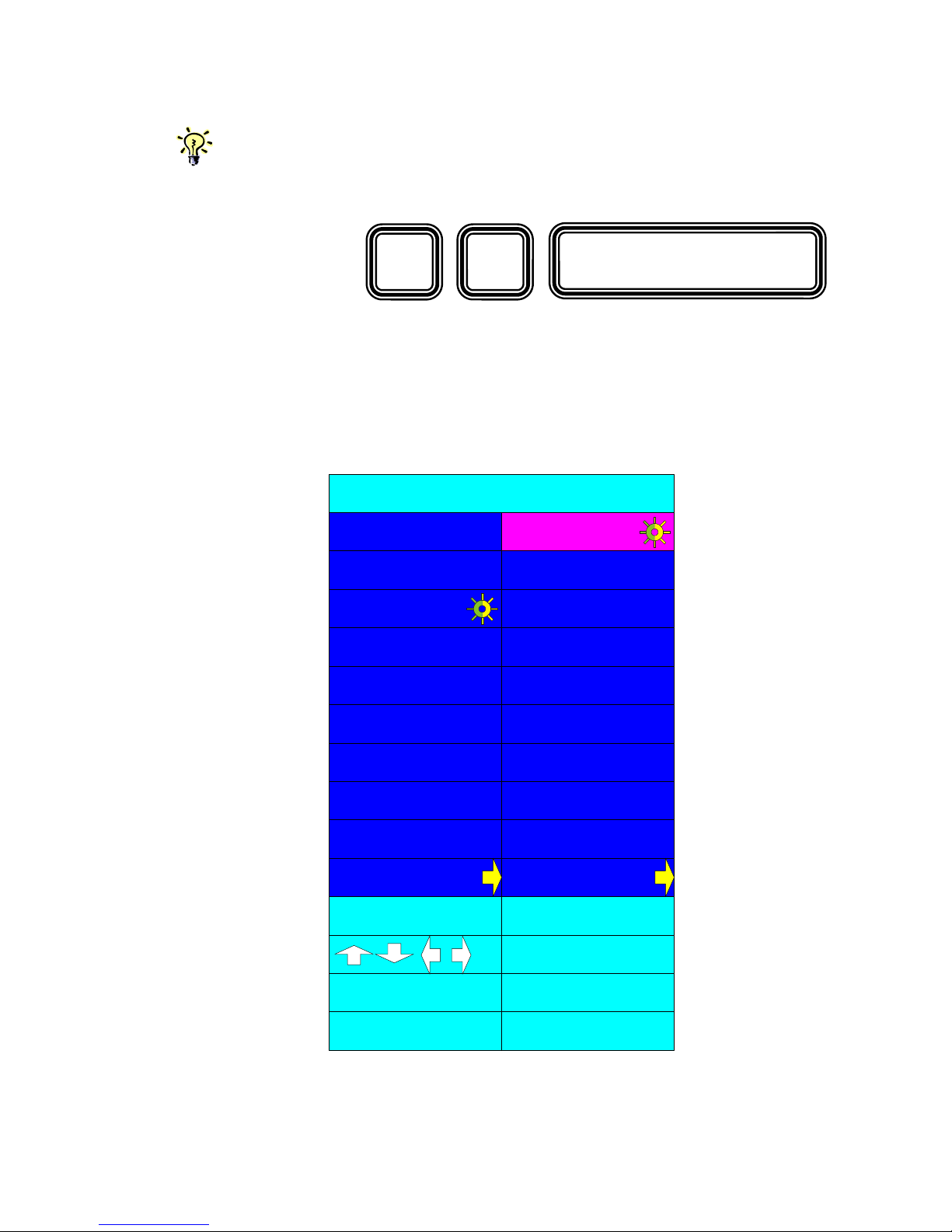

Figure 3-1 OSD Main Menu.....................................................................................................19
Figure 3-2 Find PC by name searching.....................................................................................24
Figure 3-3 Bank number, Port Number and PC Name as shown on the OSD..........................24
LIST OF TABLES

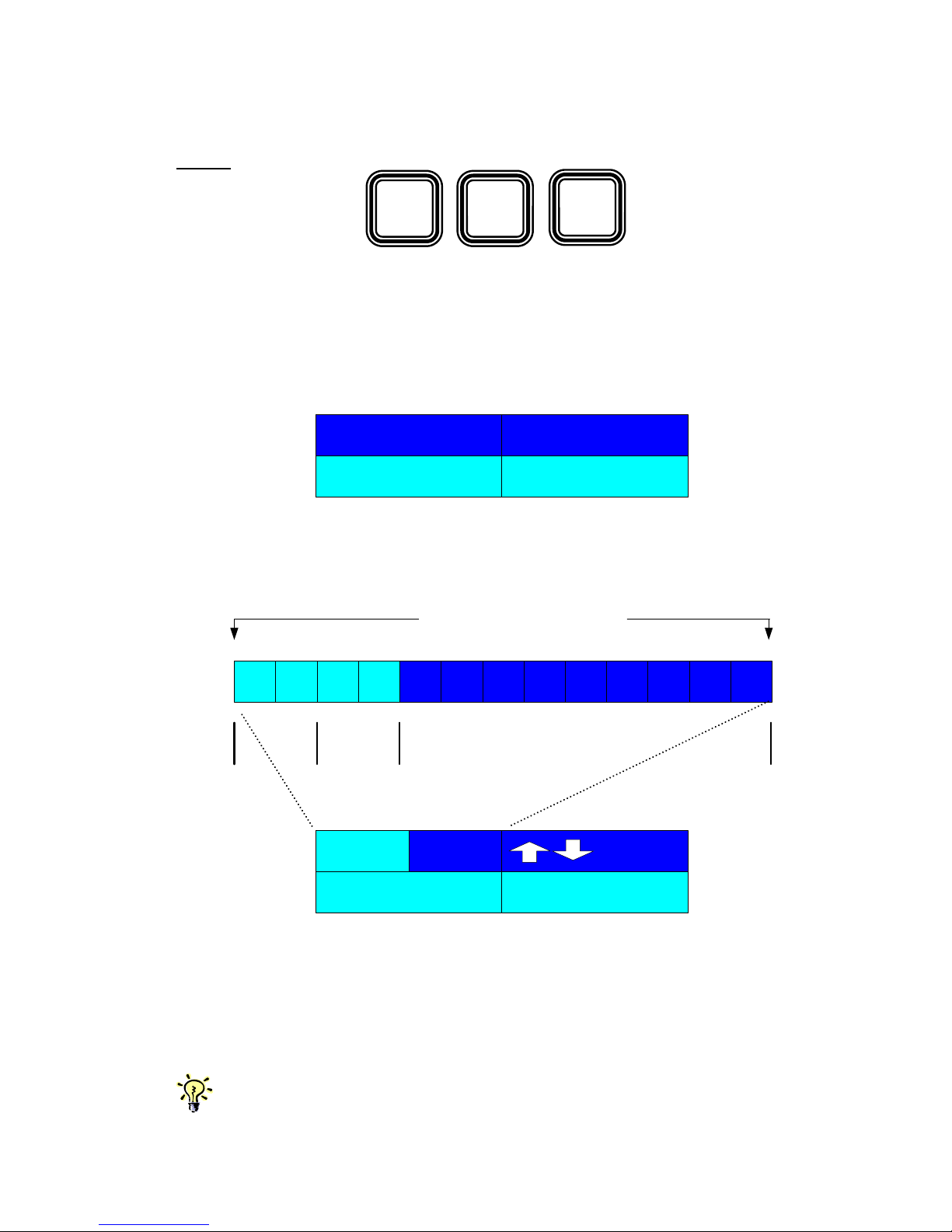

Table 3-1 Summary for Hotkey Sequences ...............................................................................18
Table B-1 Necessary accessories for the KVM Switches..........................................................30
Table B-2 The Standard 3-in-1 Keyboard-Video-Mouse Combo Cable...................................30
Page 6
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 6
Chapter 1 Features and Functions
1. FEATURES AND FUNCTIONS
The TK-802R/TK-1602R KVM Switch is a 8-/16-port cascadable PS/2 type KVM
Switch with OSD control. It enables the network administrator to access, control,
boot and reboot multiple connected computers using only one keyboard, video and
mouse.
Remote computer/server management from one keyboard, mouse and video
The TK-802R/TK-1602R KVM Switch is a quality product designed for secure
remote computer/server management on a centralized single admin desk in
corporate, factory as well as in campus computing environment. It features a
console port to connect your shared keyboard, video and mouse, and 8/16 PC ports
to connect to your computers/servers. You can simply place it on desktop or mount
it on a standard 19” rack for more secured and centralized management. This KVM
Switch features a metal enclosure for better shielding against electromagnetic
interference commonly seen in lab or factory floor environment.
Easy Operation by front-panel buttons, keyboard hotkeys and OSD Menu
controls
The KVM Switch can be easily operated using front-panel buttons, keyboard
hotkeys, as well as OSD Menu control. These available control interfaces yield
more convenient and more effective operation over your daily network managing
routines and hence more productivity for network administrator.
Flexible port capacity through multiple daisy-chained KVM switches
In addition to the choice over the 8/16-port capacity of each individual unit, users
can also take advantage of its cascadable function to daisy-chain up to 16 units of
the KVM Switches together. For example, with 16 units of the TK-1602R KVM
Switches cascaded together, the total port capacity could easily be scaled up to 256
computers. You can also vary port capacity by daisy-chaining multiple units in
different combination according to your real needs.
Saving Time, Space and Money with more productivity
The KVM switches offer special advantages saving time, space and money plus a
significant boost over productivity of the network administrative staff. With our KVM
Switches, you eliminate the need for a separate set of peripherals for each of your
computers. With the number of servers running higher than ever in the corporate
milieu, this will amount to a huge saving on money. The KVM users will also
appreciate the neat space on desktop or working bench that is free from multiple
keyboards, videos and mice. On the other hand, the net admin can save lots of
time not to shift around separate sets of keyboard and mouse, just to keep up with
the network management routines. Hence, the KVM Switch could be a tremendous
help in facilitating a better and more efficient work environment for network
administration, and an indispensable productivity tool that will definitely favored by
the tech-savvy people.
Page 7
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 7
Chapter 1 Features and Functions
1.1. Features
General features
▪ 8-/16-port cascadable PS/2 type electronic KVM switch with OSD Menu control
▪ Robust metal case design ensures best EMI shielding and super video quality
▪ Standard 19” rack mount size
▪ Cost-effective remote workstation/server management solution for corporate, factory
and campus computing environment
▪ Very high video resolution up to 1920 × 1440 with superb video transfer quality and low
distortion
▪ Buzzer sound for switching port confirmation while autoscanning
▪ User-specified parameters are saved within EEPROM memory, hence no need for
reconfiguration after switch system reboot.
Connector Interface
▪ PS/2 Keyboard and mouse connector interface
▪ 15-pin HDB video connector interface
LED display for status monitoring
▪ Dual 7-segment LED displays for switch bank number
▪ Front-panel port status LEDs for easy and instant port status monitoring
Control features
▪ Control multiple PCs from a single keyboard, monitor and mouse
▪ Front-panel buttons for direct channel selection
▪ Reset and Autoscan activated by front-panel key press and keyboard hotkey
▪ Keyboard hotkeys for quick operation commands
▪ OSD Menu options for more convenient and intuitive menu-driven control
▪ Channel selection by front-panel buttons, keyboard hotkeys and OSD Menu control
▪ Search the presence of a connected PC by its name
Security
▪ Password security prevents unauthorized intrusion.
▪ Provide 8-character password protection.
Cascaded Application
▪ Auto-detect daisy-chain configuration without setting any dipswitch
▪ Cascadable up to 16 units in daisy-chained configuration
▪ Port capacity easily scalable up to a maximum of 256 PCs using flexible combination of
different switch units
▪ Dual 7-segment LED displays to indicate the switch bank number.
Page 8
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 8
Chapter 1 Features and Functions
Hardware/Software Support
▪ Support a wide range of hardware in addition to the standard keyboard, video and mouse
▪ Support Microsoft IntelliMouse®, IntelliMouse Explorer®, Logitech NetMouse® and
other common wheel mouse
▪ Support a wide range of software platforms: DOS, Windows 3.x, Windows
95/98/SE/2000/ME/XP, Windows NT, Netware, OS2, Unix, Linux and BSD
▪ Hot-plugging of PCs for maintenance without powering down the KVM Switch or PC.
Power interface
▪ Powered by the external power adapter connected to the AC power outlet in addition to
the PS/2 keyboard/mouse interface power
Cabling requirements
▪ Compatible with standard individual keyboard, video, and mouse cable
▪ Highly recommended: the 3-in-1 combination KVM cable
1.2. Package Contents
The TK-802R/TK-1602R KVM Switch Package should contain the following items:
▪ The TK-802R/TK-1602R KVM Switch
▪ Daisy Chain Cable (3-in-1 KVM combo cable)
▪ Power adapter cord (AC to DC)
▪ Rack Mount Kit
▪ This User Guide
▪ A Quick Installation Guide / Quick Reference Sheet
Figure 1-1a TK-802R
Figure 1-1b TK-1602R
Page 9
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 9
Chapter 1 Features and Functions
1.3. External Views
The following sections will give detailed descriptions of the front-panel and rear
panel of the TK-802R/TK-1602R KVM Switch.
1.3.1. Front View
Figure 1-2a TK-802R Front Panel
Figure 1-2b TK-1602R Front Panel
1.3.1.1. Front-panel Buttons
Use these front-panel buttons to directly select channels as well as to perform
specific function such as reset or autoscan.
1.3.1.2. Numerical LED Displays and Indicators
The Numerical LED display(s) and LED indicators on the front-panel show forth the
information of your current switch bank number and port status. The current active
switch bank will be shown on the Dual Numerical LED Displays while the Port
Status is each indicated by a set of two Port Status LED indicators - one red and
the other green. The red LED is lit when the computer is connected to the KVM
Switch and feeding power through the PS/2 keyboard and mouse interface. The
green LED is lit when the computer is currently selected as the active channel to be
controlled with the shared keyboard and mouse.
Note that a red-lit LED means only that the specific port is connected and being powered
through its PS/2 interface. It does not indicate whether that connected computer is in powered-on
or powered-off sate.
Note that a green-lit LED means only that the specific port is selected to be the active channel.
It does not indicate whether that connected computer is in powered-on or powered-off sate.
Page 10
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 10
Chapter 1 Features and Functions
Thus the red indicator shows forth the current connected state of the specific port.
The green LED indicator indicates the currently active channel.
When the switch is in a “locked mode” (also known as “password protected mode”), the green
LED of the active channel will be flashing to indicate this locked state. Also all front-panel button
operations will be disabled while in locked state.
1.3.2. Rear View
Figure 1-3a TK-802R Rear Panel
Figure 1-3b TK-1602R Rear Panel
1.3.2.1. Power Jack
The power jack is a receptacle for the 9V 1A DC power adapter cord. Its center pin
is of a positive polarity.
1.3.2.2. Console Port
The console port is where you connect your keyboard, video and mouse.
Page 11
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 11
Chapter 1 Features and Functions
1.3.2.3. PC Port
The PC port is where you connect your keyboard, video and mouse cable (or a 3-in1 combination cable).
1.3.2.4. Daisy Chain Port
The daisy-chain port is where you can daisy-chain to another switch for cascaded
application of multiple KVM Switch units.
1.4. KVM Switch Technology Overview
The KVM Switch is a hardware-based device that allows you to control multiple
computers/servers using only one Keyboard, Video and Mouse, hence the name of the
KVM Switch.
The distinction between a KVM switch solution and any other software/hardware
measures for the same control purpose is that: the KVM Switch exerts its control and
operation on the connected computers only by the shared keyboard, video and mouse. It is
more efficient and more versatile as being capable of control from BIOS level up to the GUI
applications.
Not only can a KVM switch save you
money
by eliminating the needs for multiple sets of
keyboard, video and mouse, but also save you
space
from desktop, factory floor or office, and
finally it saves you precious
time
that used to be spent in moving around different desktops,
server rooms or even buildings. And the result is huge savings on many aspects plus a
productivity boost.
Since KVM Switch is a hardware device, it offers a transparency of control that will not
interfere with the way a computer can be operated by and interacts with its user. As
compared to other hardware/software solution for remote control, it takes an intrusive agent
that will interfere with certain aspect of the computer or, at best, functions as well but eat up a
considerable system resources or even large share of computing power, not to mention the
extra costs which can be really expensive sometimes as the Enterprise Management Software.
Therefore, the KVM Switch solution is better in this “transparent” sense for server/computer
remote control.
On the other hand, a KVM Switch also offers a complete and more flexile control than other
software/hardware solutions: a KVM Switch offers a total control from BIOS level such as
CMOS setting up to GUI application as well as and other maintenance routines.
So obvious is the advantage of using KVM switch in an environment that requires users to
control more than one computer. We can see the KVM Switch being deployed in many
diverse applications and locations, whether it is SOHO, corporate or factory
environment. And the professionals who use and come to appreciate the convenience and
elegance of the KVM Switch range from SOHO workers, graphic artists, and network
administrators to lab workers, floor supervisors and lab testing personnel, etc.
Page 12
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 12
Chapter 2 Installation
2. INSTALLATION
Before installing the KVM switch, you should run through the following peripheral checklist
to ensure a proper setup of your KVM Switch….
2.1. Checklist before Installation
: Suitable cables to connect the KVM Switch to the keyboard, video and mouse
ports of each of your PC. For each computer connected, you should have PS/2
mouse cable (all male) and PS/2 keyboard cable (all male) and a HDB-15 VGA
cable (all male). A 3-in-1 combo cable is highly recommended for your
convenience. For more information on the cable specifications, look up in the
Appendix A.
: A monitor with a standard D-sub 15-pin VGA/SVGA connector
(HDB-15) that will work when connected directly to each of your PCs.
: A standard PS/2 style keyb oard. If you are using an AT keyboard with a 5
pin connector you should use a standard AT-to-PS/2 keyboard adapter to
connect to the KVM Switch.
: A PS/2 style Microsoft or Logitech compatible mouse or
a Microsoft IntelliMouse® / IntelliMouse Explorer® compatible
mouse
Figure 2-1 The 3-1 combo KVM cable is highly recommended
Page 13
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 13
Chapter 2 Installation
2.2. Mounting the KVM Switch
The KVM Switch can be mounted either on desktop or on a standard 19” rack.
To adapt to different port capacity requirements, you are able to use the KVM
Switch either in single unit configuration or in multiple cascaded application. If you
intend to use multiple cascaded KVM Switches, please jump to the next section.
2.3. Connect Your PCs and Peripherals to
Single KVM Switch
Before connecting any PC or peripherals to your KVM Switch, make sure that the power
adapter is disconnected from your KVM Switch and all PC or peripherals that ar e going to be
attached to the KVM Switch should be turned off. If you did not turn off your PCs while connecting
to the KVM Switch, the shared keyboard and mouse will not be recognized.
Step 1. Make sure your KVM Switch, your PCs and peripherals are all powered off.
If not, turn the power off for the KVM switch, PCs and peripherals.
Step 2. Connect the shared keyboard, PS/2 mouse and monitor to the console
connectors on the rear of the KVM Switch.
Step 3. Connect the power adapter cord to the KVM Switch to power it on.
Step 4. Connect each computer system (still in powered-off state) to the KVM
Switch in turn either with the individual keyboard cable, mouse cable and
video cable, or the 3-in-1 keyboard/video/mouse combination cable for your
convenience, then power on each computer
The KVM Switch has to be turned on and properly connected to your PCs prior to your
booting up any PC. Please follow the correct boot-up sequence. The reason is that: while your PC is
booting up, it has to communicate with your keyboard and mouse and consequently gets response
from them. If your KVM Switch has not been running and connected to your PC, your PC might
have difficulty recognizing your keyboard and mouse, even if you turn on the KVM switch later on.
On the other hand, your KVM Switch also has to be present to keep track of all the modes and
parameters requested by the OS running on each connected PC.
If your computers are with serial mouse connections and AT style keyboard connections,
you should use the AT-to-PS/2 adapters specified in appendix C, Cable Diagrams. Note that even if
you have an existing 6-pin mini-DIN to 9-pin serial adapter that came with your serial mouse, it
might not work with your KVM Switch, since it might have a different wiring configuration.
The cable distance from your keyboard, video and mouse to your PC should be within 25
feet (or 7.6 m) as to ensure signal quality and proper transm ission. If you want to extend the
distance over, use of a Cat5 Extender is recommended.
Now the KVM Switch is ready to operate as soon as you turn on any of the attached
computer.
Page 14
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 14
Chapter 2 Installation
2.4. Connect Your PCs and Peripherals to
Multiple Daisy-chained KVM Switches
If you use only a single KVM Switch and hence have no need for cascaded applica tion of
multiple KVM Switch units, just skip this section.
To add port capacity, multiple TK-802R/TK-1602R KVM Switches can be cascaded
in a daisy-chain configuration to maximize the number of connected computers up
to a total of 256 computers (with 16 units of TK-1602R KVM Switches). This
cascaded application is obviously advantageous when groups of computers are
dispersed and with some considerable distance from each other. Each cascaded
KVM can be away from the next KVM Switch up to 30 meters (dependent on your
cable type), thus expanding the applicable distance of only one single KVM switch
yet with the convenience of centralized control by one master KVM unit. Control
commands can then be extended to groups of computers on the master KVM
Switch on remote end through this daisy-chain connection.
The KVM Switch units that are to be daisy-chained do not have to be of the same port
capacity. In fact, you can daisy-chain different units with different port capacity as to scale the
total port capacity more flexibly.
Figure 2-2 Daisy-chaining multiple KVM switches in a cascaded application
Page 15
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 15
Chapter 2 Installation
Before connecting any PC or peripherals to your KVM Switch, make sure that the power
adapter is disconnected from your KVM Switch and all PC or peripherals to be attached to the KVM
Switch should be turned off, too. If your PCs are not turned off while connecting to the KVM Switch,
the shared keyboard and mouse won’t be recognized correctly.
Your multiple daisy-chained KVM Switches have to be set up and running before you can
connect any PC or peripheral to any KVM Switch.
Daisy-chain Multiple KVM Switches
Step 1. Make sure your KVM Switch, your PCs and peripherals are all in powered-
off state. If not, turn the power off for the KVM switch, PCs and peripherals.
Step 2. Connect the shared keyboard, PS/2 mouse and monitor to the console
connectors on the rear of the master (first) KVM Switch.
Step 3. Connect the power adapter cord to power on the master KVM Switch.
Step 4. Use a daisy-chain cable to connect the daisy-chain port (labeled daisy-
chain in) of the master switch to the console port of the second switch. Then
connect the power chord to power on the second KVM switch.
Step 5. If there is yet another third KVM Switch to be daisy-chained, just repeat
step 4 to connect the daisy-chain port of the second switch to the console
port of the third KVM switch. Likewise, follow the same connection principle if
there is still more KVM Switch(es) to join in the daisy-chain.
Step 6. After you have set up and powered up the daisy-chain connection of
multiple KVM switches, you have to perform a first-time initialization for all
the switches either by (1) pressing and holding down Button 1 on the master
switch for at least 2 seconds, or (2) using the hotkey sequence: ScrollLock +
ScrollLock + End for daisy-chain initialization.
DO NOT PRESS Button 1 on any slave switch since this will initialize only the switches
“downstream” from the slave switch on which you perform a reset .
You can daisy-chain a total of up to 16 units of KVM Switches, and command up to 256
computers (the number will vary depending on the switch combination).
Connect your computers to multiple daisy-chained KVM Switches
Now your multiple daisy-chained KVM Switches should all be powered on and properly
initialized ….
Step 7. Connect each computer system (still in powered-off state) in turn either with
the individual keyboard cable, mouse cable and video cable, or the 3-in-1
keyboard/video/mouse combination cable for your convenience. Then power
on each computer.
The KVM Switch has to be turned on and properly connected to your PC prior to your
booting up any PC. Please follow the correct boot-up sequence. The reason is that: while your PC is
booting up, it has to communicate with your keyboard and mouse and consequently gets response
from them. If your KVM Switch has not been running and connected to your PC, your PC might
have difficulty recognizing your keyboard and mouse, even if you turn on the KVM switch later on.
On the other hand, your KVM Switch also has to be present to keep track of all the modes and
parameters requested by the OS running on each connected PC.
Page 16
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 16
Chapter 2 Installation
Now the KVM Switches are ready to operate as soon as you turn on any of the
connected computer.
2.5. Initialize your KVM Switch
2.5.1. Reset without disconnecting or powering down your
computers
The KVM Switch can be reset without disconnecting or powering down your
computers either by (1) pressing down Button 1 on the front panel for 2
seconds, or by (2) the hotkey sequence ScrLk + ScrLk + End. Note that each
keystroke should be followed by its next keystroke within a delay of no more than 2
seconds.
Note that, after you have set up a daisy-chain of cascaded KVM Switches, and you want to
initialize this daisy-chain of multiple cascaded KVM Switches for the first time, you should perform
the reset on the first (master) switch (that is, the first bank) to initialize. Also remember to turn on
all the other switches on the daisy-chain. The reason is that the first (master) switch will send
message to the slave units. If the slave units are not there to receive/respond to this reset message,
system errors will occur. However, if you want a reset later during your operation, it is allowable
to be performed on switches other than the master one.
If a reset is successfully performed, you should see the switch bank number which is default
to 1) being displayed on the 7-segement LED displays. If you are using multiple KVM switches in a
cascaded application, you should have different switch bank number being displayed on each bank.
Page 17
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 17
Chapter 3 Operation
3. OPERATION
This chapter provides general guidelines for the KVM Switch operations. Before you
begin operation of the KVM switch, it is strongly recommended that you read this
chapter in advance.
3.1. Control Interfaces
There are three ways to operate your TK-802R/TK-1602R KVM Switch: Frontpanel buttons, keyboard hotkeys and OSD Menu options. The operation details
of these three control methods are detailed as follows:
3.1.1. Front-panel Buttons
The front panel push buttons are used to directly select the active channel that can
be controlled by the shared keyboard, mouse and monitor. Pressing the key during
normal operation will cause the corresponding channel to be selected.
The first button (from left) could also serve as a reset/initialization button when you
press and hold it down for over 2 seconds.
The last button, when pressed and held down for over 2 seconds, could also
activate the autoscan function.
For reset, you could also use the hotkey sequence: ScrLk + ScrLk + End. Only that the scrolllock key should be pressed twice within 2 seconds.
3.1.2. Keyboard Hotkeys
Some network professionals prefer hotkey controls as the most convenient and
quickest way to operate the KVM switch. Most of the hotkey control commands are
preceded by two consecutive Scroll Lock keystrokes (done within 2 seconds), and
then followed by specific command key or key sequence:
Hotkey control command = ScrLk + ScrLk + Command key (sequence)
In most cases, it will take at least three keystrokes to complete a command. In
certain case, it will need 5 strokes (such as in selecting specific bank and port
number for active channel) to complete one.
Page 18
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 18
Chapter 3 Operation
All the available hotkey commands are summarized in the following table for your
convenience.
For hotkey command, you should use the number keys on the upper row of the keyboard
instead of the number pad, which is invalid for hotkey commands.
Command Hotkeys Reference
Select PC
ScrLk + ScrLk + (ab) + (yz)
1
(ab) = 2-digit bank number (yz)= 2-digit channel number
See Page 21
Next lower channel ScrLk + ScrLk + ↑ (arrow up)
See Page 22
Next higher channel ScrLk + ScrLk + ↓ (arrow down)
See Page 22
Next lower bank
ScrLk + ScrLk + PgUp
See Page 22
Next higher bank
ScrLk + ScrLk + PgDn
See Page 23
Autoscan Beep Sound
On/Off
ScrLk + ScrLk + B See Page 23
Reflash EEPROM
ScrLk + ScrLk + R
See Page 23
Find PC by Name
ScrLk + ScrLk + F
See Page 24
Change PC Name
--
See Page 25
Reset KVM
ScrLk + ScrLk + End
See Page 25
Show OSD Menu
ScrLk + ScrLk + Space Bar
See Page 25
Autoscan
ScrLk + ScrLk + S
See Page 25
Stop Autoscan
(Any key on keyboard)
See Page 25
Autoscan Delay Time
--
See Page 26
Password Config
--
See Page 26
Password Change
--
See Page 27
Notes:
1 Note that a, b, y and z each denotes a number key. (ab) = 01 ~ 16 ; (yz) = 01 ~ 04 or 01 ~ 08 or 01 ~ 16.
Table 3-1 Summary for Hotkey Sequences
Page 19
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 19
Chapter 3 Operation
3.1.3. On Screen Display
Note that while OSD is activated, all the front-panel buttons will be inactive.
To activate the OSD Menu, use the hotkey sequence
Show OSD Menu =
OSD (On Screen Display) is a menu that is superimposed on your screen. On the
OSD Menu, you will have a listing of the available banks and channels for selection
and the currently online status of each channel. You can use it to control the KVM
switch with more convenient and intuitive menu-driven operation. The OSD menu
also allows you to rename your computer (up to 9 characters), and to find the
specific computer by its name. It also allows you to password-protect your KVM
switch system.
BA N K : 01
01 SYST EM 0 1
03 SYST EM 0 3
05 SY ST EM 05
07 SYST EM 0 7
04 SY STEM 04
06 SYSTEM 06
02 SYSTEM 02
OSD: 99 SEC.
PWD CONFIG
SCAN: 99 SEC.
PWD C HA NGE
Pg Dn/Pg Up BA NK SELEC T
PORT S ELECT
Ins
Esc QUIT
EDIT
Ent er SE LECT
08 SYSTEM 08
Figure 3-1 OSD Main Menu
Scr
L
k
Scr
L
k
(space bar)
Page 20
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 20
Chapter 3 Operation
As you can see on the OSD menu, the computer name that is followed by a little
solar symbol, , indicates that it is currently connected to the KVM Switch and thus
feeding power through its PS/2 interface to the KVM Switch. Others that are not
seen with a little solar symbol after them are currently not connected.
The computer name that is inversely illuminated by a magenta background color
indicates that it is currently active, and you can perform operation on it by your
keyboard and mouse.
The OSD options that are followed by a rightward arrow, , indicate that you can
expect at least another level of submenu beneath the first level.
3.1.4. OSD Navigation
Use the left, right, up, down cursor keys to navigate.
Use Enter/Insert key to select and edit.
On the bottom part of the OSD menu, there are some OSD operation tips for your reference.
3.1.5. OSD Option Selection
While you have navigated to an option, which you want to select, just hit the Enter
key for selection and, if needed, the Insert key for editing.
3.1.6. Edit the OSD Option Parameter
After you have selected (with the Enter key), just hit Insert key and begin edit the
option parameters.
Page 21
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 21
Chapter 3 Operation
3.2. Operate the Switch
The following will describe each command operation of the KVM Switch and
available ways to execute the commands, either by a front-panel button, a keyboard
hotkey sequence or an OSD Menu option.
<Select PC>
Front-Panel Button
Press the corresponding button on the specific switch, to which the channel you
want to select is connected.
Hotkey
Select PC =
For example, when with multiple daisy-chained KVM Switches configuration, if
you want to select bank 3 port 7, you should press the following keystrokes:
Select PC =
However, when using single KVM Switch configuration, if you want to select port 7,
you should first press its default bank number 01 and then the port number 07:
Select PC =
Since the single KVM Switch bank number is default to 01 (i.e. itself a master KVM Switch on
its own), therefore you should always specified its bank number by “01”.
Scr
Lk
Scr
L
k
(a) (y)
(z)
bank
number
~
port
number
~
(b)
Scr
Lk
Scr
L
k
0 0
7
bank
number
(03)
port
number
(07)
3
Scr
Lk
Scr
L
k
0 0
7
bank
number
(01)
port
number
(07)
1
Page 22
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 22
Chapter 3 Operation
OSD
To activate the OSD Menu, hit ScrLk + ScrLk + Space Bar. While the OSD Menu is
active, use the cursor keys to navigate to the channel you want and then hit Enter
or Insert key to select.
In a daisy-chained configuration, you may want to select specific channel on a
specific bank (when you have daisy-chained multiple KVM switch units), just use
the Page up/Page Down key for bank selection and navigate the OSD Menu by
cursors key to the channel you want to select and hit Enter to make it your active
channel.
<Next lower channel>
Front Panel Button
Press the corresponding button.
Hotkeys
Next lower channel =
OSD
Select the corresponding OSD Menu option.
<Next Higher Channel>
Front Panel Button
Press the corresponding button.
Hotkeys
Next higher channel =
OSD
Select the corresponding OSD Menu option.
<Next Lower Bank> (when daisy-chained)
Front Panel Button
Press the corresponding button.
Hotkeys
Previous bank =
OSD
While the OSD is activated on the console screen, press the Page Up key to rotate
through the bank selections decrementally.
Scr
L
k
Scr
L
k
Scr
L
k
Scr
L
k
Scr
L
k
Scr
L
k
Page
Up
Page 23
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 23
Chapter 3 Operation
<Next Higher Bank> (when daisy-chained)
Front Panel Button
Press the corresponding button.
Hotkeys
Next bank =
OSD
While the OSD is activated on the console screen, press the Page Down key to
rotate through the bank selection incrementally.
<Autoscan Beep Sound On/Off>
While Autoscanning, a beep sound will serve to confirm channel switching. If you
want to turn on/off this beeping, then try the following hotkey sequence.
Note that while you are switching channel manually either by hotkey or front-panel push
button, the beep sound is always on, and cannot be turned off.
Hotkey
Beep sound on/off =
<Reflash EEPROM>
While you can freely change the computer names, autoscan time as well as
password, there might be times when you want to restore the switch to its default
factory settings. If this is the case, you can always press the hotkey sequence for
an EEPROM Reflash.
Note that Reflash EEPROM will not affect your password setting, thus won’t compromise
your KVM Switch access security.
Hotkey
Reflash EEPROM =
As soon as the hotkey sequence is executed, the following OSD screen dialog
appears to prompt you for a confirmation. Press Enter to confirm the EEPROM
Reflash directive.
REFLA S H EEPROM ? ( YES )
ESC QUIT Enter SELECTESC QUIT Enter SE LECT
Note that, except the hotkey sequence ScrLk + ScrLk + R, there is no option on the OSD Main
Menu to evoke the OSD Reflash function.
Scr
L
k
Scr
L
k
Page
Down
Scr
L
k
Scr
L
k
B
Scr
L
k
Scr
L
k
R
Page 24
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 24
Chapter 3 Operation
<Find PC by Name>
Hotkey
Find PC by name =
With the number of connected computers grow to a large pool, it might be very
convenient for you to specify the computer name and let the KVM Switch find it for
you in an instant.
As soon as the hotkey sequence is executed, the following OSD screen dialog
appears to prompt you for a confirmation. Press Enter and then begin to key in the
computer name and then hit Enter again for a quick search.
FIND 9 CHARACTERs
ESC QUIT Enter SELECTESC QUIT Enter SE LE CT
Figure 3-2 Find PC by name searching
After the specified PC name has been found, we can see the PC name is shown
forth together with the bank number and port number it currently resides.
1 3 charact ers
System Name
Port
NO.
Bank
NO.
C N A M EP0 810
FOR M OREBANK PORT
ESC QUIT Enter SELECTESC QUIT Enter SE LE CT
PC N AME
Figure 3-3 Bank number, Port Number and PC Name as shown on the OSD
After the search comes out, we can see the bank number (1st and 2nd digit), port
number (3rd and 4th digit) and the PC name (last 9 digits) are displayed in an
alphanumeric string such as in the above figure. Use the Up/Down cursor key to
display other search results.
Note that, except the hotkey sequence ScrLk + ScrLk + F, there is no option on the OSD Main
Menu to evoke the Find PC by Name function.
Scr
L
k
Scr
L
k
F
Page 25
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 25
Chapter 3 Operation
<Change PC Name>
OSD
Navigate to the PC Name you desire to change, and then press Enter or Insert key
for editing a new PC name. When done, press Enter to validate the new name.
<Reset KVM>
Front Panel Button
Press and hold down button 1 for at least 2 seconds.
Hotkeys
Reset KVM =
<Show OSD Menu>
Hotkey
Show OSD Menu =
<Autoscan>
Front-panel button
Press and hold down the last button for at least 2 seconds.
The last button could be button 4/8/16 specifically for TK-802R/TK-1602R.
Hotkey
Autoscan =
The autoscan function automatically scans through each connected channel and stay for a
specific time period that is programmable by user (5 ~ 99 seconds ). The purpose of autoscan is to
provide you with a quick browsing of the status of all connected channels without tedious manual
switching one by one. You will appreciate this function espec ia lly when the there are many
computers connected on your switch.
TO STOP Autoscanning, just press any button on the front panel or hit any key
on keyboard to terminate autoscanning immediately.
Scr
L
k
Scr
L
k
End
Scr
L
k
Scr
L
k
(space bar)
Scr
L
k
Scr
L
k
S
Page 26
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 26
Chapter 3 Operation
<Autoscan Delay Time>
OSD
Use cursor keys to navigate to the SCAN option on the OSD Menu, and then hit
Enter to select and edit the auto scan delay time. The Autoscan Delay Time is
default to 10 seconds.
SCAN: 99 SEC.
The autoscan delay time could be specified within the range of 5 seconds to 99 seconds by an
increment of 1 second. Users can adjust the scan delay time according to th eir needs.
<OSD Remain Time>
OSD
Use cursor keys to navigate to the OSD option on the OSD Menu, and then hit
Enter to select and edit the OSD Remain time. The OSD Remain Time is default to
10 seconds.
OSD: 99 SEC.
The OSD time can be specified within the range of 5 seconds to 99 seconds by an increment of
1 second. Users can adjust this parameter to suit their needs.
<Password Configuration>
OSD
Navigate with cursor keys downward to the PWD CONFIG option and then hit Enter
key or Insert key to select. Just follow the submenu to Enable or Disable the
Password Protection. Every time you want to change the password configuration,
you will be prompted for the password. You have to type in the correct password to
validate the change. The password is up to 8 characters long and is default to
00000000. Later you can change the default password with your own by the PWD
CHANGE option.
The Password Configuration (PWD CONFIG) function is default to “No password protection”.
On the other hand, if the password protection is enabled, it means every time when the
KVM Switch is reset, it will prompt the next user for password input. This feature will
ensure further security over local console to ward off the possibility of any band-intention or
accidental tempering of your server management by other unauthorized persons. If you have a
great concern over local console security, you should have the password protection
PWD CONFIG
PASSWORD
ESC QUIT
DISABLE ?
Ent er SELECTESC QUIT Ent er SEL E CT
PASSWORD ENABLE ?
ESC QUI T Enter SELECTESC QUIT Enter SEL EC T
ENTER PASSWORD
- - - - - - - -
ESC QUIT Enter SELECTESC QUIT Ent er SEL ECT
Page 27
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 27
Chapter 3 Operation
enabled by this OSD option. Then next time when you will leave your admin desk, you can then
press reset hotkey sequence: ScrLk + ScrLk + End (or by pressing the last button for over 2
seconds). Then the KVM Switch will go reset and next user will be asked for correct password to
gain access to KVM operation, thus your local console security cannot be compromised anymore
even when you are not present.
<Password Change>
OSD
Navigate with cursor keys downward to the PWD CHANGE option and then hit
Enter key or Insert key to select. A Prompt will appear on screen to request for old
password. Type in the old password and a new prompt will appear to request for
your new password. Type in the new password and press Enter for confirmation.
The password length is up to 8 characters long.
PWD C H AN G E
ENTER PASSW ORD
- - - - - - - -
ESC QU IT Ent er SELECTESC QUIT Ent er SELECT
ENTER N EW PAS S W ORD
- - - - - - - -
ESC QU IT Ent er SELECTESC QUIT Ent er SELECT
RETY PE N EW PASS WO RD
- - - - - - - -
ESC QU IT Ent er SELECTESC QUIT Ent er SELECT
Page 28
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 28
Appendix A Technical Specifications
APPENDIX A TECHNICAL SPECIFICATIONS
PC connections 8 PCs max. (TK-802R)
16 PCs max. (TK-1602R)
Console connection 1 console (TK-802R)
1 console (TK-1602R)
PC port connector PS/2 keyboard Mini Din 6 pin
(All female type) PS/2 Mouse Mini Din 6 pin
VGA HDB 15 pin
Daisy-chain port connectors PS/2 keyboard Mini Din 6 pin
(All female type) PS/2 Mouse Mini Din 6 pin
VGA HDB 15 pin
PC selection On Screen Display Menu, Hotkeys, Push buttons
7-segment LED Display 2 x
LED indicators Two LED indicators for each PC port
16 LEDs (TK-802R)
32 LEDs (TK-1602R)
On Screen Display Control Yes
Scan delay time 5 – 99 seconds programmable
Keyboard emulation PS2
Mouse emulation PS2
Mouse Conversion Console PS/2 to each PC port serial mouse
(Only console port to PC port)
VGA Resolution 1920 × 1440
Bandwidth 200 MHz
Daisy Chain MAX Level 16 levels
MAX PC Connection 128 (16 x TK-802R)
256 (16 x TK-1602R)
Housing Metal
Power Adapter DC 9V 1A
Operation Temperature 0 ~ 40°C
Page 29
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 29
Appendix A Technical Specifications
Storage Temperature -20 ~ 60°C
Humidity 0 ~ 90% RH, non-condensing
Size 19” Rack Mount / 1 RU (TK-802R)
19” Rack Mount / 2 RU (TK-1602R)
Weight 2.2 kg (TK-802R)
3.5 kg (TK-1602R)
Dimension (mm) 410 × 165 × 44.5 (L × W × H) (TK-802R)
410 × 165 × 86 (L × W × H) (TK-1602R)
Safety / EMI CE, FCC
Page 30
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 30
Appendix B System & Cable Requirements
APPENDIX B SYSTEM & CABLE REQUIREMENTS
Model No.
UKV-048OSD UKV-088OSD UKV-0168OSD
Console side
▪ One VGA Monitor
▪ One PS/2 Keyboard
▪ One PS/2 Mouse
▪ One VGA Monitor
▪ One PS/2 Keyboard
▪ One PS/2 Mouse
▪ One VGA Monitor
▪ One PS/2 Keyboard
▪ One PS/2 Mouse
Computer
side
▪ 4 × HDB 15 pin male-to-
male VGA cable
▪ 4 × PS/2 male-to-male
cable for keyboard
▪ 4 × PS/2 male-to-male
cable for mouse
or
4 x 3-in-1 KVM combo cable
▪ 8 × HDB 15 pin male-to-
male VGA cable
▪ 8 × PS/2 male-to-male
cable for keyboard
▪ 8 × PS/2 male-to-male
cable for mouse
or
8 x 3-in-1 KVM combo cable
▪ 16 × HDB 15 pin male-to-
male VGA cable
▪ 16 × PS/2 male-to-male
cable for keyboard
▪ 16 × PS/2 male-to-male
cable for mouse
or
16 x 3-in-1 KVM combo cable
Table B-1 Necessary accessories for the KVM Switches
Table B-2 The Standard 3-in-1 Keyboard-Video-Mouse Combo Cable
Model No.-length Interfaces Cable Diagrams / Connectors
CAB2002-1.2M
CAB2002-1.8M
CAB2002-3M
CAB2002-5M
PS/2 KB
PS/2 MS
HDB-15
Page 31
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 31
Appendix C Troubleshooting
APPENDIX C TROUBLESHOOTING
Keyboard and Mouse problems
Problem: Keyboard/mouse won’t move the cursor on the screen, or mouse
movement becomes erratic or flips around.
Solution:
Check the following points to troubleshoot your keyboard/mouse problem:
(1) Connect your keyboard and mouse to the KVM Switch only when the PCs are in
powered-off state. Otherwise, you have to reboot your PCs.
(2) Verify that your keyboard/mouse and the computer are all properly connected to
the KVM Switch. If not, connect them properly and reboot the computer again.
(3) Make sure you have installed the proper mouse/keyboard driver on the
computers for the type of your mouse/keyboard. If not, install the driver and then
reboot your computer.
(4) After you have checked that all the above requirements for a proper
keyboard/mouse connection are met, then reset your KVM Switch again by
pressing the hotkey sequence: ScrLk + ScrLk + End (or push the last port button
for over 2 seconds). Then reboot the computer and check if the keyboard/mouse
activities could be recognized by your connected computer.
(5) If the above procedures still fail to troubleshoot, try to plug off and then plug on
the Keyboard/Mouse cable to the console port of your KVM switch, and try to
reboot your computer again.
(6) Also refrain from plugging the keyboard/mouse cable while the PC is still running.
Once it comes unplugged, even if you plug back the connection again in short
time, you might have to reboot your PC to resume the normal keyboard/mouse
connectivity.
(7) Also check the specifications of your KVM Switch to see whether it requires
special KVM cables for connection with computers. If so, use the cable that is
required by your KVM Switch.
If you have checked all the above and still your mouse/keyboard does not work,
please contact your local technical support.
According to feedbacks from customers and also our own service experience, most mouse
failures are caused by inadvertently switching to other PC port while a specific PC port still
undergoing the booting process. The cause of the mouse failure over that specific PC port lies in that
port switching to other PC port, while a PC port has not completed its booting process, sometimes
will cause the mouse emulation for the latter to be interrupted and hence fails. Therefore, try to avoid
switching port while a specific PC port has not completed its booting (specifically mouse emulation
during booting process). Wait until it has completed booting to the OS environment, and then
perform the port switching to other PC ports.
Page 32
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 32
Appendix C Troubleshooting
Video Display Problems
Problem: The screen won’t show properly on my monitor or flat panel display.
Solution:
Check the following points to troubleshoot your screen display problem:
(1) Verify that your video cables have connected properly between KVM Switch and
the PC and also between the KVM Switch and the monitor.
(2) Check that the video setting of the computer does not exceed the highest
resolution support of the KVM Switch. If you choose a resolution that is beyond
the video support of the KVM, the screen on your local console might show up
as blank or striped screen due to out-of-range or out-of-sync. If that is the case,
modify both the screen resolution and frequency as within the support range of
your KVM Switch.
Problem: My screen shows excessive ghosting, speckles or stripes.
Solution:
Check the following points to troubleshoot your screen display problem:
(1) Ghosting and/or stripes on screen is probably due to excessive electromagnetic
interferences from external environments that come to compromise video signal
integrity. Check the entire path of your video cable layout and see whether
there is any undue presence of a strong electromagnetic source such as large
motor, power cable or other significant electromagnetic source. If there’s any,
remove it or try to route your video cables so as to avoid or minimize its
interference.
(2) Some older monitor might show inferior display screen when using a screen
mode that is beyond its normal support range. If that is the problem, try to use
another screen mode that is “friendlier” to your monitor
Page 33
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 33
Appendix C Troubleshooting
Limited Warranty
TRENDware warrants its products against defects in material and workmanship, under
normal use and service, for the following lengths of time from the date of purchase.
KVM Switch – 2 Years Warranty
If a product does not operate as warranted above during the applicable warranty period,
TRENDware shall, at its option and expense, repair the defective product or part, deliver to
customer an equivalent product or part to replace the defective item, or refund to customer
the purchase price paid for the defective product. All products that are replaced will
become the property of TRENDware. Replacement products may be new or reconditioned.
TRENDware shall not be responsible for any software, firmware, information, or memory
data of customer contained in, stored on, or integrated with any products returned to
TRENDware pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to
service the product by any unauthorized service center. This warranty is voided if (i) the
product has been modified or repaired by any unauthorized service center, (ii) the product
was subject to accident, abuse, or improper use (iii) the product was subject to conditions
more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDware office within the applicable
warranty period for a Return Material Authorization (RMA) number, accompanied by a
copy of the dated proof of the purchase. Products returned to TRENDware must be preauthorized by TRENDware with RMA number marked on the outside of the package, and
sent prepaid, insured and packaged appropriately for safe shipment.
WARRANTIES EXCLUSIVE: IF THE TRENDWARE PRODUCT DOES NOT OPERATE
AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT
TRENDWARE’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF
LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDWARE
NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT
ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION
MAINTENANCE OR USE OF TRENDWARE’S PRODUCTS.
TRENDWARE SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES
NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE,
NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS
TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE
INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDWARE
ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER
BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR
Page 34
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 34
Appendix C Troubleshooting
FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH
DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF
THE PURCHASE PRICE PAID, AT TRENDWARE’S OPTION. THIS DISCLAIMER OF
LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED
HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of
California.
Technical Support
You can find the most recent driver/firmware/software and user documentations on the
TRENDware website. TRENDware provides FREE technical support for all customers for
the duration of the warranty period on this product.
TRENDware Technical Support
Tel: +1-310-891-1100
Fax: +1-310-8911111
E-mail: support@trendware.com
www.TRENDnet.com
Monday ~ Friday, 7:30AM ~ 6:00PM Pacific Standard Time
(Except holidays)
Page 35
TK-802R_TK-1602R Rack Mount KVM Switch User’s Guide July,2004
Page 35
Appendix C Troubleshooting
Loading...
