1. Before You Start
Package Contents
TEW-647GA
?
User's Guide CD-ROM
?
?Multi-Language Quick Installation
Guide
1 x Cat. 5 Ethernet Cable
?
(60cm/ 2ft)
Power Adapter (12V, 0.5A)
?
Installation Requirements
A computer with a network adapter installed.
?
?Wireless router (e.g. TEW-639GR).
?An available DHCP Server –wireless routers usually have a built-in
DHCP server.
?A game console with an Ethernet port.
Application
300Mbps Wireless N
Gigabit Router
(TEW-639GR)
Internet
Cable/DSL
Modem
Wireless N Gaming Adapter
(TEW-647GA)
USB to 10/100Mbps Adapter
(TU2-ET100)
OR
OR
1
English
Y
Y
X
X
B
B
A
A
2. Hardware Installation
Note: There are two methods for configuring the gaming adapter: Wi-Fi
Protected Setup (WPS) Push Button Setup or Manual Setup. If your wireless
router does not support WPS, go to section 2.2 Manual Setup. If your wireless
router does support WPS, please follow the directions in section 2.1 Wi-Fi
Protected Setup (WPS) Push Button Setup.
2.1. Wi-Fi Protected Setup (WPS) Push Button Setup
1. Plug the power adapter into the
TEW-647GA and then into an
available power outlet.
2. Press the WPS button on your
wireless router. The example
shows a TEW-639GR.
3. Press the WPS button on the
TEW-647GA. The WPS button will
start to blink.
4. Once the WPS button becomes
steady, the TEW-647GA has been
successfully configured.
English
2
5. Connect an Ethernet cable from
the LAN port on the TEW-647GA to
an Ethernet port on your game
console.
6. Congratulations, the installation is
now complete.

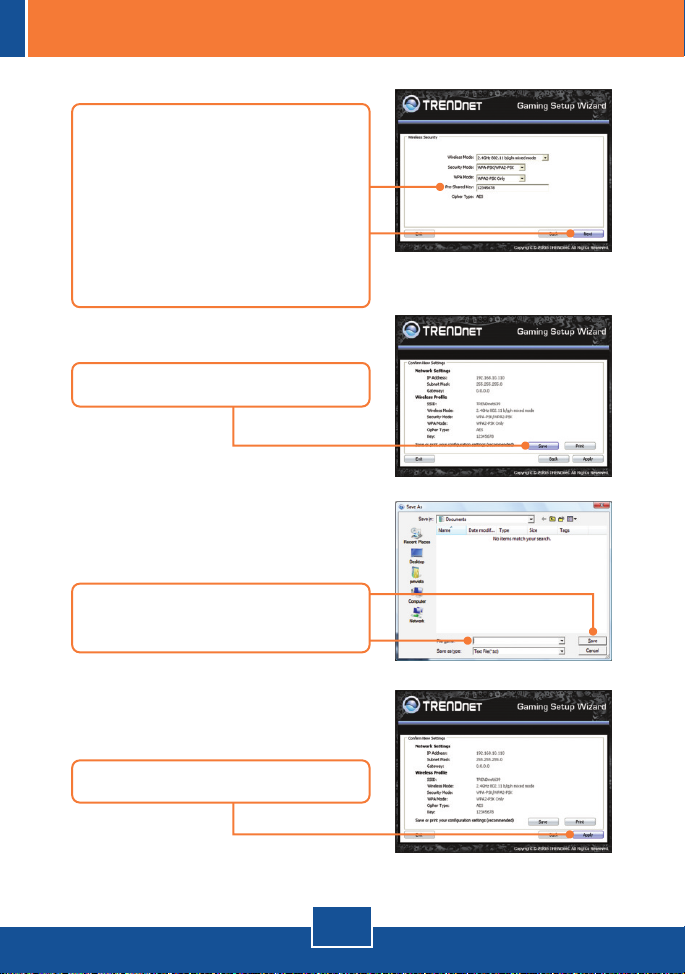

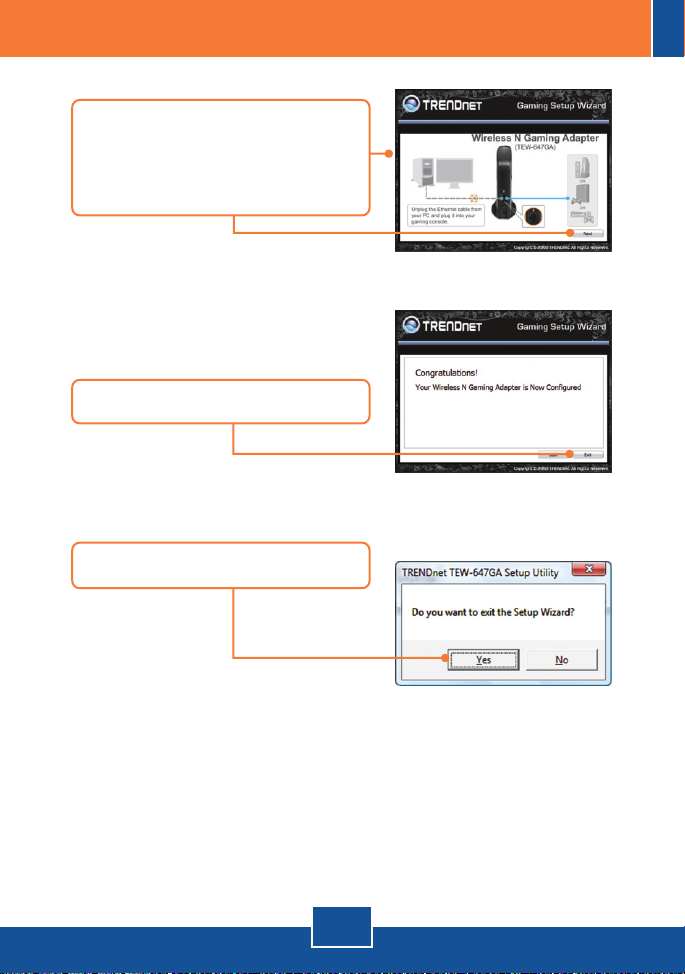

2.2. Manual Setup (For Windows Users)
Note: Manual Setup requires a Windows PC.

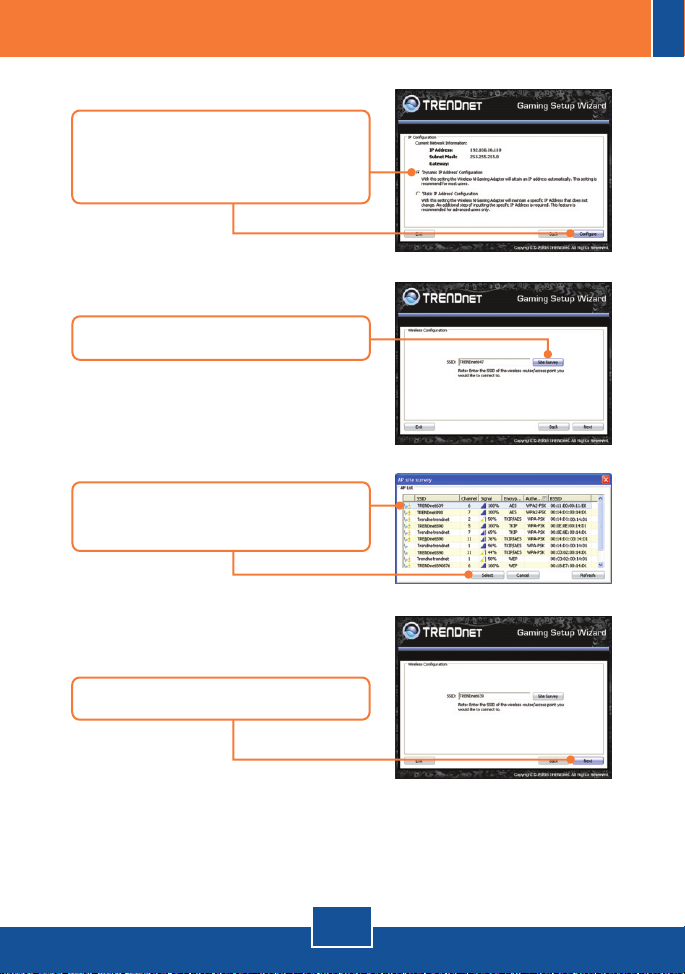

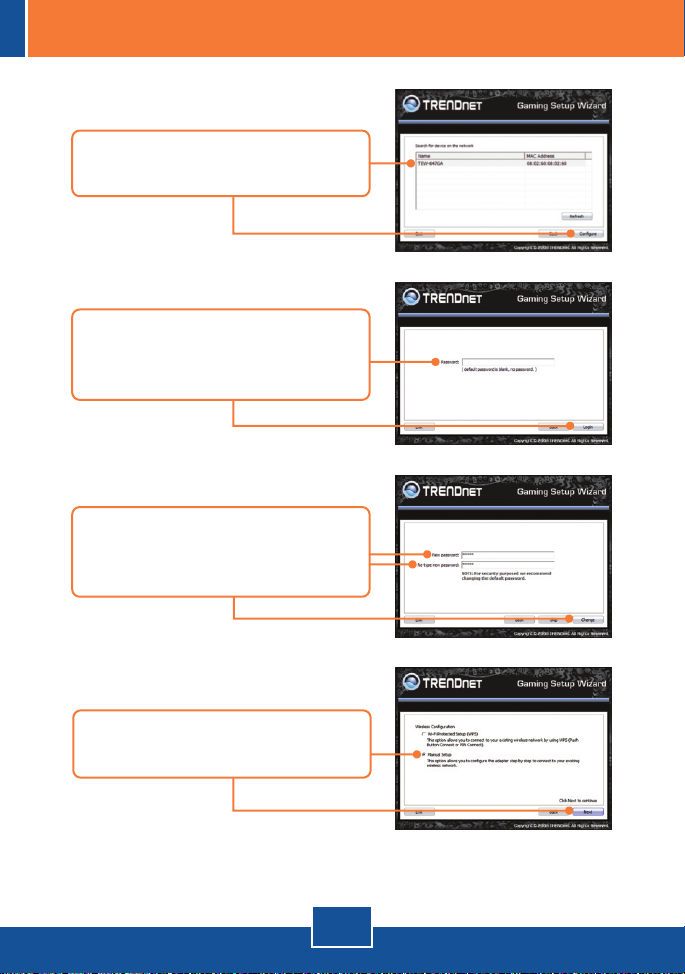

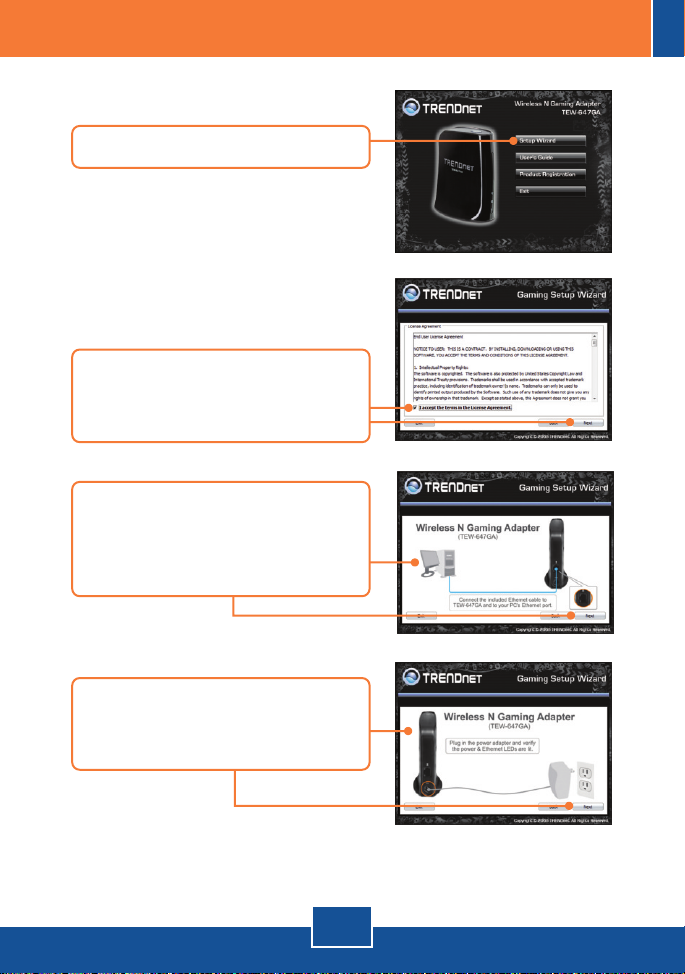

1. Insert Utility CD-ROM into your
computer's CD-ROM drive.
2. Click Run Setup.exe (Windows
Vista only)
English
