TREND VJS/AG/36 User Manual

VJS/AG/36

VARIJIG VARIABLE
ANGLE GUIDE
36” (915mm)

VJS/AG/36

-1-

Dear Customer
Thank you for purchasing this Trend product, we

hope you enjoy many years of creative and
productive use.

Please remember to return your guarantee card
within 28 days of purchase.

CONTENTS

TECHNICAL DATA _____________________1
SAFETY ____________________________2-3

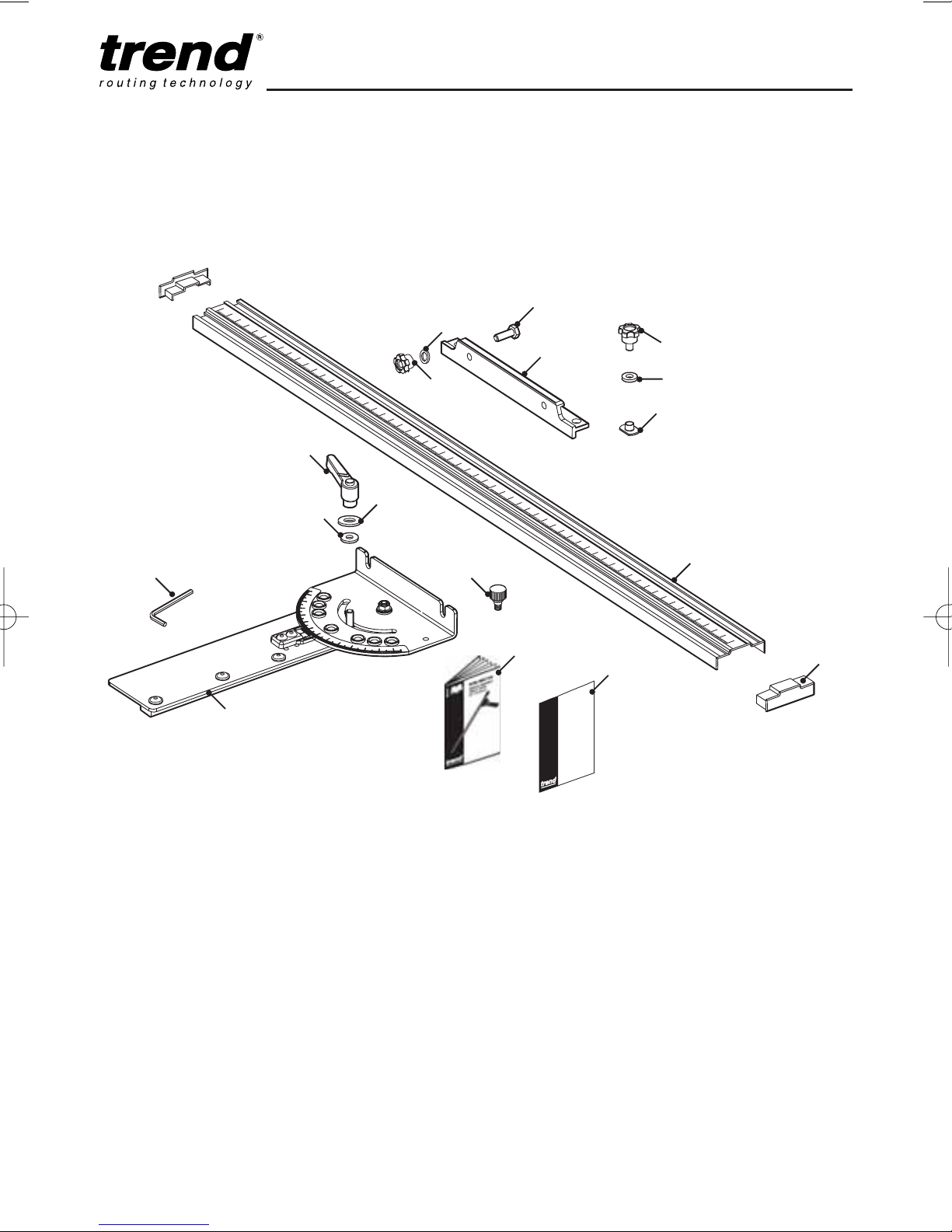

ITEMS ENCLOSED ____________________4

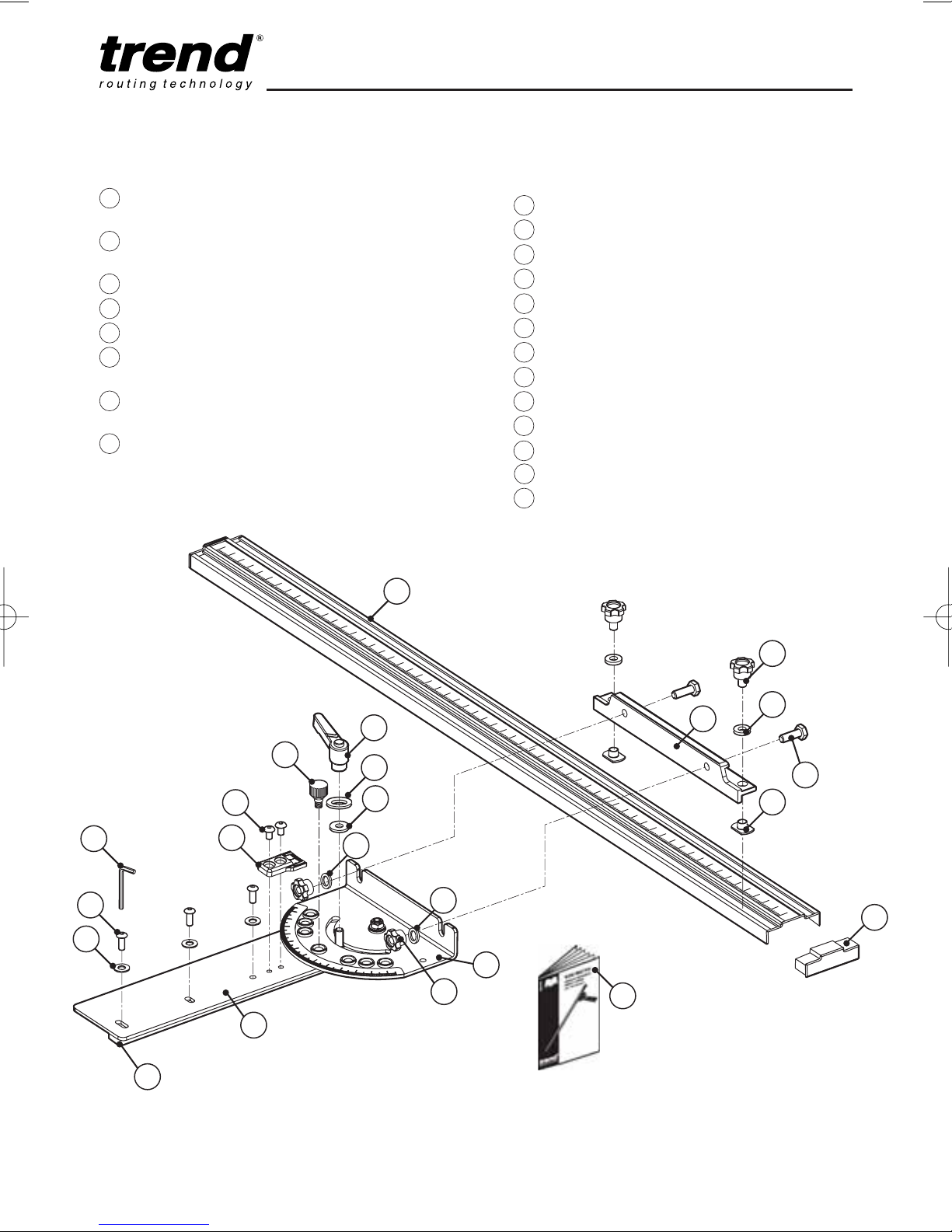

DESCRIPTION OF PARTS_______________5

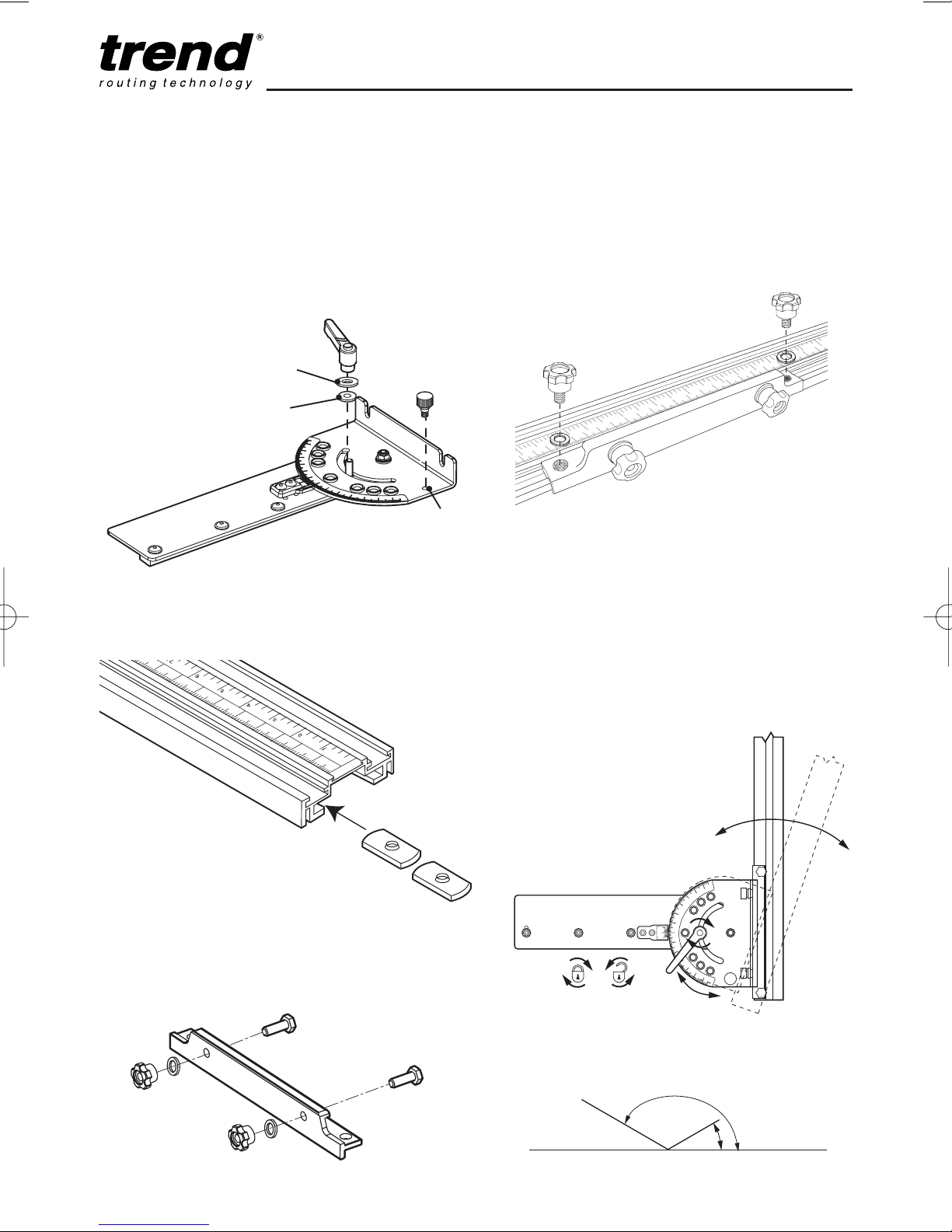

ASSEMBLY & ADJUSTMENT ____________6

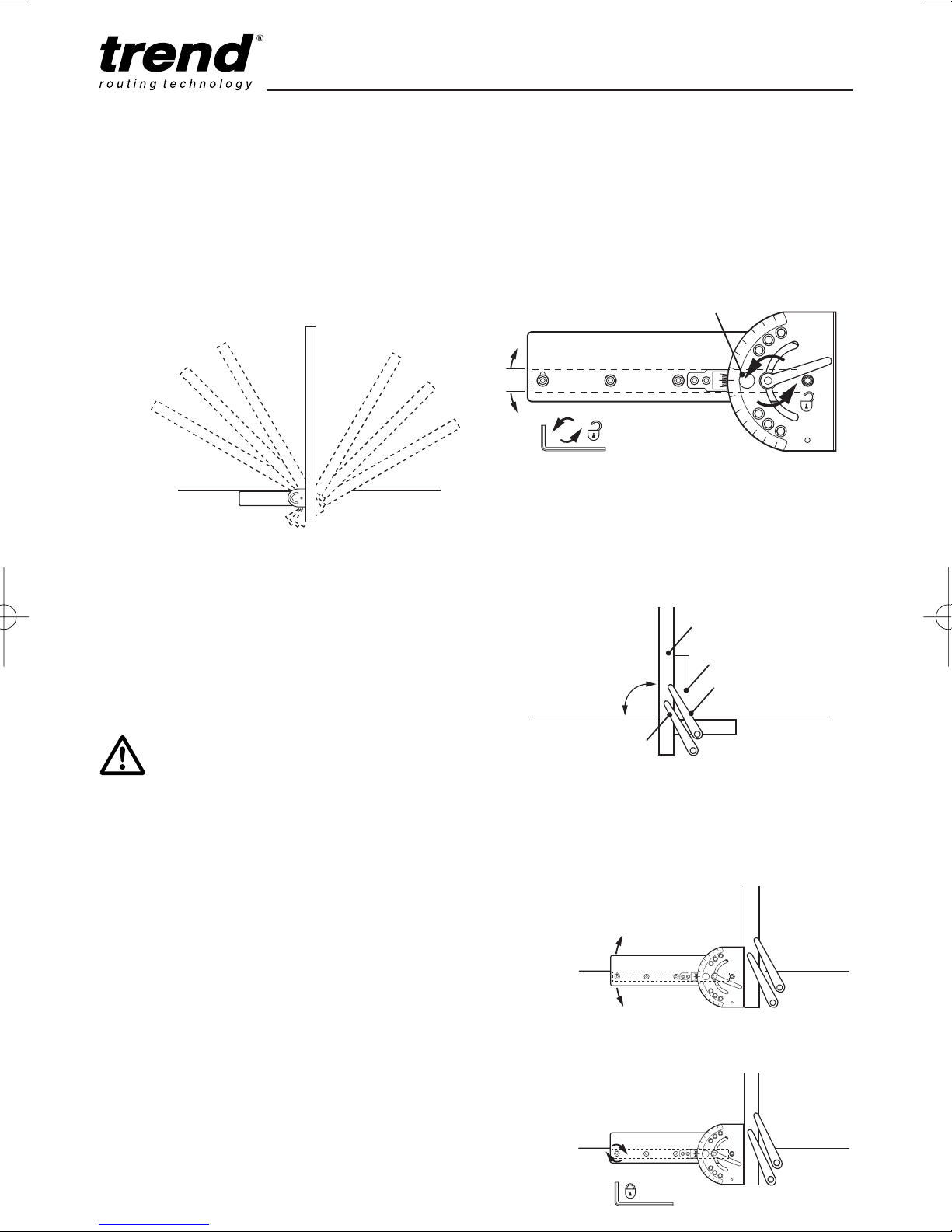

– Adjusting Guide Angle _________________7
– Preset Angles _______________________7
– Adjusting Extrusion Position to Main Body _7
– Zeroing Protractor Guide _______________7
– Setting Zero Scale Plate _______________7

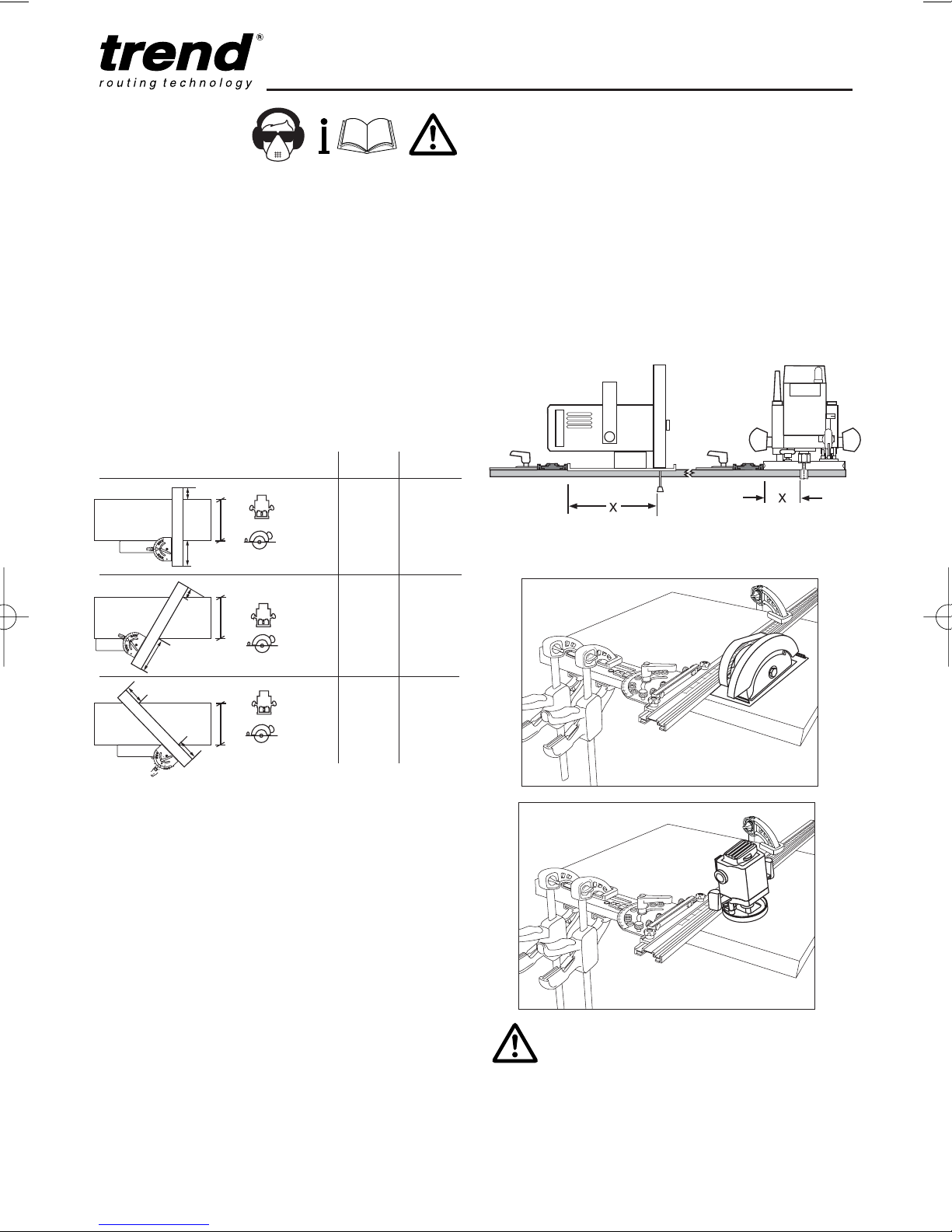

OPERATION __________________________8

– Setting Guide Angle ___________________8
– Marking out the Cut Line _______________8

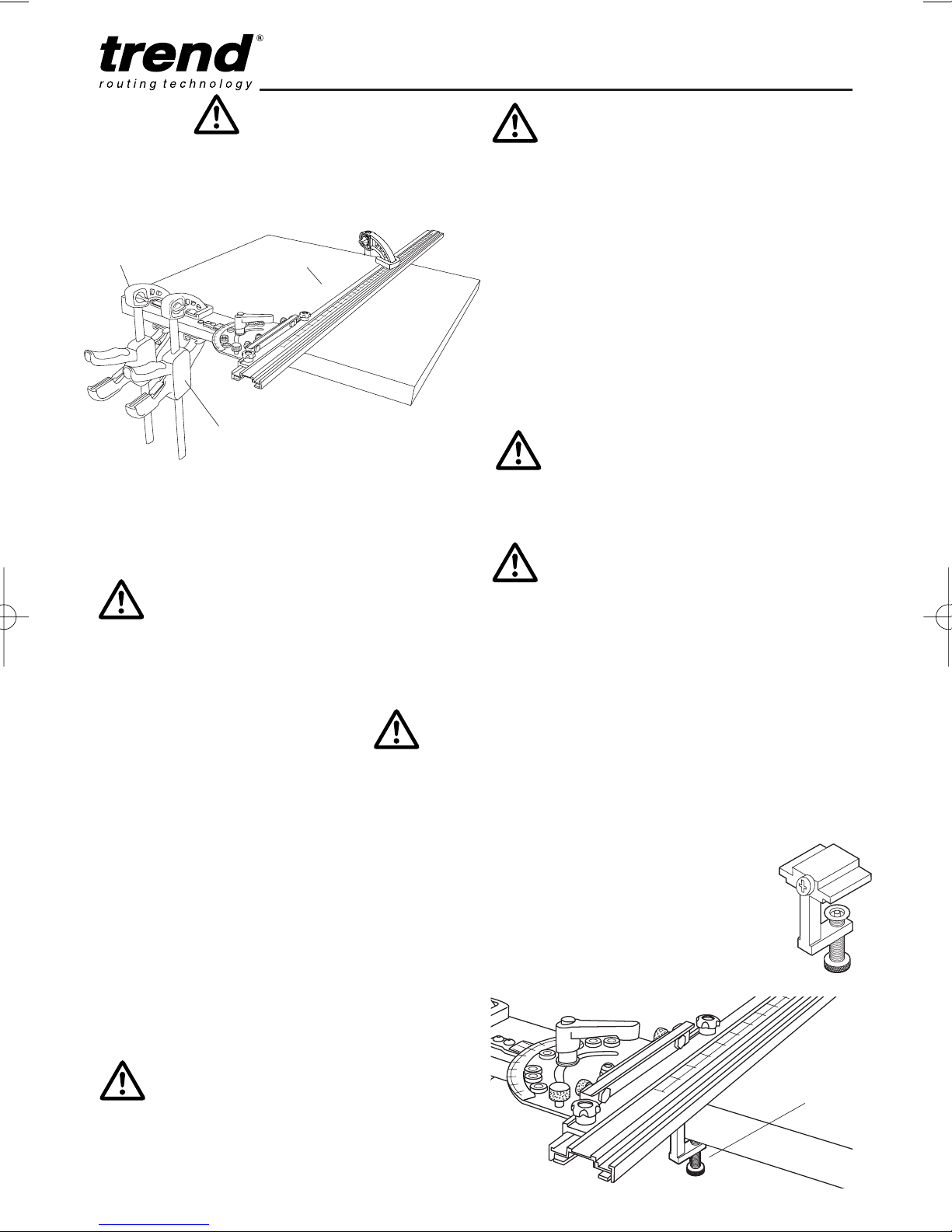

– Clamping ___________________________9
– Routing or Sawing using the Angle Guide ____9

ACCESSORIES _______________________9
MAINTENANCE ______________________10
ENVIRONMENTAL PROTECTION________10
GUARANTEE ________________________10
SPARE PARTS

– Spare Parts List ____________________11

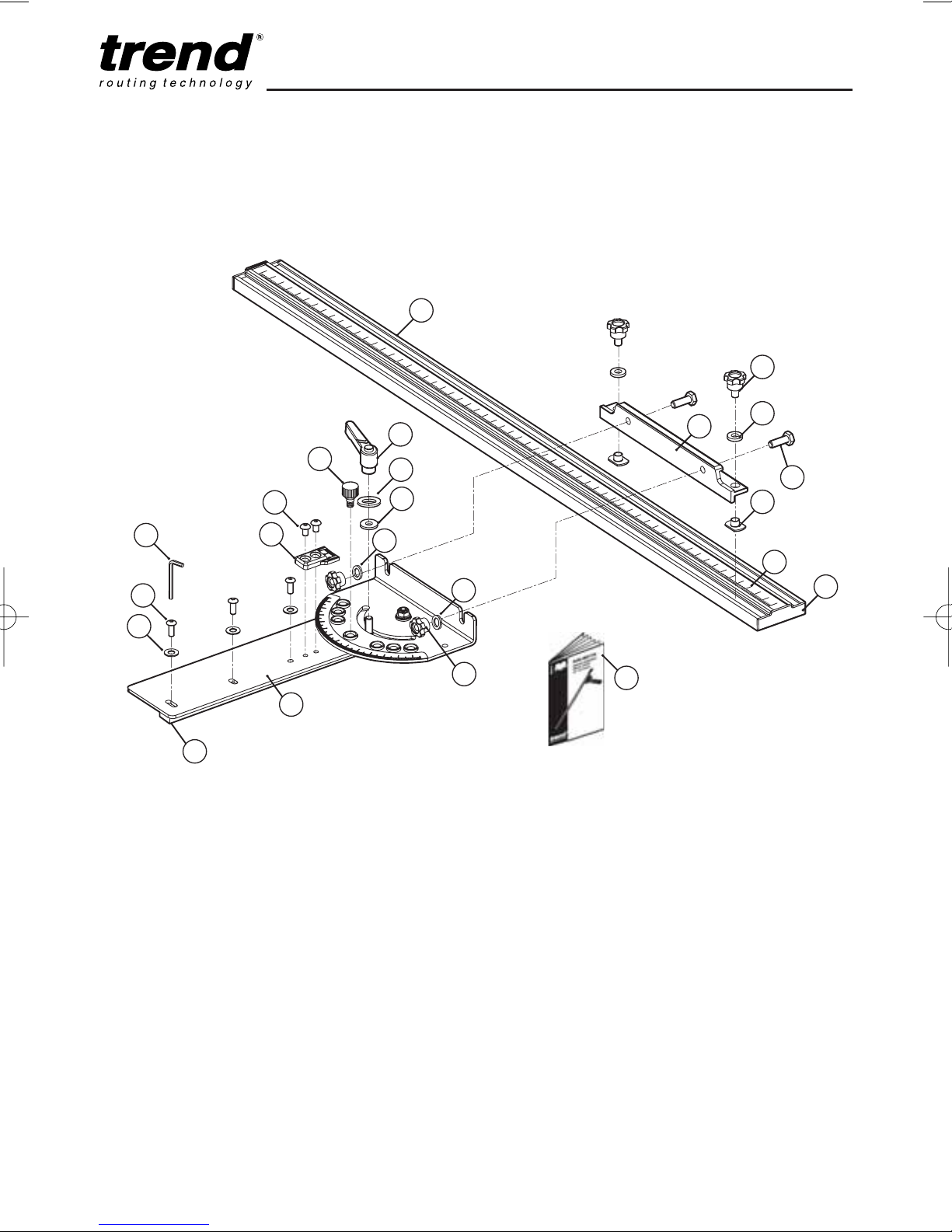

– Spare Parts Diagram ________________12

TECHNICAL DATA

Extension thickness 15.8mm
Extension width 54.0mm
Working length at 90º: Router 915mm*

Circular Saw 780mm**

Angle range 25° to 155°
Preset angle 30°, 45°, 60°, 90°, 120°, 135°, 150°
Tolerance ±0.2˚
Weight 1.83kg

* With lead-in of 110mm and lead out of 55mm.
** With lead-in of 125mm and lead out of 125mm.

The following symbols are used throughout this
manual:

Denotes risk of personal injury, loss of
life or damage to the tool in case of non­observance of the instructions in this
manual.

Refer to the instructions manual or your
power tool.

This unit must not be put into service until it has
been established that the power tool to be
connected to this unit is in compliance with
2006/42/EC (identified by the CE marking on the
power tool).

INTENDED USE

This accessory is intended to be used with a
portable circular saw, jigsaw or plunge router
with suitable cutter fitted to cut man-made
boards and natural timbers at various angles
from 25° to 155°.



If you require further technical
information or spare parts, please call
Trend technical support on 01923
249911 or visit www.trend-uk.com

VJS/AG/36

-2-

SAFETY

WARNING:

Observe the safety regulations in the
instruction manual of the power tool to be
used. Please read the following
instructions carefully. Failure to do so
could lead to serious injury. When using
electric tools, basic safety precautions,
including the following should always be
followed to reduce the risk of fire, electric
shock and personal injury. Also observe
any applicable additional safety rules.
Read the following safety instructions
before attempting to operate this product.

PLEASE KEEP THESE
INSTRUCTIONS IN A SAFE PLACE.

The attention of UK users is drawn to The
Provision and Use of Work Equipment
Regulations 1998, and any subsequent
amendments.

Users should also read the HSE/HSC
Safe Use of Woodworking Machinery
Approved Code of Practice and Guidance
Document and any amendments.

Users must be competent with
woodworking equipment before using our
products.

IMPORTANT NOTE:

Residual Risk. Although the safety
instructions and operating manuals for
our tools contain extensive instructions on
safe working with power tools, every
power tool involves a certain residual risk
which cannot be completely excluded by
safety mechanisms. Power tools must
therefore always be operated with
caution!

General

1. Disconnect power tool and attachment
from power supply when not in use,
before servicing, when making
adjustments and when changing
accessories such as cutters. Ensure
switch is in “off” position. Always
ensure cutter has stopped rotating.

2. Always mount the power tool,
accessory or attachment in conformity
with the instructions. Only use
attachment and accessories specified
in the power tool manual. The tool or
attachment should not be modified or
used for any application other than
that for which it was designed. Do not
force tool.

3. Keep children and visitors away. Do
not let children or visitors touch the
tool, accessory or attachment. Keep
children and visitors away from work
area. Make the workshop child proof
with padlock and master switch.

4. Dress properly. Do not wear loose
clothing or jewellry, they can be
caught in moving parts. Rubber
gloves and non-skid footwear is

recommended when working
outdoors. Wear protective hair
covering to contain long hair.

5. Consider working environment. Do
not use the product in the rain or in a
damp environment. Keep work area
well lit. Do not use power tools near
gasoline or flammable liquids. Keep
workshop at a comfortable
temperature so your hands are not
cold. Connect machines that are used
in the open via a residual current
device (RCD) with an actuation
current of 30 mA maximum. Use only
extension cables that are approved for
outdoor use.

6. The accessory or attachment must be
kept level and stable at all times.

7. Keep work area clean. Cluttered
workshops and benches can cause
injuries. Ensure there is sufficient
room to work safely.

8. Secure idle tools. When not in use,
tools should be stored in a dry and
high or locked up place, out of reach
of children.

9. For best control and safety use both
hands on the power tool and
attachment. Keep both hands away
from cutting area. Always wait for the
spindle and cutter to stop rotating
before making any adjustments.

10. Always keep guards in place and in
good working order.

11. Remove any nails, staples and other
metal parts from the workpiece.

12. Maintain tools and cutters with care.
Keep cutters sharp and clean for
better and safer performance. Do not
use damaged cutters. Follow
instructions for lubricating and
changing accessories. Keep handles
dry, clean and free from oil and
grease.

13. Maintain accessories. Do not use
damaged accessories. Only use
accessories recommended by the
manufacturer.

14. Check damaged parts. Before
operation inspect the attachment, the
power tool, the cable, extension cable
and the plug carefully for signs of
damage. Check for alignment of
moving parts, binding, breakage,
mounting and any other conditions
that may effect its operation. Have any
damage repaired by an Authorised
Service Agent before using the tool or
accessory. Protect tools from impact
and shock.

15. Do not use tool if switch does not turn
it on or off. Have defective switches
replaced by an Authorised Service
Agent

16. Don't over reach. Keep proper footing

and balance at all times. Do not use
awkward or uncomfortable hand
positions.

17. Don’t abuse the cable. Never carry
power tool or accessory by cord or
pull it to disconnect from the socket.
Keep cord from heat, oil and sharp
edges. Always trail the power cord
away from the work area.

18. Connect dust extraction equipment.
If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used.

19. Check all fixing and fastening nuts,
bolts and screws on power tool,
attachment and cutting tools before
use to ensure they are tight and
secure. Periodically check when
machining over long periods.

20. Stay alert. Watch what you are doing.
Use common sense. Do not operate
tools when you are tired, under the
influence of drugs or alcohol.

21. Personal Protective Equipment (PPE)
for eye, ear and respiratory protection
must be worn. All PPE must meet
current UK and EU legislation.

22. Do not leave tools running
unattended. Do not leave tool until it
comes to a complete stop.

23. Always clamp workpiece being
machined securely.

24. Only use cutting tools for
woodworking that meet EN847-1/2
safety standards, and any
subsequent amendments.

25. Vibration levels. Hand held power
tools produce different vibration
levels. You should always refer to the
specifications and relevant Health &
Safety Guide.

Routing Safety

1. Read and understand instructions
supplied with power tool, attachment
and cutter.

2. Keep hands, hair and clothing clear of
the cutter.

3. Remove adjusting keys and
spanners. Check to see that keys
and adjusting spanners are removed
from the router tool, cutter and
attachment before turning router on.
Make sure cutter can rotate freely.

4. Noise. Take appropriate measures
for the protection of hearing if the
sound pressure of 85dB(A) is
exceeded. Routing sound pressure
may exceed 85dB(A), so ear
protection must be worn.

5. Eye protection. Always wear eye
protection in the form of safety
goggles, spectacles or visors to
protect the eyes.

VJS/AG/36

-3-

6. Respiratory protection. Wear a face

or dust mask, or powered respirator.
Dust masks/filters should be changed
regularly.

7. Do not switch router on with the cutter
touching the workpiece. At the end of
the cut, release the router plunge and
allow spindle to stop rotating. Never
use the spindle lock as a brake

8. The direction of routing must always
be opposite to the cutter's direction of
rotation. Do not back-cut or climb-cut.

9. Check before cutting that there are no
obstructions in the path of the router.
Ensure there are no obstacles
beneath workpiece when cutting full
thickness, and that a sacrificial work
surface is used.

Router Cutter Safety

1. Cutting tools are sharp. Care should
be taken when handling them. Do not
drop cutters or knock them against
hard objects. Handle very small
diameter cutters with extra care.
Always return cutter to its packaging
after use.

2. Always use cutters with a shank
diameter corresponding to the size of
the collet installed in your tool.

3. The maximum speed (n.max) marked
on the tool, or in instructions or on
packaging shall not be exceeded.
Where stated the speed range shall
be adhered to. Recommended speeds
are shown in the Trend Routing
Catalogue and/or website.

4. Always use router cutters in a router.
Drill and boring bits must not be used
in a router. Router cutters must only
be used for the material cutting
application for which they are
designed. Do not use on metal or
masonry.

5. Never use cutters with a diameter
exceeding the maximum diameter
indicated in the technical data of the
powertool or attachment used.

6. Before each use check that the cutting
tool is sharp and free from damage.
Do not use the cutting tool if it is dull,
broken or cracked or if in any other
damage is noticeable or suspected.

7. Cutters should be kept clean. Resin
build up should be removed at regular
intervals with Resin Cleaner

®

. The
use of a PTFE dry lubricant will
reduce resin build up. Do not use
PTFE spray on plastic parts.

8. When using stacked tooling (multi­blade, block and groover etc.) on a
spindle arbor, ensure that the cutting
edges are staggered to each other to
reduce the cutting impact.

9. Cutter shanks should be inserted into
the collet all the way to the line

indicated on the shank. This ensures
that at least

3

⁄4of the shank length is
held in the collet. Ensure clamping
surfaces are cleaned to remove dirt,
grease, oil and water.

10. Observe the correct assembly and
fitting instructions in the router
instruction manual for fitting the collet,
nut and cutter.

11.Tool and tool bodies shall be clamped
in such a way that they will not
become loose during operation. Care
shall be taken when mounting cutting
tools to ensure that the clamping is by
the shank of the cutting tool and that
the cutting edges are not in contact
with each other or with the clamping
elements.

12. It is advisable to periodically check
the collet and collet nut. A damaged,
worn or distorted collet and nut can
cause vibration and shank damage.
Do not over-tighten the collet nut

13. Do not take deep cuts in one pass;
take several shallow or light passes to
reduce the side load applied to the
cutter and router. Too deep a cut in
one pass can stall the router.

15. In case of excessive vibrations whilst
using the router stop immediately and
have the eccentricity of the router,
router cutter and clamping system
checked by competent personnel

15. All fastening screws and nuts should
be tightened using the appropriate
spanner or key and to the torque
value provided by the manufacturer.

16. Extension of the spanner or tightening
using hammer blows shall not be
permitted.

17.Clamping screws shall be tightened
according to instructions provided by
the manufacture. Where instructions
are not provided, clamping screws
shall be tightened in sequence from
the centre outwards.

Using Routers In A Fixed Position

1. Attention should be made to the
HSE’s Safe Use of Vertical Spindle
Moulding Machines Information Sheet
No.18 and any revisions.

2. After work, release the router plunge
to protect the cutter.

3. Always use a push-stick or push-block
when making any cut less than
300mm in length or when feeding the
last 300mm of the cut.

4. The opening around the cutter should
be reduced to a minimum using
suitably sized insert rings in the table
and closing the back fence cheeks or
fitting a false fence on the back fence.

5. Whenever possible use a work
holding device or jig to secure

component being machined. Ensure
any attachment is securely fitted to the
workbench, with table surface at
approximately hip height.

6. Use a No-Volt Release Switch. Ensure
it is fixed securely, easily accessible
and used correctly.

7. In router table (inverted) mode, stand
to the front right of the table. The
cutter will rotate anti-clockwise when
viewed from top so the feed direction
is from the right (against the rotation of
the cutter). In overhead mode, stand
to the front left of the machine table
and the feed direction is from the left.

8. Do not reach underneath table or put
your hands or fingers at any time in
the cutting path while tool is connected
to a power supply.

9. Never thickness timber between the
back of the cutter and the backfence.

Useful Advice When Routing

1. Judge your feed rate by the sound of
the motor. Feed the router at a
constant feed rate. Too slow a feed
rate will result in burning.

2. Trial cuts should be made on waste
material before starting any project.

3. When using some attachments e.g. a
router table or dovetail jig, a fine
height adjuster is recommended.

4. When using a template guide bush,
ensure there is sufficient clearance
between cutter tip and inside edge of
bush and that it cannot come into
contact with collet and nut. Ensure
cutter and guide bush are concentric.

Router Cutter Repair/Maintenance

1. Repair of tools is only allowed in
accordance with the manufacturers
instructions.

3. The design of composite (tipped) tools
shall not be changed in process of
repair. Composite tools shall be
repaired by a competent person i.e. a
person of training and experience, who
has knowledge of the design
requirements and understands the
levels of safety to be achieved.

4. Repair shall therefore include, e.g. the
use of spare parts which are in
accordance with the specification of
the original parts provided by the
manufacturer.

5. Tolerances which ensure correct
clamping shall be maintained.

6. Care shall be taken that regrinding of
the cutting edge will not cause
weakening of the body and the
connection of the cutting edge to the
body.

Version 7.1 06/2006

VJS/AG/36

-4-

ITEMS ENCLOSED

ITEMS REQUIRED

I Plunge router (or jigsaw/circular saw).

I Clamps x 3.

I Hand tools.

x2

x2

x1

x2

x1

x1

x1

x1

x1

x2

x1

(fitted to

protractor)

x1

GUARANTEE

VJS/AG/36

x1

x2

x2

x1

x2

VJS/AG/36

-5-

DESCRIPTION OF PARTS

A Alloy extrusion 42” with scale and

end caps

B Main body with protractor plate

and scale
C Bottom rail
D Zero scale plate
E Alloy connector
F Alloy connector to extrusion knobs

(male)
G Alloy connector to protractor knobs

(female)
H Alloy connector to protractor plate

fixing screws

I Plastic washer

J T-nut
K Knurled locking knob
L Adjustable locking lever (female)

M Adjustable locking lever plastic washer
N Main body to rail fixing screws
O Main body to rail fixing screw washers

P Zero scale plate fixing screws

Q Knurled angle locking knob park
R Metal washer

S Hex key 3mm A/F
T Endcap

U Instructions

A

O

N

F

I

L

E

K

R

P

S

D

M

R

H

J

R

T

Q

G

U

B

C

VJS/AG/36

-6-

The angle guide requires assembly before use,
please use the drawing on page 5 as a guide.

I Remove knurled locking knob and place in

park on the protractor.

I Place plastic washer and metal washer on

stud on protractor assembly and fit adjustable
locking lever.

ASSEMBLY & ADJUSTMENT

I Remove end caps on the extrusion and

slide the two T-nuts into the slot of the
extrusion.

I Refit end caps to alloy extrusion.
I Fit fixing screws into the alloy connector (the

hex head sits in the channel) and then the
metal washers. Loosely tighten female knobs
onto the screws.

I Fit the alloy connector to the alloy extrusion

by locating the two holes of the alloy
connector with the two T-nuts in the alloy
extrusion. Place the plastic washers over
each hole and secure with the male knobs.

Adjusting Guide Angle

I Loosen the locking lever and angle the

extrusion at the required angle.

I Lock angle protractor by tightening the

locking lever.

I The angle guide has a range from 25º to 155º.

155°

25°

I Tighten the two male knobs.
I Place alloy extrusion and connector assembly

on the protractor body washers and tighten
the male knobs to secure.

Metal Washer

Plastic Washer

Park

30

40

50

60

70

80

5

0

90

5

80

70

60

50

0

4

30

VJS/AG/36

90°

60°

120°

45°

135°

30°

150°

(-30º)

(-45º)

(-60º)

Preset Angles

Adjusting Extrusion Position to Main Body

I Loosen the alloy connector to extrusion knobs to

allow the extrusion to be slid backwards or
forwards along the alloy connector.

I Ensure both T-nuts remain in the extrusion slot.
I Once position is achieved, lock the knobs to

secure.

Preset Angles

I When using a preset angle, position the

extrusion and protractor at the required angle
and use the knurled locking knob in the hole
to lock the guide.

I When not in use the knurled locking knob can

be stored in the park on the protractor

If the extrusion is used with the end
caps removed ensure when sliding
the extrusion that both T-nuts remain
in the extrusion slot.

Zeroing Protractor Guide

The variable angle guide is factory set, however
it has been designed so that the angle protractor
can be zeroed. The bottom rail is secured to the
main body by three machine screws that can be
loosened with the supplied hex key. Two of the
screws run through slots, which allow the bottom
rail to be pivoted slightly, either forward or
backwards which will allow for zeroing.

To zero angle guide:­I Remove alloy extrusion and alloy connector

from the main body assembly.

I Loosen the adjustable locking lever, and

place the knurled locking knob at the 90°
position in the protractor, and tighten down.
This locks the protractor in position.

I Loosen the three socket head screws that

hold the bottom rail to the main body using
the hex key, so the bottom rail can move.

I Using a try square position a planed timber

batten (12mm to 18mm thick) to the bench
perpendicular to an edge, leaving about
100mm projecting from the bench edge,
and clamp securely (ensuring clamps will not
get in the way of the main body assembly).

I Position the main body assembly so that the

loose bottom rail is up against the bench
edge and slide main body assembly towards
the timber batten. Adjust the main body
assembly (by pivoting slightly) so the end of
the protractor is touching the batten along the
protractor ends entire length.

0

90

3

0

3

0

5

5

321

0

90

3

0

3

0

5

5

I Ensure the bottom rail is touching the bench

edge along its length and lock the socket
head screws with the hex key.

-7-

Knurled locking knob

30

5

0

90

5

321

30

Bench

90°

Batten

Square

Clamp

Clamp

VJS/AG/36

-8-

OPERATION

Setting Guide Angle

I Set the angle guide to the required angle,

either using the preset angles on the
protractor and the knurled locking knob, or by
using the adjustable locking handle for other
angles.

I Always ensure the adjustable locking handle

is tight.

I The alloy extrusion can slide along the alloy

slide bracket to suit the application, and then
locked in place using the male locking knobs.

I For sawing, the alloy extrusion should be set

proud (lead-in) of the component edge at
least 125mm to give the saw base-plate a
sufficient guidance area. A 125mm lead-out
should also be used.

I Always check the alloy extrusion is longer

than the component, so the power tool is
always guided.

Marking Out for the Cut Line

To set the angle guide to a cut line marked on
the material, measure the distance from the
blade or cutter edge to the base edge of the saw
or router. This is the offset. Transfer this offset
from the cut line and draw a new line. This new
line is the position for the angle guide. If the
same saw, or same router and router cutter
diameter combination are being used, two
spacers can be made to the same width as the
offset to aid setting up in future.

X= Offset distance required from edge of guide
to edge of cutter or blade.

The alloy extrusion can be removed
from the main body assembly by
loosening the female locking knobs
and lifting the extrusion up and away.

The angle guide must have a lead-in and lead­out of the component to ensure the router or saw
base plate is always guided. When using a
router at 90º the lead-in should be about 110mm
and lead-out minimum 55mm. This gives a
maximum router crosscut of 915mm. When
using a circular saw at 90º the lead-in should be
about 125mm and lead-out 125mm. This gives a
maximum saw crosscut of 780mm.

As the angle is changed from 90º, the crosscut
capacity will be reduced. Furthermore the lead-in
may need to be increased accordingly
depending on the orientation of the protractor
assembly. Please see below:

(x) Lead-in Lead-out

= 915mm 110mm 55mm

= 780mm 125mm 125mm

= 590mm 200mm 55mm

= 530mm 200mm 125mm

= 630mm 110mm 55mm

= 580mm 125mm 125mm

Crosscut Capacity

Lead-out

90º

0
3

5

0

90

Lead-in

0

3

x

Lead-out

x

45º

3
0

5

0

0
9

30

Lead-out

Lead-in

3
0

x

Lead-in

130º

30

0
9

5

5

0

0

VJS/AG/36

-9-

Clamping

Always use a minimum of two clamps to hold the
main body assembly of the angle guide to the
component and a third clamp to clamp extrusion.

The material being cut will need to
supported and clamped securely.

When carrying angle guide ensure
both protractor assembly and alloy
extrusion are held safely.

Clamp

Clamp

Component

Always place power tool to the right
hand side of the alloy extrusion, to
prevent the cutting tool cutting into
the main body assembly.

Routing or Sawing using the
Angle Guide

Before cutting ensure the router or saw will run
along the length of the alloy extrusion without
fouling. Always place the power tool to the right
hand side of the alloy extrusion.

I Ensure power tool cable cord is kept clear of

cutting area, and that the cutting blade will not
damage anything below the component.

I Always feed the power tool the correct way

along the alloy extrusion.

I When using a saw, ensure the circular saw

motor body does not foul the assembly. Adjust
the saw plate to raise the motor higher if
necessary.

When using a portable circular saw,
which has a left sided motor body,
ensure the depth of cut is set so that
the motor body is a minimum 35mm
(1-3/8”) above the component.
Alternatively if practical use the saw
from the other end of the extrusion.

Regularly check knobs, handles and
locking nuts are tight.

I If a housing is being routed which is wider

that the router cutter, the angle guide can be
repositioned for the second cut, by loosening
the clamps, moving to new position and then
clamping again.

ACCESSORIES

Only use original Trend accessories:

Two types of friction clamp are available. They
can be used with the guide between 30º to 150º.
One clamp is fitted at either end of the extrusion.
Please note at shallow angles the clamp pad will
overhang the edge of the component.

Ref. VJS/CK

Sliding friction clamp (pair) clamping
thickness 32mm (1 1/4”)

Ref. VJS/CK/L

Sliding friction clamp (pair) clamping
thickness 51mm (2”)

VJS/CK/L Clamp

Alternatively a pair of accessory friction sliding
clamps can be used. Please see Accessories
Section. Once the end caps has been removed,
they are inserted into each end of the extrusion
and slid into the required positions.

VJS/AG/36

-10-

MAINTENANCE

This accessory has been designed to operate
over a long period of time with minimum of
maintenance. Continual satisfactory operation
depends upon proper tool care and regular
cleaning.

Cleaning

I Keep the grooves on the extrusion and

knob threads clear of sawdust.
Regularly clean with a soft cloth.

Lubrication

I Your accessory requires no additional

lubrication.

Storage

I Store accessory safely on wall hooks.

ENVIRONMENTAL
PROTECTION

Recycle raw materials instead of disposing
as waste.

Packaging should be sorted for environmental
friendly recycling. The product and its
accessories at the end of its life should be
sorted for environmental-friendly recycling.

GUARANTEE

The accessory carries a manufacturers
guarantee in accordance with the conditions on
the enclosed guarantee card.

VJS/AG/36

-11-

VJS/AG/36 - SPARE PARTS DIAGRAM

v1.0 01/2010

Item Qty. Desc. Ref.

1 1 Extrusion 1070mm WP-VJS/07C
2 1 Main Body with Protractor Plate and Scale WP-VJS/AG/01
3 1 Bottom Rail WP-VJS/AG/02
4 1 Zero Scale Plate WP-VJS/AG/03
5 1 Alloy Connector WP-VJS/AG/04
6 2 Knob Male UNC1/4-20 x 3/8” WP-VJS/AG/05
7 2 Knob Female UNC1/4-20 WP-VJS/AG/06
8 2 Bolt Hex UNC1/4-20 x 3/4 WP-VJS/AG/07

9 2 Washer 14 x 6.5 x 2.5mm Plastic WP-VJS/AG/08
10 2 T-nut UNC1/4-20 WP-VJS/AG/09
11 1 Knurled Locking Knob M6 Male WP-VJS/AG/10
12 1 Adjustable Lever Female UNC1/4-20 WP-VJS/AG/11
13 1 Washer 16 x 6.5 x 1.5mm WP-VJS/AG/12
14 3 Machine Screw Button M5 x 12mm Socket WP-SCW/83
15 3 Washer 12 x 5.5 x 1.0mm WP-VJS/AG/13
16 2 Machine Screw Button M5 x 8mm Socket WP-VJS/AG/14
17 1 Hex Key 3mm A/F WP-AP/03
18 2 Extrusion end cap WP-VJS/06
19 1 Scale 920mm Metric/Imperial WP-VJS/04C
20 1 Manual MANU/VJS/AG/36

VJS/AG/36

-12-

VJS/AG/36 - SPARE PARTS DIAGRAM V1.0 01/2010

1

6

14

15

17

12

11

16

4

2

3

13

13

9

13

7

20

5

9

8

10

19

18

MANU/VJS/AG/36 v1

© Copyright Trend 2010. No part of this publication may be reproduced, stored or transmitted in any form without prior permission.

Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools

cannot be held liable for any material rendered unusable or any form of consequential loss. E&OE

RECYCLABLE

Trend Machinery & Cutting Tools Ltd.

Odhams Trading Estate St Albans Road
Watford WD24 7TR England

Tel: [phone]
[e-mail]
www.trend-uk.com
