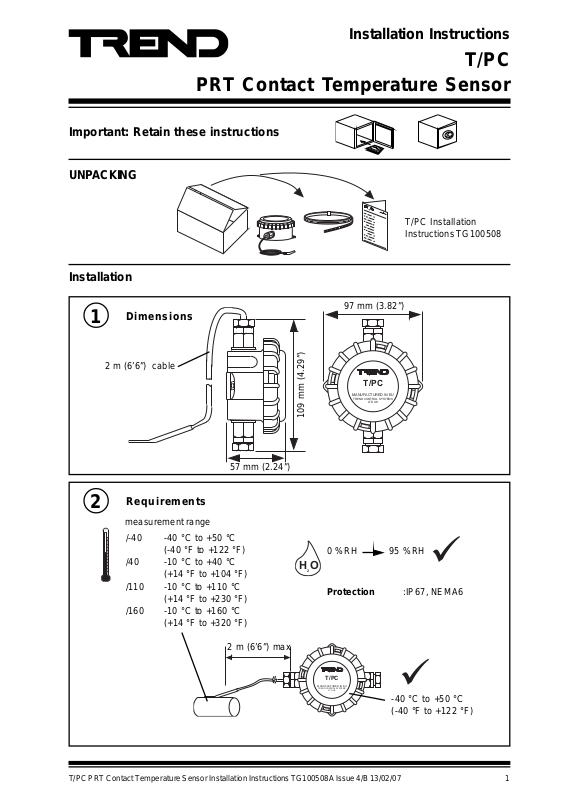

PRT Contact Temperature Sensor
Important: Retain these instructions
UNPACKING
Installation
Installation Instructions
T/PC
T/PC Installation
Instructions TG100508
Dimensions
1
2 m (6’6”) cable
Requirements
2
measurement range
/-40 -40 °C to +50 °C
/40 -10 °C to +40 °C
/110 -10 °C to +110 °C
/160 -10 °C to +160 °C
57 mm (2.24”)
(-40 °F to +122 °F)
(+14 °F to +104 °F)
(+14 °F to +230 °F)
(+14 °F to +320 °F)
2 m (6’6”) max
97 mm (3.82”)
T / P C
M A N U F A C T U R E D IN E U
T R E N D C O N T R O L S Y S T E M S
L T D U K
109 mm (4.29”)
0 %RH 95 %RH
H O
2
Protection :IP67, NEMA6
T / P C
M A N U F A C T U R E D I N E U
T R E N D C O N T R O L S Y S T E M S
L T D U K
-40 °C to +50 °C
(-40 °F to +122 °F)
T/PC PRT Contact Temperature Sensor Installation Instructions TG100508A Issue 4/B 13/02/07
1
Page 2
T/PC Installation Instructions
Installation (continued)
Fix to Wall
3
Drill 2 pilot holes
ab
85 mm (3.35”)
Tighten 2 screws
2 off No 6 (M3.5) screws
Fix Probe
4
either use jubilee clip (provided)
recommended use of thermally conductive paste
Remove Lid
5
a
Remove Connector
6
or use cable tie(s) (not provided)
b
Caution: This unit contains static
damage to the units. BS EN100015/
1 Basic Specification: protection of
electrostatic sensitive devices.
sensitive devices. Suitable
anti-static precautions
should be taken throughtout
the operation to prevent
2
T/PC PRT Contact Temperature Sensor Installation Instructions TG100508A Issue 4/B 13/02/07
Page 3
Installation Instructions T/PC
Installation (continued)
Insert Cable
7
either use M20 flexible conduit
or use M16 cable gland
Wire to Controller
8
polarity independent
IQ system TP/I/22/HF/200 (Belden
8761) cable recommended.
Terminal size 0.5 to 2.5 mm
20 AWG)
Note that if connecting to an IQ22x controller (including /ADL or /OC), do not connect directly to C (+24V),
instead connect to AUX+ (+24V).
Replace Connector
9
10
Replace Lid
2
(14 to
Sensor
Terminate screen at IQ end only
Sensor
b
IQ1xx, IQ2xx
24 Vdc
IN
IQ3
0 (0 V)
N (in)
+ (24 V)
I
Analogue input
channel linked
for current (I)
a
Note that IP67 (NEMA6) rating is only achieved if the sensor is correctly installed with
cable or conduit connection fully tightened.
T/PC PRT Contact Temperature Sensor Installation Instructions TG100508A Issue 4/B 13/02/07
3
Page 4
T/PC Installation Instructions
Installation (continued)
11
Configure IQ
I Q
or
I Q
IQ Configuration Manual
90-1533
12
Set up IQ Sensor Type
It is recommended to use SET (Software Tool) for the setting of the sensor type module.
For all IQ2 series controllers with firmware version 2.1 or greater, or IQ3 series controllers,
the following SET Unique Sensor References should be used:
(T/PC/-40) PRT I -40+50 (°C) PRT I -40+122 F (°F)
(T/PC/40) PRT I -10+40 (°C) PRT I +14+104 F (°F)
(T/PC/110) PRT I -10+110 (°C) PRT I +14+230 F (°F)
(T/PC/160) PRT I -10+160 (°C) PRT I +14+320 F (°F)
Alternatively enter scaling manually as defined in table below.
For all other IQ controllers see Sensor Scaling Reference Card TB100521A
tYpe Sensor digI/P Driver Function loGic Loop scHedule seQnc Analog
digBit Knob sWitch Time Zone Oss User addRess intcoN calarM reView Plot
calEndar
= ?
Yn<CR>
TYPE n
:=?
S=5 (characterise)
Y= , E= , U= , L= , P= , I1= , I2= , O1= , O2=
X <CR>
tinU04-/04/011/061/
Y
E
U
L
P
x
1
2
epyttupni)tnerruc(2)tnerruc(2)tnerruc(2)tnerruc(2
tnenopxE 3333
stinUC°F°C°F°C°F°C°F°
reppU05221044010110320610
rewoL04-04-01-4101-4101-41
stnioP 22222222
xIxOxOxOxOxOxOxOxO
404-04-01-4101-4101-41
020522104401011032061023
23
13
Test system
Δ T
T / P C
M A N U F A C T U R ED IN E U
TR E N D C O N TR O L S Y S TE M S
LT D U K
