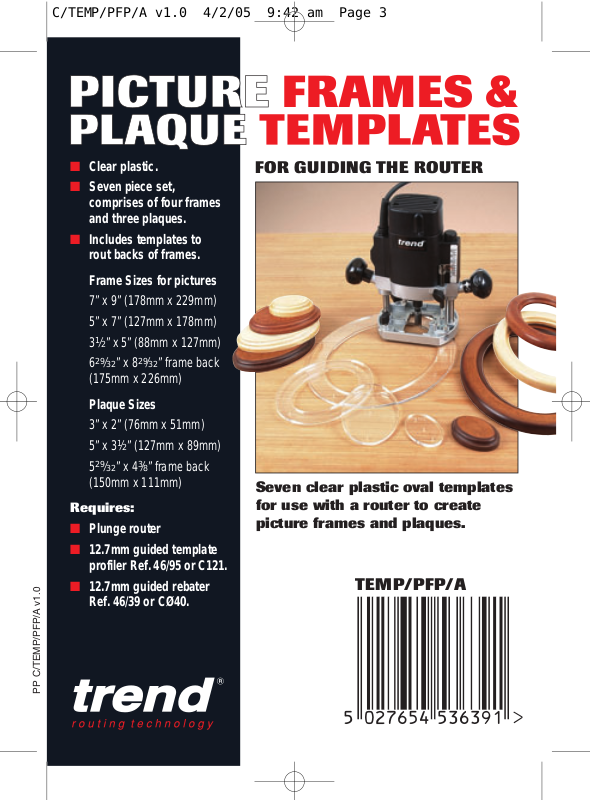

I
Clear plastic.
I
Seven piece set,
comprises of four frames
and three plaques.
I
Includes templates to
rout backs of frames.
Frame Sizes for pictures
7” x 9” (178mm x 229mm)
5” x 7” (127mm x 178mm)
1
3
⁄2” x 5” (88mm x 127mm)
29
6
⁄32” x 829⁄32” frame back
(175mm x 226mm)
Plaque Sizes
3” x 2” (76mm x 51mm)
1
5” x 3
⁄2” (127mm x 89mm)
29
5
⁄32” x 43⁄8” frame back
(150mm x 111mm)
Requires:
I
Plunge router
I
12.7mm guided template
profiler Ref. 46/95 or C121.
I
12.7mm guided rebater
Ref. 46/39 or CØ40.
FOR GUIDING THE ROUTER
Seven clear plastic oval templates
for use with a router to create
picture frames and plaques.
TEMP/PFP/A
PICTURE FRAMES & PLAQUE TEMPLATES
REF TEMP/PFP/A
Thank you for purchasing this Trend product
which should give lasting performance if use in
accordance with these instructions. Please read
instructions carefully before use.
The following symbols are used throughout
these instructions.
Denotes risk of personal injury, loss of life or
damage to the tool in case of non-observance of
the instructions.
TEMPLATES
Frames for Picture
Frame to suit 7” x 9” (178mm x 229mm).
Frame to suit 5” x 7” (127mm x 178mm).
Frame to suit 3
Frame size 629⁄32” x 829⁄32” (175mm x 226mm)
to rout backs for 7” x 9” and 5” x 7” picture
frames with 12.7mm (1/2”) rebate.
Plaques
Plaque size 5” x 3
Plaque size 3” x 2” (76mm x 51mm).
Plaque size 529⁄32” x 4 3/8” nominal (150mm x
111mm) to rout back for 3
with 12.7mm (1/2)” rebate.
1
⁄2” x 5” (89mm x 127mm).
1
⁄2” (127mm x 89mm).
1
⁄2” x 5” picture frame
OPERATION
Refer to the instruction manual of your power
tool.
This unit must not be put into service until it has
been established that the power tool to be
connected to this unit is in compliance with
98/37/ec (identified by the CE marking on the
power tool).
INTENDED USE
The templates are intended to be used with a
plunge router with suitable router cutters fitted to
make picture frames and plaques in man-made
boards and natural timbers.
SAFETY
Please read and understand the safety points at
end of this instruction as well as the power tool
instructions before use.
ITEMS REQUIRED
I Double sided sticky tape or pins or screws.
I Plunge router.
I Bearing guided 12.7mm template profiler.
I Bearing guided 12.7mm rebater.
I Bearing guided moulding cutter
I Jigsaw.
I Clamps.
I Sacrificial worktop on bench.
I Hand tools.
Making a Picture Frame
To make a picture frame either MDF or glued
blocks of timber can be used. The frame will
need to be a minimum of 20mm thick but will be
dependent on depth of mould required. If using
glued blocks ensure the long grain is used to
prevent fracture.
The picture frame can be made using a hand
router, and a 12.7mm diameter template profiler,
with shank mounted bearing guide. The frames
have two holes that allow the frame to be
secured to the material using pins. Alternatively
double sided sticky tape or hot glue can be
used. The template material can also be drilled
and countersunk to accept a woodscrew.
Pencil
Pin hole
Template
Pin hole
Workpiece
Draw around the template on both the inside
and outside edge. This pencil line will give you
the frame outline. Allowing for a 3mm offset,
rough-cut the outside edge of the pencil line with
a jigsaw or band saw. The inside aperture
should also be jig sawn with an extra 3mm
offset to give a rough frame outline.
Cutline to
give offset
Outline of
Template
Workpiece
Place the template onto the frame and secure it
with pins (or double-sided tape) etc. ensuring
the pins are not proud of the top surface.
Template
Rough saw
line
Clamp the template and component onto a
workbench; the template will need to be
uppermost. You may need to place a sacrificial
bed onto the work-bench as the router cutter will
cut into it.
Template
workpiece
Sacrificial
bed
Fit cutter to router and set cutter height so that
the shank mounted bearing guided profiler will
contact the template. Lock depth and with the
router on the outside edge of the template,
switch on router and begin to cut in anticlockwise direction until the frame outside edge
is complete.
Repeat operation for inside edge but this time
cut in a clockwise direction.
Rebating Back of Frame
The rebate for the back of the frame can be
routed with a bearing guided rebate cutter that
can cut a 12.7mm rebate. The inside edge
rebate can be cut using a hand router or in a
router table. If a router table is used ensure that
the cutter is guarded and that a lead on pin is
used. The rebate height should allow for the
thickness of the glass, picture and back.
Ensure that you feed in the clockwise direction
when cutting the inside rebate.
12.7mm
Cross section of frame.
Moulding the Frame
To rout the mould onto the face of the frame the
mould can created using a bearing guided
cutter, on both inside and outside edge. This
can be achieved using a hand router with anti-tilt
support fitted or using a router in a router table.
Routing the Back
The back can be routed using the correct size
template and 12.7mm profiler. The templates
for cutting the back will create a back that is
about 2mm smaller. This gap allows for ease of
assembly. The back can be made from 3mm
hardboard. Draw around the template and
rough-cut 3mm oversize. Secure the template
to the back and with the template uppermost
and using a shallow template profiler in the
handheld router rout out the back in an anticlockwise direction. (For the back of the 5” x 7”
frame the template will need to be rotated in a
clockwise direction as the inside of the template
is used). The back can be used as a template
for the glass to be cut professionally.
Finishing
Apply a finish to the frame. After the glass is
fitted and picture is placed in the back it can be
secured to the frame using pins. Two eyehooks
and picture wire can be used to hang picture.
Depth to cut glass,
picture and back.
Making a Plaques/Plinth
Plaques can be routed on both a router table or
with a hand router; the procedure is the same
as creating the outside of a picture frame. The
plaques can be made from MDF, or timber. A
template profiler cutter or trimmer will allow an
exact size plaque, or a guide bush and straight
cutter can be used if a slightly larger plaque is
required. It is advisable to use the smallest
plaque on a router table so that it can be held
more securely in a user made work table
device. Once the edge is profiled the plaque
be moulded with a guided moulding cutter.
Router
Anti-tilt
support
Guided
Finishing
Apply a finish to the plaque. Glue baize or use
soft pads on the underside of the plaque.
Trend Machinery & Cutting Tools Ltd.
Odhams Trading Estate St. Albans Road
Watford WD24 7TR England
Enquires: ____________________0800 487363
Technical Support: ____0044 (0) 1923 224681
Fax:__________________0044 (0) 1923 236879
Email: ____________mailserver@trendm.co.uk
Web: ____________www.trendmachinery.co.uk
© Copyright Trend 2005. Our policy of continuous improvement means that specifications may change without notice.
moulding cutter
Trend Machinery and Cutting Tools cannot be held liable for any material rendered unusable or any form of
cross section
of frame.
RECYCLABLE
consequential loss. E&OE. ® All trademarks acknowledged.
MAINTENANCE
The template has been designed to operate
over a long period of time with minimum of
maintenance. Continual satisfactory operation
depends upon proper tool care and regular
cleaning.
I Cleaning
Regularly clean template with a soft cloth.
Do not use solvents.
I Lubrication
Templates do not require lubrication.
RECYCLING
Template, accessories and packaging should
be sorted for environmentally friendly recycling.
GUARANTEE
All Trend products guaranteed against any
defects in either workmanship or material,
except products that have been damaged due
to improper use or maintenance.
Safety Points
1. Always wear eye protection such as
goggles, ear protection and use effective
respiratory protection.
2. Before making adjustments to the router,
like changing the cutter, make sure the
power is isolated correctly.
3. Before re-connecting to the mains supply,
make sure the power switch on the router
is in the ‘off’ position.
4. Do not switch on the router with the
cutter in contact with the workpiece.
5. Before making adjustments always allow
the cutter to stop rotating.
6. When routing keep your hands, hair and
clothing clear of the cutter.
RS 28982
Stockholding
7. Make sure you follow the instructions
& Supply
which came with your router.
8. Ensure all visors, guards and dust
extraction are fitted.
9. Trial cuts should be made in waste
material before starting any project.
PP C/TEMP/PFP/A v1.0
