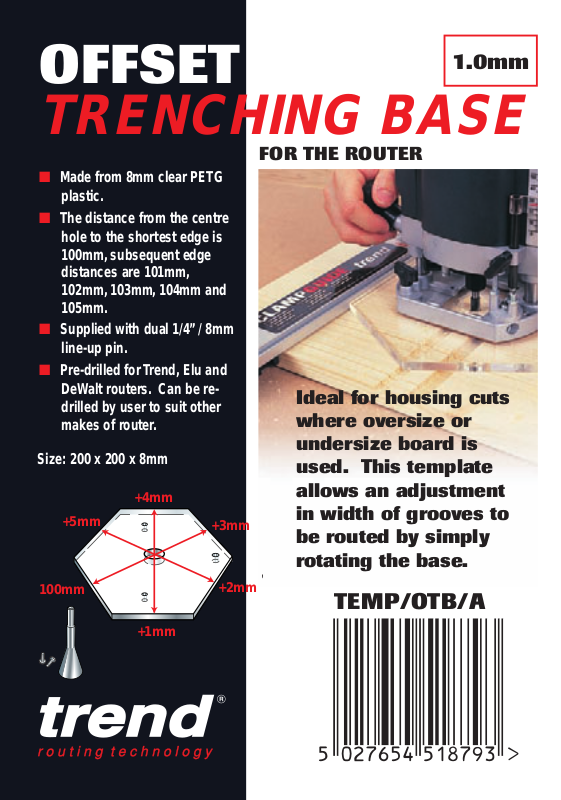

OFFSET
1.0mm
TRENCHING BASE
FOR THE ROUTER
■
Made from 8mm clear PETG
plastic.
■
The distance from the centre
hole to the shortest edge is
100mm, subsequent edge
distances are 101mm,
102mm, 103mm, 104mm and
105mm.
■
Supplied with dual 1/4” / 8mm
line-up pin.
■
Pre-drilled for Trend,Elu and
DeWalt routers. Can be redrilled by user to suit other
makes of router.
Size: 200 x 200 x 8mm
+4mm
+5mm
100mm
+1mm
+3mm
+2mm
Ideal for housing cuts
where oversize or
undersize board is
used. This template
allows an adjustment
in width of grooves to
be routed by simply
rotating the base.
TEMP/OTB/A
INSTRUCTIONS FOR
REF.TEMP/OTB/A
1.
Isolate router from power supply. Turn
router upside down.
2.
Place offset base plate on router base,
line up screw holes with holes in plate.
Hand tighten pan head screws into
tapped holes in router base.
3.
4.
Put line-up taper pin through hole in
offset plate and slide into collet
assembly. Hand tighten collet nut.
5.
Gently release plunge. Line-up taper pin
will self centre in plate hole. Once
centred lock plunge knob/lever again.
Tighten fixing screws. Remove line-up
taper pin. Offset base plate is now ready
for use.
6.
Plunge router down and lock plunge
knob/lever.
© Trend Machinery & Cutting Tools Ltd 2001 E & OE
For safety reasons, please read all power tool instructions before use.
By rotating the offset base plate a
groove can be cut 1.0mm wider on the
next pass. By rotating plate again the
groove will be 1.0mm wider again.
1/4"
Spare part:
Ref.TEMP/OTB/PIN1
8mm
PP C/TEMP/OTB/A
