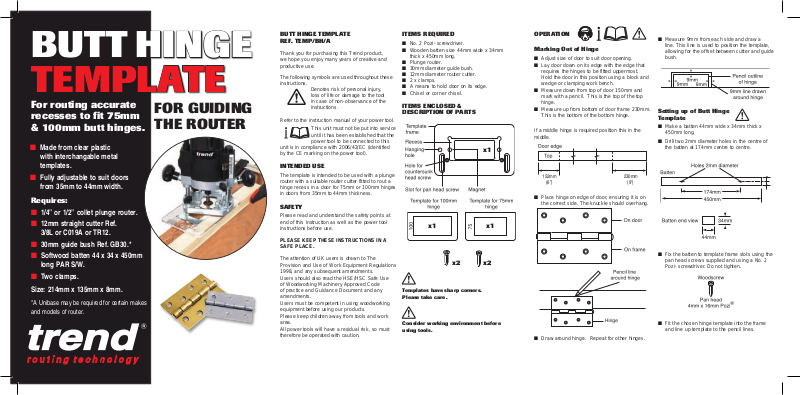

BUTT HINGE
TEMPLATE
For routing accurate
recesses to fit 75mm
& 100mm butt hinges.
n Made from clear plastic
with interchangable metal
templates.
n Fully adjustable to suit doors
from 35mm to 44mm width.
Requires:
n 1/4” or 1/2” collet plunge router.
n 12mm straight cutter Ref.
3/8L or C019A or TR12.
n 30mm guide bush Ref. GB30.*
n Softwood batten 44 x 34 x 450mm
long PAR S/W.
n Two clamps.
Size: 214mm x 135mm x 8mm.
*A Unibase may be required for certain makes
and models of router.
FOR GUIDING
THE ROUTER
BUTT HINGE TEMPLATE
REF. TEMP/BH/A
Thank you for purchasing this Trend product,
we hope you enjoy many years of creative and
productive use.
The following symbols are used throughout these
instructions.
Denotes risk of personal injury,
loss of life or damage to the tool
in case of non-observance of the
instructions.
Refer to the instruction manual of your power tool.
This unit must not be put into service
until it has been established that the
unit is in compliance with 2006/42/EC (identified
by the CE marking on the power tool).
INTENDED USE
The template is intended to be used with a plunge
router with a suitable router cutter fitted to rout a
hinge recess in a door for 75mm or 100mm hinges
in doors from 35mm to 44mm thickness.
SAFETY
Please read and understand the safety points at
end of this instruction as well as the power tool
instructions before use.
PLEASE KEEP THESE INSTRUCTIONS IN A
SAFE PLACE.
The attention of UK users is drawn to The
Provision and Use of Work Equipment Regulations
1998, and any subsequent amendments.
Users should also read the HSE/HSC Safe Use
of Woodworking Machinery Approved Code
of practice and Guidance Document and any
amendments.
Users must be competent in using woodworking
equipment before using our products.
Please keep children away from tools and work
area.
All power tools will have a residual risk, so must
therefore be operated with caution.
power tool to be connected to this
ITEMS REQUIRED
n No. 2 Pozi
n Wooden batten size 44mm wide x 34mm
n Plunge router.
n 30mm diameter guide bush.
n 12mm diameter router cutter.
n 2 x clamps.
n A means to hold door on its edge.
n Chisel or corner chisel.
ITEMS ENCLOSED &
DESCRIPTION OF PARTS
®
screwdriver.
thick x 450mm long.
x1
x1
Templates have sharp corners.
Please take care.
Consider working environment before
using tools.
x2
x1
x2
OPERATION
Marking Out of Hinge
n Adjust size of door to suit door opening.
n Lay door down on its edge with the edge that
requires the hinges to be fitted uppermost.
Hold the door in this position using a block and
wedge or clamping work bench.
n Measure down from top of door 150mm and
mark with a pencil. This is the top of the top
hinge.
n Measure up from bottom of door frame 230mm.
This is the bottom of the bottom hinge.
If a middle hinge is required position this in the
middle.
152mm
(6”)
n Place hinge on edge of door, ensuring it is on
the correct side. The knuckle should overhang.
n Draw around hinge. Repeat for other hinges.
230mm
(9”)
n Measure 9mm from each side and draw a
line. This line is used to position the template,
allowing for the offset between cutter and guide
bush.
Setting up of Butt Hinge
Template
n Make a batten 44mm wide x 34mm thick x
450mm long.
n Drill two 2mm diameter holes in the centre of
the batten at 174mm centre to centre.
n Fix the batten to template frame slots using the
pan head screws supplied and using a No. 2
®
screwdriver. Do not tighten.
Pozi
n Fit the chosen hinge template into the frame
and line up template to the pencil lines.
MAINTENANCE
The accessory has been designed to operate
over a long period of time with minimum of
maintenance. Continual satisfactory operation
depends upon proper tool care and regular
cleaning.
Please use only Trend original spare parts and
accessories.
Cleaning
n Regularly clean the template with a soft
cloth.
n Do not use corrosive cleaning solutions.
Lubrication
n Your templates do not require lubrication.
Storage
n Always return product to it’s packaging after
use, or hang it on a wall hook.
GUARANTEE
All Trend products are guaranteed against
any defects in either workmanship or material,
except products that have been damaged due to
improper use or maintenance.
Trend Machinery & Cutting Tools Ltd.
Odhams Trading Estate St. Albans Road
Watford WD24 7TR England
Tel: 0044(0)1923 249911
technical@trendm.co.uk
www.trend-uk.com
RS 28982
Stockholding
& Supply
RECYCLABLE
© Copyright Trend 2012. E&OE. ® All trademarks acknowledged.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
as waste.
The packaging, product and its accessories at the
end of its life should be sorted for environmentally
friendly recycling.
Safety Points
1. Disconnect power tool and attachment from power supply
when not in use, before servicing, when making adjustments
and when changing accessories such as cutters. Ensure
switch is in “off” position and cutter has stopped rotating.
2. Read and understand instructions supplied with power tool,
attachment and cutter.
3. Current Personal Protective Equipment (PPE) for eye, ear
and respiratory protection must be worn. Keep hands, hair
and clothes clear of the cutter.
4. Before each use check cutter is sharp and free from damage.
Do not use if cutter is dull, broken or cracked or if any
damage is noticeable or suspected.
5. The maximum speed (nmax) marked on tool or in instructions
or on packaging shall not be exceeded. Where stated, the
speed range should be adhered to.
6. Insert the shank into the router collet at least all the way to
the marked line indicated on the shank. This ensures at least
3/4 of shank length is held in collet. Ensure clamping surfaces
are clean.
7. Check all fixing and fastening nuts, bolts and screws on
power tool, attachment and cutting tools are correctly
assembled, tight and to correct torque setting before use.
8. Ensure all visors, guards and dust extraction is fitted.
9. The direction of routing must always be opposite to the
cutter’s direction of rotation.
10. Do not switch power tool on with the cutter touching the
workpiece.
11. Trial cuts should be made in waste material before starting
any project.
12. Repair of tools is only allowed according to tool
manufacturers instructions.
13. Do not take deep cuts in one pass, take shallow passes to
reduce the side load applied to the cutter.
Please see www.trend-uk.com/safety for more safety advice.
Our policy of continuous improvements mean
that specifications may change without notice.
Trend Machinery & Cutting Tools Ltd. cannot be
held liable for any material rendered unusable,
or for any form of consequential loss.
Whilst holding the frame in position slide the
batten so that it touches the edge of the door
throughout its length.
n Tighten up the pan head screws to secure the
batten at this position.
n Double check that template is in the correct
position and that the batten is positioned
properly.
n Once the position is correct, using the two
countersunk holes as a guide drill two 2mm
diameter holes into the batten.
n Screw the two countersunk screws into the
countersunk holes in the template frame to
secure the batten properly.
n Check template to drawn line and using two
clamps secure the batten to the door edge.
Ensure clamps do not foul path of the router.
PP C/TEMP/BH/A v3.1
n
Setting up of Router
n Fit a 30mm guide bush to the router.
A universal sub-base Ref. UNIBASE may be
required for some makes and models of router.
n Fit the 12mm diameter cutter into the router
collet.
n Set depth stop to limit the depth of cut, this
can be achieved by placing the router onto the
template, and plunging door until the cutter
touches the work piece. Then place the butt
hinge onto the turret stop and lower depth stop
until it touches the hinge and then lock knob.
n Release router plunge. The depth stop is now
set to the hinge thickness.
Ensure working position is comfortable,
especially when setting up and routing.
Ensure door is clamped properly.
Ensure all fixing screws are tight and do not
foul the router.
Routing the Hinge Recess in
the Door Edge
n Place router with guide bush fitted into chosen
template in frame, switch on router and plunge
to depth. Rout in a clockwise direction until
the hinge recess is created.
n Release plunge and switch off router.
Check recess is correct.
Ensure working position is comfortable,
especially when setting up the jig and
routing a hinge recess in a door. Ensure
door is clamped properly.
n Release template and frame assembly and
repeat operation for the other hinge recess
positions.
n Use either a chisel or corner chisel to square
the rounded corners of the face plate. Check
fit of hinge.
n Fit the hinges to the door using the correct
screws supplied with the hinges.
Door Frame
This template can only be used with frames
or linings with removable stops and architrave.
n With the door prepared to fit the opening
including a sufficient gap and with the
hinges fitted place in frame or lining.
n Leave a 2mm clearance between top of
door and frame.
n Mark the hinge positions onto frame.
n Place the jig in position and allow 9mm
all the way round.
n Secure with clamps or screws.
n Repeat routing procedure as before.
Extra care must be taken as the router
will be held on its side.
n Fit hinges.
After use of the template, keep batten fitted
and store template properly.
ACCESSORIES
Please use only Trend original accessories.
Ref. WP-BH/T/3 Template for 3” hinge
(76.2mm).
Ref. WP-BH/T/4 Template for 4” hinge
(101.6mm).
Ref. GB30 30mm Guide Bush
Ref. 3/8LX1/4TC
TR12X1/4TC
C019X1/4TC
12mm diameter
router cutter.
SPARE PARTS
Please use only Trend original spare parts.
Ref. WP-BH/T/75 Template for 75mm hinge.
Ref. WP-BH/T/100 Template for 100mm hinge.
