T31
Please use only Trend original spare parts.

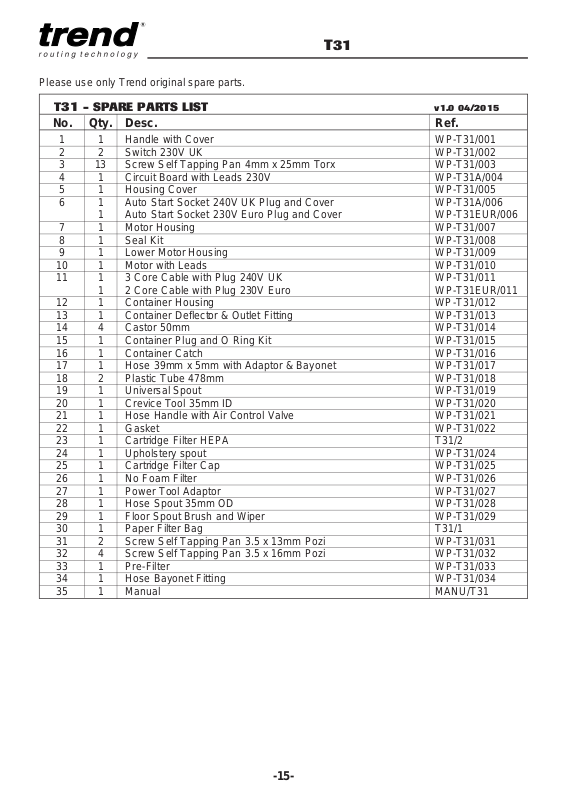

T31 - SPARE PARTS LIST v1.0 04/2015
No. Qty. Desc. Ref.
1 1 Handle with Cover WP-T31/001
2 2 Switch 230V UK WP-T31/002
3 13 Screw Self Tapping Pan 4mm x 25mm Torx WP-T31/003
4 1 Circuit Board with Leads 230V WP-T31A/004
5 1 Housing Cover WP-T31/005
6 1 Auto Start Socket 240V UK Plug and Cover WP-T31A/006
1 Auto Start Socket 230V Euro Plug and Cover WP-T31EUR/006
7 1 Motor Housing WP-T31/007
8 1 Seal Kit WP-T31/008
9 1 Lower Motor Housing WP-T31/009
10 1 Motor with Leads WP-T31/010
11 1 3 Core Cable with Plug 240V UK WP-T31/011
1 2 Core Cable with Plug 230V Euro WP-T31EUR/011
12 1 Container Housing WP-T31/012
13 1 Container Deflector & Outlet Fitting WP-T31/013
14 4 Castor 50mm WP-T31/014
15 1 Container Plug and O Ring Kit WP-T31/015
16 1 Container Catch WP-T31/016
17 1 Hose 39mm x 5mm with Adaptor & Bayonet WP-T31/017
18 2 Plastic Tube 478mm WP-T31/018
19 1 Universal Spout WP-T31/019
20 1 Crevice Tool 35mm ID WP-T31/020
21 1 Hose Handle with Air Control Valve WP-T31/021
22 1 Gasket WP-T31/022
23 1 Cartridge Filter HEPA T31/2
24 1 Upholstery spout WP-T31/024
25 1 Cartridge Filter Cap WP-T31/025
26 1 No Foam Filter WP-T31/026
27 1 Power Tool Adaptor WP-T31/027
28 1 Hose Spout 35mm OD WP-T31/028
29 1 Floor Spout Brush and Wiper WP-T31/029
30 1 Paper Filter Bag T31/1
31 2 Screw Self Tapping Pan 3.5 x 13mm Pozi WP-T31/031
32 4 Screw Self Tapping Pan 3.5 x 16mm Pozi WP-T31/032
33 1 Pre-Filter WP-T31/033
34 1 Hose Bayonet Fitting WP-T31/034
35 1 Manual MANU/T31
-15-
T31
T31 - SPARE PARTS DIAGRAM
Please use only Trend original spare parts.
1
3
31
4
16
8
9
12
10
22
v1.0 04/2015
2
32
5
7
6
3
17
34
20
24
19
28
27
21
18
15
26
14
13
30
23
29
11
35
25
33
-16-
