T10 & T11

Please read these instructions before use.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Page 2

T10 & T11

Dear Customer Thank you for purchasing this Trend product,

we hope you enjoy many years of creative and productive use.

Please remember to return your guarantee card within 28 days of purchase.

CONTENTS

TECHNICAL DATA ____________________ 1 SAFETY ELECTRICAL SAFETY EC DECLARATION OF CONFORMITY ___ 5 ITEMS ENCLOSED DESCRIPTION OF PARTS ASSEMBLY & ADJUSTMENT

– Switching On & Off – Depth of Cut – Fitting & Removing Cutters – Speed Control – Fixing Points for Accessories

T10

– Dust Extraction Spout – Fine Height Adjuster Accessory

T10 & T11

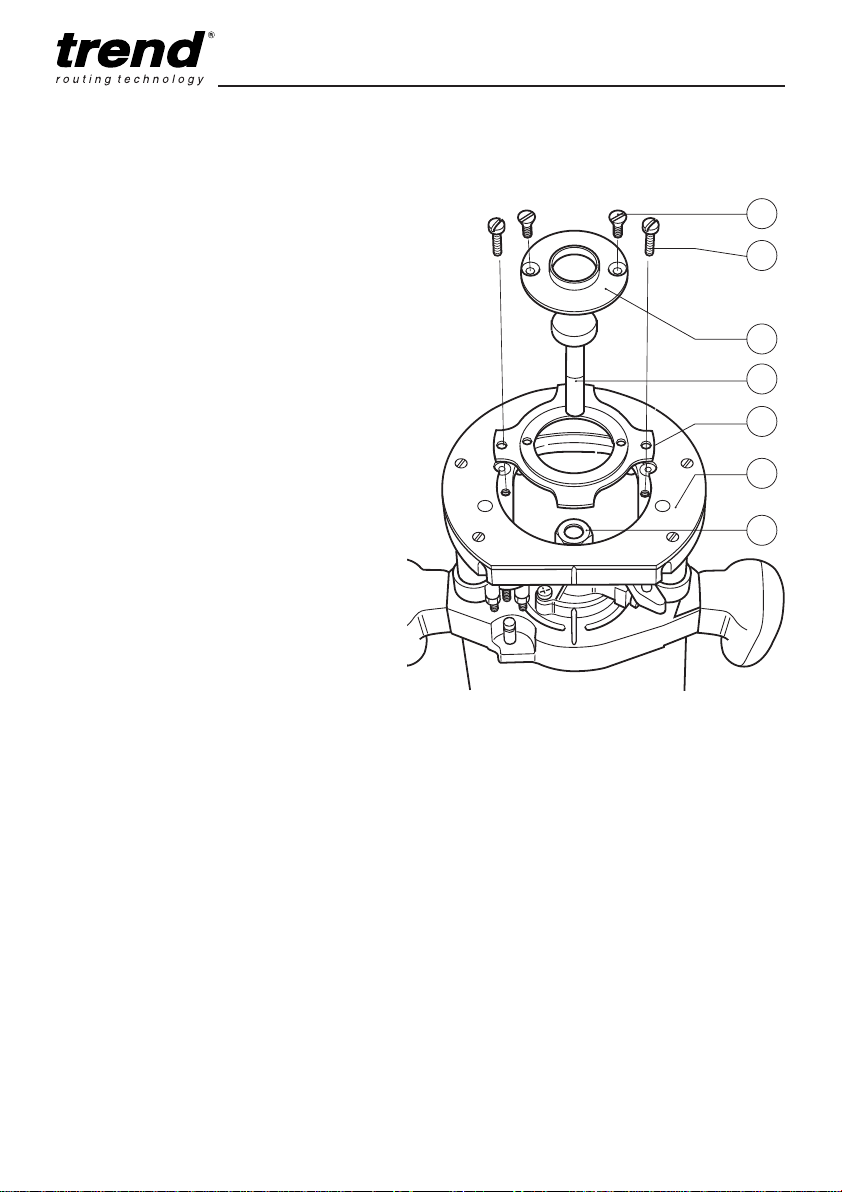

– Template Guide Bush

T11

– Dust Extraction Spout – Fine Height Adjuster – Accessories

OPERATION – Cutting Direction & Feed Speed

– Side-fence Routing – Template Guide Bush Routing – Beam Trammel Routing Accessory – Bearing Guided Cutters – Freehand Routing & Batten Routing

MAINTENANCE ENVIRONMENTAL PROTECTION_______ 22 GUARANTEE SPARE PARTS

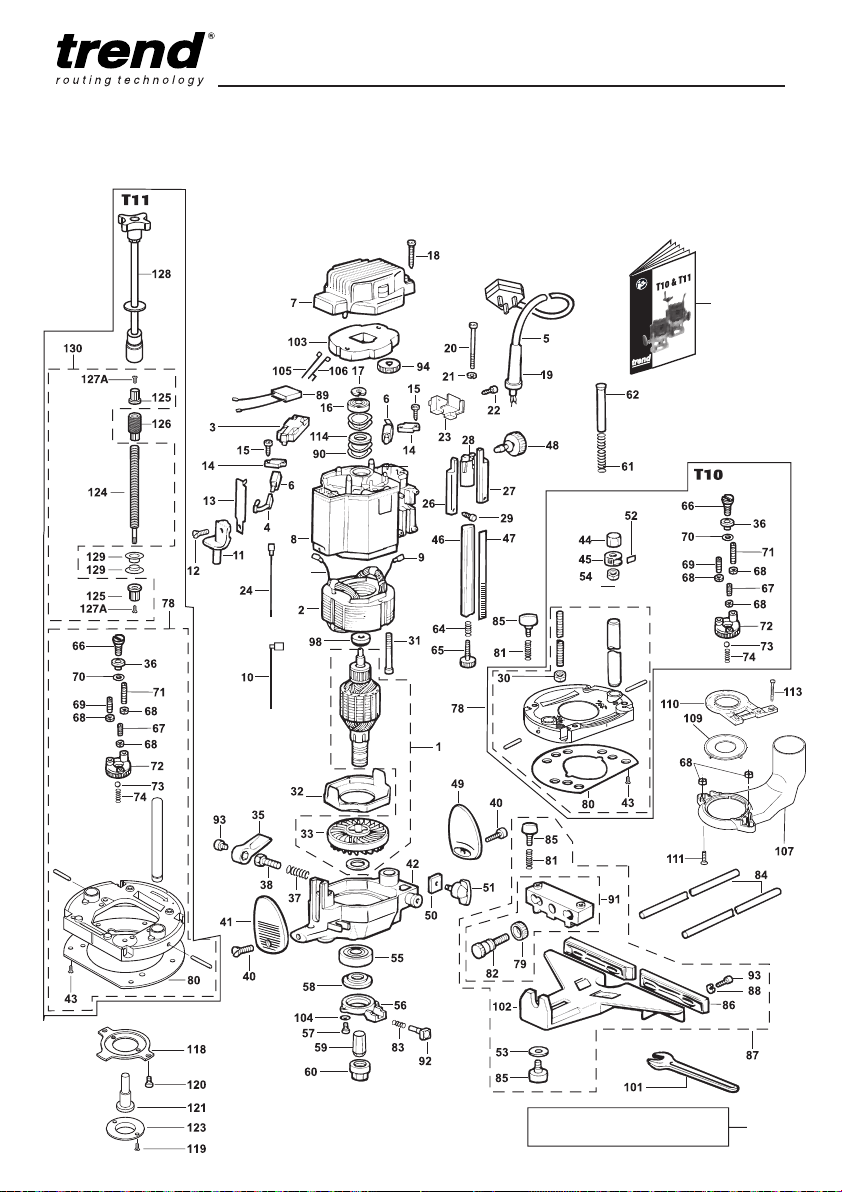

– Spare Parts List – Spare Parts Diagram

___________________________2-3

________________ 4

___________________ 5

_____________6-7

___________________ 8

________________________ 8

____________ 9

_____________________ 10

__________ 10

_______________ 11

________ 11

_______________ 12

_______________ 13

_________________ 14

_______________________ 15

_______ 16

__________________ 17

_________ 18

_____ 19

______________ 20

____ 21

_____________________ 22

_______________________ 22

__________________ 23-26

________________ 27

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

WARNING: indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may

result in property damage.

Denotes risk of electric shock.

Denotes risk of fire.

Additional Symbols Used

Wear Personal Protective Equipment (PPE). Ear, eye and respiratory protection must be worn.

Denotes risk of personal injury, loss of life or damage to the tool in case or non-observance of the instructions in this manual.

For 115 Volt

The 115V router is not supplied with a plug. We recommend a 32A BS4343 110V plug

is used. Minimum generator or transformer requirement 3 kVA continuous with a 32A BS4343 110V socket outlet.

The 115V router cannot be used with a 115V No-Volt Release Switch.

If you require further safety advice, technical information or spare parts, please call Trend Technical Support or visit www.trend-uk.com

Page 3

T10 & T11

ROUTER T10E & T11E

TECHNICAL DATA

Voltage UK & Eire V Europe V Power input W 2,000 Power output W 1,110 No-load speed min-1 8,000-20,000 Router 2 columns

carriage Router carriage mm 80

stroke Revolver mm 3-step, with

depth stop graduation & fine adjustment

Collet size UK & Eire inch 1/2 UK & Eire mm 12.7 Europe mm 12

Cutter diameter, T10 mm 50 max. T11 mm 70

Weight kg 5.2

Noise values and vibration values (triax vector sum) according to EN60745-2-17:

(emission sound dB(A) 92

pressure level) L

(sound power level) dB(A) 100

(uncertainty for the dB(A) 3.4

given sound level)

Vibration emission Value ah = m/s2 3.1 Uncertainty K = m/s2 1.5

The vibration emission level given in this information sheet has been measured in accordance with EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

230

230/115

WARNING: The declared vibration emission level represents the main application of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the side effects of vibration such as: maintain the tool and the accessories, keep hands warm, organisation of work patterns.

INTENDED USE

The router has been designed for professional heavy duty routing of wood, wood based materials and plastics. This router is intended for routing grooves, edges, profiles and slots as well as copy routing. At reduced speed with the appropriate router cutter fitted non-ferrous alloys can also be routed.

These routers are professional power tools. DO NOT use under wet conditions or in

presence of flammable liquids or gases. DO NOT let children come into contact with

this appliance. Supervision is required when inexperienced operators use this appliance.

This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.

-1-

Page 4

T10 & T11

SAFETY

WARNING:

Observe the safety regulations in the instruction manual of the power tool to be used. Please read the following instructions carefully. Failure to do so could lead to serious injury. When using electric tools, basic safety precautions, including the following should always be followed to reduce the risk of fire, electric shock and personal injury. Also observe any applicable additional safety rules. Read the following safety instructions before attempting to operate this product.

PLEASE KEEP THESE INSTRUCTIONS IN A SAFE PLACE.

The attention of UK users is drawn to The Provision and Use of Work Equipment Regulations 1998, and any subsequent amendments.

Users should also read the HSE/HSC Safe Use of Woodworking Machinery Approved Code of Practice and Guidance Document and any amendments.

Users must be competent with woodworking equipment before using our products.

IMPORTANT NOTE:

Residual Risk. Although the safety instructions and operating manuals for our tools contain extensive instructions on safe working with power tools, every power tool involves a certain residual risk which cannot be completely excluded by safety mechanisms. Power tools must therefore always be operated with caution!

General

1. Disconnect power tool and attachment from power supply when not in use, before servicing, when making adjustments and when changing accessories such as cutters. Ensure switch is in “off” position. Always ensure cutter has stopped rotating.

2. Always mount the power tool, accessory or attachment in conformity with the instructions. Only use attachment and accessories specified in the power tool manual. The tool or attachment should not be modified or used for any application other than that for which it was designed. Do not force tool.

3. Keep children and visitors away. Do not let children or visitors touch the tool, accessory or attachment. Keep children and visitors away from work area. Make the workshop child proof with padlock and master switch.

4. Dress properly. Do not wear loose clothing or jewellery, they can be caught in moving parts. Rubber gloves and non-skid footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.

5. Consider working environment. Do not use the product in the rain or in a damp environment. Keep work area well lit. Do not use power tools near gasoline or flammable liquids. Keep workshop at a comfortable temperature so your hands are not cold. Connect machines that are used in the open via a residual current device (RCD) with an actuation current of 30 mA maximum. Use only extension cables that are approved for outdoor use.

6. The accessory or attachment must be kept level and stable at all times.

7. Keep work area clean. Cluttered workshops and benches can cause injuries. Ensure there is sufficient room to work safely.

8. Secure idle tools. When not in use, tools should be stored in a dry and high or locked up place, out of reach of children.

9. For best control and safety use both hands on the power tool and attachment. Keep both hands away from cutting area. Always wait for the spindle and cutter to stop rotating before making any adjustments.

10. Always keep guards in place and in good working order.

11. Remove any nails, staples and other metal parts from the workpiece.

12. Maintain tools and cutters with care. Keep cutters sharp and clean for better and safer performance. Do not use damaged cutters. Follow instructions for lubricating and changing accessories. Keep handles dry, clean and free from oil and grease.

13. Maintain accessories. Do not use damaged accessories. Only use accessories recommended by the manufacturer.

14. Check damaged parts. Before operation inspect the attachment, the power tool, the cable, extension cable and the plug carefully for signs of damage. Check for alignment of moving parts, binding, breakage, mounting and any other conditions that may effect its operation. Have any damage repaired by an Authorised Service Agent before using the tool or accessory. Protect tools from impact and shock.

15. Do not use tool if switch does not turn it on or off. Have defective switches replaced by an Authorised Service Agent.

16. Don’t over reach. Keep proper footing

and balance at all times. Do not use awkward or uncomfortable hand positions.

17. Don’t abuse the cable.Never carry power tool or accessory by cord or pull it to disconnect from the socket.

-2-

Keep cord from heat, oil and sharp edges. Always trail the power cord away from the work area.

18. Connect dust extraction equipment. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

19. Check all fixing and fastening nuts, bolts and screws on power tool, attachment and cutting tools before use to ensure they are tight and secure. Periodically check when machining over long periods.

20. Stay alert. Watch what you are doing. Use common sense. Do not operate tools when you are tired, under the influence of drugs or alcohol.

21. Personal Protective Equipment (PPE) for eye, ear and respiratory protection must be worn. All PPE must meet current UK and EU legislation.

22. Do not leave tools running unattended. Do not leave tool until it comes to a complete stop.

23. Always clamp workpiece being machined securely.

24. Only use cutting tools for woodworking that meet EN8471/2 safety standards, and any subsequent amendments.

25. Vibration levels. Hand held power tools produce different vibration levels. You should always refer to the specifications and relevant Health & Safety Guide.

Routing Safety

1. Read and understand instructions supplied with power tool, attachment and cutter.

2. Keep hands, hair and clothing clear of the cutter.

3. Remove adjusting keys and spanners. Check to see that keys and adjusting spanners are removed from the router tool, cutter and attachment before turning router on. Make sure cutter can rotate freely.

4. Noise. Take appropriate measures for the protection of hearing if the sound pressure of 85dB(A) is exceeded. Routing sound pressure may exceed 85dB(A), so ear protection must be worn.

5. Eye protection. Always wear eye protection in the form of safety goggles, spectacles or visors to protect the eyes.

6. Respiratory protection. Always wear a face or dust mask, or powered respirator. Dust masks/filters should be changed regularly.

7. Do not switch router on with the cutter touching the workpiece. At the end of the cut, release the router plunge and allow spindle to stop rotating. Never use the spindle lock as a brake

Page 5

T10 & T11

8. The direction of routing must always

be opposite to the cutter’s direction of

rotation. Do not back-cut or climb-cut.

9. Check before cutting that there are no obstructions in the path of the router. Ensure there are no obstacles beneath workpiece when cutting full thickness, and that a sacrificial work surface is used.

10.Hold power tool by insulated gripping surfaces, because the cutter may contact its own cord. Cutting the “live” wire may make exposed metal parts of the powertool “live” and shock the operator.

11.Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.

Router Cutter Safety

1. Cutting tools are sharp. Care should be taken when handling them. Do not drop cutters or knock them against hard objects. Handle very small diameter cutters with extra care. Always return cutter to its packaging after use.

2. Always use cutters with a shank diameter corresponding to the size of the collet installed in your tool.

3. The maximum speed (n.max) marked on the tool, or in instructions or on packaging shall not be exceeded. Where stated the speed range shall be adhered to. Recommended speeds are shown in the Trend Routing Catalogue and/or website.

Always use router cutters in a router.

Drill and boring bits must not be used in a router. Router cutters must only be used for the material cutting application for which they are designed. Do not use on metal or masonry.

5. Never use cutters with a diameter exceeding the maximum diameter indicated in the technical data of the powertool or attachment used.

Before each use check that the

cutting tool is sharp and free from damage. Do not use the cutting tool if it is dull, broken or cracked or if in any other damage is noticeable or suspected.

7. Cutters should be kept clean. Resin build up should be removed at regular intervals with Resin Cleaner. The use of a PTFE dry lubricant will reduce resin build up. Do not use PTFE spray on plastic parts.

8. When using stacked tooling (multi- blade, block and groover etc.) on a spindle arbor, ensure that the cutting edges are staggered to each other to reduce the cutting impact.

9. Cutter shanks should be inserted into the collet all the way to the line indicated on the shank. This ensures that at least is held in the collet. Ensure clamping surfaces are cleaned to remove dirt, grease, oil and water.

10. Observe the correct assembly and fitting instructions in the router instruction manual for fitting the collet, nut and cutter.

11. Tool and tool bodies shall be clamped in such a way that they will not become loose during operation. Care shall be taken when mounting cutting tools to ensure that the clamping is by the shank of the cutting tool and that the cutting edges are not in contact with each other or with the clamping elements.

12. It is advisable to periodically check the collet and collet nut. A damaged, worn or distorted collet and nut can cause vibration and shank damage. Do not over-tighten the collet nut

13. Do not take deep cuts in one pass; take several shallow or light passes to reduce the side load applied to the cutter and router. Too deep a cut in one pass can stall the router.

14. In case of excessive vibrations whilst using the router stop immediately and have the eccentricity of the router, router cutter and clamping system checked by competent personnel

15. All fastening screws and nuts should be tightened using the appropriate spanner or key and to the torque value provided by the manufacturer.

16. Extension of the spanner or tightening using hammer blows shall not be permitted.

17. Clamping screws shall be tightened according to instructions provided by the manufacture. Where instructions are not provided, clamping screws shall be tightened in sequence from the centre outwards.

18. Do not touch the cutter immediately after operation; it may be extremely hot and could burn your skin.

⁄

of the shank length

Using Routers In A Fixed Position

1. Attention should be made to the

HSE’s Safe Use of Vertical Spindle

Moulding Machines Information Sheet No.18 and any revisions.

2. After work, release the router plunge to protect the cutter.

3. Always use a push-stick or push- block when making any cut less than 300mm in length or when feeding the last 300mm of the cut.

4. The opening around the cutter should be reduced to a minimum using suitably sized insert rings in the table and closing the back fence cheeks or

-3-

fitting a false fence on the back fence.

5. Whenever possible use a work holding device or jig to secure component being machined. Ensure any attachment is securely fitted to the workbench, with table surface at approximately hip height.

6. Use a No-Volt Release Switch. Ensure it is fixed securely, easily accessible and used correctly.

7. In router table (inverted) mode, stand to the front right of the table. The cutter will rotate anti-clockwise when viewed from top so the feed direction is from the right (against the rotation of the cutter). In overhead mode, stand to the front left of the machine table and the feed direction is from the left.

8. Do not reach underneath table or put your hands or fingers at any time in the cutting path while tool is connected to a power supply.

9. Never thickness timber between the back of the cutter and the backfence.

Useful Advice When Routing

1. Judge your feed rate by the sound of the motor. Feed the router at a constant feed rate. Too slow a feed rate will result in burning.

2. Trial cuts should be made on waste material before starting any project.

3. When using some attachments e.g. a router table or dovetail jig, a fine height adjuster is recommended.

4. When using a template guide bush, ensure there is sufficient clearance between cutter tip and inside edge of bush and that it cannot come into contact with collet and nut. Ensure cutter and guide bush are concentric.

Router Cutter Repair/Maintenance

1. Repair of tools is only allowed in accordance with the manufacturers instructions.

2. The design of composite (tipped) tools shall not be changed in process of repair. Composite tools shall be repaired by a competent person i.e. a person of training and experience, who has knowledge of the design requirements and understands the levels of safety to be achieved.

3. Repair shall therefore include, e.g. the use of spare parts which are in accordance with the specification of the original parts provided by the manufacturer.

4. Tolerances which ensure correct clamping shall be maintained.

5. Care shall be taken that regrinding of the cutting edge will not cause weakening of the body and the connection of the cutting edge to the body.

Version 8.0 08/2017

Page 6

T10 & T11

ELECTRICAL SAFETY

Power Supply

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate. Machines marked for 230 volt can also be operated from a 220 volt supply.

The T10 & T11 is double insulated in accordance with EN 60745; therefore no earth wire is required.

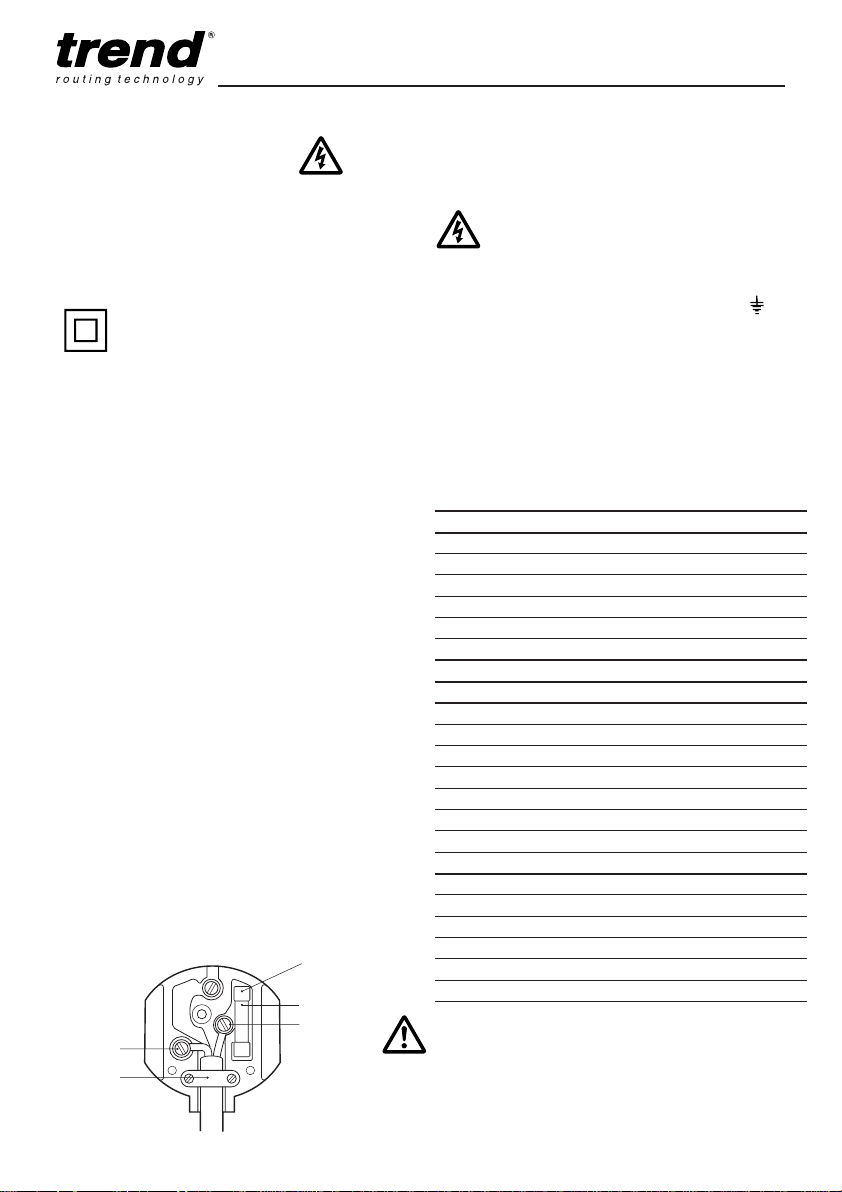

Mains Plug Replacement (UK & Ireland only)

Always check the condition of the cable and plug before starting with your work.

Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorised Trend repair agent or a qualified electrician.

Disconnect the plug from the supply.

n Cut off the plug and dispose of it safely;

a plug with bared copper conductors is dangerous if engaged in a live socket outlet.

n Only fit 13 Amperes BS 1363A approved

plugs fitted with a 13 Amp A.S.T.A approved BS 1362 fuse (1).

n The cable wire colours, or a letter, will be

marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (3).

n Before replacing the top cover of the mains

plug ensure that the cable restraint (4) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

13 AMP

1 2

3 4

For 115V units with a power rating exceeding 1500W we recommend to use a plug to BS4343 standard. For T10 & T11 this must be rated to 32A.

WARNING: Never use a light socket.

Never connect the live (L) or neutral (N) wires to the earth pin marked E or .

Using an Extension Cable

n If an extension cable is required, use an

approved triple core extension cable suitable for the power input of this tool (see technical data).

When using a cable reel, always unwind the

cable completely.

Also refer to the table below.

Conductor size

0.75 6

1.00 10

1.50 15

2.50 20

4.00 25

7.5 15 25 30 45 60 Voltage Amperes Cable rating (Amperes 115 0 - 2.0 6 6 6 6 6 10

2.1 - 3.4 6 6 6 6 15 15

3.5 - 5.0 6 6 10 15 20 20

5.1 - 7.0 10 10 15 20 20 25

7.1 - 12.0 15 15 20 25 25 -

12.1 - 20.0 20 20 25 - - -

230 0 - 2.0 6 6 6 6 6 6

2.1 - 3.4 6 6 6 6 6 6

3.5 - 5.0 6 6 6 6 10 15

5.1 - 7.0 10 10 10 10 15 15

7.1 - 12.0 15 15 15 15 20 20

12.1 - 20.0 20 20 20 20 25 -

(mm2) Cable rating (Amperes)

Cable length (m)

WARNING: 115V units have to be operated via a fail-safe isolating transformer with an earth screen between the primary and secondary winding.

-4-

Page 7

T10 & T11

EC DECLARATION OF CONFORMITY

MACHINERY DIRECTIVE

ROUTER T10E & T11E

Trend declares that these products described under Technical Data are in compliance with 2006/42/EC, EN 60745-1:2009+A11:2010, EN 60745-2-17:2010.

These products also comply with Directives, 2014/30/EU and 2011/65/EU.

For more information please contact Trend at the following address or refer to back of manual. The undersigned make this declaration on behalf of Trend Machinery & Cutting Tools Ltd.

Neil McMillan

Technical Director

Trend Machinery & Cutting Tools Ltd Unit 6 Odhams Trading Estate St Albans Road, Watford Herts, WD24 7TR United Kingdom

01.01.2018

RESIDUAL RISKS

In spite of the application of the relevant safety regulations and implementation of safety devices, certain residual risks cannot be avoided.

These are:-

n Impairment of hearing. n Risk of personal injury due to flying particles. n Risk of burns due to accessories becoming

hot during operation. n Risk of personal injury due to prolonged use.

Additional Specific Safety Rules for Cutters

n Hold power tool by insulated gripping

surfaces, because the cutter may contact its own cord. Cutting a “live” wire may make exposed metal parts of the power tool “live” and shock the operator.

n Use the clamps or another practical way to

secure and support the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.

n For personal protection, ALWAYS wear a dust

mask.

n Always use cutters suitable for a speed of

30,000 min and marked accordingly.

n Never use cutters with a diameter exceeding

the maximum diameter indicated in the Technical Data.

WARNING: We recommend the use of a residual current device with a residual current rating of 30mA or less.

This router is designed to accept professional cutters of straight, profile, rabbet, and grooved type with rated minimum speed of 30,000 min-1.

WARNING: Always consider the following compulsive conditions:

n Use 12.7mm shank diameter for straight,

rabbet, groove and profile cutter.

n Maximum cutter diameter: T10/T11 50mm at 35mm cutting depth

T10/T11 Groove Cutter: 50mm at 6mm cutting depth

MARKINGS ON TOOL

The following pictures are shown on the tool. Read instruction manual before use.

Date Code Position

The date code which includes the year of manufacture is printed into the housing.

-5-

xx xx xxx

Page 8

T10 & T11

ITEMS ENCLOSED

T10 & T11

1 x Parallel side-fence with micro adjuster 1 x Fence rods (pair) 1 x Collet 1/2” (12.7mm) UK & Eire (Europe 12mm) 1 x Spanner (22mm A/F) 1 x Guide bush 30mm and fixing screws 1 x Inner plate and fixing screws 1 x Line-up pin 12mm/1/2” 1 x Dust extractor spout with fixing screws 1 x Dust extractor spout clip 1 x Instruction manual 1 x Guarantee registration card

T11 only

1 x Fine height adjuster handle



n Check for damage to the tool, parts or

accessories which may have occurred during transport.

n Take the time to thoroughly read and understand this manual prior to operation.

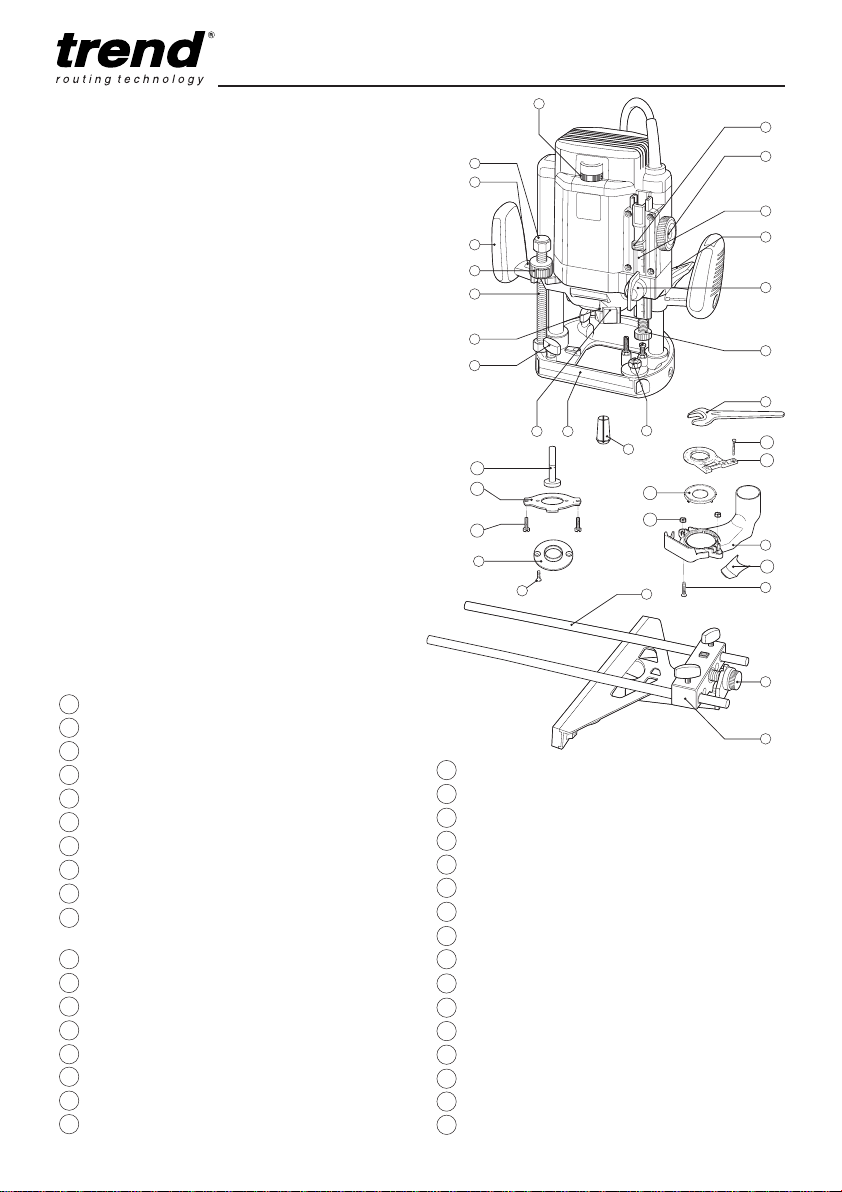

DESCRIPTION OF PARTS T10

A Plunge locking lever

B Variable speed control dial C Handle D Switch E Depth stop locking knob F Depth stop micro adjuster

G Depth stop height adjuster dial

H Depth stop scale

I Depth stop lens

J Thumb knob with anti-vibration spring

for side fence

Collet nut

Spindle lock

Base

3-way turret stop

Collet

Knurled nut

Threaded spindle

Threaded spindle cap nut

Template guide bush dia. 30mm

Template guide fixing screw

Fence rods dia. 10mm x 360mm

Parallel side fence

Parallel side fence micro adjuster knob

Spanner (22mm A/F)

Dust spout 35mm dia.

Dust spout fixing screws

Dust spout fixing nut

Dust spout insert

Dust spout top clip

Dust spout top clip screw

AE Dust Spout underside clip AF Template guide bush line-up pin AG Inner plate fixing screws AH Inner plate

-6-

M L

Page 9

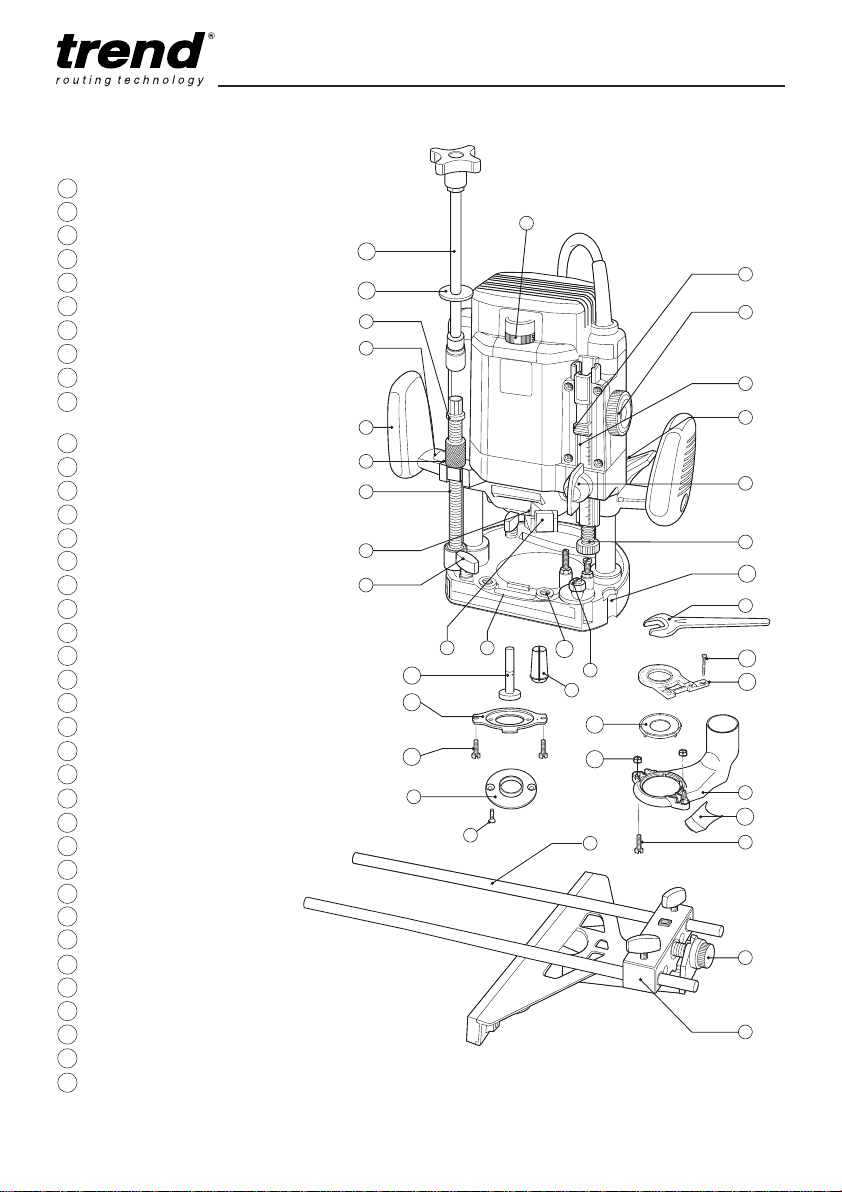

DESCRIPTION OF PARTS T11

A Plunge locking lever

B Variable speed control dial C Handle D Switch E Depth stop locking knob

F Depth stop micro adjuster G Depth stop height adjuster dial H Depth stop scale

I Depth stop lens

J Thumb knob with anti-vibration

springfor side fence

Collet nut

Spindle lock

Base

3-way turret stop

Collet

Knurled nut

Threaded spindle

Threaded spindle hex cap nut

Template guide bush dia. 30mm

Template guide fixing screw

Fence rods dia. 10mm x 360mm

Parallel side fence

Parallel side fence micro adjuster knob

Spanner (22mm A/F)

Dust spout 35mm dia.

Dust spout fixing screws

Dust spout fixing nut

Dust spout insert

Dust spout top clip

Dust spout top clip screw

Dust spout unde rside clip

Quick release jig & table aperture

Clamp guide system fitting

Inner plate

Inner plate fixing screw

Fine height adjuster handle

Template guide bush line-up pin

Fine height adjuster handle dial

T10 & T11

M L

-7-

Page 10

T10 & T11

ASSEMBLY & ADJUSTMENT

Switching On & Off

n On; pull the switch up. n Off; press the switch down.

OFF

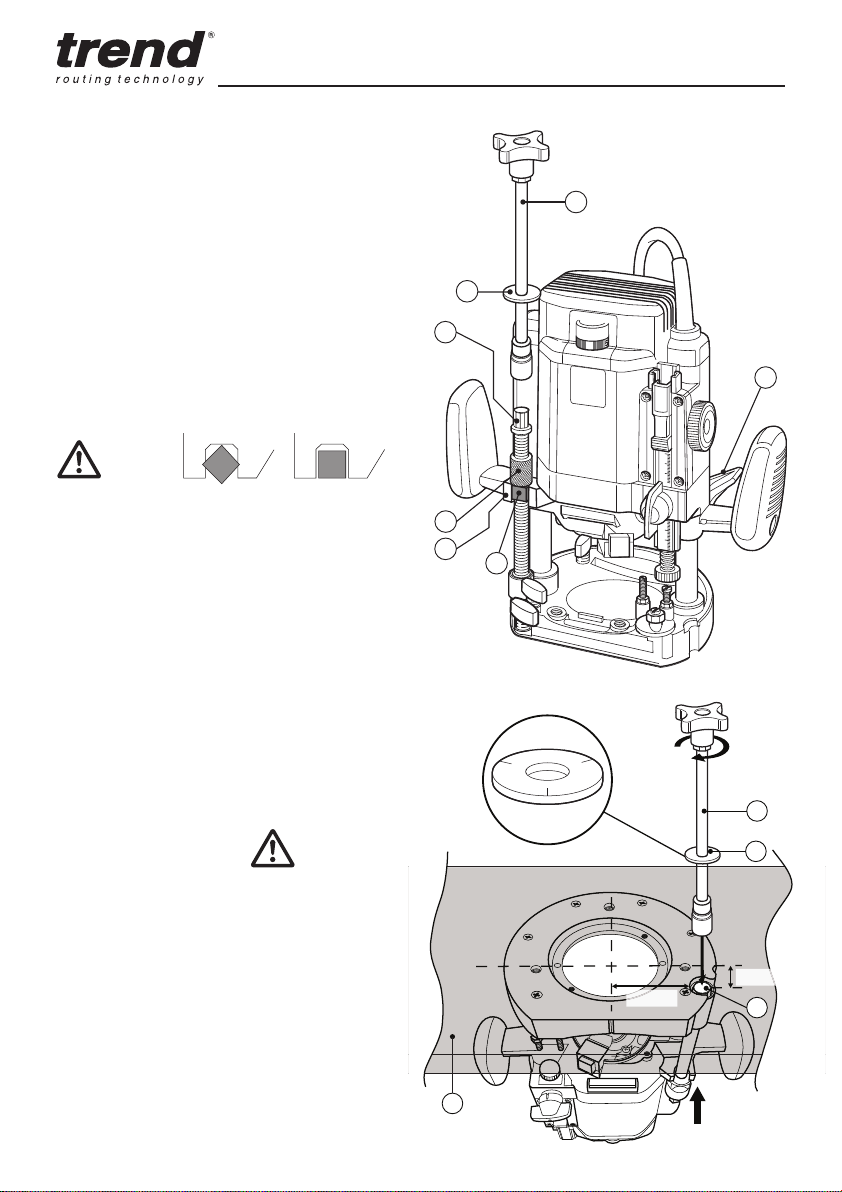

Adjusting the Depth of Cut

n Place the machine with cutter fitted on to the

workpiece.

n Pre-set the 3-way turret stop (1) as required. n Undo the thumb knob (2) for securing the

depth stop (3).

n Lift up the plunge locking lever (4) for fixing

the depth.

n Lower the machine slowly until the cutter

touches the workpiece and secure it with the locking lever.

Rotate the knob (6) until the depth stop micro adjuster (3) touches revolving depth stop (1).

WARNING: Never make adjustments when the router is running or plugged in.

WARNING: Deep cuts should always

be routed in several passes.

CAUTION: When in plunging mode

never release the plunge lever without the base of the router supported on a flat surface as this may damage the router housing or could cause injury.

If the depth of cut needs re-adjustment, it is recommended to use the depth stop micro adjuster.

n Adjust the depth of cut using the depth stop

micro adjuster (3). One turn corresponds to approximately 1mm.

OFF

n Read the depth of cut using the measuring

lens (5) and scale.

n Adjust the depth of cut to the millimetre using

the knob (6).

n Set the measuring lens (5) to a round figure

or zero.

n Adjust the depth of cut using the knob (6) and

the measuring lens (5).

The distance between the top of the revolving

depth stop and the bottom of the depth stop is the required depth of cut.

n Tighten the knob (2).

The rotating turret stop screws can be used

for pre-setting up to three depths of cut. height can be adjusted using a screwdriver (7) and an 8mm A/F spanner (8).

By turning the turret stop, three depth settings can be quickly made.

-8-

Their

Page 11

T10 & T11

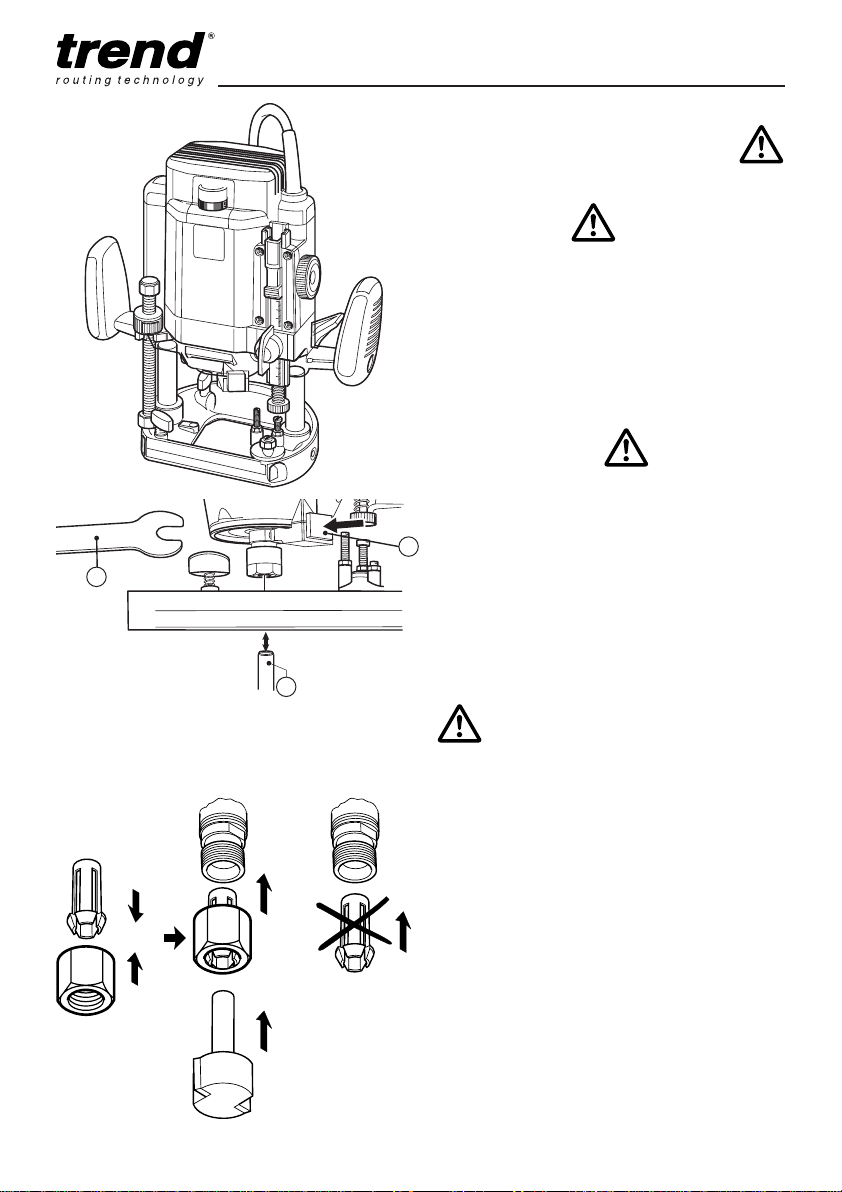

How to Fit and Remove a Router Cutter

Fitting Cutters

n Insert at least 3/4 of the shank length of the

cutter (1) into the collet.

n Press the spindle lock (2) forward until the

router spindle is locked (you may need to turn the spindle slightly to engage it).

n Tighten the collet nut with a spanner (3).

Do not use excessive force.

Removing Cutters

n Undo the 22mm A/F collet nut with the

spanner.

n Keep turning the spanner until the collet nut

tightens and then loosens again. This is

the fail-safe mechanism releasing the collet.

n The cutter should now slide out. n Each time you finish using a cutter, remove

it and store it in a safe place.

Correct Sequence for Fitting Collet, Nut and Cutter

(1)

(2)

CLICK

(3)

WARNING: Do not tighten the collet

without a cutter fitted.

WARNING: Always use cutters with shanks which match the diameter of the collet.

WARNING: Do not use cutters larger than 45mm unless the router is fitted in a router table.

CAUTION: Care should be taken when removing cutter to avoid cuts to fingers.

Collet can be removed from collet nut.

-9-

Page 12

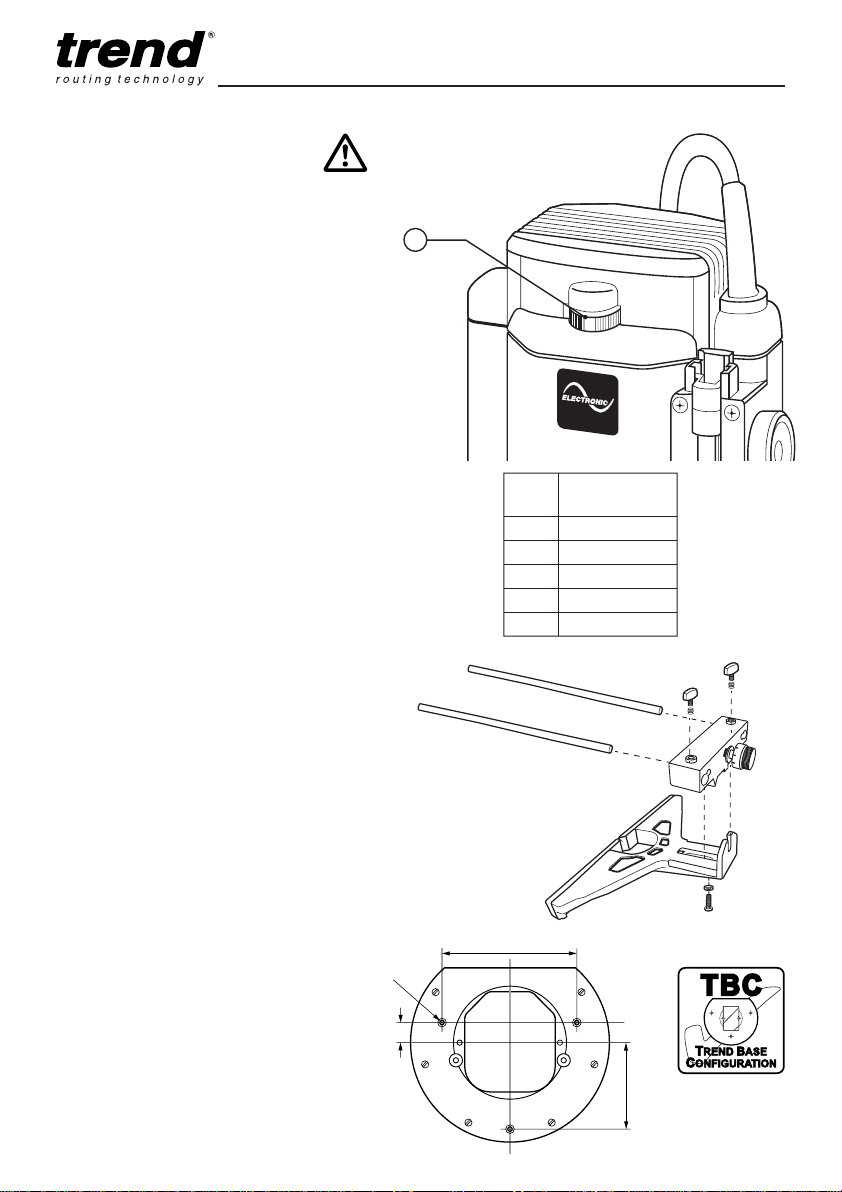

Setting the Electronic Speed Control Dial

The speed is infinitely variable from 8,000 to 20,000 rpm using the electronic speed control dial (1) for uniform cutting results in all types of

wood, plastics and in aluminium. n Turn the electronic speed control dial to the

required level. The dial is numbered from 1 to 5 and corresponds to router speeds from 8,000 rpm to 20,000 rpm.

n Generally, use the lower settings for large

diameter cutters and the higher settings for small diameter cutters. The correct setting will also depend on the density of the material, depth of cut and feed speed of the router, as severe loss of rpm denotes motor overload.

Using a Fine Height Adjuster

The T10 has an optional fine height adjuster accessory Ref. FHA/003 and the T11 has a built in fine height adjuster called the Quick Raiser. These should be used when fine height adjustment of the cutter is required. This is especially recommended when using dovetail jigs or router tables.

T10 & T11

Dial Router

No. Speed

1 8,000 rpm 2 12,000 rpm 3 16,000 rpm 4 18,000 rpm 5 20,000 rpm

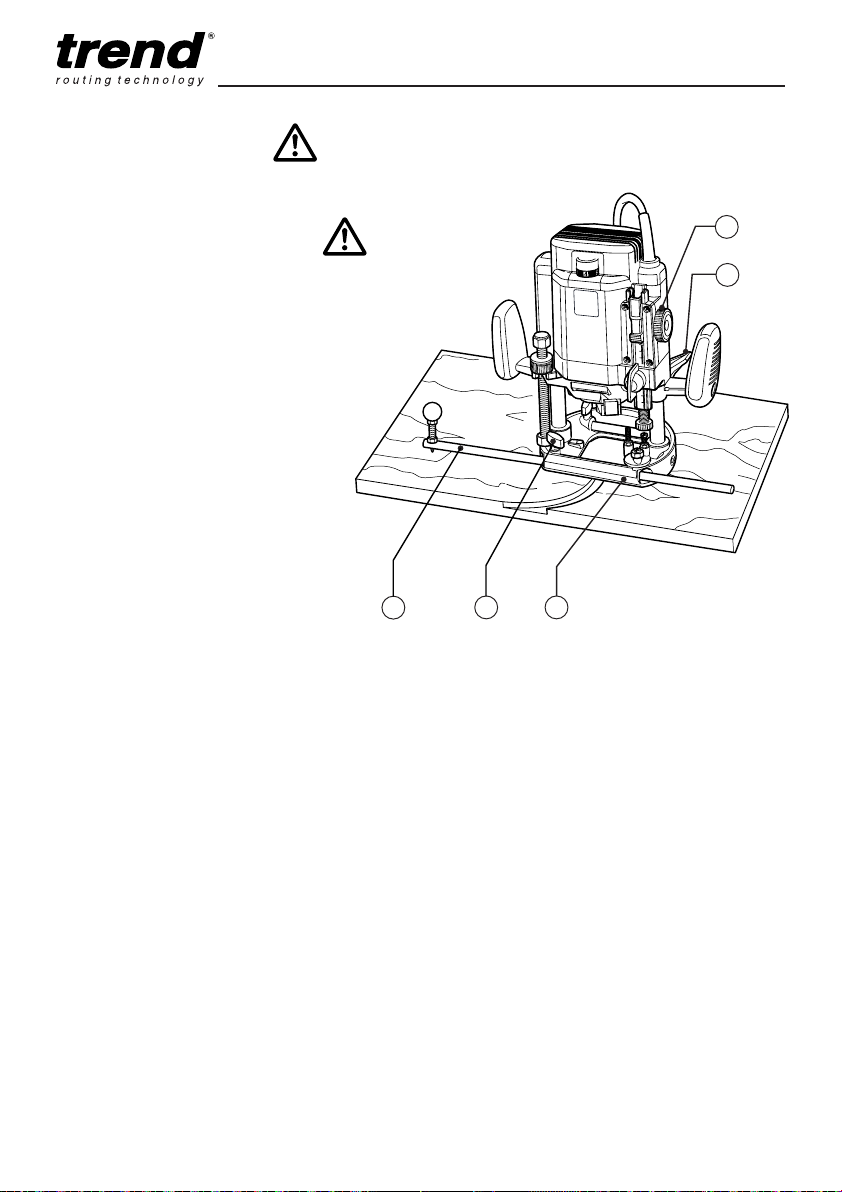

Parallel Side-fence Assembly

Assemble side-fence as shown.

Fixing Points for Accessories

The router has three threaded holes M6 in its base that allow fitting of accessories and also fitting to router tables.

A whole range of accessories are shown in the Trend Routing Catalogue.

15mm

-10-

115mm

75mm

Page 13

T10

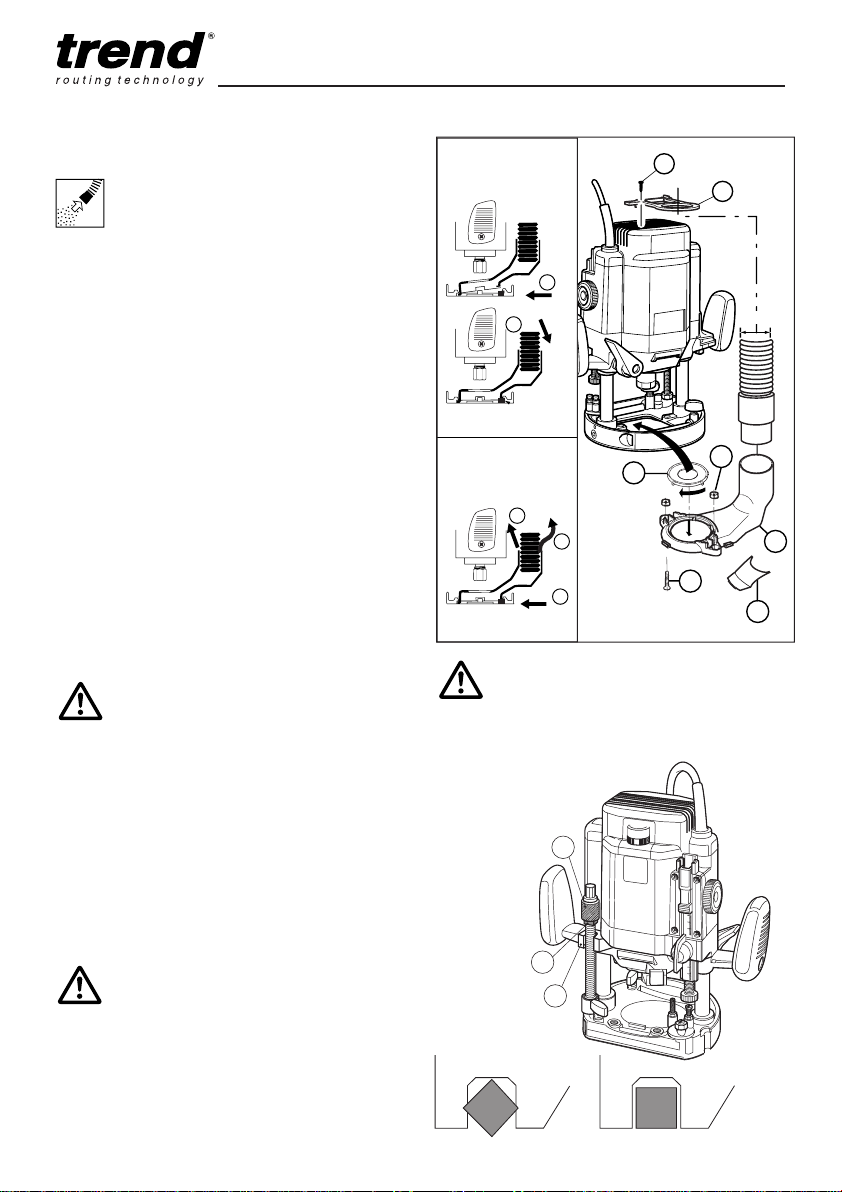

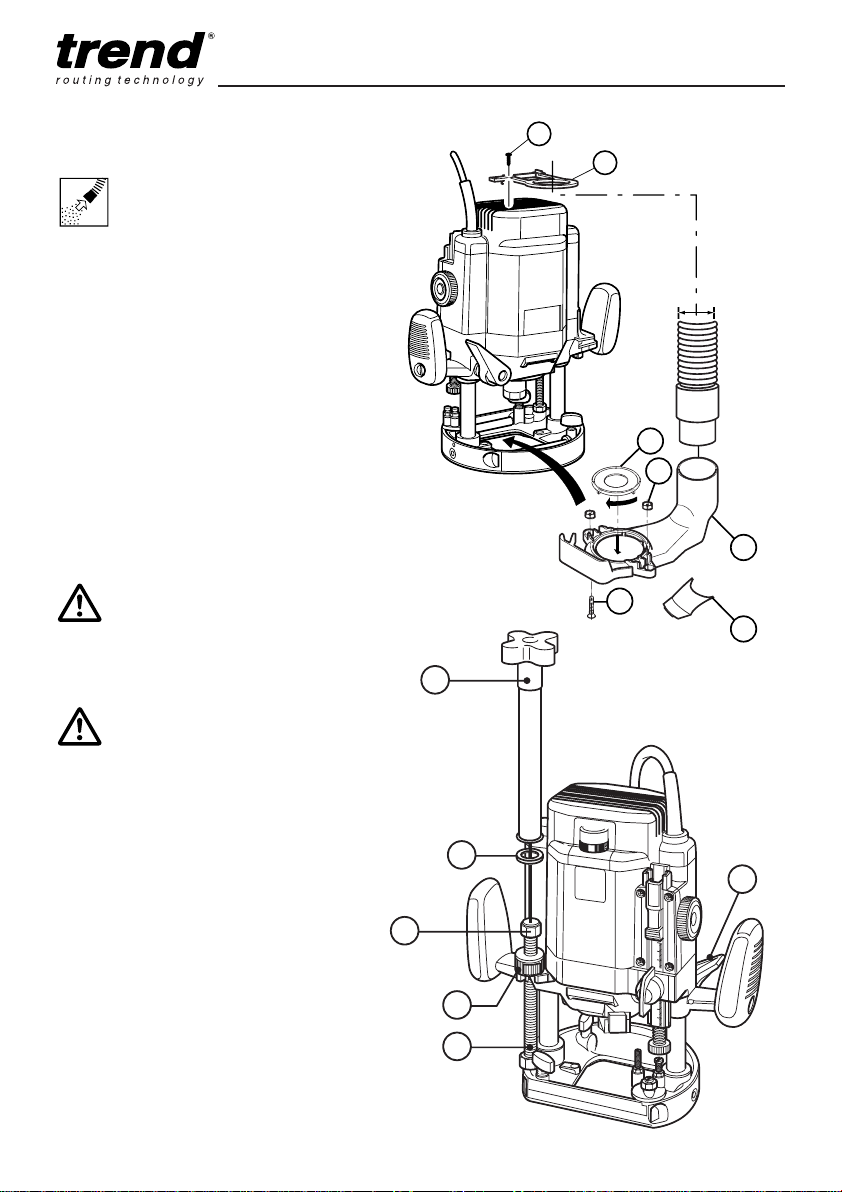

Fitting and Removing T10 Dust Extractor Spout

The dust extraction spout consists of a main section (1) with underside clip (7), an insert cover (2), top clip (5) with screw (6), two main screws (3) & two nuts (4).

n Check underside clip (7) is fitted into main

section. Slide the insert cover (2) onto the main section if required (1) and click into place.

n Fit nuts (4) into main body. Place spout into

base of router and secure with two screws (3).

n Connect a dust extractor hose to the dust

extraction spout (1).

n The top clip (5) can be used with hoses that

have a removable adapter fitted. Loosen the screw in the top of the router and fit the top clip (5) as shown using screw (6).

WARNING: Whenever possible use the dust extraction spout with a suitable extractor when routing.

T10

35mm

NOTICE: Top clip (5) cannot be used with vacuum extractor hoses with a permanent adapter fitted.

Fitting the T10 Fine Height Adjuster Optional Accessory Ref. FHA/003

n Plunge router and lock lever (6) down. n Remove hex cap (5) nut from threaded

stud (3), using a 19mm A/F spanner.

n Remove knurled ring nut (4) from

threaded stud (3).

n Place washer (2) on threaded stud. n Thread on main adjuster rod (1) for at

least 25mm of thread.

-11-

Page 14

T10 & T11

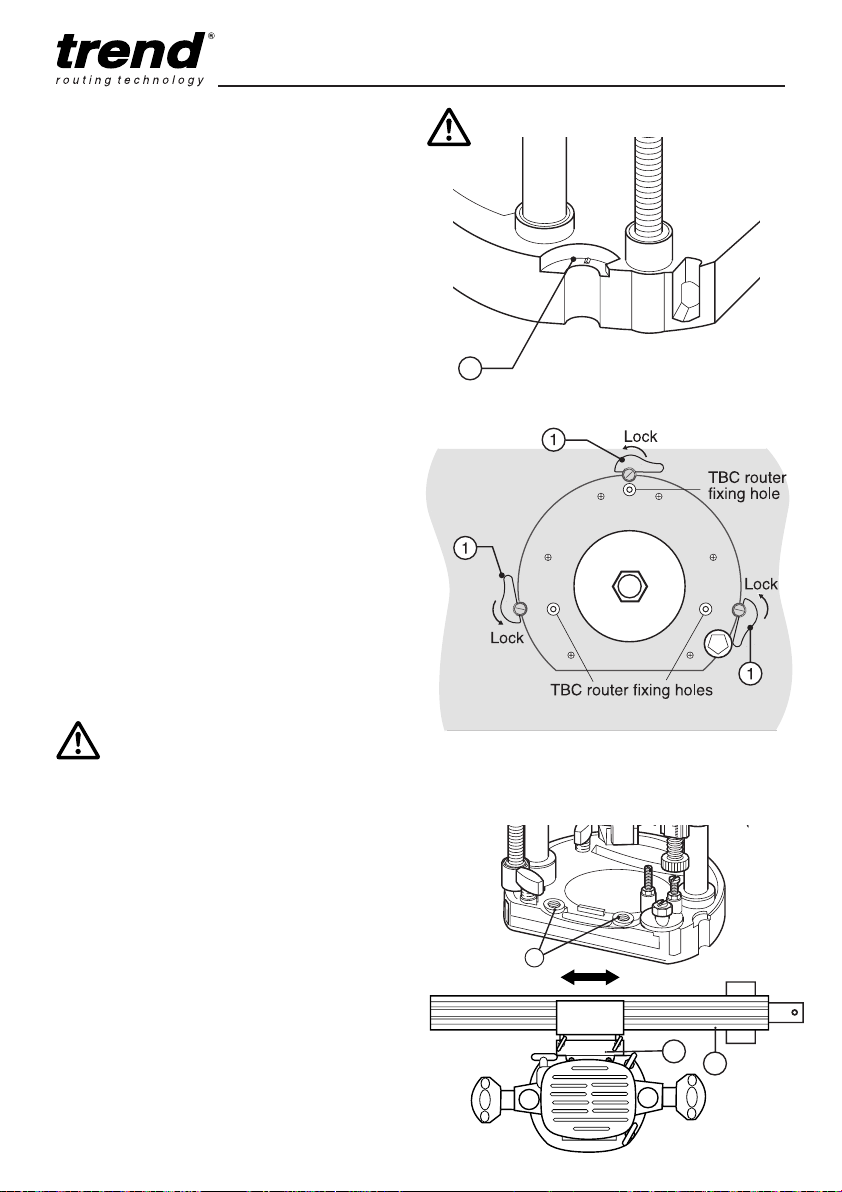

Fitting Template Guide Bush and Inner Plate

The routers have a unique built-in line up system for the template guide bush. This system ensures that the guide bush is exactly concentric to the router cutter to ensure accurate work.

n Turn the router upside down. n Fit inner plate (2) into the recess in the router

base plate (1). For T10 the bushes on the inner plate must be towards the router motor. For T11 the raised side of the inner plate must be away from router base. Loosely fit the two pan head machine screws (3) through the inner plate and into the tapped holes.

DO NOT TIGHTEN SCREWS.

n Fit the 30mm template guide bush (6) to the

inner plate (2). Fit guide bush with the two M5 countersink machine screws (7). Tighten these screws.

n The line up pin (5) is stepped for 12mm and

/2” collet (4) sizes. (For the 1/2” collet simply push the line up pin further down into the 1/2” collet).

n Fit line up pin (5) into the

12mm depending on the size fitted) in the router, lightly tighten collet nut to hold the line up pin (5).

n Release plunge lever and gently depress

base until line up pin (5) projects through the 30mm guide bush (6).

n Once in line, tighten the pan head machine

screws (3) with a flat screwdriver.

/2” collet (8) (or

T11

-12-

Page 15

T11

Fitting and Removing T11 Dust Extractor Spout

The dust extraction spout consists of a main section (1) with underside clip (7), an insert cover (2) and top clip (5) with screw (6).

n Check underside clip (7) is fitted into main

section. Slide the insert cover (2) onto the main section if required (1) and click into place.

n Clip into the base by pushing down the dust

extraction spout (1) until clips engage in the recess.

n Connect a dust extractor hose to the dust

extraction spout (1).

n The top clip (5) can be used with hoses that

have a removable adapter fitted. Loosen the screw in the top of the router and fit the top clip (5) as shown using screw (6).

n To remove dust extraction spout, push spout

(1) to side and pivot out.

For more permanent fixing, fit nuts (4) into main body, place spout into base of router and secure with two screws (3).

Top clip (5) cannot be used with vacuum extractor hoses with a permanent adapter fitted.

Fitting Dust

Extractor Spout

Removing Dust Extractor Spout

WARNING: Whenever possible use the dust extraction spout with a suitable extractor when routing.

35mm

Using the T11 Without Fine Height Adjuster

In portable use the knurled nut (2) should be wound to the top of the stud and hand tighten against the hex cap. The base of the knurled nut (4) should be aligned with the forks (3) in the router casting.

CAUTION: In normal plunge mode, ensure the base of the knurled nut is aligned correctly with the forks of the lower motor housing. This will enable the cutter to retract into the base safely.

-13-

Page 16

Fitting the T11 Fine Height Adjuster

The fine height adjuster (Quick Raiser) for the T11 can be used portably or when the router is held inverted in a table. If a suitable size access hole is drilled into the router table top, the height adjustment can also be adjusted from above the table top.

T11

Portable Use

To set up for fine height adjustment:

n Plunge router and lock lever down (1). n Rotate the knurled nut (2) down the stud until

it is close to the router casting forks (3).

n Align the base of the knurled nut (4) so that it

will locate in the forks (3).

n Release plunge locking lever (1).

CAUTION: Do not use a powered drill to drive the T11 Quick Raiser assembly. Only use the supplied handle. Ensure that the plunge locking lever is unlocked. Never use unnecessary force to rotate the Quick Raiser mechanism. Do not undo Torx screw on hex nuts.

For Portable Use

n Place the fine height adjuster handle (5) onto

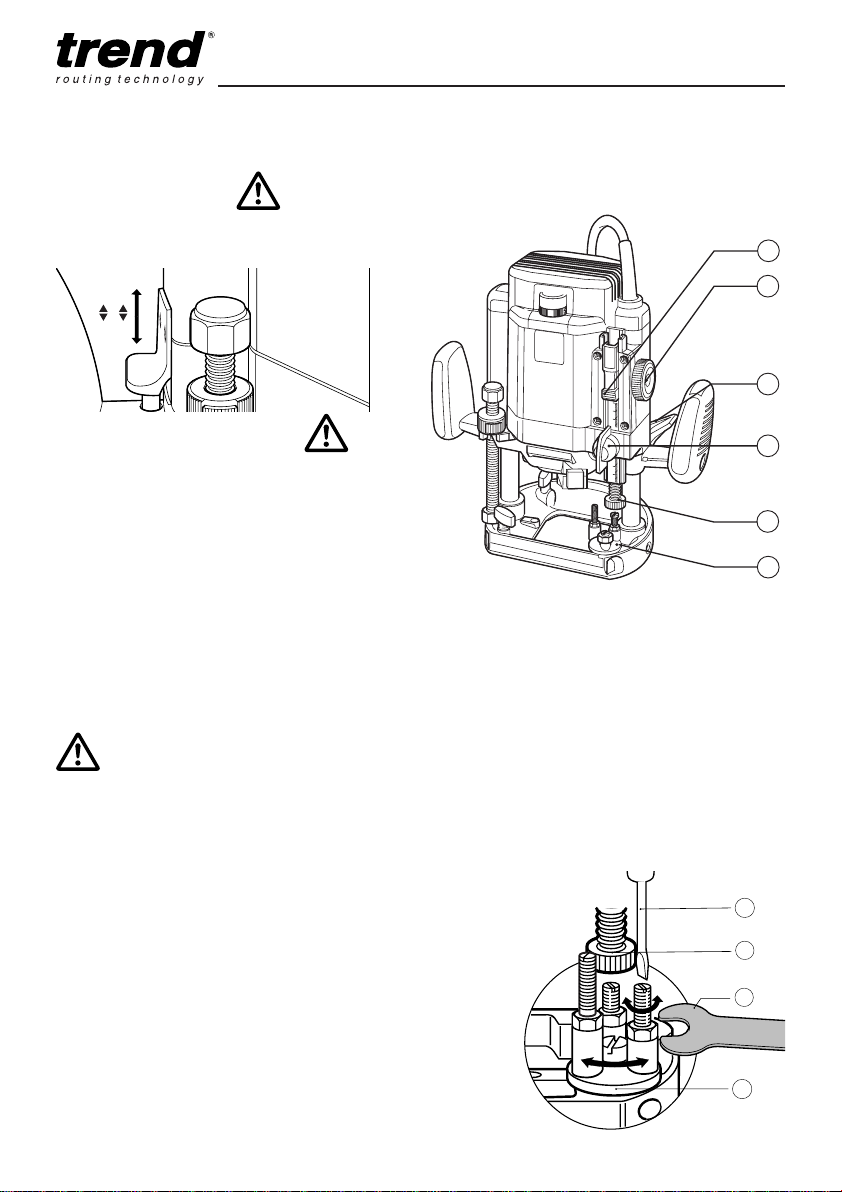

the top threaded spindle hex nut (6).

n Rotate handle clockwise to raise motor body

and reduce cutter depth.

n Rotate handle anti-clockwise to lower motor

body and increase cutter depth.

For Router Table Use

n Ensure router is fitted into the router table

(10), see opposite page.

n Place fine height adjuster handle (5) through

router table cutter hole onto bottom threaded spindle hex nut (9).

n Rotate handle clockwise to raise motor body

and raise cutter height.

n Rotate handle anti-clockwise to lower motor

body and lower cutter height.

Inverted Use

0.5

0.1

0 1.5

36mm

68mm

One revolution corresponds to 1.5mm. The height adjuster handle dial (7) can be reset to zero.

-14-

Page 17

Modification of User Router Table for T11 Fine Height Adjuster

To use fine height adjuster in table mode a 20mm diameter hole is required to be drilled into the router table top. To position the hole it is advisable to remove the phenolic base slider of the T11 router and use it as a template.

n Mark the hole for the handle height adjuster

in the table top using the phenolic base slider as a template.

n Remove the phenolic base slider. n Mark with a punch the centre of the hole. n Drill a pilot hole in the centre. n Enlarge the hole to 20mm. n Remove any burrs.

A template is provided on page 28.

T11

T11 Quick Release Fixing Kit Optional Accessory Ref. T11/JT/KIT

The T11 Quick Release Fixing Kit uses three cams (1) to lock the router into a router table. The kit can be retro-fitted to user-made tables by drilling suitable size holes in a set pattern into the table surface. The kit comprises three cams, three bosses, three springs and three nut & bolt assemblies. The kit is supplied with instructions for drilling and using the cams. The cams locate into the three apertures (2) in the base of the T11 router.

WARNING: When using large panel raiser cutters, making deeps or if the router is to be used inverted for long periods, the router should also be secured using three M6 machine screws into the TBC router fixing holes.

T11 Clamp Guide System Optional Accessory Ref. T11/CGS/KIT

The T11 has two M6 tapped holes in the upper face of the router base (3), which will accept the Clamp Guide System accessory (4). The accessory is used with the Clamp Guide System clamps (5) and is used to create parallel grooves and trenches.

-15-

Table Use Top View

Page 18

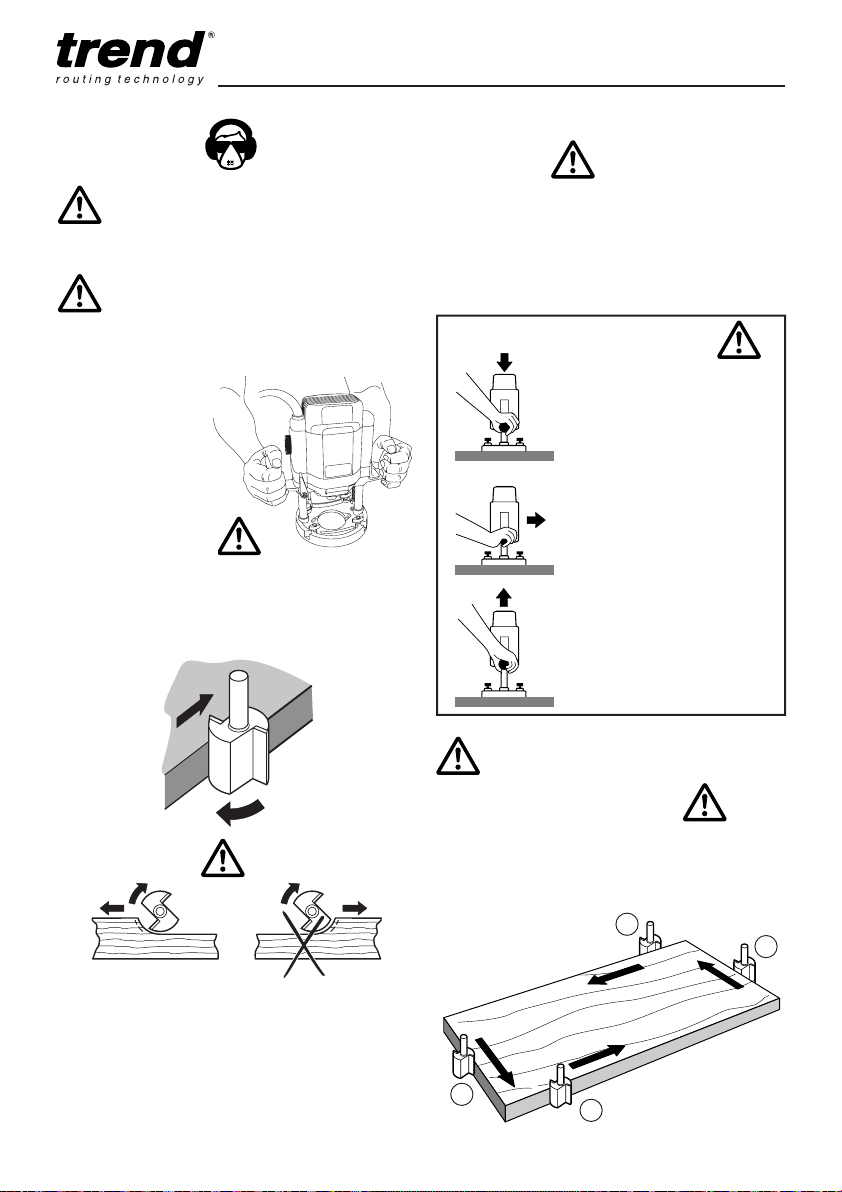

OPERATION

WARNING: To reduce the risk of serious personal injury, always use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, always hold securely in anticipation of a sudden reaction.

Proper hand grip requires one hand on each grip as shown.

Cutting Direction

WARNING: The direction of routing must always be opposite to the cutter’s direction of rotation. Otherwise there is a risk of kick-back.

T10 & T11

Feed Speed

The speed at which the cutter is fed into the wood must not be too fast that the motor slows down, or too slow that the cutter leaves burn marks on the face of the wood. Practice judging the speed by listening to the sound of the motor when routing.

Sequence of plunging

Step One

Plunge down and lock the motor carriage, by depressing the plunge locking lever.

Step Two

Carry out the routing operation.

Step Three

Release the plunge locking lever and the motor carriage returns to the normal position.

Feed direction of router

Direction of cutter rotation

Feed Direction

When routing along an edge, the direction of the router travel should be against that of the rotation of the cutter. This will create the correct

cutting action and prevent the cutter ‘snatching’.

It will also pull the router towards the workpiece and hence the side-fence or guide bearing will be less likely to wander from the edge of the workpiece.

When routing always lock the plunge locking lever.

Moulding Natural Timbers

When edge moulding natural timbers, always mould the end grain first, followed by the long grain. This ensures that if there is ‘breakout’, this will be removed when the long grain is routed.

-16-

Page 19

T10 & T11

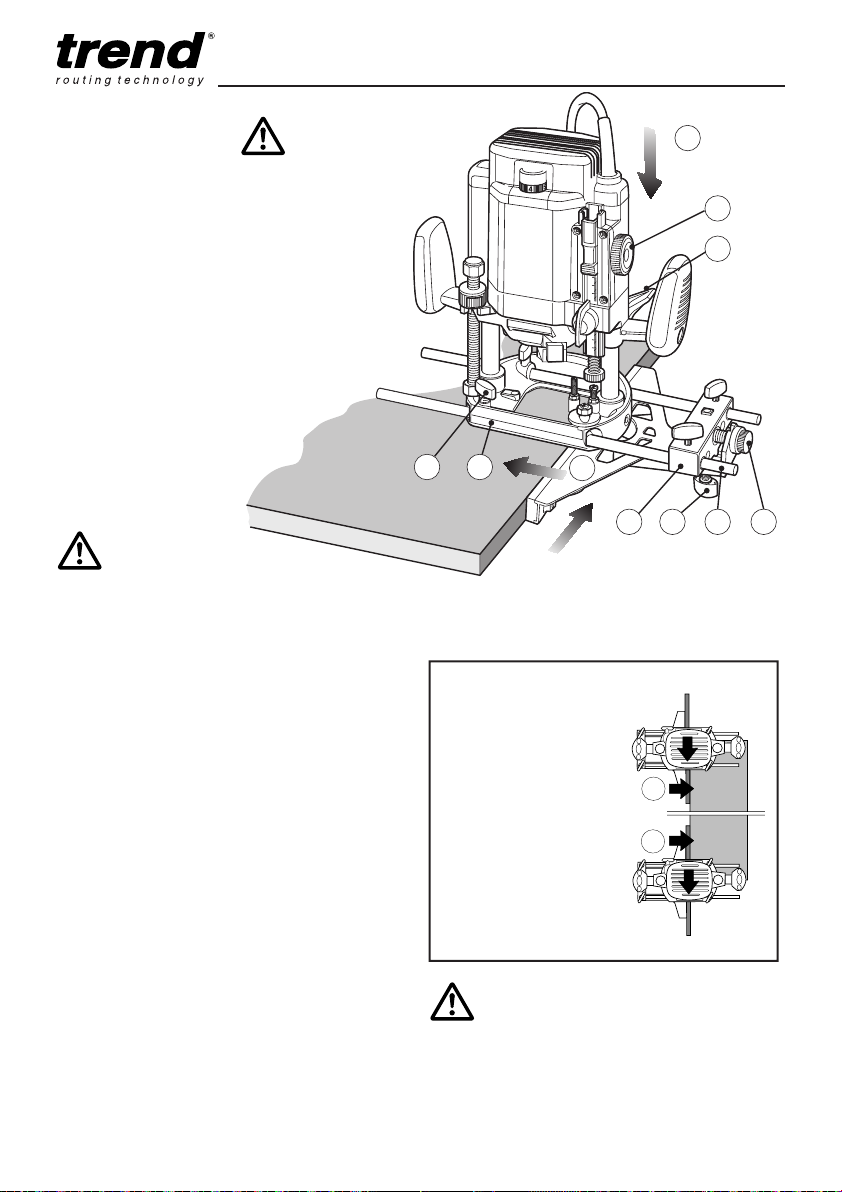

Side-Fence Routing

The side-fence is used to guide the router when moulding, edge profiling or rebating the edge of the workpiece or when routing grooves and slots in the centre of the workpiece, parallel to the edge.

The edge of the workpiece must be straight and true. The cheeks are adjustable and should be set ideally with a 3–4mm gap each side of the cutter.

Fitting and using the Side Fence

n Make sure the thumb knobs (3) are fully

released. Slide the guide rods (1) into the routing base (2) and tighten the thumb knobs (3).

n Adjust the side-fence (4) to the required

distance and clamp in place with the thumb knobs (3).

n Then lower the cutter height until the cutter

is just above the workpiece.

n Fine adjustments are possible by slackening

the underside locking knob (8), adjusting the micro-adjustment knob (6) and securing it again with the knob (8). One revolution of the micro-adjustment knob (6) equals 1.0mm of side-feed.

n Lower the cutter onto the workpiece and set

the cutter height by raising the depth stop (7) the required distance.

n Switch on the router and when the cutter

reaches full speed, gently lower the cutter into the workpiece and lock the plunge.

n Feed along the timber, keeping sideways

pressure (A) to ensure the side fence does not wander away from the workpiece edge and downward pressure on the inside hand (B) to prevent the router from tipping.

When finished, raise the router, secure with

the plunge locking lever (9) and switch off.

When starting the cut, keep the pressure on the front cheek (C) until the back cheek contacts the workpiece edge.

At the end of the cut, keep pressure on the back cheek (D) until the cut is finished. This will prevent the router cutter swinging in at the end of the workpiece and ‘nipping’ the corner.

CAUTION: Ensure working position is comfortable and at a suitable working height.

-17-

14 8

Page 20

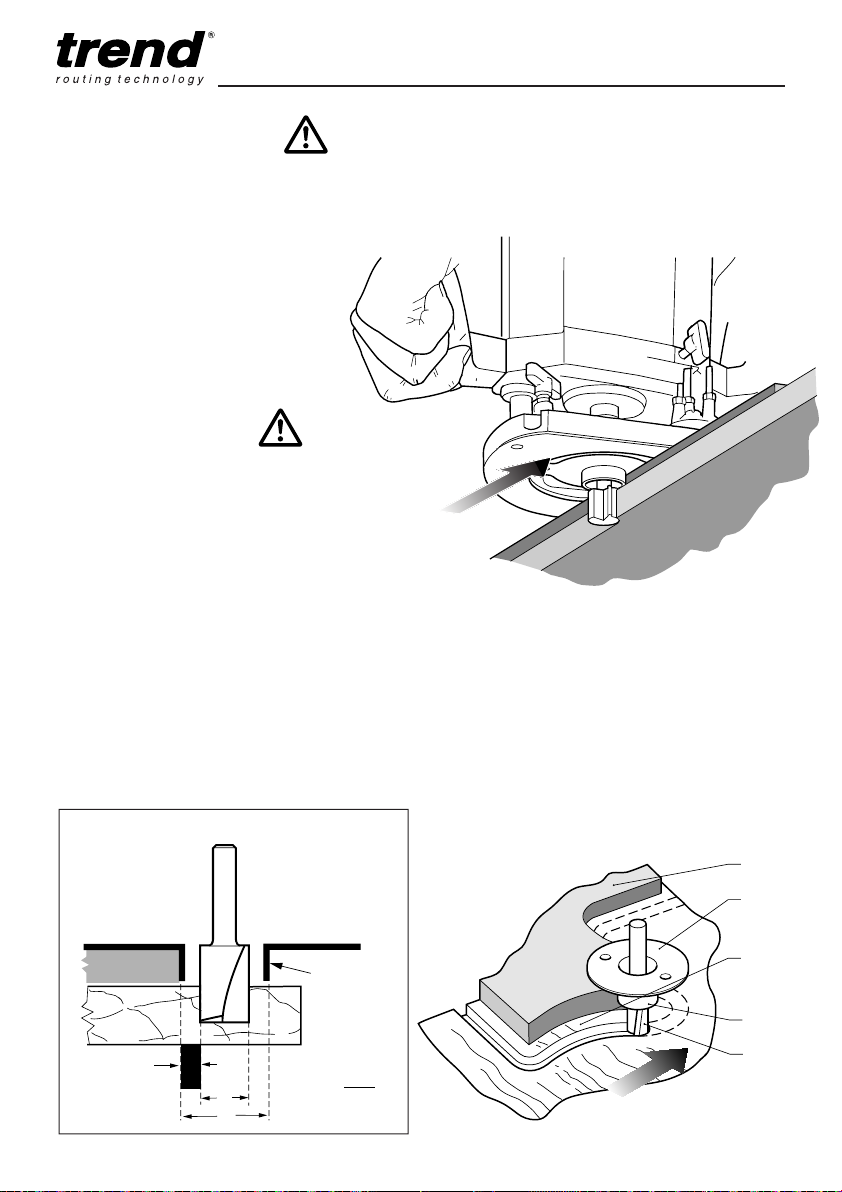

Routing with a Template

The guide bush is used in conjunction with a template when the routing operation is repetitive or the workpiece is complex in shape. The template is fixed to the upper surface of the workpiece. A cutter is chosen with a diameter which will pass through the centre of the bush leaving enough clearance. The cutter can be straight or shaped. The router can then be guided around the template so that the shape of the template will be replicated.

Making the Template

The template is cut from 6mm or 1/4” MDF, plywood or plastic to the shape required. The guide bush offset needs to be allowed for when calculating the shape of the template. The template must be smaller by an amount equal to

the difference between the ‘outer edge of the guide ring’ and the ‘outer edge of the cutter’. See below for the offset

calculation. The edge of the template must be free of imperfections as these will be replicated in the final workpiece.

T10 & T11

Using a template to rout a straight edge

Calculations for template offset

Template

d D

Guide bush fitted to router

FORMULA (D-d)

E =

Alternatively it can be used for cutting shapes or making panelling grooves.

Template

Template guide bush

Workpiece

Guide bush ring

Cutter

-18-

Page 21

Beam Trammel Routing Optional Accessory Ref. BEAM/002

T10 & T11

Cutting Arcs with the Router

n Fit the beam trammel (1) to the router

base (3).

n Place the machine on the workpiece

and ensure pin on beam trammel will pierce the workpiece surface.

n Measure the radius and fix the point

of the beam trammel in position.

n Fasten the beam trammel (1) in the

routing base (3) with the thumb knob (4).

n Set the cutting depth using

the depth stop dial (2).

n Switch on the machine. n After releasing the plunge locking

lever (5), lower the machine slowly as far as the depth stop and lock it there.

n Cut grooves, rebates etc. at a steady

rate of feed, in an anti-clockwise direction.

n When finished, release plunge locking

lever (5) to raise the machine.

n Switch off the machine.

-19-

Page 22

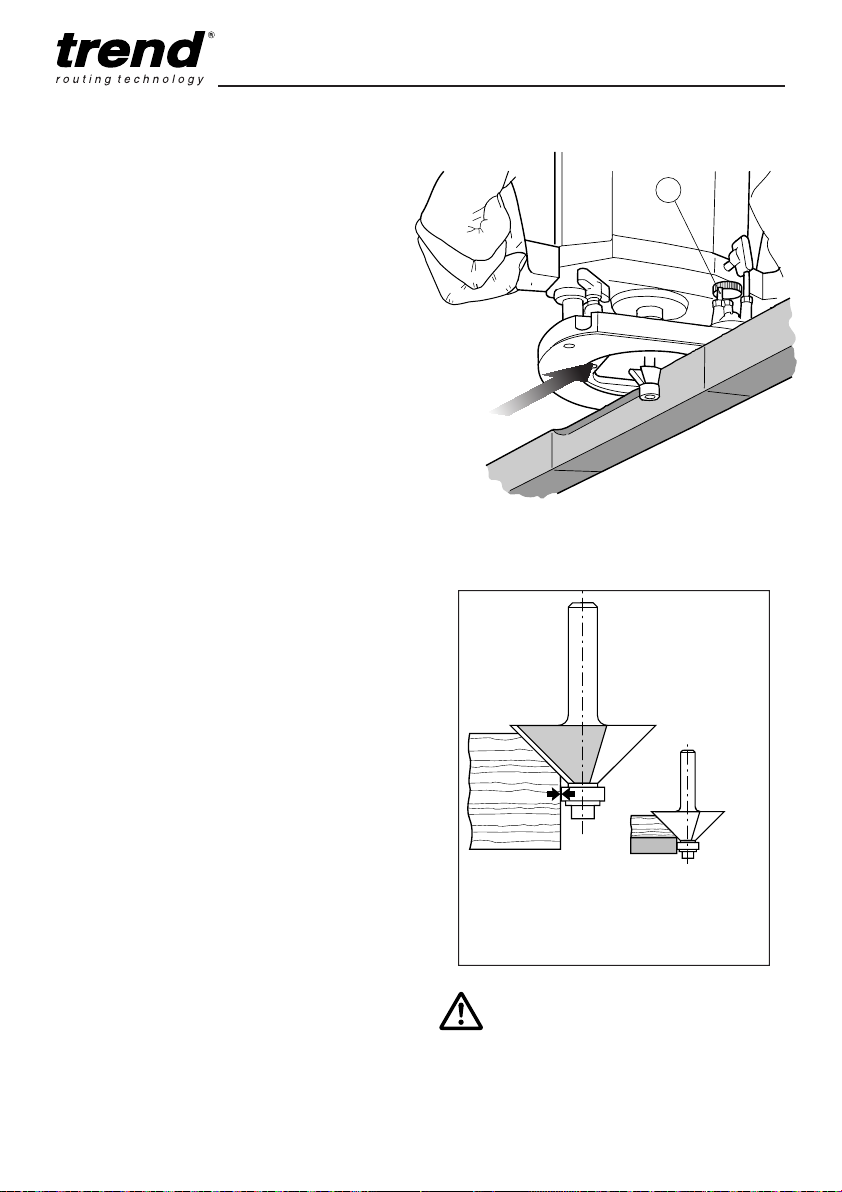

Bearing Guided Cutter Routing

Edge profiling and shaping cutters are available with a bearing fitted to the end. This enables shaped or straight workpieces to be routed without the need for a guiding device such as a side-fence or batten.

The edge must be free from imperfections as these will be reflected in the finish of the mould. Often alternative diameters of bearings are offered which will change the shape of the resulting mould.

With certain shapes such as the chamfer cutter below, increasing the depth of cut will produce a larger chamfered edge.

n Fit the bearing guided cutter into the router

collet.

n Place router onto the workpiece. n Set height of cutter using the depth stop (1). n Switch on the machine. n After releasing the plunge locking lever, lower

the machine slowly as far as the depth stop.

n With bearing of cutter running along board

edge, mould the edge of the workpiece by moving the router in the direction shown.

n A continuous motion should be used to

prevent burning of the workpiece. When possible, take a number of passes at increased cutter depths. A light final pass will produce a good finish.

n When complete, retract the carriage by

releasing the plunge locking lever.

n Switch off the router.

T10 & T11

The guide bearing ensures the cutter follows the workpiece.

Where the material thickness leaves insufficient room for the bearing to make contact, a second piece of material can be temporarily fixed beneath it for the ball bearing to follow.

CAUTION: Keep downward pressure with the inside hand to prevent the router from tipping.

-20-

Page 23

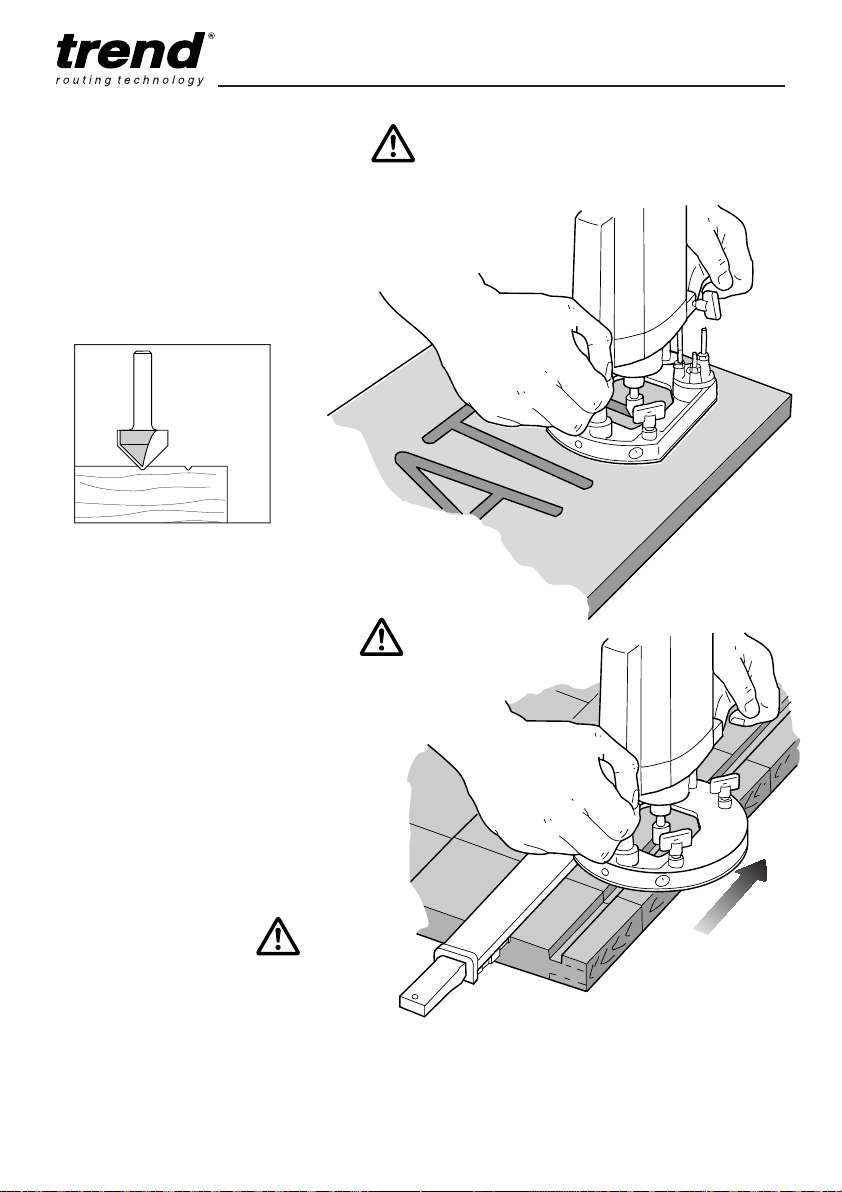

Freehand Routing with the Router

The router can also be used for sign writing or creative freehand work without any form of guide.

With practice, numbers or name plate designs can be routed freehand. Draw the design or motif on the workpiece and then rout the design, taking shallow passes.

A v-groove cutter is ideal for engraving designs at shallow depths.

Clamp Guide and Batten Routing

Where a side fence cannot be used, it is also possible to guide the router along a Clamp Guide or batten clamped across the workpiece. The Clamp Guides have built in clamping.

T10 & T11

Use the straight edge of the router base and calculate the distance required from the edge of the Clamp Guide to the cut required.

After use, remove all accessories, and return tool to its packaging.

Optional Accessories

Since accessories other than those offer by Trend, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury only Trend, recommended accessories should be used with this product.

Please use only Trend original accessories.

Standard technique is used,

and side pressure applied to

ensure the router does not

wander from the Clamp Guide.

-21-

Page 24

T10 & T11

MAINTENANCE

Cleaning

n Keep the machine clean at all times. Some

maintenance products and solvents may damage the plastic parts, these include products containing Benzene, Trichloroacetyl Chloride and Ammonia.

n Never use any caustic agents to clean the

plastic parts.

Changing Brushes

WARNING: Ensure machine is isolated from power supply.

The carbon brushes will need replacing when they become worn to a certain limit.

ELECTRONIC

WARNING: It is advisable to have the brushes replaced by an authorised Trend Service Agent. The router will also be given a thorough inspection.

n Undo the two screws and take off the top

cover. Then undo the two screws and move variable speed control out of the way.

n Undo the screws holding the brush holder

clamp and remove holder with brush.

n Remove leads, pull on brush tab and remove

brush and fit new brush into holder. Then refit lead and replace brush assembly into the housing.

n Refit brush holder cover and screws. n Refit speed control to position and secure with

screws and replace cover and secure with screws.

n Always use original T10/T11 spare parts.

Lubrication

n The bearings of the machine need no

lubrication, as they are sealed. The two plunge columns on the routing base should be slightly oiled from time to time.

n Keep the cooling vents on the motor housing

clean and unobstructed at all times. Blow out any dust and dirt at regular intervals.

n Visually check the carbon brushes. In the

event of excessive sparking, they may need changing.

n After about 40 operating hours inspection

by a authorised Trend service agent is recommended.

Storage

n After use return the tool to its storage case.

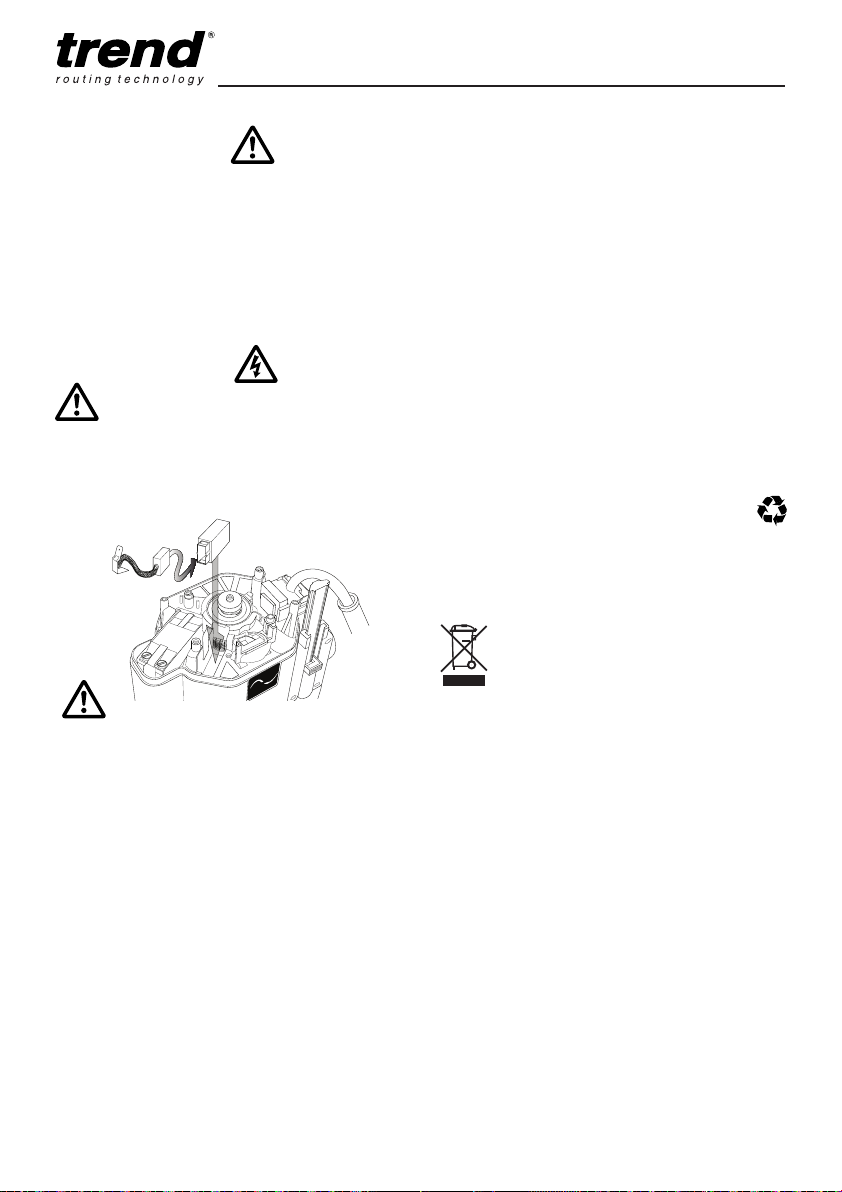

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing as waste.

Accessories and packaging should be sorted for environmental-friendly recycling.

Separate collection. This product must not be disposed of with normal household waste.

Household User

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by retailer when you purchase a new product.

Please call Trend Customer Services for advice as to how to dispose of unwanted Trend electrical products in an environmentally safe way or visit www.trend-uk.com

Business Users

Please call Trend Customer Services for disposal of unwanted Trend electrical products.

GUARANTEE

The unit carries a manufacturers guarantee in accordance with the conditions on the enclosed guarantee card.

For the location of your nearest Trend Service Agent, please call Trend Customer Services or see our stockist locator at www.trend-uk.com.

-22-

Page 25

Please use only Trend original spare parts.

T10 & T11

T10 & T11- SPARE PARTS LIST

v5.0 04/2015

No. Qty. Desc. Ref.

1 1 Armature 115V T10/T11EL c/w Fan >10/09 to 07/15 WP-T10EL/001A 1 Armature 240V T10/T11E c/w Fan >10/09 to 07/15 WP-T10E/001A 1 Armature 115V T10EL & T11EL c/w Fan >08/15 WP-T10EL/001B 1 Armature 230V T10E & T11E c/w Fan >08/15 WP-T10E/001B 2 1 Field Coil 115V T10EL & T11EL >10/09 to 07/15 WP-T10EL/002A 1 Field Coil 230V T10E & T11E >10/09 to 07/15 WP-T10E/002A 1 Field Coil 115V T10EL & T11EL >08/15 WP-T10EL/002B 1 Trend Coil 230V T10E & T11E >08/15 WP-T10E/002B 3 1 Switch WP-T10E/003 4 2 Carbon Brush 115V (1 pair) <10/09 WP-T10EL/004 2 Carbon Brush 240V (1 pair) <10/09 WP-T10E/004 2 Carbon Brush 115V (1 pair) T10EL & T11EL >10/09 WP-T10EL/004A 2 Carbon Brush 240V (1 pair) T10E & T11E >10/09 WP-T10E/004A 5 1 2 Core Cable Only 115V UK T10L & T11L WP-T10L/005 1 2 Core Cable with Plug 230V UK T10 & T11 WP-T10/005 1 2 Core Cable with Plug 230V Euro T10&T11/EURO WP-T10EUR/005 6 2 Brush Holder <10/09 WP-T10/006 2 Brush Holder >10/09 WP-T10/006A 7 1 Top Vent Housing WP-T10/007 8 1 Field Housing <07/15 WP-T10/008 1 Field Housing >08/15 WP-T10/008A 9 2 Lead Field to Brush 115V (Yellow x 95mm) <07/15 WP-T10L/009 2 Lead Field to Brush 230V (Yellow x 175mm) <07/15 WP-T10/009 2 Lead Field to Brush 115V (Yellow x 95mm) >08/15 WP-T10L/009A 2 Lead Field to Brush 230V (Yellow x 95mm) >08/15 WP-T10/009A 10 1 Lead Speed Control (Red x 100mm F90-M) WP-T10/010 11 1 Switch Lever WP-T10/011 12 1 Machine Screw Csk M4 x 6mm Phillips WP-T10/012 13 1 Switch Slider WP-T10/013 14 2 Brush Holder Clamp WP-T10/014 15 4 Screw Self Tapping Pan 3.8mm x 12mm Phillips WP-T10/015 16 1 Top Bearing 12 x 32 x 10mm 6201-2RSL <07/15 WP-T10/016 1 Top Bearing 8 x 22 x 7mm 608-2RS >08/15 WP-T10/016A 17 1 Circlip <07/15 WP-T10/017 18 2 Screw Self Tapping Dome 4mm x 25mm Phillips WP-T10/018 19 1 Cable Guard 115V T10L & T11L WP-T10L/019 1 Cable Guard 240V T10 & T11 WP-T10/019 20 4 Bolt Pan M5 x 68mm Phillips WP-T10/020 21 4 Washer Split M5 WP-T10/021 22 2 Screw Self Tapping Pan 3.2mm x 13mm Phillips WP-T10/022 23 1 Cable Clamp WP-T10/023 24 1 Lead Switch to Field (Red x 95mm F-M) WP-T10/024

For Armature & Field Coil T10E(L) & T11E(L) <10/09 see No.114.

-23-

Page 26

T10 & T11

T10 & T11 - SPARE PARTS LIST

No. Qty. Desc. Ref.

26 1 Depth Stop Support (Left Hand) WP-T10/026 27 1 Depth Stop Support (Right Hand) WP-T10/027 28 1 Depth Stop Lens WP-T10/028 29 4 Screw Self Tapping Dome 3.8mm x 14mm PH WP-T10/029

30 1 Half Nut Hex M12 WP-T10/030 31 2 Screw Self Tapping Dome 4.8mm x 63mm PH WP-T10/031 32 1 Fan Baffle <07/15 WP-T10/032 1 Fan Baffle >08/15 WP-T10/032A 33 1 Fan <07/15 WP-T10/033 1 Fan >08/15 WP-T10/033A 35 1 Plunge Lock Lever WP-T10/035 36 1 Spacer for Revolving Guide WP-T10/036 37 1 Spring for Plunge Lever WP-T10/037 38 1 Plunge Lever Bolt WP-T10/038 40 2 Machine Screw Csk M8 x 35mm Phillips WP-T10/040 41 1 Handle Left WP-T10/041 42 1 Lower Bearing Housing T10 WP-T10/042 1 Lower Bearing Housing T11 WP-T11/042 43 6 Machine Screw Csk M4 x 8mm Phillips WP-T10/043 44 1 Domed Nut Hex M12 WP-T10/044 45 1 Knurled Nut Outer WP-T10/045 46 1 Depth Stop WP-T10/046 47 1 Scale Label WP-T10/047 48 1 Depth Stop Adjustment Knob WP-T10/048 49 1 Handle Right WP-T10/049 50 1 Depth Stop Locking Plate WP-T10/050 51 1 Depth Stop Locking Knob WP-T10/051 52 2 Spring for Depth Stop Nut WP-T10/052 53 1 Washer 6.6mm x 12mm x 1.6mm WP-T10/053 54 1 Slider for Depth Stop Nut WP-T10/054 55 1 Bearing 25mm x 47mm x 12mm 6005-2RSLTN9 WP-T10/055 56 1 Spindle Lock Housing WP-T10/056 57 3 Machine Screw Pan M4 x 8mm Phillips WP-T10/057 58 1 Bearing Lock Nut WP-T10/058 59 1 Collet 12mm (Europe) CLT/T10/12 1 Collet 12.7mm (UK & Eire) CLT/T10/127 60 1 Collet Nut CLT/NUT/T10 61 2 Plunge Spring WP-T10/061 62 2 Plunge Spring Rod WP-T10/062 64 1 Spring for Depth Stop WP-T10/064 65 1 Depth Stop for Micro Adjustment Screw WP-T10/065 66 1 Machine Screw for Revolving Guide WP-T10/066 67 68 5 Nut Hex M5 WP-T10/068

1 Threaded Pin M5 x 18mm WP-T10/067

v5.0 04/2015

-24-

Page 27

T10 & T11

T10 & T11 - SPARE PARTS LIST

No. Qty. Desc. Ref.

69 1 Threaded Pin M5 x 22mm WP-T10/069

70 1 Washer Dished 6.35mm x 12.5mm x 0.5mm WP-T10/070 71 1 Threaded Pin M5 x 35mm WP-T10/071 72 1 Revolving Guide WP-T10/072 73 1 Ball for Revolving Guide WP-T10/073 74 1 Spring for Revolving Guide WP-T10/074 78 1 Base Casting Complete T10 WP-T10/078 1 Base Casting Complete T11 WP-T11/078 79 1 Side Fence Micro Adjuster Scale WP-T10/079 80 1 Phenolic Slider Base T10 WP-T10/080 1 Phenolic Slider Base T11 WP-T11/080 81 5 Spring for Thumb Knob WP-T10/081 82 1 Side Fence Micro Adjuster Screw WP-T10/082 83 1 Spindle Lock Spring WP-T10/083 84 1 Guide Rods 10mm x 360mm (Pair) ROD/10X360 85 5 Thumb Knob Male M6 x 15mm WP-T10/085 86 2 Side Fence Cheek WP-T10/086 87 1 Side Fence Complete T10 WP-T10/087 1 Side Fence Complete T11 WP-T11/087 88 4 Washer 5.5mm x 9.5mm x 1.0mm WP-T10/088 89 1 Capacitor <10/09 WP-T10/089 1 Capacitor >10/09 WP-T10/089A 90 4 Washer Spring <07/15 WP-T10/090 91 1 Side Fence Bridge with Adjuster T10 WP-T10/091 1 Side Fence Bridge with Adjuster T11 WP-T11/091 92 1 Spindle Lock Button WP-T10/092 93 5 Machine Screw Pan M5 x 15mm Phillips WP-T10/093 94 1 Speed Control Dial WP-T10E/094 95 2 Machine Screw Csk M5 x 10mm Phillips WP-T10/095 98 1 Magnet for Speed Control WP-T10E/098 101 1 Spanner 22mm A/F SPAN/22 102 1 Side Fence Body WP-T10/102 103 1 Speed Control Board 115V T10EL &T11EL WP-T10EL/103 1 Speed Control Board 230V T10E &T11 WP-T10E/103 104 3 Washer Split Spring M4 WP-T10/104 105 1 Lead Switch to Speed Control (Red x 110mm F-F) WP-T10/105 106 1 Lead Switch to Speed Control (Red x 105mm M/F-F) WP-T10/106 107 1 Dust Spout T10 WP-T10/107 1 Dust Spout T11 WP-T11/107 109 1 Dust Spout Clip WP-T10/109 110 1 Dust Spout Retaining Clip WP-T10/110 111 2 Machine Screw Pan M5 x 12mm Slot WP-SCW/42 112 1 Screw Self Tapping Pan 4mm x 32mm Phillips WP-T10/112 113 1

Spacer

WP-T10/113

v5.0 04/2015

-25-

Page 28

T10 & T11

T10 & T11 - SPARE PARTS LIST

No. Qty. Desc. Ref.

114 0 Armature Kit 115V <10/09 T10EL & T11EL WP-T10EL/AK 0 Armature Kit 230V <10/09 T10E & T11E WP-T10E/AK 117 1 Manual T10 & T11 MANU/T10 118 1 Inner Plate T10 WP-T10/075 1 Inner Plate T11 WP-T9/075 119 2 Machine Screw Csk M5 x 8mm Slot WP-SCW/09 120 2 Machine Screw Cheese M5 x 8mm Slot WP-SCW/98 121 1 Line up Pin 12mm & 1/2” WP-T9/090 123 1 Guide Bush 30mm x 10mm GB30/A

FOR T11

124 1 Stud for Table Height Adjustment T11 <10/05 WP-T11/124 124A 1 Stud for Table Height Adjustment T11 >11/05 WP-T11/124A 125 2 End Cap Hex for Stud T11 <10/05 WP-T11/125 125A 2 End Cap Hex for Stud T11 >10/05 WP-T11/125A 126 1 Barrel Nut for Table Height Adjustment T11 WP-T11/126 127A 2 Hi-tensile 8.8 Machine Screw for Hex Nut >10/05 T11 WP-T11/127A 128 1 Table Fine Height Adjuster T11 WP-T11/128 129 2 Sintered Bush for Table Height Adjustment T11 WP-T11/129 130 0 Stud and Hex Conversion Kit <10/05 WP-T11/130

SERVICE NOTE FOR T11 PRE (<) OCT 2005

Pre Oct 2005 T11 Quick Raiser shaft hex nuts are factory set. The bottom (base) hex nut and top hex nut are both permanently glued and tightened to a torque of 22Nm. To remove hex nuts, ensure a socket is used on each end of the shaft. Remove top hex nut first.

When servicing the tool, please ensure the correct adhesive and torque setting is used.

v5.0 04/2015

Please note:

The shaft has been designed to have a

1.2mm float in the sintered bushes.

Please contact Trend Customer Services for further information.

FOR T11 POST (>) OCT 2005

Post Oct 2005 T11 has a splined Quick Raiser shaft and hex nuts. The hex nuts are held by Hi-tensile 8.8 class Torx® machine screws which have been permanently glued with Locktite® 270 and tightened to torque 2.1Nm to 2.5Nm.

When servicing the tool, please ensure the correct adhesive and torque setting is used.

-26-

Page 29

T10 & T11

T10 & T11 - SPARE PARTS DIAGRAM v5.0 04/2015

Please use only Trend original spare parts.

ORIGINAL

INSTRUCTIONS

118

-27-

Armature Kit - post Oct 2009

Nos. 1, 2, 3, 4, 6, 89

114

Page 30

T10 & T11

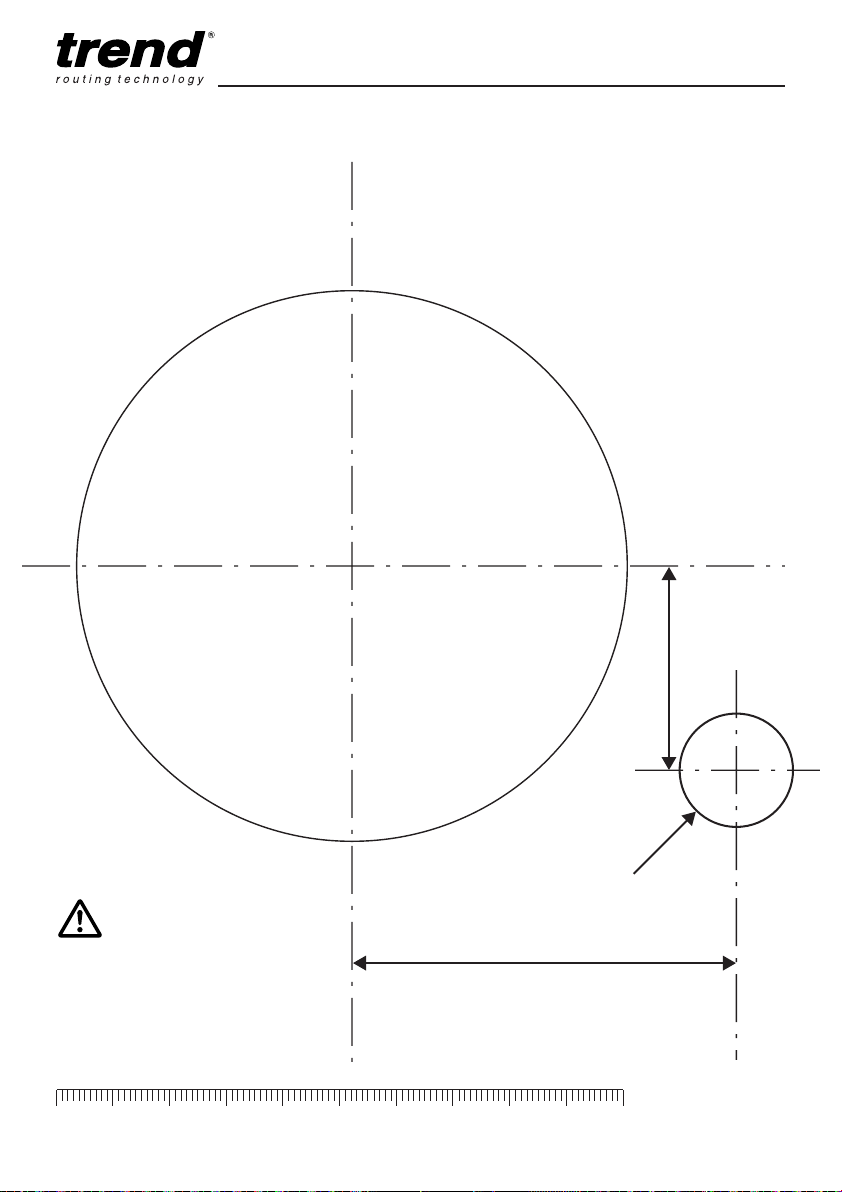

T11 Fine Height Adjuster Fitting Hole Position

36mm

Actual Size

Ø 20mm

Check this scale to a rule to ensure actual size, before use as a drilling template.

Actual Size

0 10 20 30 40 50 60 70 80 90 100

-28-

68mm

Page 31

Page 32

Trend Machinery & Cutting Tools Ltd.

Odhams Trading Estate St Albans Road Watford WD24 7TR England

Tel: 0044(0)1923 249911

MANU/T10 v6.1

Trend Machinery and Cutting Tools cannot be held liable for any material rendered unusable or any form of consequential loss. E&OE

prior permission. Our policy of continuous improvement means that specifications may change without notice.

RECYCLABLE

® All registered trademarks acknowledged.

[email protected] www.trend-uk.com

N591762 03/18
