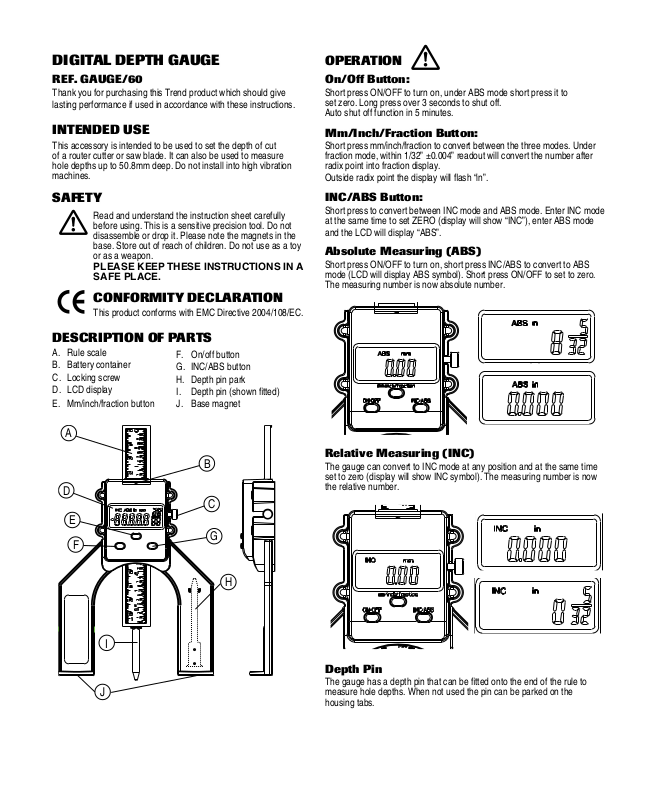

DIGITAL DEPTH GAUGE
REF. GAUGE/60
Thank you for purchasing this Trend product which should give
lasting performance if used in accordance with these instructions.
INTENDED USE
This accessory is intended to be used to set the depth of cut
of a router cutter or saw blade. It can also be used to measure
hole depths up to 50.8mm deep. Do not install into high vibration
machines.
SAFETY
Read and understand the instruction sheet carefully
before using. This is a sensitive precision tool. Do not
disassemble or drop it. Please note the magnets in the
base. Store out of reach of children. Do not use as a toy
or as a weapon.
PLEASE KEEP THESE INSTRUCTIONS IN A
SAFE PLACE.
CONFORMITY DECLARATION
This product conforms with EMC Directive 2004/108/EC.
DESCRIPTION OF PARTS
A. Rule scale
B. Battery container
C. Locking screw
D. LCD display
E. Mm/inch/fraction button
F. On/off button
G. INC/ABS button
H. Depth pin park
I. Depth pin (shown fitted)
J. Base magnet
OPERATION
On/Off Button:
Short press ON/OFF to turn on, under ABS mode short press it to
set zero. Long press over 3 seconds to shut off.
Auto shut off function in 5 minutes.
Mm/Inch/Fraction Button:
Short press mm/inch/fraction to convert between the three modes. Under
fraction mode, within 1/32” ±0.004” readout will convert the number after
radix point into fraction display.
Outside radix point the display will flash “in”.
INC/ABS Button:
Short press to convert between INC mode and ABS mode. Enter INC mode
at the same time to set ZERO (display will show “INC”), enter ABS mode
and the LCD will display “ABS”.
Absolute Measuring (ABS)
Short press ON/OFF to turn on, short press INC/ABS to convert to ABS
mode (LCD will display ABS symbol). Short press ON/OFF to set to zero.
The measuring number is now absolute number.
Relative Measuring (INC)
The gauge can convert to INC mode at any position and at the same time
set to zero (display will show INC symbol). The measuring number is now
the relative number.
Depth Pin
The gauge has a depth pin that can be fitted onto the end of the rule to
measure hole depths. When not used the pin can be parked on the
housing tabs.
Scale Rule
Locking Knob
n Rotate knob clockwise
to tighten the
scale rule.
n Rotate knob
anti-clockwise it to
loosen the scale rule.
Battery Fitting and Replacement
n To fit or replace battery pull the tab on the top of the LCD.
n Pull out the battery container.
n Remove the old battery. Insert the new battery type CR2032 3v.
n Ensure negative pole of the battery is uppermost. The positive pole is
on the underside of the battery.
n Push the battery container back in carefully do not tilt or twist.
Pull
Negative pole
uppermost
Push
Battery Care
WARNING!
Insert battery correctly. Keep batteries away from
children. Do not swallow, open, recharge, or expose to water, fire or high
temperature: may explode. Leak and cause damage.
TROUBLE SHOOTING
Problem Possible Cause Solution
No display or Lower voltage, no Reinstall battery
ambiguous reading. battery or incorrect or replace battery.
installation of battery.
Flashing number Low voltage Replace battery.
Number skip Remove battery,
or frozen display. Internal error. wait one minute
and replace.
Frozen display and One of the buttons Release stuck button
buttons not working. may be stuck. by gently sliding up
or down slightly.
MAINTENANCE
The depth gauge has been designed to operate for a long period of time
with the minimum of maintenance. Continual satisfactory operation depends
upon proper tool care and regular cleaning. To guarantee the accuracy do
not drop or cause other forms of impact on the gauge.
Cleaning
n Clean with a soft cloth. Do not to use the organic solvent to clean
the gauge. Take care to protect against water and corrosion.
Do not disassemble.
Storage
n Return to packaging after use. Store in a dry place, temperature should
between –5°C +50°C and relative humidity not over 90%.
GUARANTEE
All Trend products guaranteed against any defects in either workmanship
or material, except products that have been damaged due to improper
use or maintenance.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing as waste. Packaging should
be sorted for environmental-friendly recycling.
Separate collection. This product must not be disposed of
with normal household waste.
Household User
Local regulations may provide for separate collection of electrical products
from the household, at municipal waste sites or by the retailer when you
purchase a new product. Please call Trend Customer Services for advice
on how to dispose of unwanted Trend electrical product in an environmentally
safe way or visit www.trend-uk.com
Business User
Please call Trend Customer Services for advice on how to dispose of
unwanted Trend electrical product in an environmentally safe way or visit
www.trend-uk.com
Batteries and the Environment
This unit uses Lithium Ion (Li-Ion) batteries. When battery
pack needs replacing, we recommend the following:
Discharge the energy from the batteries by running the
Li-lon
batteries down completely and then remove from the tool.
Li-Ion cells are recyclable: so do not throw them away with your household
waste. They may end up in an incinerator or landfill, which must be avoided.
Instead, take the batteries to a Trend Service Agent, your local Stockist or a
local recycling station. If necessary contact your local municipality for disposal
information. The collected batteries will be disposed of properly and/or used
for recycling purposes.
TECHNICAL DATA
Measuring Range: 0 - 80mm (0 - 3 1/8") Hole Depth: 0 – 50.8mm (0 –2")
Working Temperature: 0°C~+ 50°C Working Humidity: ‹85%RH
Working Currency: <100uA Resolution: 0.05mm (0.002")
Accuracy: 0.1mm (0.004") Repeatability: 0.1mm (0.004")
Max Speed: 1.5m/s (60in/s) Battery: CR2032 3V Lithium Battery
Power Life: 1500 hrs Protection Level: IP50
Shipping & Storage Temperature: 10°C to + 70°C EMC Level: 2
Weight: 92g
Denotes risk of personal injury, loss of life or damage to
the tool in case of non-observance of the instructions.
The attention of UK users is drawn to The Provision and Use of Work
Equipment Regulations 1998, and any subsequent amendments.
Users should also read the HSE/HSC Safe Use of Woodworking
Machinery Approved Code of Practice and Guidance Document and any
amendments. Users must be competent in using woodworking equipment
before using our products.
PP C/GAUGE/D60 V1.0
