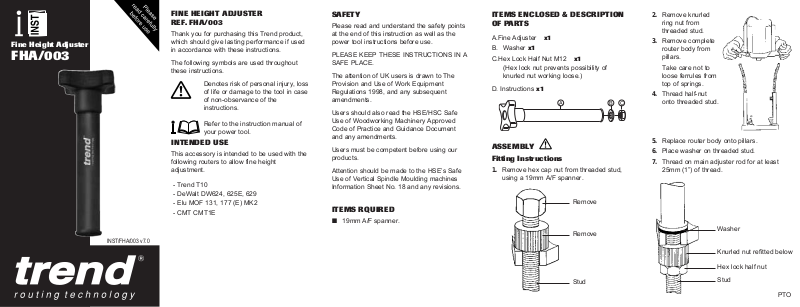

Trend FHA/003 User guide

Fine Height Adjuster

FHA/003

INST/FHA/003 v7.0

FINE HEIGHT ADJUSTER
REF. FHA/003

Thank you for purchasing this Trend product,
which should give lasting performance if used
in accordance with these instructions.

The following symbols are used throughout
these instructions.

Denotes risk of personal injury, loss
of life or damage to the tool in case
of non-observance of the
instructions.

Refer to the instruction manual of
your power tool.

INTENDED USE

This accessory is intended to be used with the
following routers to allow fine height
adjustment.

- Trend T10

- DeWalt DW624, 625E, 629

- Elu MOF 131, 177 (E) MK2

- CMT CMT1E

SAFETY

Please read and understand the safety points
at the end of this instruction as well as the
power tool instructions before use.

PLEASE KEEP THESE INSTRUCTIONS IN A
SAFE PLACE.

The attention of UK users is drawn to The
Provision and Use of Work Equipment
Regulations 1998, and any subsequent
amendments.

Users should also read the HSE/HSC Safe
Use of Woodworking Machinery Approved
Code of Practice and Guidance Document
and any amendments.

Users must be competent before using our
products.

Attention should be made to the HSE’s Safe
Use of Vertical Spindle Moulding machines
Information Sheet No. 18 and any revisions.

ITEMS RQUIRED

n 19mm A/F spanner.

ITEMS ENCLOSED & DESCRIPTION
OF PARTS

A.Fine Adjuster x1

B. Washer x1

C.Hex Lock Half Nut M12 x1

(Hex lock nut prevents possibility of
knurled nut working loose.)

D. Instructions x1

A

ASSEMBLY

Fitting Instructions

1. Remove hex cap nut from threaded stud,

using a 19mm A/F spanner.

Remove

Remove

Stud

2. Remove knurled

ring nut from
threaded stud.

3. Remove complete

router body from
pillars.

Take care not to
loose ferrules from
top of springs.

4. Thread half-nut

CB

onto threaded stud.

5. Replace router body onto pillars.

6. Place washer on threaded stud.

7. Thread on main adjuster rod for at least

25mm (1”) of thread.

Washer

Knurled nut refitted below

Hex lock half nut

Stud

PTO

© Trend Machinery & Cutting Tools Ltd. 2012 E&OE
® All trademarks acknowledged

Trend Machinery & Cutting Tools Ltd.

Odhams Trading Estate St Albans Road
Watford WD24 7TR England

Tel: [phone]
[e-mail]
www.trend-uk.com

RECYCLABLE

RS 28982

Stockholding

& Supply

OPERATION

Having fixed cutter, plunge the router to
approximate position and then run the
adjuster rod down the threaded stud.
Your exact cutter depth is now obtained by
turning slowly anti-clockwise or clockwise.

Once required depth is obtained, the half­nut can be tightened against adjuster rod
for added security.

Until new routers are run in, some
resistance may occur when rotating the
adjuster rod clockwise. A simple remedy is
to apply a little hand pressure on the
opposing knob (ie the grip knob adjoining
locking lever) using the other hand to rotate
the rod.

Do not at any time rotate adjuster rod
clockwise if lock lever is engaged.
Do not undo hex nut located at base of
vertical stud on router.

Periodically remove the inverted router
from its router stand. Carefully remove the
router base from the housing to allow
removal of sawdust that can accumulate
inside the router.

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing
as waste.

Packaging should be sorted for
environmental-friendly recycling.
The product and its accessories at the end of
its life should be sorted for environmental­friendly recycling.

GUARANTEE

All Trend products are guaranteed against any
defects in either workmanship or material,
except products that have been damaged due
to improper use or maintenance.

MAINTENANCE

The accessory has been designed to operate
over a long period of time with minimum of
maintenance. Continual satisfactory operation
depends upon proper tool care and regular
cleaning.

Cleaning

n Keep the threads clear of resin build up.
n Regularly clean with a soft cloth.

Lubrication

n Your accessory requires no additional

lubrication.

Safety Points

1. Disconnect power tool and attachment from power supply when not in
use, before servicing, when making adjustments and when changing
accessories such as cutters. Ensure switch is in “off” position and
cutter has stopped rotating.

2. Read and understand instructions supplied with power tool, attachment
and cutter.

3. Current Personal Protective Equipment (PPE) for eye, ear and
respiratory protection must be worn. Keep hands, hair and clothes
clear of the cutter.

4. Before each use check cutter is sharp and free from damage. Do not
use if cutter is dull, broken or cracked or if any damage is noticeable or
suspected.

5. The maximum speed (nmax) marked on tool or in instructions or on
packaging shall not be exceeded. Where stated, the speed range
should be adhered to.

6. Insert the shank into the router collet at least all the way to the marked
line indicated on the shank. This ensures at least 3/4 of shank length is
held in collet. Ensure clamping surfaces are clean.

7. Check all fixing and fastening nuts, bolts and screws on power tool,
attachment and cutting tools are correctly assembled, tight and to
correct torque setting before use.

8. Ensure all visors, guards and dust extraction is fitted.

9. The direction of routing must always be opposite to the cutter’s
direction of rotation.

10. Do not switch power tool on with the cutter touching the workpiece.

11. Trial cuts should be made in waste material before starting any project.

12. Repair of tools is only allowed according to tool manufacturers
instructions.

13. Do not take deep cuts in one pass, take shallow passes to reduce the
side load applied to the cutter.

Please see

www.trend-uk.com/safety

Our policy of continuous improvements mean that
specifications may change without notice. Trend
Machinery & Cutting Tools Ltd. cannot be held liable for
any material rendered unusable, or for any form of
consequential loss.

for more safety advice.
