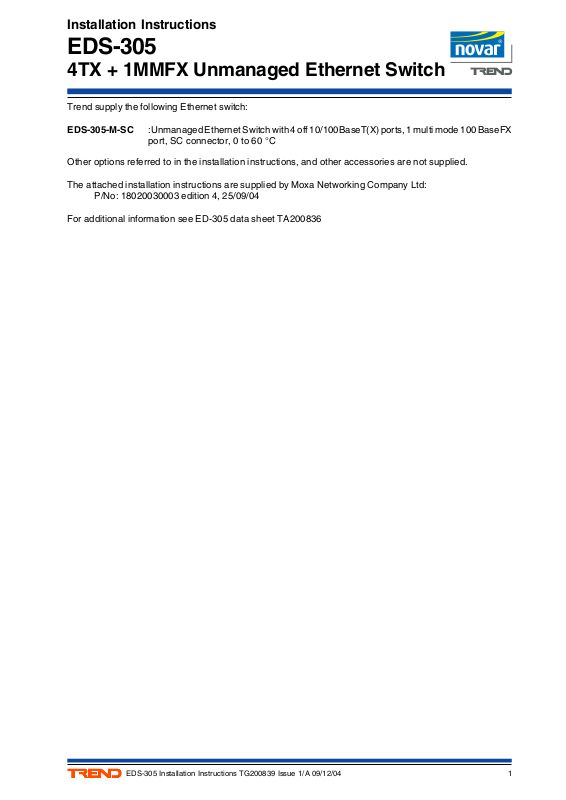

TREND EDS-305 User Manual
Installation Instructions
EDS-305
4TX + 1MMFX Unmanaged Ethernet Switch
Trend supply the following Ethernet switch:
EDS-305-M-SC :Unmanaged Ethernet Switch with 4 off 10/100BaseT(X) ports, 1 multi mode 100 BaseFX
port, SC connector, 0 to 60 °C
Other options referred to in the installation instructions, and other accessories are not supplied.
The attached installation instructions are supplied by Moxa Networking Company Ltd:
P/No: 18020030003 edition 4, 25/09/04
For additional information see ED-305 data sheet TA200836
EDS-305 Installation Instructions TG200839 Issue 1/A 09/12/04
1
EDS-205 Installation Instructions
This page is left intentionally blank
Trend Control Systems Ltd reserves the right to revise this publication from time to time and make changes to the content hereof
without obligation to notify any person of such revisions or changes.
Website www.trend-controls.com
Fax (UK) +44 (0)1403 241608
E-mail trendinfo@novar.com
2
P.O. Box 34, Horsham, West Sussex, RH12 2YF United Kingdom
Telephone +44 (0)1403 211888
Registered office. Novar House 24 Queens Road Weybridge Surrey KT13 9UX Registered in England No 1664519
Fax (International) +44 (0)1403 210982
EDS-305 Installation Instructions TG200839 Issue 1/A 09/12/04
MOXA EtherDevice Switch
EDS-308/305 Hardware Installation Guide
Fourth Edition, September 2004
Moxa Networking Co., Ltd.
Tel: +886-2-8919-1230
Fax: +886-2-8919-1231
www.moxa.com
support@moxanet.tw
support@moxa.com (The Americas)
(Worldwide)
P/N: 18020030003
Overview
The MOXA EtherDevice™ Smart Switches, EDS-308/305 Series, are 8- and 5- port Ethernet
Switches that provide an economical solution for your Ethernet connections, and the built-in smart
alarm function helps system maintainers monitor the health of your Ethernet network.
These products have a wide operating temperature range, from -40 to 75°C, and are designed to
withstand a high degree of vibration and shock. The rugged hardware design makes EDS-308/305
Series perfect for ensuring that your Ethernet equipment can withstand critical industrial
applications, such as in hazardous locations (Class 1 Division 2/ Zone 2), and complies with FCC,
TÜV, UL, and CE Standards.
NOTE
Throughout this Hardware Installation Guide, we use EDS as an abbreviation for MOXA
EtherDevice Switch:
EDS = MOXA EtherDevice Switch
Package Checklist
MOXA EtherDevice Switch is shipped with the following items. If any of these items is missing
or damaged, please contact your customer service representative for assistance.
! MOXA EtherDevice™ Switch
! Hardware Installation Guide
! MOXA Product Warranty booklet
! Protective caps for unused ports
Features
High Performance Network Switching Technology
! 10/100BaseT(X) (RJ45), 100BaseFX (SC type, Multi/Single mode
! IEEE 802.3/802.3u/802.3x
! Store and Forward switching process type, 1024 address entries
! 10/100M, Full/Half-Duplex, MDI/MDIX auto-sensing
Industrial Grade Reliablity
! Power failure, port break alarm by relay output
! Redundant dual DC power inputs
Rugged Design
! Operating temperature ranges from 0 to 60℃, or extended operating temperature from -40 to
75°C for (-T) models
! IP 30, rugged high-strength case
! DIN-Rail or panel mounting ability
— 1 —
Panel Layout of EDS-305 Series
EDS-305
Front Panel View
2
5
6
7
EDS-305-M-SC
Front Panel View
EDS-305-S-SC
Front Panel View
8
11
Top Panel View
1
V2+
PWR2
V2-
V1+
V1-
V1 V2 INPUTS: 24 VDC
FAULT
PWR1
2
3
PORT ALARM
12345
ON DIP
4
Rear Panel View
2
12
13
12
13
9
10
1. Grounding screw
2. Terminal block for power input P1/P2 and relay output
3. Heat dissipation orifices
4. DIP switches
5. Power input P1 LED
6. Power input P2 LED
7. Fault LED
8. 10/100BaseT(X) Port
9. TP port’s 100 Mbps LED
10. TP port’s 10 Mbps LED
1
11. Model Name
14
12. 100BaseFX Port
13. FX port’s 100 Mbps LED
14. Screw hole for wall mounting kit
15. DIN-Rail Kit
15
14
— 2 —
Panel Layout of EDS-308 Series
EDS-308
Front Panel View
2
EDS-308-M-SC
Front Panel View
EDS-308-SS-SC
Front Panel View
5
6
7
8
11
Top Panel View
1
V2+
V2-
2
V1+
V1-
V1 V2 INPUTS: 24 VDC
3
PORT ALARM
12345678
4
PWR2
FAULT
PWR1
ON DIP
5
12
6
7
12
13
13
9
10
NOTE: The appearance of EDS-308-S-SC is identical to
EDS-308-M-SC, and the appearance of EDS-308-MM-SC is
identical to EDS-308-SS-SC.
1. Grounding screw
2. Terminal block for power input P1/P2 and relay output
3. Heat dissipation orifices
4. DIP switches
5. Power input P1 LED
6. Power input P2 LED
Rear Panel View
2
7. Fault LED
1
8. 10/100BaseT(X) Port
9. TP port’s 100 Mbps LED
14
10. TP port’s 10 Mbps LED
11. Model Name
12. 100BaseFX Port
15
13. FX port’s 100 Mbps LED
14. Screw hole for wall mounting kit
15. DIN-Rail Kit
14
— 3 —
